Grape juice processing line grape juice making equipment Grape Juice Press Machine

Beyond Machinery is a leading supplier, manufacturer and exporter of grape juice production line. Grape juice is good for your health. This is what we have heard for many years, but now it is time for us to put it into practice. Many companies are developing grape juice processing plants to produce fresh fruit juice and other forms of this fruit. They need machines to turn this fruit into delicious forms, so as to find grape juice production line manufacturers, and they can get what they need.

Everything from grape juice to jam can be made from this fruit with the right equipment and technology. This is why there is a huge demand for reliable grape juice production line suppliers, who can provide the required machinery and equipment for these companies in a timely manner. As this machine has a lot of work to do, they must be correctly installed and carefully aligned to avoid any accidents. This is our image as the best exporter of grape juice processing plants. Since we have the most experienced team, we understand the importance of all stages in the process and closely observe them to ensure that the perfect product is delivered to you in the best state in time. If you want to know more, please feel free to contact us.

Grape juice processing line

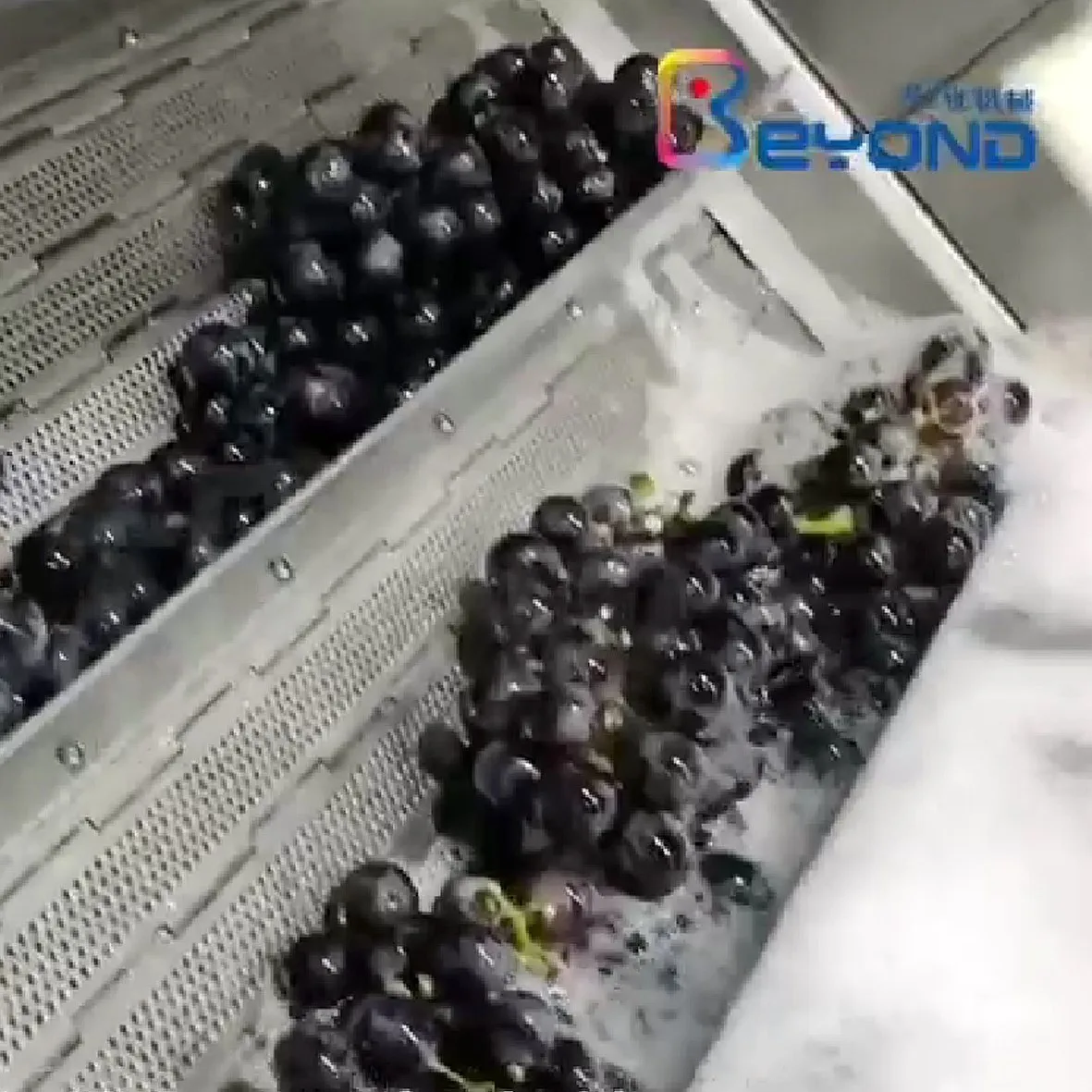

Washing machine: soak and wash grapes with water bath washing machine;

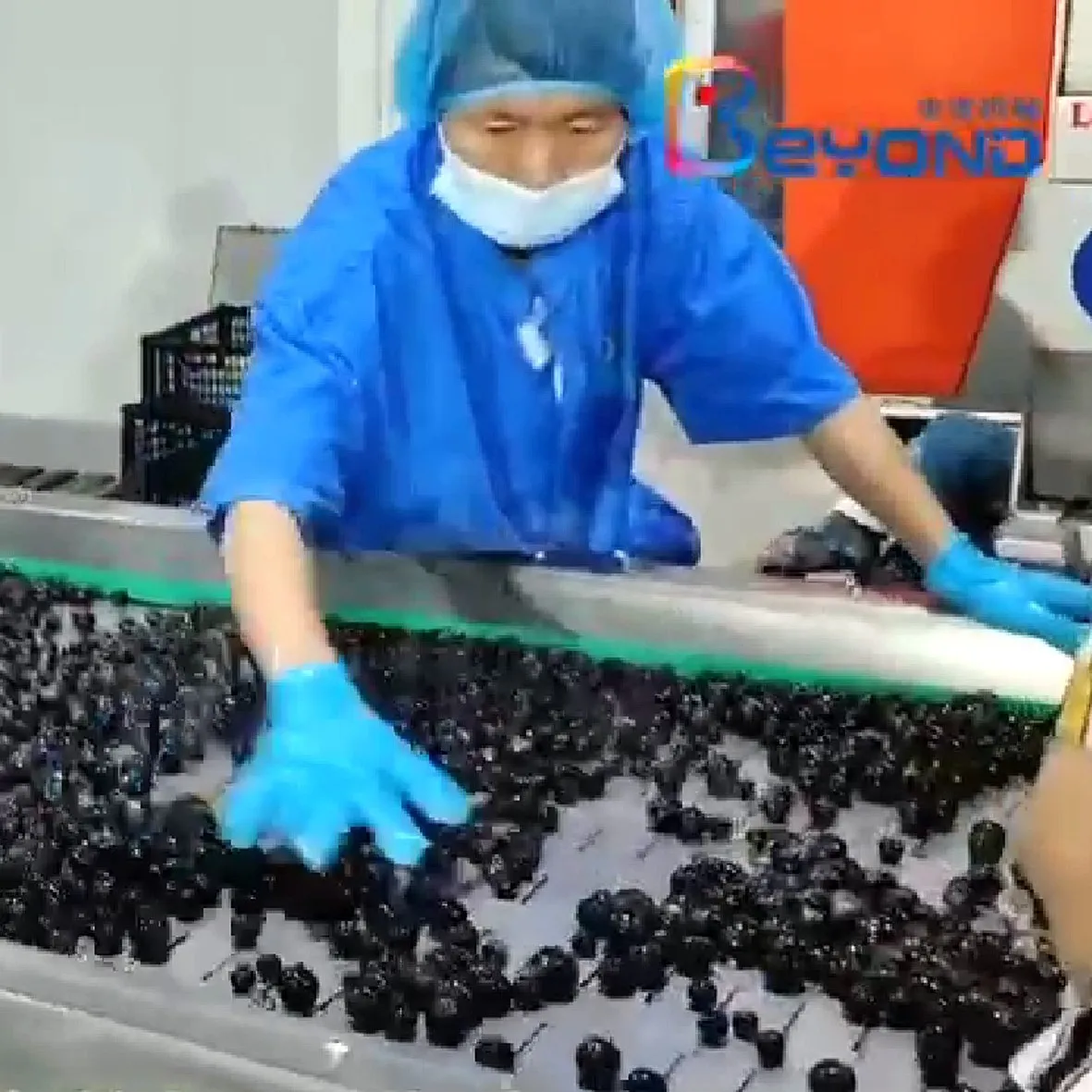

Picking belt: manual picking belt can facilitate multiple people to pick rotten grapes at the same time;

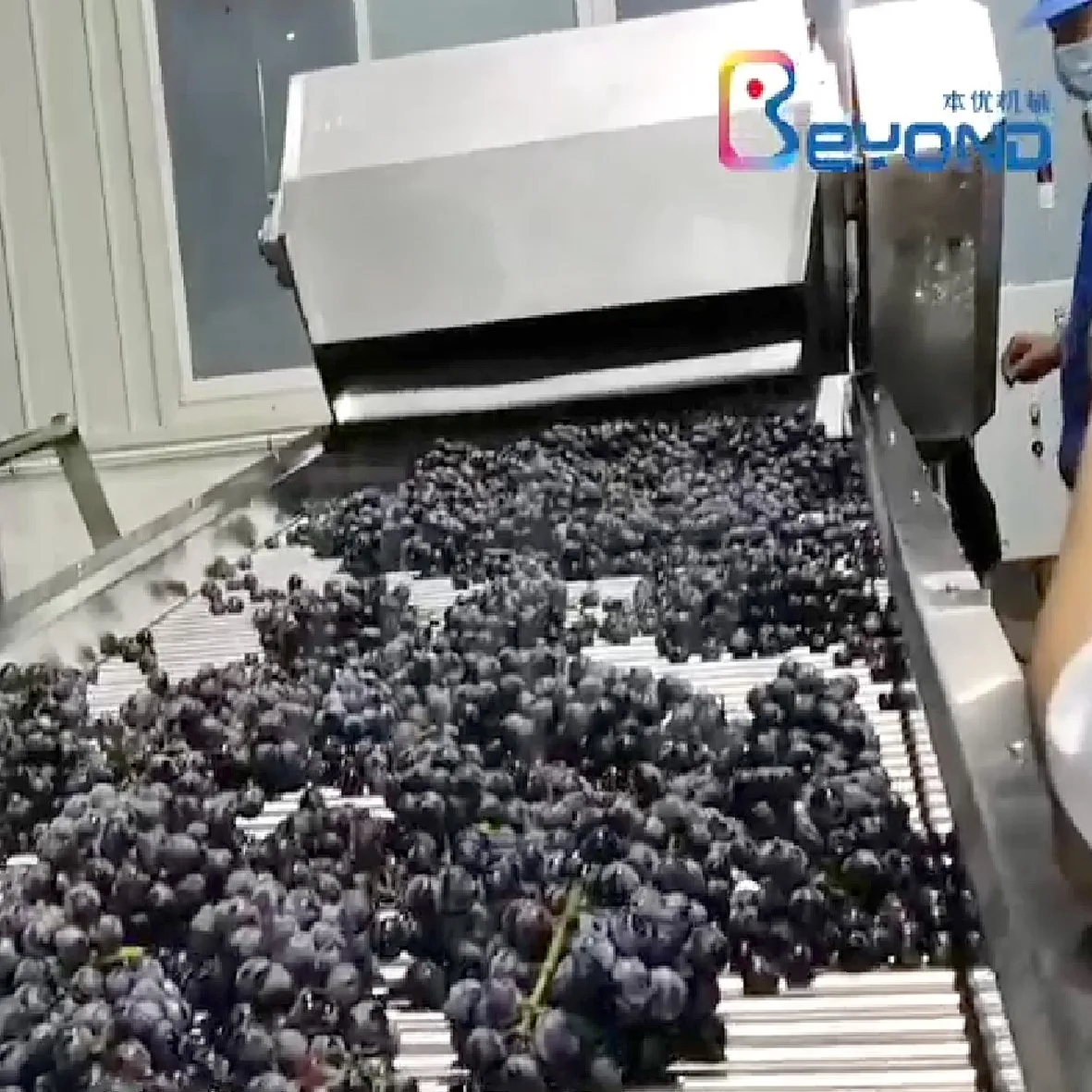

Conveyor: transport the selected grapes to the next process;

Grape stalk removing crusher: remove the grape stalk to prevent the grape stalk from entering the juice, which will have an adverse impact on the quality. At the same time, it also pre comminutes the grapes to facilitate transportation.

Grape pulping machine: grape juice needs a single channel pulping machine, which can automatically remove grape seeds from grapes;

Enzyme killer: it can inactivate polyphenol oxidase (PPO) and pectin methylesterase (PME) in grape juice, reduce browning in subsequent production process and slow down fermentation deterioration process.

Homogenizer: the function of the homogenizer is to fully break the grape juice into small droplets through high-speed mechanical force, help the emulsifier fully wrap the grape juice, form small emulsified particles and improve the stability of the product.

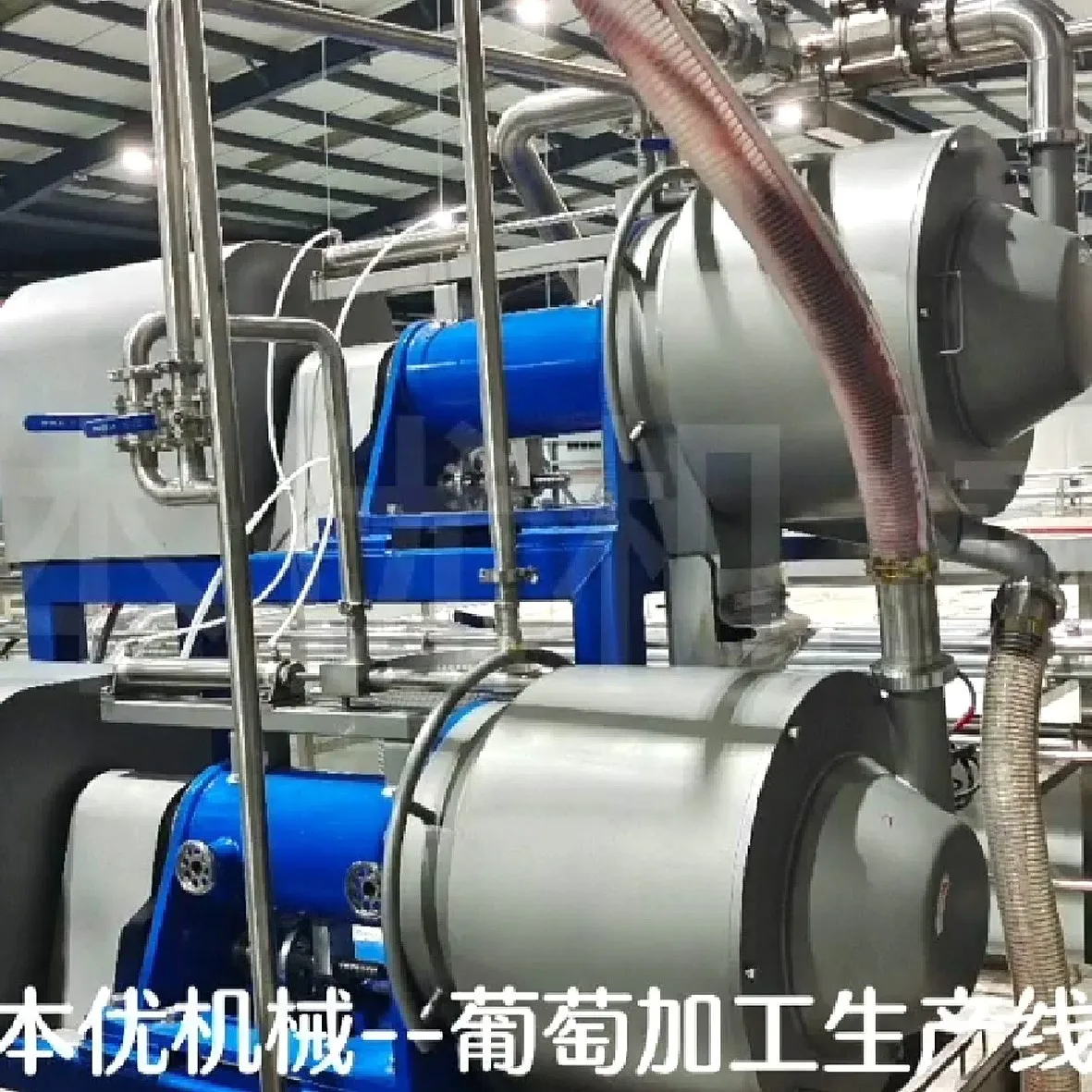

Degasser: degassing the grape juice to prevent the oxidation of grape juice and prolong the shelf life.

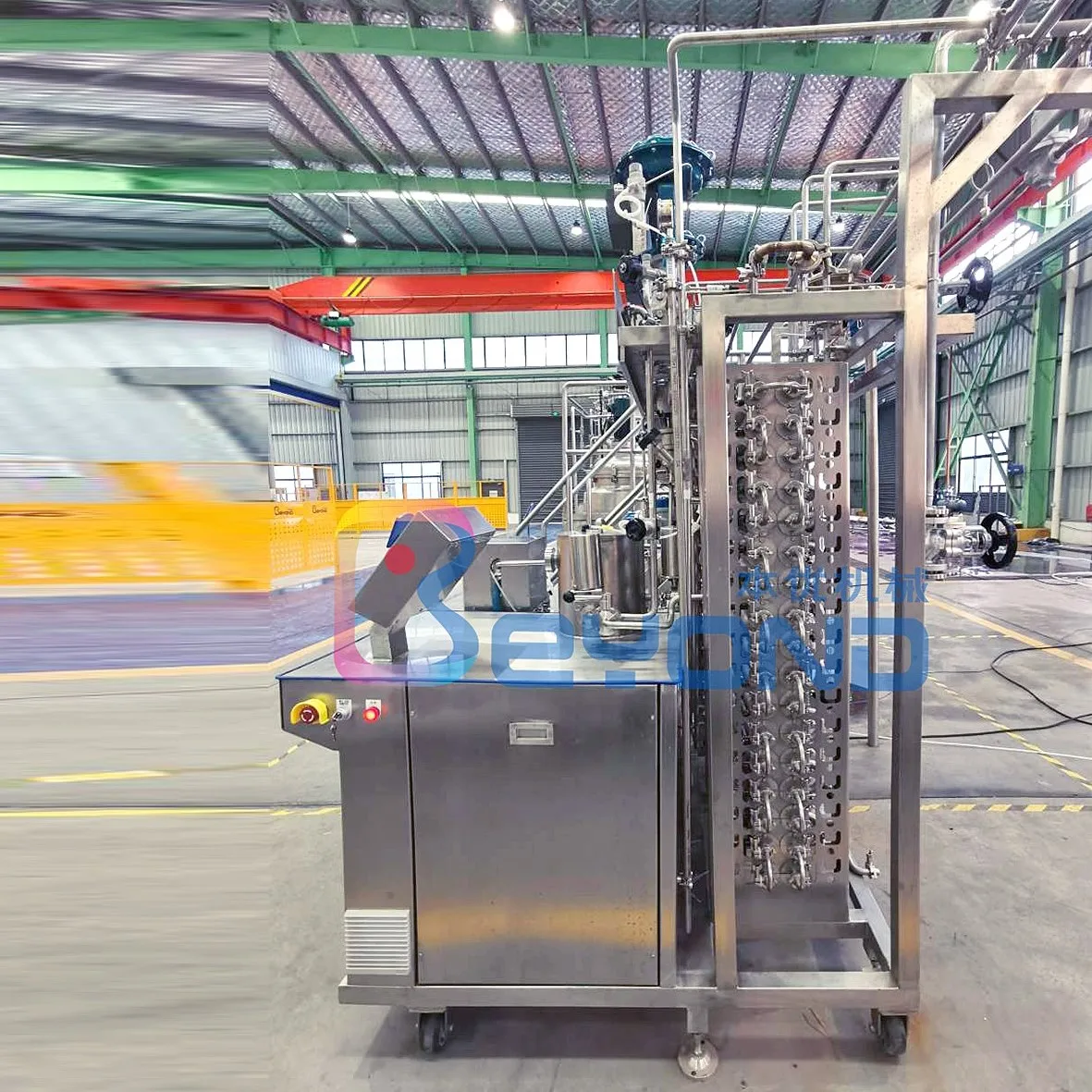

Tubular sterilizer: tubular sterilizer is mainly used for sterilization and cooling of various concentrated fruit purees and fruit juices.

Three in one filling machine: it can complete the functions of cleaning, filling and capping grape juice bottles.

Characteristics of grape juice production line:

1. It integrates the three functions of cleaning, filling and rotating cover to realize the automation of the whole process.

2. The parts in contact with grapes are made of stainless steel, which is hygienic and easy to clean.

3. Good structure, complete control system, convenient operation and high degree of automation.

Grape processing equipment and sorting line are modular, and there are a variety of equipment to choose from to meet different needs,
-Grape washing and drying channel
-Vibration screening device
-Sorting table of conveyor belt
-Stainless steel vibrating sorting table
-Ladder conveyor
-Grape stemming machine
-Roller crusher

Some advantages of grape juice processing line:
1. The equipment has simple operation, powerful machine performance and low energy consumption.
2. It is a convenient device, which can identify unqualified grapes, immature grapes, bad grapes and hidden impurities in grapes.
3. Remove the residual gravel, sand, stems and raw grape grains in the grape cluster.

Technological process of grape juice processing line:
First, the grape grains are sent to the vibrating screen to remove the impurities hidden in unqualified grapes, immature grapes, bad grapes and grape grains. Then, the grape seeds are evenly sent to the stemming machine through the elevator to completely remove the stems, which will not cause damage to the grape fruit. Then, the grape granules are peeled and seeded, and the grape pulp is beaten, sterilized and filled.

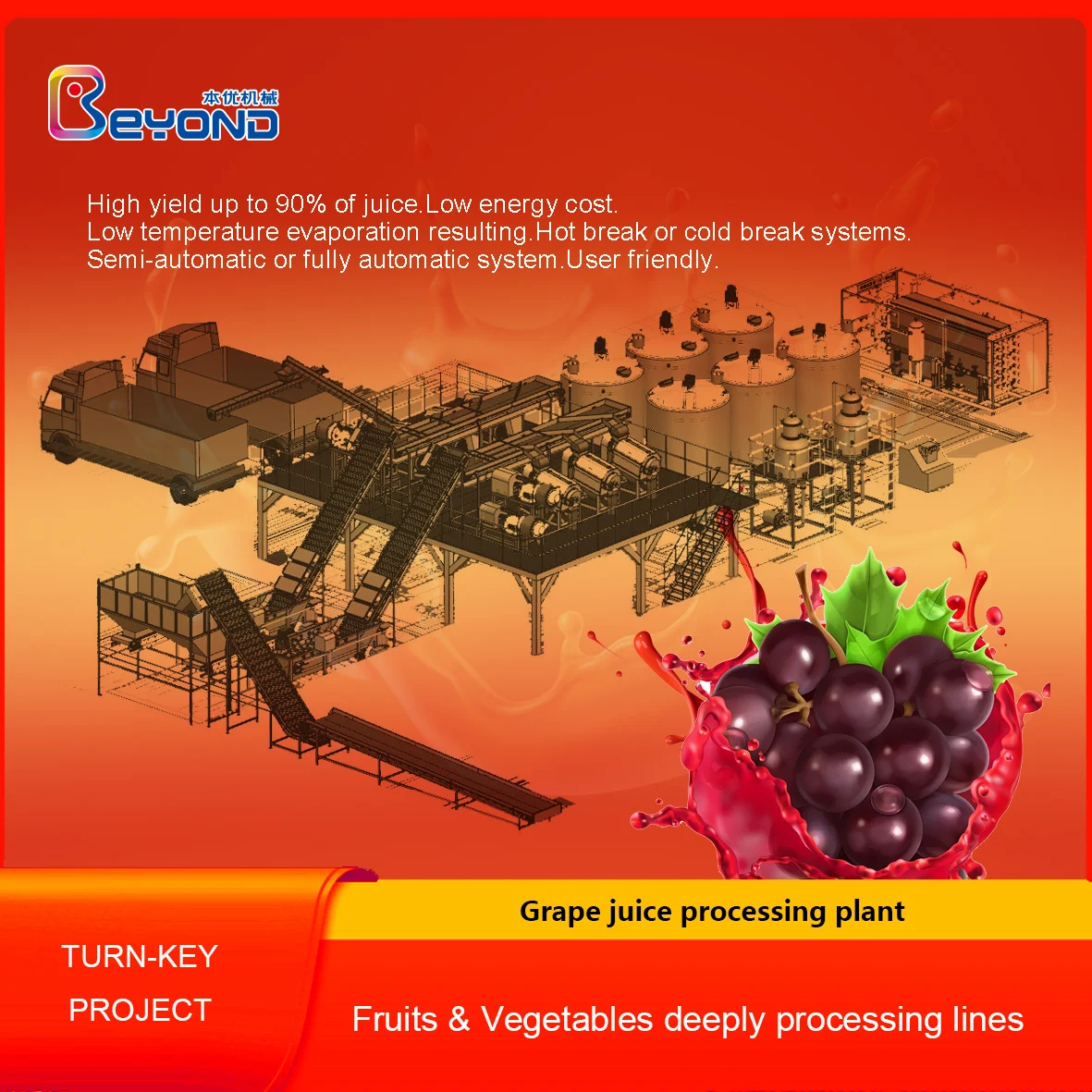

We manufacture all the equipment needed for grape juice production; From raw grape unloading system to grape juice extraction system, from grape juice ultrafiltration system to grape juice evaporator system, grape juice pasteurizer, grape juice clarification system, grape juice degumming tank and grape juice processing tank to grape juice storage tank.

The company is specialized in the manufacturing and production of food equipment and machines for apple juice processing plants. Our food production line machines have been exported to many countries, from China to Egypt, Sudan, Kenya, India, the United States, Russia, Canada, Australia, the United Kingdom, Malaysia and Indonesia. The manufacturer of apple juice processing plant in China, and the apple juice processing plant can be customized according to the specifications.

Apple juice processing factory manufacturer in China, and apple juice processing factory supplier in China food processing factory and company.

Service flow chat

BEYOND Machinery is specialized in manufacturing grape juice production lines and producing food equipment and machines. Our food production line machines have been exported to many countries, from China to Egypt, Sudan, Kenya, India, the United States, Russia, Canada, Australia, Britain, Malaysia and Indonesia. Chinese manufacturer of grape juice production line, which can be customized according to specifications.

The manufacturer of grape juice production line in China, and the supplier of grape juice production line in China food processing plants and companies.

1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.

2) Q: How do you ensure the quality of your products?

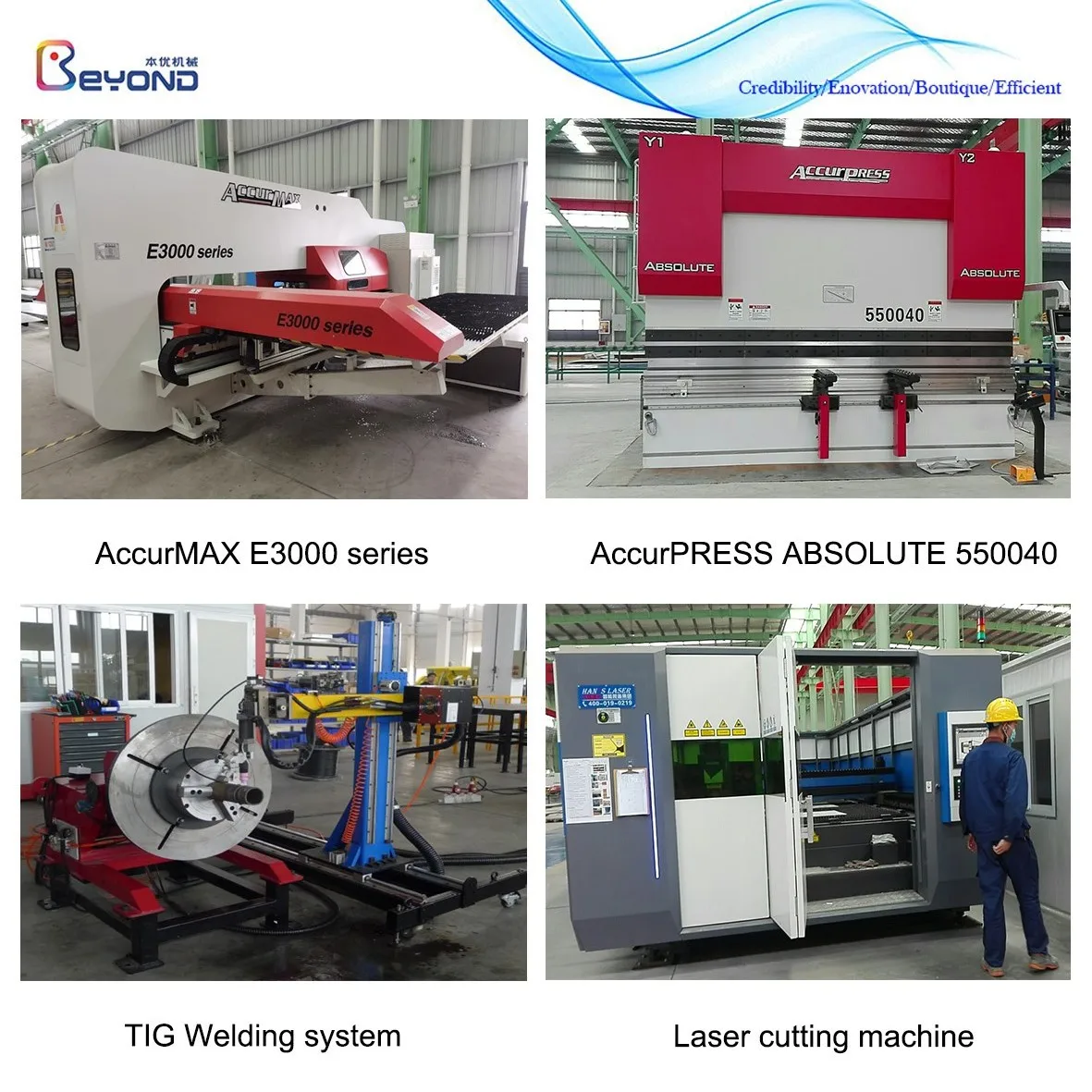

A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.

3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .

4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .

5) Q: I am new in this field,can you supply us turnkey services?
A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training.

6) Q: I haven't done business with you company before, how can I trust your company ?
A: Our company has been in Alibaba.com for 14 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate.

7) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.

8) Q: Can you supply OEM services?
A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters.

9) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
