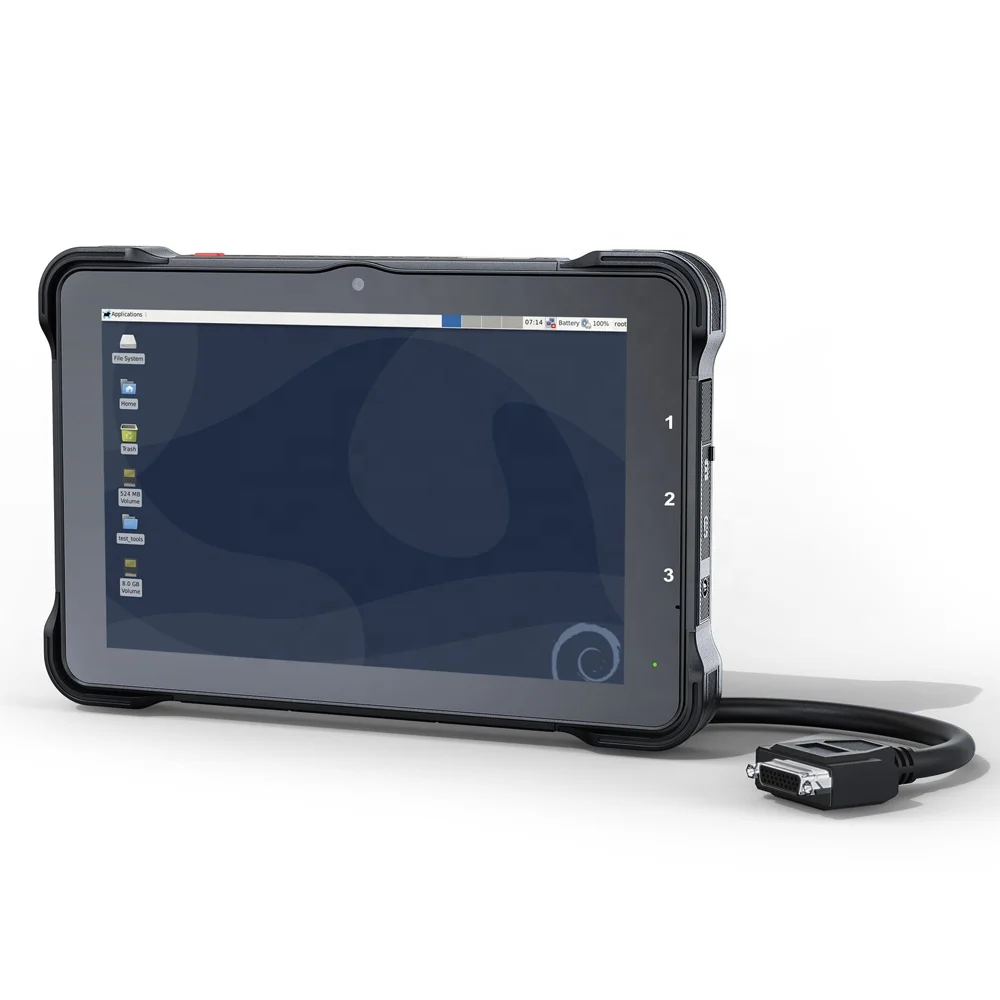

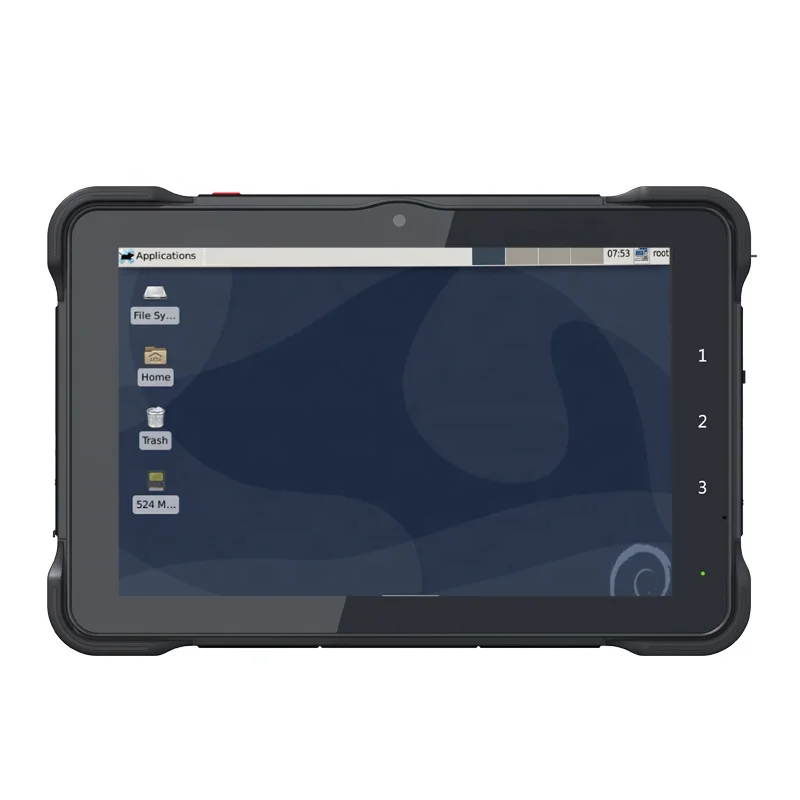

10.1 inch Outdoor Rugged Waterproof Industrial Linux Tablet Rugged Tablet 1000 nits Panel Computer
- Category: >>>
- Supplier: Shenzhen Sunny Island Lilliput Electronic Co. Ltd.
Share on (1600724456933):
Product Overview
Description

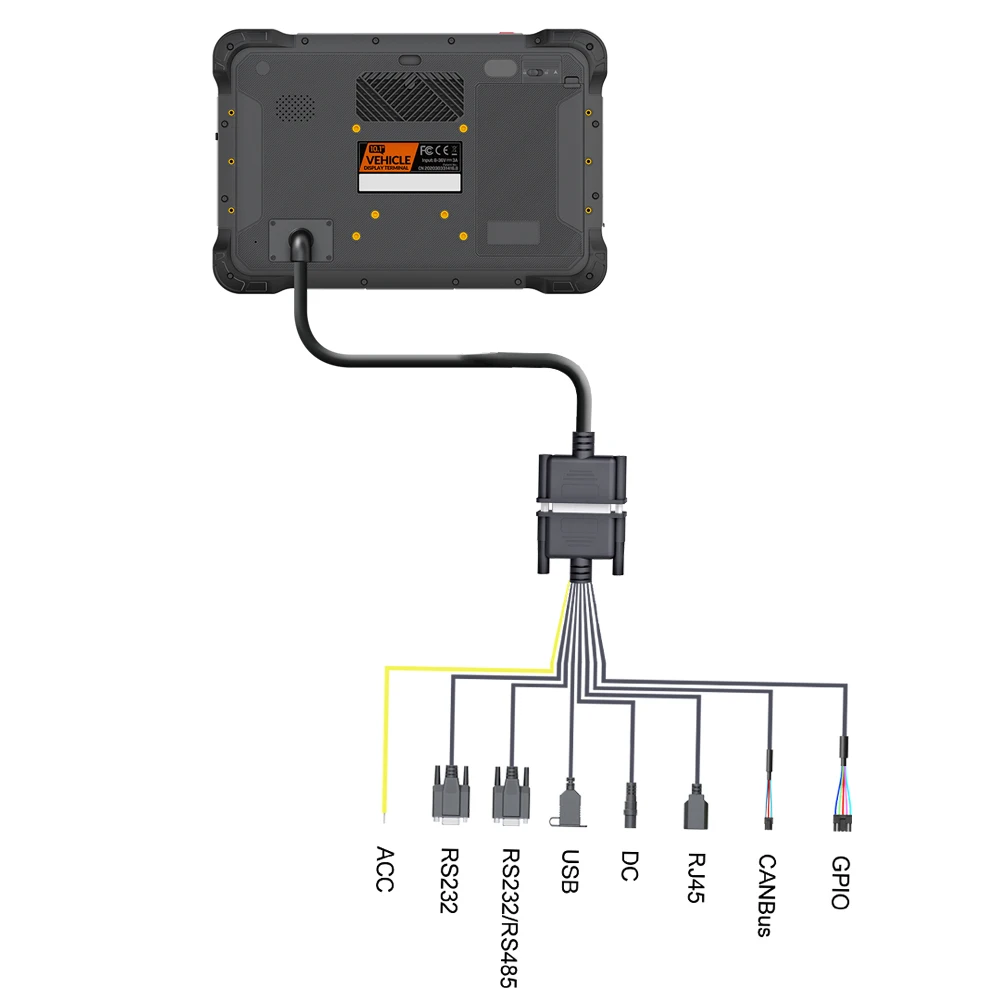

10 inch IP67 1000nits Rugged Tablet PC Linux LAN RS232 Canbus Acc GPIO port Terminal
Overview
VT-10 IMX is a rugged and reliable vehicle-mounted computer, which is widely used in fleet management, advanced farming system, special industry vehicles, etc. The extremely robust industrial grade hardware ensures perfect usage in various harsh environments. The excellent performance of i.mx8 makes all control simple, Linux open platform Debian 10 provides a flexible environment for development.3Rtablet's products can be tailored to meet your final needs in term of hardware, software, interface or functions required.
Truck Bus Taxi Special Vehicle
Product Description
Feature
CANBUS data read
CAN Bus interface with CAN 2.0B protocol provide a standard bus for automotive computer control systems and embedded industrial
control local area networks.
control local area networks.
Gigabit Ethernet
Gigabit Ethernet is characterized by high efficiency, high speed, and high performance, and has been widely used in industries such as factories, mining enterprises and agricultures.
QT platform
QT platform provides a cross-platform C/C++ graphical user interface application development framework, which has strong scalability and is convenient for software development.
NXP CPU
High-performance and low-power NXP i.MX8 Mini 4xCortex A53 CPU makes the tablet running stably and efficiently, suitable for a variety of application scenarios in industry with high security and reliability.
IP67 Water & Dust proof
The tablet has a high level of dust and water resistance IP67, is well adaptable to environments such as industrial, mining, agriculture, etc.
Real-time tracking (Optional)
Integrated with Wi-Fi, BLE5.0,4G LTE network connection, multi-satellite running GPS+GLONASS+Galileo provides the easiest way to track your vehicle and asset management.
MIL-STD-810G
Comply with the US military standard MIL-STD-810G shock and vibration resistance, can be applied to a variety of complex and demanding working environments.
High brightness
1000 nits high brightness with muilt-touch screen makingtablet operating smoothly and readable in sunlight conditionand outdoor environment.

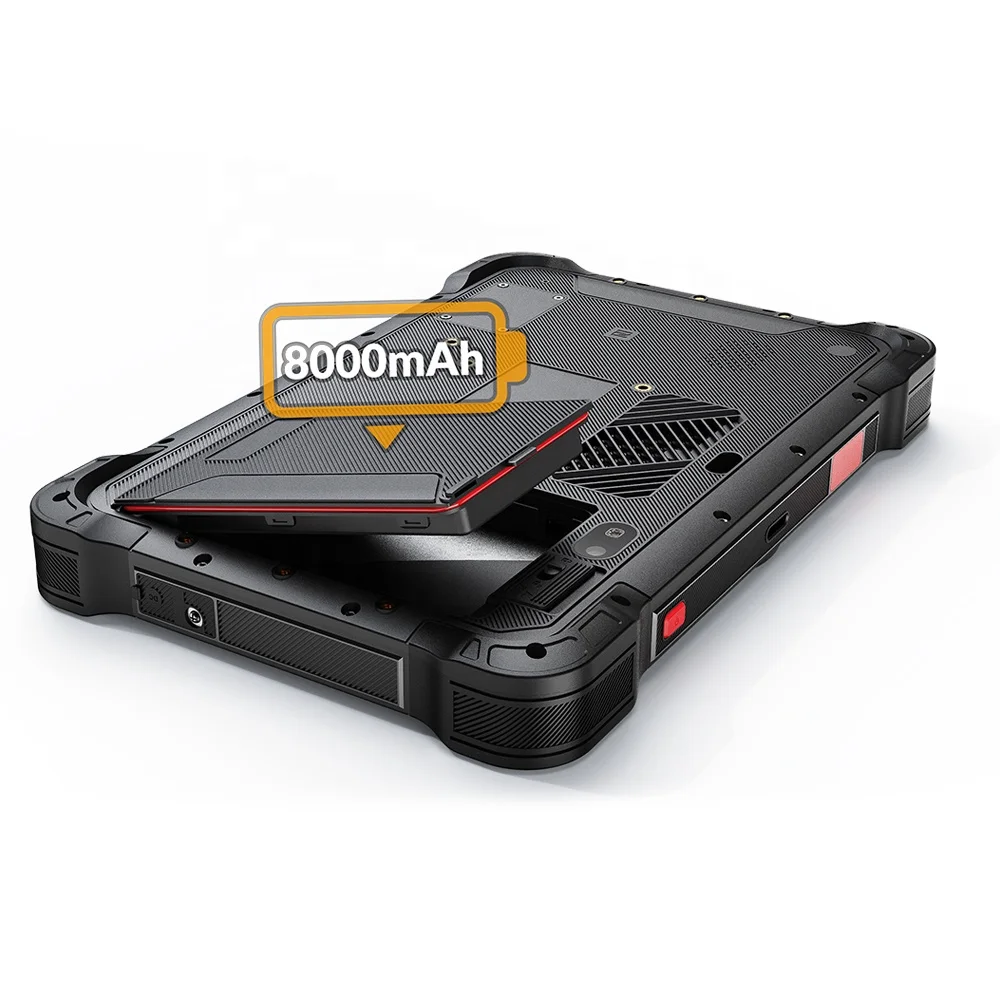

8000mAh Battery Replaceable (Optional)
The optional 8000mAh large-capacity battery provides the necessary protection for the tablet for a long time in the event of a power failure and easy for replaceable.
Specification
CPU | NXP i.MX 8M Mini, ARM® Cortex®-A53 1.6GHz |
GPU | 1x shader, Vivante GC320, Vivante GCNanoUltra |
Operating System | Linux Debian 10 |
RAM | 2 GB LPDDR4 (Default) / 4GB (Optional) |
Storage | 16 GB eMMC (Default) / 64GB (Optional) |
Storage Expansion | Micro SD 256 GB |
LCD | 10.1inch HD (1280 x 800), 1000cd/m² higher brightness, Sunlight readable |
Touchscreen | Multi touch capacitive touchscreen supporting glove and rain mode |
BT | BLE5.0 (Optional) |
WLAN | IEEE 802.11 a/b/g/n/ac; 2.4GHz / 5GHz (Optional) |
Mobile Broadband | LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice) (Optional) |
GNSS | GPS / GLONASS (Optional) |
Sound | Build-in speaker 2W, 85dB Internal microphones |
Interfaces | Type-C, Compliant with USB 2.0,(For data transfer;support OTG) 3.5mm headphone jack |
Sensors | Acceleration sensors, ambient light sensor,Gyroscope, compass |
Power | DC9-36V (ISO 7637-II compliant) Battery: 3.7V,8000mAh Li-ion (Replaceable) Battery operating time: about 4.5hours (Typical) Battery charging time:about 4.5hours |
Physical Dimensions (WxDxH) | 277×185×31.6mm |
Weight | 1357(2.99lb) |
Environment | Gravity drop resistance test: 120cm Vibration test: MIL-STD-810G Dust resistance test: IP6x Water resistance test: IPx7 Operating temperature: -10°C ~ 65°C (14°F - 149°F) Charging temperature: 0°C ~ 55°C (32°F - 131°F) Storage temperature: -20°C ~ 70°C |

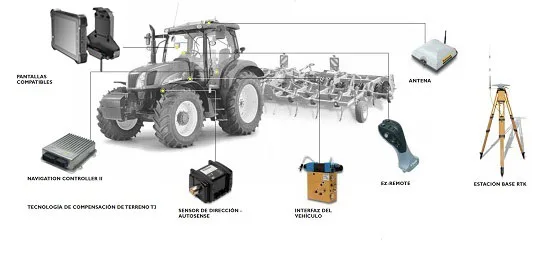

Product Application
