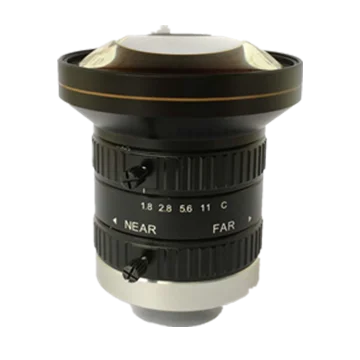

Hikrobot MVL KF0818M 12MP 12MP Высокое разрешение 8 мм F1.8 1 дюймовыечистые этикетки пробки с резьбовым соединением типа C с постоянным фокусным расстоянием f промышленный FA объектив
- Category: >>>
- Supplier: Shenzhen Zhixiang Shijue Technology Co. Ltd.
Share on (1600724469495):
Product Overview
Description
Product Features
1.High resolution, high uniformity of picture clarity
2.Ultra-low distortion, high peripheral light ratio
3.Maximum target surface of 1''
4.Support ultra-short working distance, maintain excellent optical characteristics at different object distances
2.Ultra-low distortion, high peripheral light ratio
3.Maximum target surface of 1''
4.Support ultra-short working distance, maintain excellent optical characteristics at different object distances
Products Description
Specifications
Recommend Products
Model Number | Model | MVL-KF0818M-12MP |
Name | 8mm, F1.8, 1", 12M resolution, C connector lens | |
Performance | Focal length | 8 mm |
F-number | F1.8 ~ C | |
Image plane size | Φ16 mm(1'') | |
Aberration | -4.12% | |
Nearest shooting distance | 0.3 m | |
Field of view | D（15.86）：90.06° H（12.45）：77.16° V（9.83）：61.3° | |
Structure | Aperture control | Manual |
Focus control | manual | |
Interface type | C-Mount | |
Flange back focus | 17.526mm | |

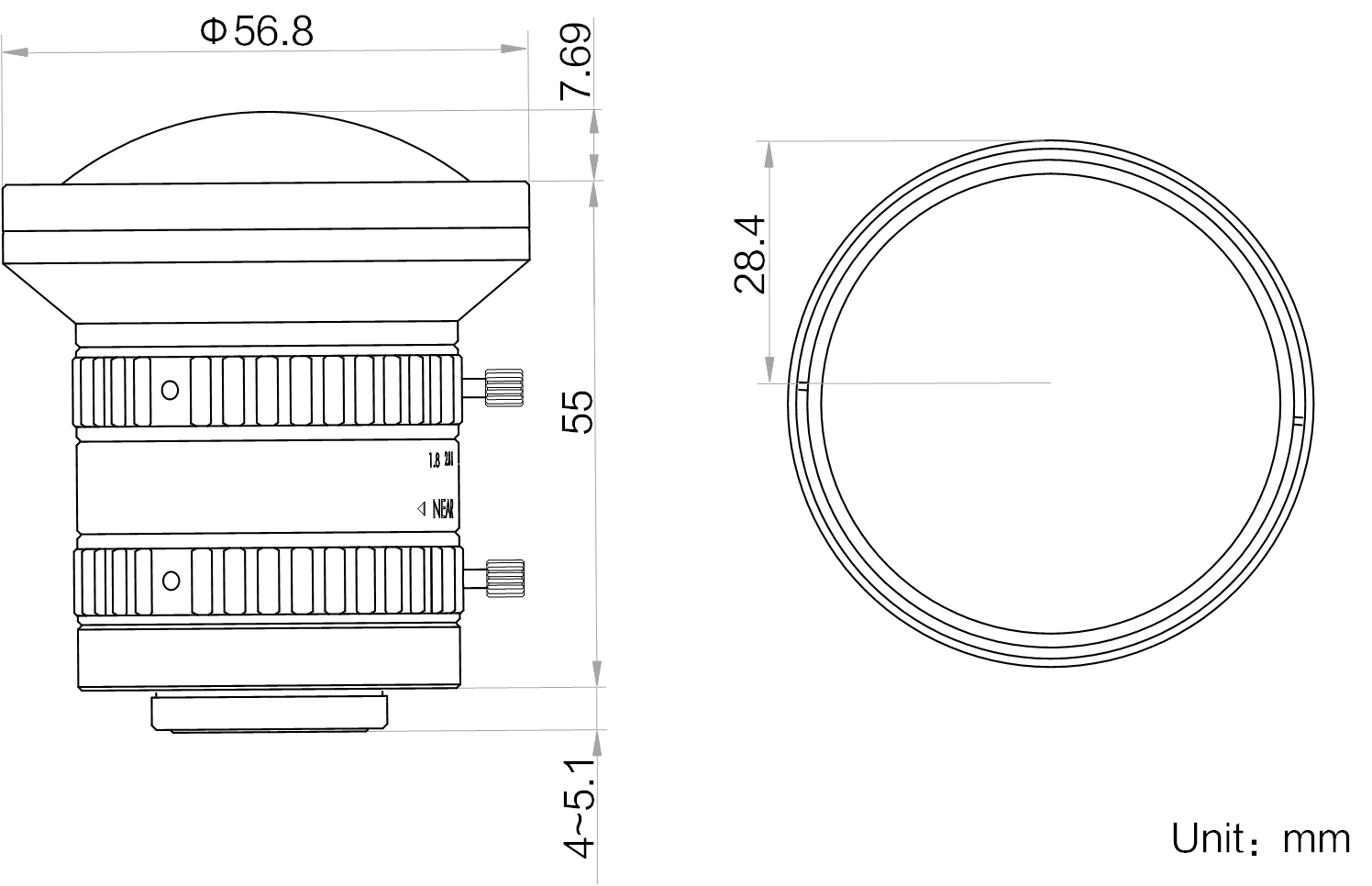

Dimension | Φ56.8×55 mm | |
Weight | 236 g | |
Temperature | -10 ~ 50℃ | |
General Specification | Certification | RoHS2.0 |
