cheap price factory directly offer 720P 1/2.8 inch imx225 cmos AV VGA output otoscope camera video
- Category: >>>
- Supplier: Shenzhen Shinuoqi Electronic Technology Co. Ltd.
Share on (1600724484014):
Product Overview
Description
Product Description
720p system | ||
model No | LN-22Y2_VC | |
Output | VGA+CVBS | |
Effective Pixel | 1305（H）x 977（V） | |
OSD MENU | UP、DOWN、LEFT、RIGHT、SET button | |
Image Sensor | 1/2.8” Sony CMOS | |
Output Resolution | 720P（50/60fps） | |
Brightness | 1-20 steps | |
Sharpness | 1-10 steps | |
Backlight | OFF/BLC/HLC/WDR | |
AWB | AUTO/MANUAL | |
FREZZ | SUPPORT | |
D-ZOOM | 1-10x | |
Temperature | -30℃~ 70℃ | |
Language | CHINESE/ENGLISH....etc | |
Power Supply | DC12V 150mA＜2W | |
Camera head size | 101.84*38.5mm | |
Image processor size | 300*200*85mm | |
1080p system | ||
Image Sensor | 1/1.8” SONY CMOS | |
Effective Pixels | 1845(H) × 1097(V)Approx. 2.13M pixels | |
Scanning System | Progressive | |
Resolution | SDI:1080P@30fps,1080P@60fps | |
D-ZOOM | Image zoom in /out | |
COLOR(AWB) | One key white balance | |
Output | HDMI+AV OUTPUT | |
Backlight | Full AVG/Central peak 1/2 | |
Endoscope mode | Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Laparoscope/E.N.T | |
Color ADJ | User Define: Yellow gain 1-250 Bule gain 1-250 Green gain 1-250 Red gain 1-250 Yellow Hue 1-250 Bule Hue 1-250 Green Hue 1-250 Red Hue 1-250 | |
Language | Chinese/English/Japanese/Korean polyglot | |
Power(Max.) supply | DC12V ±10%<1.7W | |
Working Current | 140mA±10mA | |
working temperature | -30°C to 70°C | |
Size | 75mm*38mm*36mm | |
4k system | ||
Image Sensor | 1/2.8” SONY CMOS | |
Resolution | UHD 4K@30fps | |
FREEZE | The picture freezes | |
D-ZOOM | Image zoom in /out | |
COLOR(AWB) | One key white balance | |
Output | HDMI+AV OUTPUT | |
Backlight | Full AVG/Central peak 1/2 | |
Endoscope mode | Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Laparoscope/E.N.T | |
Color ADJ | User Define: Yellow gain 1-250 Bule gain 1-250 Green gain 1-250 Red gain 1-250 Yellow Hue 1-250 Bule Hue 1-250 Green Hue 1-250 Red Hue 1-250 | |
Language | Chinese/English/Japanese/Korean polyglot | |
Power(Max.) supply | DC12V ±10%<1.7W | |
Working Current | 140mA±10mA | |
working temperature | -30°C to 70°C | |
Size | 75mm*38mm*36mm | |
Product performance description
this is 720p portable medical endoscope camera system, supports AV and VGA output
and ENT, laparoscope surgical modes, has color adjustable function, it is widely use in human medical surgical and animal surgicel
Details Images

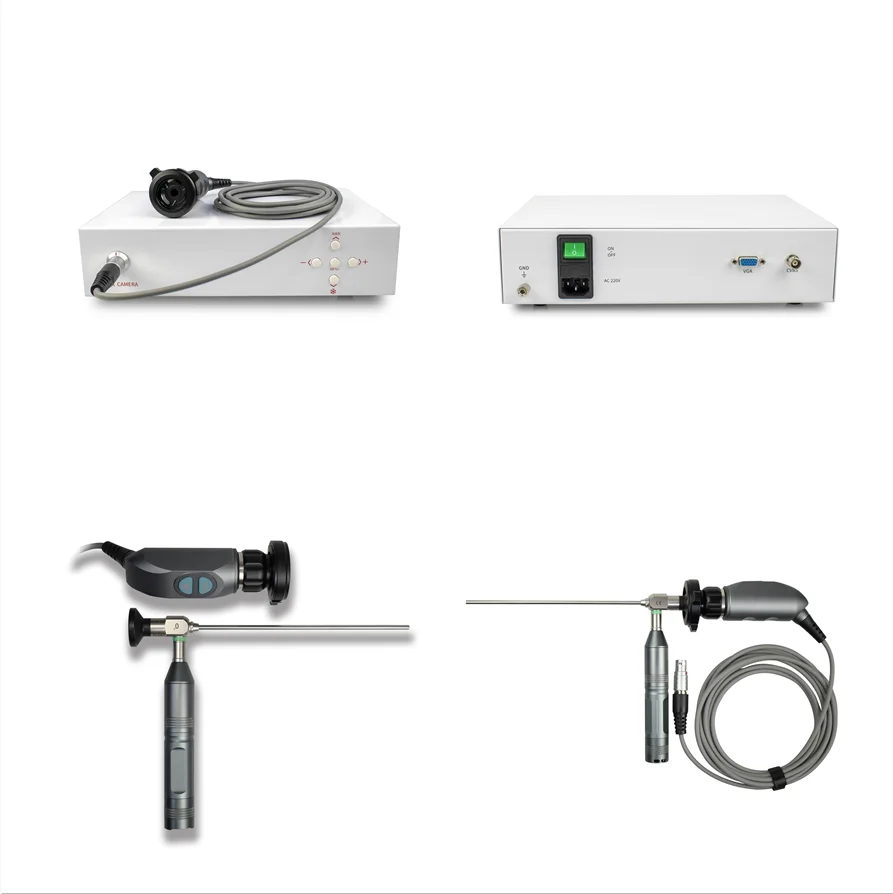

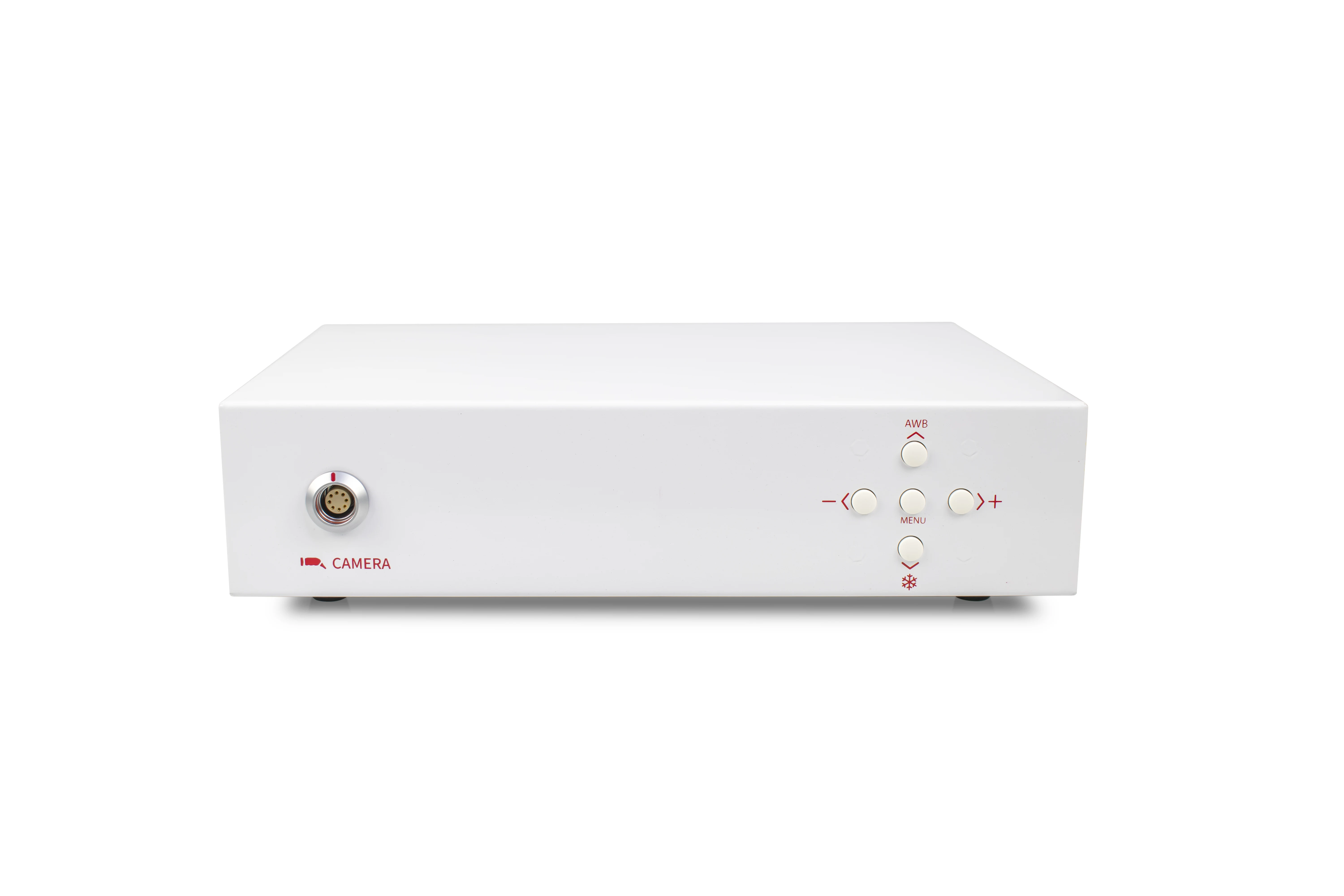

this set included the image processor box and camera head, spare parts offer saperated also

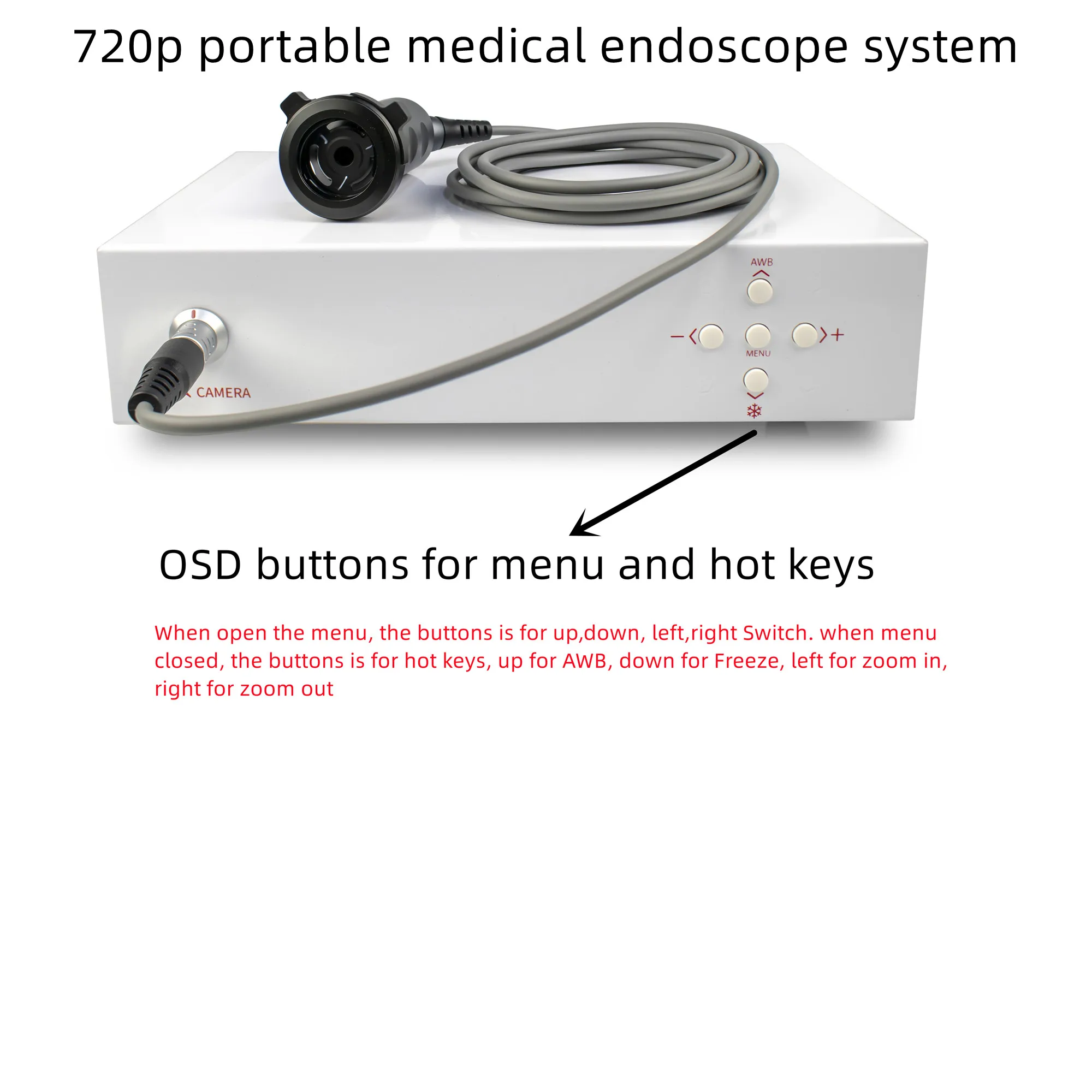

with 5-way OSD button, can enter the camera system easily, there are short cut key on the OSD button also, up for the AWB, down for the FREEZE, left for the zoom in, right for the zoom out

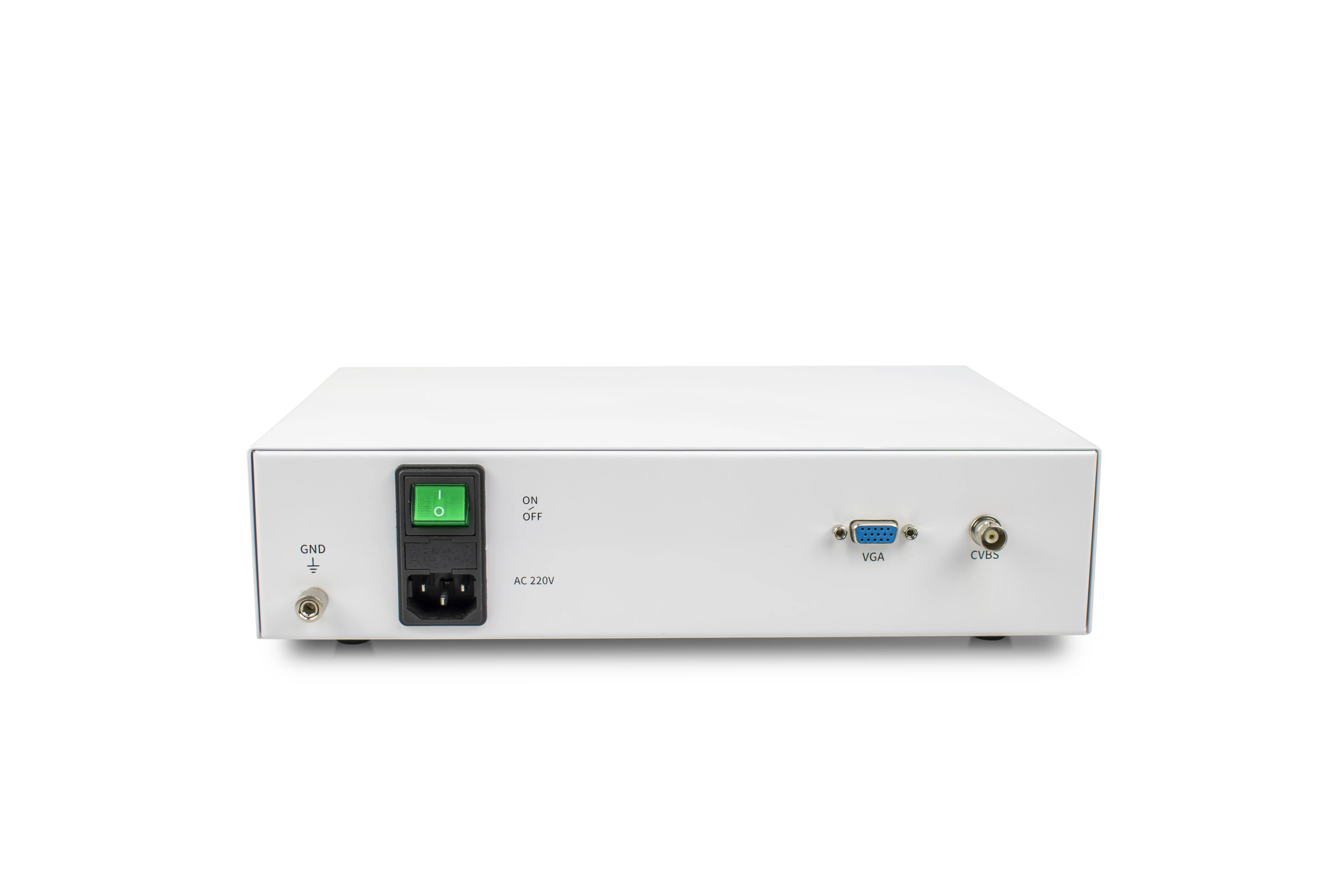

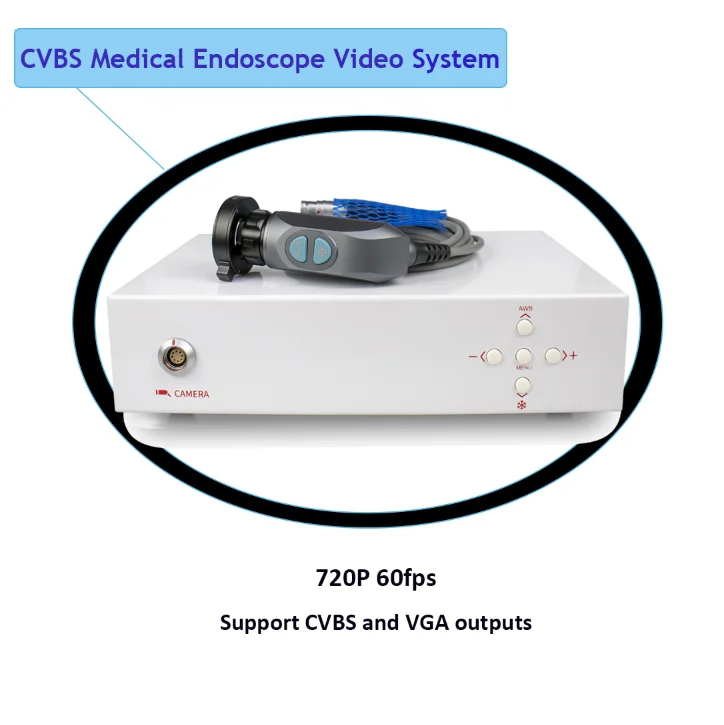

there are 2 outputs, VGA and AV output, customers can choose different output according to their monitor and request

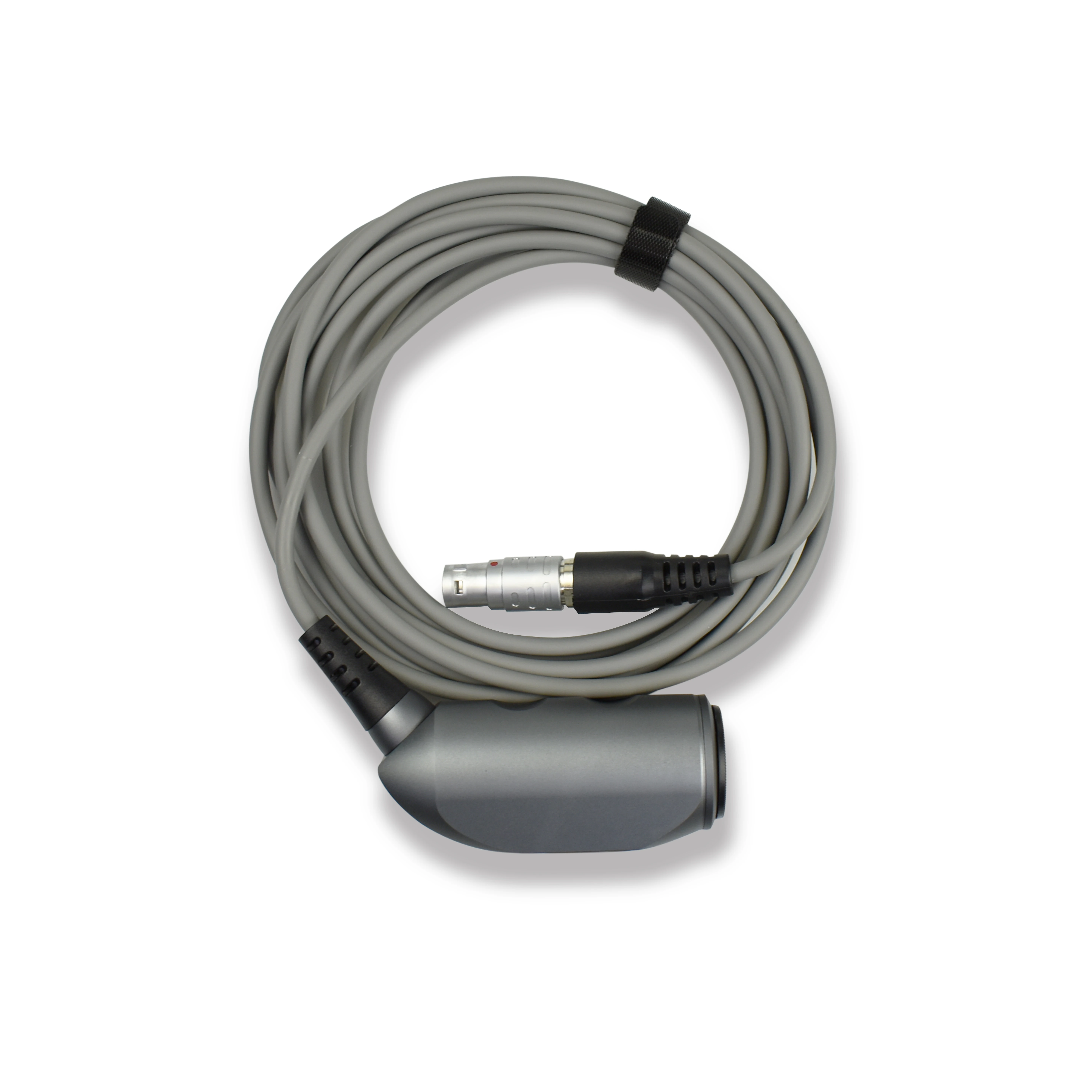

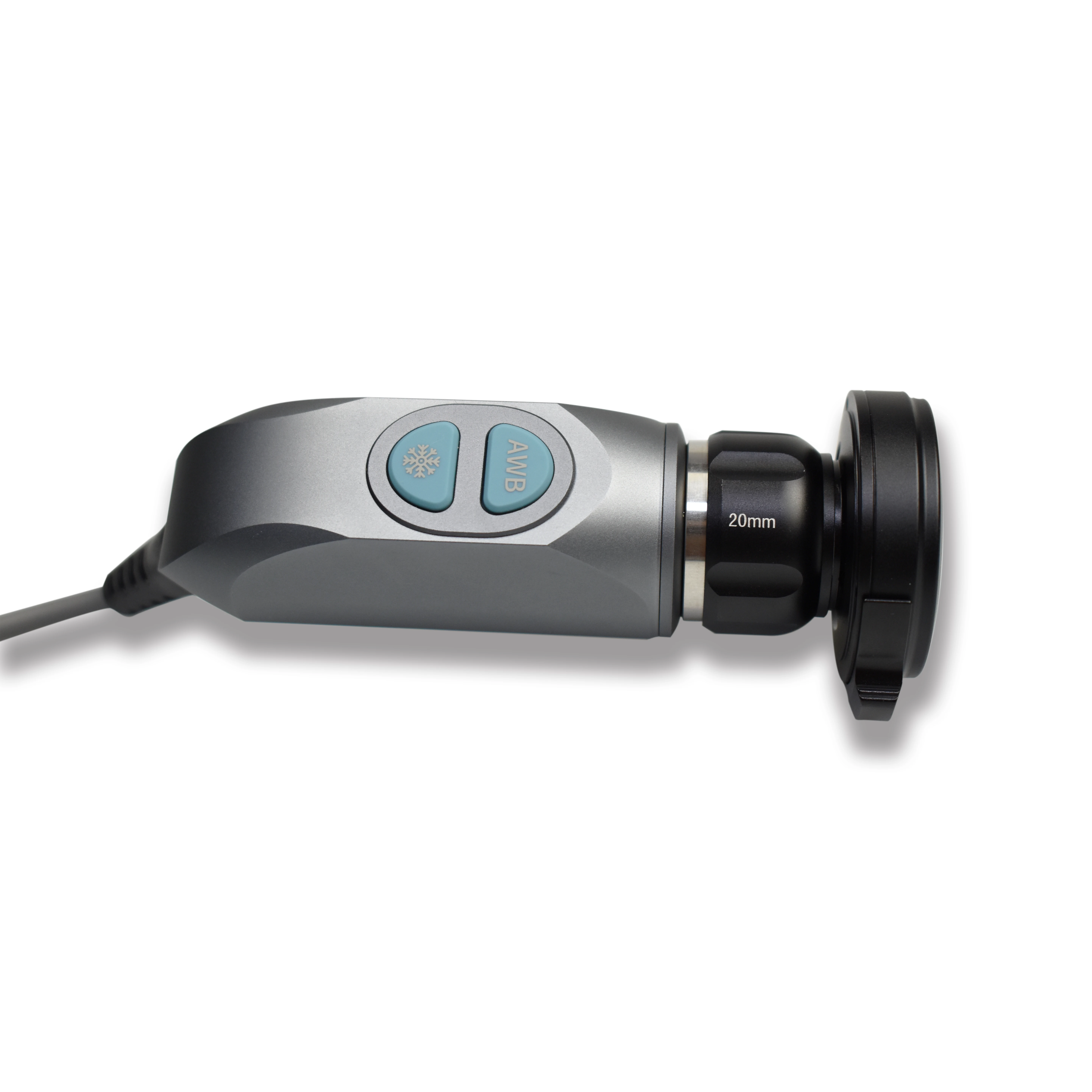

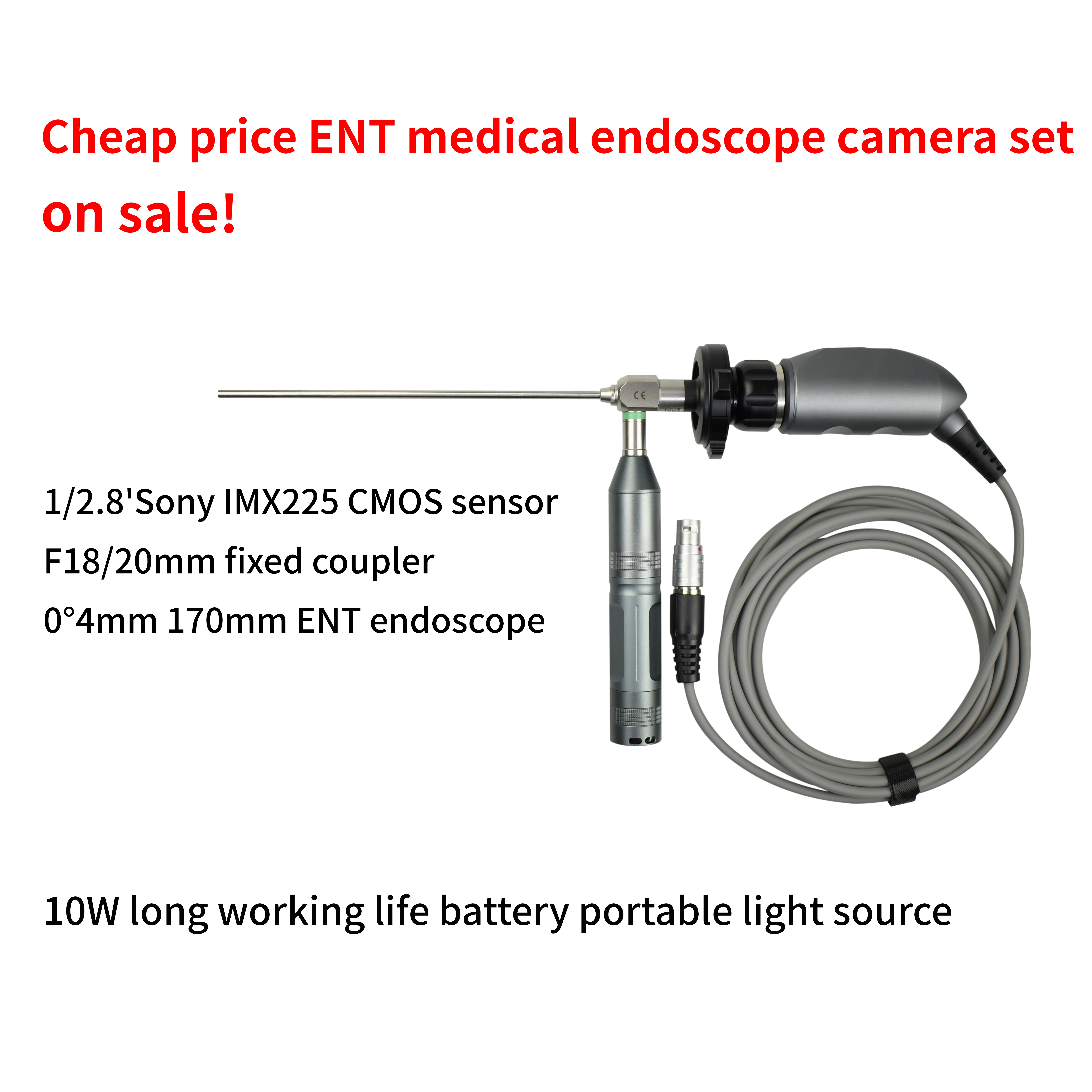

camera head with portable light source, 1/2.8 inch sony IMX225 cmos sensor, medical grade cable, high quality and duarble used
Product Usage
Product usage introduction

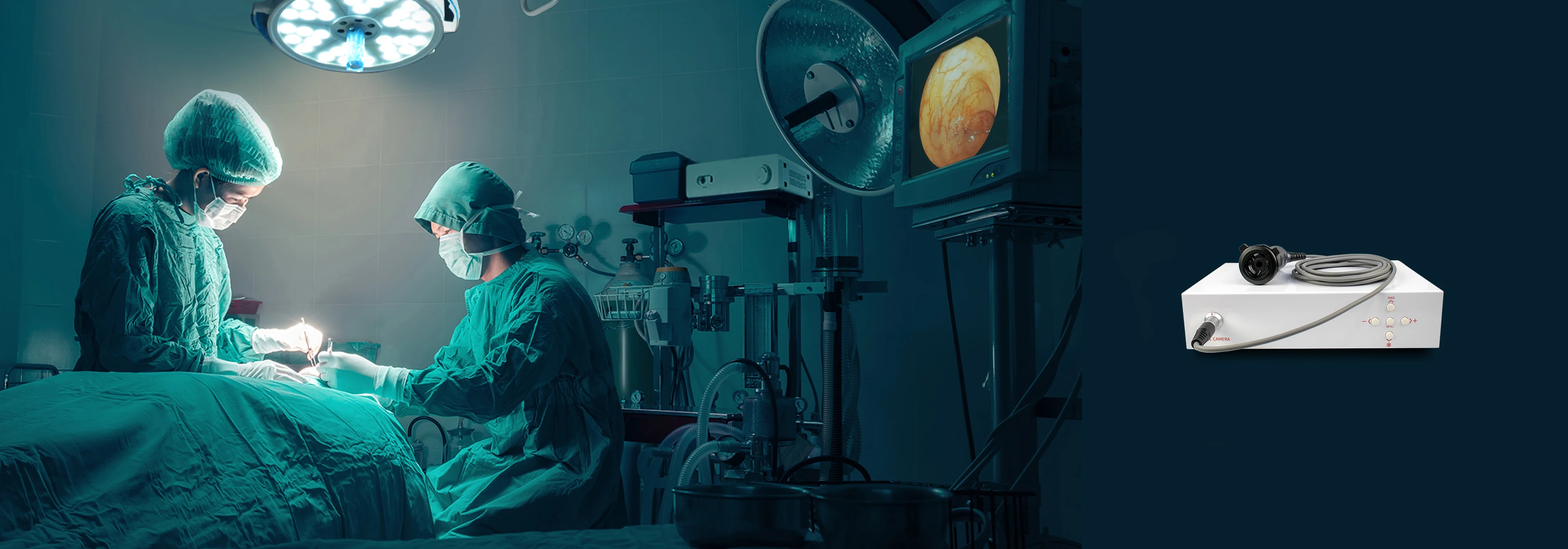

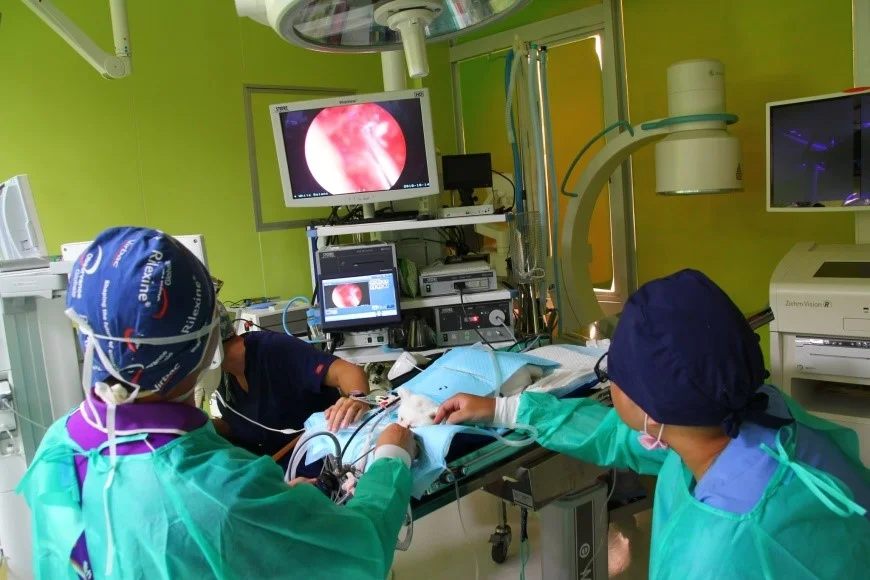

some customers will use for the human medical surgical if they only have limited barget, but this 720p most used on the animal surgical, high image qualiy can have a good surgical view.
Description of product use effect

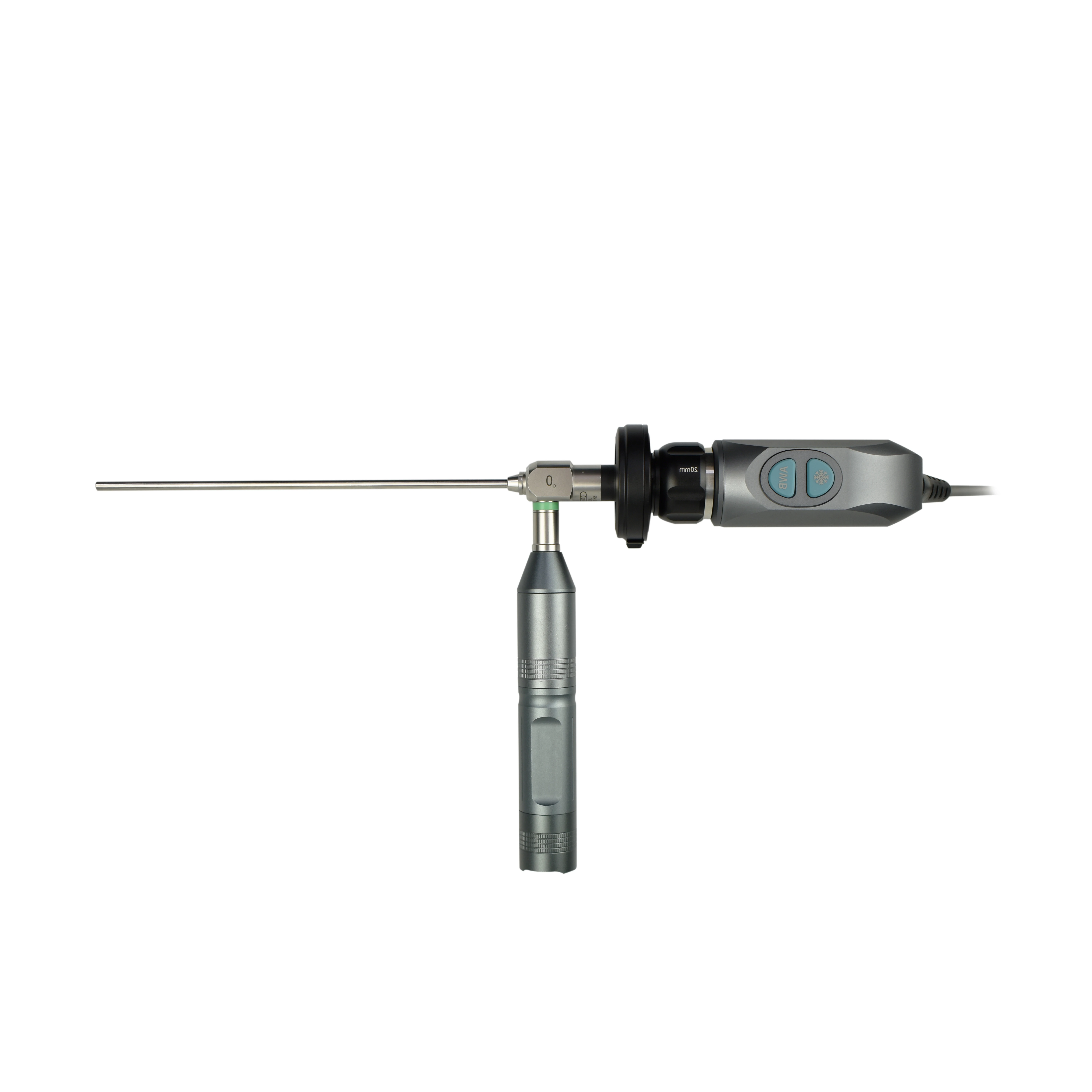

this camera system is compatible to the rigid endoscope, if with the F18mm coupler and apply to the ENT, you can get the almost full circle on the monitor, if you use for the laparoscope, you can use the F30MM coupler and can see image wide view.
