Hot sales 180m Depth KW180 Multifunctional Drilling Rig Portable Water Well Crawler Drilling Rig Price
- Category: >>>
- Supplier: Quzhou Kaipu Machinery Equipment Co. Ltd.
Share on (1600724489336):
Product Overview
Description
Product Description

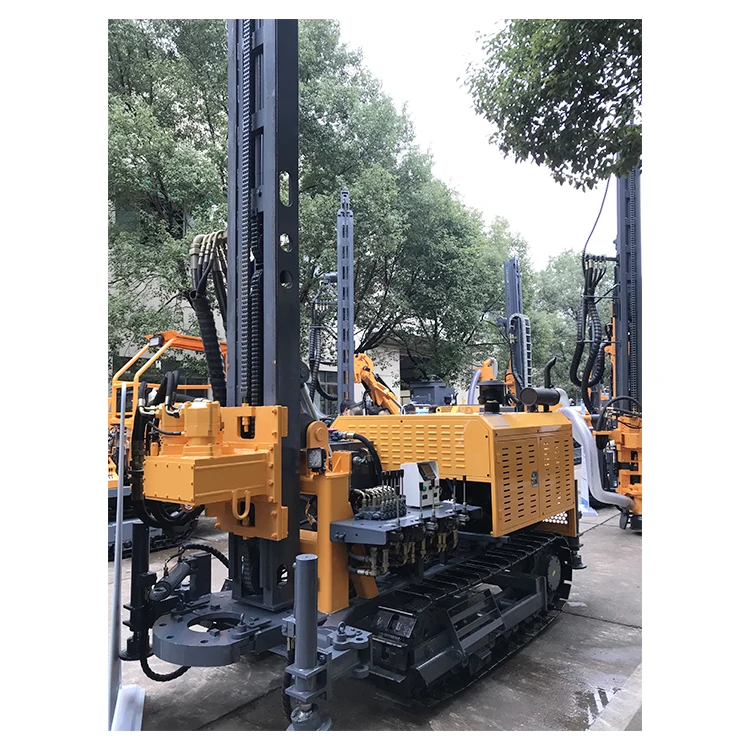

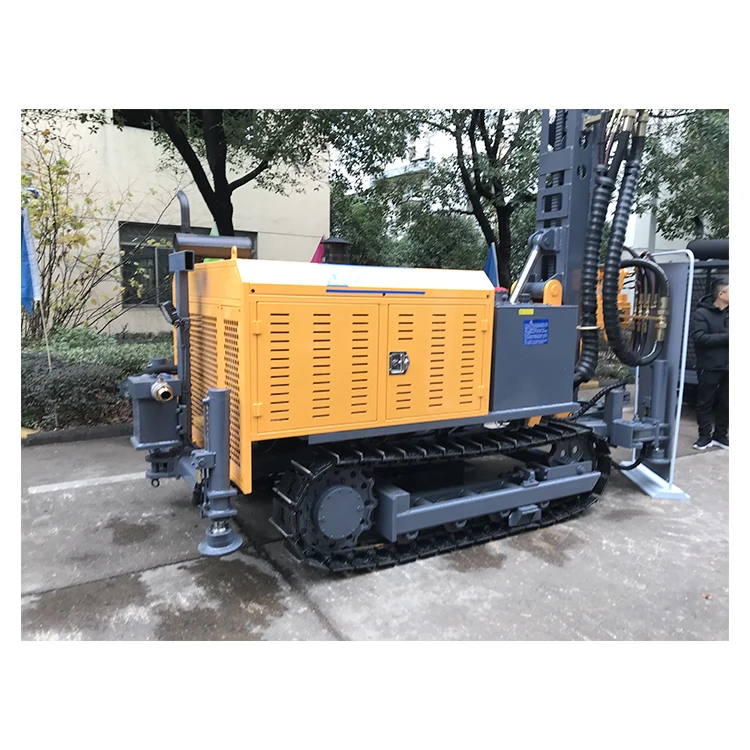

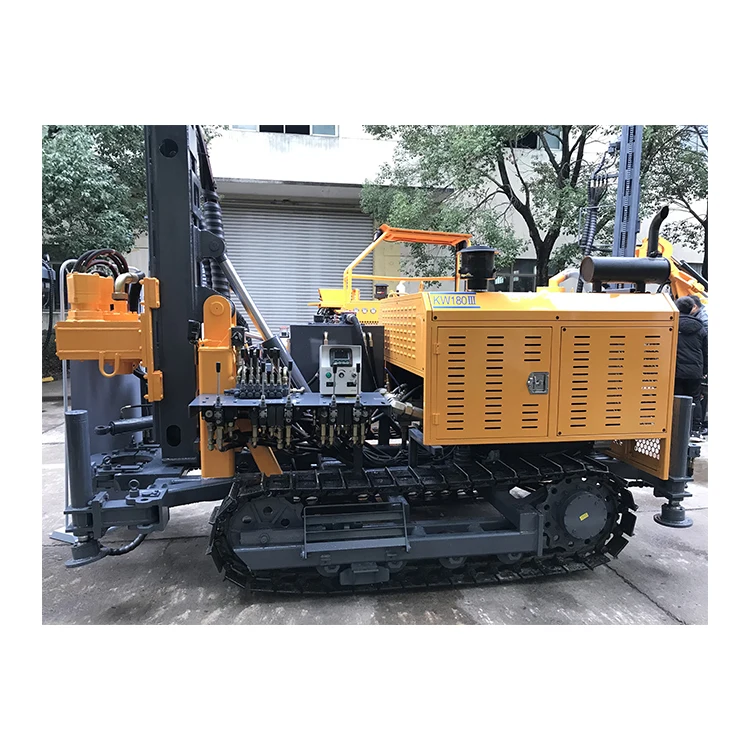

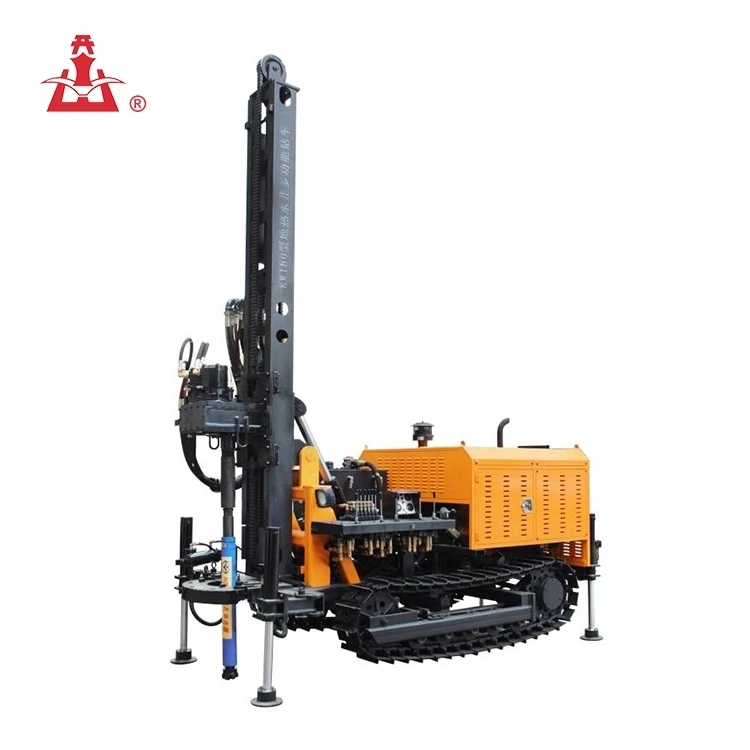

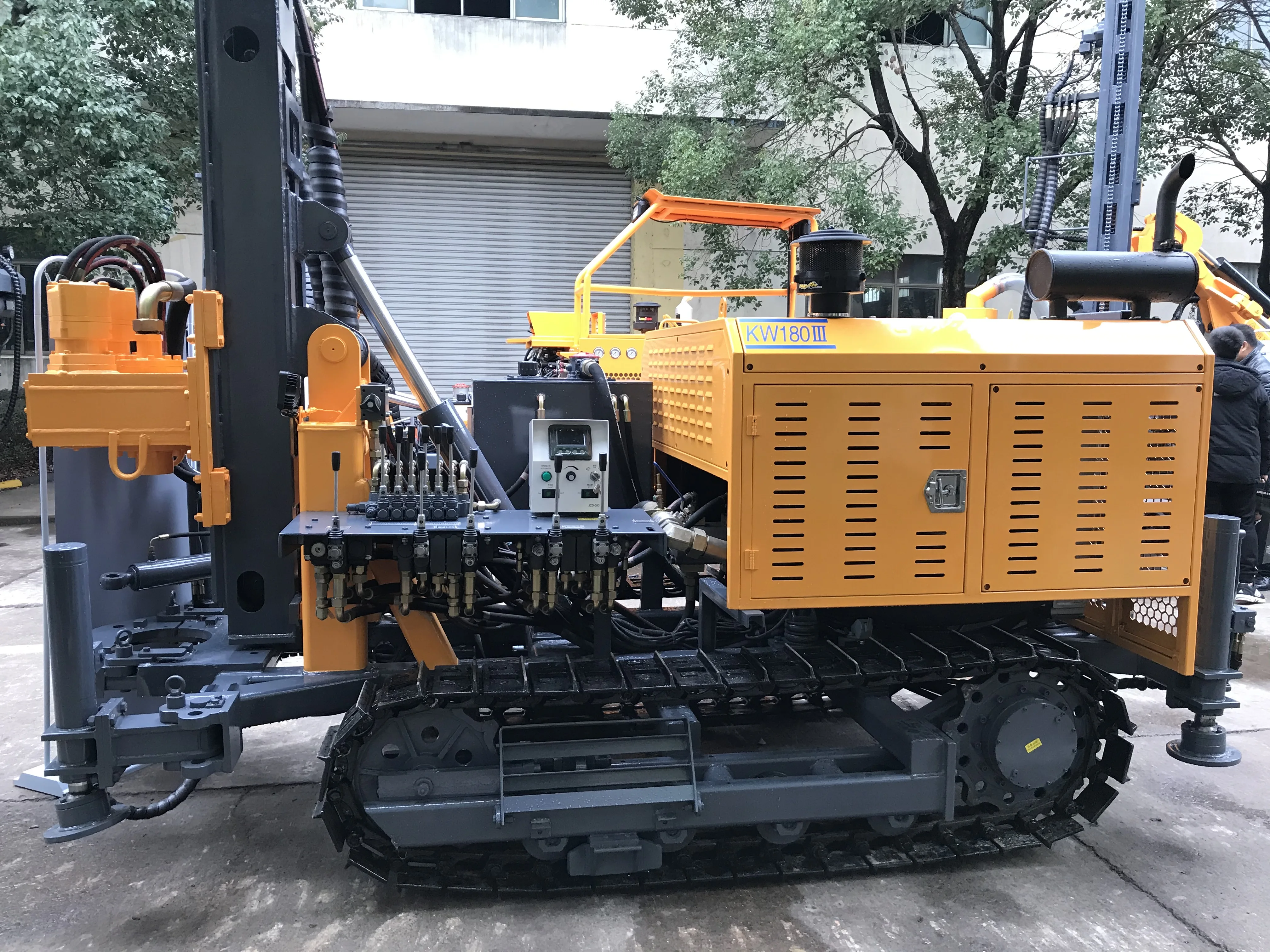

KW180/KW180A Water Well Drilling Rig
KW180/KW180A is punctured equipment for light, efficient, versatile, It is a lightweight, efficient, multi-function device of surface drill rig, which is mainly applied to drill wells, agricultural irrigation wells, geothermal air conditioners hole and other uses of the well hole, especially for the water well of the mountains and rock terrian project.
Parameters of KW180 / KW180A water well drilling rig
Model of drill rig | KW180 | KW180A | |
Feed stroke | 2m | 3m | |
Supporting drill rod | Φ76×2m or Φ89×2m | Φ76×3m or Φ89×3m | |
Outer dimensions | 4600×1550×2350mm | 5200×1550×2350mm | |
Drilling hardness | f=8~12 | ||
Drilling diameter | Φ115~202mm | ||
Maximum depth of drilling | 180m | ||
Weitht of complete vehicle | 4500KG | ||
Ground clearance | 280mm | ||
Climbing capacity | 15° | ||
DTH hammer | 4 inches / 5 inches / 6 inches | ||
Air consumption | 19~30m³/min | ||
Supporting power | YUCHAI Diesel Engine 4DKC4G2-80 | ||
Power parameters | 58KW / 2200r/min | ||
Travelling speed | 0~2 km/h | ||
Rotary torque | 4500 N.m | ||
Rotary speed | 0~100 rpm | ||
Lifting method | Oil cylinder - leaf chain | ||
Rated lifting force | 50 KN | ||
Advancing speed of sliding plate | 15~51 m/s | ||
Lifting speed of sliding plate | 8~26 m/s | ||
Volume of hydraulic oil tank | 200 L | ||
Volume of diesel oil tank | 60 L | ||
Drilling method | Down-the-hole hammer or mud etc. | ||
Advantages of KW180/KW180A Machine
Specific performance is as follows:

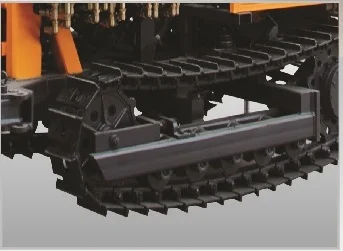

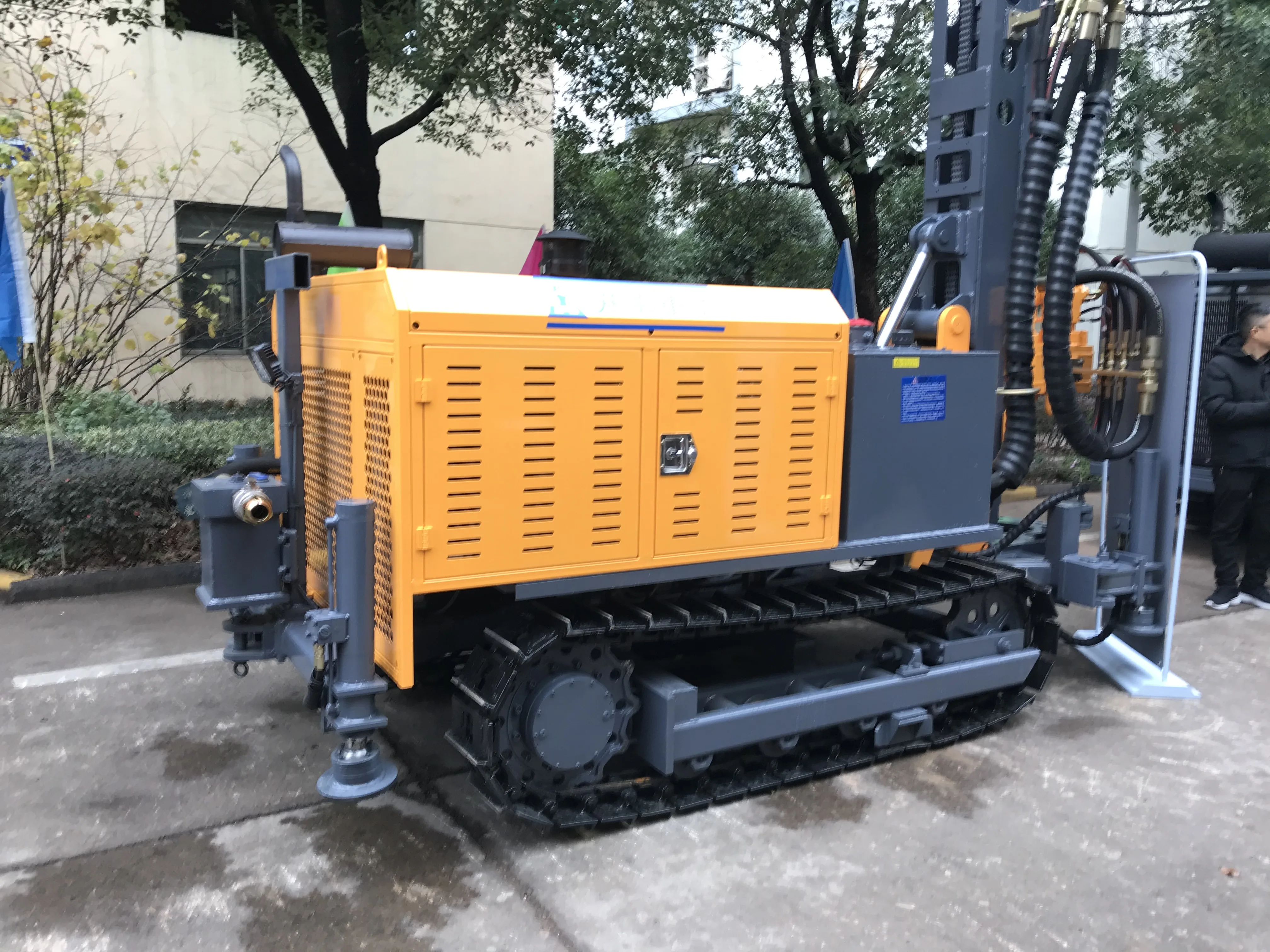

1. Safe and stable traveling system
Low gravity, great ground clearance, make cars easily make drill through Rugged road.
The advanced automatic balance system, not only makes drilling stable, also greatly reduced the impact of the car, and ensure the
safe driving.

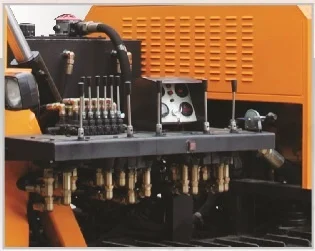

2. Centralized operating system of Mobile Drilling Rig
Drill carriage designed with advanced hydraulic system and completely functional gas circuit system.

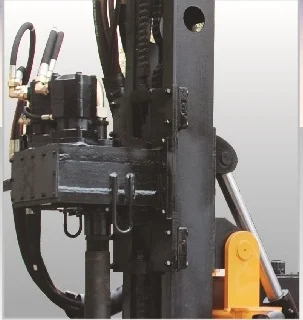

3. Powerful feeding and rotating system of Mobile Drilling Rig
Promote reducer drives adopt turbine and worm, which have a big push pull effort and can reliaze self-locking.

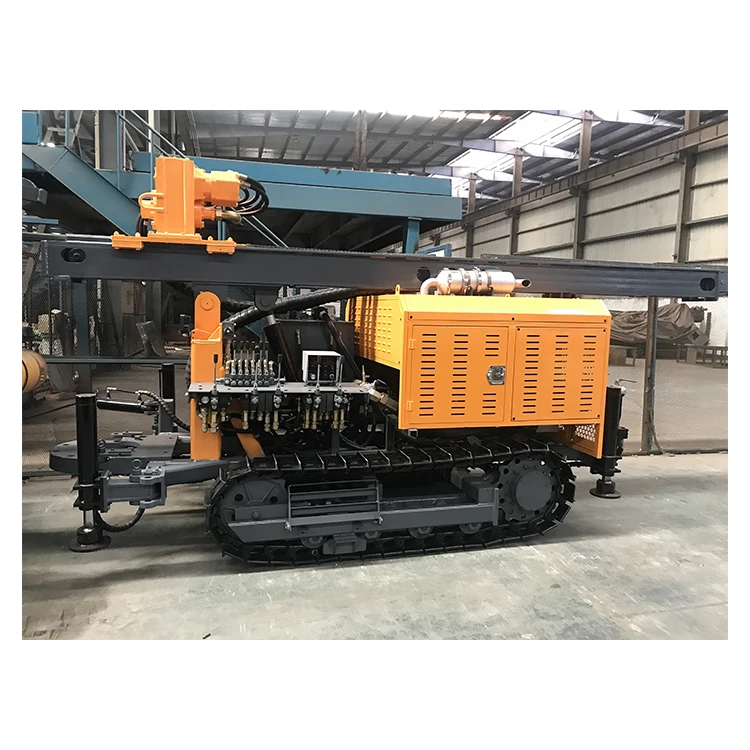

4. Adjustable boom
Adopt adjustable boom, the dip angle of hole and Level hole height can adjust by control the oil tank stretch out and draw back.

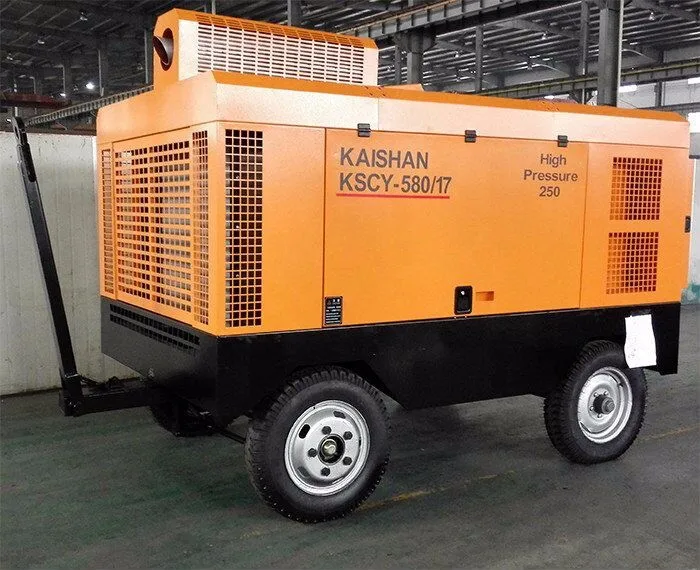

* High pressure air compressors for matching water well drilling are recommended

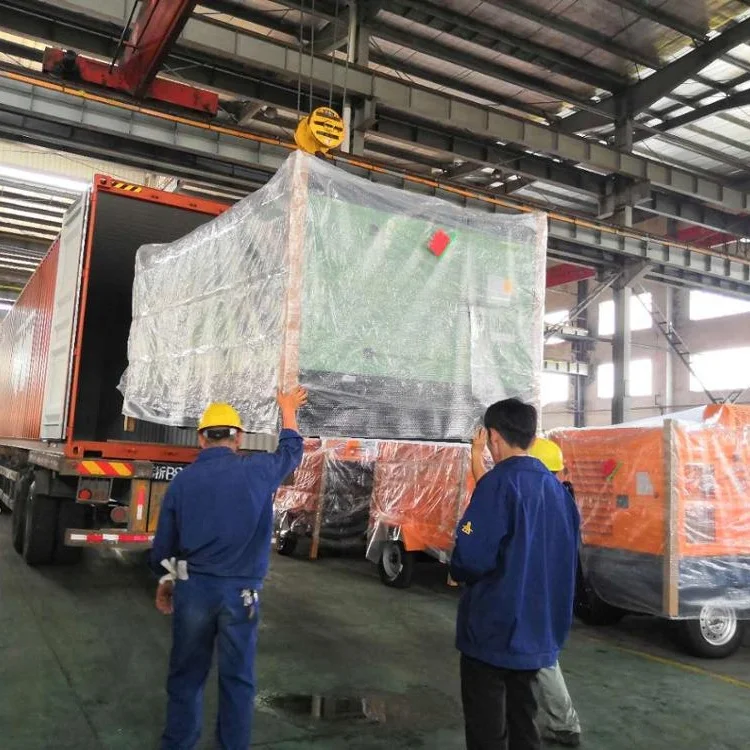

Actual picture of Container loading
Application Area
KW180/KW180A Water Well drilling rig is an efficient and energy-saving advanced drilling equipment specially developed for small and medium-sized open pit mining, quarry and infrastructure construction projects.
Recommend Products
Our Advantages
Company Profile
Our company is located in Quzhou City. Zhejiang Province, which is in the central area of China with convenient transportation and the economic center of Zhejiang. Our company has many years" experience in the business of air compressors and drilling rig machines. We are one of the biqgest suppliers providing the best prices and quality! We absorb advanced technoloay from abroad to satisfy different requirements.At present, the main products of our company is more than 20 kinds, including piston ail compressors, screw air compressors, drilling rig machines. drill bits. drill rods. DTH, air picks, roch drills, down the hole drills, small mining piston air compressors, chiller air compressors, and concrete spraying machines. Meanwhile, we own independent rights of import and export.Now, our company has passed ISO9001: 2008 quality Certification. Our products have a vast market in foreian countries. and are exported to Southeast Asia, South America. Africa and many other countries and reaions. Excellent capability, perfect service and eminent quality can content different customers, then gaining the general recognition from both domestic and overseas users.

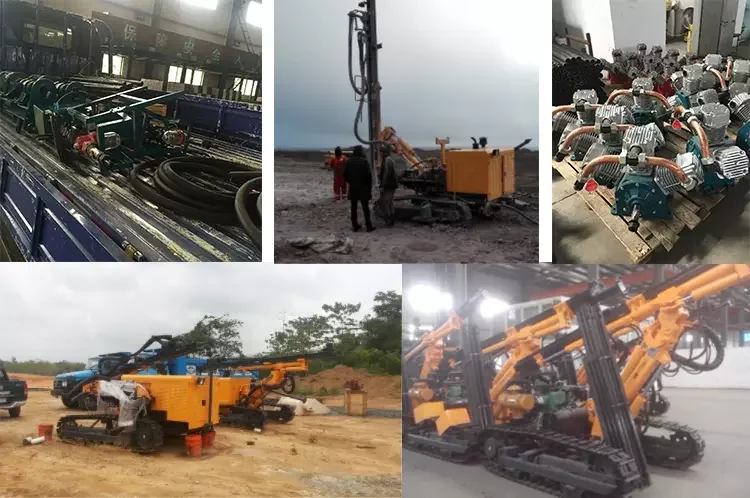

Exhibition
Product packaging
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% TT in advanced, 70% T/T against the B/L copy
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
