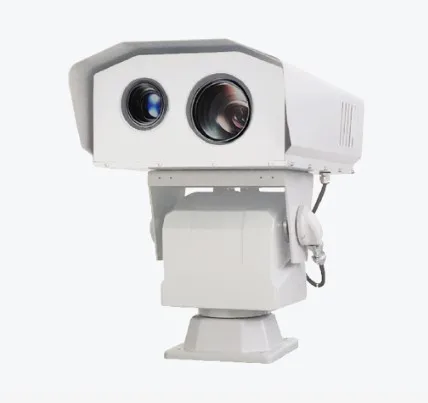

China Manufacturer Motorized Heavy Duty Integrated Outdoor Intelligent Variable Speed Pan Tilt Motor CCTV Surveillance PTZ
- Category: >>>
- Supplier: Tianjin Jiajie Shengchuang Technology Co. Ltd.
Share on (1600724541010):
Product Overview
Description
Products Description

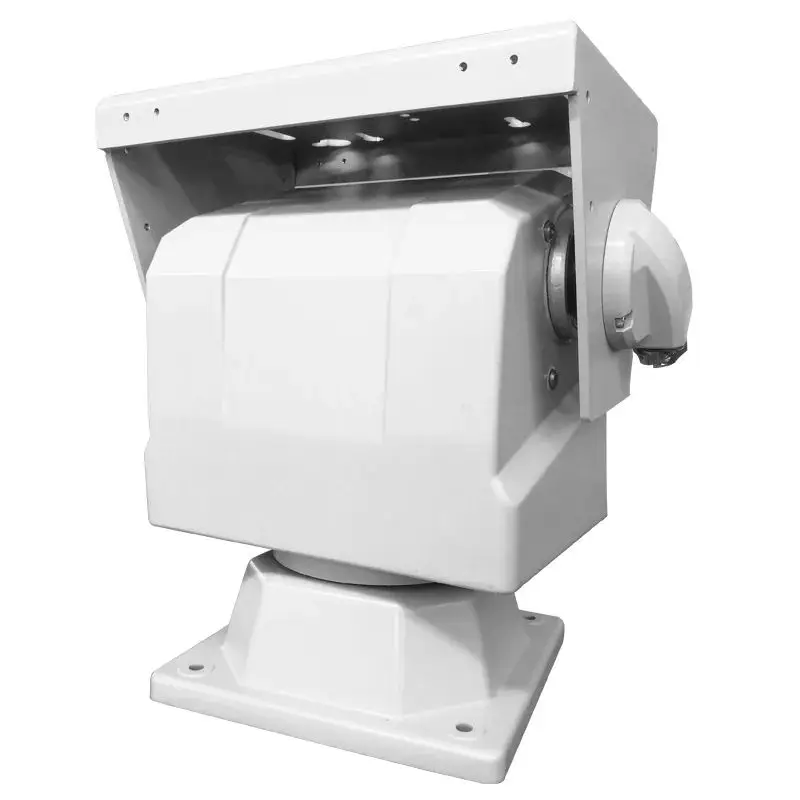

35KG heavy-load integrated PTZ
* Bearing body, top load form, compact structure, strong and durable
* Large bearing capacity, the max overhead load 35kg
* Brushless DC motor drive, low power consumption, long life, fast response, no lag sense, flexible operation
* All-metal precision no-backlash worm gear drive, high precision, wear resistance, long life, no transmission clearance
* The shell is made of high strength aluminum alloy material die-casting, waterproof, high temperature resistance, aging
resistance, corrosion resistance
* High precision digital absolute position encoder, no need to power on self test, no preset bit accumulation deviation
* Multi-preset bit, high preset bit precision, group inspection function
* With automatic pan scanning, sector scanning and stereo scanning functions
* With real-time angle return function, zero setting function, coordinate response function, and other guidance equipment
synchronous linkage
* Match multiple load forms and can carry out a variety of functional module expansion
* All-weather environment design, protection level IP66
* Large bearing capacity, the max overhead load 35kg
* Brushless DC motor drive, low power consumption, long life, fast response, no lag sense, flexible operation
* All-metal precision no-backlash worm gear drive, high precision, wear resistance, long life, no transmission clearance
* The shell is made of high strength aluminum alloy material die-casting, waterproof, high temperature resistance, aging
resistance, corrosion resistance
* High precision digital absolute position encoder, no need to power on self test, no preset bit accumulation deviation
* Multi-preset bit, high preset bit precision, group inspection function
* With automatic pan scanning, sector scanning and stereo scanning functions
* With real-time angle return function, zero setting function, coordinate response function, and other guidance equipment
synchronous linkage
* Match multiple load forms and can carry out a variety of functional module expansion
* All-weather environment design, protection level IP66
Specification
The hardware part | ||

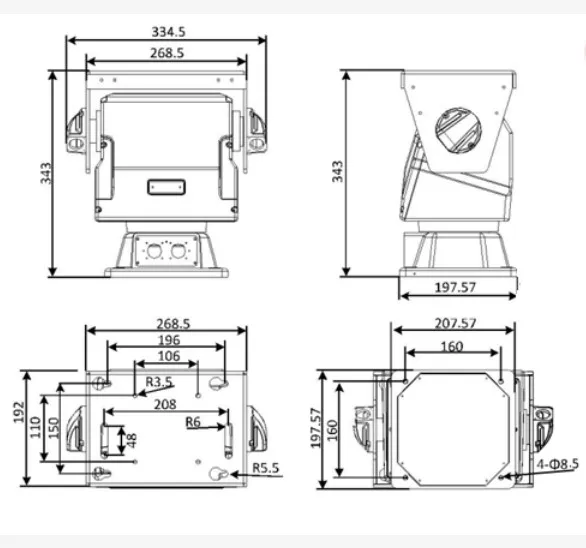

Max dimensions | 345mm* 335mm* 198mm | |
Load bearing form top | Overhead load | |
Transmission form | Long - life worm gear worm drive | |
Self-locking load | 50Kg | |
Installation method | Upright installation, base fixed at four points | |
Supply voltage | 24V/48V±20%(Customizable) | |
Camera communication port | Reserved 100Mbps( 1000Mbps is optional) | |
Horizontal slip ring life | 3 million revolutions | |
Power protection | TVS 6000V lightning-proof, surge proof, in line with GB/T17626.5 Level 4 standard | |
Rotation range | Pan 360° continuous rotation, tilt -55°~+60° | |
Speed range | Pan 0.22°~30°/s, tilt 0.3°~13°/s (Customizable) | |
Power consumption | ≤5W（Standby） ≤100W（Operation） | |
Angular resolution | 0.01° | |
Repeated positioning accuracy | P1±0.12，P2±0.05 | |
Shield power supply voltage | 12V/24V/12+24 Options | |
Body material | Aluminum alloy | |
Operating temperature and humidity | -40℃~65℃, < 90% RH | |
Protection level | IP66 | |
Self weight | 18kg | |
The software Part | ||
Control communication interface | 485/422 | |
Communication protocol | PELCO-D | |
Baud rate | 9600bps | |
Speed control mode | Closed-loop speed control mode | |
Position control mode | Closed-loop position control mode, power off position is not lost | |
Self-check | No self-check is required. It will start working within 5 seconds after power-on | |
Basic motion function | Manual control 64 level speed adjustable, proportional variable speed (camera support required) | |
Number of preset bits | 199 | |
Positioning function | Absolute angle positioning (adjustable positioning speed) 3D positioning (camera support, adjustable positioning speed) | |
Scanning mode | Preset bit point by point scanning (adjustable preset bit dwell time, preset bit scan speed) Horizontal two-point scanning(adjustable scanning speed, scanning dwell time) | |
Watch position | Watch position on or off (can be adjusted back to position time) | |
Special functions | Pan-tilt and camera coordinate query or real-time return | |
