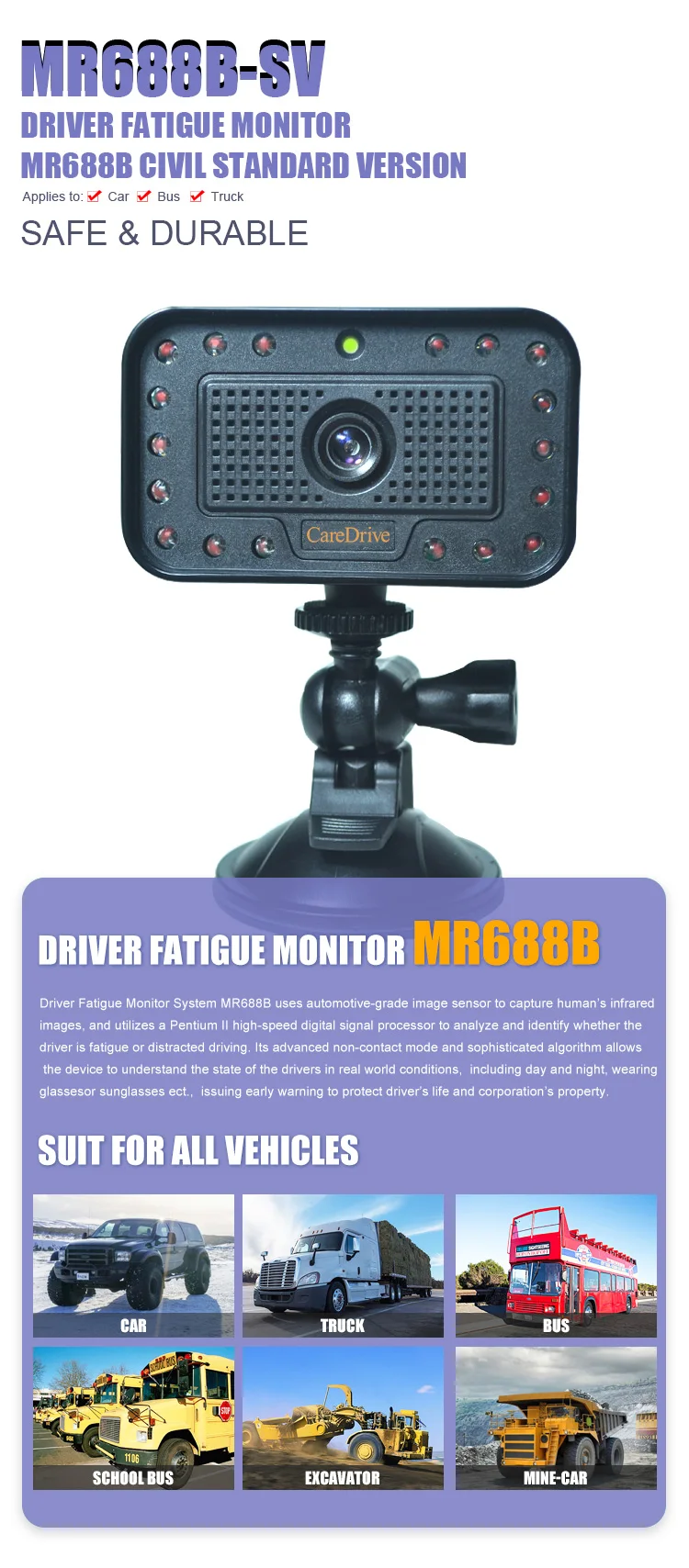

CareDrive heavy truck on my avl system RS232 eye-tracking wake up drowse prevention alarm driver fatigue warning system
- Category: >>>
- Supplier: Guangzhou,MyRiver,Electronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product Parameter
Items | Parameter | ||||||
Product Model: | MR688B | ||||||
Product Size: | 91.5*42.5*127.5mm | ||||||
Operating Voltage: | DC12/24V | ||||||
Camera Type: | CMOS | ||||||
Minimum Operating Voltage: | 9V | ||||||
Maximum Operating Voltage: | 32V | ||||||
Working Current: | 12V power, about 380mA 24V power, about 180mA | ||||||
Working Temperature: | -10℃~+50℃ | ||||||
Storage Temperature: | -45℃~+85℃ | ||||||
Detection Distance: | 60-100cm | ||||||
Detection Accuracy: | 96% | ||||||
Vibration Measurement: | Max Gs is 27G | ||||||
Driver Drowsiness Recognition (sec): | Min.1s It can be modified to setup sensitivity | ||||||
Volume: | Adjustable | ||||||
Over Speed Alarm: | Optional | ||||||
Signal Output: | Optional | ||||||
Image Output: | Optional | ||||||
Video Output: | Optional, NTSC/PAL | ||||||
Video Resolution: | Optional, CVBS Black and White | ||||||
Video Connection Port: | 4 pin aviation connector (pin 1: reserved, pin 2: GND, pin 3: reserved, pin 4: video) | ||||||
Product Feature and Function
Certifications
Recommend Products
Company Profile
Exhibition
FAQ
1. Are the infrared lights harmful to my eyes and body?
RE：The infrared lights of MR688B have passed the SGS test report of infrared lights. It is less than 0.2W and less than 1/10 of indoor nature lights, which can’t be seen and awared its existing with mixed lights.
2.I’m worried about too many noisy alerts.
RE: MR688B will only issue audio alerts when the driver trigger the alarm. And you can also adjust the sensitivity to control the alarm response time. If you set a lower sensitivity, MR688B will take a little bit longer to issue the alerts.
3. Will it influent my sight? Did I need to always look at it?
RE：No, MR688B is small and will not influent the driver’s sight, and you also don’t need you to stare at it, just leave it alone after you have adjusted the angle toward your eyes.
4. Is it difficult to install?
5. How long is the warranty?
RE: No, CareDrive will provide the installation guide and video to help you install, and also provide remote assistance if needed. Most clients can install by themselves even they are new in this field.
5. How long is the warranty?
RE: Two years.
