Customized O/H Crane 10 Ton Workshop Warehouse Modular Bridge Crane Single Girder Overhead Crane
- Category: Engineering & Construction Machinery >>>
- Supplier: Zhangjiagang,Pawell,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Materials need to flow and logistical challenges require solving wherever goods are produced: in major producing industries as well as in small workshops. Sometimes our customers have very special transport requirements, for example as a result of their locations or the goods to be transported. PAWELL offers each customer tailor-made solutions based on standard cranes and components. The PAWELL Overhead travelling cranes with maximum load capacities of up to 120 t provide smooth transportation for large and heavy goods at high level facilitated by PAWELL Wire rope hoists, the core elements of crane systems.
Capacity | FEM | Rope Reeving | Rope Dia |
3.2t | 2M | 4:1 | 6mm |
5t | 2M | 4:1 | 8mm |
6.3t | 1Am | 4:1 | 8mm |
10t | 2M | 4:1 | 11mm |
16t | 2M | 4:1 | 15mm |
Detailed Images
HOIST
Capacity :1-20t
Lifting Height :6-15m
Travel Speed 5-20m/min (VFD Speed control )
Control:Pendant control ,remote control
Bottom Hook Block
1.Design RSN hook forging strength class T as per Din 15401
2.The notched latch for firm contact improves resistance against lateral force
Crane conponents -end carriages
• optimum travel characteristics
• smooth starting thanks to matching drive solutions
• high operating reliability
• easy assembly and accessibility
• for single and double-girder overhead travelling cranes, suspension cranes and travelling structures.
• smooth starting thanks to matching drive solutions
• high operating reliability
• easy assembly and accessibility
• for single and double-girder overhead travelling cranes, suspension cranes and travelling structures.
Related Products

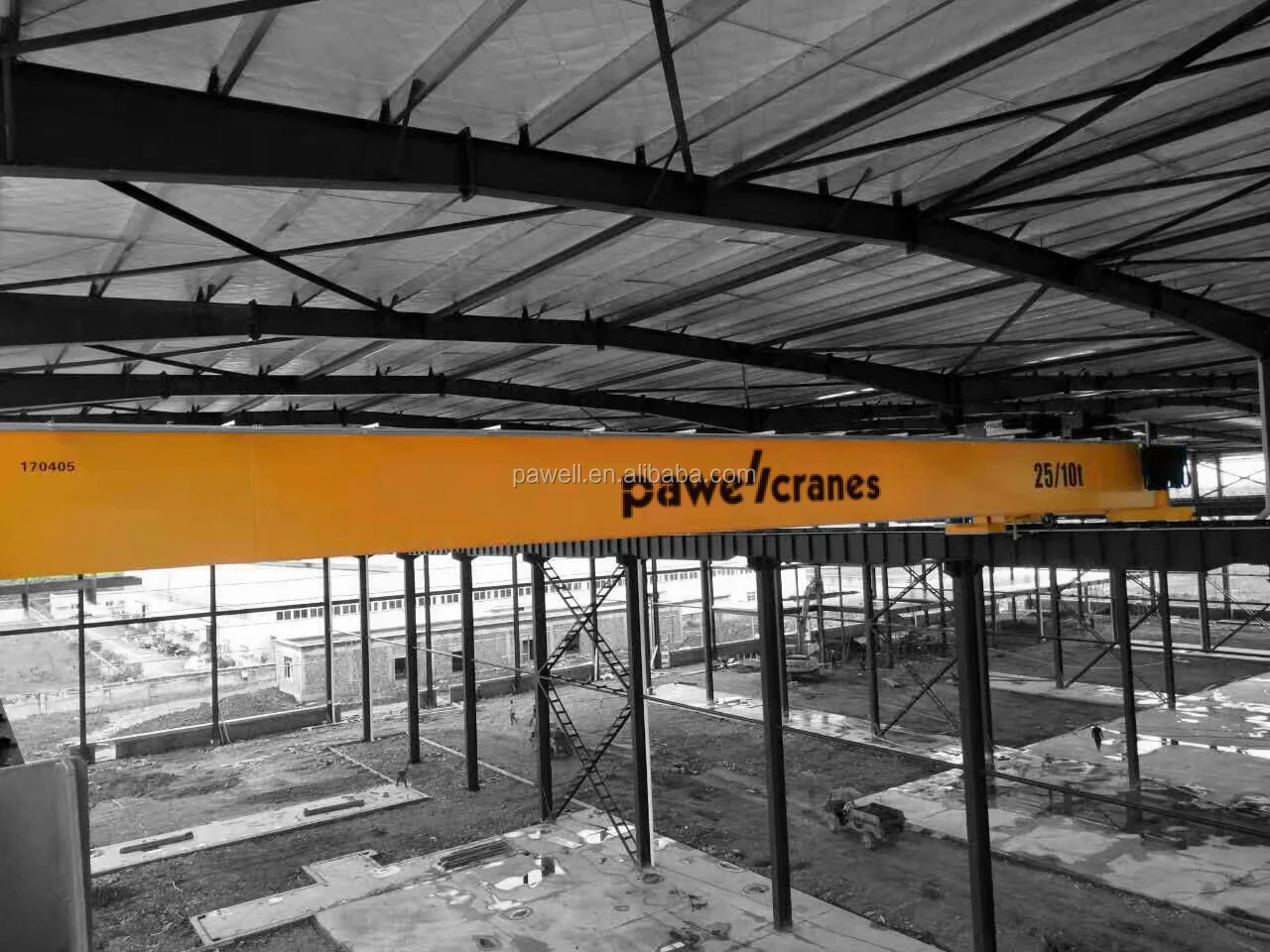

Project Application
Metallurgy cranes are usually applicable to ambient temperatures ranging from -10℃ to +50℃. In case the temperature is at 40℃ and the relative humidity is not more than 50℃, the molten metal hoisted by the metallurgy cranes will produce
With many years of experience and professional technical skills, PAWELL provides support for the operators of waste disposal
facilities. Our cranes are used for fuel storage and mixture as well as fuel supply for furnace production lines.
facilities. Our cranes are used for fuel storage and mixture as well as fuel supply for furnace production lines.
Special cranes designed for customers engaged in metal processing have been put into service in many domestic large-scale
steel, aluminum and copper processing enterprises for hoisting ingots, coils, sheets, waste, molded products, rollers.
steel, aluminum and copper processing enterprises for hoisting ingots, coils, sheets, waste, molded products, rollers.
Packing&Shipping

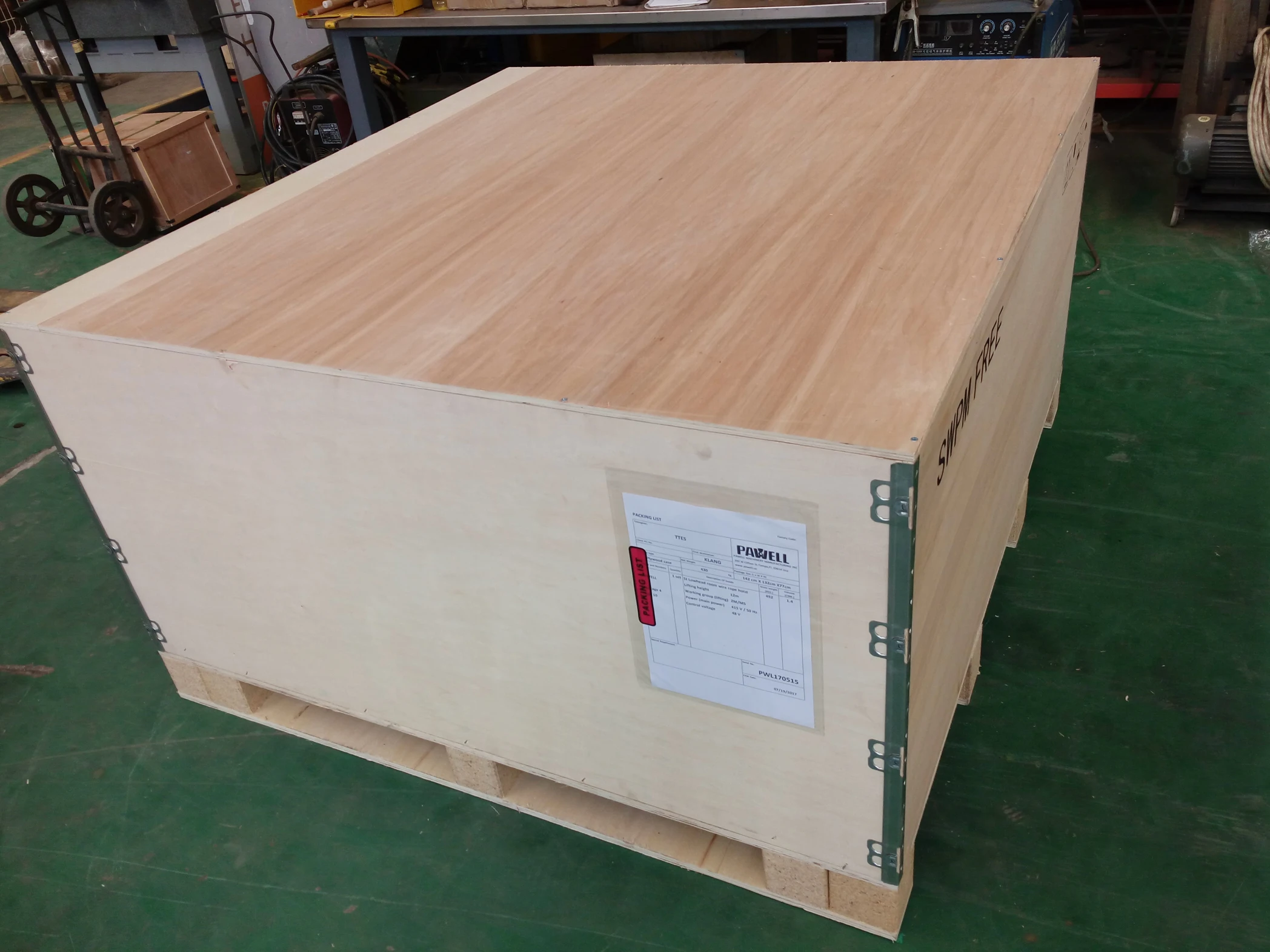

PLYWOOD CASE FOR WIRE ROPE HOIST
PALLET FOR END CARRIAGES
After Sales Service
AFTERSALES SERVICE
♦ Maintenance
♦ Training Center
♦ Annual Inspection
♦ Spare Parts
