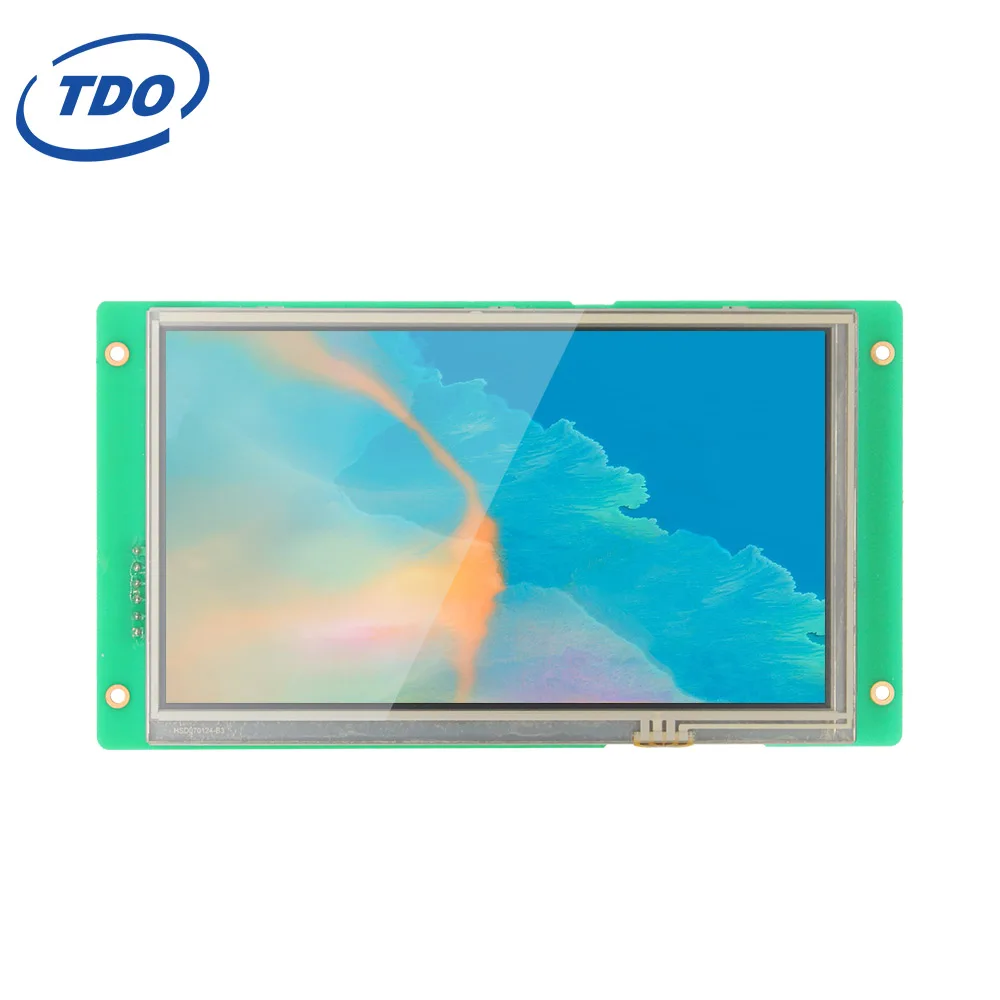

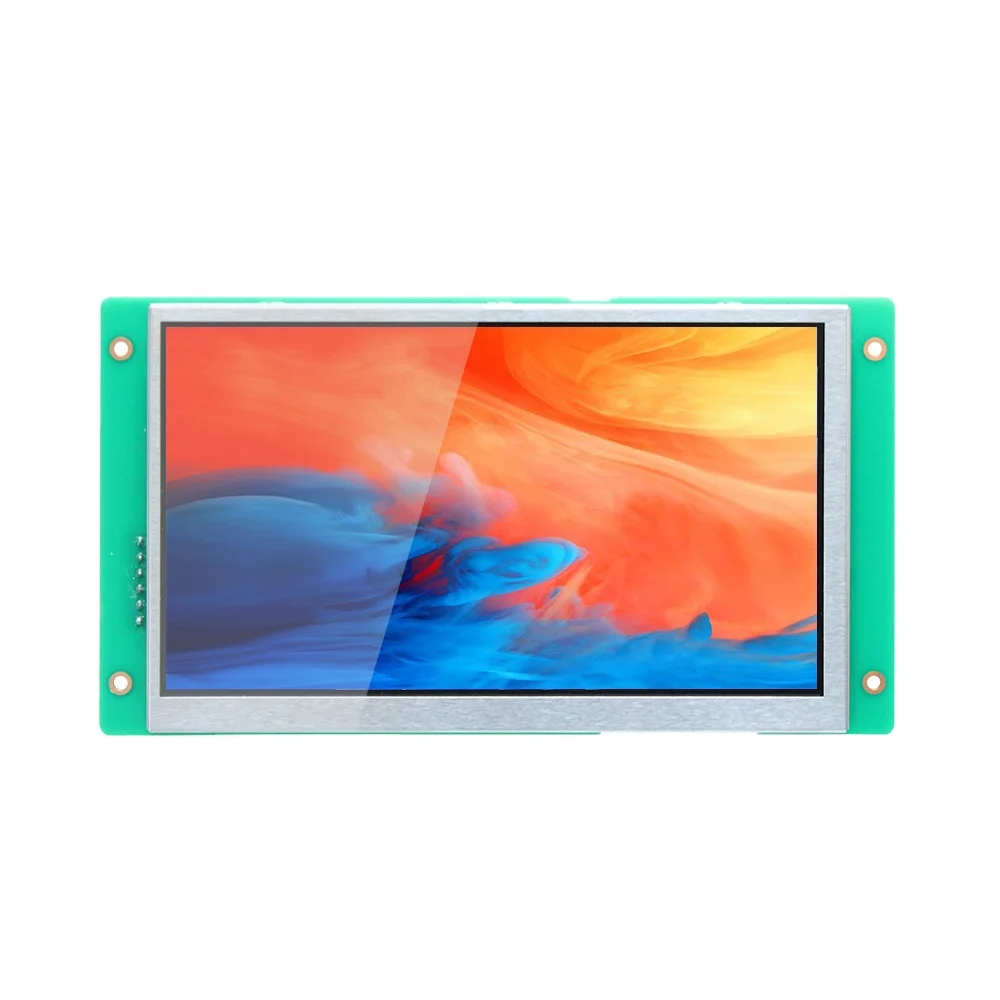

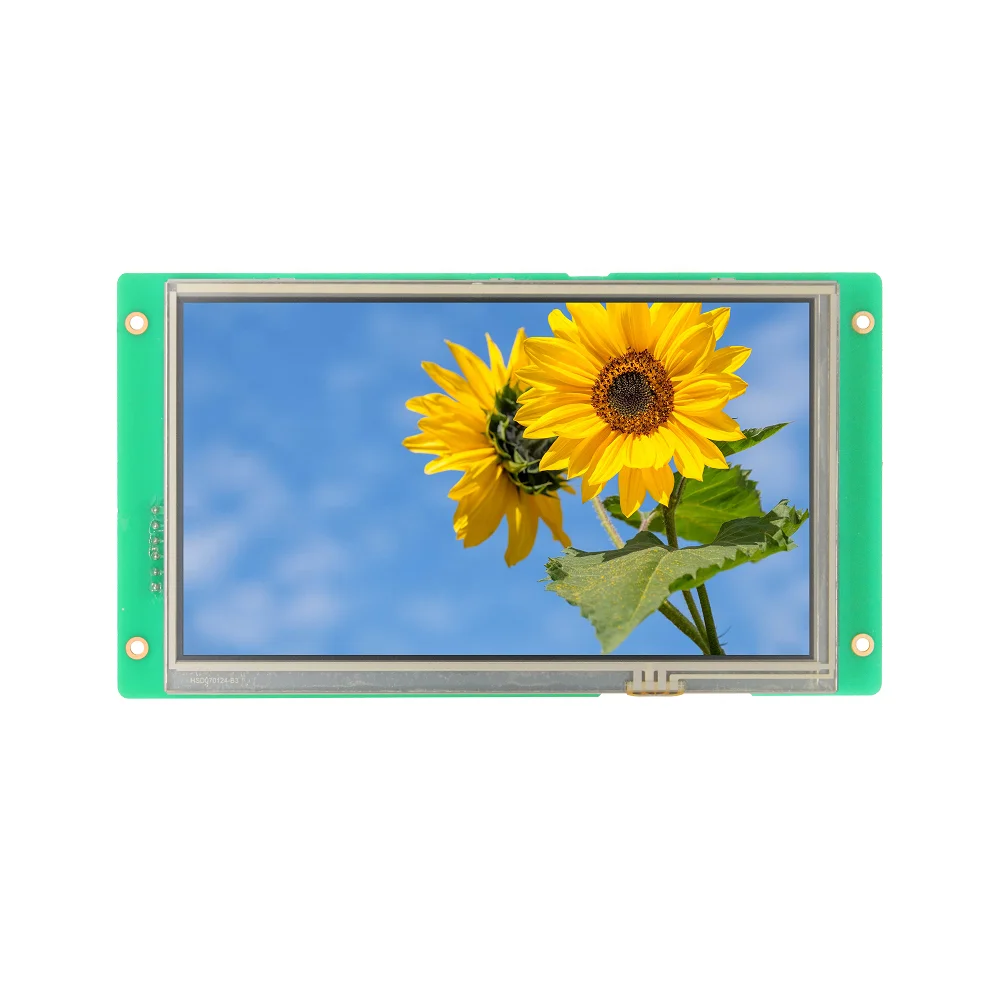

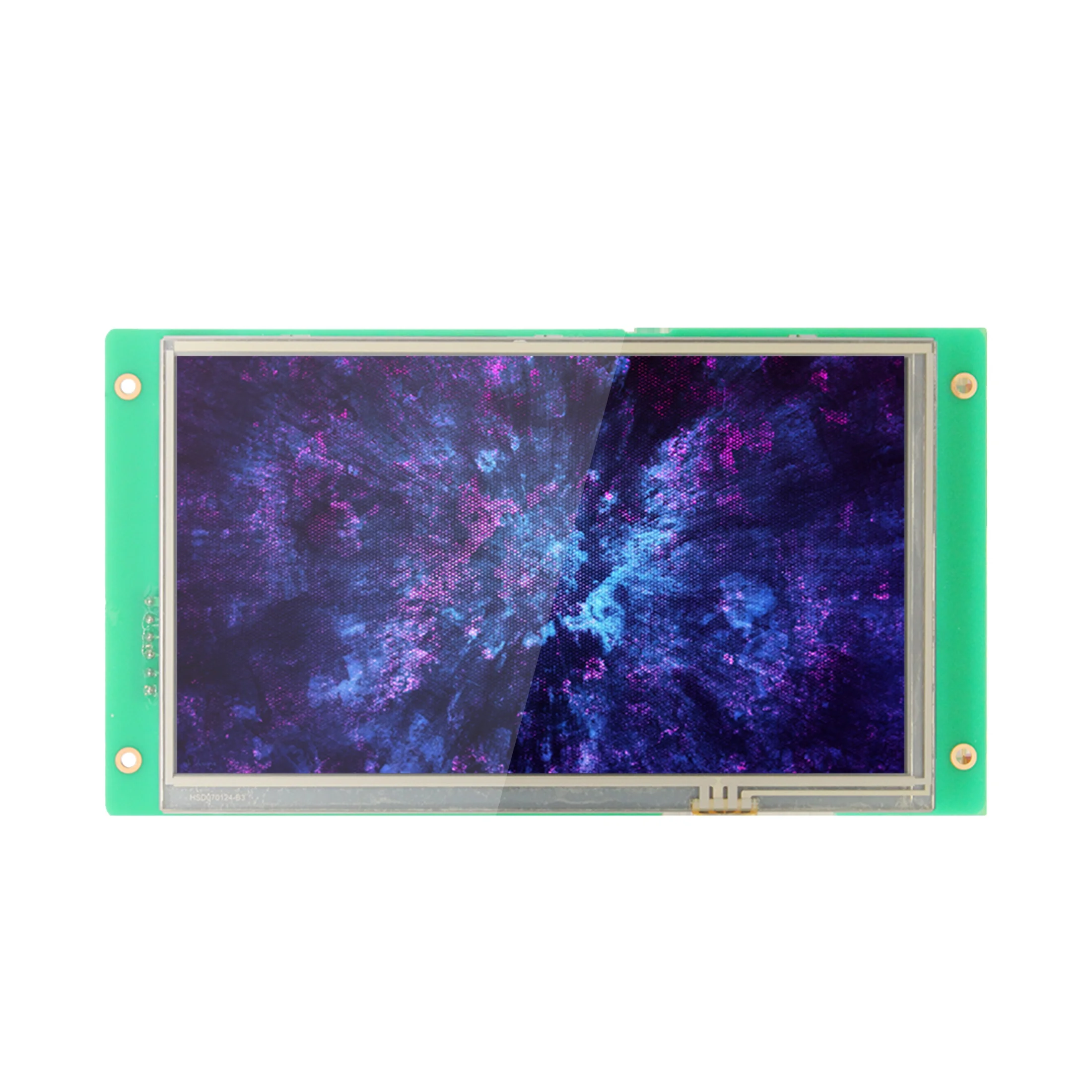

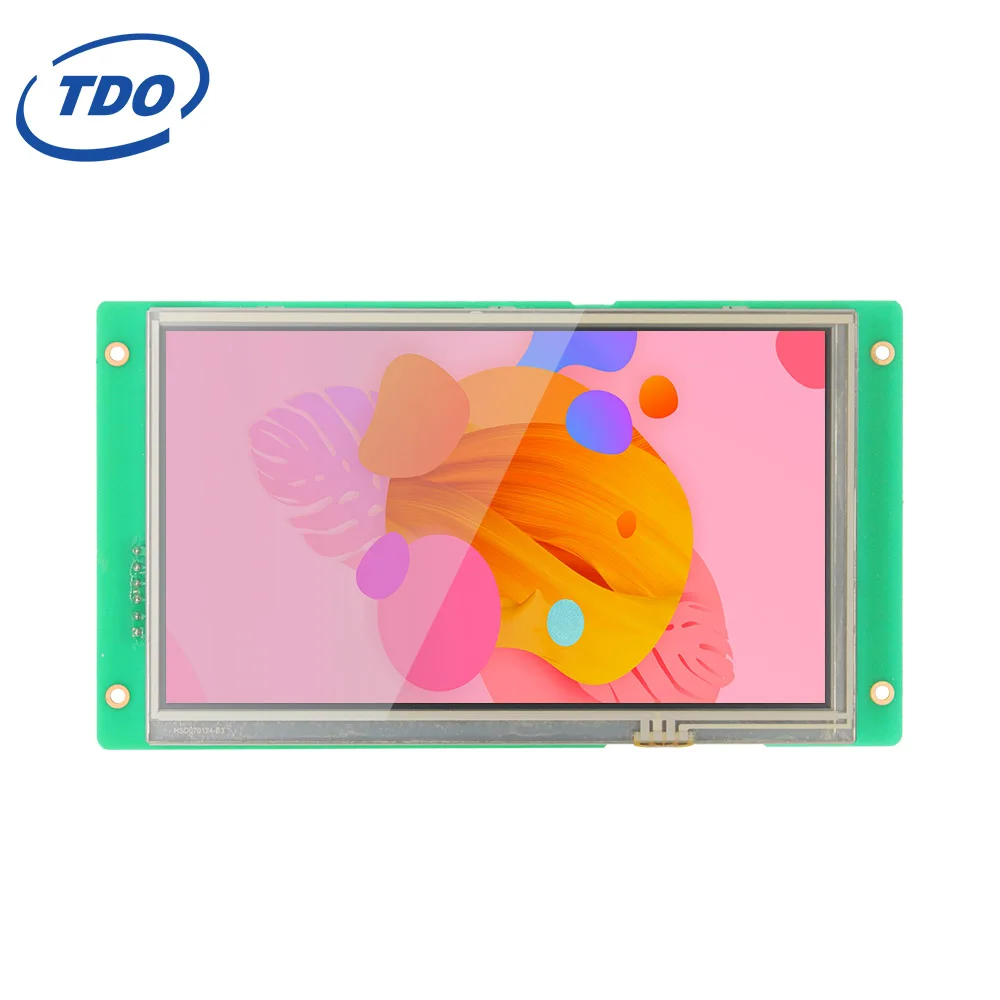

TDO 7.0 inch 800*480 TN HMI Screen UART Serial TFT LCD display Module for Arduino/STM/ESP with RS485/ RS232/ TTL Interface
- Category: >>>
- Supplier: Shanghai Top Display Optoelectronics Co. Ltd.
Share on (1600724688397):
Product Overview
Description
Specification
Product Model | TY070WVH01 |
Size | 7.0'' |
Resolution | 800(RGB)×480 |
Active Area(mm) | 153.84(L)*85.63(W) |
Bezel Dimension(mm) | 166(L)*101.1(W)*7.7(H) |
Drive Board Outline(mm) | 190.51(L)*105.4(W) |
Brightness | 300 |
Touch Panel | No |
Communication Interface Type | UART with3.3V TTL level, follow TGUS® protocol |
Spi Flash | 16MB on board,10MB which is reserved for users |
VIDEO | Up to 1080*720 pixels with MP4 format |
Input Voltage Range | 5.5~24V DC |
Power Consumption | 24V/140mA （Maximum brightness）24V/40mA （Backlight off） |
Working Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Working Humidity | 10%~90%RH |
Product Description
High-quality & performance
-High Resolution; -Excellent color Chromaticity
-Full View; Capacitive Touch/Resistive Touch Panel optional.
Most Competitive Price
We develop, design, produce it by ourselves, and we receive large quantities of orders every month. That's why we can provide the
most competitive price.
Reliable customer service
24 hours online, we have professional after-sales support team
most competitive price.
Reliable customer service
24 hours online, we have professional after-sales support team
Intuitive interface
Intuitive interface, unified management of resources and pages, detailed property explanation window, lua scripts support , easy
to add user logic, support cancellation and restoration.
to add user logic, support cancellation and restoration.
Self-developed design tool
Using TDO's free editing software TGUS, you can quickly design your GUI.

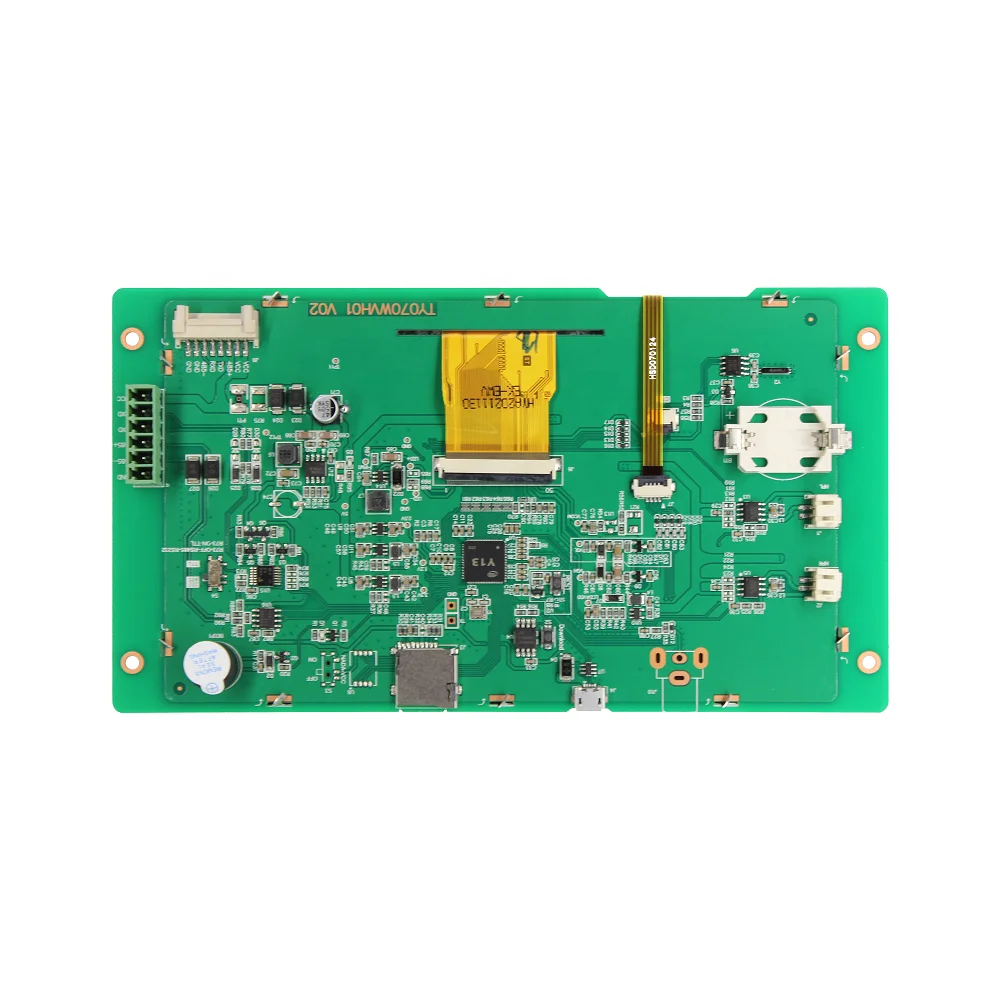

Multi-functional Integrated Driver Board
TDO integrating display driver and touch
driver for reducing the development workloads. The function includes pictures, text, QA code, dials, audio/video playback, RTC, buzzer, audio amplifier, etc.
driver for reducing the development workloads. The function includes pictures, text, QA code, dials, audio/video playback, RTC, buzzer, audio amplifier, etc.
Intuitive interface • Simple and convenient •User-friendly
To reduce yours HMI development workloads, TDO provides a human-machine interface solution, integrating display driver and touch
driver for HMI GUI project development. Using TDO's free editing software TGUS, you can quickly design your GUI.
driver for HMI GUI project development. Using TDO's free editing software TGUS, you can quickly design your GUI.

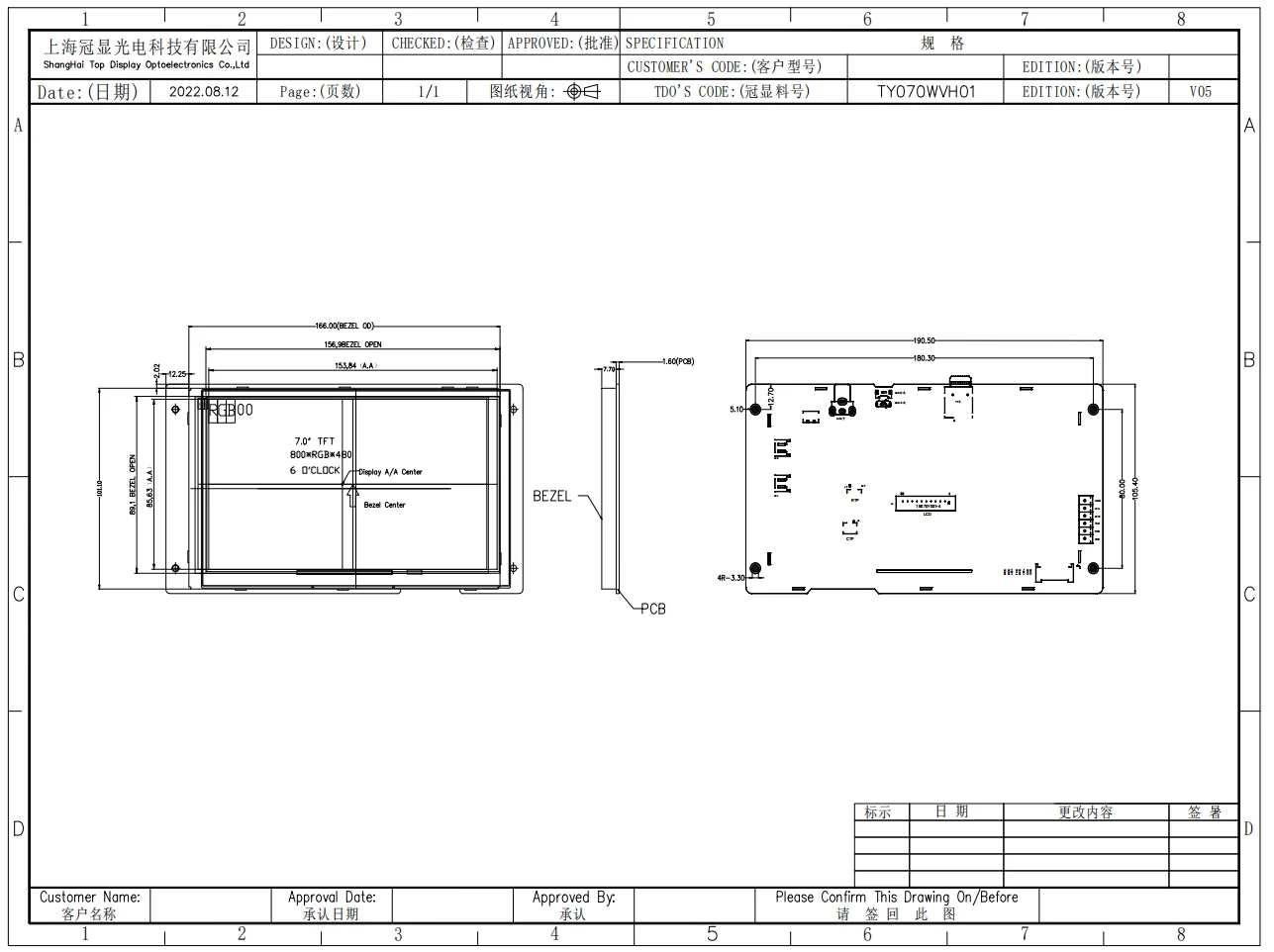

Data Sheet
Contact Us
Headquarter Address: Shanghai, Minhang district, Xinjunhuan Road 88, Building13A, 4th floor
Factory Address: Shenzhen, Baoan District Shajing Road Block 1, Jinkang Factory Block 1, Building 3A
Phone : +86-021-64297098
Fax: +86-021-64297089
Email: wanjun_li@shtdo.com
Company Profile
TDO is professional display supplier who integrates R&D, manufacturing and sales. We are committed to becoming the leader in LCD/OLED new display, smart display and IOT solutions, near-eye display. Focus on industry application markets such as medical, smart home, IOT, industrial, military, air purification, instrumentation, robotics, 3D printing and so on.
Founded by a core team with more than 10 years of display R&D and operation experience, we have first-class innovation ability and operational integration capabilities. Owning a professional purification manufacturing plant in Shenzhen. Independently developed Theaview® outdoor sunlight readable display module, TGUS® smart UART display and IOT smart switch. TDO has applied for more than 30 technology patents. In 2016, TDO was awarded High-tech Enterprise in Shanghai.
Founded by a core team with more than 10 years of display R&D and operation experience, we have first-class innovation ability and operational integration capabilities. Owning a professional purification manufacturing plant in Shenzhen. Independently developed Theaview® outdoor sunlight readable display module, TGUS® smart UART display and IOT smart switch. TDO has applied for more than 30 technology patents. In 2016, TDO was awarded High-tech Enterprise in Shanghai.
Packing&Delivery
FAQ
1. Do you offer customization service?
Yes, we can customize touch panel, FPC, Backlight etc. according to your needs.
Yes, we can customize touch panel, FPC, Backlight etc. according to your needs.
2. What is the lead time?
Standard products: within 3 days for samples, 3 to 5 weeks for mass production.
Customized products: 3 weeks for sampling, 3 to 5 weeks for mass production.
Customized products: 3 weeks for sampling, 3 to 5 weeks for mass production.
3. What you can buy from TDO?
We are manufacturer for TFT LCD/ OLED Display,Smart/Intelligent display,Touch Screen,HDMI solution,Core board
4. What kind of documents you will provide?
We can provide datasheet, drawing, initial code, timing, driver board, editable software...
5. How to guarantee your products quality?
TDO has professional quality team, from OQC to PQC to OQC to QA inspection. All the products will be full inspected before shipment.
6. What is the payment method?
Samples: Alipay; Paypal; TT in advance; West Union...
Mass production: Negotiable.
7. What is the shipping method?
Samples: DHL; TNT; FedEx; SF express; UPS; EMS...
Mass production: Negotiable.
We can provide datasheet, drawing, initial code, timing, driver board, editable software...
5. How to guarantee your products quality?
TDO has professional quality team, from OQC to PQC to OQC to QA inspection. All the products will be full inspected before shipment.
6. What is the payment method?
Samples: Alipay; Paypal; TT in advance; West Union...
Mass production: Negotiable.
7. What is the shipping method?
Samples: DHL; TNT; FedEx; SF express; UPS; EMS...
Mass production: Negotiable.
8. What services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Accepted Delivery Terms: FOB,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
9. You will be welcomed to contact our sales manager Mireia and assistant Keith directly.
