SUNLINK GO156 Growatt Solar Inverter Afci Function Optional Solar Energy Products
- Category: >>>
- Supplier: Sunlink (xiamen) New Energy Technology Co. Ltd.
Share on (1600724718534):
Product Overview
Description

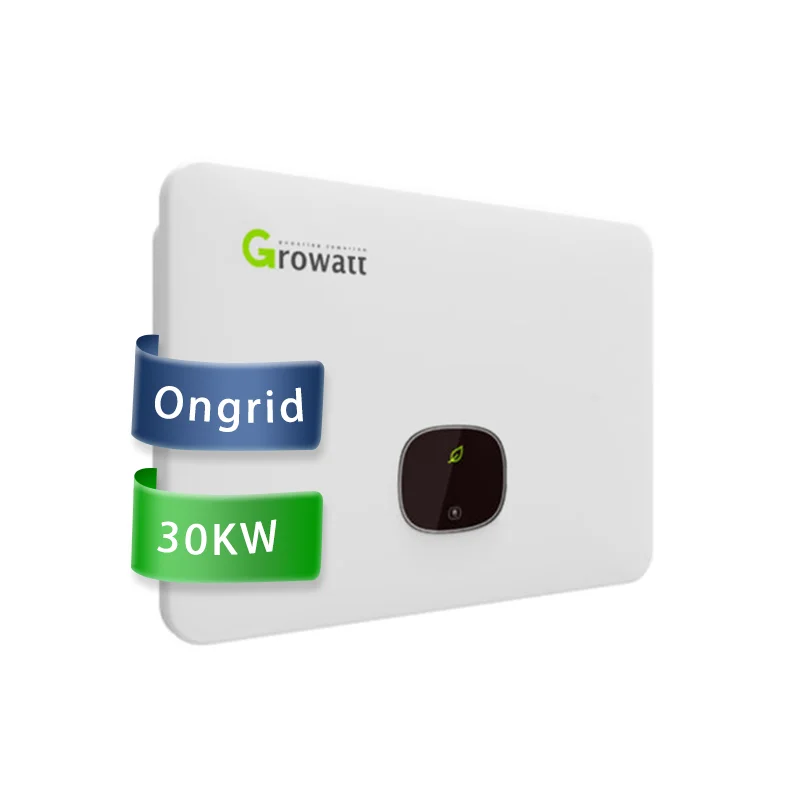

SUNLINK GO156 Growatt Solar Inverter Afci Function Optional Solar Energy Products
Product Paramenters
SUNLINK GO156 Growatt Solar Inverter Afci Function Optional Solar Energy Products

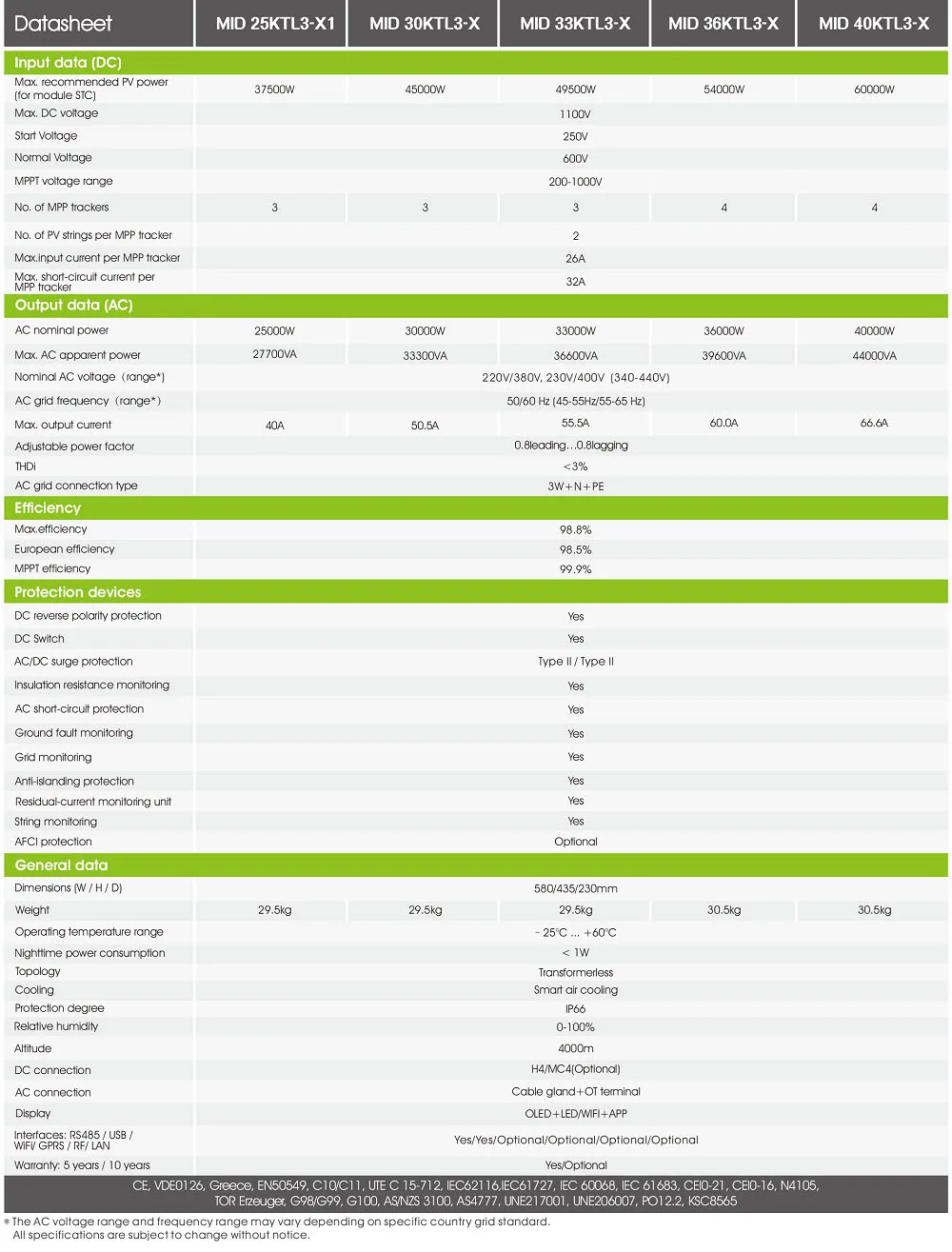

Datasheet | MID 25KTL3-X1 | MID 30KTL3-X | MID 33KTL3-X | MID 36KTL3-X | MID 40KTL3-X | |||||
Input data (DC) | ||||||||||
Max. recommended PV power(for module STC) | 37500W | 45000W | 49500W | 54000W | 60000W | |||||
Max. DC voltage | 1100V | |||||||||
Start Voltage | 250V | |||||||||
Normal Voltage | 600V | |||||||||
MPPT voltage range | 200-1000V | |||||||||
No. of MPP trackers | 3 | 3 | 3 | 4 | 4 | |||||
No. of PV strings per MPP tracker | 2 | |||||||||
Max.input current per MPP tracker | 26A | |||||||||
Max. short-circuit current per MPP tracker | 32A | |||||||||
Output data (AC) | ||||||||||
AC nominal power | 25000W | 30000W | 33000W | 36000W | 40000W | |||||
Max. AC apparent power | 27700VA | 33300VA | 36600VA | 39600VA | 44000VA | |||||
Nominal AC voltage（range*) | 220V/380V, 230V/400V (340-440V) | |||||||||
AC grid frequency（range*） | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||
Max. output current | 40A | 50.5A | 55.5A | 60.0A | 66.6A | |||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||||
THDi | <3% | |||||||||
AC grid connection type | 3W+N+PE | |||||||||
Efficiency | ||||||||||
Max.efficiency | 98.8% | |||||||||
European efficiency | 98.5% | |||||||||
MPPT efficiency | 99.9% | |||||||||
Products Description

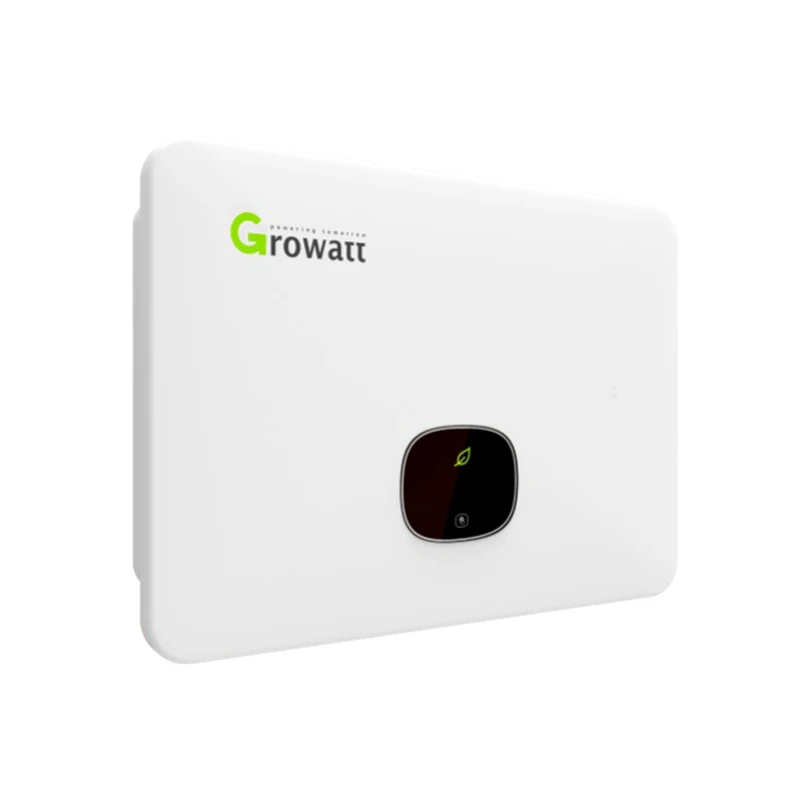

MID 25-40KTL3-X
25-40kW | 3/4 MPPTs | Three Phase
* AFCI function optional

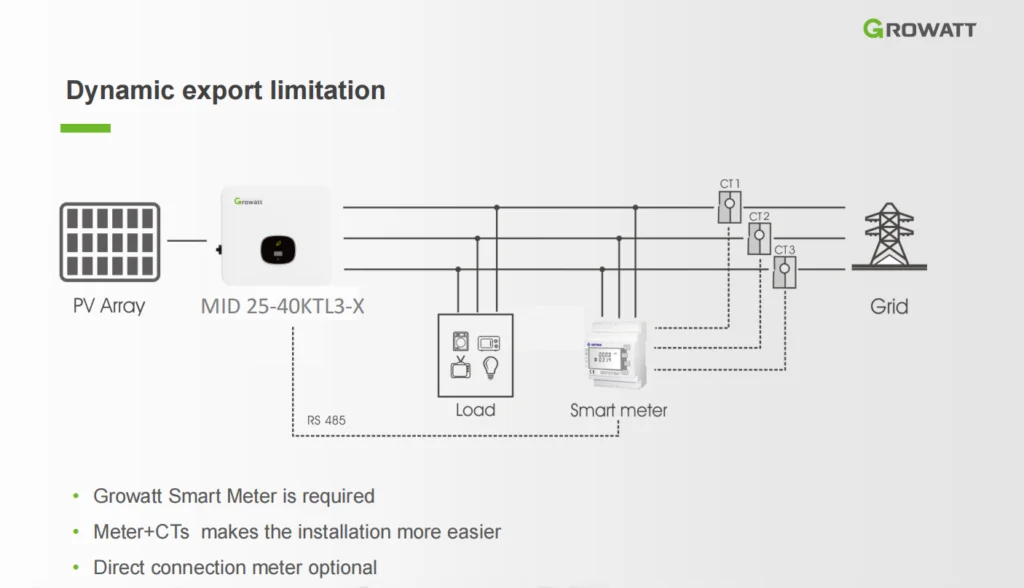

* Self-consumption monitoring
* Touch key and OLED display
* Type II SPD on DC and AC side
Growatt series photovoltaic inverters are used to convert the direct current generated by photovoltaic panels into alternating current, and send it to the grid in a three-phase manner. MID 17-33KTL3-X(1) series inverter can be connected to six strings (MID 36- 40KTL3-X can be connected to eight strings), has 3/4 maximum power tracking point trackers, so suitable for connection 3/4 Set of arrays of different panels.
KEY FEATURES
* 3/4 independent maximum power point tracking
* Built-in DC switch
* Compatible with RS485/Wifi/GPRS/4G communication
* 200V-1000V input voltag range
* The maximum efficiency is as high as 98.8%
* Built-in DC switch
* Compatible with RS485/Wifi/GPRS/4G communication
* 200V-1000V input voltag range
* The maximum efficiency is as high as 98.8%
* Self-consumption monitoring
* Touch key and OLED display
* Type II SPD on DC and AC side
* OLED+LED/WIFI+APP display
* Integrated with touch button
* Protection grade IP66
* The weight is only 31kg
* Simple installation
* Integrated with touch button
* Protection grade IP66
* The weight is only 31kg
* Simple installation
