Three Roll Mills for rubber inks
- Category: >>>
- Supplier: Laizhou New Hongda Chemical Machinery Co. Ltd.
Share on (1600724728939):
Product Overview
Description
Product Description

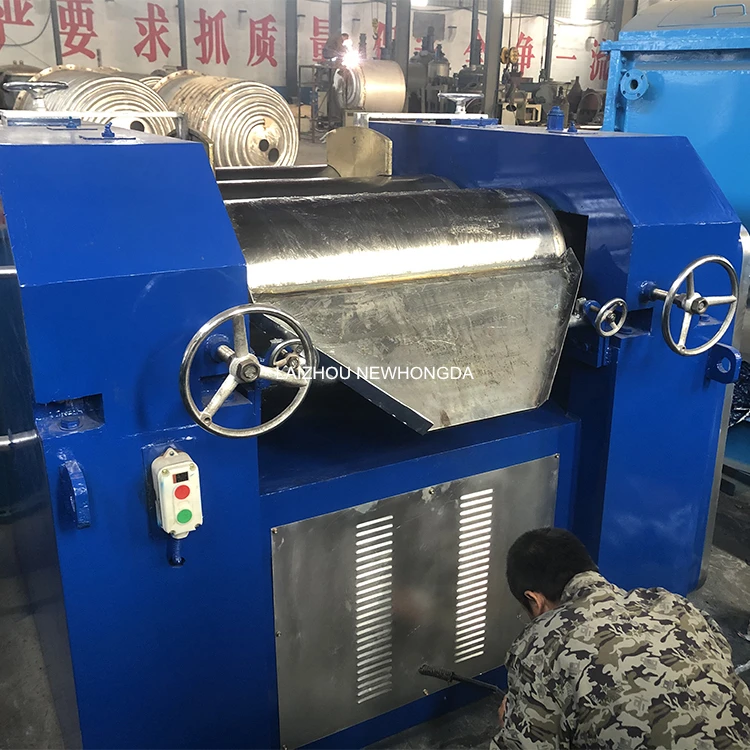

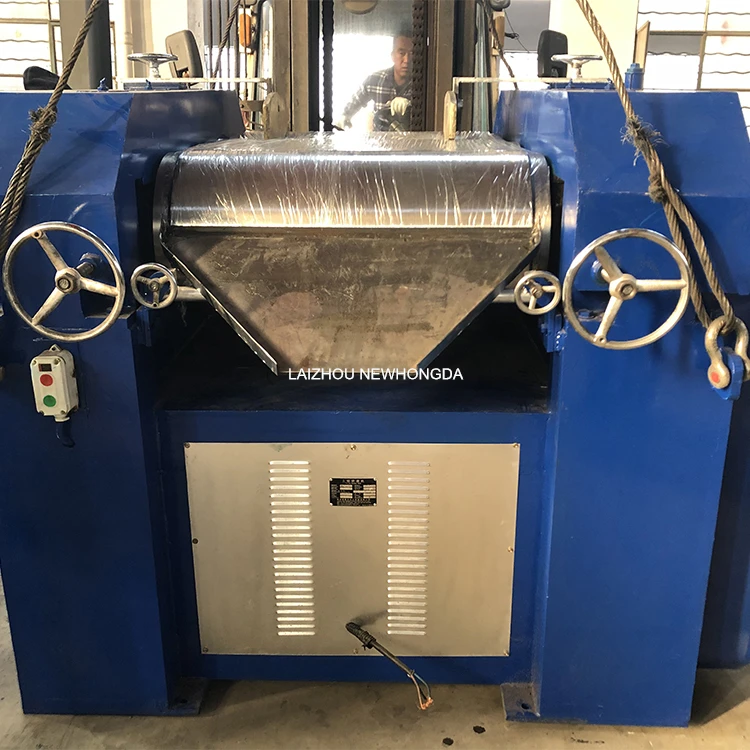

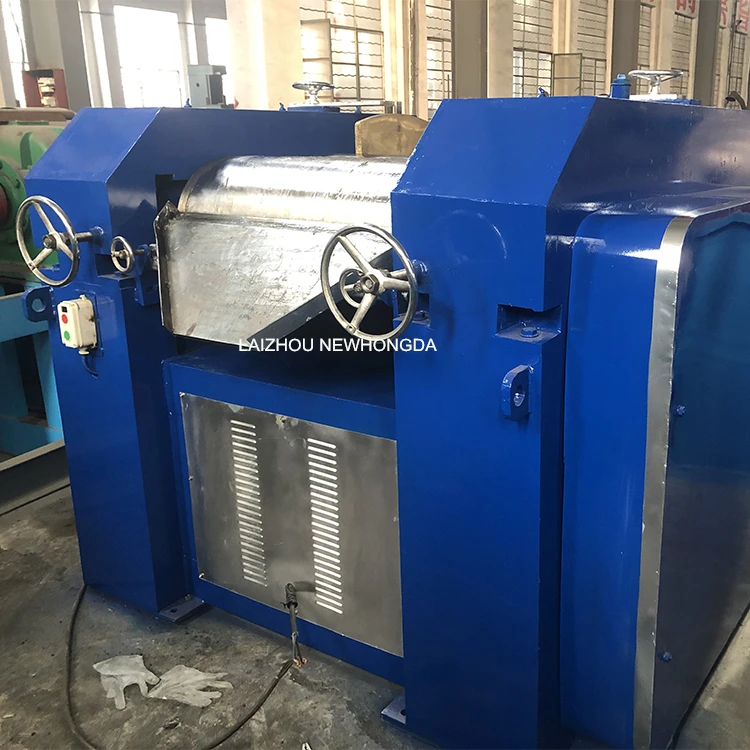

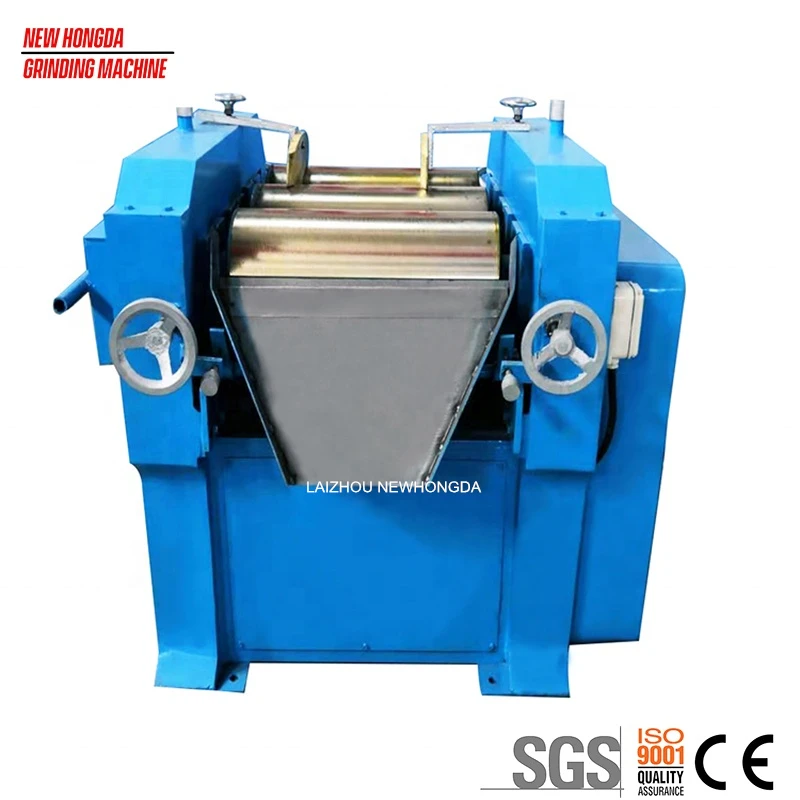

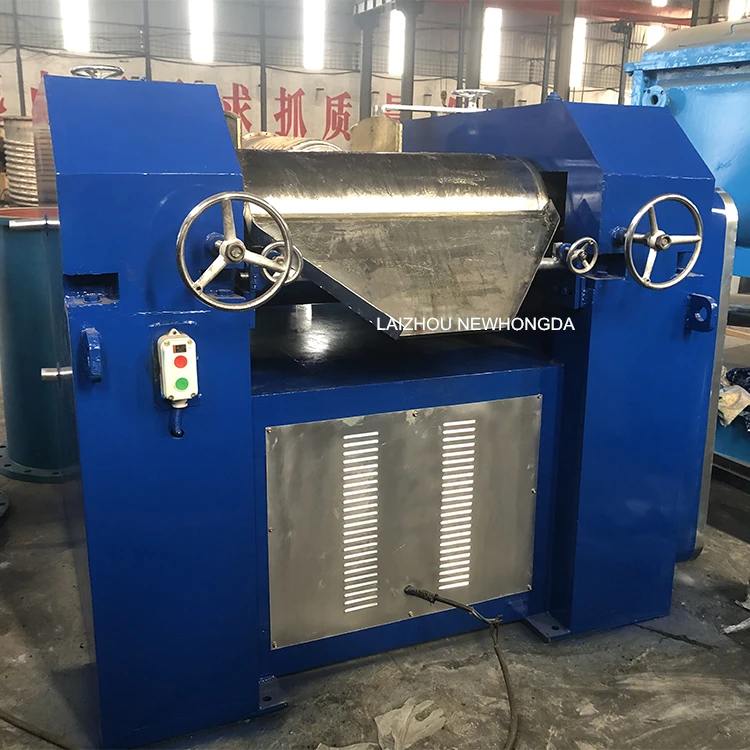

SM series three roller grinding machine
Type 120 / 150 / 250 is applied in small scale production or laboratory
Type 405 / 315 is applied in large scale production
Three-roll grinding machine for short, three-roll grinding machine can be divided into two kinds: experimental three-roll grinding machine and production three-roll grinding machine. Three roller grinding machine is suitable for paint, ink, pigment, plastic, etc., the most effective grinding and dispersing equipment for high viscosity materials.
Advantages
1. Stable structure design -- welding machine frame structure, so that the equipment work more stable, cylinder, gear, pulley are balanced design, so that the machine running noise is lowest.
2. The distance between the three rollers can be adjusted by PLC or hydraulic system or hand wheel to obtain different grinding fineness.
3. Suitable for grinding and dispersing of ointment or high viscosity material with high fineness requirement.
Working principle
Three roller grinding machine has three rollers mounted on the iron frame, the center in the line. Three roller grinding machine through the horizontal three roller surface extrusion and different speed friction to achieve grinding effect. The steel drum can be hollow and cooled through water. The material is added between the middle roll and the back roll. Because of the different rotation directions of the three rollers, there is a good grinding effect.
Application
Suitable for grinding and dispersing ointment or high viscosity materials with high requirement of fineness.
Paints | Automotive Paint / Top Coat / Clear Coat / Cathodic Dip Coating / Coil Coating / Fillers / Construction Paint / Wood Paint / Marine Paint / Dispersion Paint / Road Marking Paint | ||||||
Printing Inks | Screen Printing Inks / Flexo Printing Inks / Rotogravure Inks / Sheet-fed Printing Inks /Ink Jet / Heat-set Inks / Cold-set Inks | ||||||
Agrochemistry | Fertilizer / Pesticides / Suspension Concentrate(SC) | ||||||
Pigments/Dyes | Pigment Production / Titanium Dioxin | ||||||
Ceramics / Glass | Ceramic Pigments / Table Ware/Sanitary Wear / Technical Ceramics | ||||||
Ores/Minerals | Graphite / Talc / Calcium Carbonate | ||||||
Life Science | Biotechnology / Cosmetics/Personal Hygiene (eye make up, lipstick, skin-care products,soaps) / Pharmaceuticals(dental composites) | ||||||
Food | Cocoa Liquor / Marzipan / Chocolate Fillings / Processed Cheese / Plant Gum / Camellia Japonica Seed Oil | ||||||
Chemicals | Adhesives / Sealants /Plastic | ||||||
Size Information
Parameter | Type 120 | Type 150 | Type 250 | Type 315 | Type 400 | ||
Roller Diameter (mm) | Φ120 | Φ150 | Φ250 | Φ315 | Φ405 | ||
Length of Roller Working Face (mm) | 280 | 320 | 600 | 760 | 810 | ||
Speed Ratio (S:M:F) | ≈1:3:9 | ≈1:2:4.98 | ≈1:2:5.25 | ≈1:2.87:8.1 | ≈1:3:9 | ||
Stirring Rate of Roller | Low Speed Roller (r/min) | 31 | 32.5 | 22.4 | 17 | 14.39 | |
Medium Speed Roller (r/min) | 85 | 75 | 56 | 48.8 | 44.39 | ||
High Speed Roller (r/min) | 232 | 173 | 140 | 139 | 136.86 | ||
Motor Specification | Power (KW) | 1.5 | 2.2 | 7.5 | 11 | 15 | |
Stirring Rate(r/min) | 1400 | 940 | 720 | 730 | 730 | ||
Dimension (L*W*H) | 950*700*750 | 896*800*930 | 1065*1010*1030 | 1950*1880*1350 | 2260*1880*1500 | ||
Weight (kg) | 350 | 613 | 2000 | 3170 | 5300 | ||
Note
1. The max processing capacity (customized) in the list is based on the medium water. Changes in design reserved.
2. If works in special environment such as high temperature, high pressure, explosive, combustible, corrosive environment, correct data is required for correct model selection.
3. We can provide appropriate design according to practical conditions and specific requirements.
2. If works in special environment such as high temperature, high pressure, explosive, combustible, corrosive environment, correct data is required for correct model selection.
3. We can provide appropriate design according to practical conditions and specific requirements.
