Hantek TO1112C 2 Channel 110MHz 250M 1G Sa/s Sampling 8M Storage Multi function Full Touch Screen Tablet Digital Oscilloscope
- Category: >>>
- Supplier: Shenzhen Xeast Technology Co. Ltd.
Share on (1600724734796):
Product Overview
Description
Product Description
The multi-functional full touch screen oscilloscope has a thin body, light weight and is easy to carry. Unique hanging design,
hands-free, anti falling and anti-seismic, sturdy and durable; It integrates oscilloscope, multimeter, signal generator and
spectrum analyzer; Built in super large capacity battery, long endurance, support fast charging, and abundant power.
Features:
1. Integrates Multiple Functions: digital storage oscilloscope, arbitrary function signal generator, high-precision multimeter,
data recorder, frequency meter, FFT spectrum analyzer.
2. 2-channel Digital Storage Oscilloscope: bandwidth up to 110MHz, 250MSa/s high sampling rate, 8M large storage depth; Edge,slope, pulse width, video, timeout and other triggers; Up to 42 measurement functions.
3. Function of Arbitrary Function Signal Generator: the highest output frequency reaches 25MHz, 12bit high resolution, 200Ms/s high sampling rate; Built in a variety of arbitrary waves, support AM/FM modulation, output high resistance and low resistance can be switched.
4. Digital Multimeter Function: AC and DC voltage, current, resistance, capacitance, diode, on-off measurement. The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.

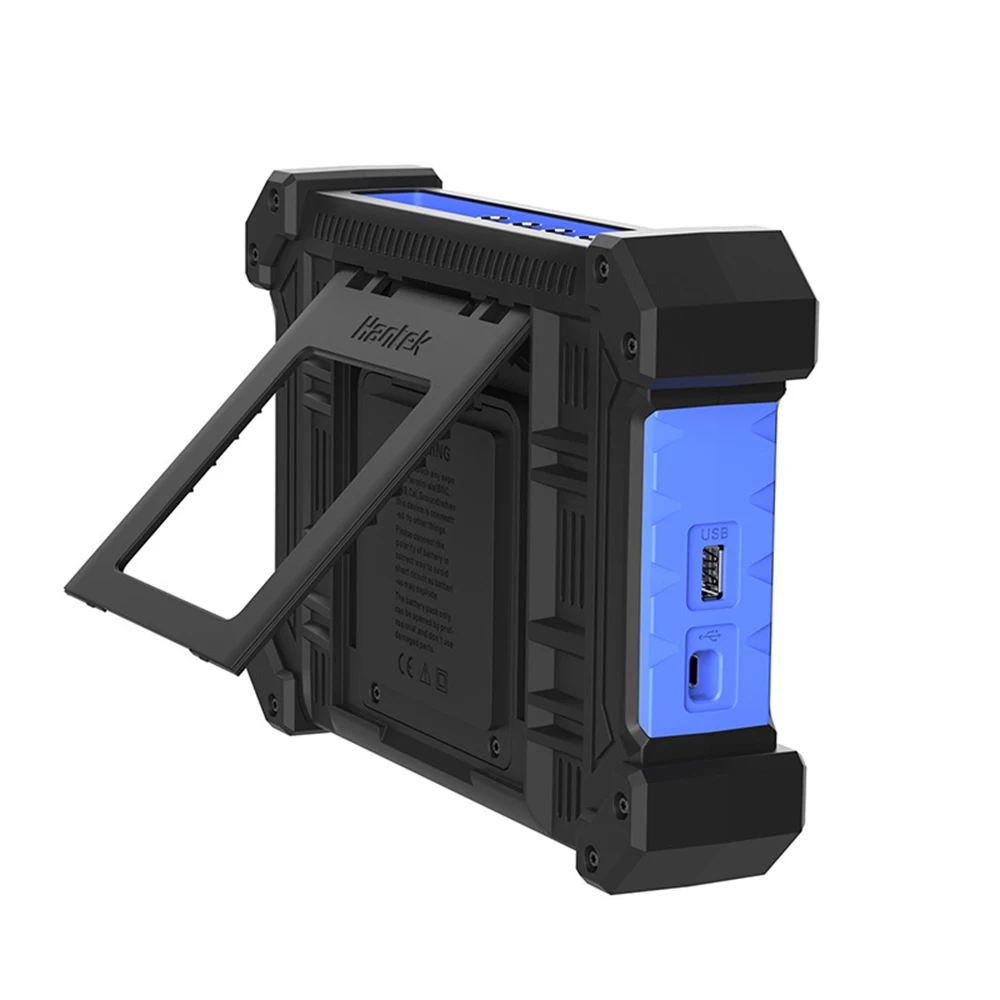

5. Suspension Foot, Hands-free: unique suspension foot design, free hands; It can be used and put at any time. It is anti falling and anti-seismic, sturdy and durable.
6. High Power and Long Endurance: built in high capacity detachable lithium battery, full power, which has long endurance and standby time.
7. Support Multiple Fast Charging Protocols: standard 18W charger for fast charging; The type-C interface is compatible with mobile phones and can share a set of charging equipment.

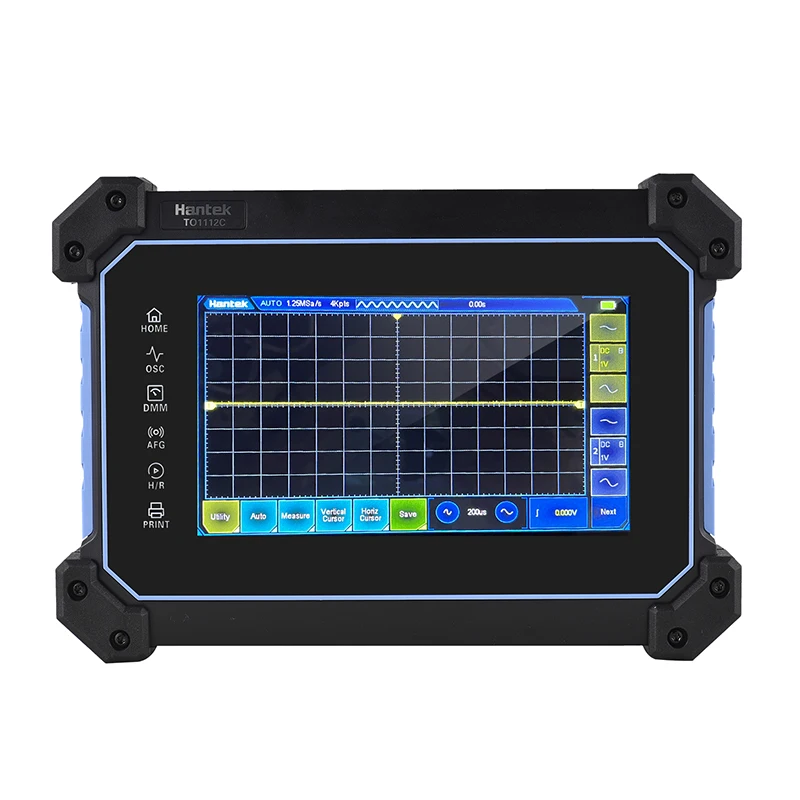

8. 7 "TFT LCD Large Screen: super large touch screen, resolution up to 800*480, friendly and easy-to-use UI, good interaction experience.
hands-free, anti falling and anti-seismic, sturdy and durable; It integrates oscilloscope, multimeter, signal generator and
spectrum analyzer; Built in super large capacity battery, long endurance, support fast charging, and abundant power.
Features:
1. Integrates Multiple Functions: digital storage oscilloscope, arbitrary function signal generator, high-precision multimeter,
data recorder, frequency meter, FFT spectrum analyzer.
2. 2-channel Digital Storage Oscilloscope: bandwidth up to 110MHz, 250MSa/s high sampling rate, 8M large storage depth; Edge,slope, pulse width, video, timeout and other triggers; Up to 42 measurement functions.
3. Function of Arbitrary Function Signal Generator: the highest output frequency reaches 25MHz, 12bit high resolution, 200Ms/s high sampling rate; Built in a variety of arbitrary waves, support AM/FM modulation, output high resistance and low resistance can be switched.
4. Digital Multimeter Function: AC and DC voltage, current, resistance, capacitance, diode, on-off measurement. The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.
5. Suspension Foot, Hands-free: unique suspension foot design, free hands; It can be used and put at any time. It is anti falling and anti-seismic, sturdy and durable.
6. High Power and Long Endurance: built in high capacity detachable lithium battery, full power, which has long endurance and standby time.
7. Support Multiple Fast Charging Protocols: standard 18W charger for fast charging; The type-C interface is compatible with mobile phones and can share a set of charging equipment.
8. 7 "TFT LCD Large Screen: super large touch screen, resolution up to 800*480, friendly and easy-to-use UI, good interaction experience.
OSCILLOSCOPE:
Channel: 2 Analog channels
Bandwidth: 110MHz
Sampling Rate: 250MSa/S
Storage Depth: 8Mpts
ARBITRARY WAVEFORM GENERATOR:
Channel Number: 1
Sampling Rate: 200MSa/s
Vertical Resolution: 12bit
The Highest Frequency: 25MHz
Standard Waveform: Sine wave, Square wave, Triangle wave, Noise, DC
Amplitude: 50Ω+2%
Wavelength: 4KSa
MULTIMETER:
Maximum Resolution: 4000 points
Measuring Method: Voltage, Current, resistance, capacitance, diode, on-off measurement
Maximum Input Voltage: AC: 600V; DC: 600V
Maximum Input Current: AC: 10A; DC: 10A
Input Impedance: 10MΩ
DC Voltage: 400mV/4V/40V/400V/600V
AC Voltage: 4V/40V/400V/600V
DC Current: 40mA/200mA/4A/10A
AC Current: 40mA/400mA/4A/10A
Resistance: 400Ω/4KΩ/60KΩ/400KΩ/4MΩ/40MΩ
Capacitance: 40nF/400nF/4μF/40μF/100μF
Diode: 0~1V
On off Measurement: <50Ω
ENVIRONMENTAL:
Temperature: 0~50℃
Storage Temperature: -20~60℃
Humidity: ≤104℉(≤40°C): ≤90%RH; 106~122℉(41~50°C): ≤60%RH
Cooling: Convection

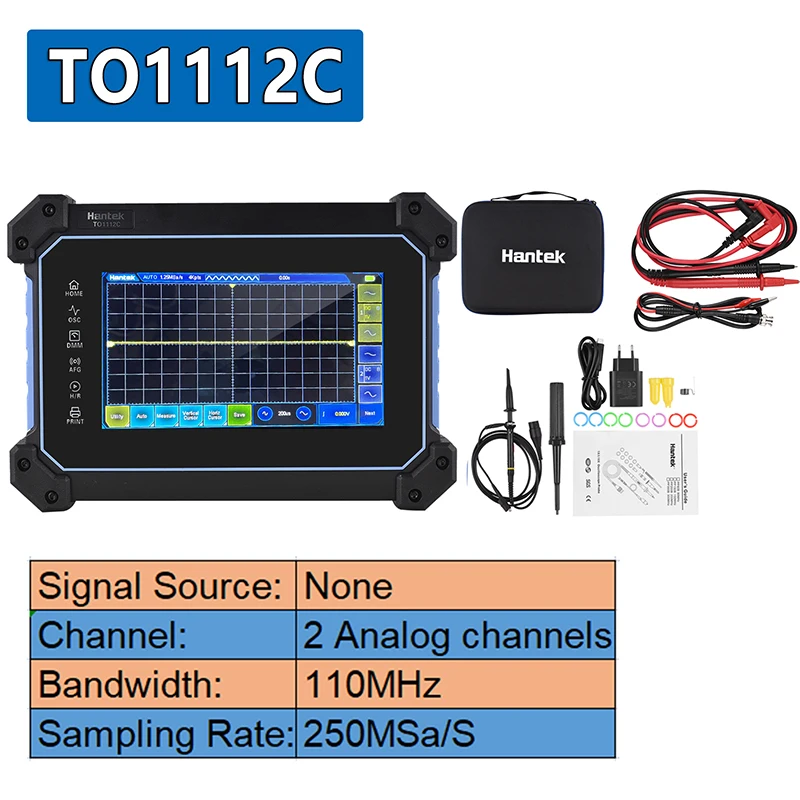

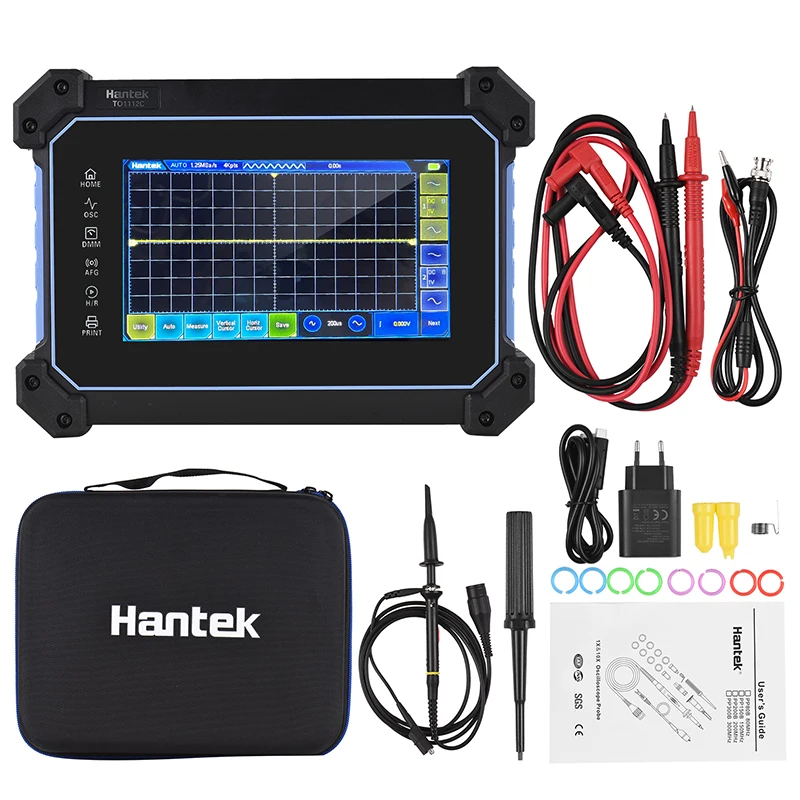

Package List:
1 * Digital Oscilloscope
1 * 1X & 10X Oscilloscope Probe
1 * Alligator Clip Line
1 * Type-C Cable
1 * Plug
1 * Package of Accessory
2 * Multimeter Probe
1 * Zipper Case
Channel: 2 Analog channels
Bandwidth: 110MHz
Sampling Rate: 250MSa/S
Storage Depth: 8Mpts
ARBITRARY WAVEFORM GENERATOR:
Channel Number: 1
Sampling Rate: 200MSa/s
Vertical Resolution: 12bit
The Highest Frequency: 25MHz
Standard Waveform: Sine wave, Square wave, Triangle wave, Noise, DC
Amplitude: 50Ω+2%
Wavelength: 4KSa
MULTIMETER:
Maximum Resolution: 4000 points
Measuring Method: Voltage, Current, resistance, capacitance, diode, on-off measurement
Maximum Input Voltage: AC: 600V; DC: 600V
Maximum Input Current: AC: 10A; DC: 10A
Input Impedance: 10MΩ
DC Voltage: 400mV/4V/40V/400V/600V
AC Voltage: 4V/40V/400V/600V
DC Current: 40mA/200mA/4A/10A
AC Current: 40mA/400mA/4A/10A
Resistance: 400Ω/4KΩ/60KΩ/400KΩ/4MΩ/40MΩ
Capacitance: 40nF/400nF/4μF/40μF/100μF
Diode: 0~1V
On off Measurement: <50Ω
ENVIRONMENTAL:
Temperature: 0~50℃
Storage Temperature: -20~60℃
Humidity: ≤104℉(≤40°C): ≤90%RH; 106~122℉(41~50°C): ≤60%RH
Cooling: Convection
Package List:
1 * Digital Oscilloscope
1 * 1X & 10X Oscilloscope Probe
1 * Alligator Clip Line
1 * Type-C Cable
1 * Plug
1 * Package of Accessory
2 * Multimeter Probe
1 * Zipper Case
Specification
item | value |
Warranty | 1 year |
Type | Metal Detectors |
Customized support | OEM |
Place of Origin | China |
Guangdong | |
Brand Name | Hantek |
Model Number | TO1112C |

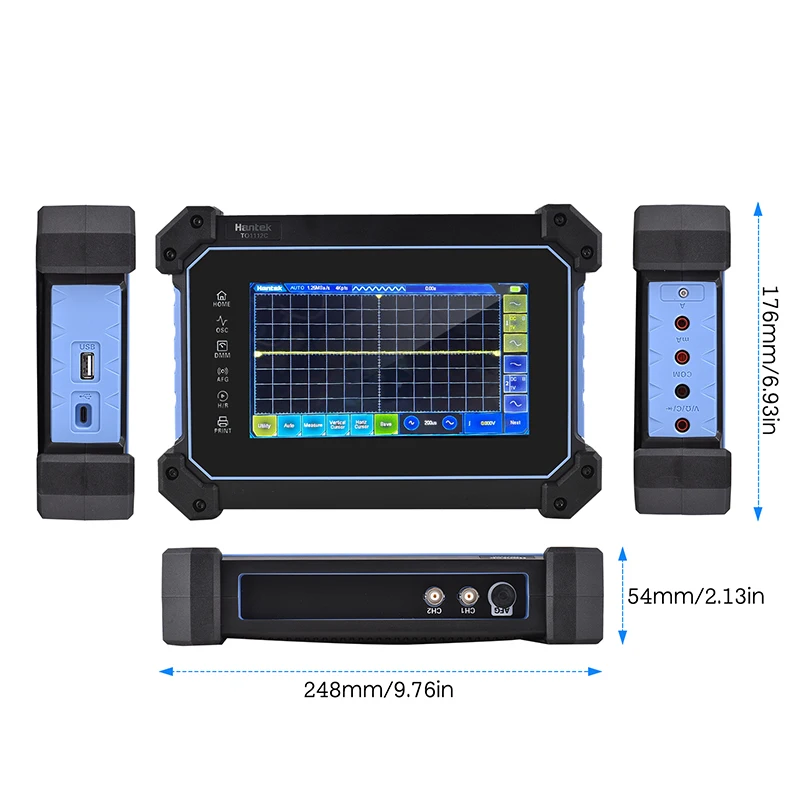

Size | 248 * 176 * 54mm / 9.76 * 6.93 * 2.13in |
Weight | 1006g / 2.22 |
Panel Type | 7 "TFT LCD |
Display Resolution | 800 (horizontal) *480 (vertical) pixels |
Display Type | Point, Vector |
Waveform Brightness | Adjustable |
Grid Types | Solid line, Dotted line, None |
Afterglow | 1s, 5s, 10s, 30s, Infinite, Off |
Standard Interface | USB Host, USB Device |
Power Supply | AC 100~240V, 50/60Hz; DC input: 5V3A/9V2A/12V1.5A |
Power Consumption | <8W |
Fast Charge | Support fast charging |
Battery | 3.7V 2600mAh * 2 in parallel |
Package Weight | 1850g / 4.08lb |
Package Size | 31.5 * 23.5 * 10.5cm / 12.40 * 9.25 * 4.13in |
Plug Type | EU / US (Optional) |
