Product Overview

Description

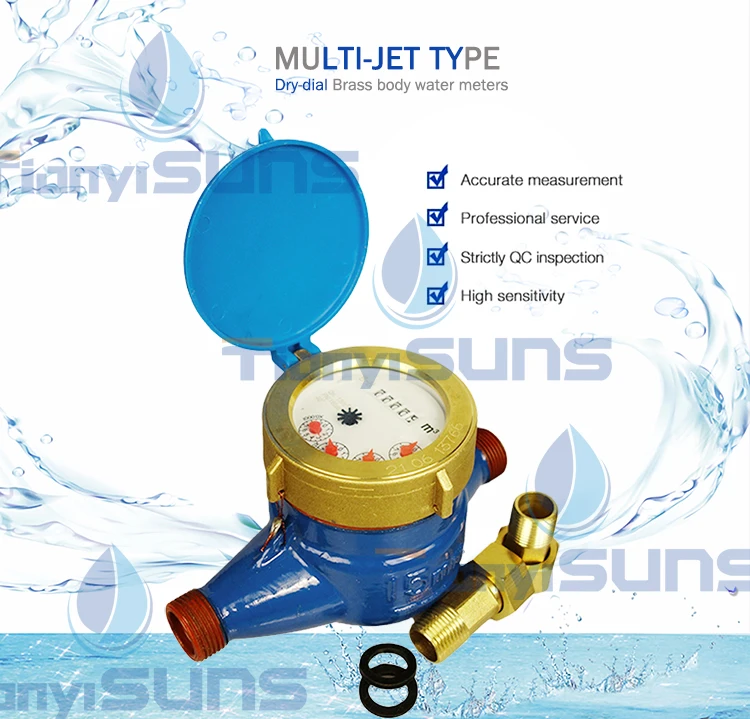

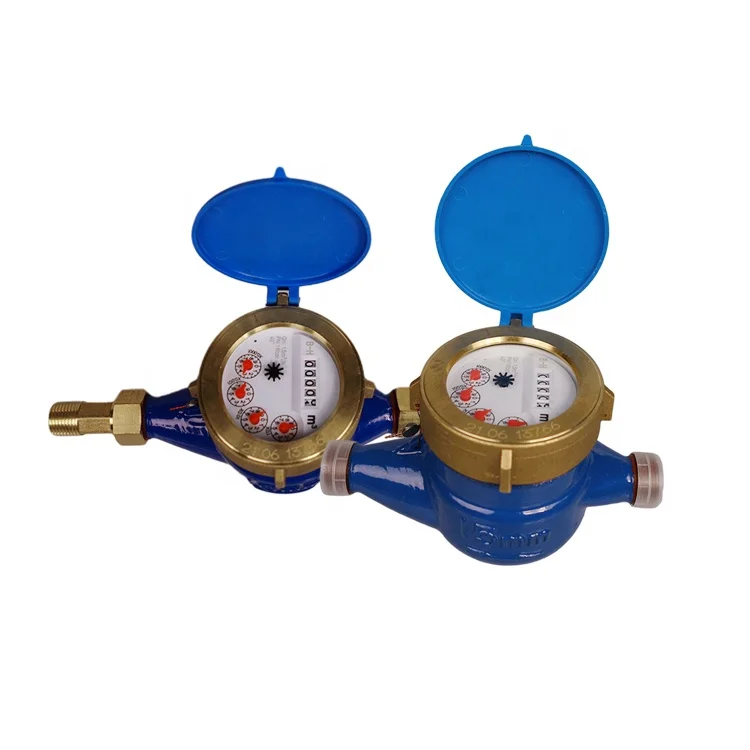

Iso4064 Brass DN20 Multi-jet Dry Type Cold Water Meter


Products Description




Specification
1. Type name: Multi-jet dry-dial cold type
2. Model No.: LXSG-15E-50E
3. Standard :ISO 4064 Class B
4. Material: Cast iron
5. Feature : Iron body ,brass cover, brass couplings
6. Horizontal installation



Working Conditions
Water temperature<50ºC (Hot water meter<90°C)
Water pressure <1MPa(PN: 1.6Pa/16bar)
<0.1 MPa
<0.063MPa(R80/R100)
Accuracy
From minimum flow-rate (Qmin) inclusive, to transitional flow-rate (Qt) Exclusive +-5%
From transitional flow-rate (Qt) Inclusive,to overload flow rate (Qs) Exclusive +- 2%



Technical Details


Meter Size DN (mm)
Class
Qs
Overload
Flow
Qp
Nominal
Flow
Qt
Transitional
Flow
Qmin
Min
Flow
Starting
Flow
Min
Reading
Max
Reading
Nominal
Size
DN (mm)
Class of
measurement
m³/h
Permanent
flow-rate
qp(m3/h)
L/h
m³
15
B
3
1.5
120
30
8
0.0001
99999
20
B
5
2.5
200
50
10
0.0001
99999
25
B
 7
3.5
280
70
12
0.0001
99999
32
B
12
6.0
480
120
14
0.0001
99999
40
B
20
10
800
200
40
0.0001
99999
50
B
30
15
3000
450
45
0.0001
99999



Installation


Installation requirements:
Meter should be installed in horizontal position with the register face upwards
Pipe line must be flushed before installation
The meter should be constantly full of water during operation
