Class 150 Blind flange Dn750 carbon steel forged flange
US $1.00-$20.00
Dimensions ASME B16.5 Stainless Steel SS SW Socket weld Flanges
- Category: Flanges >>>
- Supplier: Tianyi,Suns,Pipe&fittings,Co.,Ltd.
Share on:
Product Overview
Description
ASME/ANSI B16.5 Stainless Steel Raised Face Socket Weld Pipe Flange
Products Description

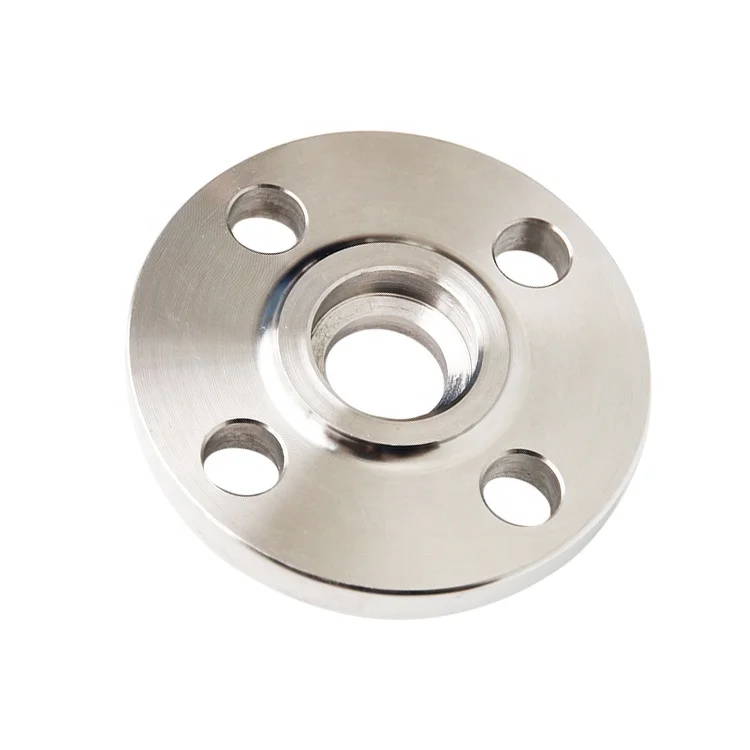

Socket weld flange simplified as SW flange, it has a recessed area (like a shoulder) in the flange bore, this shoulder serves as a guide to set the depth of the pipe that inserted to the flange. Socket welding flange initially designed for high pressure small diameters piping system.
How is Socket Welding Flange Generated
The socket welding flange was firstly to use for stainless steel superheater, due to avoid cracking defects caused by thermal stresses in heating processes, and after years development it became a standard applications for all types of material.
Socket Welded Flange Face Types

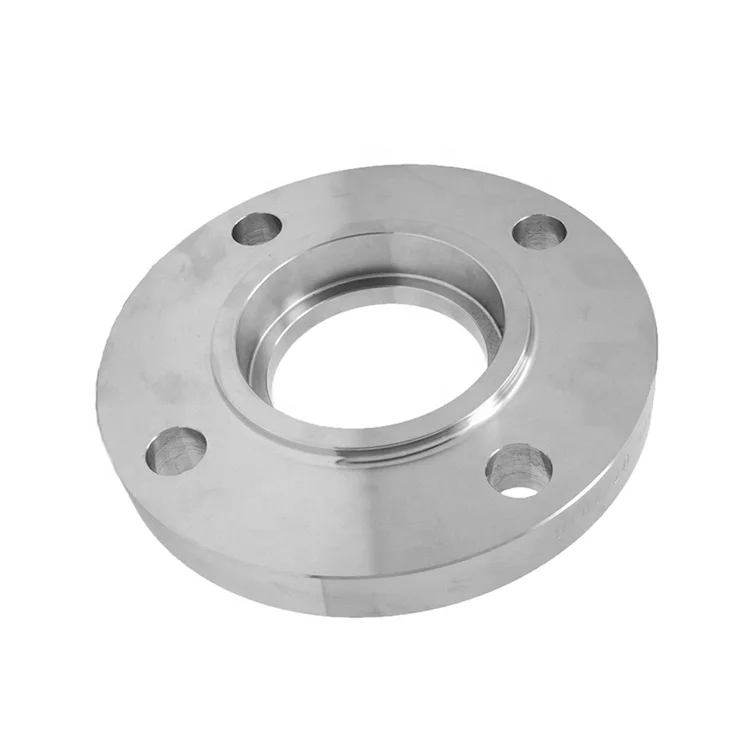

Socket welded flange inlcuding RF type and RTJ type, which like other types of welding flanges (slip on, weld neck or blind flange).
How to Use
Insert the pipe end into socket weld flange, until the pipe bottom touch the shoulder area, pull back 1.6mm (1/16'') distance of the inserted pipe then do fillet welding. The point is to create a expansion gap (1 fillet weld) between the flange and the pipes or fittings.
Insert the pipe end into socket weld flange, until the pipe bottom touch the shoulder area, pull back 1.6mm (1/16'') distance of the inserted pipe then do fillet welding. The point is to create a expansion gap (1 fillet weld) between the flange and the pipes or fittings.
How is Socket Welding Flange Generated
The socket welding flange was firstly to use for stainless steel superheater, due to avoid cracking defects caused by thermal stresses in heating processes, and after years development it became a standard applications for all types of material.
Socket Welded Flange Face Types
Socket welded flange inlcuding RF type and RTJ type, which like other types of welding flanges (slip on, weld neck or blind flange).
RF Type
RF socket weld flange has a small portion surrounding the flange bore that protrudes from the face. Gasket seat will be placed in this raised area.
RTJ Type
On the raised face surface there has a groove is RTJ type, which you can place a gasket ring to get better sealing performances.
Socket Weld Flange vs Slip On Flange
Socket welded flange shape is similar to slip on flange, differently it has a shoulder at the inner bore.
Socket welded flange shape is similar to slip on flange, differently it has a shoulder at the inner bore.
Socket weld flange static strength is equal to slip on flange, but it's fatigue strength is 50% higher than the double welded slip on flange.
Size | 1/2″ to 48″ DN10~DN5000 |
Flange Standards | ANSI, MSS, AWWA, DIN, UNI, JIS, BS, EN1092, GOST, SABS |
Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
ANSI B16.5 | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
Process | Forged |
Test Certificates | Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Production technique | Forged, Heat treated and machined |
Types | Weld Neck, Blind, Slip-On, Socket-Weld, Threaded, Orifice, Spectacle Blinds |
Uses & application | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
