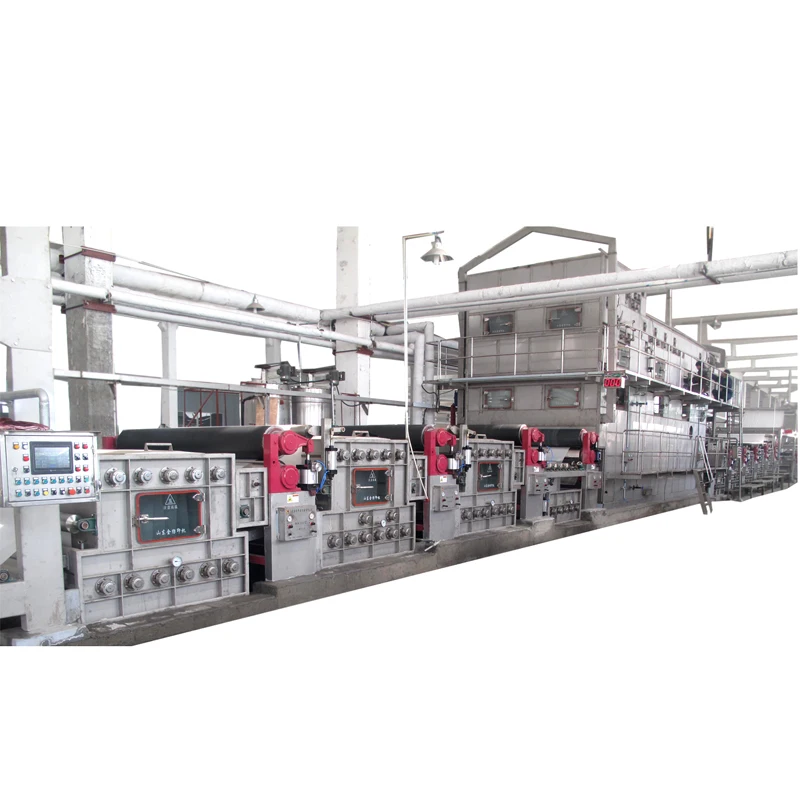

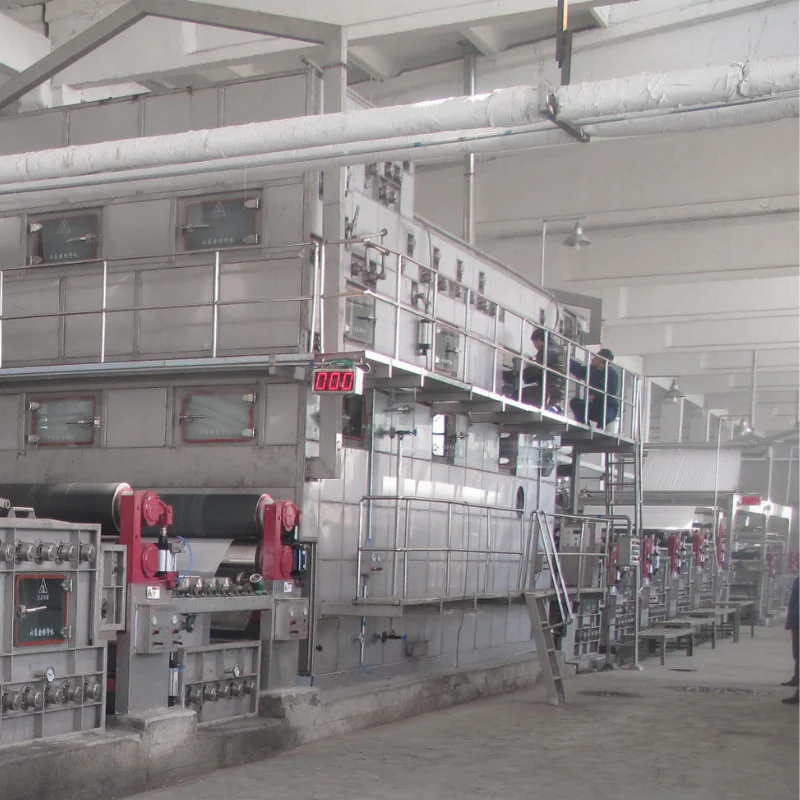

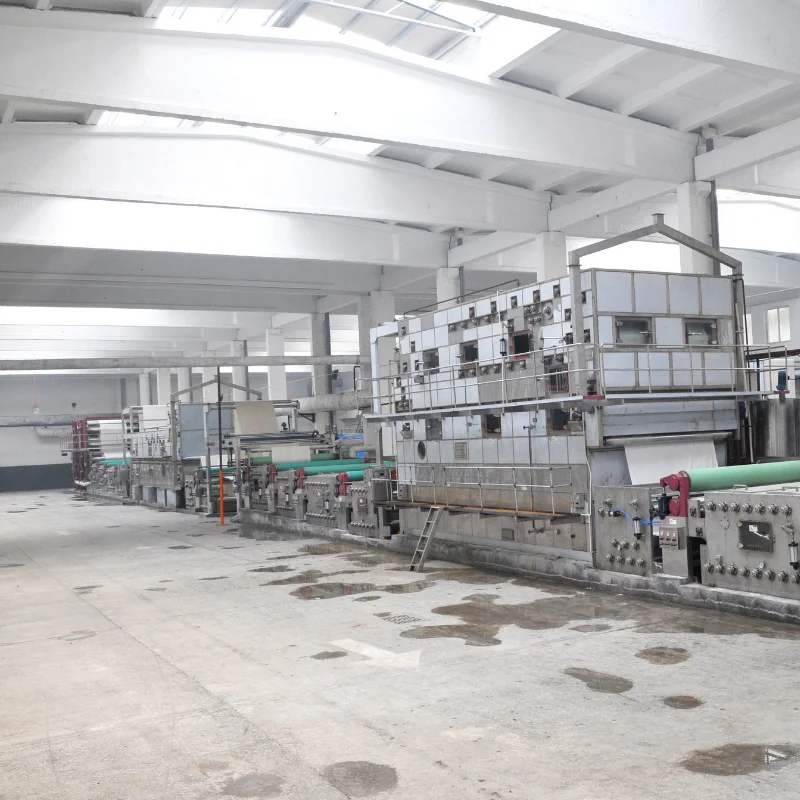

washing machine technical parameters and structural configuration instructions:
I the main technical parameters
1. Roll width: 2500mm;
2. Operation direction: Right/Left
3. 3. Process speed: 35m/min;
4. The front section rolling pressure is 3-4 tons HEAVY-rolling pressure 8-10 tons
5. Water capacity: 1.5~2.5 tons/tank;
6. Electrical control: variable frequency speed regulation 5-35m/min can be adjusted arbitrarily; (optional PLC control
man-machine interface operation);
7. Power requirements: voltage 380V, frequency 50HZ;
8. Total installed power: about50KW;
9. Air pressure: ≥0.4Mpa;
10. Water supply pressure: ≥0.2Mpa;
11. The whole machine water supply can be manual and automatic (water cut when shutting down, start water supply)
12. The softener is automatically counted and fed;
13. The whole machine countercurrent is serpentine, and the countercurrent height is 120mm;
14. The installation position of the temperature control probe for the whole machine sink;
15. The diameter of the guide roller in the whole machine slot is φ125mm, and the diameter of the guide roller of the elastic
frame is φ100mm;
16. The whole chassis body adopts numerical control opening to ensure accurate positioning;
17. The seat bearing is a stainless steel bearing;
II the flow chart can be arranged
III the basic structure:
1. Cloth-in and-out devices:
The whole machine adopts C-shaped steel frame and the material is stainless steel.
The cloth is composed of φ76mm feeding tube, φ125mm guiding roller and supporting block.
Falling cloth is a separate motor to drag the hex roll (optional pendulum drop).

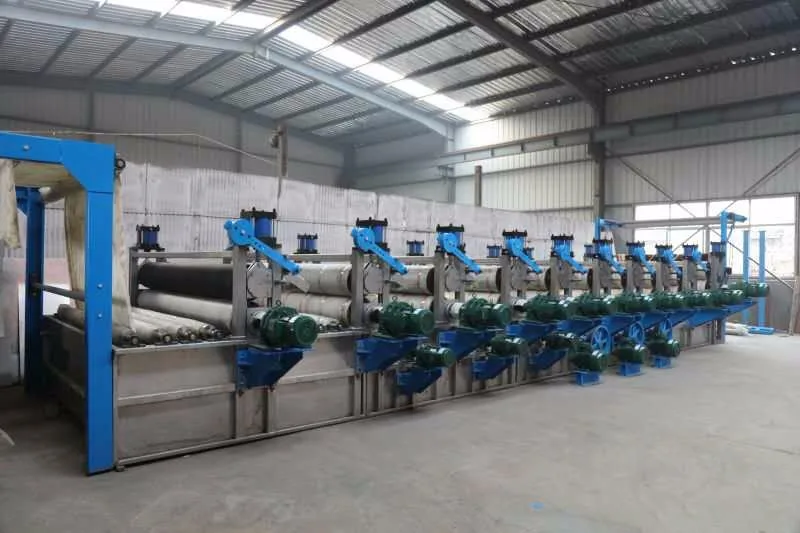

2. Efficient flat wash
The wallboard is 4mm thick, the side panels are 2.5mm thick stainless steel, and the ribs are made of stainless steel.
The diameter of the guide roller is φ125mm, which is the upper three lower four (the lower four is the mesh roller, the roller
diameter is φ150mm)
The diameter of the active corrugating roller in the 4 mesh rollers is φ125mm, the power is 1.1KW, and the variable frequency speed regulating motor is directly connected.
Mesh roller support is specially designed with special material bushing to ensure service life and maintenance-free.
One-piece stainless steel housing with mechanical seal.
The bottom of the cabinet has a semi-circular design.
The drain plug has a diameter of φ100mm and is easy to drain.
There is a partition in the middle of the washing tank.
3. Double drum washing machine
Wall panel is made of 4mm thick stainless steel plate, side plate is 2.5mm thick stainless steel plate, stainless steel rib
Drum motor 5.5KW, V-belt drive, stainless steel shield.
The transfer net support adopts a new design, maintenance-free, and the bushing is made of special material and is
maintenance-free.
The bottom of the box is semi-circular with a partition in the middle. Discharge plug diameter φ100mm hand-drawn,
The external transfer net is bent by a 2.5mm stainless steel mesh plate. The inner rotating drum is made of 2.5mm stainless
steel plate, the reinforcing rib is made of stainless steel shaft, and it is made by welding one after the welding (to balance).
The guide roller in the box is mechanically sealed. The bearing housing is made of stainless steel and the bearing is made of 1306.
4. Small rolling padder
It adopts upper pressure type structure, stainless steel frame, motor is directly connected, and the power is 2.2KW.
The cylinder diameter is φ160mm, which is the upper cylinder type, which is convenient for maintenance.
Harbin bearing, the shaft head is φ90mm. Pressurize the two rolls, the upper roll is φ225mm rubber roll, and the lower roll isφ225mm active steel roll.
With air control box, each set with a set of three pieces.
The support is made of stainless steel.
5. Heavy- padder
Pull-down structure, the frame is 30mm thick steel plate, processed by CNC.
The cylinder diameter is φ200mm, and the pressure is adjustable.
The upper roll is a rubber roller φ300mm diameter, and the lower roller is a steel roller φ300mm diameter.
Direct motor connection, power 5.5KW.
6. The tension frame of the whole machine is of heavy hammer type.
7. The whole machine guide roller head is made of stainless steel.

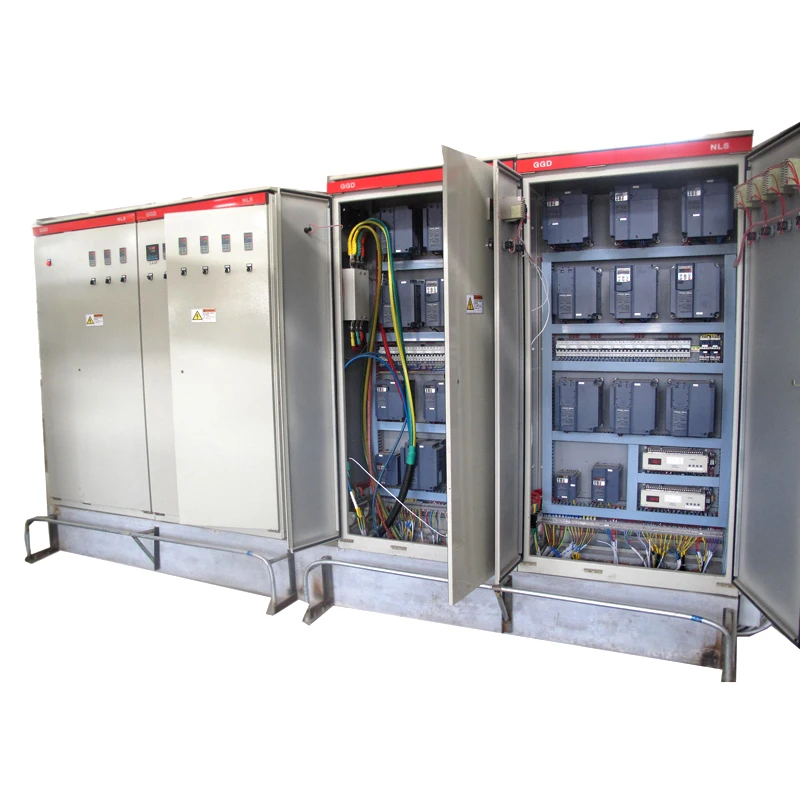

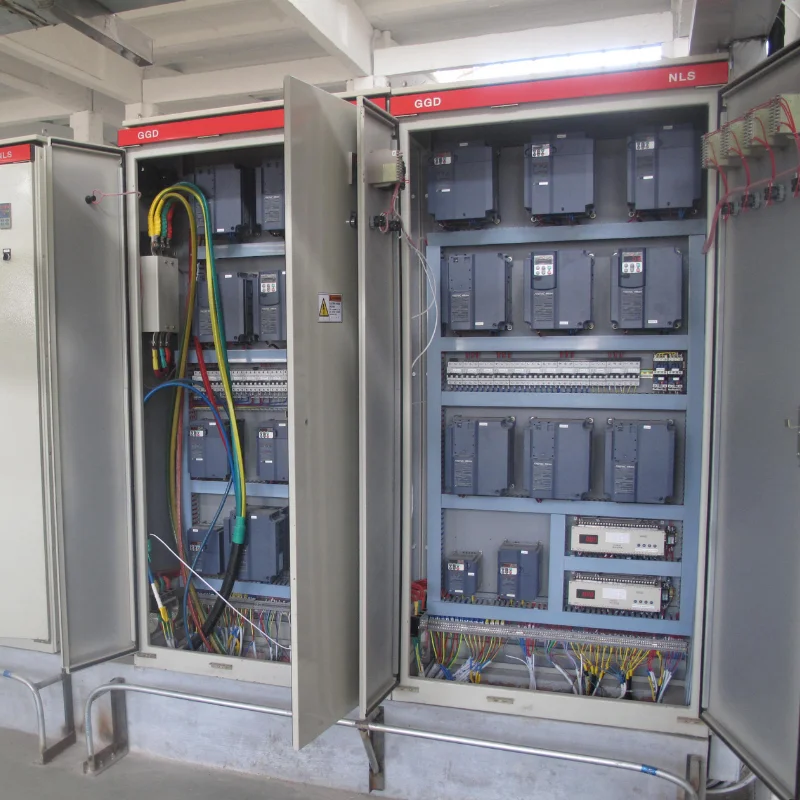

IV Electrical control
1. Standard cabinet with cooling fan and drip-proof cover.
2. Teldafrequency converter.
3. Multi-unit AC frequency conversion, low-voltage electrical parts using Schneider.
4. The shaft end angular displacement sensor is Shanghai Haitek II.
I the main technical parameters
1. Roll width: 2500mm;
2. Operation direction: Right/Left
3. 3. Process speed: 35m/min;
4. The front section rolling pressure is 3-4 tons HEAVY-rolling pressure 8-10 tons
5. Water capacity: 1.5~2.5 tons/tank;
6. Electrical control: variable frequency speed regulation 5-35m/min can be adjusted arbitrarily; (optional PLC control
man-machine interface operation);
7. Power requirements: voltage 380V, frequency 50HZ;
8. Total installed power: about50KW;
9. Air pressure: ≥0.4Mpa;
10. Water supply pressure: ≥0.2Mpa;
11. The whole machine water supply can be manual and automatic (water cut when shutting down, start water supply)
12. The softener is automatically counted and fed;
13. The whole machine countercurrent is serpentine, and the countercurrent height is 120mm;
14. The installation position of the temperature control probe for the whole machine sink;
15. The diameter of the guide roller in the whole machine slot is φ125mm, and the diameter of the guide roller of the elastic
frame is φ100mm;
16. The whole chassis body adopts numerical control opening to ensure accurate positioning;
17. The seat bearing is a stainless steel bearing;
II the flow chart can be arranged
III the basic structure:
1. Cloth-in and-out devices:
The whole machine adopts C-shaped steel frame and the material is stainless steel.
The cloth is composed of φ76mm feeding tube, φ125mm guiding roller and supporting block.
Falling cloth is a separate motor to drag the hex roll (optional pendulum drop).
2. Efficient flat wash
The wallboard is 4mm thick, the side panels are 2.5mm thick stainless steel, and the ribs are made of stainless steel.
The diameter of the guide roller is φ125mm, which is the upper three lower four (the lower four is the mesh roller, the roller
diameter is φ150mm)
The diameter of the active corrugating roller in the 4 mesh rollers is φ125mm, the power is 1.1KW, and the variable frequency speed regulating motor is directly connected.
Mesh roller support is specially designed with special material bushing to ensure service life and maintenance-free.
One-piece stainless steel housing with mechanical seal.
The bottom of the cabinet has a semi-circular design.
The drain plug has a diameter of φ100mm and is easy to drain.
There is a partition in the middle of the washing tank.
3. Double drum washing machine
Wall panel is made of 4mm thick stainless steel plate, side plate is 2.5mm thick stainless steel plate, stainless steel rib
Drum motor 5.5KW, V-belt drive, stainless steel shield.
The transfer net support adopts a new design, maintenance-free, and the bushing is made of special material and is
maintenance-free.
The bottom of the box is semi-circular with a partition in the middle. Discharge plug diameter φ100mm hand-drawn,
The external transfer net is bent by a 2.5mm stainless steel mesh plate. The inner rotating drum is made of 2.5mm stainless
steel plate, the reinforcing rib is made of stainless steel shaft, and it is made by welding one after the welding (to balance).
The guide roller in the box is mechanically sealed. The bearing housing is made of stainless steel and the bearing is made of 1306.
4. Small rolling padder
It adopts upper pressure type structure, stainless steel frame, motor is directly connected, and the power is 2.2KW.
The cylinder diameter is φ160mm, which is the upper cylinder type, which is convenient for maintenance.
Harbin bearing, the shaft head is φ90mm. Pressurize the two rolls, the upper roll is φ225mm rubber roll, and the lower roll isφ225mm active steel roll.
With air control box, each set with a set of three pieces.
The support is made of stainless steel.
5. Heavy- padder
Pull-down structure, the frame is 30mm thick steel plate, processed by CNC.
The cylinder diameter is φ200mm, and the pressure is adjustable.
The upper roll is a rubber roller φ300mm diameter, and the lower roller is a steel roller φ300mm diameter.
Direct motor connection, power 5.5KW.
6. The tension frame of the whole machine is of heavy hammer type.
7. The whole machine guide roller head is made of stainless steel.
IV Electrical control
1. Standard cabinet with cooling fan and drip-proof cover.
2. Teldafrequency converter.
3. Multi-unit AC frequency conversion, low-voltage electrical parts using Schneider.
4. The shaft end angular displacement sensor is Shanghai Haitek II.
