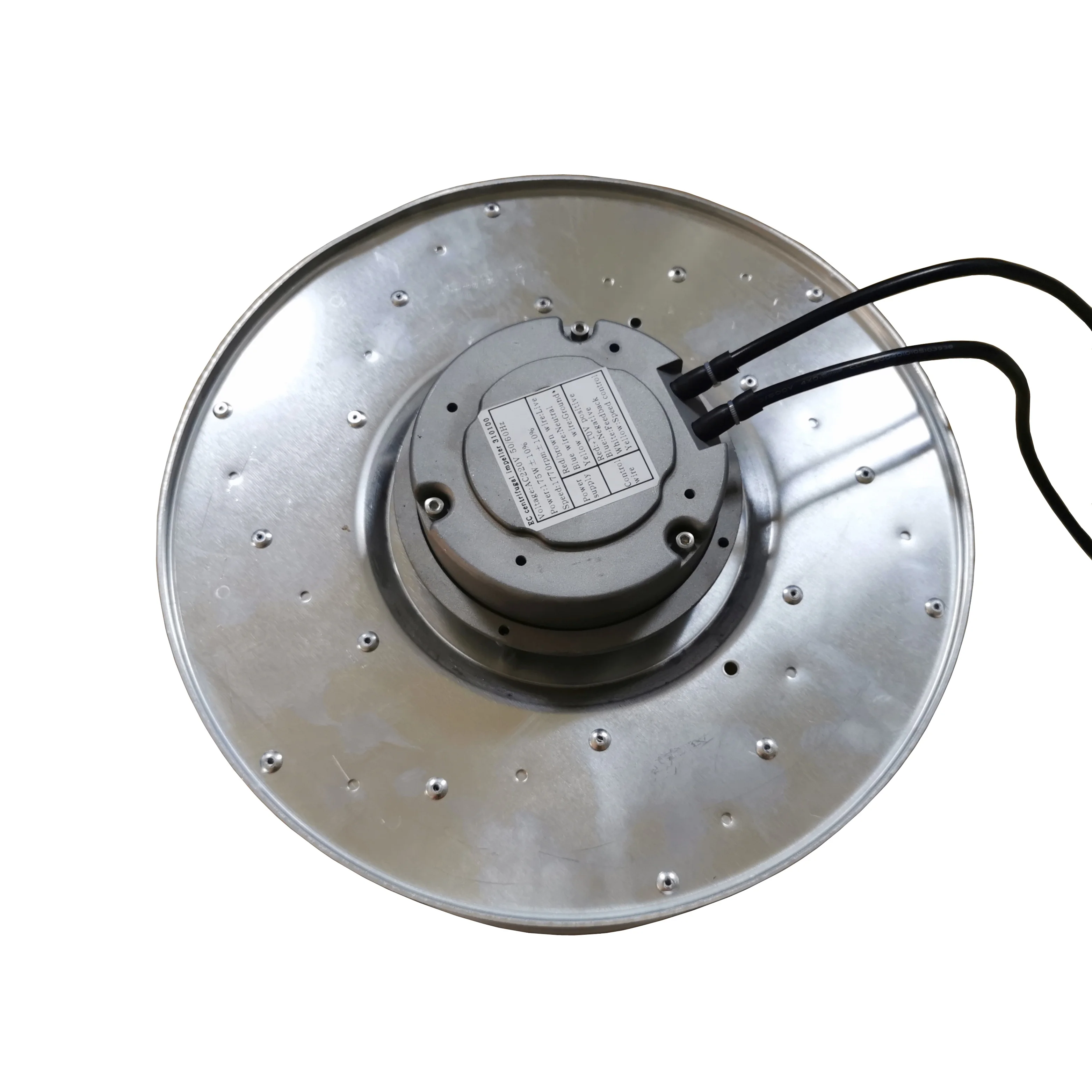

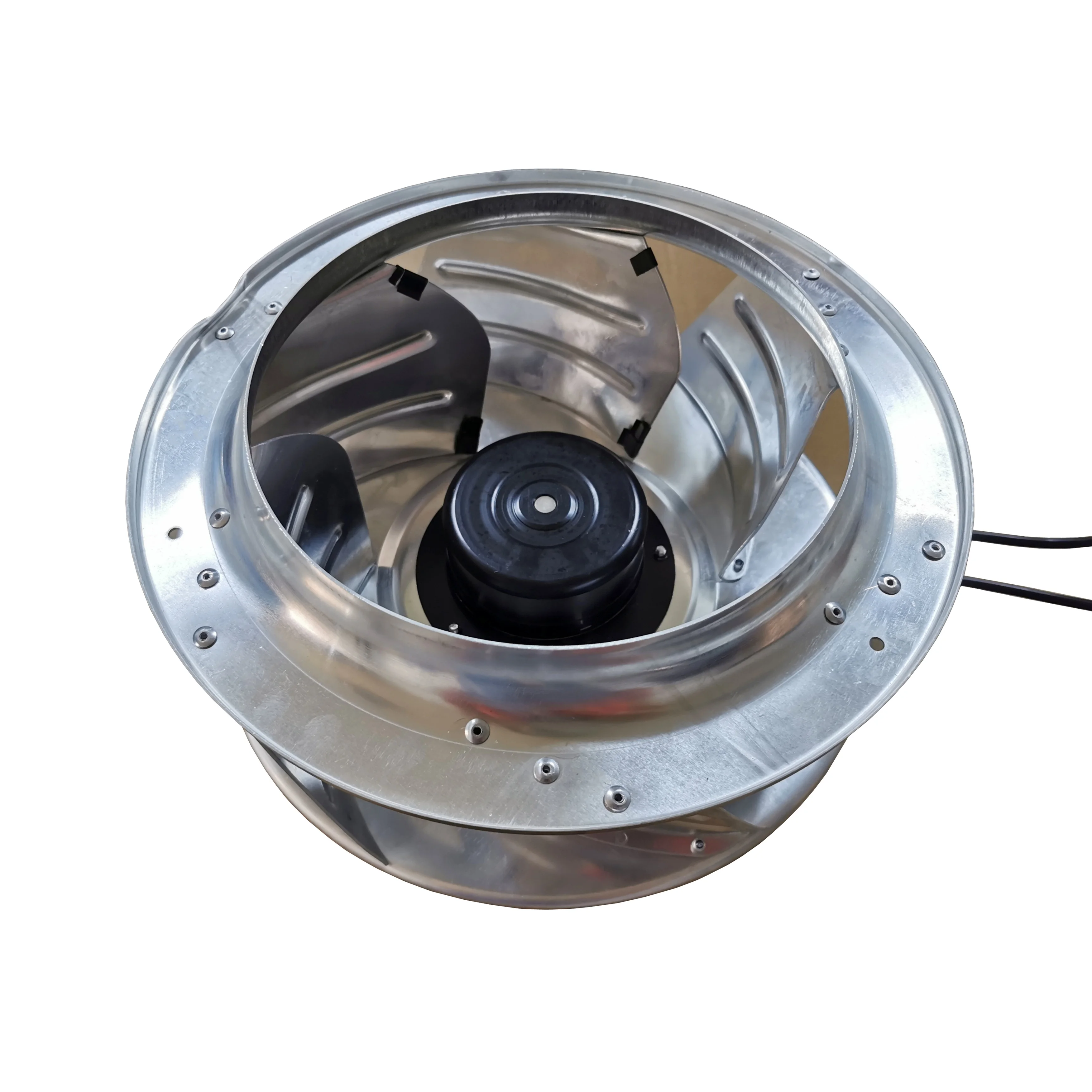

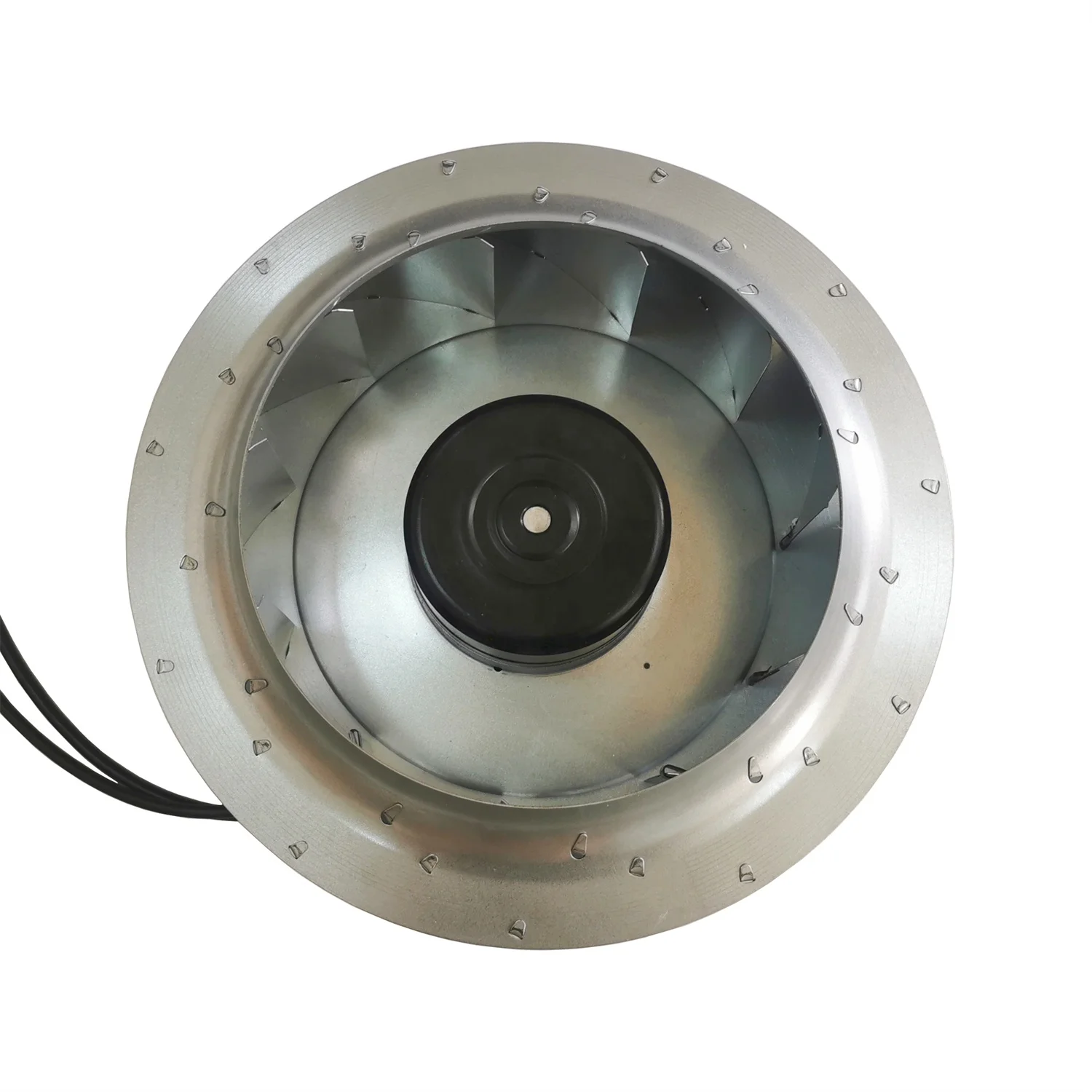

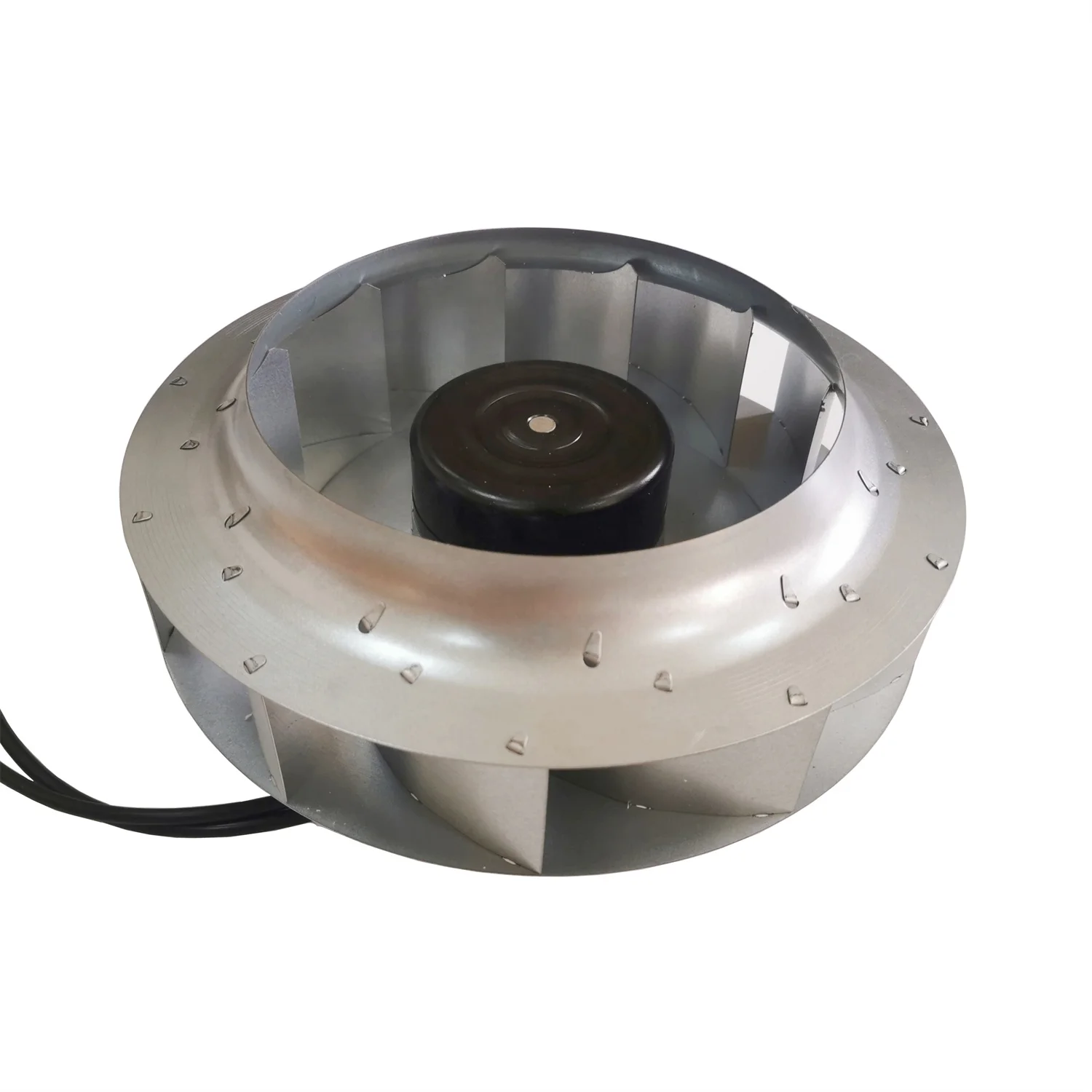

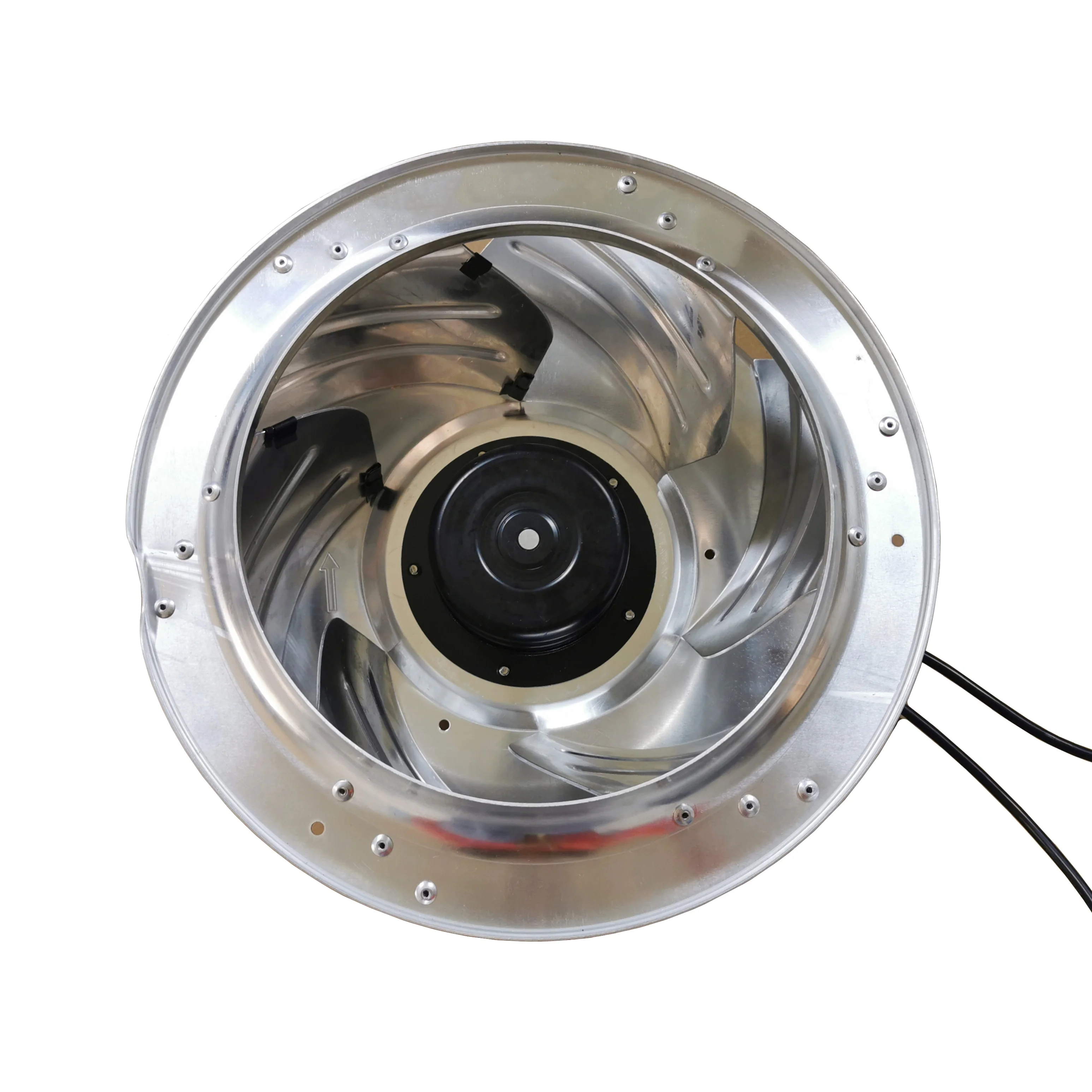

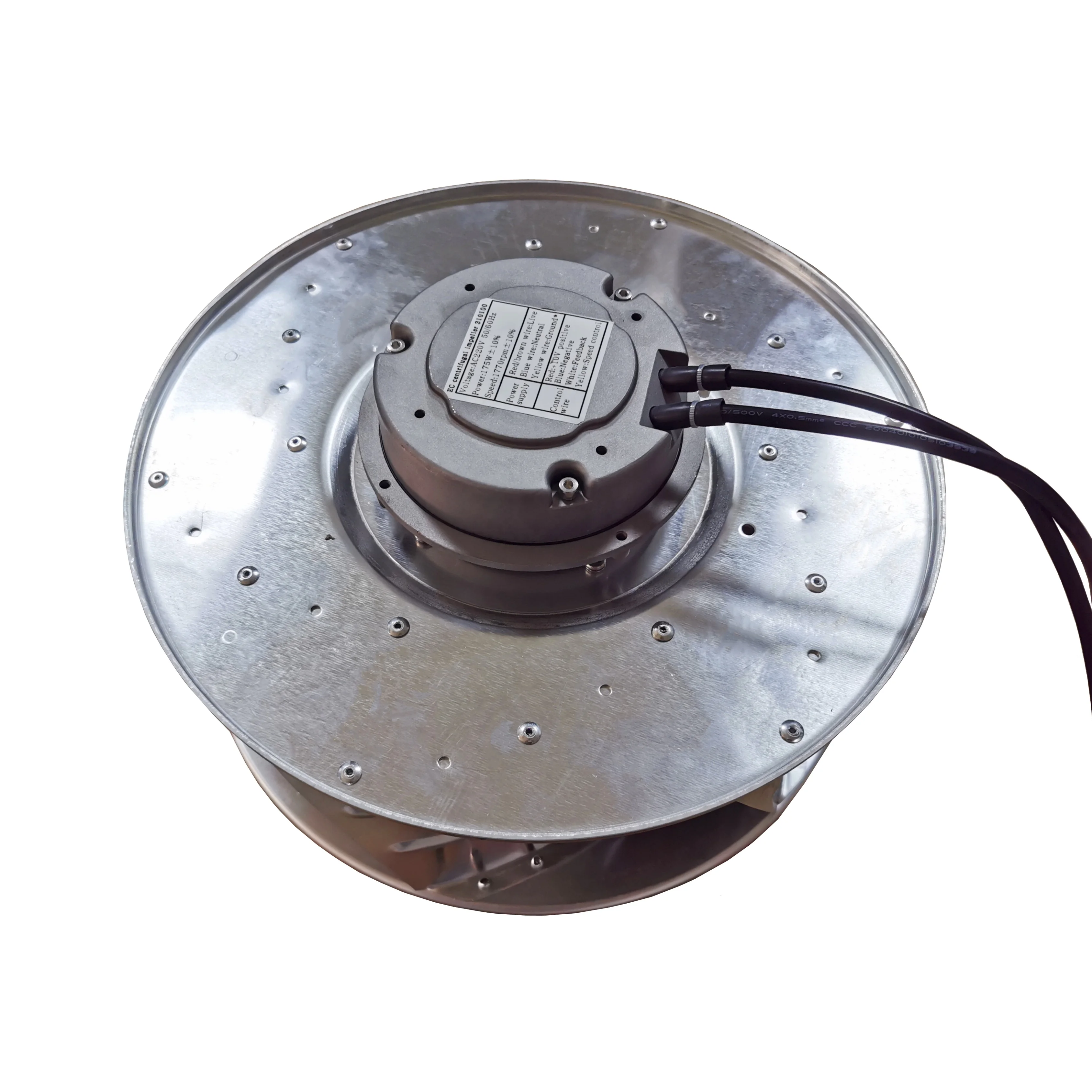

DC 24V 48V backward curved centrifugal fan 310mm brushless impeller
- Category: Ventilation Fans >>>
- Supplier: Guangzhou Kingan Auto Parts Co. Limited
Share on (1600724894364):
Product Overview
Description
DC 24V 48V backward curved centrifugal fan 310mm brushless impeller
Product Description
Material: Impeller made of galvanized sheet steel
Technical features: Control lnput 0-10V DC/PWM Tach output
Protection: Locked-rotor protection, Current limited, Under-voltage and over-voltage lockout protection, Soft start
Type of protection: IP42
Motor insulation class: "B"
Direction of rotation: Anticlockwise, see on the leads
Approval: CCC、CE
Amb.Temp: -25~60℃
Technical features: Control lnput 0-10V DC/PWM Tach output
Protection: Locked-rotor protection, Current limited, Under-voltage and over-voltage lockout protection, Soft start
Type of protection: IP42
Motor insulation class: "B"
Direction of rotation: Anticlockwise, see on the leads
Approval: CCC、CE
Amb.Temp: -25~60℃
Product Parameters
Model | Voltage (VAC) | Frquency (Hz) | Air Flow (m3/h) | Speed (rpm) | Power Input (W) | Current (A) | Static Pressure (Pa) |
K1A310100-DCN-92 | 24 | 50/60 | 2000 | 1600 | 125 | 5.20 | 360 |
K1A310100-DFN-92 | 48 | 50/60 | 2000 | 1600 | 154 | 3.20 | 360 |

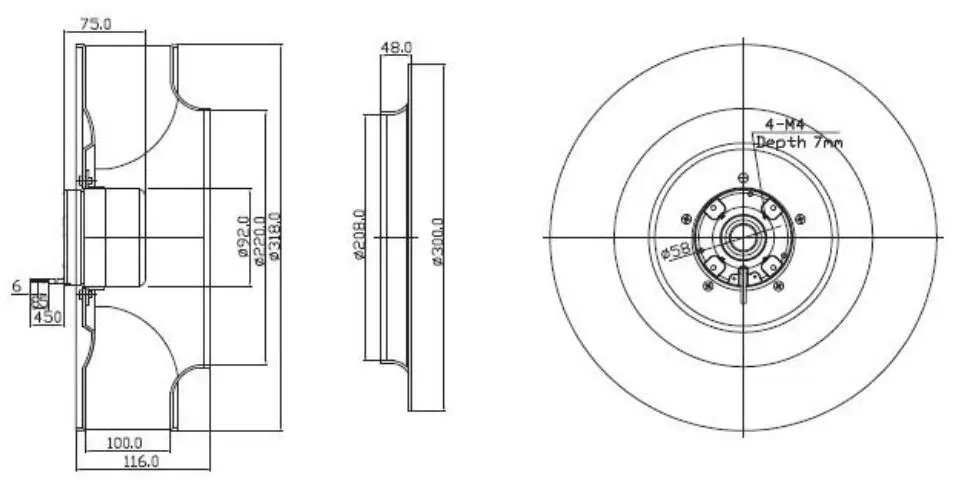

Dimension Drawing
