Product Overview
Description
Product Description
Product Name | CXW High performance CX7527C+CX7538B applied to XinSPower 1A1C 18W PD fast charger |
Material | ABS+PC |
Function | Charging for mobile phone |
Package | SOP-8 |
Thanks to CXW's highly integrated, less component, high efficiency fast charging solution of CX7527C+CX7538,
XinSPower 18W PD fast charger becomes so popular and helps it easier for to get to market.
XinSPower 18W PD fast charger becomes so popular and helps it easier for to get to market.

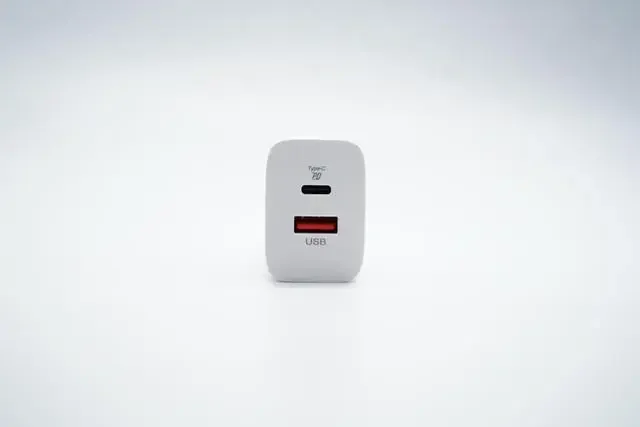

First, let's have a look at the appearance of XinSPower 1A1C 18W PD fast charger:
Parametrics:
Model No.: QM10
Input: 100-240V~50/60Hz
Output: 5V3A, 9V2A, 12V1.5A
Total Output: 18W Max
CE, FCC and RoHS complianced
Model No.: QM10
Input: 100-240V~50/60Hz
Output: 5V3A, 9V2A, 12V1.5A
Total Output: 18W Max
CE, FCC and RoHS complianced
Charger dismantled:

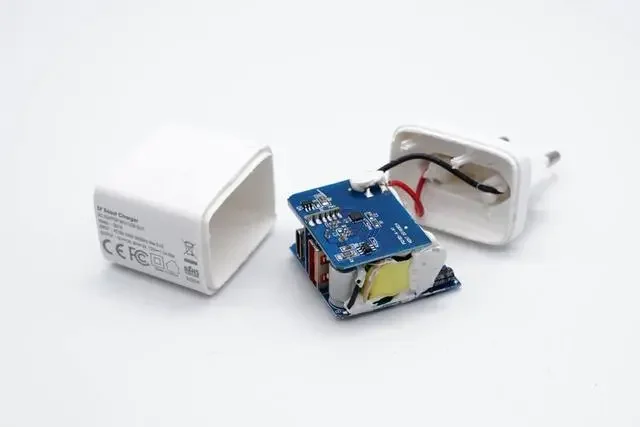

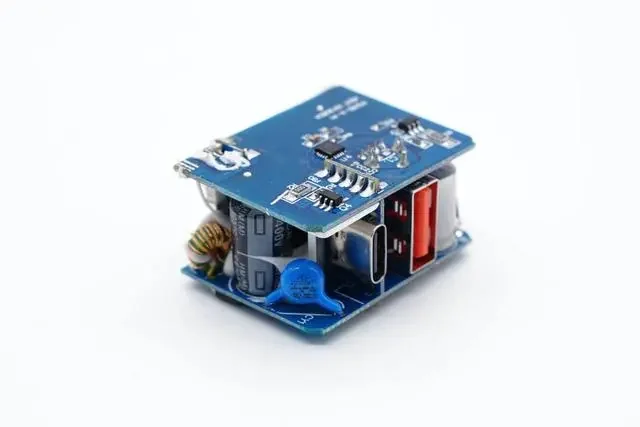

Open the housing and take out PCBA board

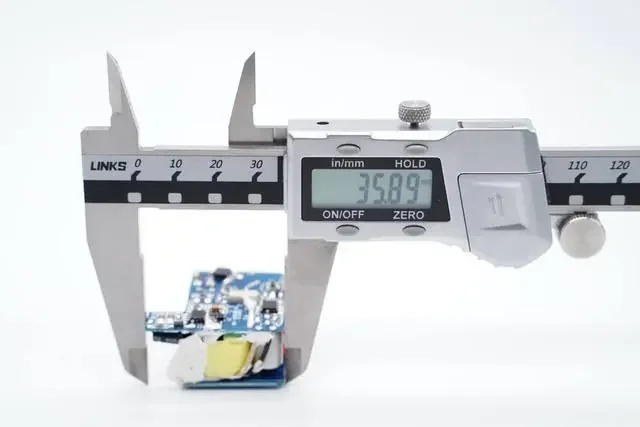

Length of PCBA board: 35.89mm

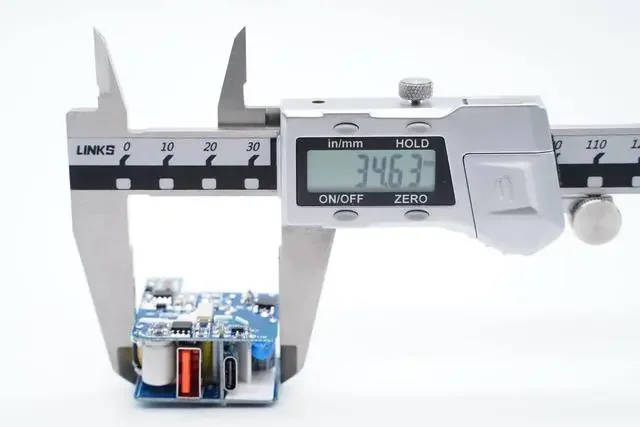

Width of PCBA board: 34.63mm

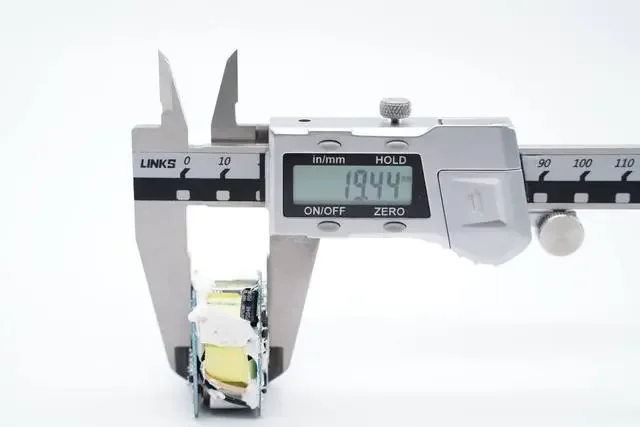

Thickness of PCBA board: 19.44mm

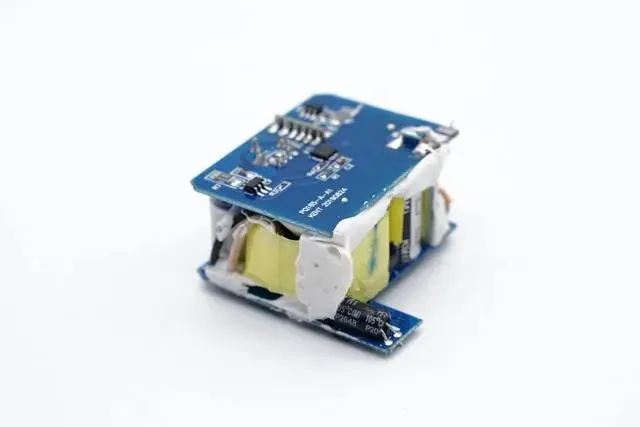

Soldered by 4 minor boards
Transformer, capacitor fixed by glue

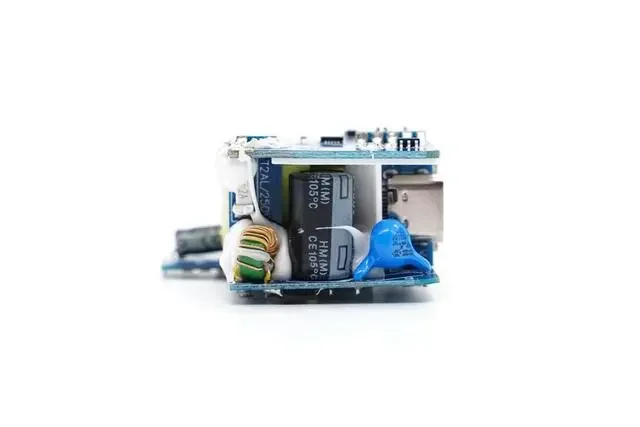

The input side also has a minor board with fuses soldered and reinforced with glue, and a white plastic board between the capacitor and the output side minor board for isolation and support reinforcement

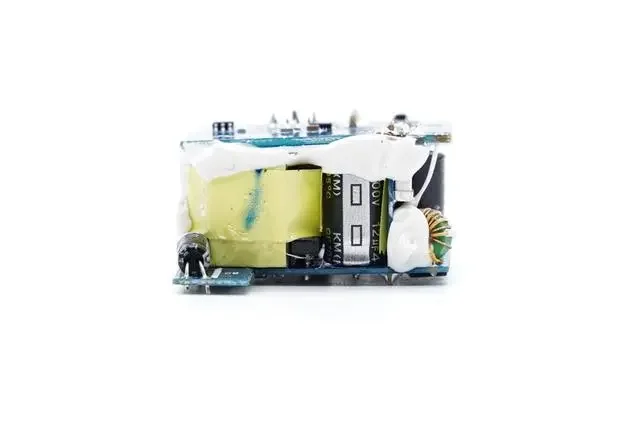

On the other side, there is a high-voltage filter electrolytic capacitor, transformer and the main control chip power supply capacitor, filter capacitor paste insulation tape

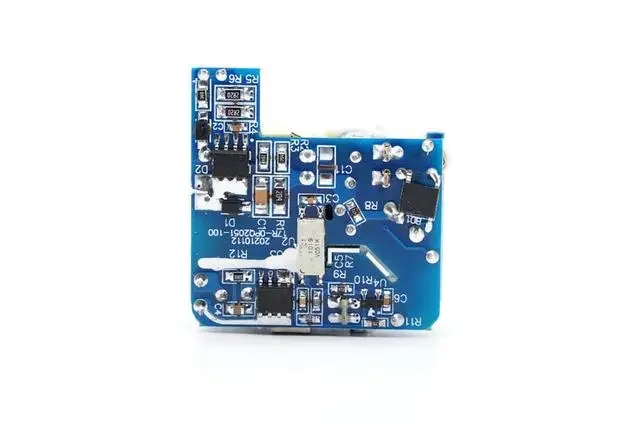

The back of the top panel is equipped with a rectifier bridge, a switching power supply master control chip and a synchronous rectifier chip

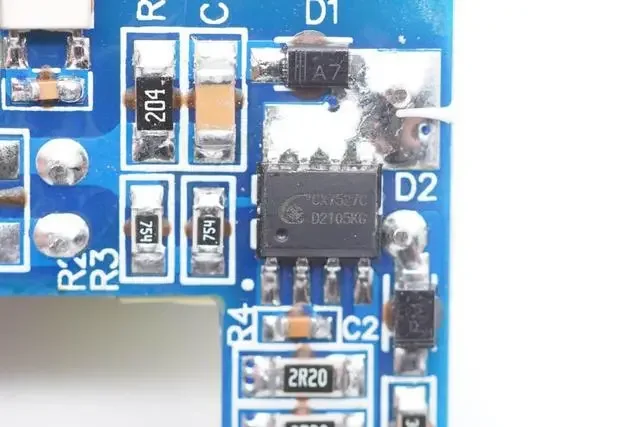

Main primary power supply adopts CX7527C, a high-performance multi-mode PWM flyback controller of CXW. It helps users to design high performance AC/DC switching power supplies with fewer peripheral components and lower cost. It provides extremely comprehensive and high performance intelligent protection functions, including cycle-by-cycle over-current protection, overload protection, soft-start, over-temperature protection, and VDD under-voltage/over-voltage lockout protection.
CX7527C has the function of automatically identifying the load and automatically adjusting the working mode. Under full load or heavy load conditions, it works at a fixed 65KHz frequency. When the load is reduced, its operating frequency is lowered to effectively reduce switching losses. When the load is in very light load or no-load conditions, CX7527C becomes interval mode.
CX7527C built-in intelligent dithering technology to reduce the charger in the frequency reduction mode generated by
electromagnetic interference and output ripple. Unique operating mode makes the audio minimized, and no audio noise. With SOP-8 package, it provides a good design platform for cost-effective flyback switching power supply that require ultra-low standby power consumption.
CX7527C has the function of automatically identifying the load and automatically adjusting the working mode. Under full load or heavy load conditions, it works at a fixed 65KHz frequency. When the load is reduced, its operating frequency is lowered to effectively reduce switching losses. When the load is in very light load or no-load conditions, CX7527C becomes interval mode.
CX7527C built-in intelligent dithering technology to reduce the charger in the frequency reduction mode generated by
electromagnetic interference and output ripple. Unique operating mode makes the audio minimized, and no audio noise. With SOP-8 package, it provides a good design platform for cost-effective flyback switching power supply that require ultra-low standby power consumption.

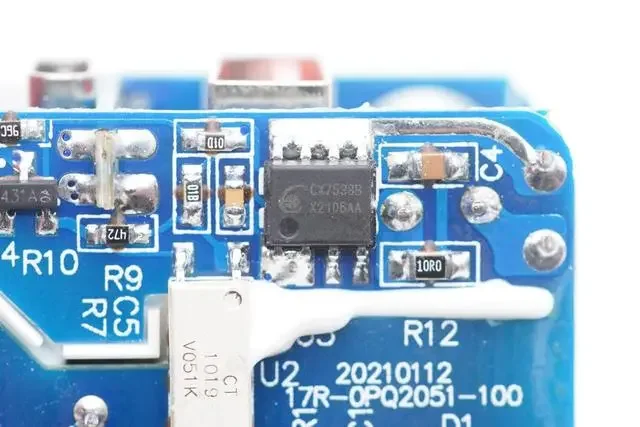

Secondary synchronous rectifier chip is also from CXW model CX7538B, which is a high
performance secondary-side synchronous rectifier chip for switching power supplies, easily satisfying DOE IV of switching power supplies, and is an ideal replacement solution for schottky. CX7538B supports up to 150KHz switching frequency and has a built-in 11mΩ low resistance NMOS, which generates far less heat than schottky diodes, significantly reducing temperature and improving conversion efficiency.
performance secondary-side synchronous rectifier chip for switching power supplies, easily satisfying DOE IV of switching power supplies, and is an ideal replacement solution for schottky. CX7538B supports up to 150KHz switching frequency and has a built-in 11mΩ low resistance NMOS, which generates far less heat than schottky diodes, significantly reducing temperature and improving conversion efficiency.
CX7538B supports CCM/QR/DCM modes for switching power supplies and is ideal for 3.3~12V fast charging synchronous rectifier with built-in 60V withstanding voltage, 11mΩ synchronous rectifier tube, and can provide 3A
output. It has up to 6% higher efficiency than schottky, wide operating voltage range and very simple components, only one
capacitor is required around it.
output. It has up to 6% higher efficiency than schottky, wide operating voltage range and very simple components, only one
capacitor is required around it.

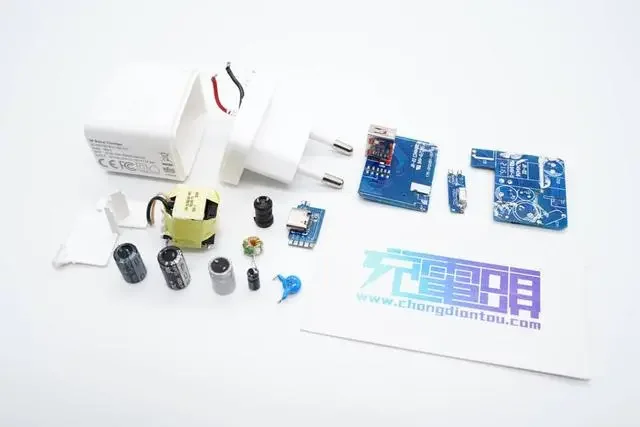

CKD components

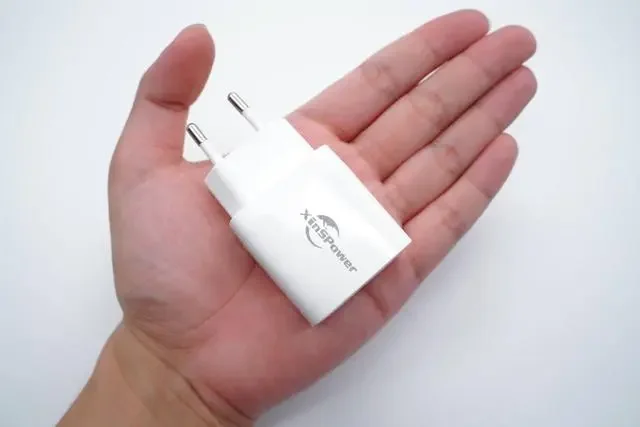

Feeling in hand.

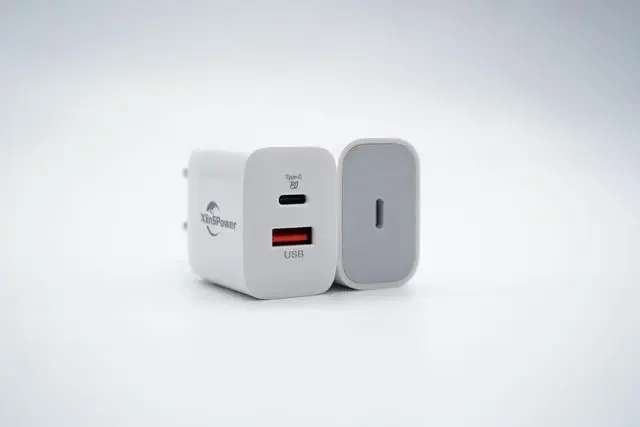

Similar compare to Apple 20W
Adopting CX7527C+CX7538B highly integrated fast charging solution of CXW, the highly integrated solution can effectively simplify the circuit and make the development and design easier. CX7527C+CX7538B fast charging
solution is also used by Goodwill 20W mini PD fast charger, Yubo 20W 1A1C fast charger, Philips mini 20W fast charger, First Guard small 20W fast charger, etc. In addition, 20W PD fast charging solution of CXW is used by many famous brands.
solution is also used by Goodwill 20W mini PD fast charger, Yubo 20W 1A1C fast charger, Philips mini 20W fast charger, First Guard small 20W fast charger, etc. In addition, 20W PD fast charging solution of CXW is used by many famous brands.
