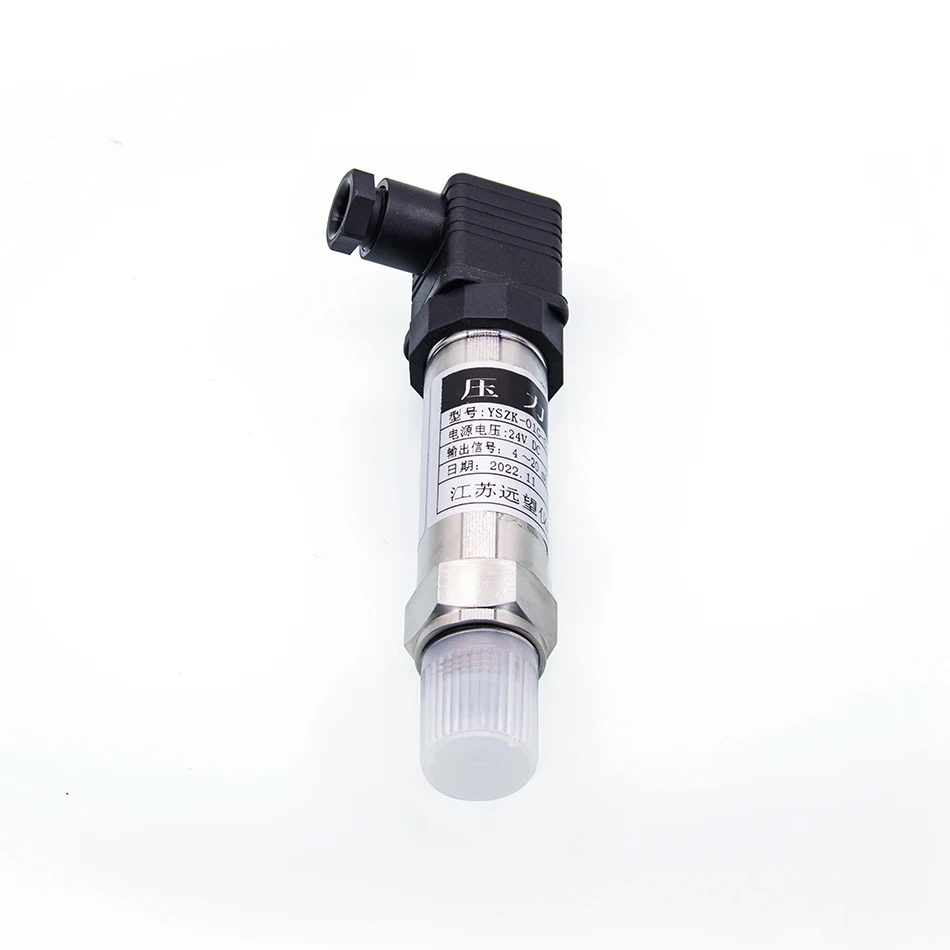

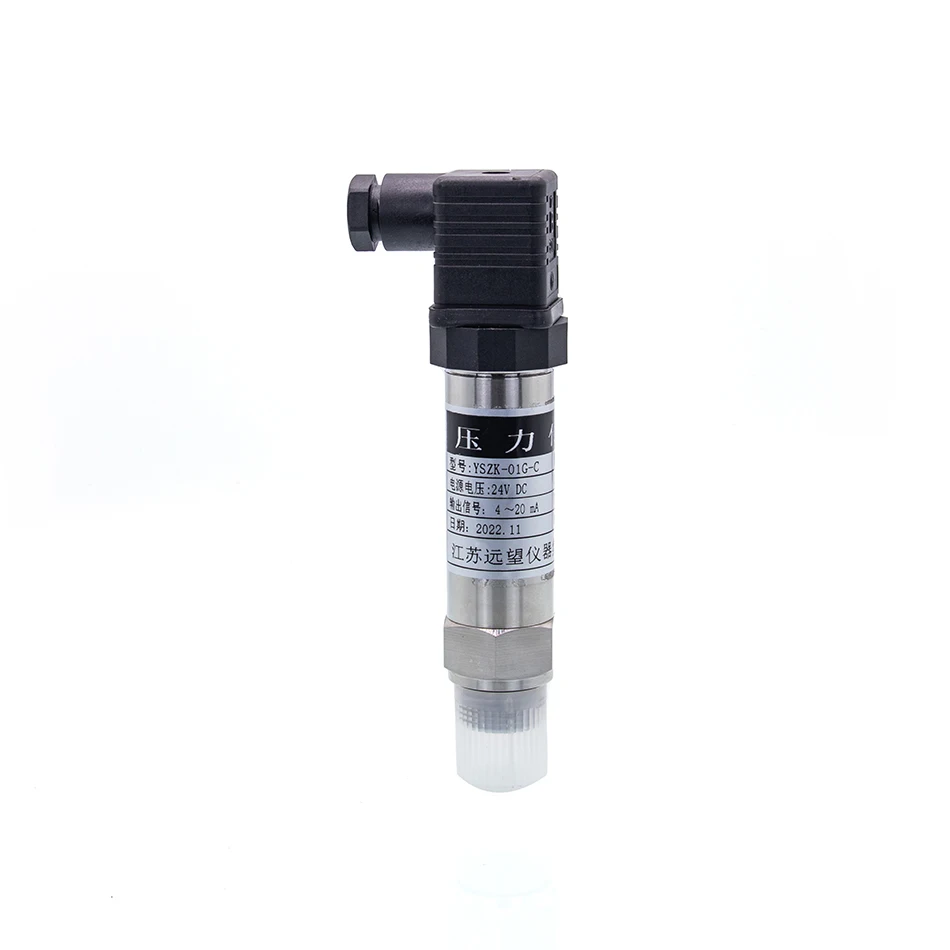

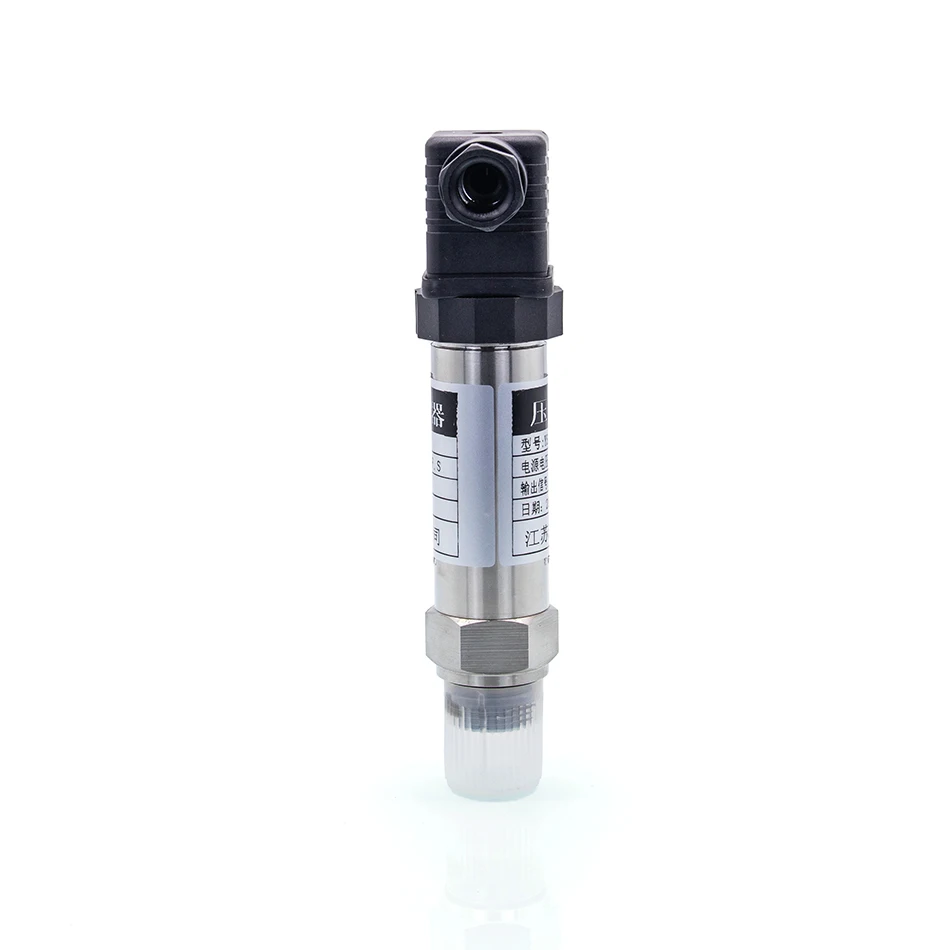

Pressure sensor 4~20mA output with digital LCD display
- Category: >>>
- Supplier: Jiangsu Yuanwang Instrument Group Co. Ltd.
Share on (1600724909095):
Product Overview
Description
Product Description
YSZK type pressure sensor consists of diffuse silicon pressure inductor and signal transform circuit. It has the characteristics of high measuring precision, reliable stability, small cubage, and convenient installation. It is used to measure pressure of all kinds of liquid, gas in ships and other industrial equipments.
Main Technical Specification
Model | Gauge type | YSZK-01G-C |
Absolute type | YSZK-01A-C | |
Seal type | YSZK-01S-C | |
Measuring range (MPa) | Gauge type | -0.1~0.1, -0.1~0, 0~0.1, 0~0.16, 0~0.25, 0~0.4, 0~0.6, 0~1.0, 0~1.6, 0~2.5, 0~4.0, 0~6.0, 0~10, 0~16, 0~25, 0~40, 0~60 |
Absolute type | 0~0.1, 0~0.16, 0~0.25, 0~0.4, 0~0.6, 0~1.0, 0~1.6, 0~2.5, 0~4.0, 0~6.0, 0~10, 0~16, 0~25, 0~40, 0~60 | |
Seal type | 0~0.01, 0~0.02, 0~0.05, 0~0.1, 0~0.2, 0~0.5, 0~1.0, 0~2.0 | |
Ex-proof mark | Adding -E | Intrinsic safety type |
Adding -B | Flameproof type | |
Adding -J | With local digital indication | |
Sketches
Wiring Diagram
Packaging & Shipping
Packing: carton or wooden case
Shipping: by air, sea, or courier as Fedex, DHL, UPS, EMS
Certifications
Class certificate (Type approval): BV, CCS, DNV.GL, LR, NK, RINA
EX-proof certificate (NEPSI): EXD, EX IA
