Водонепроницаемый бесконтактный выключатель без сенсорного датчика, кнопка для выхода индукционного типа, со светодиодом, 12 В/24 В
- Category: >>>
- Supplier: Shenzhen Yistar Technology Co. Ltd.
Share on (1600724914547):
Product Overview
Description
Product Description
Descriptions:
Door release buttons are the most common and the frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.

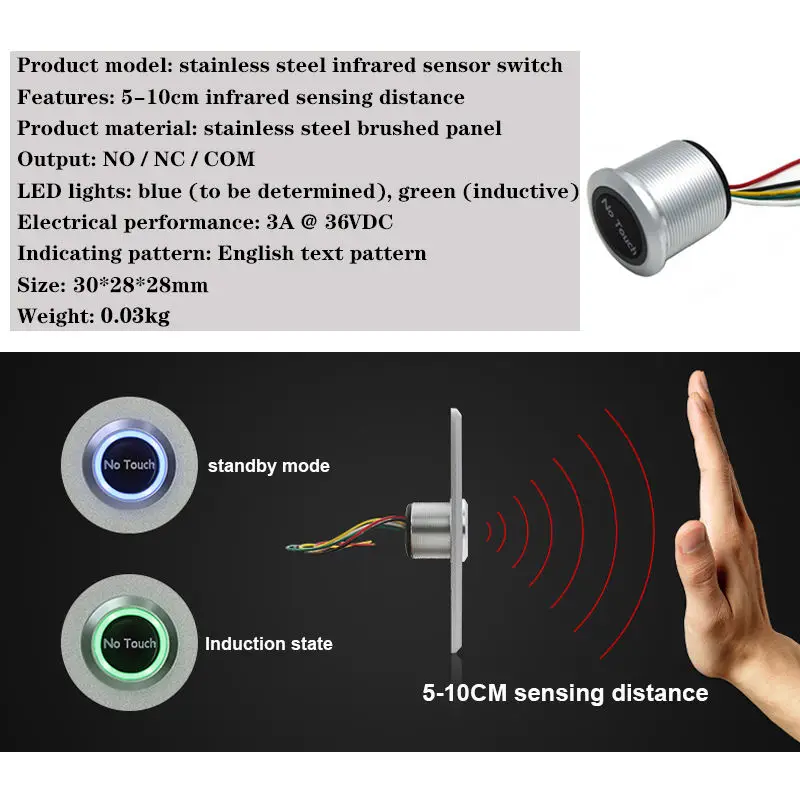

Specification:
1.Metal Panel with Elegant Style
2.1000000 Cycles tests
3.Three Contact Output, Suitable for all kinds of Locks
4.The Best Choice for Access Control
5.One exit button per box , weight 0.03KG
6.Operating temp :-10~+55°C(14-131F)
7.Operating Humidity :0-95% (non- condensing)

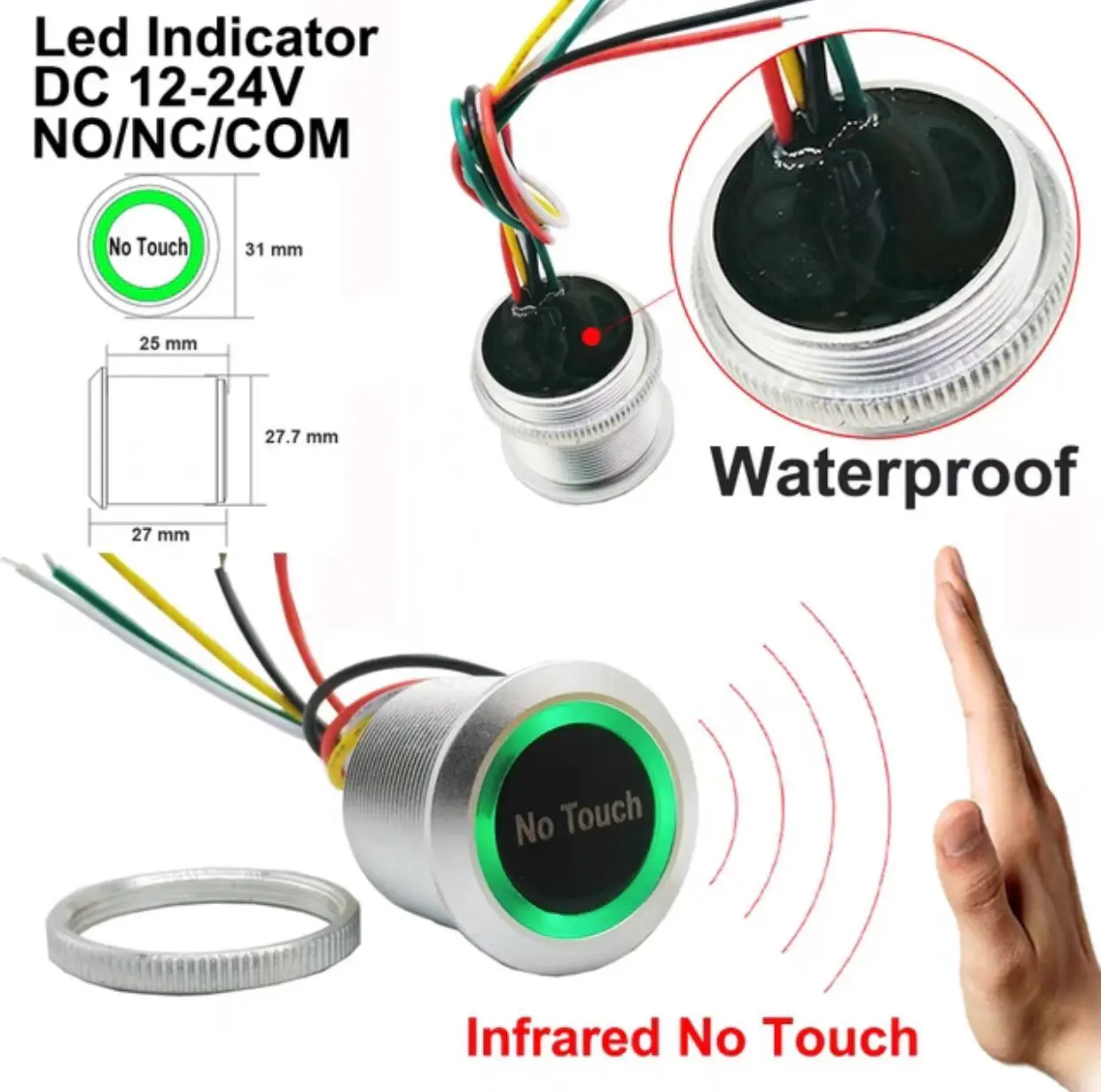

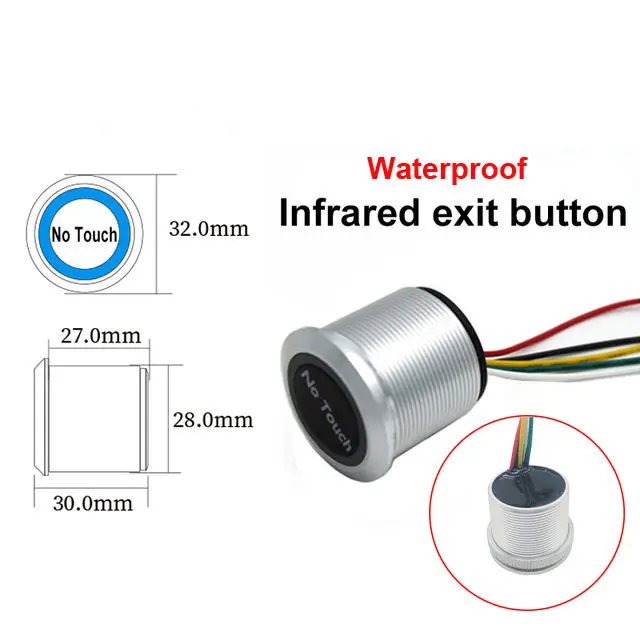

8.Dimensions :30*28*28mm
9.Detection range:0.1-10cm
10.White LED indicator:Power OFF
11.Blue LED indicator:Power ON(standby)
12.green LED indicator:Power ON(inductive)
13.Power: 12V-24VDC
14.Contact Rating: 12-24V,3A
Door release buttons are the most common and the frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.
Specification:
1.Metal Panel with Elegant Style
2.1000000 Cycles tests
3.Three Contact Output, Suitable for all kinds of Locks
4.The Best Choice for Access Control
5.One exit button per box , weight 0.03KG
6.Operating temp :-10~+55°C(14-131F)
7.Operating Humidity :0-95% (non- condensing)
8.Dimensions :30*28*28mm
9.Detection range:0.1-10cm
10.White LED indicator:Power OFF
11.Blue LED indicator:Power ON(standby)
12.green LED indicator:Power ON(inductive)
13.Power: 12V-24VDC
14.Contact Rating: 12-24V,3A
