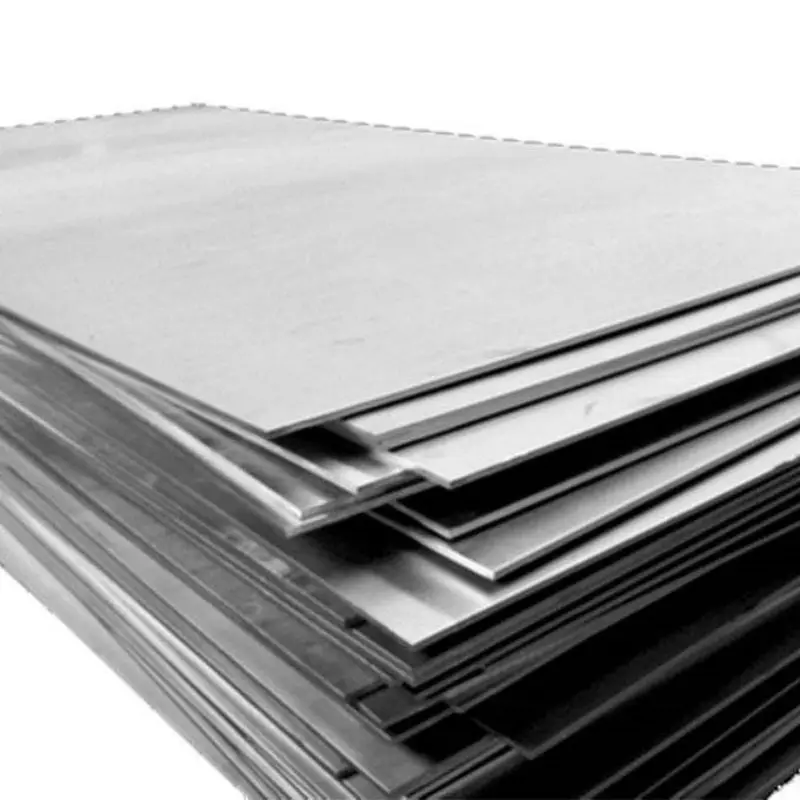

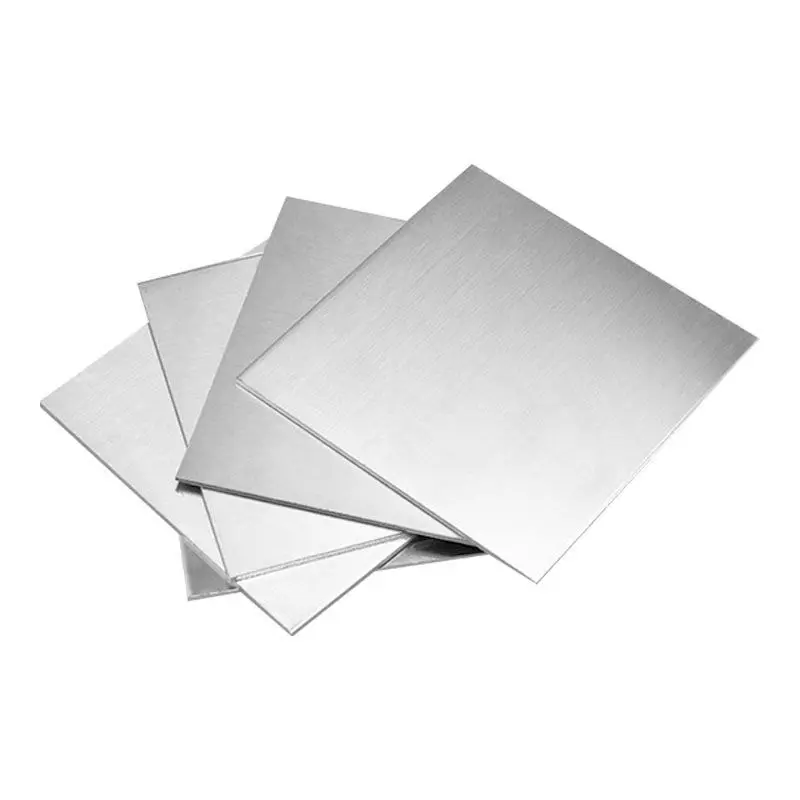

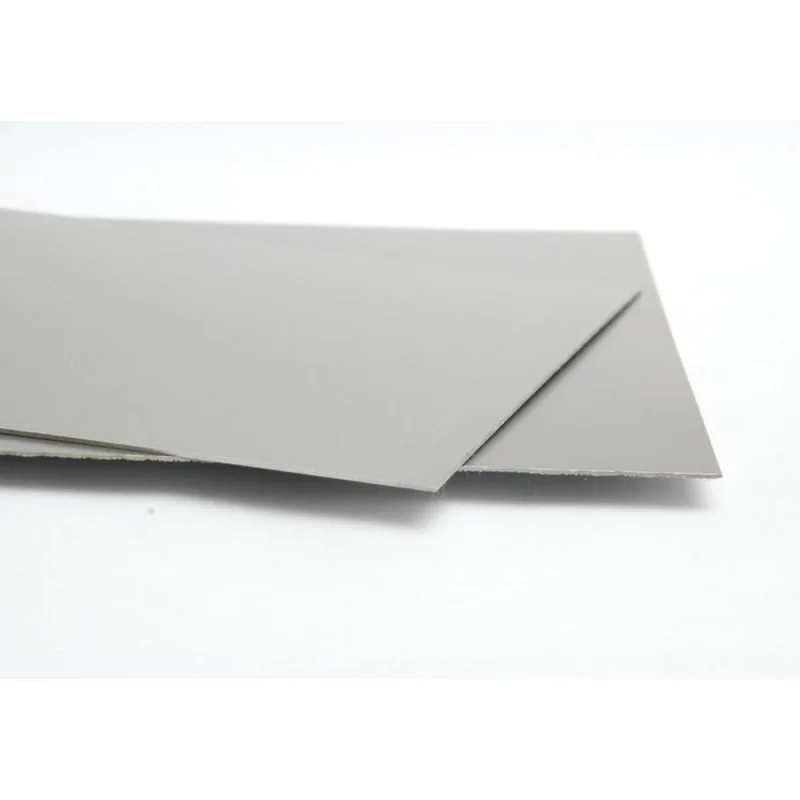

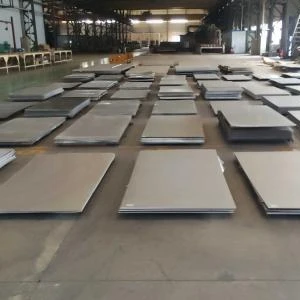

Nickel based alloy Incoloy 825 ASTM B409 UNS N08825 sheet

Product Overview

Description

Nickel-based alloy Incoloy 825 ASTM B409 UNS N08825 sheet



Incoloy 825  Characteristic as below:

(1)Excellent resistance

(2)Good pitting resistance



Application filed:

(1)Chemical processing

(2)Pollution control

(3)Oil recovery

(4)Gas recovery

(5)Acid production

(6)Pickling operations

(7)Nuclear fuel reprocessing

(8)Handing of radio active wastes









Incoloy 825 Specification



UNS	W.Nr
N08825	2.4858



Incoloy 825 Chemical composition



Grade	%	Ni	Cr	Fe	C	Mn	Si	Cu	Mo	Al	Ti	P	S
825	Min	38	19.5	Bal.				1.5	2.5		0.6
	Max	46	23.5		0.05	1	0.5	3	3.5	0.2	1.2	0.03	0.03



Incoloy 825 Mechanical properties:(Minimum value at 20℃)



Tensile Strength σb/MPa	Yield Strength σp0.2/MPa	Elongation σ5 /%
550	220	30



Incoloy 825 Standard



Bar	Forging	Sheet/Strip	Wire	Pipe
ASTM B408	ASTM B564	ASTM B409	ASTM B408	ASTM B407 ASTM B514
