Super Nickel based alloy monel 400 UNS N04400 Nickel alloy pipe/tube
- Category: >>>
- Supplier: Jiangsu Xinhua Alloy Co. Ltd.
Share on (1600724979355):
Product Overview
Description

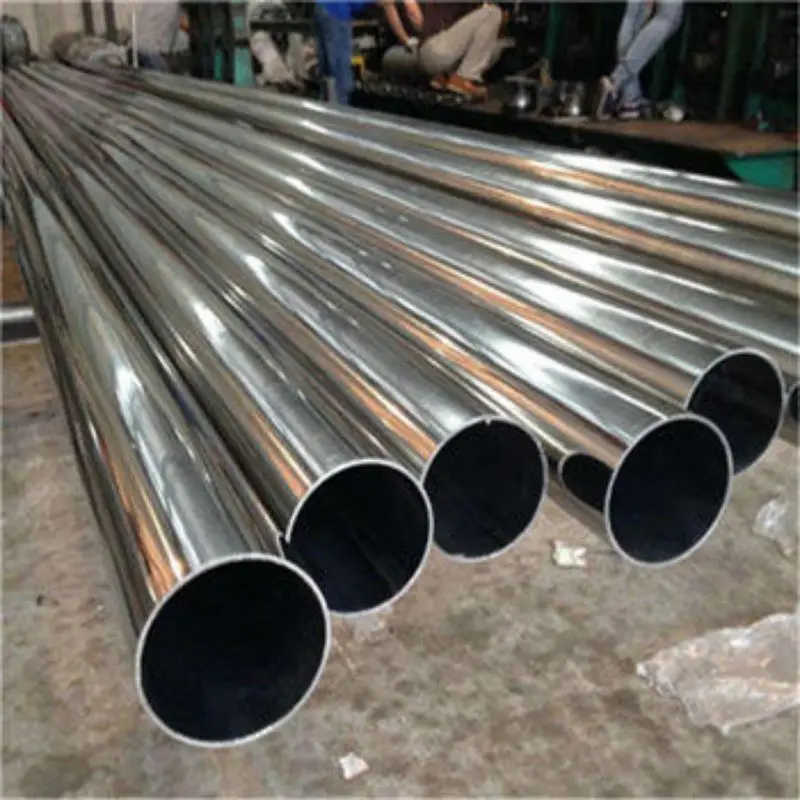

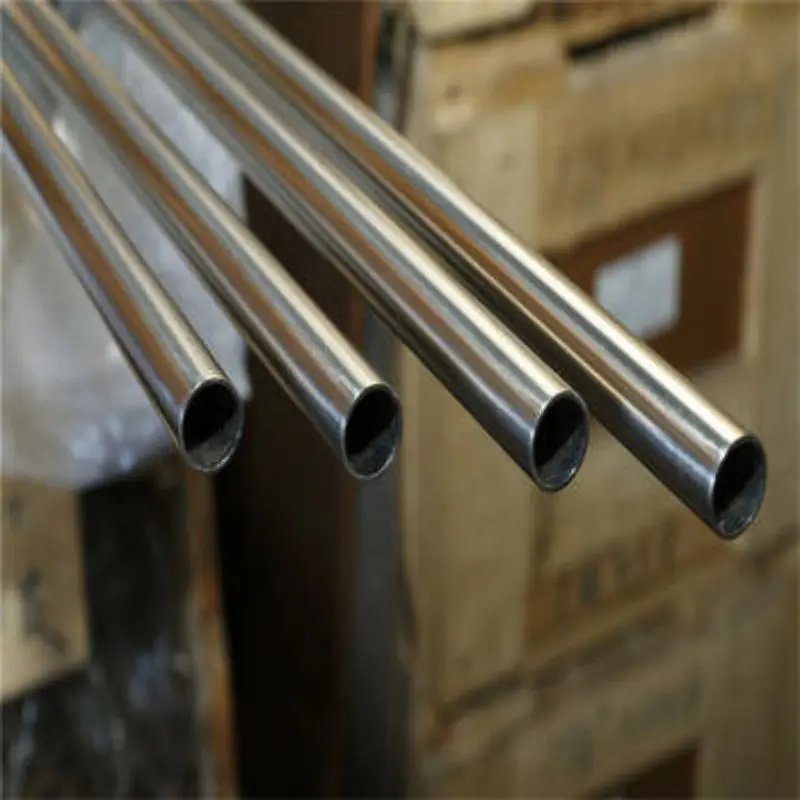

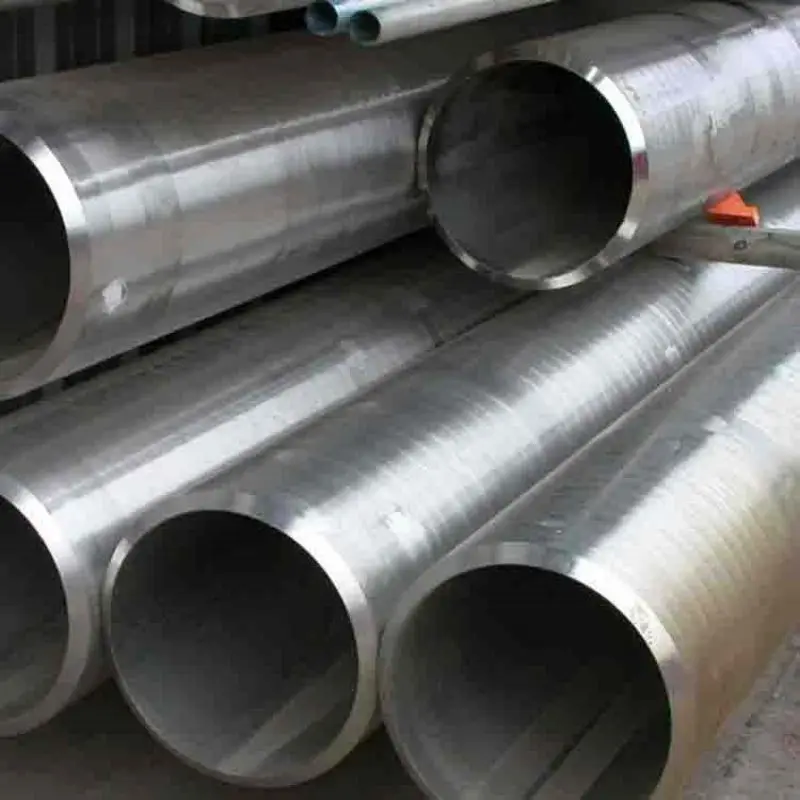

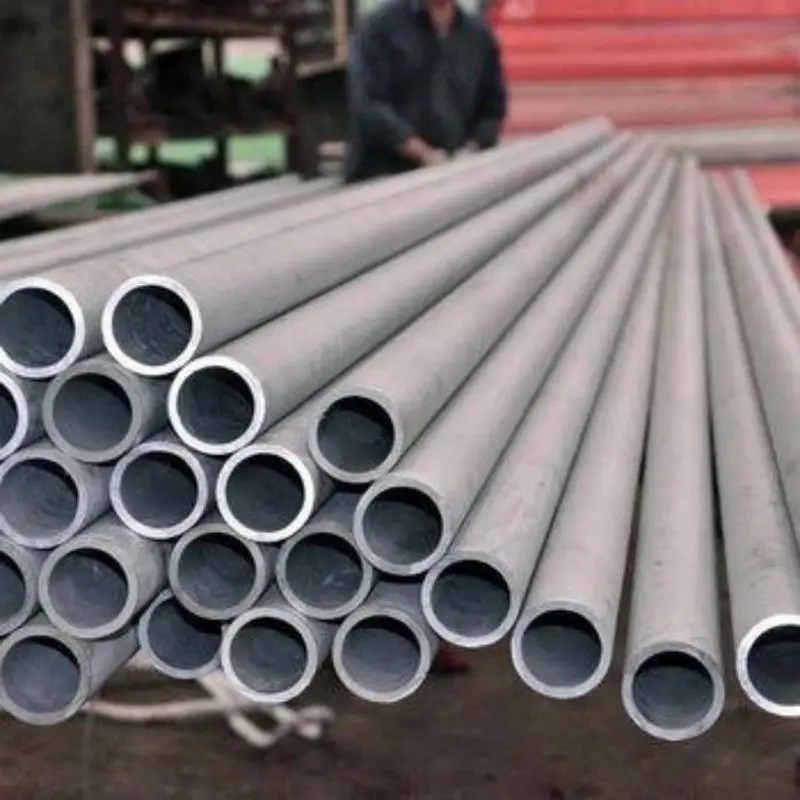

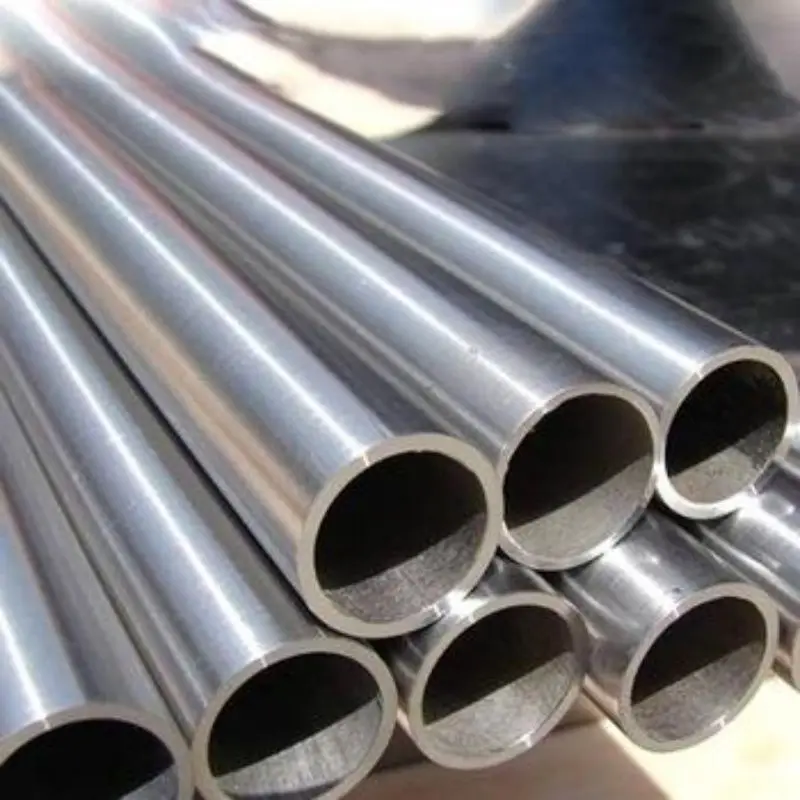

Monel 400 UNS N04400 Nickel alloy pipe ASTM B165
Product Description
monel 400 has corrosion resistant properties against flowing sea-water and is extensively used for marine applications. Alloy 400 is also extremely resistant to stress corrosion cracking in most freshwaters. Alloy 400 is used in steam generators, feedwater heaters, cladding of offshore installations, pump and propeller shafts, marine fixtures and fasteners, also chemical processing equipments.
monel 400 Specification
UNS | W.Nr |
N04400 | 2.4360 |
monel 400 Chemical composition
Grade | % | Ni | Cu | Fe | C | Mn | Si | S |
400 | Min | Bal. | 28 |
|
|
|
|
|
Max | 34 | 2.5 | 0.3 | 2 | 0.5 | 0.024 |
monel 400 Mechanical properties:(Minimum value at 20°C)
Tensile Strength σb/MPa | Yield Strength σp0.2/MPa | Elongation σ5 /% |
480 | 170 | 35 |
monel 400 Standard
Bar | Forging | Sheet/Strip | Wire | Pipe |
ASTM B164 | ASTM B564 | ASTM B127 | ASTM B164 | ASTM B165 ASTM B725 |
Related Products
Company Information
The reason why you choose us1. The Leading manufacturer of nickel based alloy Porducts
2. The drafter & Reviser Of National Standard GB/T1234 regarding Electrothermal Alloy.
3. Over 20 years experience
4. Small quantity, short time delivery
If we have stocks, we can ship from a minimum of 1 kg sample in a few days.We also manufacture custom-order materials in amounts
of 100 kg and up (Some materials are allowed 50 kg) in as few as 3 weeks.
5. High-precision thickness
We guarantee thickness tolerances that cannot be reproduced by competitors.
Example:
t <0.30mm Tolerance ±1 - 3 μm guaranteed
0.30 mm≤t Tolerance ± 1% guaranteed
6. complete QC system & Advanced physical and chemical testing center
For each production processing, we have complete QC system for the chemical compostion and Physical properties. After production,
all the goods will be tested, and the quality certificate will be shipped along with goods.
7. Effective and strong technical support and custom-made solutions
We provide customed solutions to your problems with our strong technologies and well versed knowledge of materials acquired
through our more than 20 experience.
8. Choose the appropriate base metals for your needs
We carefully balance quality, delivery time and price,procure various base metals from all over the world.We manufacture
appropriate products to your needs.
9. Reliable certificate (ISO 9001/ROHS/BV/SGS/TUV)
Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc. The third party testing is available for us.
2. The drafter & Reviser Of National Standard GB/T1234 regarding Electrothermal Alloy.
3. Over 20 years experience
4. Small quantity, short time delivery
If we have stocks, we can ship from a minimum of 1 kg sample in a few days.We also manufacture custom-order materials in amounts
of 100 kg and up (Some materials are allowed 50 kg) in as few as 3 weeks.
5. High-precision thickness
We guarantee thickness tolerances that cannot be reproduced by competitors.
Example:
t <0.30mm Tolerance ±1 - 3 μm guaranteed
0.30 mm≤t Tolerance ± 1% guaranteed
6. complete QC system & Advanced physical and chemical testing center
For each production processing, we have complete QC system for the chemical compostion and Physical properties. After production,
all the goods will be tested, and the quality certificate will be shipped along with goods.
7. Effective and strong technical support and custom-made solutions
We provide customed solutions to your problems with our strong technologies and well versed knowledge of materials acquired
through our more than 20 experience.
8. Choose the appropriate base metals for your needs
We carefully balance quality, delivery time and price,procure various base metals from all over the world.We manufacture
appropriate products to your needs.
9. Reliable certificate (ISO 9001/ROHS/BV/SGS/TUV)
Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc. The third party testing is available for us.
Certifications
We have got the certificate as below: ISO 9001 / SGS /TUV
/BV / ROHS etc.
Exhibiton
Main Customers
Packaging & Shipping
1.Packing
Standard export packing, carton with plywood case for safety
Wire: below dia 1.0mm, packed in spool; Above 1.0mm, packed in coil
Strip, Bar & Tube, Sheet: Packed in Nylon Polybag first
Welding wire: TIG, 5KGS / box, MIG, 15kgs /spool
The goods can be packed as the clients demand.
2.Delivery time
We can do the order 45-50days upon receive the 30% deposit or L/C document.
Standard export packing, carton with plywood case for safety
Wire: below dia 1.0mm, packed in spool; Above 1.0mm, packed in coil
Strip, Bar & Tube, Sheet: Packed in Nylon Polybag first
Welding wire: TIG, 5KGS / box, MIG, 15kgs /spool
The goods can be packed as the clients demand.
2.Delivery time
We can do the order 45-50days upon receive the 30% deposit or L/C document.
FAQ
Q:Are you a factory or trading company?
A: Factory. But our production base is in Jiangsu and office is in Shanghai.
Q: What’s your minimum order quantity?
A: Our minimun quantity is 1000 Kg. We also can offer you free samples.
Q: What’s your delivery time?
A: Our normal delivery time is 7-20 days, and it depends on your quantity and items. Of course, if you need products urgently, we also will consider arranging it firstly.
Q: What’s the price of your product?
A: Our prices are based on the material grade, size, quantity and physical performance etc. So if you can offer us the detailed information, then we can give you the best reasonable price. Also, we can do special size and color for customers.
Q: What’s your after-sales service?
A: We have two ways to handle claims by replacement and deduction. Of course, if the material is not good used by wrong parameter from customer, we won’t be responsible.
Q: Why do you think I will want to buy from you?
A: We have advantages with 15 years of professional experiences in manufacturing & designing, advanced technology & the first-class equipment, perfect logistics management, high-quality after-sales service and competitive price.
