High quality automatic temperature control time easy pressure adjustment sublimation mug press machine
- Category: >>>
- Supplier: Qingdao Pingte Machinery Equipmake Co. Ltd.Qingdao Ltd.
Share on (1600725164211):
Product Overview
Description

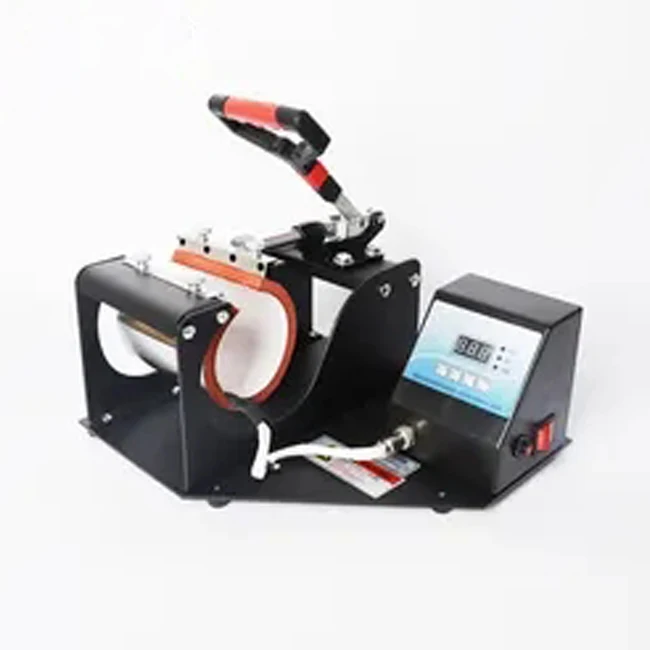

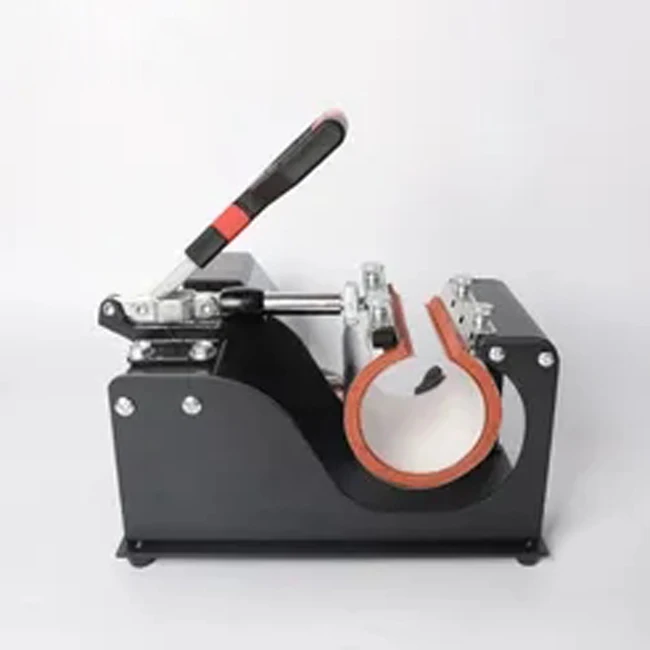

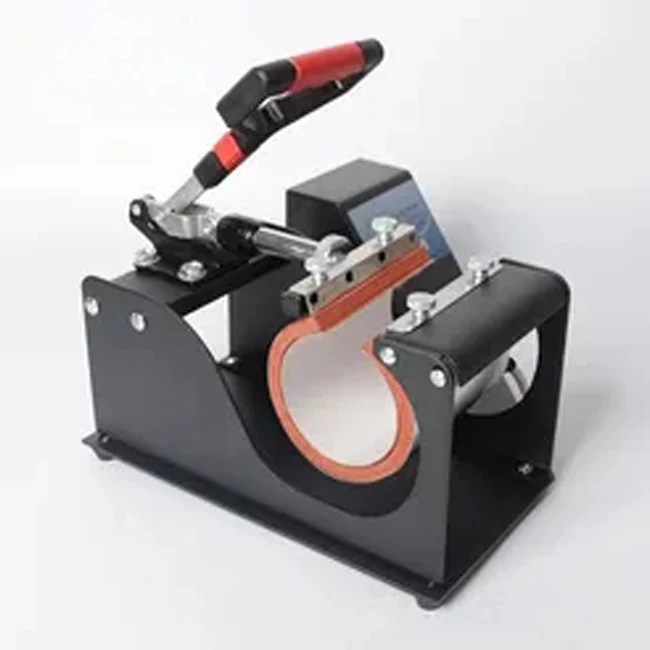

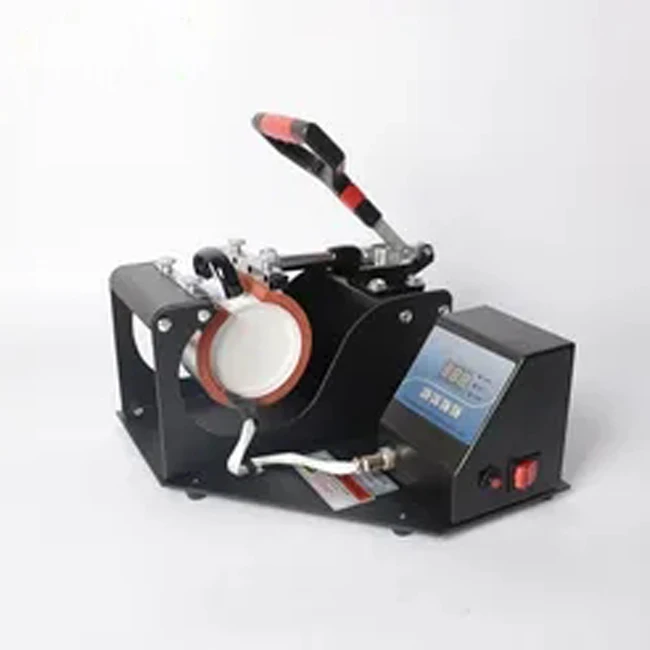

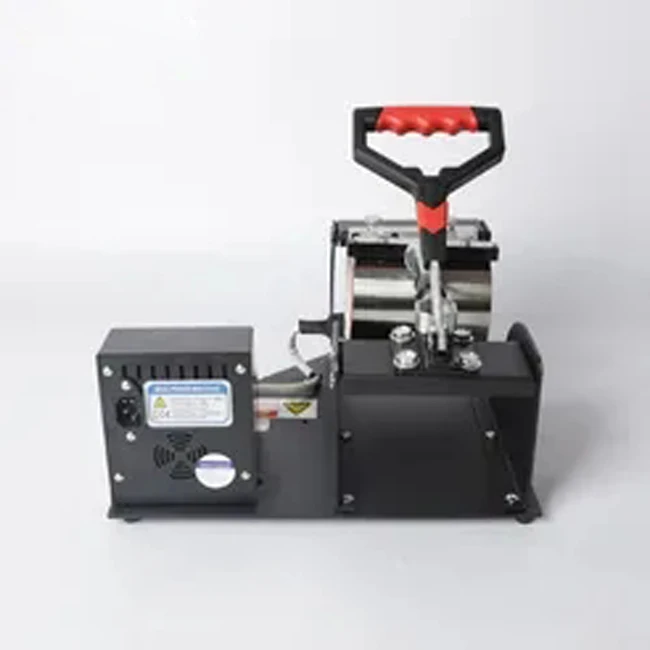

High quality automatic temperature control time easy pressure adjustment sublimation mug press machine
Products Description
Name | Mug machine | ||||
CBM | 0.043m³ | ||||
GW | 6.6KG | ||||
Power | 300W | ||||
Voltage | 110V / 220V | ||||
Packing size | 38*34*33cm | ||||
Time range: | 1-999s | ||||
Temperature range: | 0-399°C | ||||
Supply color | black | ||||
Main purpose: it can be any color color code, portrait photo, landscape design printed on the cup, especiallyfor advertising, personalized gifts, promotional activities.
Product Features:
1.electronic digital temperature display, automatic climate control, heated directly without placing a cup shape.
2. High temperature thick silica gel pad makes the pressure more evenly baked India, 30o F without distortion.
3. Automatic temperature control time, easy pressure adjustment, automatic alarm, easy operation.
THE MUG PRESS MACHINE USING INTRODUCTION
1. Plug into the power, open the power. (The machine rated voltage is 220V, the rated input power is 350W)
2. Set the operation procedure :( the temperature shows F degree)
1).The original temperature: Press the MODE SET KEY once, the set indication light will be on, Press the key+ or key - to set original temperature.
2).The Max temperature: Press the MODE SET KEY the second time, the temperature indication light will be on,press the key + or key-to set the max temperature .
3).The max bake temperature: Press the MODE SET KEY the third time, the time indication light will be on,press the key + or key-to set the max bake time .
4).Execution mode: Press MODE set key the fourth time, the machine will go into waiting execution state..
Att: the original time setting range 200~380 degree, the Max temperature setting range 200~430 degree.
The max baking temperature time setting range: 0~999 seconds.
The machine has the function of temperature setting self-locking, so if the original temperature is 340 degree, the machine will control the max temperature range 340~430 degree . Conversely, if the max temperature set 250 degree, then the machine will control the original temperature 200~250 degree.
3. Heat transfer printing
Baking slowly: put the products into the mug press, press down the pressure handle, open the power, so the temperature will go up
.When the temperature raise to the original setting temperature, the machine will send out short stridulation, press the execution key once, till the machine send out dah (long voice). Press the execution key again to finish the heat printing. Take out the product, the temperature will come back the original temperature gradually.
Baking fastly: under the original temperature state, fix the object, press down the pressure handle, press the execution key once, until the machine send out dah, press the execution key again , finish the heat transfer printing. Take out the object, the temperature will come back to original temperature.
4. The question prompt for the failure printing.
A. the color is lighter: The temperature is too slow, or the pressure is not even, or the time is too short .
B. the design is indistinct: the time is too long and lead to ink diffusing
C. the design has no luster: the pressure is too high or temperature too high.
D. part of design is indistinct: heat printing zone or the heating is not even.
E. Scar on the design: Heat printing time is too long.
F. dept of color is not the same: pressure not even or the coating is not even.
G. paper stick to the object: The temperature is too high, or the coating of the object is not good.
1. Plug into the power, open the power. (The machine rated voltage is 220V, the rated input power is 350W)
2. Set the operation procedure :( the temperature shows F degree)
1).The original temperature: Press the MODE SET KEY once, the set indication light will be on, Press the key+ or key - to set original temperature.
2).The Max temperature: Press the MODE SET KEY the second time, the temperature indication light will be on,press the key + or key-to set the max temperature .
3).The max bake temperature: Press the MODE SET KEY the third time, the time indication light will be on,press the key + or key-to set the max bake time .
4).Execution mode: Press MODE set key the fourth time, the machine will go into waiting execution state..
Att: the original time setting range 200~380 degree, the Max temperature setting range 200~430 degree.
The max baking temperature time setting range: 0~999 seconds.
The machine has the function of temperature setting self-locking, so if the original temperature is 340 degree, the machine will control the max temperature range 340~430 degree . Conversely, if the max temperature set 250 degree, then the machine will control the original temperature 200~250 degree.
3. Heat transfer printing
Baking slowly: put the products into the mug press, press down the pressure handle, open the power, so the temperature will go up
.When the temperature raise to the original setting temperature, the machine will send out short stridulation, press the execution key once, till the machine send out dah (long voice). Press the execution key again to finish the heat printing. Take out the product, the temperature will come back the original temperature gradually.
Baking fastly: under the original temperature state, fix the object, press down the pressure handle, press the execution key once, until the machine send out dah, press the execution key again , finish the heat transfer printing. Take out the object, the temperature will come back to original temperature.
4. The question prompt for the failure printing.
A. the color is lighter: The temperature is too slow, or the pressure is not even, or the time is too short .
B. the design is indistinct: the time is too long and lead to ink diffusing
C. the design has no luster: the pressure is too high or temperature too high.
D. part of design is indistinct: heat printing zone or the heating is not even.
E. Scar on the design: Heat printing time is too long.
F. dept of color is not the same: pressure not even or the coating is not even.
G. paper stick to the object: The temperature is too high, or the coating of the object is not good.
Since in 2005, it has established good relations with many domestic and foreign enterprises. The products sell well all over the country and are exported to Europe, America, Southeast Asia, Middle East, Africa and other regions. They are highly trusted and highly praised by domestic and foreign customers. The company has advanced production and professional technology, R & D team, so that our products can be favored by our customers. After years of development, the company's main products are screen printing machine(oval printing machine, rotary printing machine and so on ), roller heat transfer machine, T-shirt folding machine, Digital printing machine, heat press machine,
Qingdao Pingte Machinery Equipmate Co., Ltd.is a modern enterprise integrating R&D, production, agency and sales. The company has always been "Provide to customers with efficient and high-quality printing machinery" as their mission, focusing on the printing
industry machinery production, and constantly improve their service levels.
01 Are You a Factory Or a Trading Company?
Factory
02 Do You Accept Customize Machine?
Please communicate with us salesperson at first, we can customize machine on us developing ability.
03 What's The Payment Item?
We usually do 50% T/T as deposit, 50% balance payment before shipment. Cash payment, L/C also can accept on old customer.
04 Do You Have Any Certificate?
We have CE certificate and original certificate if you need.
05 What's Your Warranty?
We supply one-year warranty and full time spare parts supplying after warranty.
