LTE 4G 3G 2G 16 Port 4G 16 sim cards Voip Gateway Configuration Lte Voip Router Gsm Goip Gateway
- Category: >>>
- Supplier: Skyline (Shenzhen) Technology Co. Ltd.
Share on (1600725249246):
Product Overview
Description
LTE 4G 3G 2G 16 Port 4G 16 sim cards Voip Gateway Configuration Lte Voip Router Gsm Goip Gateway
Product Description
4G SK 16-16 VoIP Gateway
SK 16-16 VoIP Gateway is a multi-functional and high performance product, which is designed with advanced embedded technology. SK 16-16 is able to process traditional voice call service, sms service and internet data service and adopt new hardware and software structure, which supports up to 8 concurrent calls. Support to do both voice and sms business.4G SK 16-16, 16 channels 16 sim cards
1) Support Both Voice and SMS business
2) IMEI Change
2) IMEI Change
3) Auto to get Phone Number
4) Support AT/USSD Command balance enquiry, billing
5) Support connect with simpool, remote control SIMs
6) Direct to monitor Voice ASR and ACD in device
7) Direct to monitor Status of Sending SMS/ Instantly SMS Receive
8) Auto suffer the internet to use Internet data
9) Intercalling/ Intersending system for decreasing sim block
10) Automatically lock/switch SIM card according to its balance, balance alarm
11) Support SIMs hot-swap
4) Support AT/USSD Command balance enquiry, billing
5) Support connect with simpool, remote control SIMs
6) Direct to monitor Voice ASR and ACD in device
7) Direct to monitor Status of Sending SMS/ Instantly SMS Receive
8) Auto suffer the internet to use Internet data
9) Intercalling/ Intersending system for decreasing sim block
10) Automatically lock/switch SIM card according to its balance, balance alarm
11) Support SIMs hot-swap
12) Forward SMS to Email/Phone, SMS to HTTP
13) Support SMPP server/client, HTTP/ API SMS
13) Support SMPP server/client, HTTP/ API SMS
14) Direct to open gateway software interface in Webpage
15) Remote Login and Remote Control Devices Management System
Specification:
Model | 4G SK16-16 VOIP Gateway |
Number of Channels | 16 channels |
Function | Both Voice and SMS business |
SMS Sening Speed | 4G 16 Port: 38400 SMS one hour 19200 MMS one hour 3G 16 Port: 28800 SMS one hour 14400 MMS one hour 2G 16 Port: 19200 SMS one hour 9600 MMS one hour |
Frequency | 2G GSM: 850/900/1800/1900MHz 3G WCDMA: 850/900/1800/1900/2100Mhz 4G LTE: TDD and FDD LTE |
Module Choice | 2G: Quectel M26 3G: Quectel UC20 4G: Quectel EC25,EG91 |
SIP/2.0 RFC3261 | |
Session Timer RFC4028 | |
STUN | |
DHCP/PPPoE/VPN(pptp) | |
NTP | |
Telnet/HTTP/FTP/TFTP | |
Encryption:Skyline,VOS2000,RC4,XOP.Base64 | |
Telephony Features | Hot-line call ,Dial plan, Speed dial, Phone book, CDR, LCR, White/Black list |
DTMF tone dectection/generation | |
DTMF relay: in-band, RFC 2833 and SIP info | |
Call forward: unconditional, no answer and busy | |
N-way conferencing | |
Caller ID display/generation, Mobile Number Portability | |
Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC | |
Echo cancellation | |
Silence suppression & detection(VAD, CNG) | |
Adaptive jitter buffer | |
Volume adjustable | |
IVR customized | |
Number of Ports | 1 WAN 10/100Base-T Ethernet(RJ-45 connector) |
1 Console(USB) | |
LEDs | 1 Power and 16 groups of card online and running status indicator |
Power Supply | 100-240VAC, 50 - 60 Hz IN, 12V/5A OUT |
Operating Environment | Operating temperature: 0 - 50ºC |
Operating humidity: 10 – 90%RH | |
Warranty | 12 Months |
- Special Features:
• Support G729a/b/e,G723.1,G.711 A/U law, iLBC auto-selecting)
• Proxy Encryption Solution for IP Block
• Support SIM Pool
• VPN(PPTP)
• Web Browser: Firefox/Chrome /IE/Opera
• ERMS(Skyline Remote Management System)
• Proxy Encryption Solution for IP Block
• Support SIM Pool
• VPN(PPTP)
• Web Browser: Firefox/Chrome /IE/Opera
• ERMS(Skyline Remote Management System)
- Solution to Lock SIM & Reduce block
• Accumulated Call Duration
• Accumulated Connected Calls
• Accumulated Calls
• Consecutive Failed Calls
• Consecutive No-Alert Calls
• Consecutive No-Answer Calls
• Consecutive No Carrier Calls
• Consecutive Short-Duration Calls
• Station intelligent switching
• Port Inter-Calling
• Fake Ring-back
• Call Duration Limitation for SIM Card/ Single
• Dial Plan/Prefix Inward
• Accumulated Connected Calls
• Accumulated Calls
• Consecutive Failed Calls
• Consecutive No-Alert Calls
• Consecutive No-Answer Calls
• Consecutive No Carrier Calls
• Consecutive Short-Duration Calls
• Station intelligent switching
• Port Inter-Calling
• Fake Ring-back
• Call Duration Limitation for SIM Card/ Single
• Dial Plan/Prefix Inward
- Mobile Features:
• SMS Send, Receive and Forward (GSM/SIP/HTTP)
• SMS Inbox (Receive SMS)• AT Command , USSD
• SMS Format: PDU/TXT
• PIN Code Management
• CDMA Delay Answer
• GSM Polarity Reversal
• Carrier Selection
• Caller ID Hidden(need SIM Card support)
Maintenance and Management:
• Multi-language Interface
• USB Serial COM
• Configuration Backup and Restore
• Support HTTP/TFTP Upgrade
• Call statistics: ASR,ACD,PDD
• ETMS: For Manage Multiple device Remotely on Cloud and Remote to Login

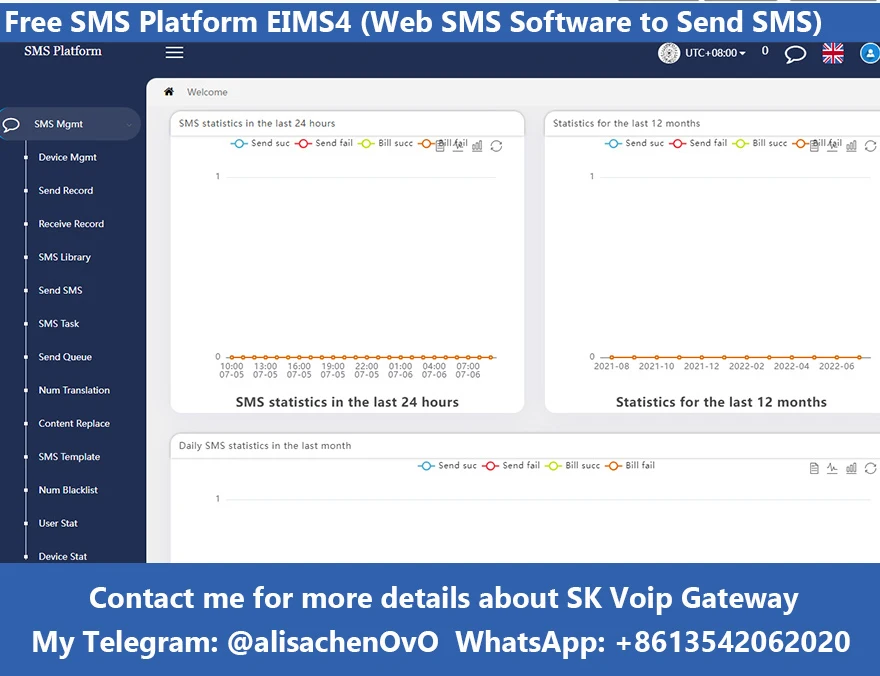

• EIMS4: for Bulk SMS Compaign
• Configuration Backup and Restore
• Support HTTP/TFTP Upgrade
• Call statistics: ASR,ACD,PDD
• ETMS: For Manage Multiple device Remotely on Cloud and Remote to Login
• EIMS4: for Bulk SMS Compaign
• ESPS: for Manage sim cards remotely in different locations
Application:
Call termination:

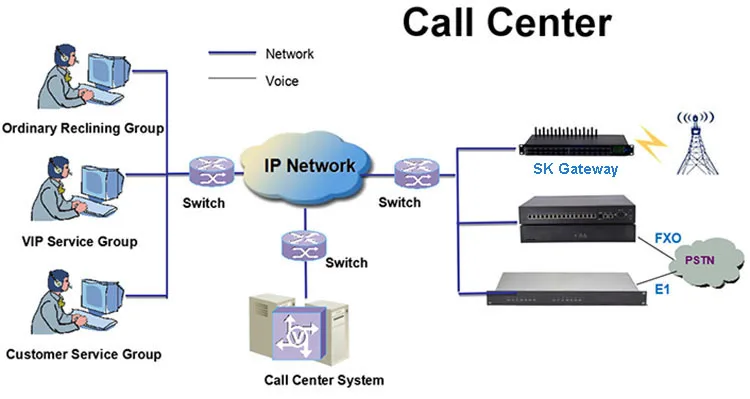

Call Center:
Enterprise Application:
Bulk SMS Sending:
Frequency:
2G model: 850/900/1800/1900Mhz
3G model: 850/900/1800/1900/2100Mhz
4G model:
3G model: 850/900/1800/1900/2100Mhz
4G model:
Module | Frequency | Suitable for Countries or Regions |
EC25-EUX (EC25-EC) | LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 | Europe, Africa, Asia, Middle East, United Arab Emirates, Turkey Philippines, Vietnam, Malaysia |
EG91 | LTE-FDD:B2/B4/B5/B12/B13 WCDMA:B2/B4/B5 | USA( T-mobile/ Simple/ Verizon/ AT&T/ /U.S.Cellular), Canada |
LTE-FDD:B2/B4/B5/B12/B13/B14/ B66/B71 WCDMA:B2/B4/B5 | USA( T-Mobile/ Simple/ Verizon/ AT&T/ /U.S.Cellular), Canada | |
LTE-FDD:B1/B2/B3/B4/B5/B7/B8 /B28 LTE TDD:B40 WCDMA:B1/B2/B5/B8 GSM:B2/B3/B5/B8 | Australia, New Zealand, South America, Colombia, Mexico, America(T-Mobile) | |
EC25-V | LTE FDD:B4/B13 | USA Verizon |
EC25-J | LTE FDD:B1/B3/B8/B18/B19/B26 LTE TDD:B41 WCDMA:B1/B6/B8/B19 | Japan |
EC25-E | LTE FDD:B1/B3/B5/B7/B8/B20 LTE TDD:B38/B40/B41 WCDMA:B1/B5/B8 GSM:B3/B8 | All Europe, Africa, Asia Middle East, Pakistan, Southeast Asia |
Gateway Web Management
How to log in Web Management?
Open the web browser and type the IP address. If it is the first time you login the gateway, please
use the default settings below:
IP Address: 192.168.1.10
Account: root
Password: root
use the default settings below:
IP Address: 192.168.1.10
Account: root
Password: root

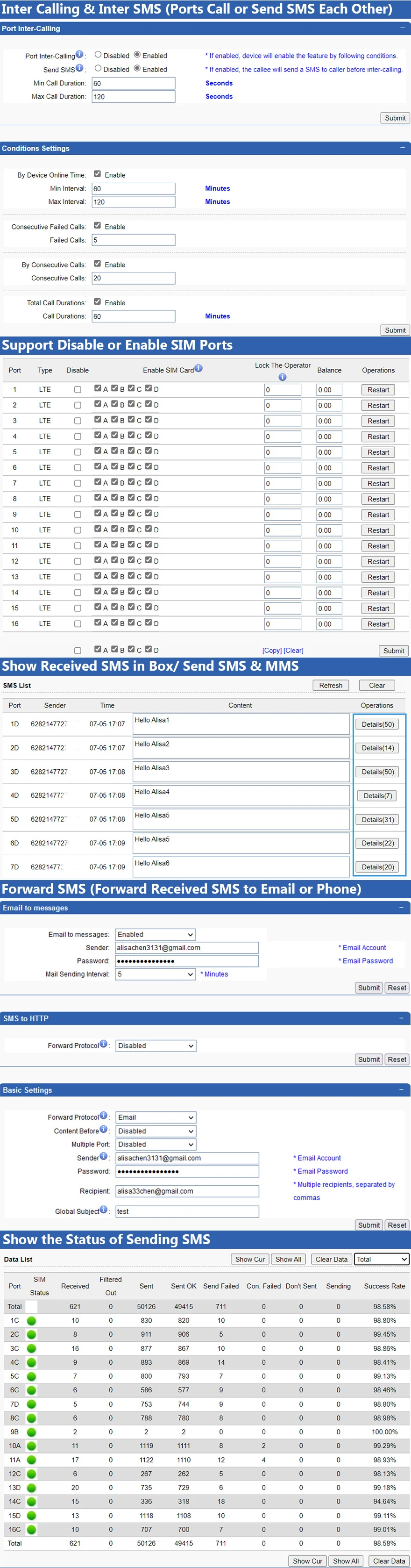

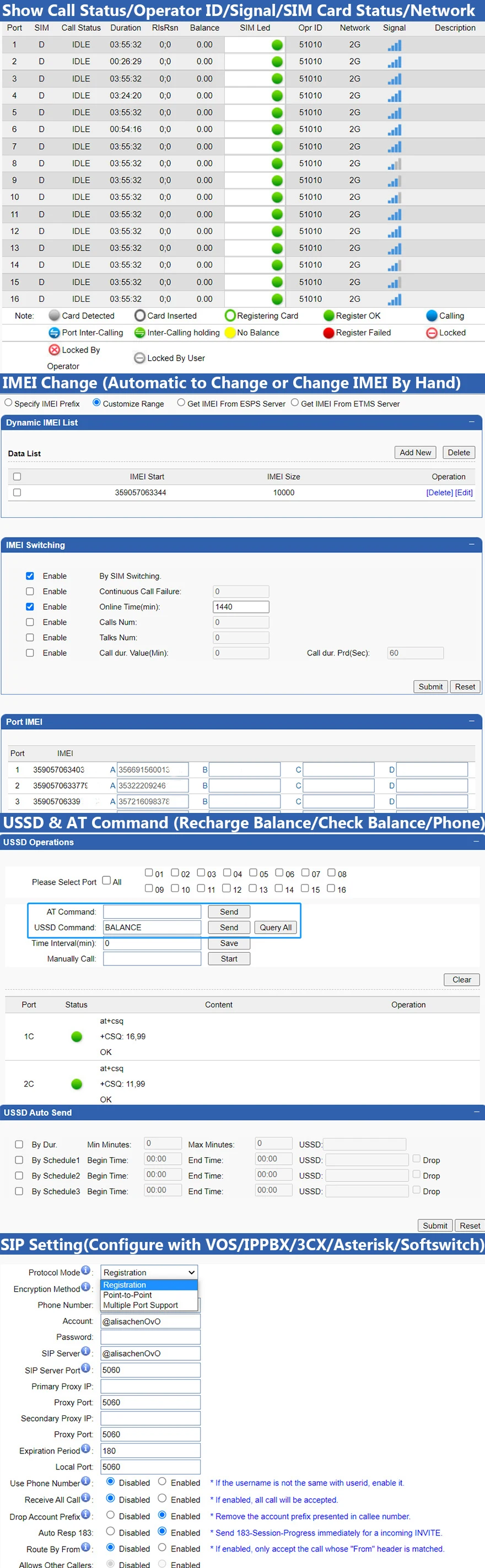

Following are the pages of gateway web management:

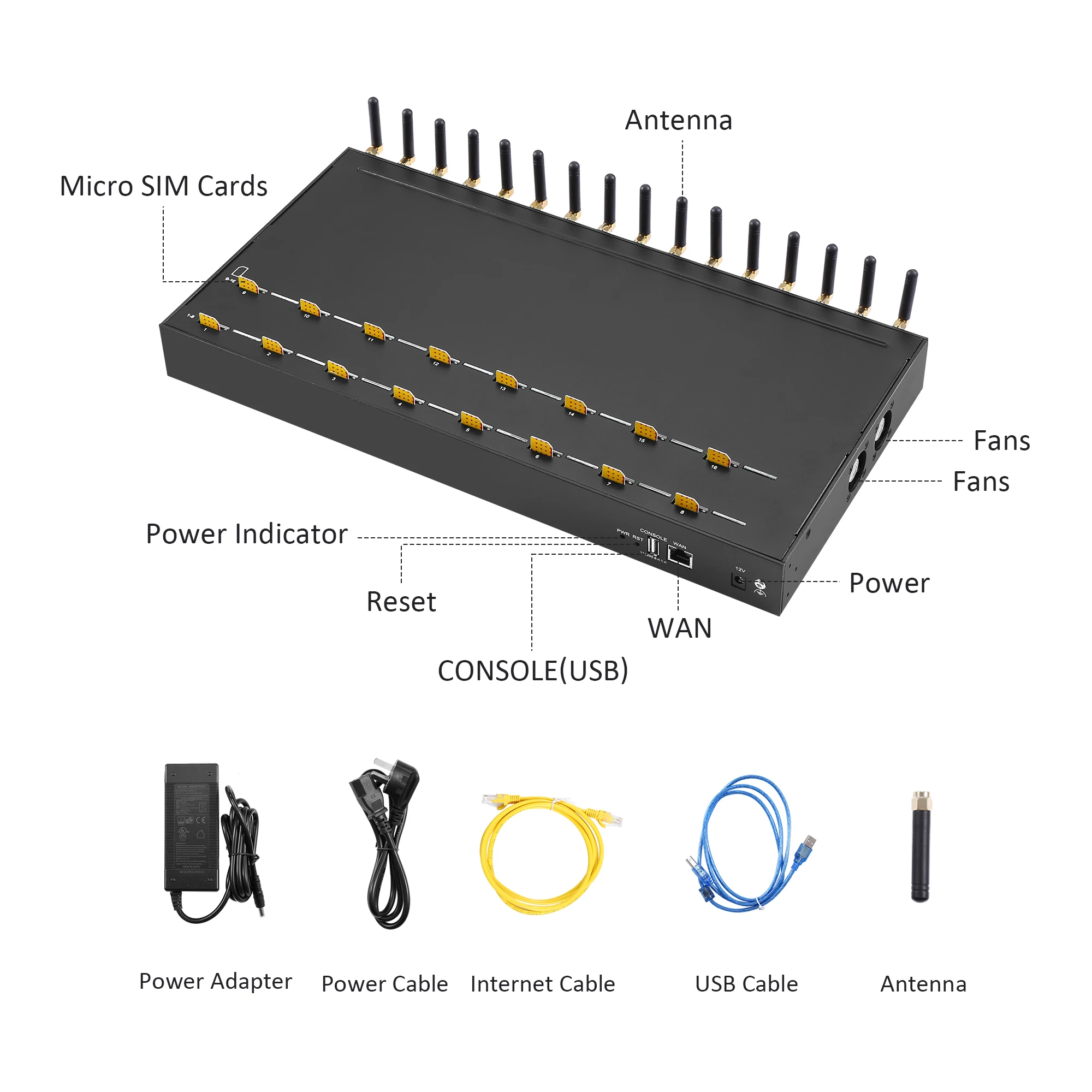

Packing&Shipping

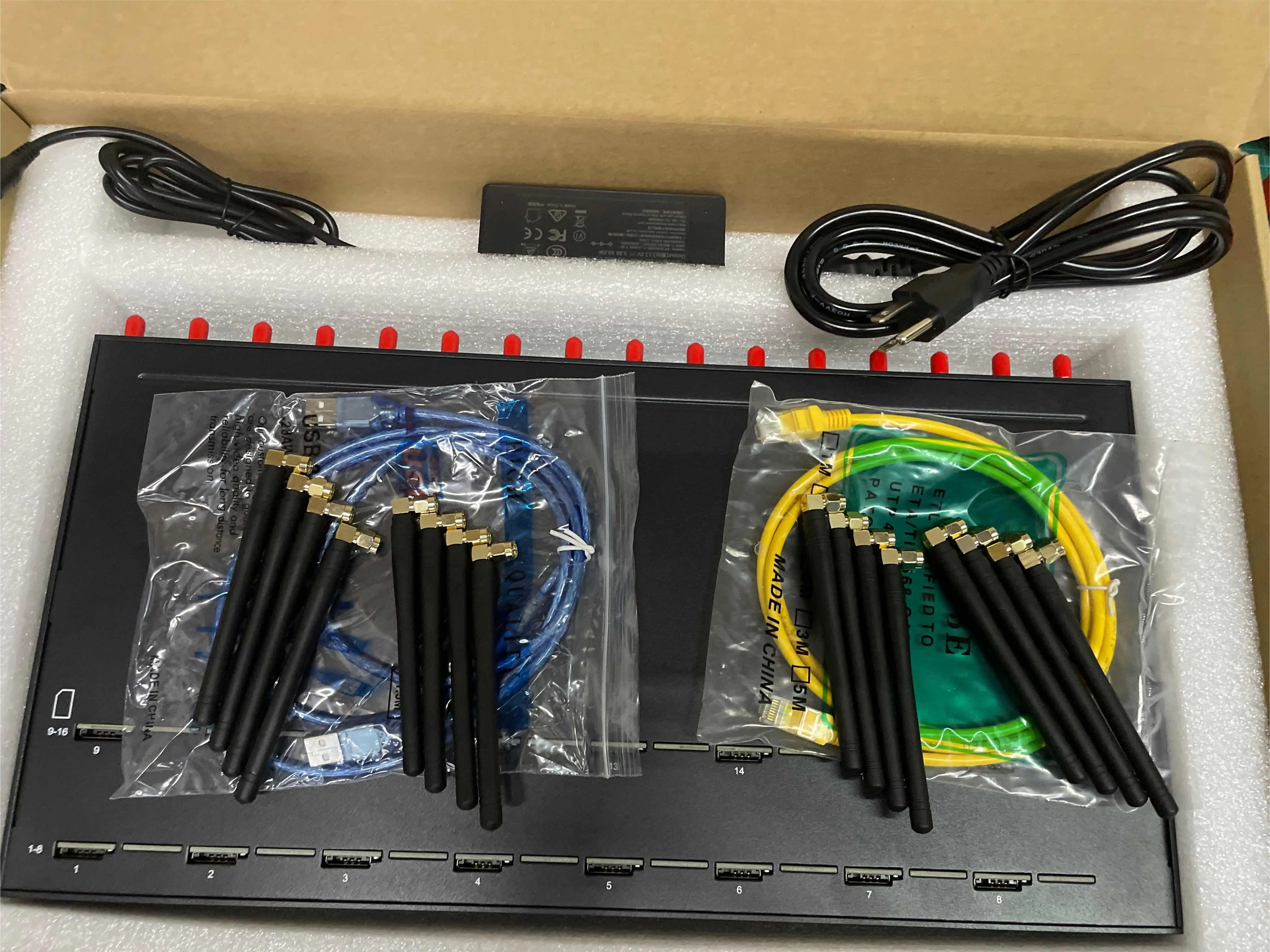

Packing List:
(1) SK Gateway x 1
(2) USB Cable x 1
(1) SK Gateway x 1
(2) USB Cable x 1
(3) Network Cable x 1
(4) Power Supply Adapter x 1
(5) Antennas x 16
(5) Antennas x 16
Trade Terms | FOB, CFR, EXW, DAP |
Payment Terms | Alibaba via Credit Card, Payonner, Payonner link via Credit Card, T/T, Webmoney, Skrill, Western Union, Cash, USDT, BTC |
Payment Condition | 100% deposit in adavance |
Delivery Time | 1-3 days after full payment |
Packing | Strong Carton Box with Water Proof |
Shipping | DHL, UPS, EMS, FEDEX, ARAMEX, TNT or Other Way As You Require |
FAQ
Q: 1 . How can I start voip business?
A: For voip business, you need devices , server , softwitch , sim cards and internet. our company can provide devices ,server and softswitch, like vos3000. Our tech team will help to set up your system to get calls.
A: For voip business, you need devices , server , softwitch , sim cards and internet. our company can provide devices ,server and softswitch, like vos3000. Our tech team will help to set up your system to get calls.
A: For sms business, you need devices , server , sms platform, sim cards and internet. our company can provide devices, sms platform, like EIMS4 server. Our tech team will help to set up your system to get test with your sms routes.
And we have Live SMS Traffic to USA, UK, France, Italy, Vietnam, India, Indonesia, Spain, Germany, Phillipines, Australia, New Zealand, Canada, Bangladesh, Thailand, and European regions. If you have sim cards and interested in sms business for huge profit, please contact me!!
Skype: live:alisa_1657 WhatsApp/Wechat: +8613542062020 Telegram: @alisachenOvO
Q : 3. If I face some issues about the devices , how can i solve it ?
A: All device has one year warrantly and we will provide you with tech support all time to fix your problems.
Q :4. If i use it for sms terminal , but how can i find the traffic provider?
A: We have sms traffic department to push traffic for you.
Q: 5.If my routes face the issue for quality not good , any solution?
A: Firstly, you can check your internet, gsm signal, sim cards balance, sim blocking. Secondly, if everything is good, we will guide our engineer to help you check your configurations.
Q:6.I need more ports , any device?
A: If your ports are less than traffic, you should increase more ports to accpet more traffic. We have 4-4, 8-8, 8-32, 16-16, 16-64, 16-128, 32-32, 32-128, 32-256, 32-512, 64-64, 64-256, 64-512 for you to expand your business.
Q: 7. If i can not do the customs clearance , then what can i do?
A: We do have the DVD Amplifier Case and it can pass 99% countries customs without customs issue.
Q:8. Quickly contact way?
A: My skype ID: live:alisa_1657 Wechat/WhatsApp: +8613542062020 Telegram: @alisachenOvO
