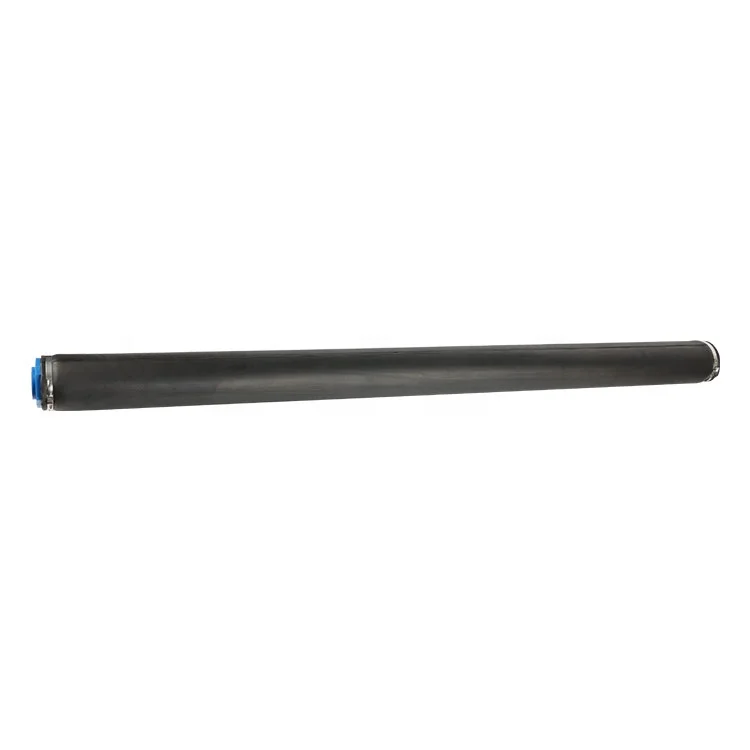

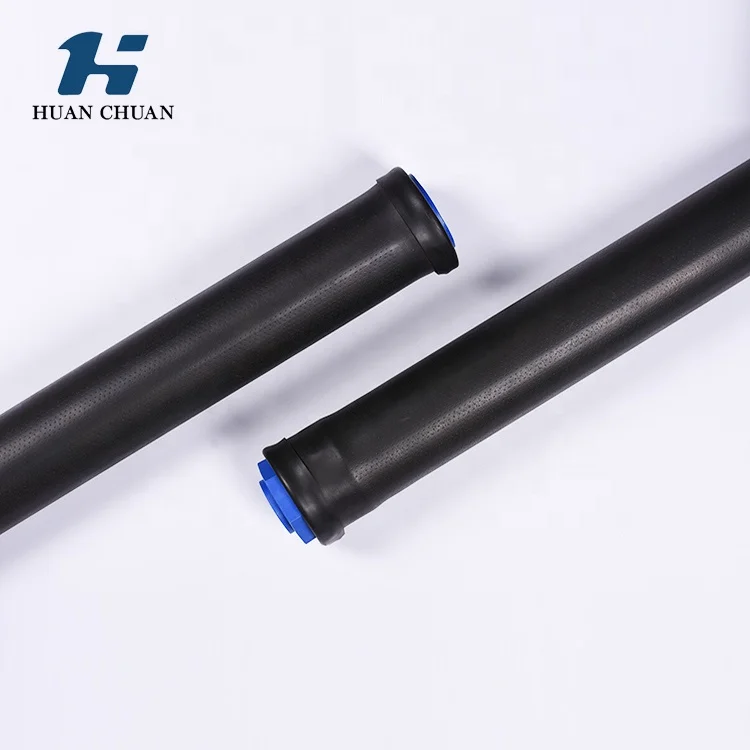

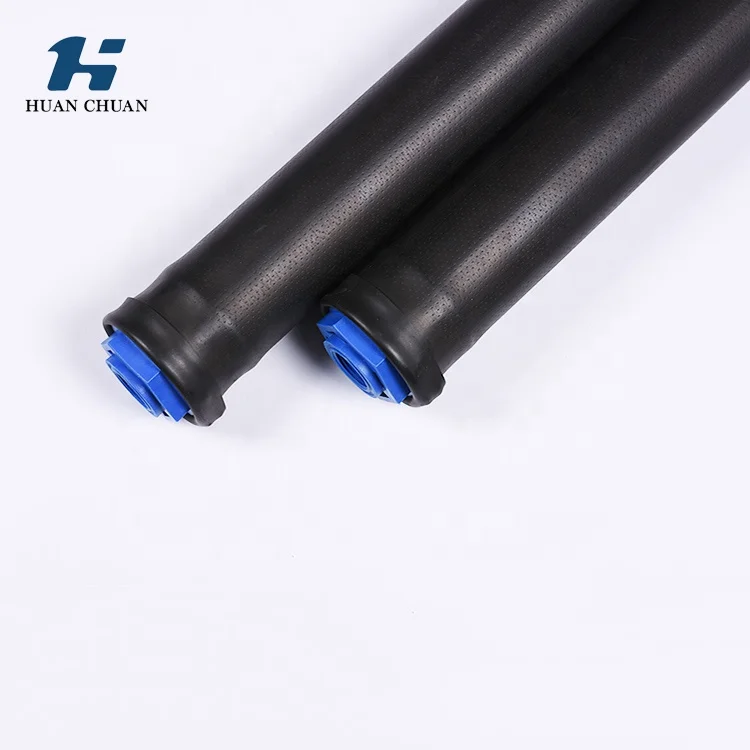

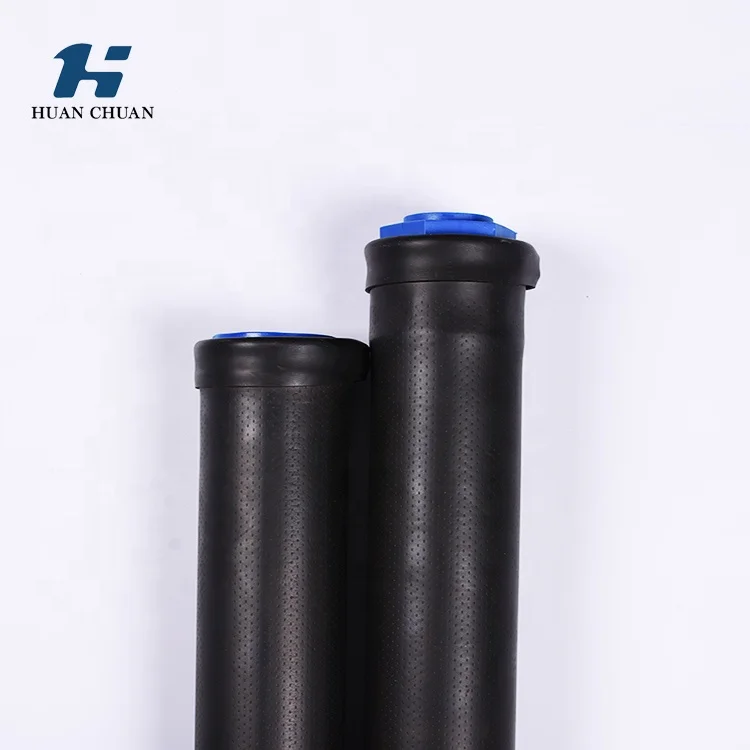

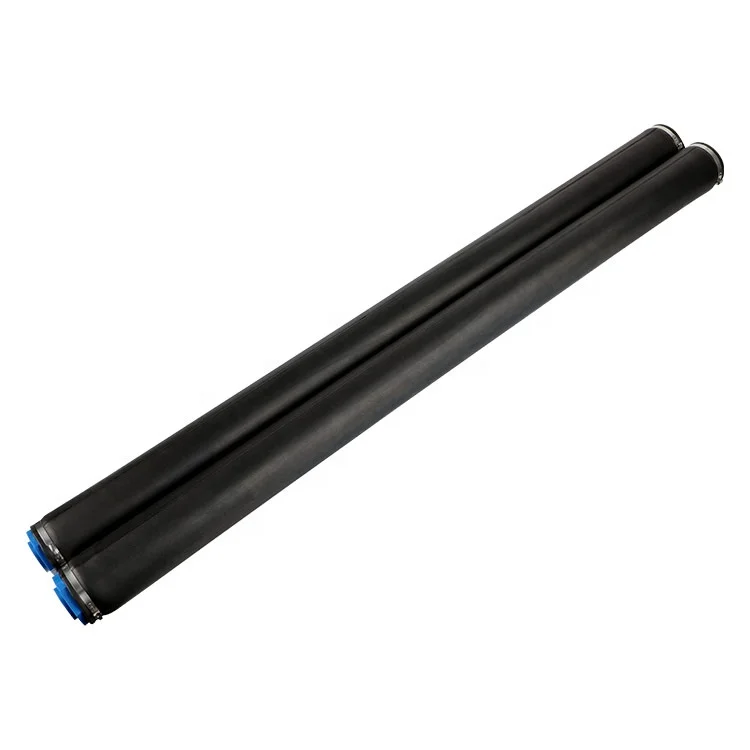

Wastewater Treatment Fine Bubble Tube Diffuser
- Category: >>>
- Supplier: Jiangsu Huanchuan Environment Engineering Co. Ltd.
Share on (1600725259983):
Product Overview
Description
Wastewater Treatment Fine Bubble Tube Diffuser
Product Details
HMT | Length500mm | Length 750mm | Length 1000mm |
Service area | 0.5-1.5m2 | 0.75-2.25m3 | 1-3m3 |
Air flow | 1.5-5 m³/h | 2.25-7.5m³/h | 3-10 m³/h |
Oxygen utilization | 27%-38% | 27%-38% | 27%-38% |
Resistance loss | 1900-3000 pa | 1900-3000 pa | 1500-3000 pa |
Temperature | 0-80℃ | 0-80℃ | 0-80℃ |
Membrane thickness | 2±0.1mm | 2±0.1mm | 2±0.1mm |
Perforation quantity | 17000 | 17000 | 1144017000 |
Perforation size | 1mm | 1mm | 1mm |
Bubble size | 1-2mm | 1-2 mm | 1-2 mm |
Product Paramenters
1. The rubber washer and the corresponding groove are designed to ensure the air tightness of the product. Instead of using raw
tape in the installation process, it is convenient to install, stable and reliable.
2. Check valve structure. When operation stops, the membrane covers the structure under the action of rebound force and water
depth pressure to prevent the backflow of mud water.
3. Mechanical assembly production line, hot welding instead of adhesive process, to ensure adequate supply, uniform product
quality, stable and reliable.
4. The spanner position is designed. Spanner is used to replace the traditional hand-twist installation, avoid membrane damage.
And installation is convenient and reliable.
5. Product adopts single-ear pole clamp which make product bear 360 degree uniform stress. Under heat expansion and contraction
as well as vibration, it can play a spring regulating effect. All single-ear clamps are 316 stainless steel material. It is more
reliable in sewage.
6. Six channel design, increase ventilation cross - sectional area, reduce resistance, efficient and energy - saving. The
multiple positions of the membrane jointly bear air friction, reduce local wear and extend aerator membrane service life. Also,
promote product 360 ° aeration, improve the product efficiency.
tape in the installation process, it is convenient to install, stable and reliable.
2. Check valve structure. When operation stops, the membrane covers the structure under the action of rebound force and water
depth pressure to prevent the backflow of mud water.
3. Mechanical assembly production line, hot welding instead of adhesive process, to ensure adequate supply, uniform product
quality, stable and reliable.
4. The spanner position is designed. Spanner is used to replace the traditional hand-twist installation, avoid membrane damage.
And installation is convenient and reliable.
5. Product adopts single-ear pole clamp which make product bear 360 degree uniform stress. Under heat expansion and contraction
as well as vibration, it can play a spring regulating effect. All single-ear clamps are 316 stainless steel material. It is more
reliable in sewage.
6. Six channel design, increase ventilation cross - sectional area, reduce resistance, efficient and energy - saving. The
multiple positions of the membrane jointly bear air friction, reduce local wear and extend aerator membrane service life. Also,
promote product 360 ° aeration, improve the product efficiency.
Product Advantages
Engineering Design
Fine bubble diffuser is the only product that we do because we want to be concentration and profession. Besides of manufacturing product, we also do aerobic plant calculation and project design. Also, we make construction in domestic market. With projects feedback, we improve product continuously to solve different problems.
Company Profile
Jiangsu Huanchuan Environment Engineering Co., Ltd. is a specialist supplier of fine bubble diffuser for waste water treatment. Based in Jiangsu Taizhou and supplying products across the world, yearly wastewater treatment project experience helps us to improve product persistently.
-Concentrate on fine bubble diffuser only.
-Our founder has over 10 years experience in rubber.
-As manufacturer, we have strong control in product quality and without middle man price.
-Philosophy of right product first, then right price.
-Concentrate on fine bubble diffuser only.
-Our founder has over 10 years experience in rubber.
-As manufacturer, we have strong control in product quality and without middle man price.
-Philosophy of right product first, then right price.
