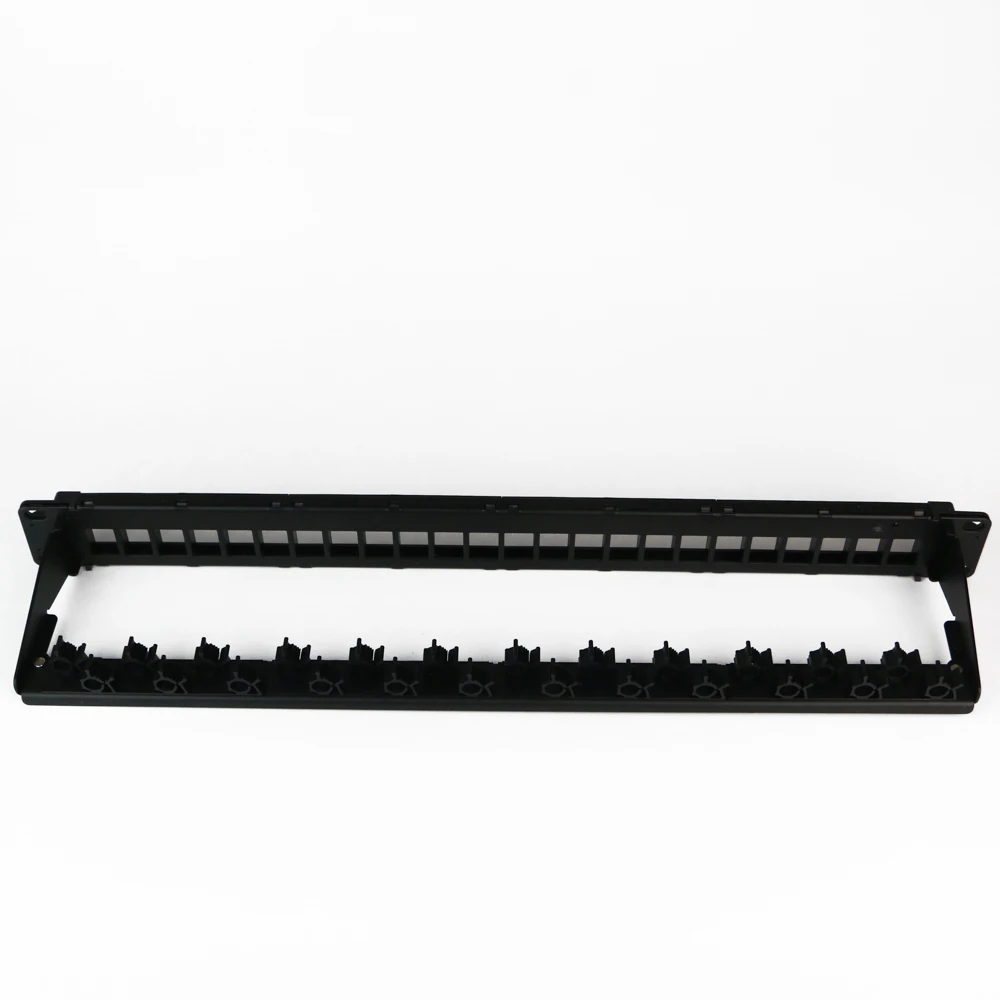

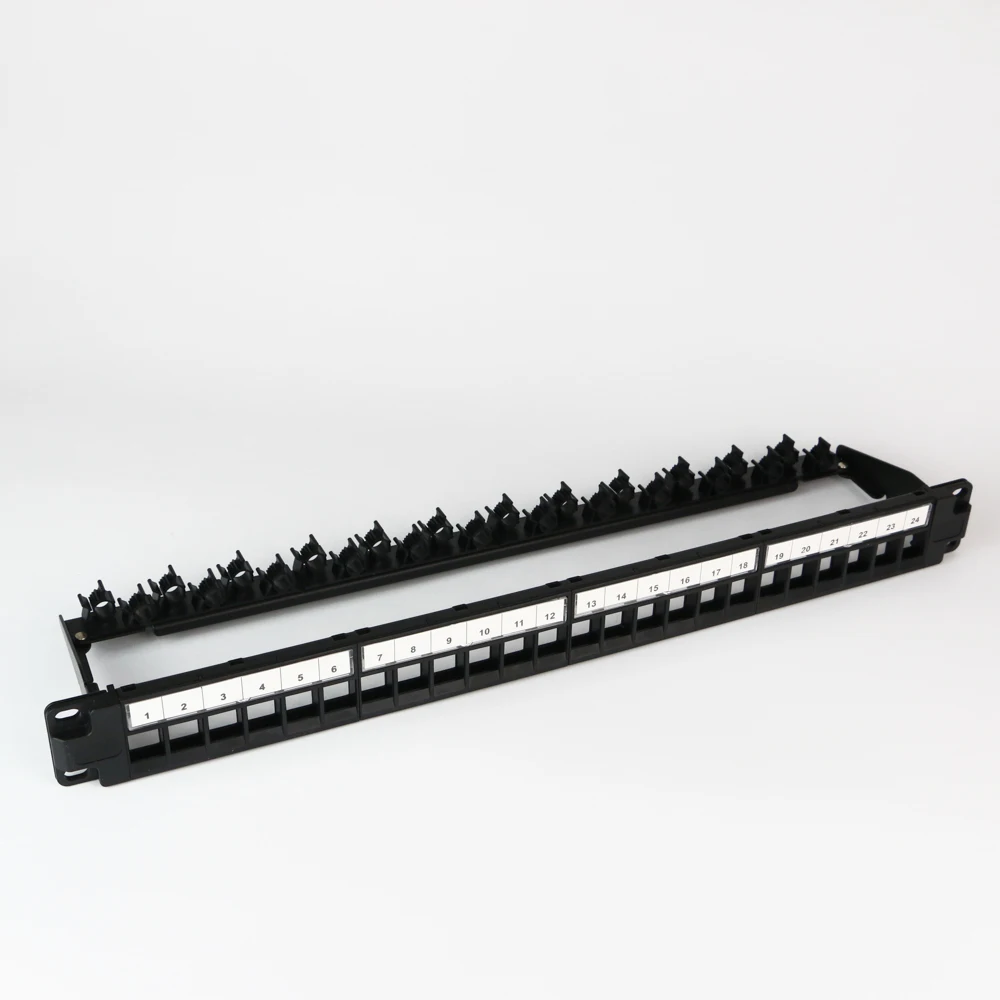

19 inch 1U 24 port RJ45 empty patch panel with cable management back bar

Product Overview

Description

1. Technique Characteristics

• Brass housing with nickel-plated, phosphor bronze with golden plated avoid oxidation

• Front panel with port number and category

• Front module can be removable out from the whole frame

• Integrated back bar provide good cable management, relieving the cable tension and make the wiring system more stable and clear

• Metal structure ensure the product with higher mechanical strength and outstanding profile

• Standard 1U height 12 port panel support T568A/B cabling sequence

• Standard 19” wide range application make assembling, maintenance and upgrade faster

2. Electrical Characteristics

• Voltage Rating: 125 VAC RMS

• Current Rating: 1.5AMP

• Contact Resistance: 100 MΩ Max

• Insulation Resistance: 1000MΩ@ 500 VDC

• Dielectric Strength: 750 VAC RMS 60Hz, 1MIN

3. Environmental

• Storage: -40℃ TO +75℃

• Operation: -10℃ TO +60℃

• Conform to TIA/EIA 568B Category 6

4. Mechanical

• Housing Material: PBT

• Panel Frame: ST12, Powder coating in black color

• IDC Material: PC, Terminal: Phosphor bronze, TIN Plating

• RJ45 Jack life: 750 times Min

• IDC life: 200 times Min

• Wire: AWG23-26

• TIA Cat6 Perm .Link Test: Worst pair NEXT margin≥3.0dB

• Retentiveness of insertion structure: 50N 60±5s

5. Application

• Structured cabling transmitting data, voice , video

• Applied for Cat.5e Cat.6 Cat.6A
