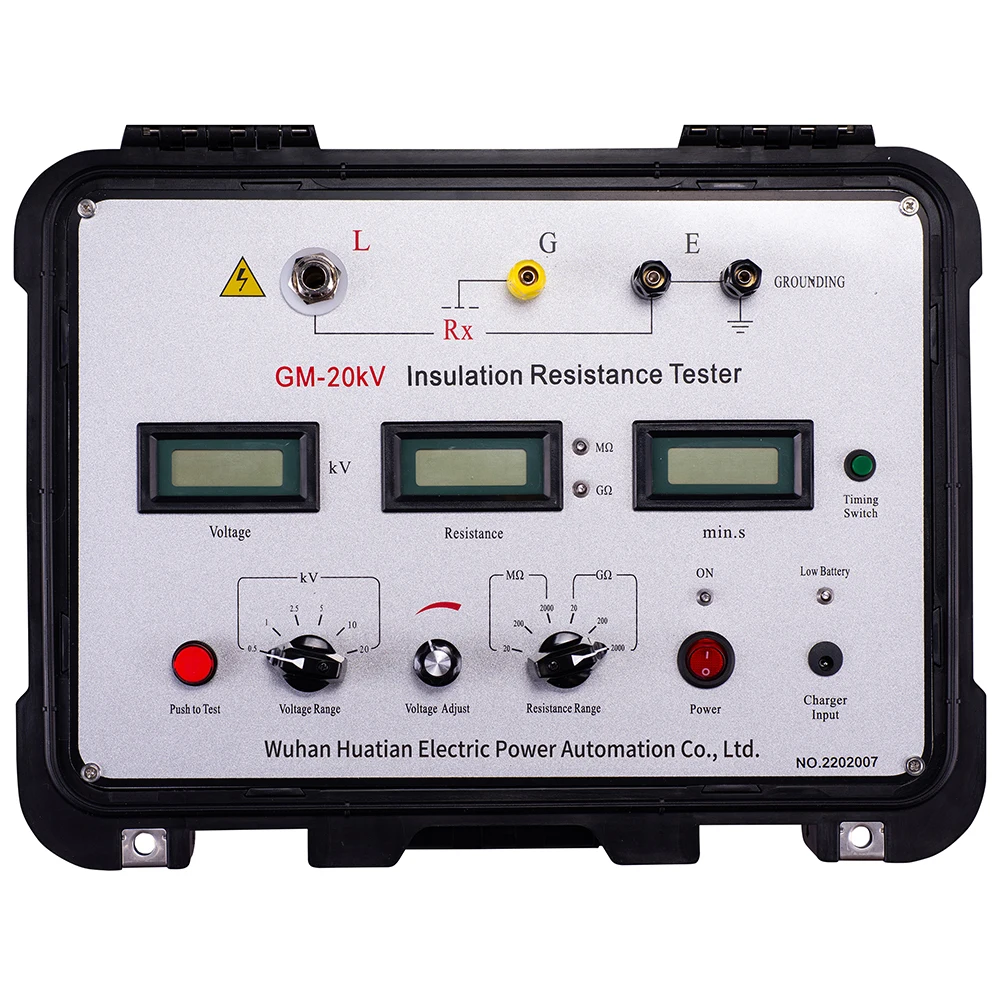

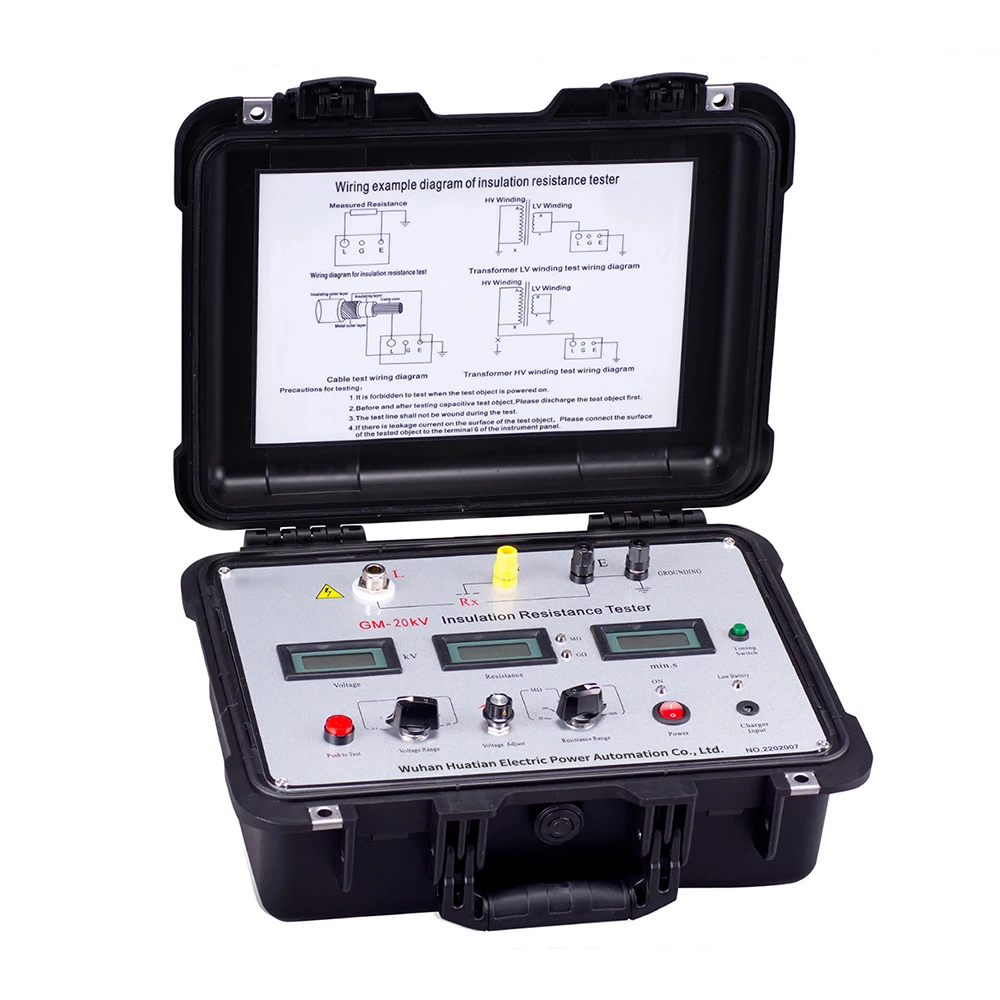

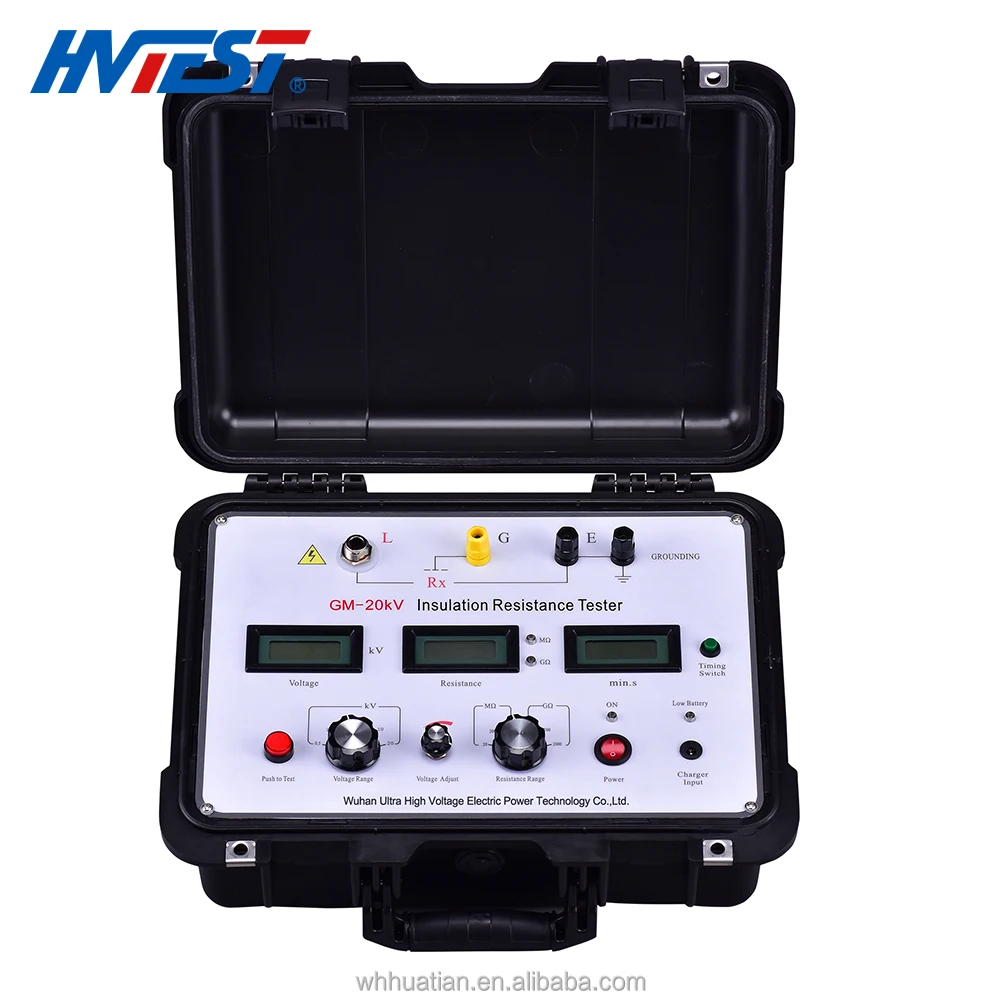

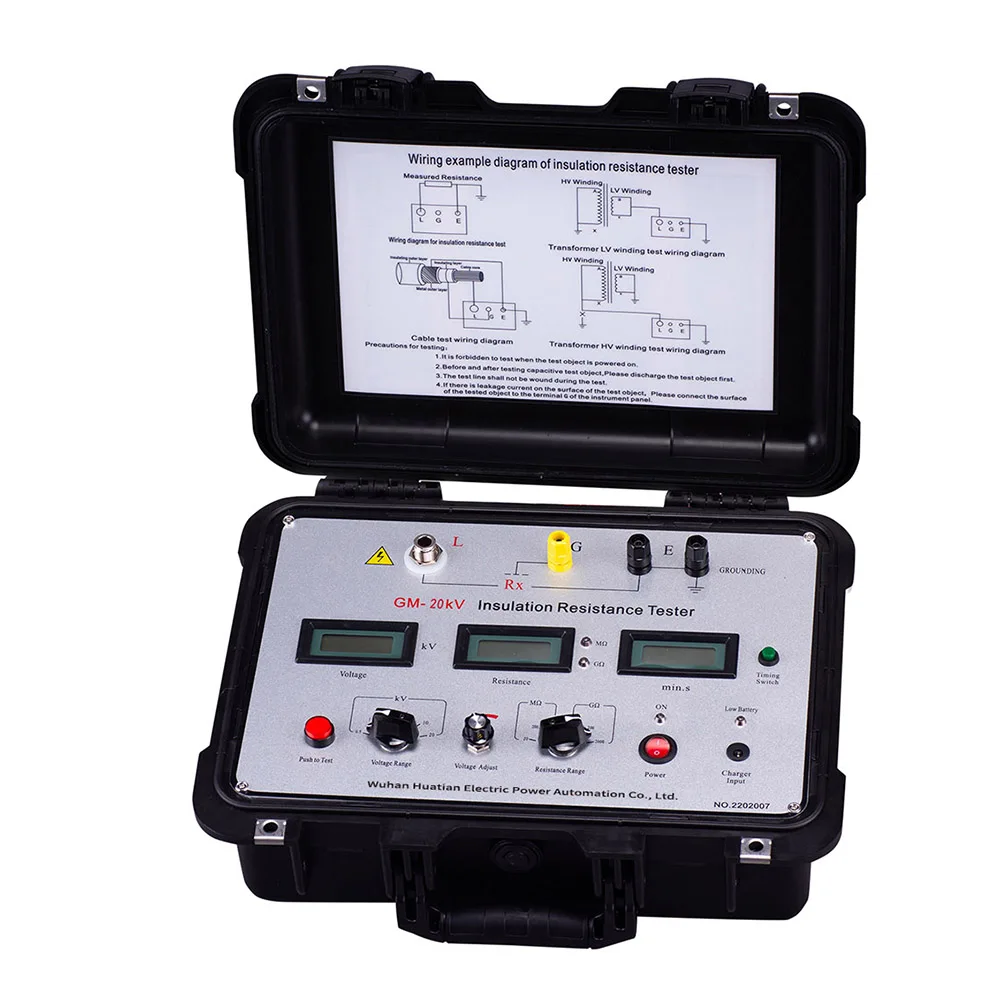

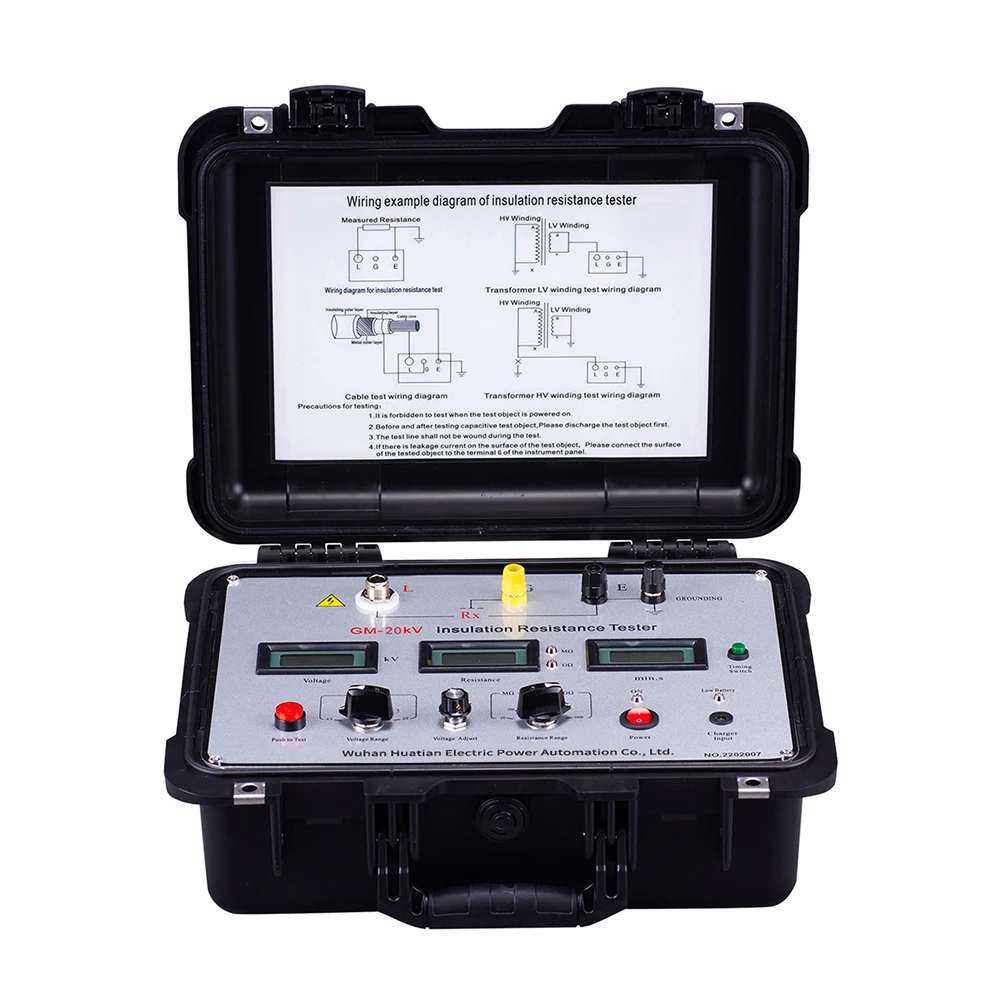

B GM 20kV Manufacturer Insulation Resistance 2500v 5000v 10kv 20kv Megohmmeter Insulation Resistance Tester
- Category: >>>
- Supplier: Wuhan Huatian Electric Power Automation Co. Ltd.
Share on (1600725309455):
Product Overview
Description
Product Paramenters
Technical parameters | ||
Measurement voltage range | 0.5kV、1kV、2.5kV、5kV、10kV、20kV | |
Measurement voltage accuracy | ±(5%＋10V) | |
Short circuit current | 10mA | |
Measurement range and accuracy | ||||
Measurement range | Resistance measurement range | Accuracy | ||
20MΩ | 0.01～19.99MΩ | ±(5%+3d) | ||
200MΩ | 5.0～199.9MΩ | ±(5%+3d) | ||
2000MΩ | 50～1999MΩ | ±(5%+3d) | ||
20GΩ | 0.5～19.99GΩ | ±(5%+3d) | ||
200GΩ | 5.0～199.9GΩ | ±(10%+3d) | ||
2000GΩ | 50～1999GΩ | ±(20%+10d) | ||
Basic parameters | ||
Anti-electric field interference ability | 2mA(50/60Hz) | |
Time and alarm functions | maximum value of stopwatch is 19 minutes and 59 seconds. 20 minutes for a cycle. The stopwatch will tell the time at these time points: 15 seconds, 60 seconds and every 60 seconds.When telling time, resistance readings hold for 3 seconds.If the measured resistance is below the lower limit of range, the reading is invalid and the instrument will continuously sound to give an alarm. | |

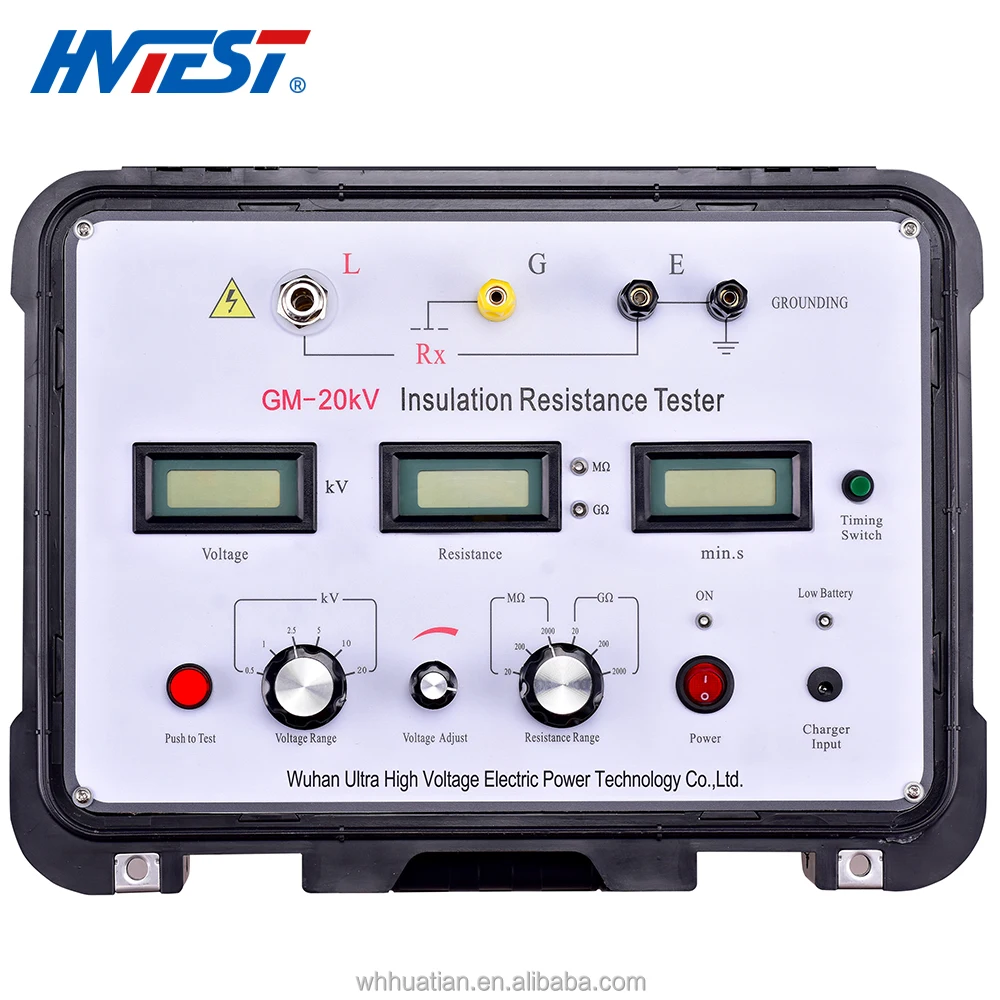

Display | three and a half bits LCD digital meter (three), respectively show test voltage, test resistance, test time. | |

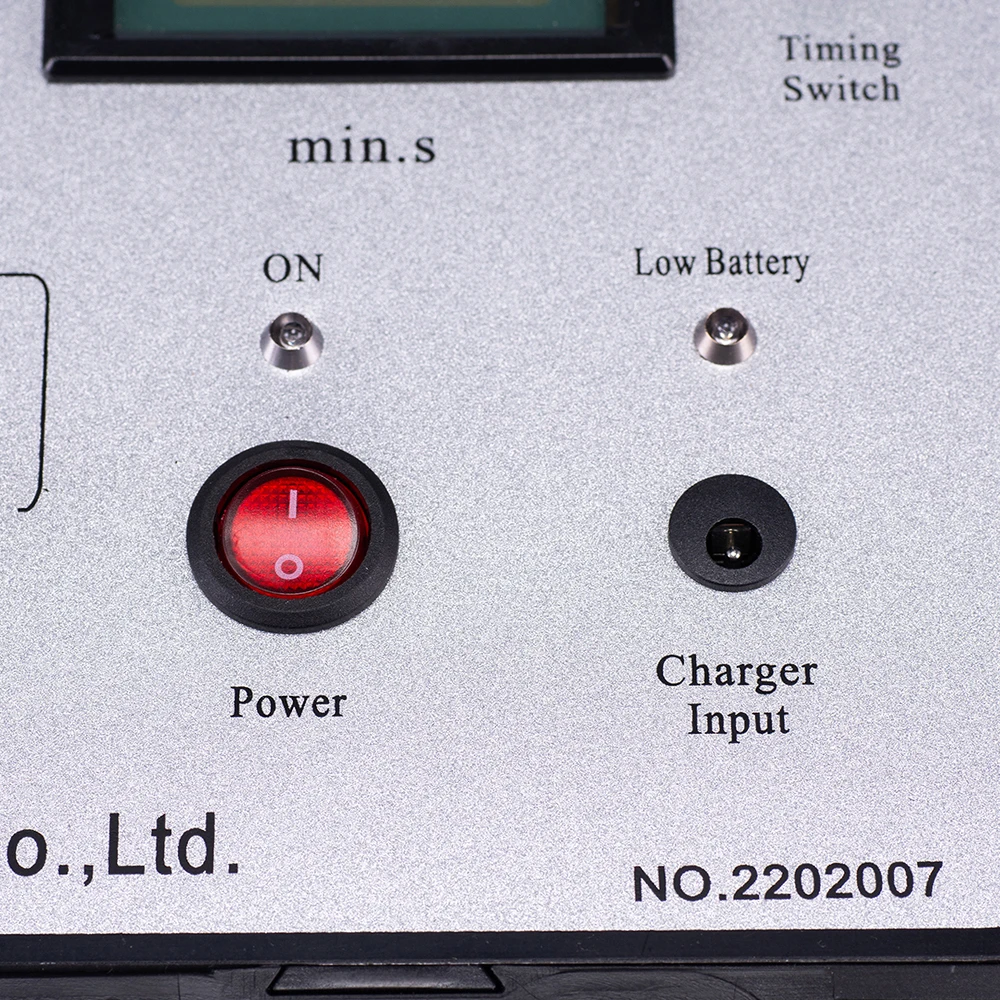

Power supply | DC: rechargeable lithium battery, DC15V power supply. With AC (50 / 60Hz) special adapter access port to chargethe battery. | |
Operating Conditions | Temperature：-20℃～+40℃；Relative humidity：20%～90% | |

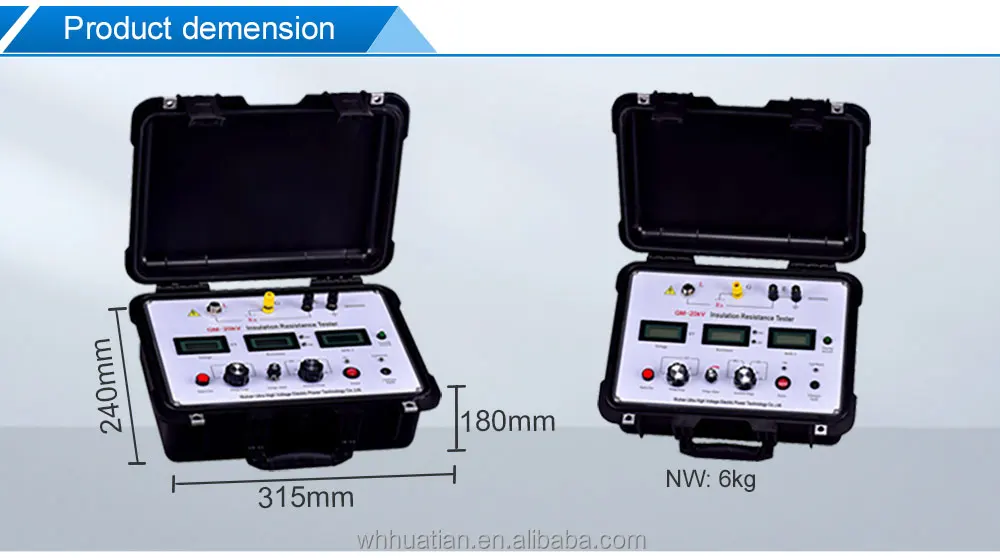

Dimensions | 315×240×180mm3 | |
Weight | 5.5kg | |
Function&Characteristics

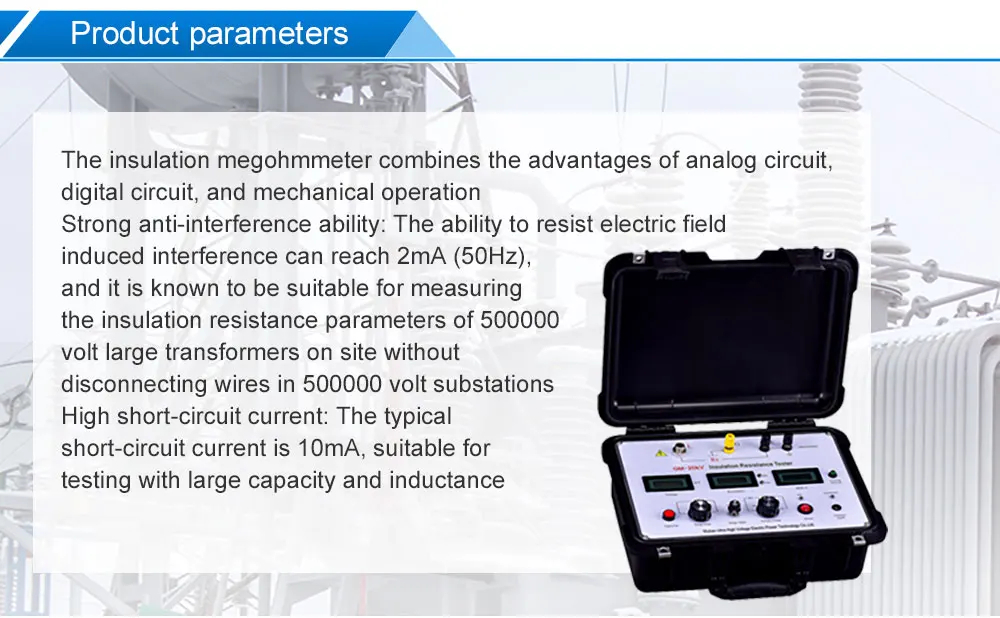

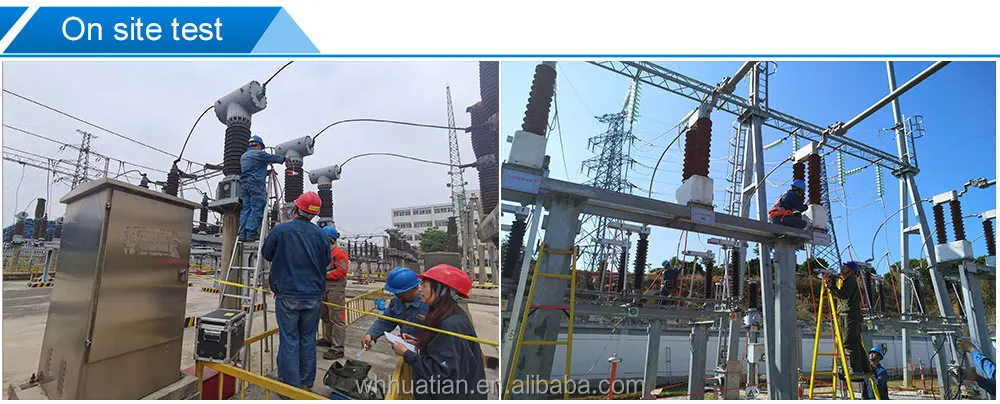

1. With strong anti-electric field interference ability up to 2mA (50Hz), it is suitable for 500kV substation without dismantling wire to test insulation resistance of 500kV large-scale transformer.
2. The short-circuit current is 10mA, be suitable for testing high capacity and high inductance.
3. Wide resistance range: 0.01MΩ ~ 1999GΩ. With high-resolution, having accurate readings.
4. Wide output voltage range: 0.5kV、1kV、2.5kV、5kV、10kV、20kV, adjustable, you can smoothly adjust voltage from 0V to the desired value.
5. With timing function, remind users to record, and analyze absorptance and polarization index of measured target.
6. High quality: The key parts are all imported components, to ensure accuracy and accurate.
7. Easy to use: one-piece chassis, small size, light weight, easy to carry.
8. Look beautiful: rugged and strong grinding material, the instrument's overall texture and longer life.
2. The short-circuit current is 10mA, be suitable for testing high capacity and high inductance.
3. Wide resistance range: 0.01MΩ ~ 1999GΩ. With high-resolution, having accurate readings.
4. Wide output voltage range: 0.5kV、1kV、2.5kV、5kV、10kV、20kV, adjustable, you can smoothly adjust voltage from 0V to the desired value.
5. With timing function, remind users to record, and analyze absorptance and polarization index of measured target.
6. High quality: The key parts are all imported components, to ensure accuracy and accurate.
7. Easy to use: one-piece chassis, small size, light weight, easy to carry.
8. Look beautiful: rugged and strong grinding material, the instrument's overall texture and longer life.
