Multi Sim card 4G 16 ports Socks 5 proxy Router Smpp Http Api Sms gateway support sim card share traffic
- Category: >>>
- Supplier: Skyline (Shenzhen) Technology Co. Ltd.
Share on (1600725317025):
Product Overview
Description
16 SIM Router 4G SMS Modem Multi IP Proxy Solution Socks5 HTTP Proxy Server Gateway
Product Description
16 Ports SIM Proxy WAN Router

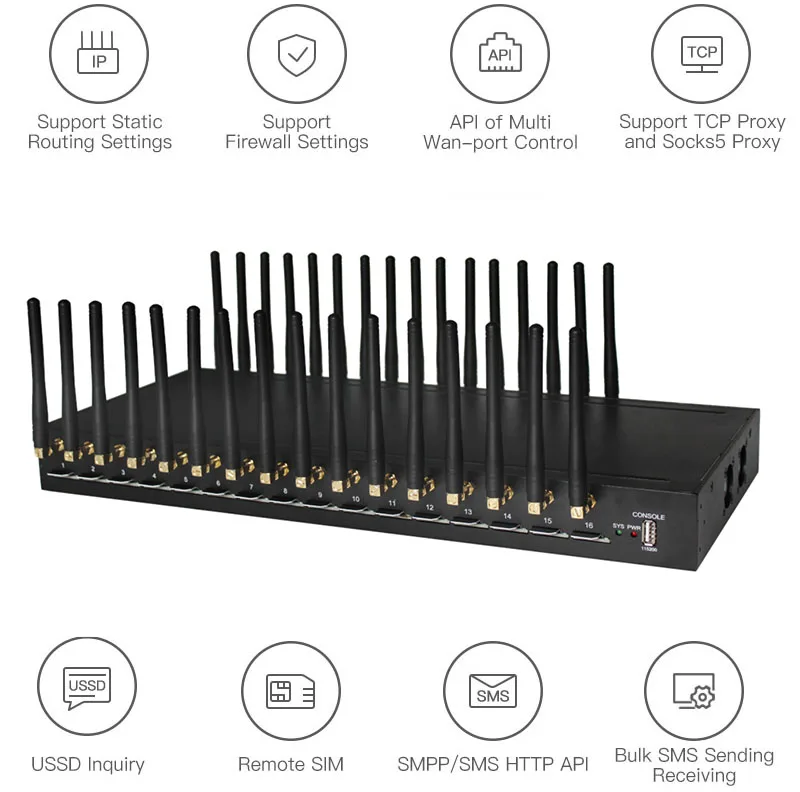

The SIM proxy wan router is a routing product independently, Which offer an efficient multi-IP solution. It’s used to provide access to the Internet via different SIMs. With API you can easily apply it in different scenarios. In addition to basic functions such as routing, it also support socks 5 proxy, http&https proxy, port forwarding, sms sending and receiving and so on. It has the characteristics of economy, security and efficiency.Special Features
• Support TCP/IP, DHCP and other protocols
• Support static routing settings
• API of Multi Wan-port Control
• Support firewall settings
• Support Socks5, HTTP&HTTPS proxy
• Support Redial to change Proxy IP/ API to Redial
• Support VPN
• Support IMEI Change
• Support port forwarding
• Support SMS sending and receiving
• Support SMPP/ SMS HTTP API
• Support USSD Inquiry/ AT Command
• Support ETMS (Remote SIMs)
Specification
Product Name | 16 Ports SIM Proxy WAN Router |
Number of Proxy | 16 Porxy |
Frequency | 4G FDD-LTE, TDD-LTE, WCDMA, GSM |
Function | Access to the Internet via different SIMs SMS Send & ReceiveIMEI Change AT Command API HTTP IP Change |
Feature | Create Proxy Via SIMs via HTTP or Sock5 protocol |
SMS Sending Speed/hour | 9600 SMS /hour(16 SIMs) |
Protocol | TCP/ IP, DHCP, Socks5, VPN, NTP, Telnet/HTTP/FTP/TFTP |
Power | 12V/5A |
Wan Ports | 1 |
LAN Ports | 3 |
Indicator | “Power” “Wan” “SIM Status” |
Operation System | Windows/Vista/XP/Win7/Win8/Win9/Win10/Linux/Mac OS X |
Dimension | 25*15*5CM |
Weight | 4KG |
Warranty | 1 Year |

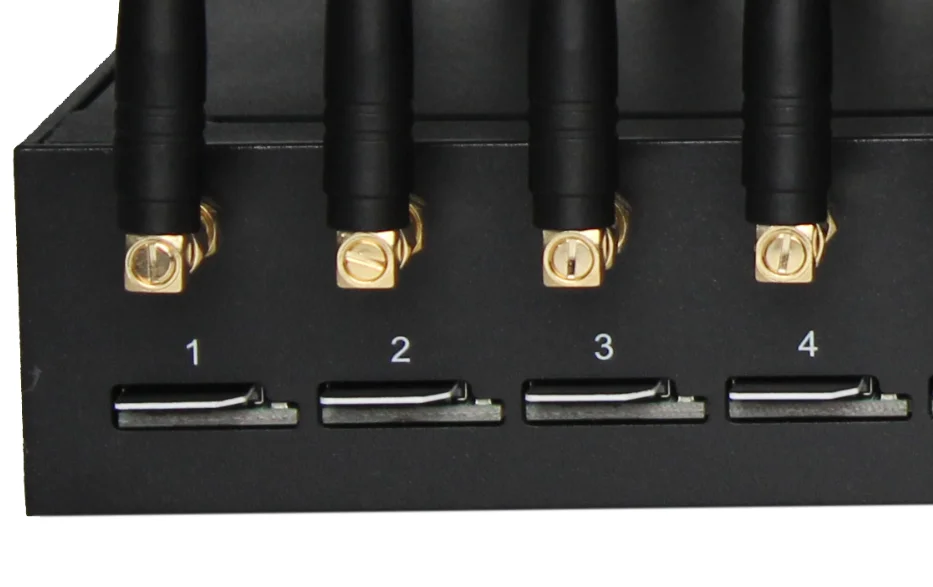

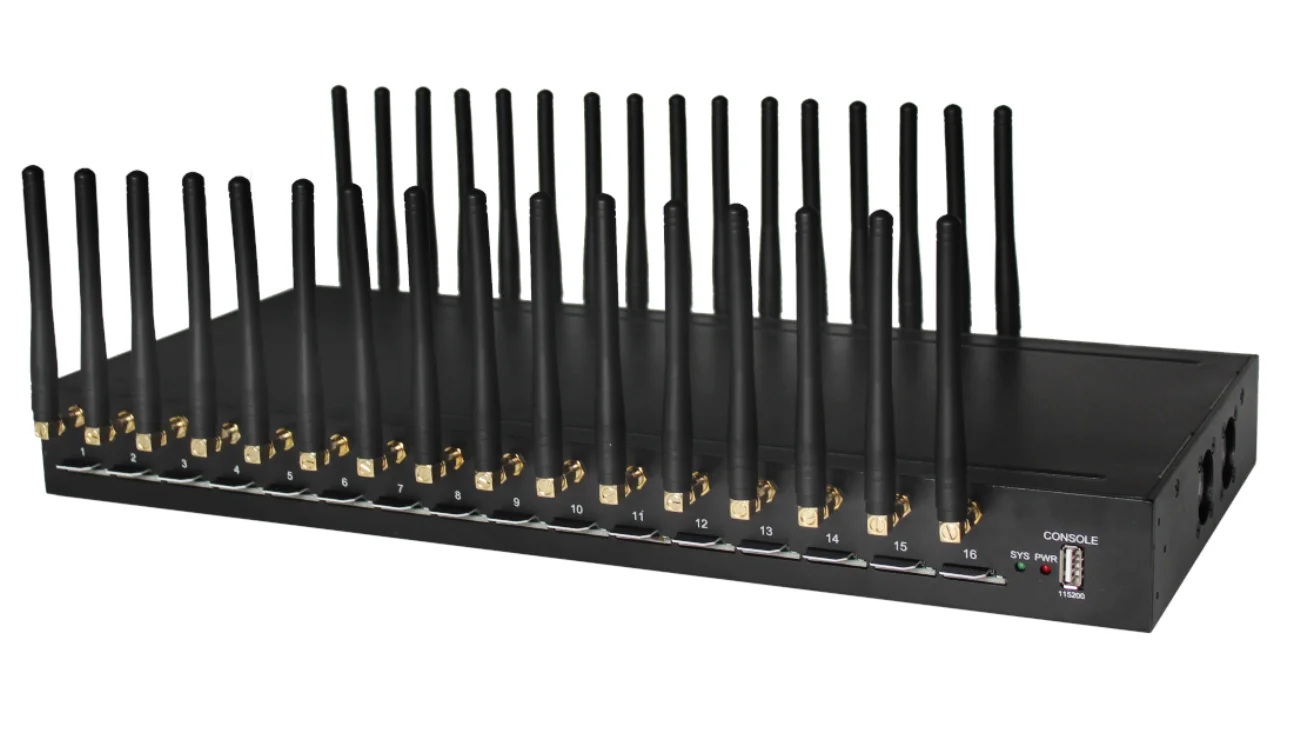

Front panel:
• 16 SIM slots
• 1 Power light (indicate the status of the power connection)
• 2 fans
• 1 Console Interface (USB to Serial, Baudrate 115200)

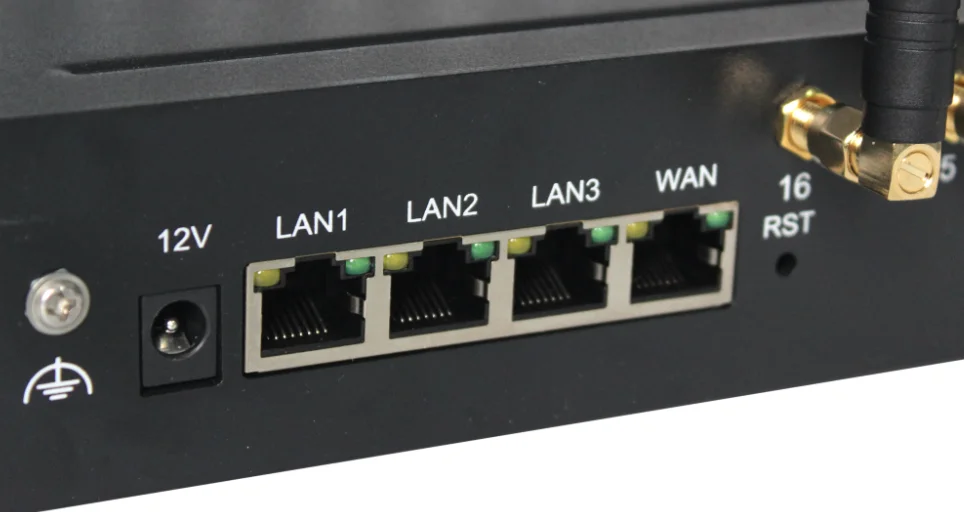

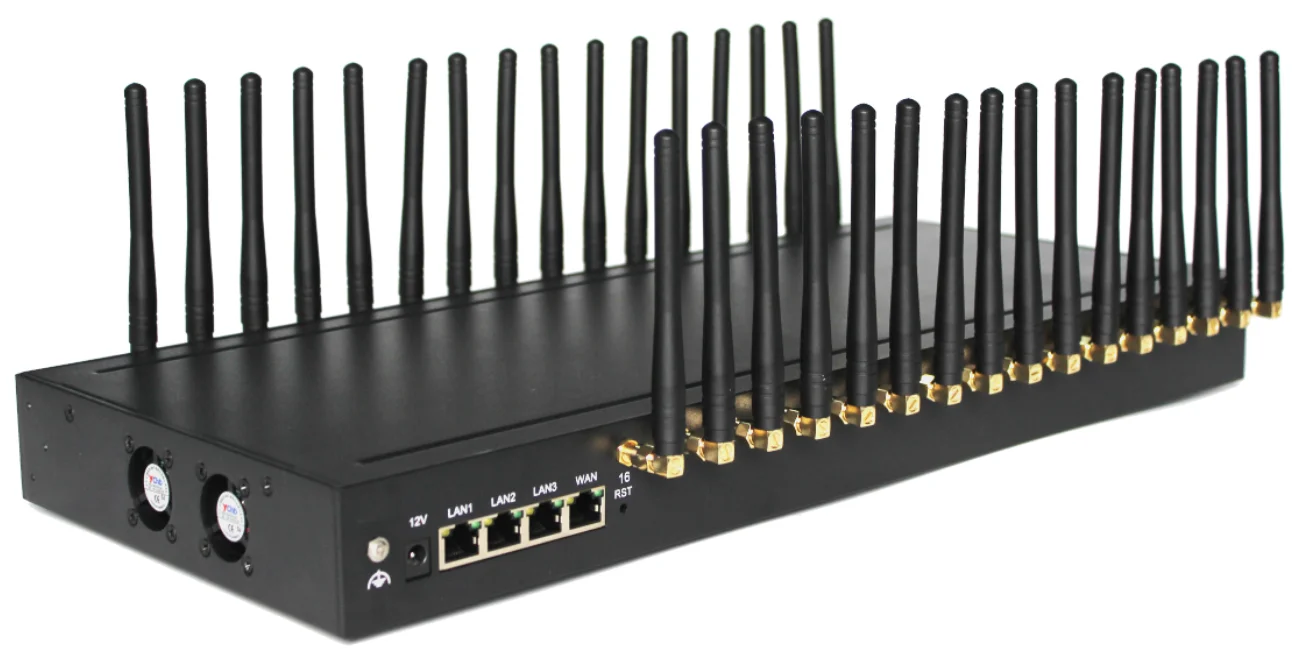

Back panel：
• 1 Ground connection
• 1 reset button (press RST button about 10s will restore to factory settings)
• 1 Power Interface (DC 12V 5A)
• 4 Network Interface (3 LAN and WAN, RJ45)
• 32 Antenna Connector
• 1 reset button (press RST button about 10s will restore to factory settings)
• 1 Power Interface (DC 12V 5A)
• 4 Network Interface (3 LAN and WAN, RJ45)
• 32 Antenna Connector

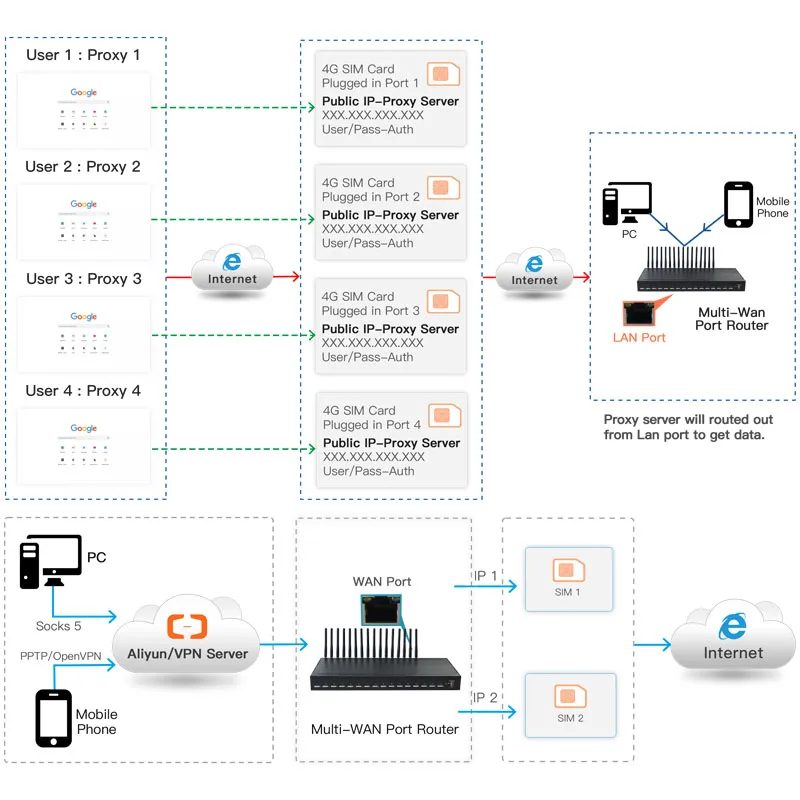

Application
Gateway Web Management
Open the web browser and type the IP address.
If it is the first time you login the gateway, please use the default settings below:
IP Address: 192.168.1.67
Account: admin
Password: admin
IP Address: 192.168.1.67
Account: admin
Password: admin

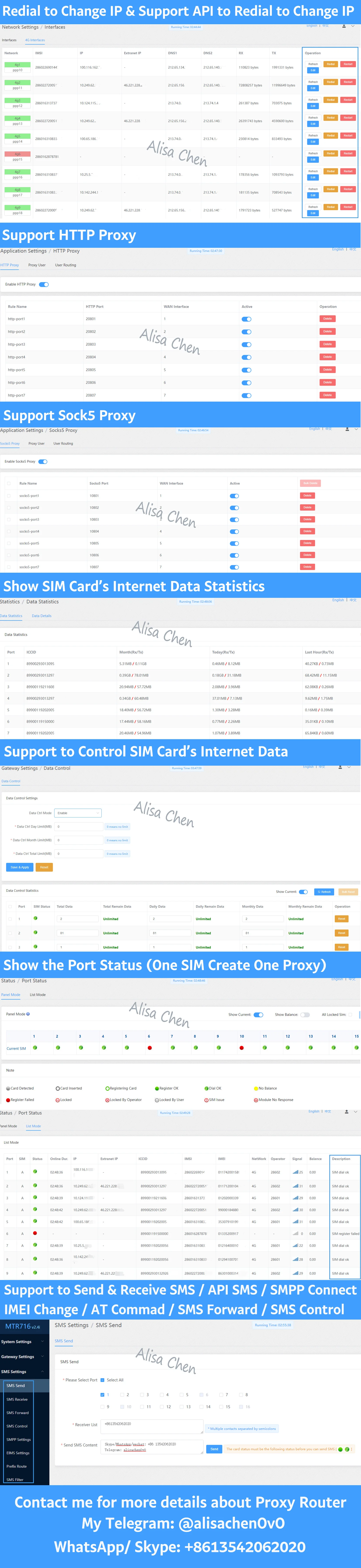

Following are the pages of gateway web management:

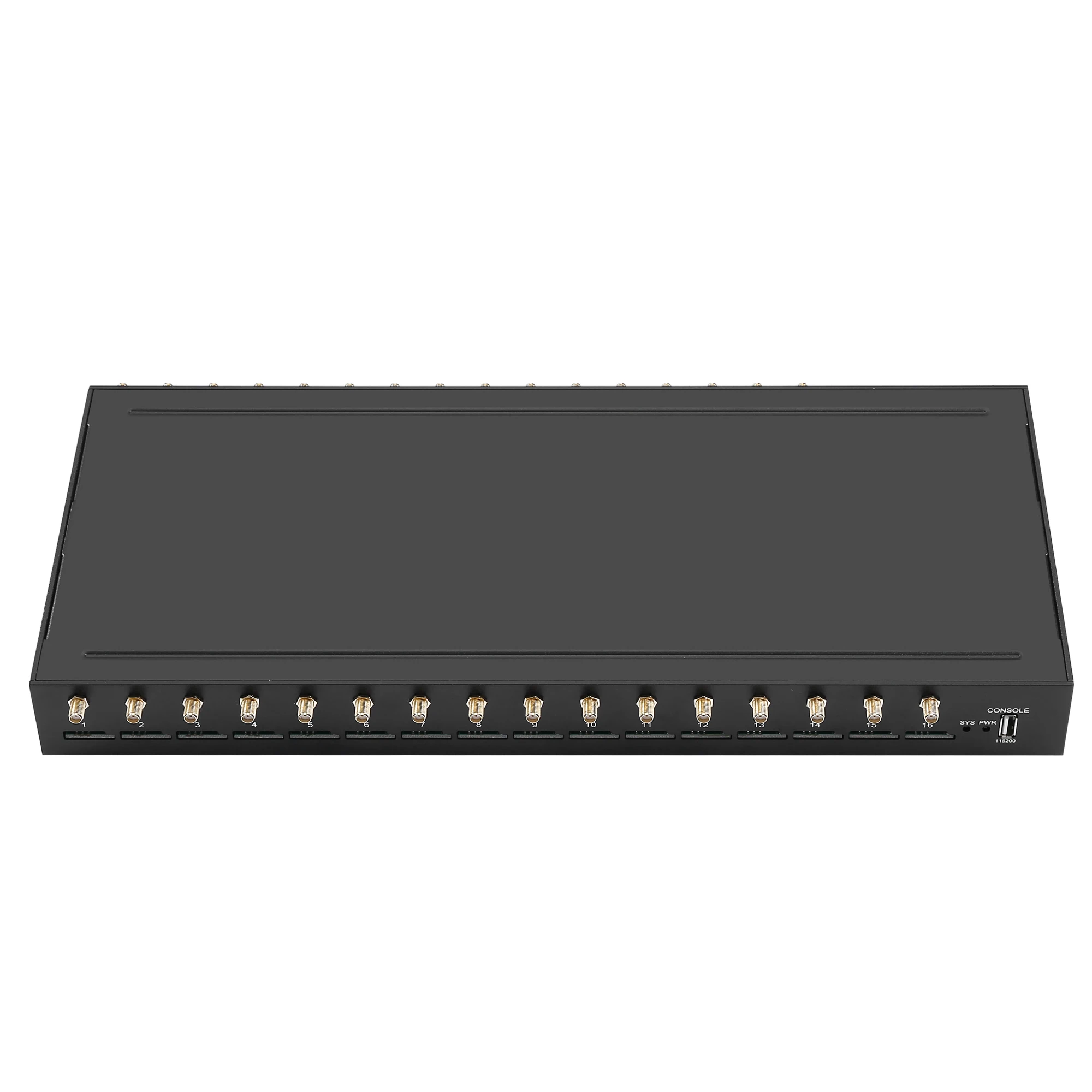

Details Images

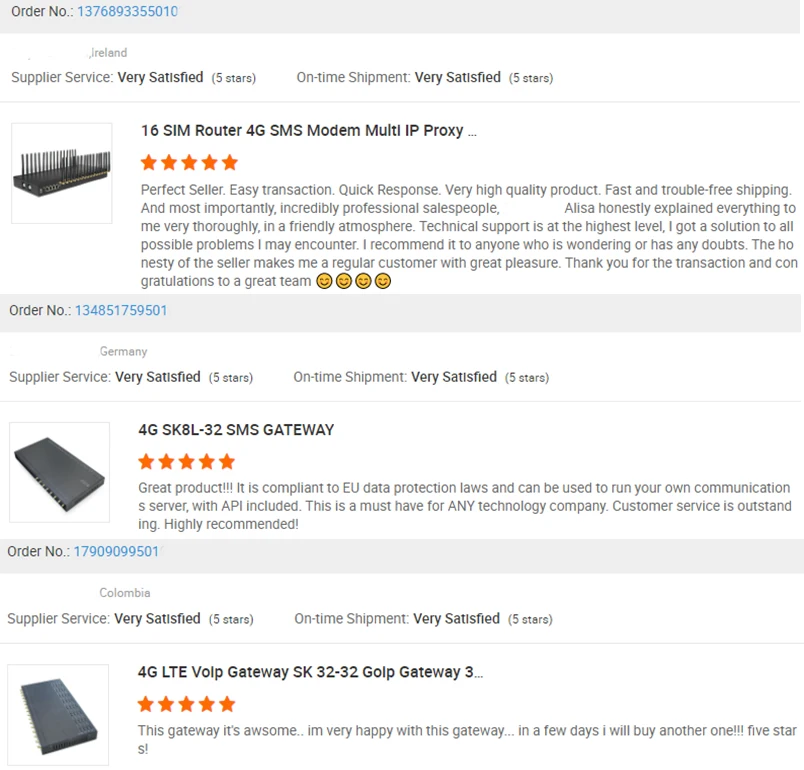

Feedback From Customer
Packing&Shipping

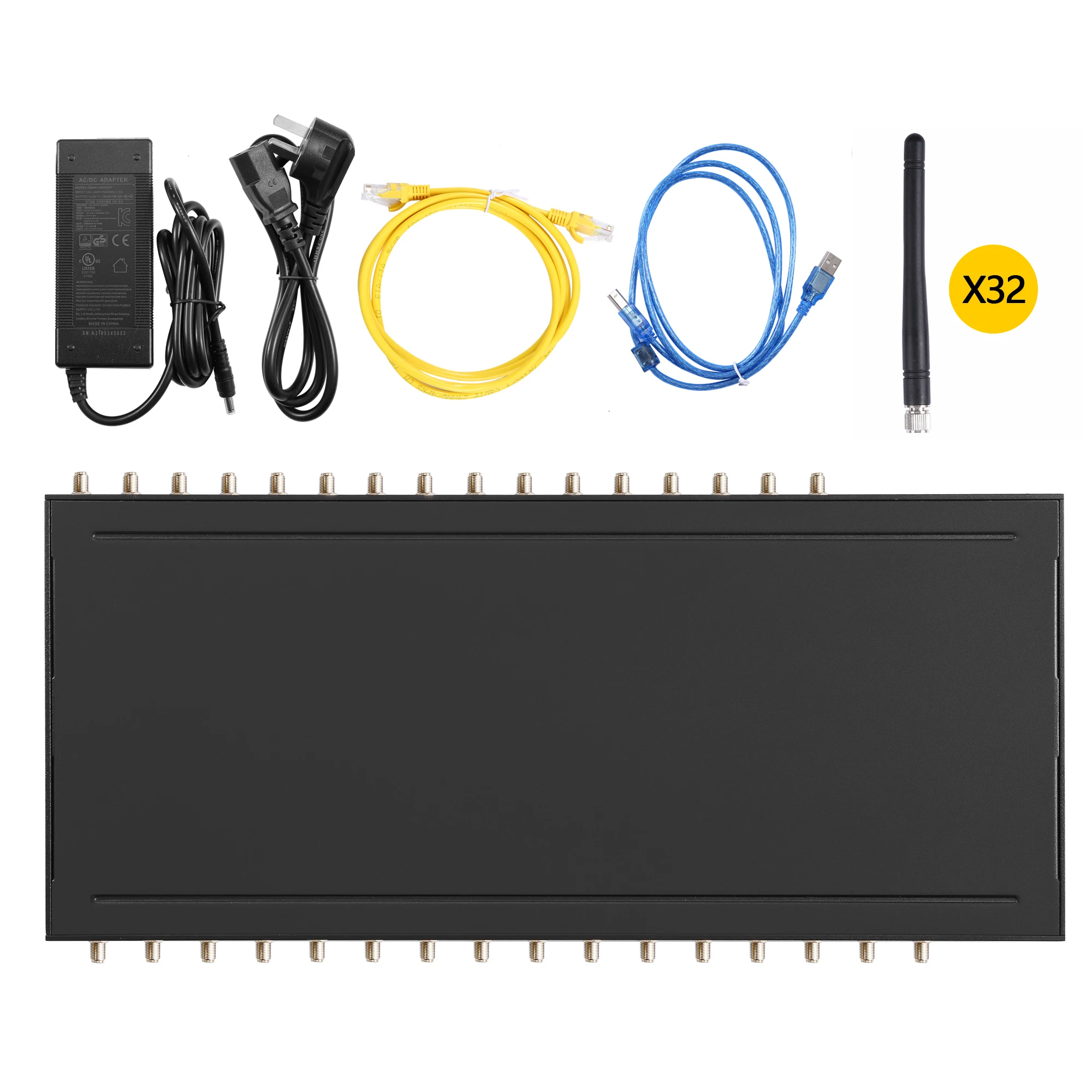

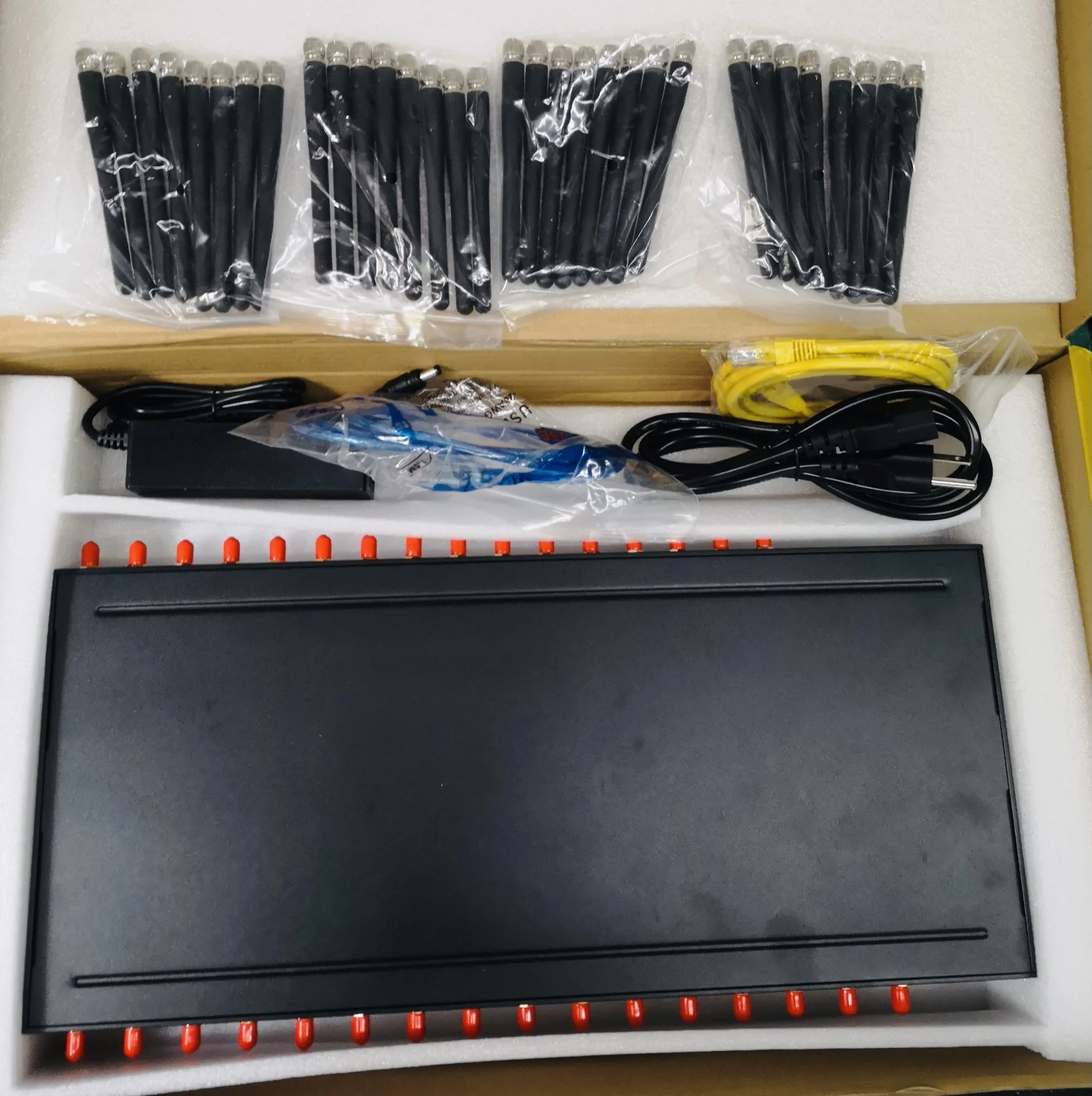

Packing List:
(1) SIM Proxy WAN Router x 1
(2) USB Cable x 1
(1) SIM Proxy WAN Router x 1
(2) USB Cable x 1
(3) Network Cable x 1
(4) Power Supply Adapter x 1
(5) Antennas x 32
(4) Power Supply Adapter x 1
(5) Antennas x 32
Trade Terms | FOB, CFR, EXW, DAP |
Payment Terms | Alibaba via Credit Card, Payonner, Payonner link via Credit Card, T/T, Webmoney, Skrill, Western Union, Cash |
Payment Condition | 100% deposit in adavance |
Delivery Time | 1-3 days after full payment |
Packing | Strong Carton Box with Water Proof |
Shipping | DHL, UPS, EMS, FEDEX, ARAMEX, TNT or Other Way As You Require |
FAQ
Q.1: What's the main function of proxy gateway?
It offer an efficient multi-IP solution and used to provide access to the Internet via different SIMs.
Q.2: How can I start sms business?
For sms business, you need devices , server , sms platform, sim cards and internet. our company can provide devices, sms platform, like EIMS4 server. Our tech team will help to set up your system to get test with your sms routes.
For sms business, you need devices , server , sms platform, sim cards and internet. our company can provide devices, sms platform, like EIMS4 server. Our tech team will help to set up your system to get test with your sms routes.
Q.3: If I face some issues about the devices , how can i solve it ?
All device has one year warrantly and we will provide you with tech support all time to fix your problems.
All device has one year warrantly and we will provide you with tech support all time to fix your problems.
Q.4: How about our service?
We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatestdesire.
Q.5: What is our main express shipment?
DHL,UPS,FEDEX,TNT,EMS,Aramex(can ship to anywhere all over the world)
We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatestdesire.
Q.5: What is our main express shipment?
DHL,UPS,FEDEX,TNT,EMS,Aramex(can ship to anywhere all over the world)
Q.6: How long we're warranty ?
1 year.
1 year.
Q.7: During warranty time,if have problem,how to do?
We'll test by teamview or send back, we'll exchange new in free.
We'll test by teamview or send back, we'll exchange new in free.
Q.8: How long about our techinical support?
Free in life.
Free in life.
Company Introduction
CHINA SKYLINE TELECOM CO.,LIMITED was founded in 2002.We have over 200 employees ,20 departments and more than 10 production
lines.More than 200 companies have established business with us,and they are from 40 different countries.
Our company is a manufacturer of Proxy Wan Router, SMS Gateway, SMS Modem, VoIP Gateways,GSM VoIP gateways, with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
lines.More than 200 companies have established business with us,and they are from 40 different countries.
Our company is a manufacturer of Proxy Wan Router, SMS Gateway, SMS Modem, VoIP Gateways,GSM VoIP gateways, with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Contact us!
If you want to know more details,
please feel free to contact to me!
WhatsApp/Wechat: +8613542062020
Skype: live:alisa_1657
