PVC Pipe Extrusion Line.
Our company has full range of PVC pipe extrusion line, including four cavity pipe extrusion line, double cavity pipe extrusion
line and large diameter pipe extrusion line. Our company will also provide basic formula for PVC pipe production, customer can
adjust easily based on the formula. We manufacture machines for production of different PVC pipes, including U-PVC, C-PVC, M-PVC,
PVC-O pipes, etc.
Our PVC pipe extrusion line can produce from size of minimum 16mm to 1000mm with single layer or multi-layer.
line and large diameter pipe extrusion line. Our company will also provide basic formula for PVC pipe production, customer can
adjust easily based on the formula. We manufacture machines for production of different PVC pipes, including U-PVC, C-PVC, M-PVC,
PVC-O pipes, etc.
Our PVC pipe extrusion line can produce from size of minimum 16mm to 1000mm with single layer or multi-layer.

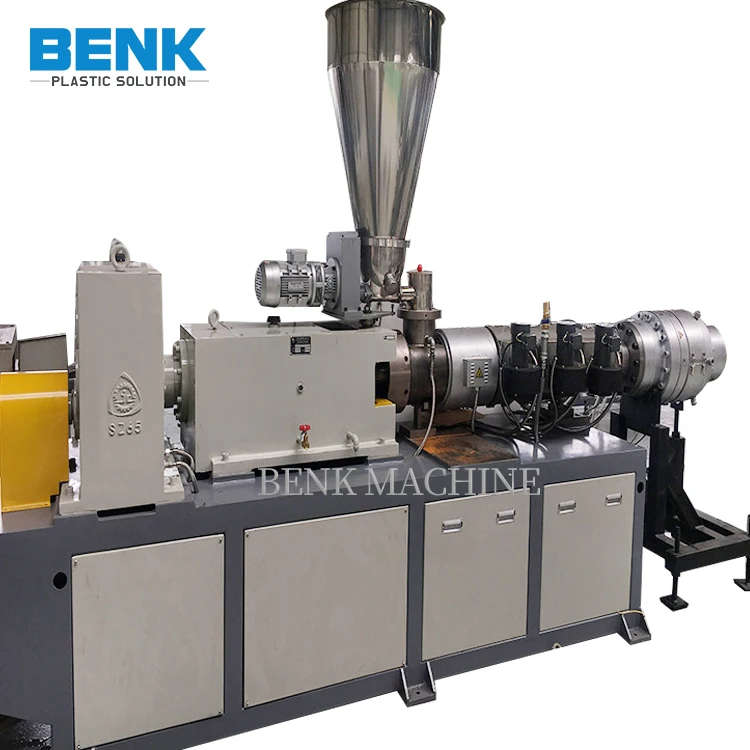

Twin Screw Extruder.
1.1 Siemens PLC
1.2 Quality Screw and Barrel
1.3 Air Cooled Ceramic Heater
1.4 High Quality Gearbox and Distribution Box
1.5 Better Cooling of Gearbox1.6 Advanced Vacuum System
Both conical twin screw extruder and parallel twin screw extruder can be applied to produce PVC pipe. With latest technology, to
lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing
effect and high capacity.
1.2 Quality Screw and Barrel
1.3 Air Cooled Ceramic Heater
1.4 High Quality Gearbox and Distribution Box
1.5 Better Cooling of Gearbox1.6 Advanced Vacuum System
Both conical twin screw extruder and parallel twin screw extruder can be applied to produce PVC pipe. With latest technology, to
lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing
effect and high capacity.

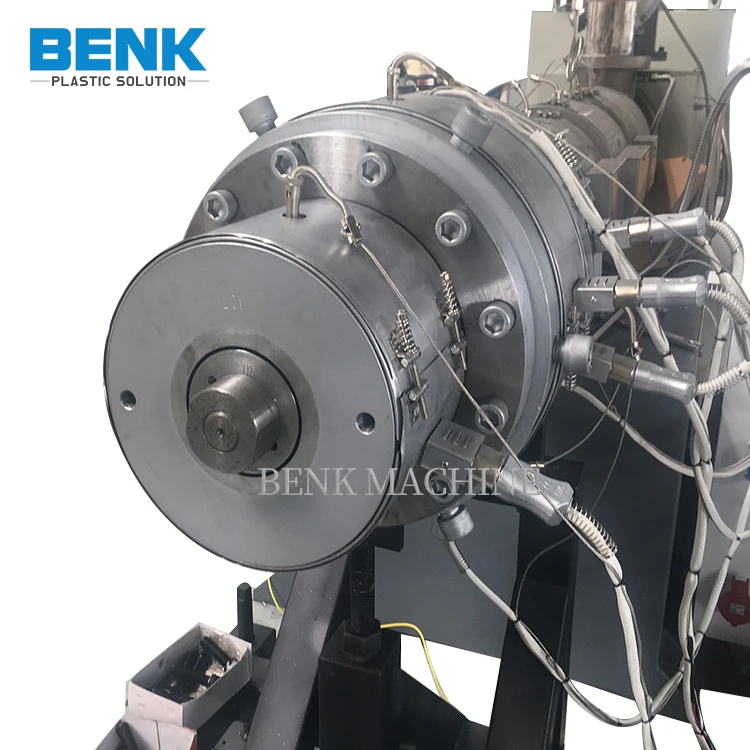

Extrusion Die Head.
2.1 Moving Device of Die Head
2.2 Die Head Rotary Device
2.3 CNC Processing
2.4 High Quality Material
Extrusion die head apply bracket structure, each material flow channel is placed evenly. Each channel is after heat treatment,
mirror polishing and chroming to ensure material flow smoothly.
Die head is modular design, easy for changing pipe sizes, assembling, dismantle and maintenance. Can produce single layer or
multi-layer pipe.
2.2 Die Head Rotary Device
2.3 CNC Processing
2.4 High Quality Material
Extrusion die head apply bracket structure, each material flow channel is placed evenly. Each channel is after heat treatment,
mirror polishing and chroming to ensure material flow smoothly.
Die head is modular design, easy for changing pipe sizes, assembling, dismantle and maintenance. Can produce single layer or
multi-layer pipe.

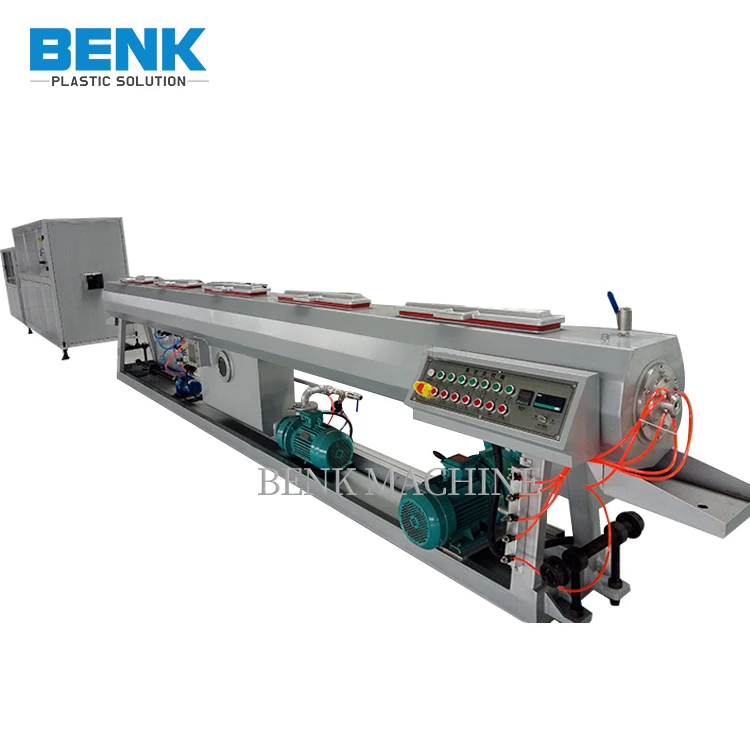

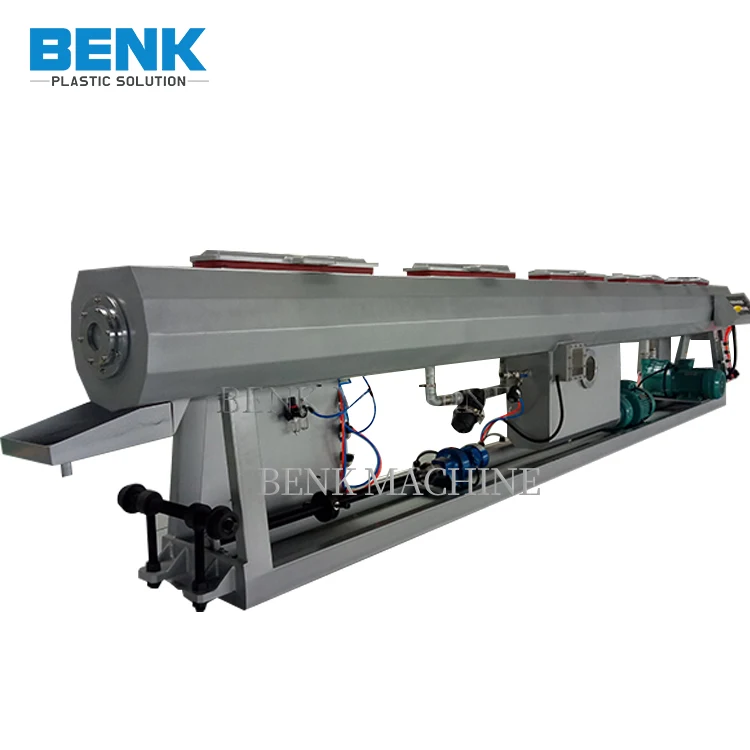

Vacuum Tank.
3.1 Strong Cooling for Calibrator
3.2 Better Support for Pipe
3.2 Pressure Relief Valve3.3 Double Loop Pipeline
3.4 Water, Gas Separator
3.5 Full Automatic Water Control
3.6 Centralized Drainage Device
Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is
in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe
shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.
3.2 Better Support for Pipe
3.2 Pressure Relief Valve3.3 Double Loop Pipeline
3.4 Water, Gas Separator
3.5 Full Automatic Water Control
3.6 Centralized Drainage Device
Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is
in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe
shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.
Haul off unit.
4.1 Pipe Clamping Device
4.2 Water Tank Filter
4.3 Quality Spray Nozzle
4.4 Pipe Support Adjusting Device
4.5 Pipe Support Device
Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company
will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed,
also avoid deformation of pipe during traction.
4.2 Water Tank Filter
4.3 Quality Spray Nozzle
4.4 Pipe Support Adjusting Device
4.5 Pipe Support Device
Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company
will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed,
also avoid deformation of pipe during traction.

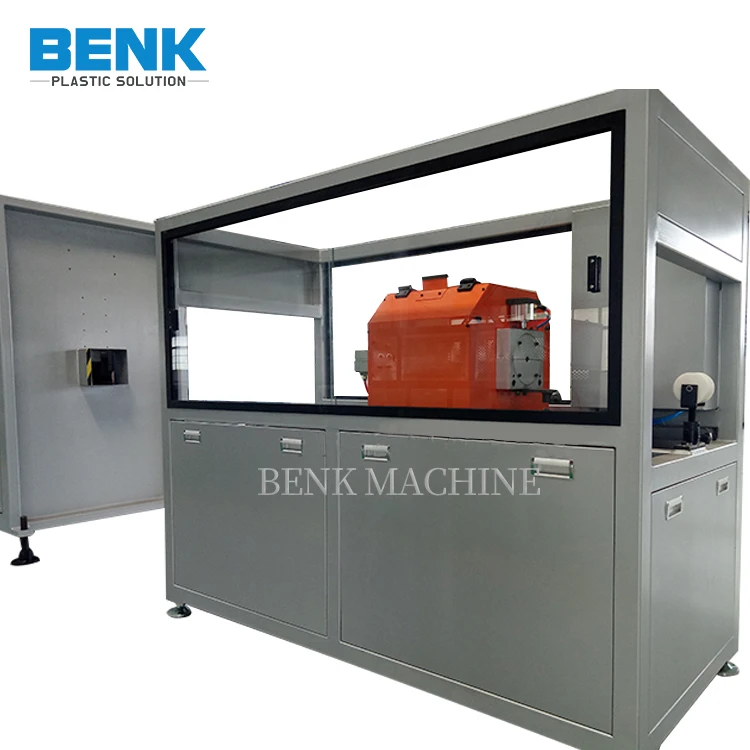

Cutter.
5.1 Aluminum Clamping Device
5.2 Advanced Hydraulic System
5.3 Dust Collection System
Cutter controlled by Siemens PLC with chamfering function, working together with haul off unit to have precise cutting. Customer
can set the length of pipe they want to cut.
5.2 Advanced Hydraulic System
5.3 Dust Collection System
Cutter controlled by Siemens PLC with chamfering function, working together with haul off unit to have precise cutting. Customer
can set the length of pipe they want to cut.
Product Paramenters
Production pipe diameter (mm) | 16-32 | 16-63 | 63-110 | 110-250 | |||
mold | four out | double out | double out | single out | |||
Output (KG/H) | 120-250 | 150-250 | 200-330 | 280-350 | |||
Screw Diameter (MM) | 65/132 | 65/132 | 20/39 | 20/39 | |||
Drive motor AC+VF | 37KW | 37KW | 55KW | 55KW | |||
heater capacity | 18.5KW | 20KW | 40KW | 40KW | |||
temperature control (point) | 5 | 5 | 5 | 7 | |||
cooling system | Vacuum pump 4-7.5KW / water cooling system / stainless steel | ||||||
traction device | 2 claws | 4claws | |||||
cutting unit | Chipless cutting | Planetary cutting | |||||
stacking unit | cylinder system | ||||||
