High Power Irradiation by Fan Cooling LED UV Curing Machine for Coating Inks Paints with Instantly Drying UV Light
- Category: >>>
- Supplier: Zhongshan Enbo Optoelectronics Co. Ltd.
Share on (1600725346754):
Product Overview
Description
Specification
Serial No | Accessories | Project | Units | Technical requirements | |
1 | Controller （UVSF81T） | Voltage | 220V | ||
2 | Dimensions | mm | 412X264X142 | ||
3 | Type of cooling | Air cooling | |||
4 | Control mode | Screen touch control/pedal/RS232/PLC | |||
5 | Adjustable range of irradiation power | Adjustable 10%-100% | |||
6 | Mode of exposure | Manual: Steady on after startup | |||
7 | Automatic: Set irradiation countdown time（0.1-999.9s） | ||||
8 | Ladder: Achieve ladder irradiation（step number 1—20） | ||||
9 | Circular ladder: Single/infinite | ||||
10 | RS232 Serial port: data read and write, LED switch and parameter control | ||||
11 | I/O interface: LED switch control and running state output | ||||
12 | Irradiation head （20050) | Heat-dissipating method | air cooling | ||
13 | Wavelength coverage | 365±5nm | |||
14 | Size | mm | 230X85X100 | ||
15 | Size of luminescence | mm | 200X50 | ||

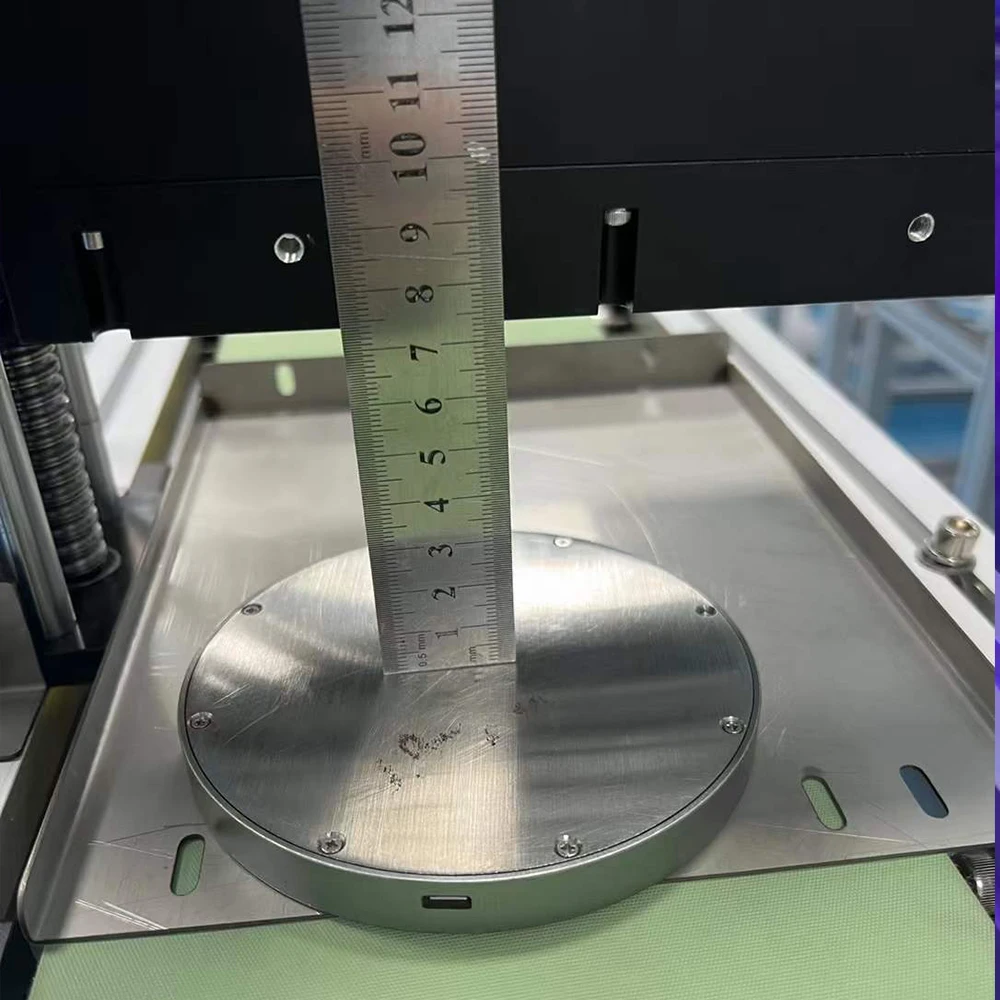

16 | Suggested range of distance | mm | 15—20 | ||

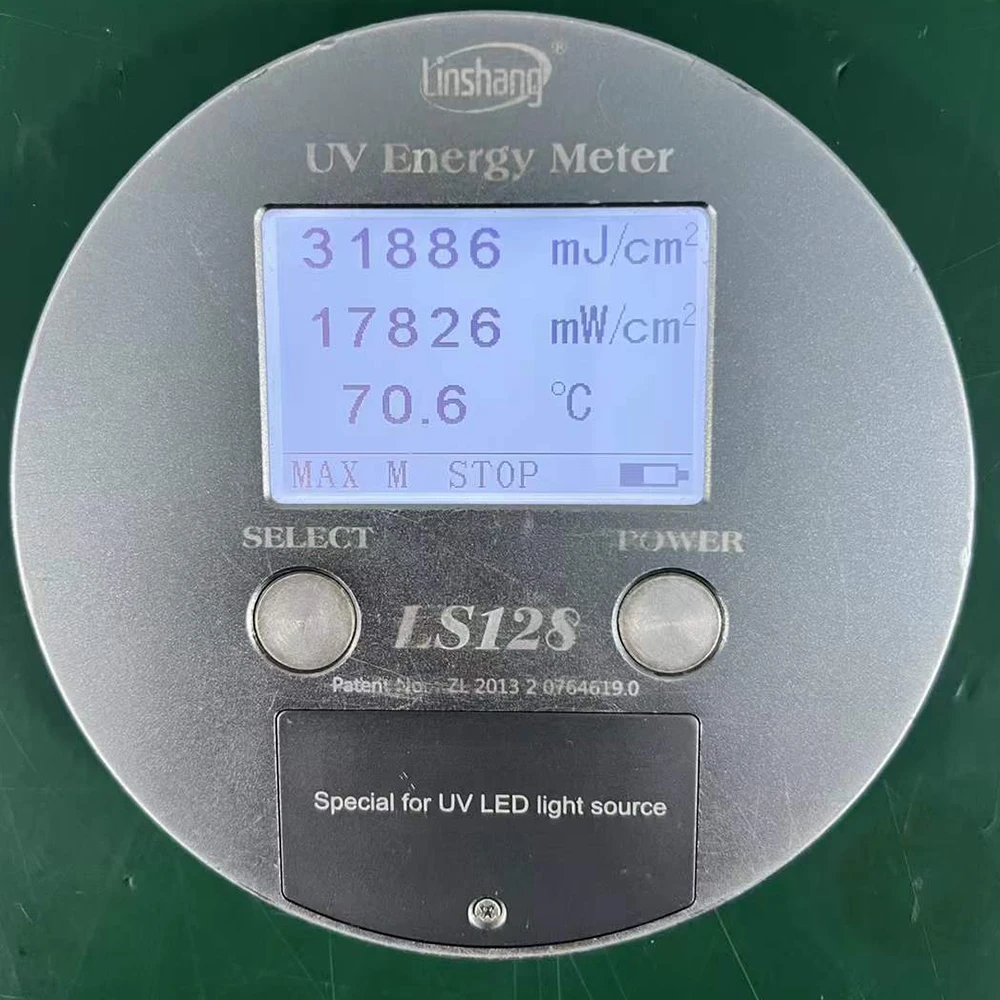

17 | Peak irradiation intensity（Max） | mW | 1200 | ||
18 | Power | W | 400 | ||
19 | Power line | Cable | m | 2 | |
20 | Connecting line | Tow chain cable | m | 2 | |
Products Description
LED Panel-Type systems
The LED Panel-Type offers heads with an effective irradiation width of nearly 800mm and depending on the work distance, the irradiation intensity can be up to 900,000μmW/cm2.

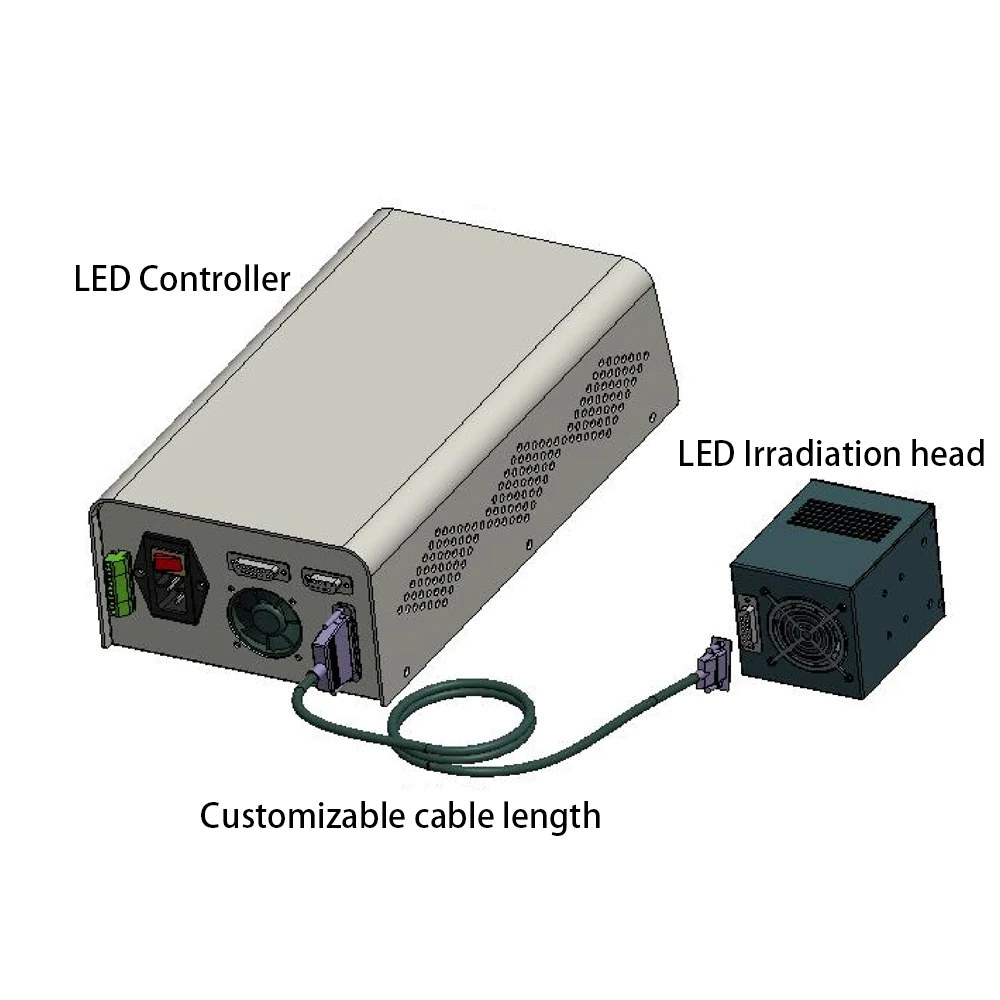

Outline dimensional drawing of the controller and installation space:
1.Do not install the controller in a confined space
2.When installing and using, ensure that there is enough space to prevent the hot air from escaping from the fan
2.When installing and using, ensure that there is enough space to prevent the hot air from escaping from the fan
Outline dimensional drawing of the irradiation head and installation space:
1.Do not install the controller in a confined space
2.When installing and using, ensure that there is enough space to prevent the hot air from escaping from the fan
Attentions
1. General precautions
In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
Under the standard test conditions, the bending performance of the cable is satisfied.
However, its performance under any conditions of actual use cannot be guaranteed.
Do not disassemble, modify or set up inside.
Breakdown, modification and use caused by failure, damage and other circumstances, will not be within the scope of warranty.
2. Install the environment
● Installation and use of ambient temperature and humidity 0℃ -+ 45℃, ≤85%RH (no condensation, freezing)
● Temperature and humidity of storage environment -10℃ -+ 60℃, ≤85%RH (non-condensation, freezing)
● Dust, soot, conductive dust, corrosive, flammable gas, salt, iron, etc
● No contact with water, oil, medicine and other places
● No severe temperature change and vibration, impact of the place without direct sunlight, no strong magnetic field, strong electric field
3. About power supply and wiring
● Please supply single-phase 200V-240V (frequency 50Hz-60Hz) power supply voltage, and grounding.
● Do not use the same power cord with the motor and the induction machinery or the high-power device.
● For the wiring between the controller and the LED irradiation head, please use the attached cable and connect. In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
● When used in bending, as a minimum bending radius greater than 110mm, please execute the design of the system. Bending with radius less than recommended, there is a possibility of rupture occurring in a very short time period.
4. About installation
● When installing the controller and irradiation head, keep it level. Do not tilt, tip or reverse install. Otherwise, it may lead to fever and damage.
● Do not install in a confined space. Do not block the radiator vents.
5. Precautions for power connection
● Before switching on the power supply, please confirm all connections are correct.
In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
Under the standard test conditions, the bending performance of the cable is satisfied.
However, its performance under any conditions of actual use cannot be guaranteed.
Do not disassemble, modify or set up inside.
Breakdown, modification and use caused by failure, damage and other circumstances, will not be within the scope of warranty.
2. Install the environment
● Installation and use of ambient temperature and humidity 0℃ -+ 45℃, ≤85%RH (no condensation, freezing)
● Temperature and humidity of storage environment -10℃ -+ 60℃, ≤85%RH (non-condensation, freezing)
● Dust, soot, conductive dust, corrosive, flammable gas, salt, iron, etc
● No contact with water, oil, medicine and other places
● No severe temperature change and vibration, impact of the place without direct sunlight, no strong magnetic field, strong electric field
3. About power supply and wiring
● Please supply single-phase 200V-240V (frequency 50Hz-60Hz) power supply voltage, and grounding.
● Do not use the same power cord with the motor and the induction machinery or the high-power device.
● For the wiring between the controller and the LED irradiation head, please use the attached cable and connect. In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
● When used in bending, as a minimum bending radius greater than 110mm, please execute the design of the system. Bending with radius less than recommended, there is a possibility of rupture occurring in a very short time period.
4. About installation
● When installing the controller and irradiation head, keep it level. Do not tilt, tip or reverse install. Otherwise, it may lead to fever and damage.
● Do not install in a confined space. Do not block the radiator vents.
5. Precautions for power connection
● Before switching on the power supply, please confirm all connections are correct.
