3hp 4hp 5hp 110v three phase induction motor 56c 184T electric motor 60HZ Frame Rolled Steel 3600RPM
- Category: >>>
- Supplier: Ningbo Biote Mechanical Electrical Co. Ltd
Share on (1600725355647):
Product Overview
Description
Product Description

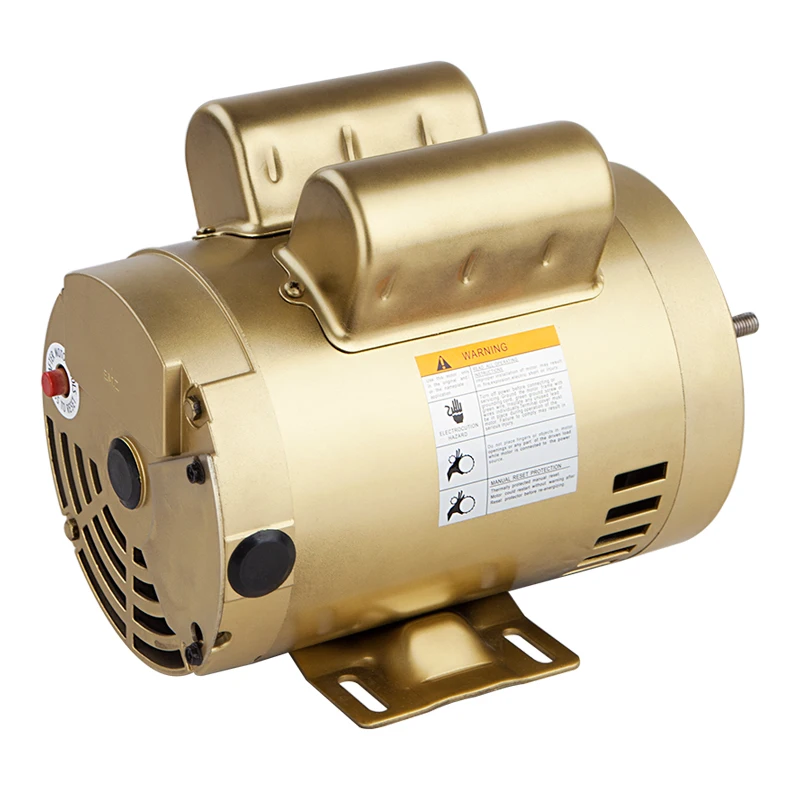

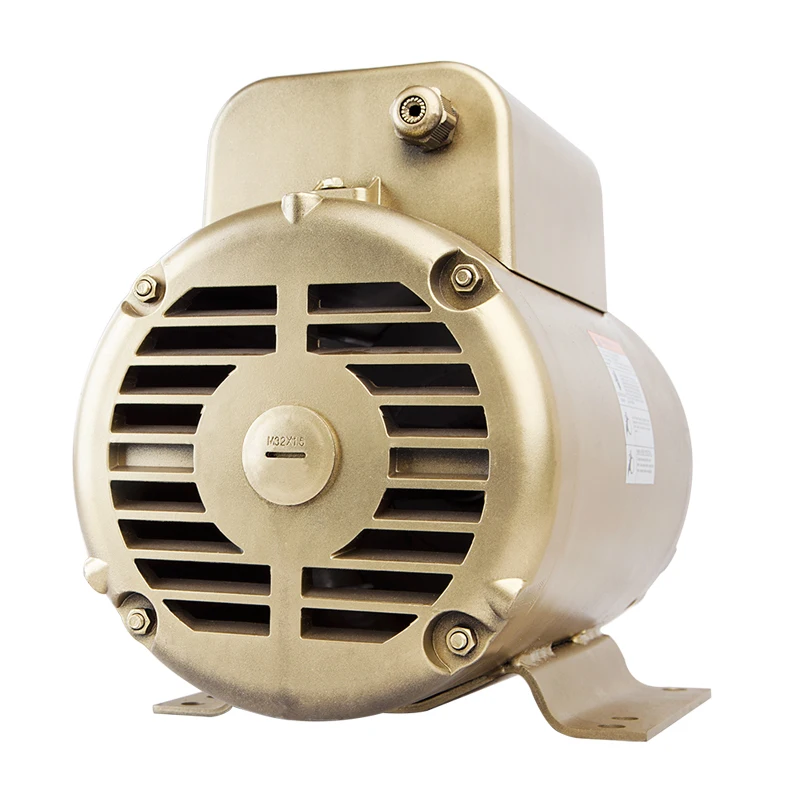

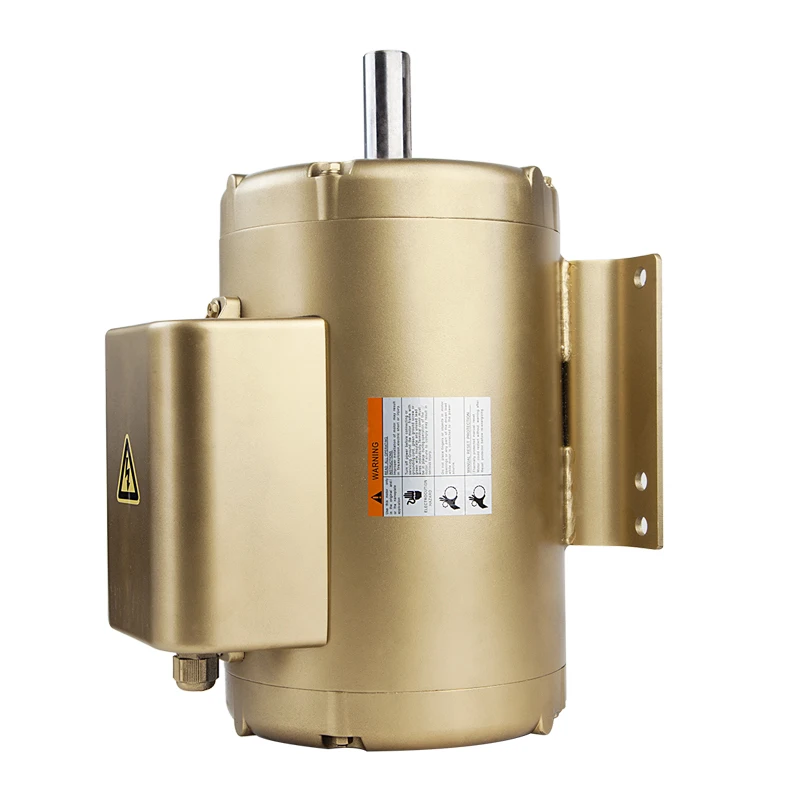

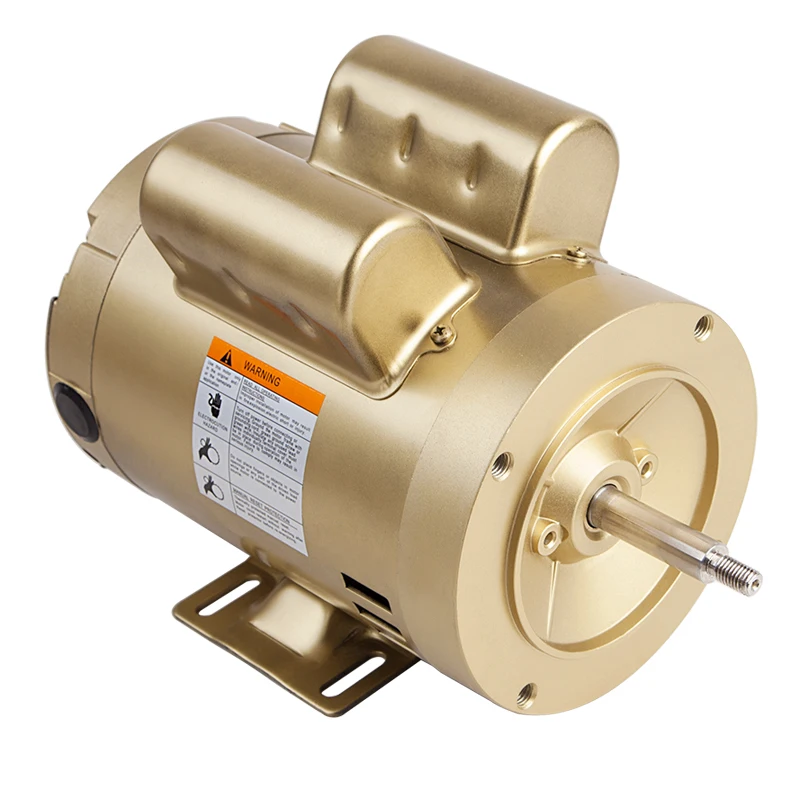

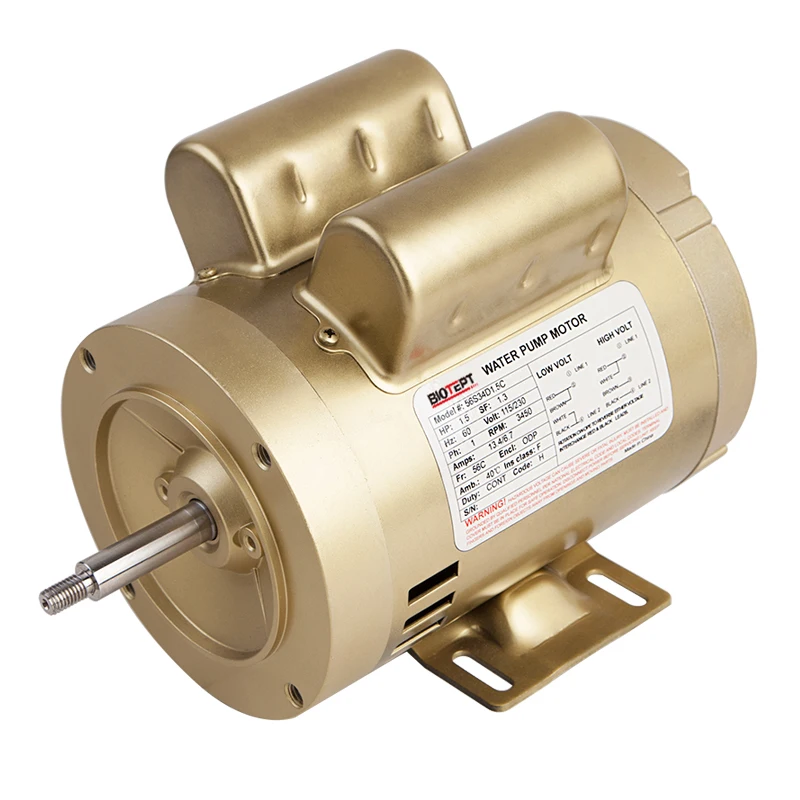

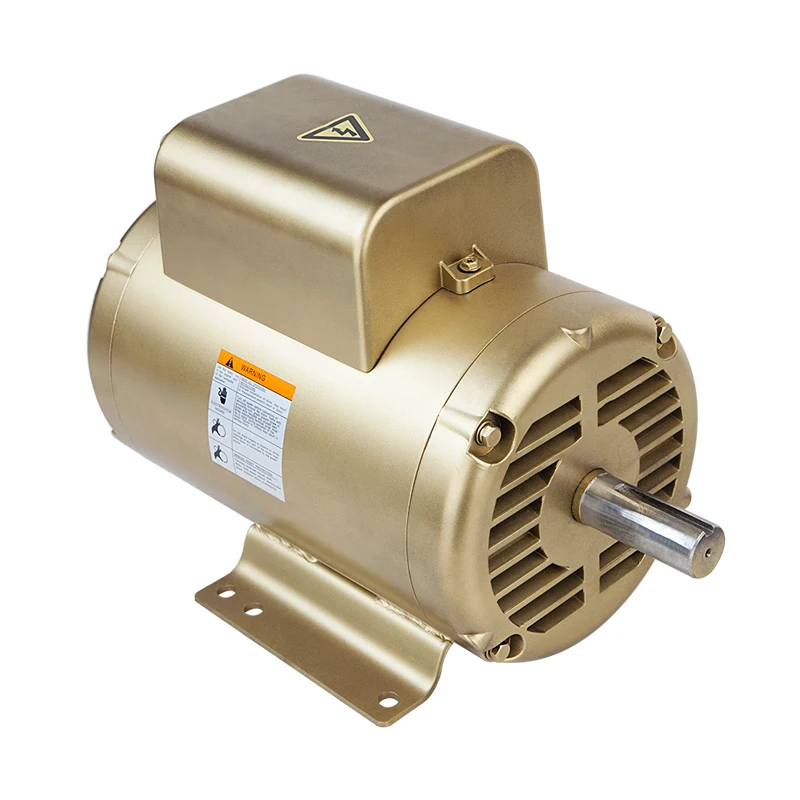

NEMA ODP WATER PUMP MOTOR
1.5 Hp Electric Motor: This compact and small-sized AC motors feature output 1.5 HP, 56C frame, and single phase. Gasketed capacitor housing and conduit boxes protect all environments.
Working Efficiency: The electric motor 56C can run at the maximum speed of 1725 RPM, high working efficiency, Voltage: 115/230V 60 HZ, shaft diameter: 5/8" (1.6 cm), shaft length: 1.88" (4.8 cm), upper hardness shaft is more durable.
Steel Housing: The compressor duty motor is made of high-quality steel material. The firm and solid material can protect the engine well, and the smooth appearance is easy to clean; it includes the mounting bracket, and the bracket structure is stable and easy to use.
High Speed Cooling Fan: Big fan at one end cools the motor in hours' running, even in dusty or damp environments, reducing energy costs or overheads, reducing the running temperature, increasing winding lifetimes.
Multiple Application: The electric motors are commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc.
Working Efficiency: The electric motor 56C can run at the maximum speed of 1725 RPM, high working efficiency, Voltage: 115/230V 60 HZ, shaft diameter: 5/8" (1.6 cm), shaft length: 1.88" (4.8 cm), upper hardness shaft is more durable.
Steel Housing: The compressor duty motor is made of high-quality steel material. The firm and solid material can protect the engine well, and the smooth appearance is easy to clean; it includes the mounting bracket, and the bracket structure is stable and easy to use.
High Speed Cooling Fan: Big fan at one end cools the motor in hours' running, even in dusty or damp environments, reducing energy costs or overheads, reducing the running temperature, increasing winding lifetimes.
Multiple Application: The electric motors are commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc.
HP | 1HP-10HP | ||||
Frame | Rolled Steel, NEMA 56C. 145t,184T, 213T. 215T | ||||
Service Factor | 1.15 | ||||
Endosure | ODP | ||||
IP Class | IP44 | ||||
PROTECTOR | Accept Manual or Auto Protector | ||||
Certification | All certified | ||||
HP | RPM | NEMA FRAME | MODEL | Volts | HZ | ENCL. | SF | Full Load AMPS | WGT. LBS. |
1 | 3600 | 56 | D561S2C | 115/208-230 | 60 | ODP | 1.15 | 12/6.4-5.8 | 30 |
1 | 1800 | 56 | D561S4C | 115/208-230 | 60 | ODP | 1.15 | 11.5/6.0-5.7 | 38 |
1 | 1800 | 143T | D143T1S4C | 115/208-230 | 60 | ODP | 1.15 | 11.5/6.0-5.7 | 41 |
1.5 | 3600 | 56 | D561.5S2C | 115/208-230 | 60 | ODP | 1.15 | 14.5/7.8-7.2 | 37 |
1.5 | 1800 | 56 | D561.5S4C | 115/208-230 | 60 | ODP | 1.15 | 15.5/8.1-7.6 | 42 |
1.5 | 1800 | 145T | D145T1.5S4C | 115/208-230 | 60 | ODP | 1.15 | 15.5/8.1-7.6 | 45 |
1.5 | 3600 | 145T | D145T1.5S2C | 115/208-230 | 60 | ODP | 1.15 | 14.5/8.0-7.6 | 41 |
2 | 3600 | 56 | D562S2CC | 115/208-230 | 60 | ODP | 1.15 | 18/10.1-9.2 | 44 |
2 | 1800 | 56 | D562S4C | 115/208-230 | 60 | ODP | 1.15 | 19.0/10-9.3 | 47 |
2 | 3600 | 145T | D145T2S2C | 115/208-230 | 60 | ODP | 1.15 | 18./10.2-9.4 | 48 |
2 | 1800 | 145T | D145T2S4C | 115/208-230 | 60 | ODP | 1.15 | 19.0/10-9.3 | 50 |
3 | 3600 | 56 | D563S2C | 115/208-230 | 60 | ODP | 1.15 | 25/14.2-13 | 60 |
3 | 3600 | 145T | D145T3S2C | 115/208-230 | 60 | ODP | 1.15 | 25/14.2-13 | 67 |
3 | 1800 | 182T | D182T3S4A | 208-230/460 | 60 | ODP | 1.15 | 13.5-12/6.2 | 88 |
5 | 3600 | 184T | D184T5S2A | 208-230/460 | 60 | ODP | 1.15 | 22-20/10 | 95 |
5 | 1800 | 184T | D184T5S4A | 208-230/460 | 60 | ODP | 1.15 | 22.5-20/10 | 96 |
7.5 | 1800 | 213T | D213T7.5S4A | 208-230/460 | 60 | ODP | 1.15 | 32.8-30/15.2 | 140 |
10 | 1800 | 215T | D215T10S4A | 208-230/460 | 60 | ODP | 1.15 | 41.2-39/19.5 | 153 |
Detailed Images
Why Choose Us
WHY CHOOSE BIOTE
A.Certificates passed:All tests passed for most of our motors and can supply reports.
B.Fast feedback for customers:24 hours reply for all customers' inquiries.
C. Competitive prices.
D. Quality guarantee:We have shipped much motors to Italy, Spain, and other European and USA customers with high quality.
E. Fast and Timely delivery:Usually 10-15 days for goods production.
F. Professional Technical support and After-sale service.
G.Customized service for kind of motor according to your requirement.
Our Company
FAQ
Q1: What kind motors you can provide?
A1: For now, we mainly provide permanent magnet brush dc motors, brushless dc motor, dc gear motor, micro dc motor, ac gear motor, planetary gear motor, with diameter range in 42~110mm. NEMA dc motor. NEMA dc Motor. stainless steel motor
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style.
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.
Q5:How about your delivery time?
A5: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.
