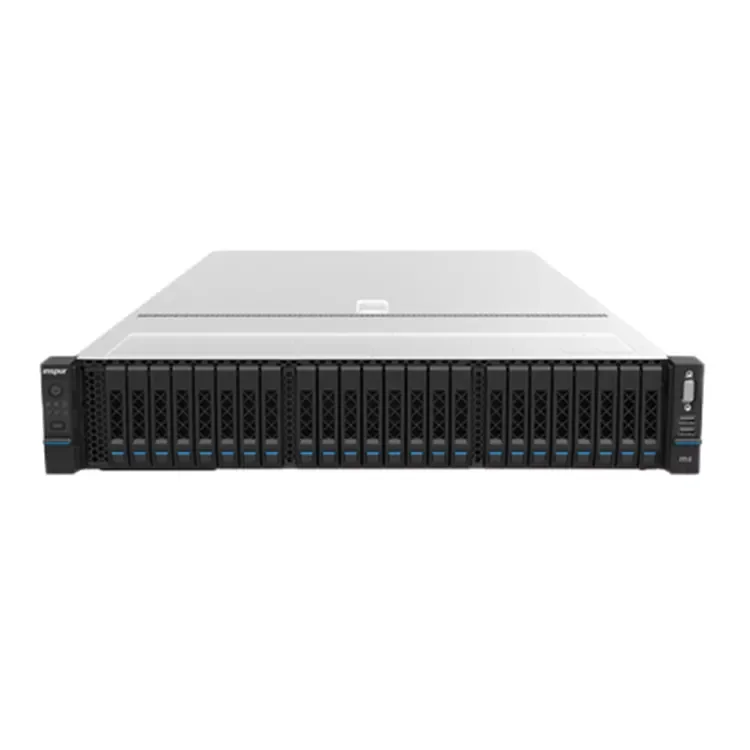

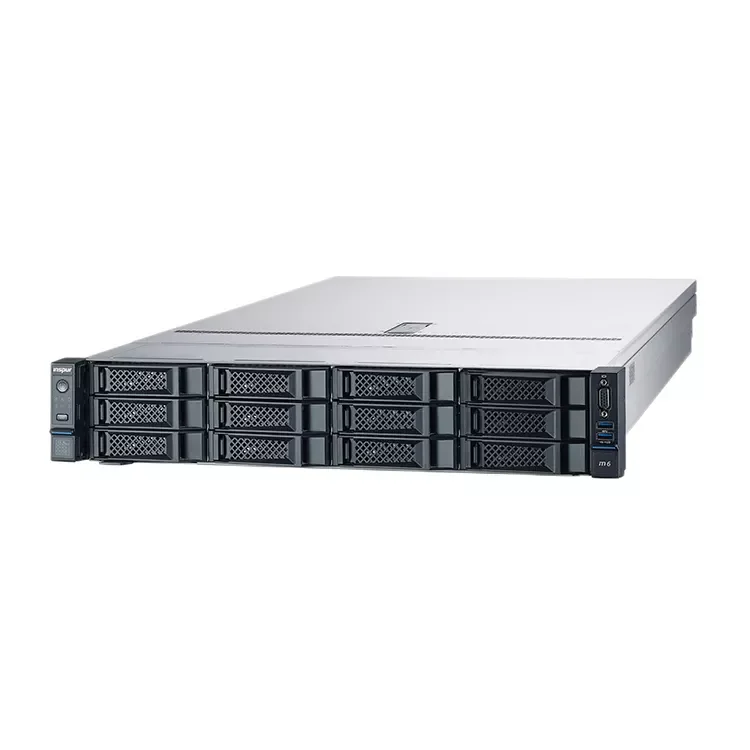

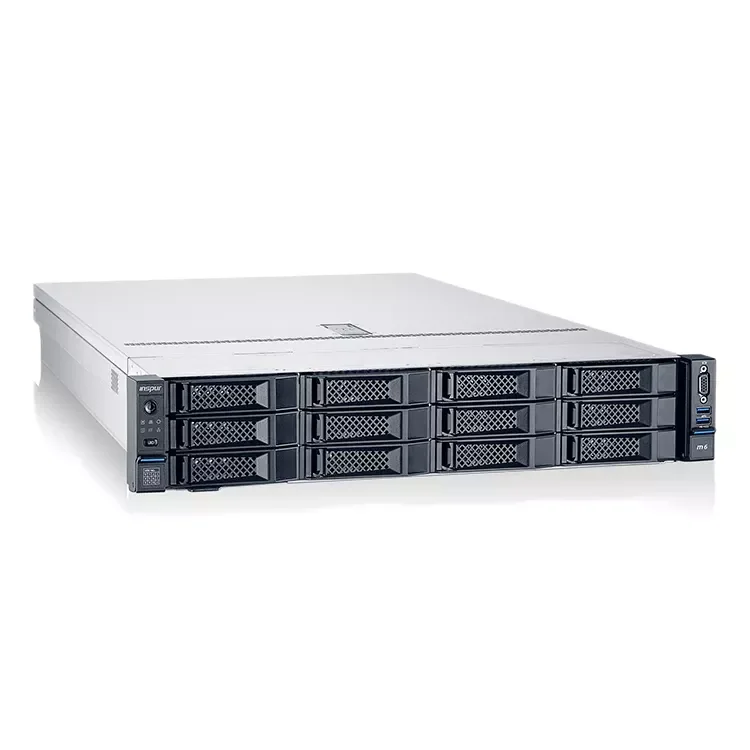

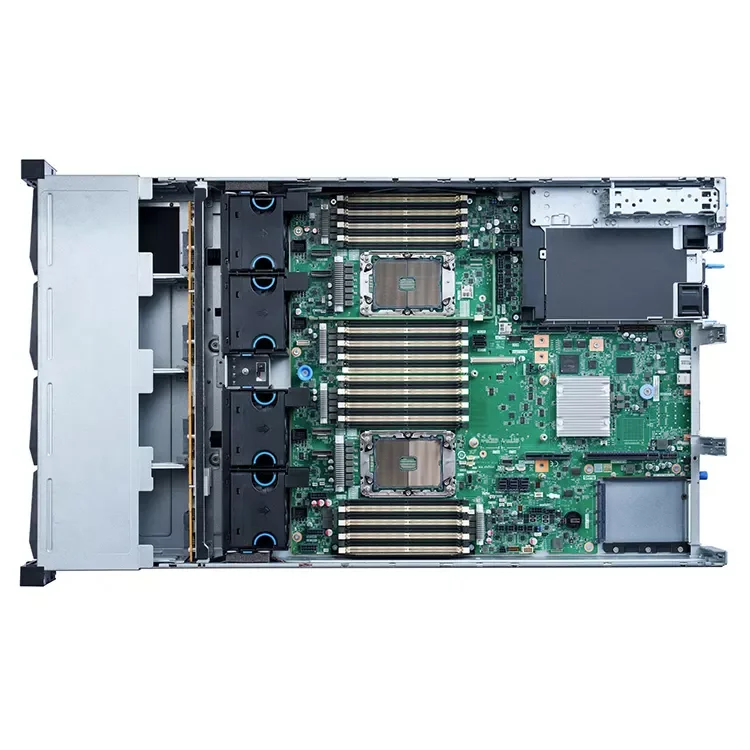

2023 Supply 64GB DDR4 8TB SATA Inspur NF5280M6 2u Case Rack Mount Server
- Category: >>>
- Supplier: Beijing Huayue Beishang Technology Co. Ltd.
Share on (1600725367270):
Product Overview
Description
Products Description
component | describe | ||||||
specifications | 2U rack type | ||||||
processor | Supports 1 to 2 Intel Xeon Series 3rd generation expandable processors: Supports up to 40 cores (2.3GHz) Maximum frequency 3.6GHz(4 cores) Three UPI interconnect links, single link high rate 11.2GT/s Maximum thermal design power 270W | ||||||
Chip set | Intel C621A | ||||||
memory | Supports a maximum of 32 memory modules. Each processor supports eight memory channels and each channel supports a maximum of two memory slots. The maximum memory speed is 3200MT/s. RDIMM and BPS are supported. Memory protection supports ECC, memory mirroring, and memory level protection | ||||||
storage | Pre - 24 x 2.5" SATA, SAS, and NVME support hot swap 25 x 2.5" SATA/SAS hot-swappable 12 x 2.5" /3.5" SATA, SAS, and NVMe support hot swap The rear 4 x 2.5" SATA/SAS/NVMe SSDS are hot-swappable 4 x 3.5" SATA/SAS SSDS support hot swap 10 x 2.5" SATA/SAS hot-swappable Two SATA M.2 or two E1.s are optional built-in 4 x 3.5" SATA or SAS are not hot-swappable Supports a maximum of two TF cards, one BIOS/ one BMC | ||||||
Storage controller | RAID card controller and SAS card controller The onboard PCH supports an Intel onboard NVME controller with 14*SATA ports and an Intel NVME Raid Key is optional | ||||||
Network interface | 1 optional OCP3.0 module 10Gb/s,25Gb/s,40Gb/s, 100Gb/s, 200Gb/s One group of dual 10-gigabit on-board network ports 10Gb/s Standard 1Gb, 10Gb, 25Gb, 40 GB, and 100Gb nics are supported | ||||||
I/O expansion slot | Supports a maximum of 11 PCIe slots Supports four dual-width Gpus or eight single-width Gpus/graphics cards. Supports one OCP3.0x16 network adapter Supports one RAID Mezz card | ||||||
interface | 2 rear USB3.0+1 front USB3.0+1 front USB 2.0 1 front VGA 1 rear VGA | ||||||
fan | Four hot-swappable N+1 redundant fans | ||||||
power supply | Support 1 + 1 redundancy power 550 w / 800 w / 1300 w / 1600 w / 2000 w CRPS standard power supply | ||||||
System Management | An independent 1000Mbps network interface is integrated for remote management of IPMI. Carbon inbound management: configure 1Gb independent remote management control port; It can realize the complete remote control of the server independent of the operating system, including remote startup, shutdown, restart, Firmware update, virtual CD-ROM drive, virtual folder and other operations, provide the server health diary, server console screen recording/playback functions, can provide power monitoring, can support dynamic power capping. Supports Chinese BIOS interface Settings | ||||||
Operating system | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS | ||||||
size | Including hanging ear: W(width) 478.8mm; H (H) 87mm; D (D) 811.7 mm Without hanging ear: W(width) 435mm; H(H) 87mm; D(depth) 780mm | ||||||
weight | Full match＜ 37.5 kg | ||||||
Operating temperature | 5℃-45°℃ | ||||||
