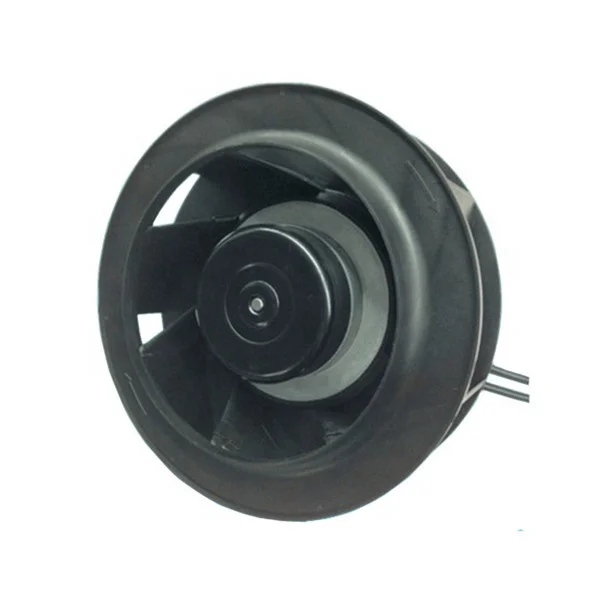

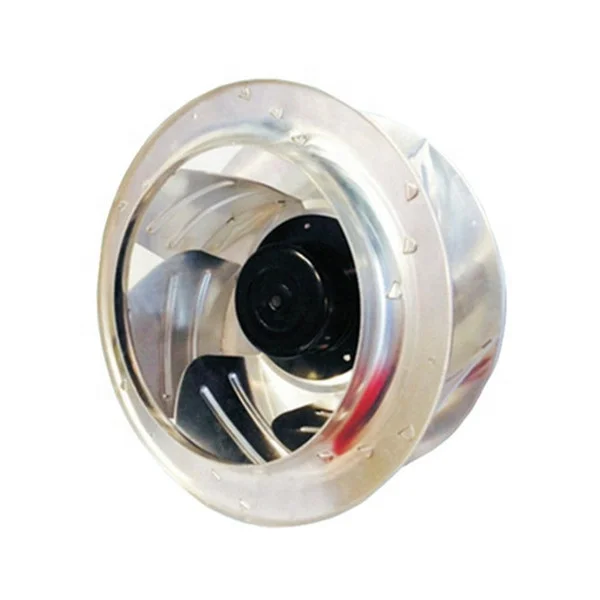

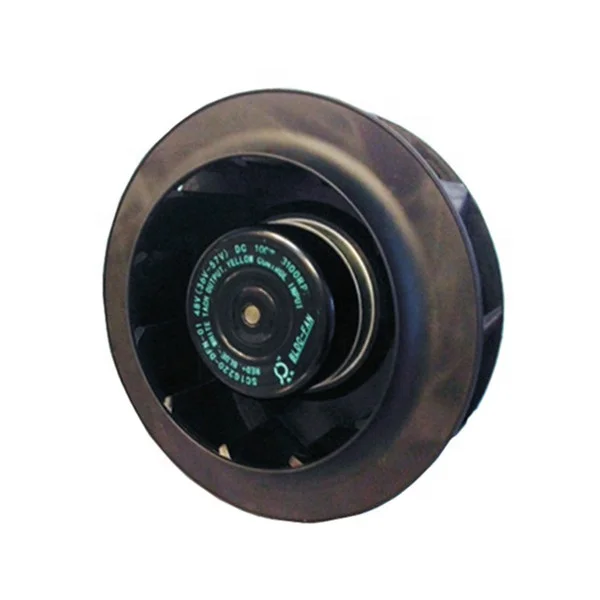

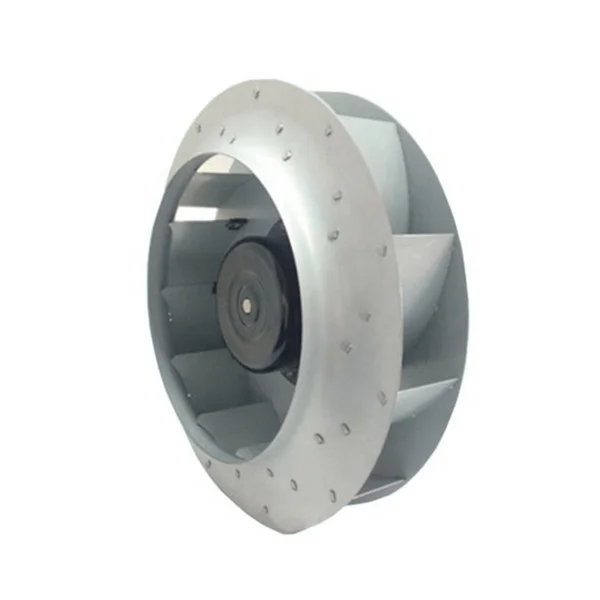

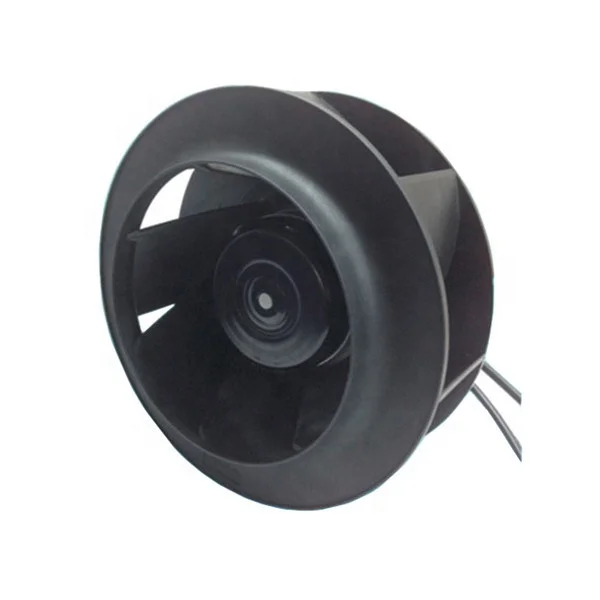

0 10 В/ШИМ контроль BLDC обратный изогнутый центробежный вентилятор 220 мм рабочее колесо
- Category: Ventilation Fans >>>
- Supplier: Guangzhou Kingan Auto Parts Co. Limited
Share on (1600725524580):
Product Overview
Description
0-10v/pwm control BLDC backward curved centrifugal fan 220mm impeller
Product Description
Material: Impeller PA66, fibreglass-reinforced
Number of blades: 11
Direction of rotation: Anticlockwise, seen on leads
Type of protection: IP42
Bearing: Ball bearings
Insulation class: "B"
Technical features: Control lnput 0-10V DC/PWM
Tach output
Protection: Locked-rotor protection, Current limitedsoft start
Amb.Temp: -20~60℃
Number of blades: 11
Direction of rotation: Anticlockwise, seen on leads
Type of protection: IP42
Bearing: Ball bearings
Insulation class: "B"
Technical features: Control lnput 0-10V DC/PWM
Tach output
Protection: Locked-rotor protection, Current limitedsoft start
Amb.Temp: -20~60℃
Product Parameters
Model | Rated Voltage (VDC) | Range Voltage (VDC) | Air Flow (m3/h) | Speed (rpm) | Power Input (W) | Current (A) | Static Prwssure (Pa) |
K1A220-DAN-92 | 12V | 10-15V | 770 | 2300 | 48 | 4.0 | 500 |
K1A220-DCN-92 | 24V | 16-28V | 1055 | 3150 | 106 | 5.0 | 700 |
K1A220-DFN-92 | 48V | 36-57V | 1015 | 3100 | 100 | 2.4 | 700 |

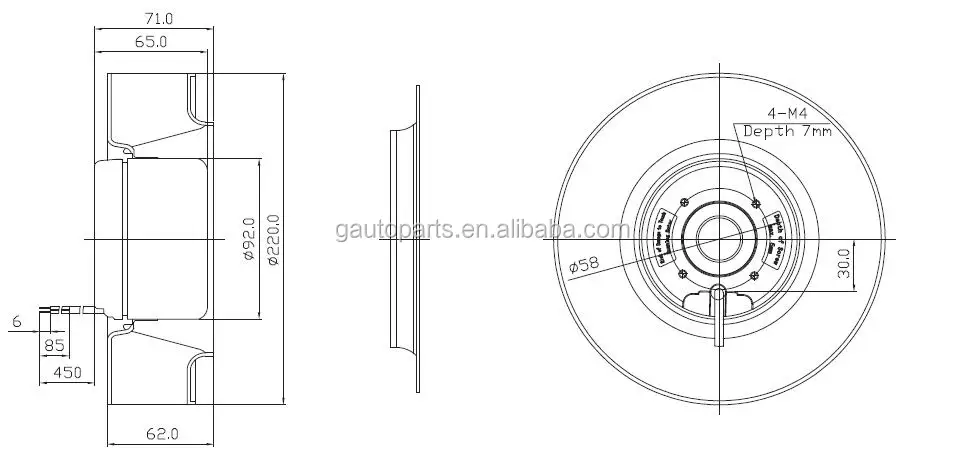

Dimension Drawing
