Pu Pneumatic Pipe Extrusion Gas Fully Automatic Making Machine Tpu/pu pipe Extrusion Making Machine
- Category: >>>
- Supplier: Qingdao Zhongbangling Electric Co. Ltd.
Share on (1600725534359):
Product Overview
Description
Product Paramenters

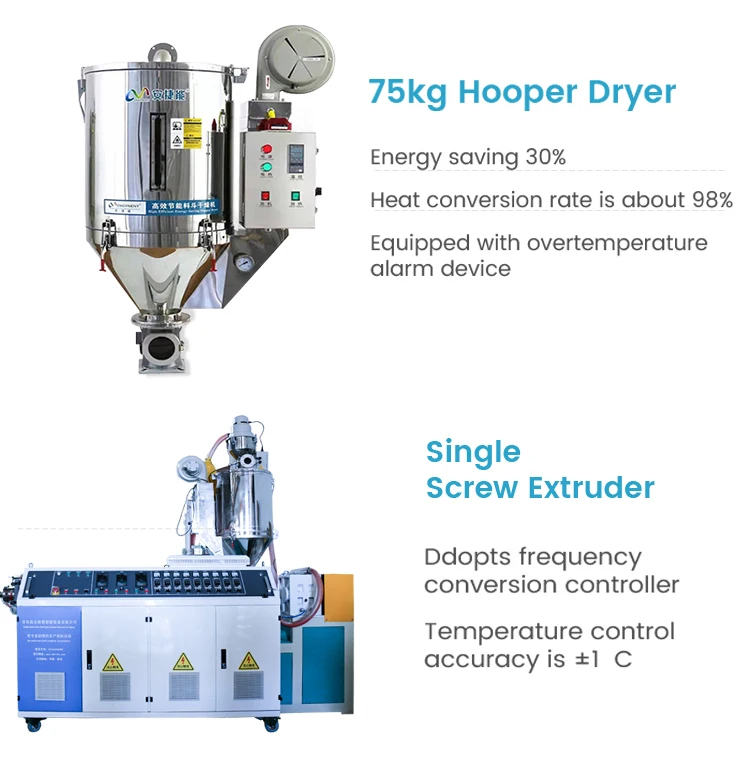

75KG hooper dryer | Motor power 4.5KW, double insulation material | |

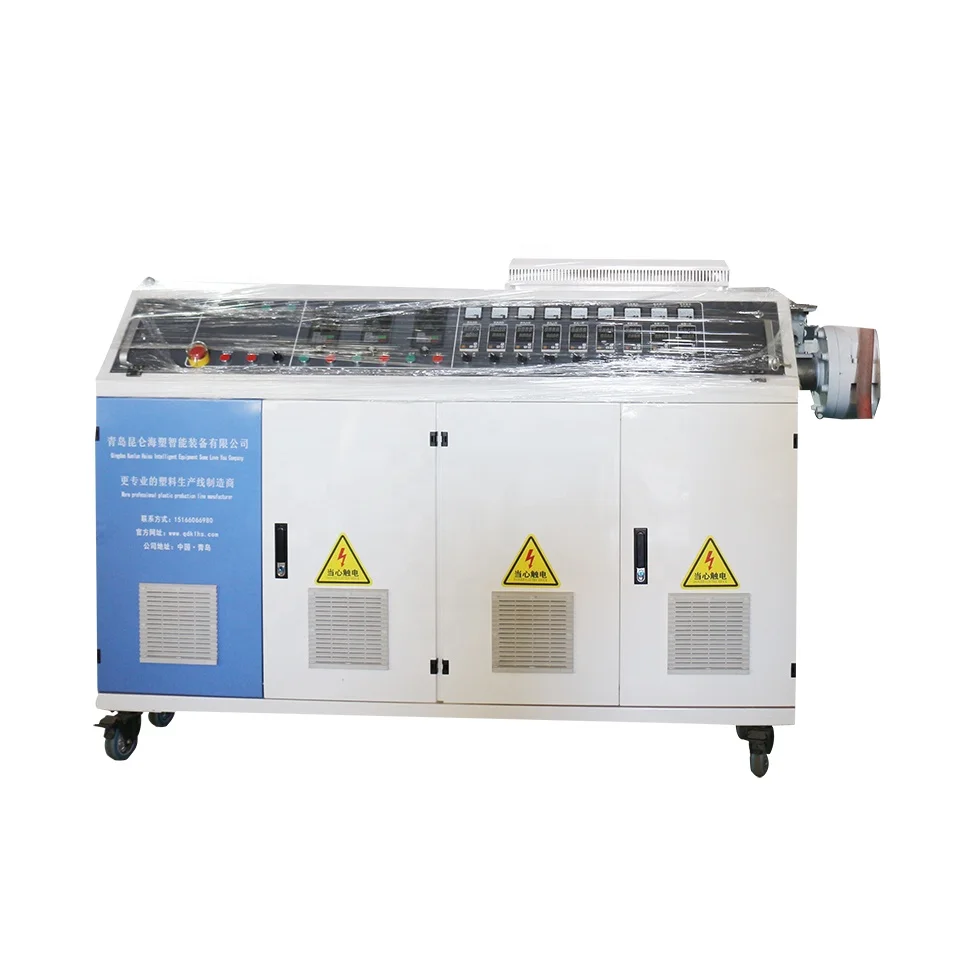

single screw extruder | Linear speed: 15-25 m/min (about 50KG/ h) | |
Center height: 1000MM | ||
Overall dimensions: 11*1*2.4M | ||
Screw diameter: φ65mm | ||
Screw material :38CrMoAIA special hard chrome treatment | ||
Frequency changer: HHKL(or selection),ABB, Delta, Puchong, Vtron | ||
Electrical control cabinet: Temperature control: Otonicus, cylinder heating zone 4, mold zone 3 Contactor :Siemens | ||

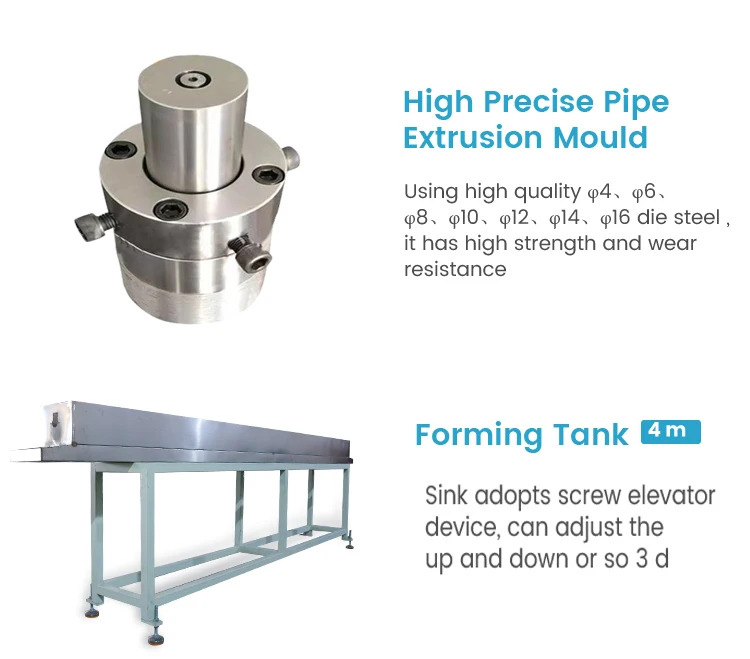

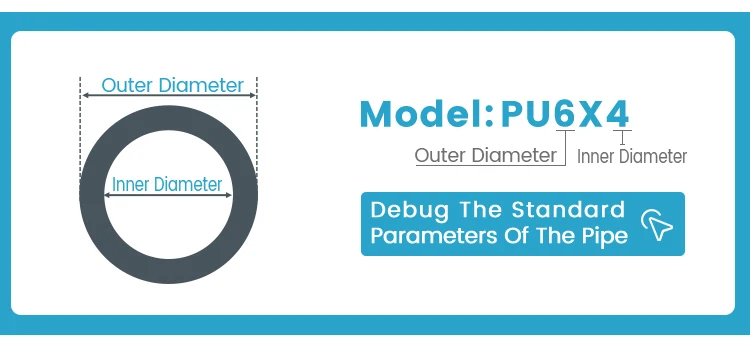

Pipe extrusion mold | Die special steel:φ4、φ6、φ8、φ10、φ12、φ14、φ16 | |

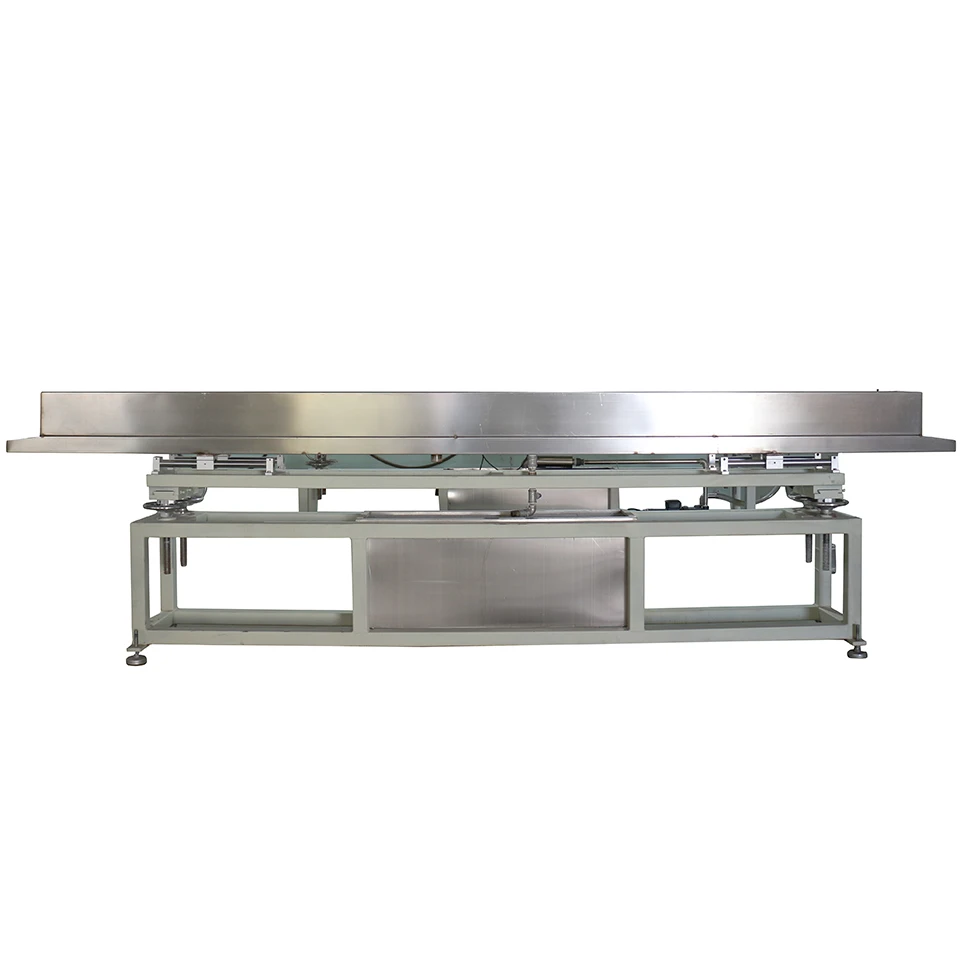

Forming tank（4m） | Section 1: Material: 304 stainless steel Activity mode: left and right adjustable up and down Effective length: 5000*250*300mm Circulating water tank: 1 Blow the air nozzle | |
Section 2: Material: 304 stainless steel Activity mode: left and right adjustable up and down Effective length: 5000*250*300mm Circulating water tank: 1 | ||

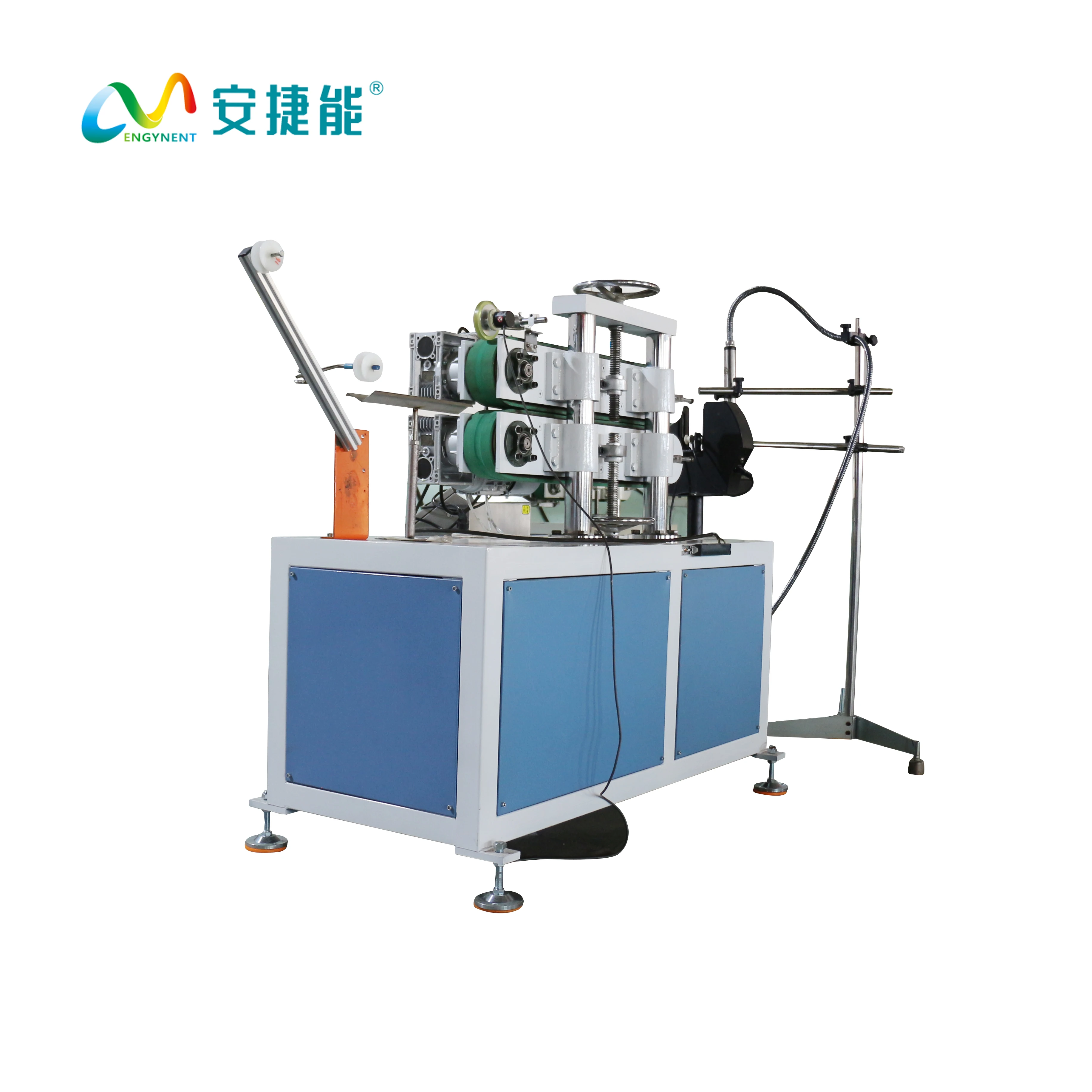

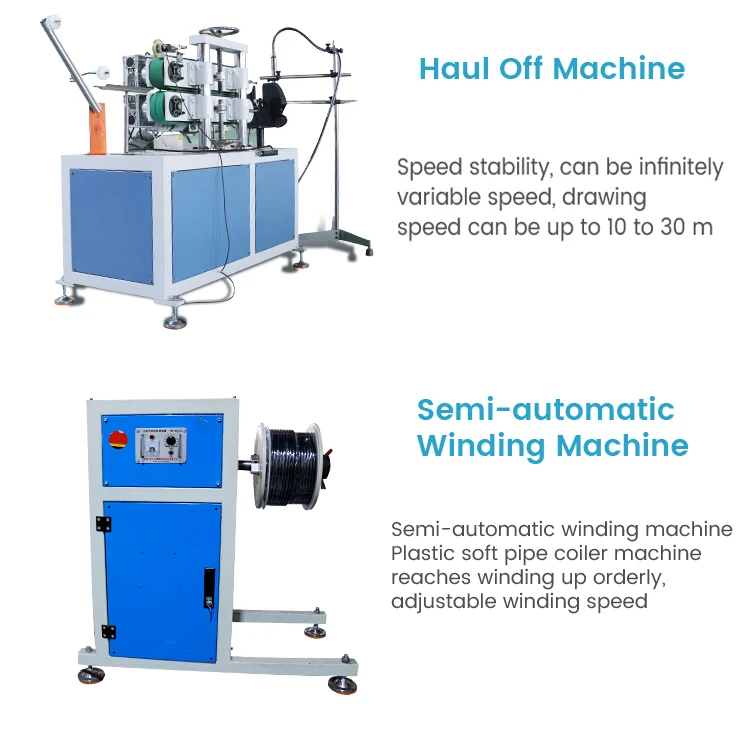

Haul off machine | Traction mode :Belt traction | |
Motor power :0.75KW*2 | ||
Control mode: Frequency conversion control | ||
Belt specification :Effective length 800mm, width 100mm | ||

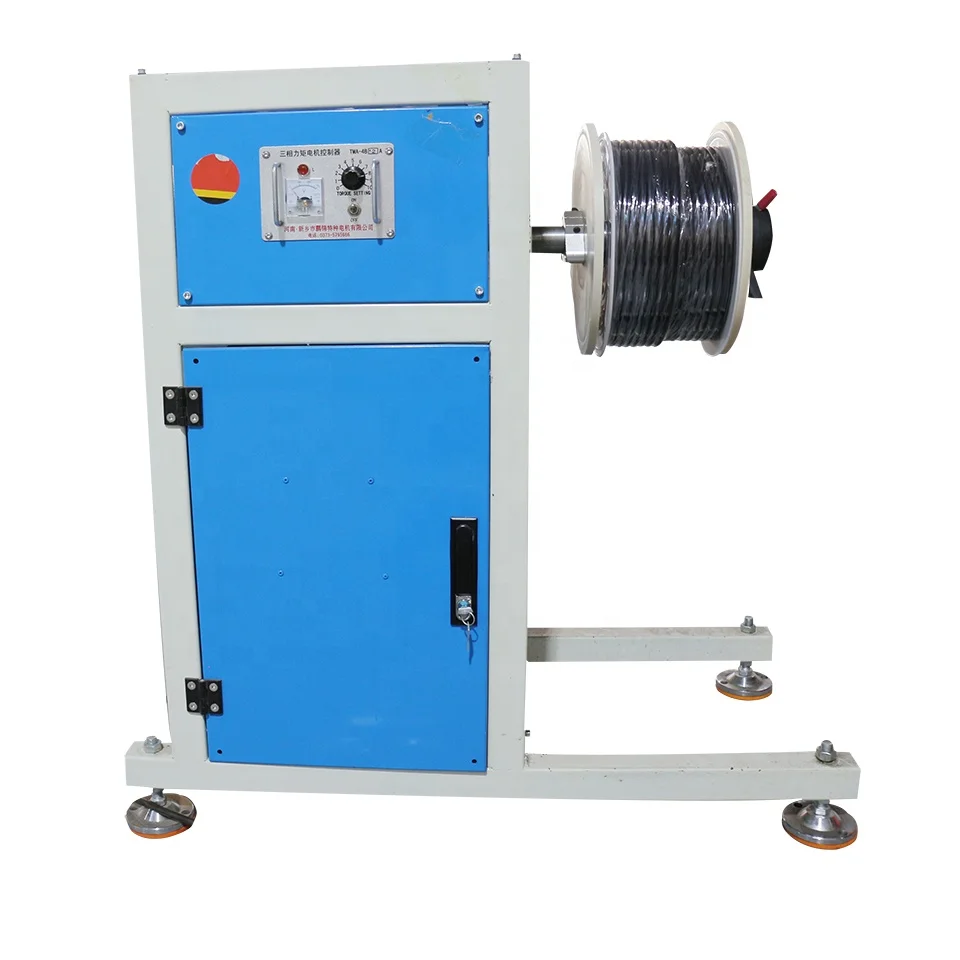

Winding machine | Control mode :Torque control 6N.M | |
Winding length: 100 meters/roll |
Products Description
Use and characteristics
The production line is composed of single screw extruder, mold, water tank, traction and winding machine, different molds make various shapes and sizes of PVC sealing products. These products are widely used in the production of plastic steel doors and windows, automobiles, containers, electric cars, refrigerators, disinfection cabinets and other sealing strip products.
The production line is composed of single screw extruder, mold, water tank, traction and winding machine, different molds make various shapes and sizes of PVC sealing products. These products are widely used in the production of plastic steel doors and windows, automobiles, containers, electric cars, refrigerators, disinfection cabinets and other sealing strip products.
Overview：

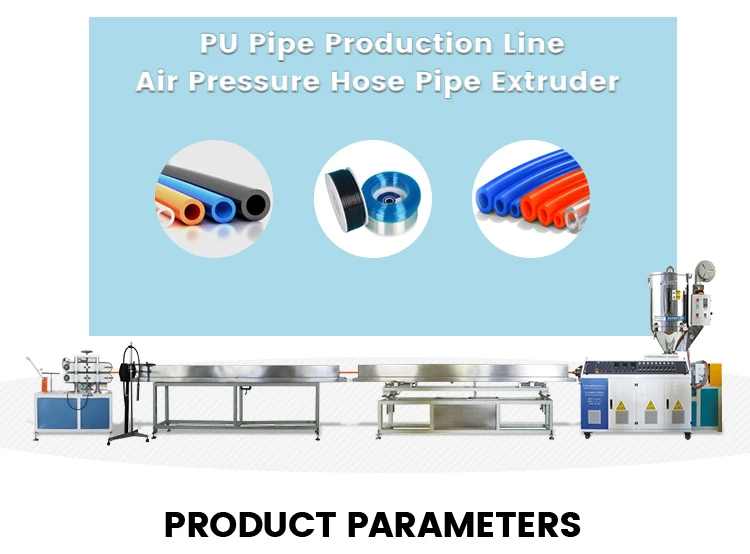

Production line: single screw extruder + mold + sink + traction +winder
Mold type: different mold do all kinds of shapes PVC sealing products
Application: doors and windows, cars, containers, electric vehicles, refrigerators, sterilization cabinets and other sealing products.
1. cooling in Sizing mold in the water tank: vacuum pump will exhausted inside air of molds, cooling the molds and Sizing the profile. because inside molds will have a shape adhesive the profile and provide his support power, so will not happened deforming situation.
2. cooling in the water tank inside of water the profile will lack the support power/mold wall, so there will have deforming machine.
Detailed introduction： The plastic sealing strip production line must go through two processes in production, one process is granulation. Granulation requires a crusher, kneader, pelletizer and pelletizer.
Granulation process：
1. After mixing the auxiliary materials and PVC raw materials with the plastic kneader, put them into the
feed port of the plastic granulator.
feed port of the plastic granulator.
2. After the screw barrel is processed and plasticized, the pelletizer head is extruded into a strip.
3. Then wait for it to cool slightly, put the raw materials into the crusher for crushing.
4. Finally, through the pelletizer link for pelletizing production .
Extrusion process (soft strip)
1. The plastic particles are directly put into the extruder for extrusion production.
2. Cooled directly after forming the mold.
3. Then it can be produced after pulling the strip.
If the extruded sliver does not meet the size required by our or the raw material formula is not mastered, you can directly reprocess the made sliver through the crushing link.
Extrusion process rigid strip
Extrusion -cooling-traction-cutting about cooling principe here is more detailed introduction
1. cooling in Sizing mold in the water tank: vacuum pump will exhausted inside air of molds, cooling the molds and Sizing the profile. because inside molds will have a shape adhesive the profile and provide his support power, so will not happened deforming situation.
2. cooling in the water tank inside of water the profile will lack the support power/mold wall, so there will have deforming machine.

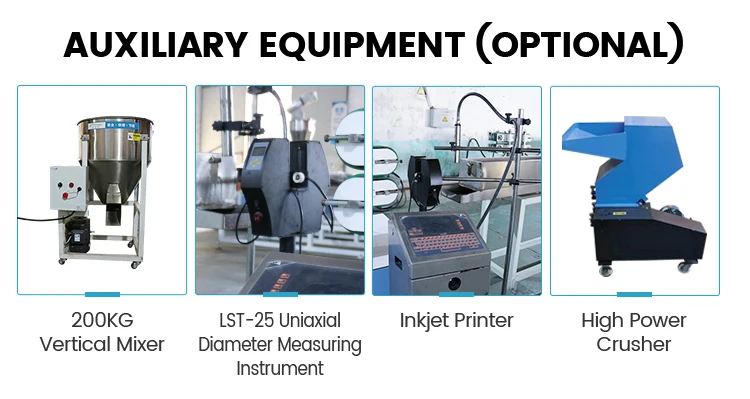

Optional
