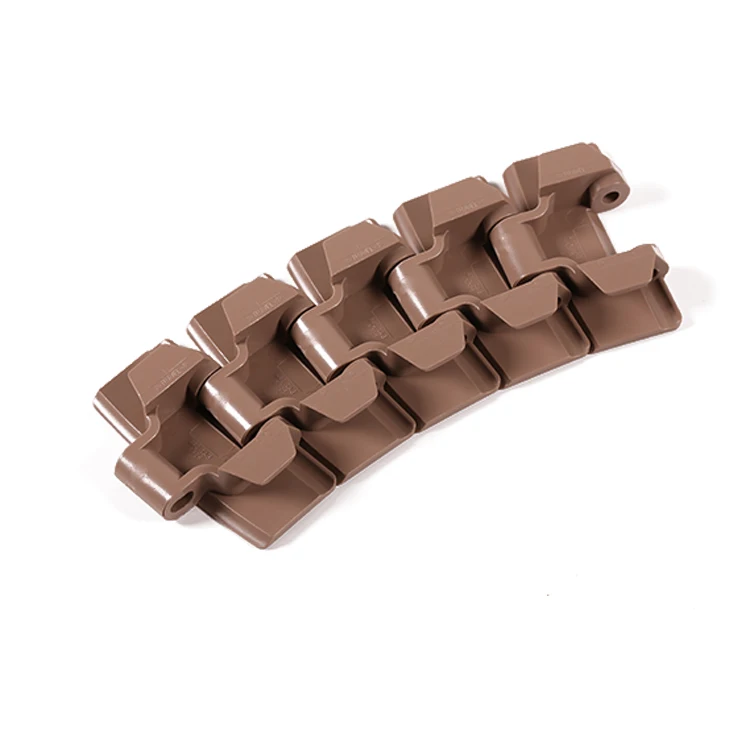

High Quality 880 TAB Side Flexible Plastic Plate Chain For Curved Conveyor
- Category: >>>
- Supplier: Changshuo Converyor Equipment (wuxi) Co. Ltd.
Share on (1600725538322):
Product Overview
Description
Short Description
Mainly used for all kinds of food industry ,such as beverage, bottle, can and other conveyors.
The longest distance: 9M
Max.speed: Lubricant 90M/min
Dryness 60M/min
Working load:2100N
Pitch:38.1mm
Pin material: austenitic stainless steel
Plate material: POM acetal
(Temperature:-40-90℃）
Packing:10 feet=3.048 M/box 26pcs/M
The longest distance: 9M
Max.speed: Lubricant 90M/min
Dryness 60M/min
Working load:2100N
Pitch:38.1mm
Pin material: austenitic stainless steel
Plate material: POM acetal
(Temperature:-40-90℃）
Packing:10 feet=3.048 M/box 26pcs/M

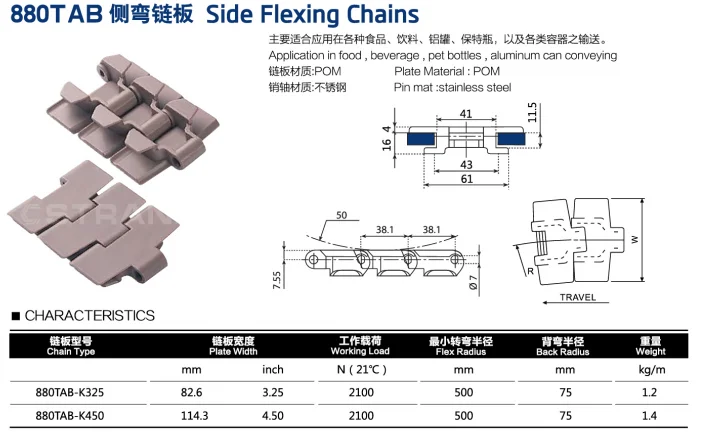

Product Paramenters
Chain Type | Plate Width | Working Load | Side Flex Radius | Back Flex Radius(min) | Weight | ||
mm | inch | N(21℃） | mm | mm | Kg/m | ||
880TAB-K325 | 82.6 | 3.25 | 2100 | 500 | 40 | 0.90 | |
880TAB-K450 | 114.3 | 4.5 | 2100 | 610 | 1.04 | ||

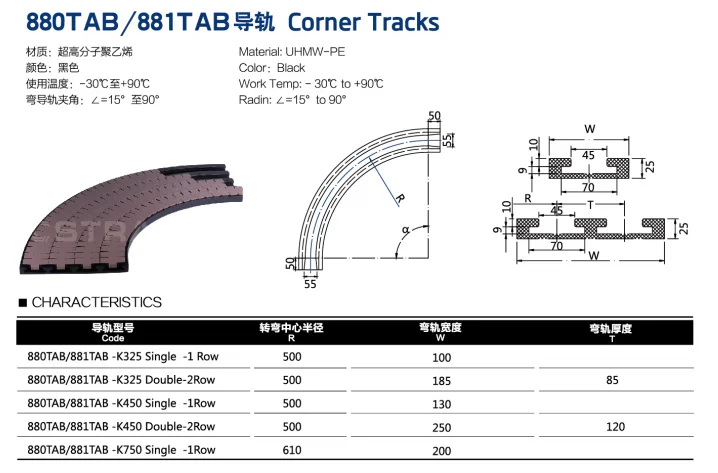

Code | R | w | T | |||
880TAB/881TAB-K325 Single -1 Row | 500 | 100 | ||||
880TAB/881TAB-K325 Single -2 Row | 500 | 185 | 85 | |||
880TAB/881TAB-K450 Single -1 Row | 500 | 130 | ||||
880TAB/881TAB-K450 Single -2 Row | 500 | 250 | 120 | |||
880TAB/881TAB-K750 Single -1 Row | 610 | 200 | ||||
Material:UHMW-PE Color: Black Work Temp:-30℃ to 90℃ Radin: <15°to 90° | ||||||

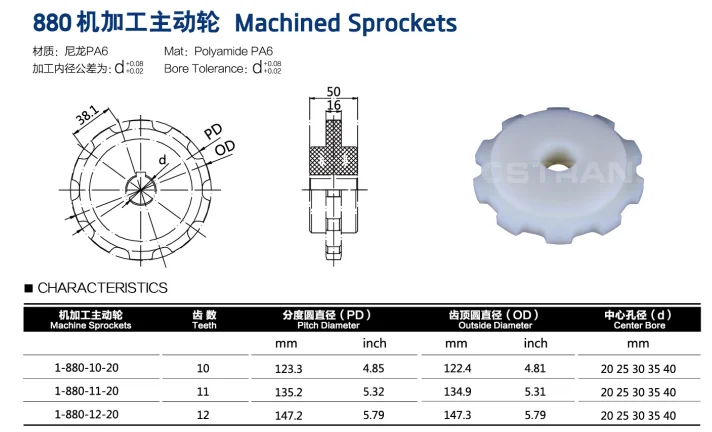

Machined Sprockets
Machined Sprockets | Teeth | PD(mm) | OD(mm) | D(mm) |
1-880-10-20 | 10 | 123.3 | 4.81 | 20 25 30 35 40 |
1-880-11-20 | 11 | 135.2 | 5.31 | 20 25 30 35 40 |
1-880-12-20 | 12 | 147.2 | 5.79 | 20 25 30 35 40 |

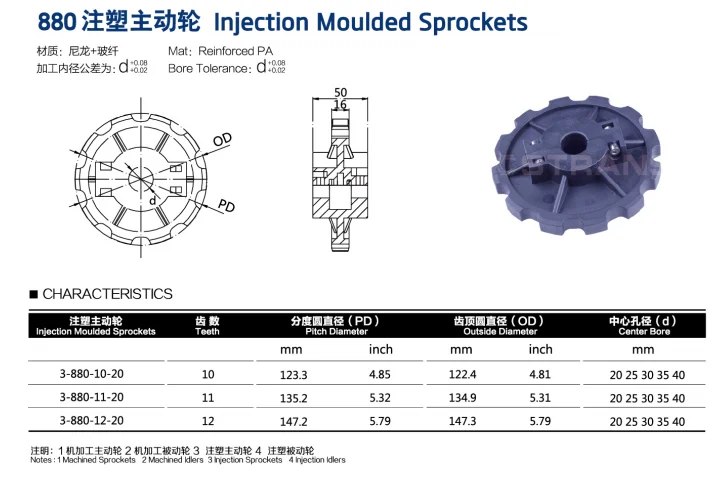

Injection Moulded Sprockets | Teeth | PD(mm) | OD(mm) | D(mm) |
3-880-10-20 | 10 | 123.3 | 122.4 | 20 25 30 35 40 |
3-880-11-20 | 11 | 135.2 | 134.9 | 20 25 30 35 40 |
3-880-12-20 | 12 | 147.2 | 147.3 | 20 25 30 35 40 |
Application Industries
Mainly used for all kinds of food industry ,such as beverage, bottle, can and other conveyors.
Advantage
It is suitable for single channel or multi-channel turn conveying of bottles, cans, box
frames and other products.
Hook foot limit, smooth operation.
Conveyor line template type buckle assembly, easy to assemble.
frames and other products.
Hook foot limit, smooth operation.
Conveyor line template type buckle assembly, easy to assemble.
Physical and chemical properties
Polyoxymethylene (POM), also known as acetal polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform. POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
