Product Overview
Description
Products Description

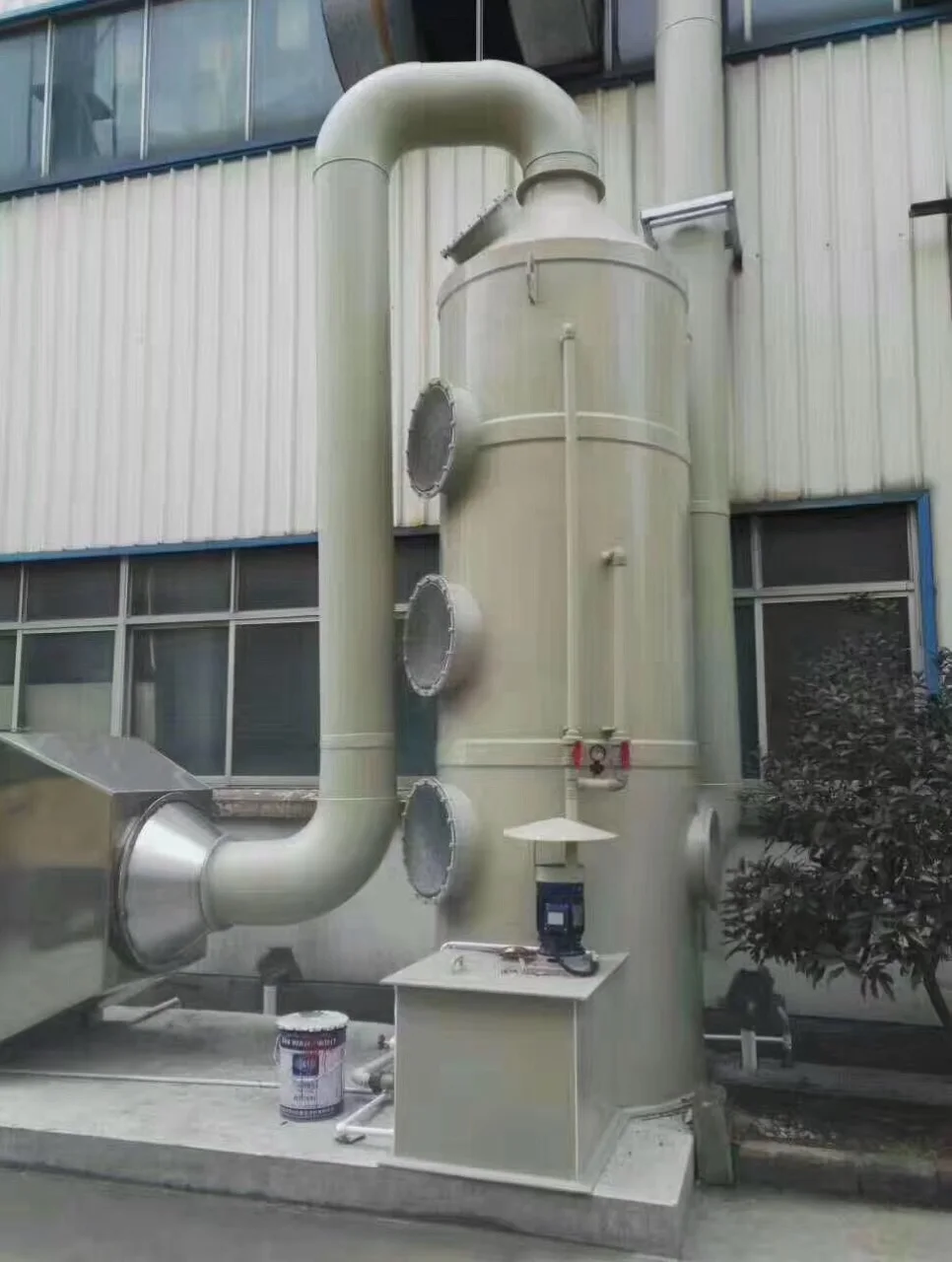

Air Purification Scrubber, also known as washing tower, is a new type of industrial waste gas treatment equipment, according to the size of tower and the need of processing exhaust gas in internal device, one or multi-layer spray device will be installed , which having the effect that filters exhaust gas.
Working principle

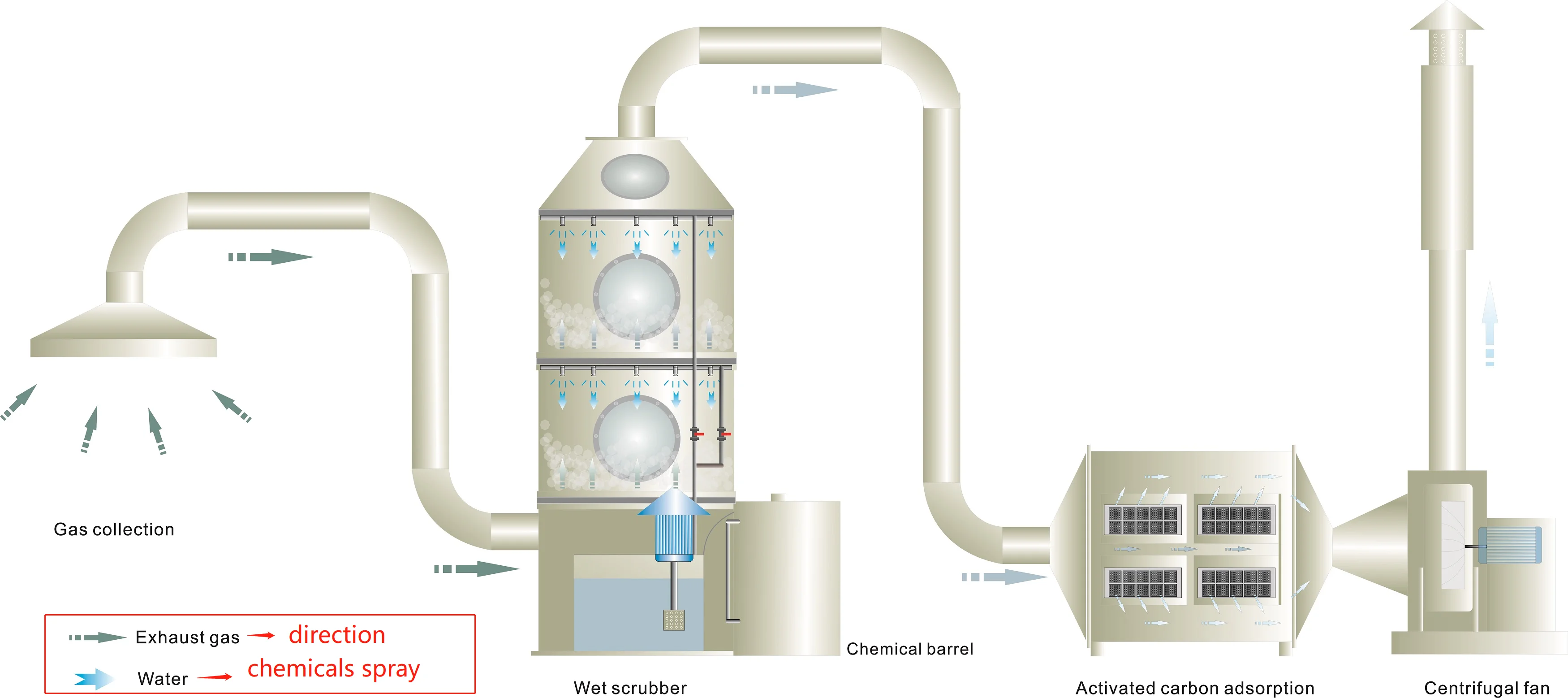

The working principle of the most commonly used industrial wet scrubber is countercurrent spraying: acid or alkaline acid mist exhaust gas is introduced into the purification tower through the air duct, and the exhaust gas is fed from the bottom of the tower through the packing layer. continuous through the voids of the packing layer. On the surface of the packing, the gas-liquid two phases fully contact, absorb and neutralize the reaction, and adsorb the acidic or basic pollutants contained in the exhaust gas.
After the acid mist exhaust gas is purified, the clean gas is dehydrated and demisted by the defogging plate and then discharged into the atmosphere by the fan.
Insoluble viscose particles and dust are poured into the collection tank, suspended particles are discharged from the overflow outlet, and the collected sediment is discharged from the sewage outlet. The absorption liquid is pressurized by the water pump at the bottom of the tower and sprayed downward from the top of the tower, and finally refluxed to the bottom of the tower for recycling.
After the acid mist exhaust gas is purified, the clean gas is dehydrated and demisted by the defogging plate and then discharged into the atmosphere by the fan.
Insoluble viscose particles and dust are poured into the collection tank, suspended particles are discharged from the overflow outlet, and the collected sediment is discharged from the sewage outlet. The absorption liquid is pressurized by the water pump at the bottom of the tower and sprayed downward from the top of the tower, and finally refluxed to the bottom of the tower for recycling.
Product Paramenters
Air volume(M3/H) | Size(mm) | THK(mm) | Drain outlet(mm) | Water tank size(mm) | Inlet and outlet size (mm) | Pump(kw) | Wind resistance (Pa) |
200-4000 | 800 | 8 | DN63 | 700*550*H600 | 315 | 0.75 | 500 |
4000-5500 | 1000 | 8 | DN63 | 750*600*H600 | 400 | 1.1 | 500 |
5500-8000 | 1200 | 8 | DN63 | 750*600*H600 | 500 | 1.5 | 500 |
8000-12000 | 1500 | 8 | DN63 | 750*600*H600 | 600 | 2.2 | 500 |
12000-17000 | 1800 | 10 | DN63 | 850*600*H700 | 650 | 3 | 500 |
17000-21000 | 2000 | 10 | DN63 | 850*600*H700 | 700 | 4 | 500 |
21000-25000 | 2200 | 10 | DN63 | 950*600*H700 | 750 | 4 | 600 |
25000-32000 | 2500 | 12 | DN63 | 950*600*H700 | 800 | 5.5 | 600 |
32000-40000 | 2800 | 12 | DN63 | 1000*700*H700 | 900 | 7.5 | 600 |
40000-48000 | 3000 | 12 | DN63 | 1000*700*H700 | 1000 | 7.5 | 600 |
This form is a common size and we can customize different sizes and requirements according to your needs.
The material is pp polypropylene.

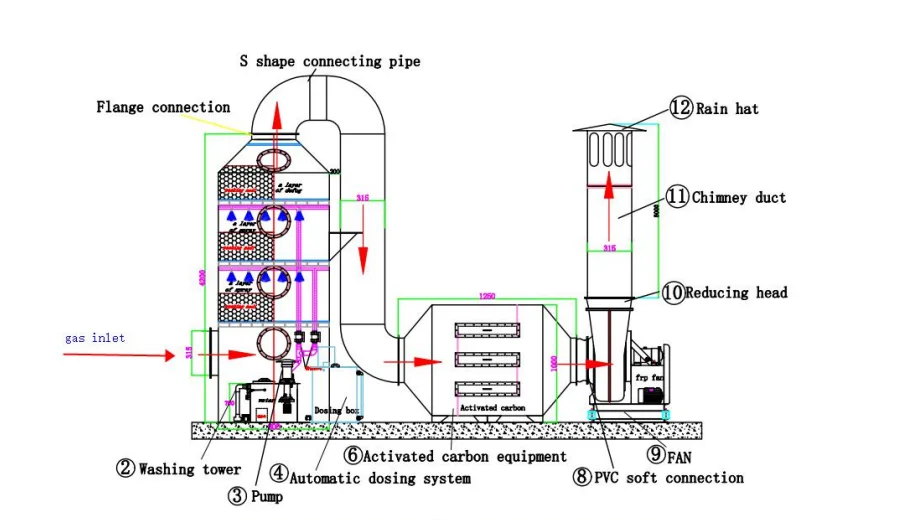

Installation Instruction
1. Connect your exhaust chimney outlet to the inlet of the washing tower (exhaust gas scrubber);
3. Connect the outlet of the activated carbon equipment to the inlet of the centrifugal fan through the PVC soft connection;
4. Connect the outlet of the centrifugal fan to the chimney duct through the reducing head;
5. The exhaust gas will be purified by the washing tower, and then enter the activated carbon equipment through the S-shaped connecting pipe for adsorption, so as to obtain clean gas, which will enter the atmosphere through the centrifugal fan and chimney duct.
2. Connect the outlet of the washing tower to the inlet of the activated carbon equipment through the S-shaped connecting pipe;
3. Connect the outlet of the activated carbon equipment to the inlet of the centrifugal fan through the PVC soft connection;
4. Connect the outlet of the centrifugal fan to the chimney duct through the reducing head;
5. The exhaust gas will be purified by the washing tower, and then enter the activated carbon equipment through the S-shaped connecting pipe for adsorption, so as to obtain clean gas, which will enter the atmosphere through the centrifugal fan and chimney duct.

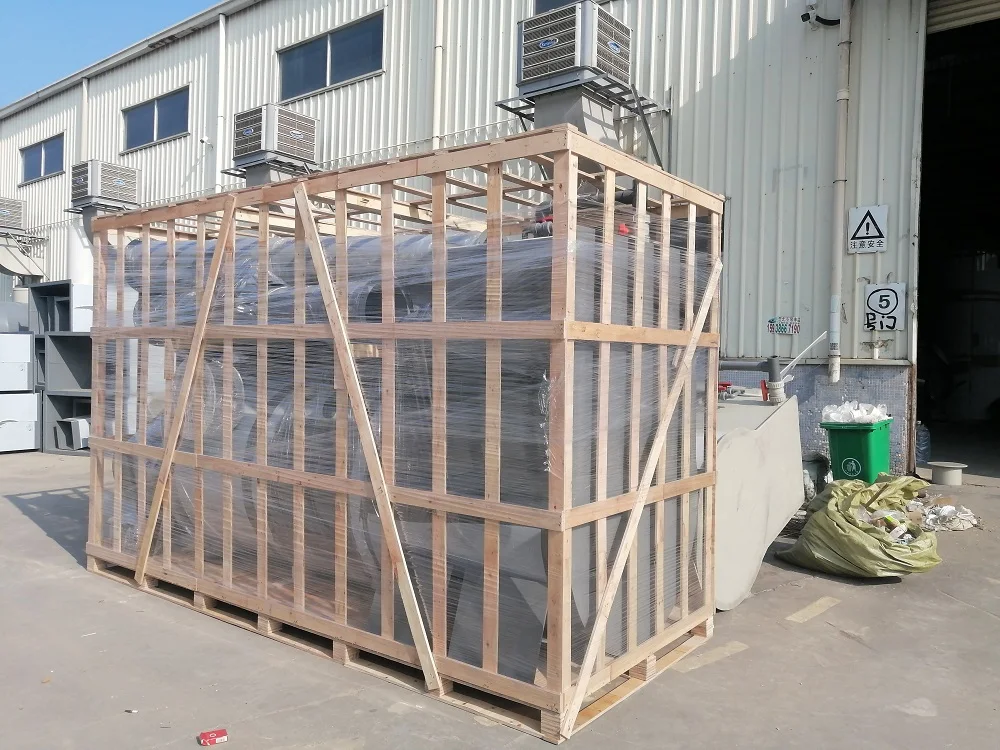

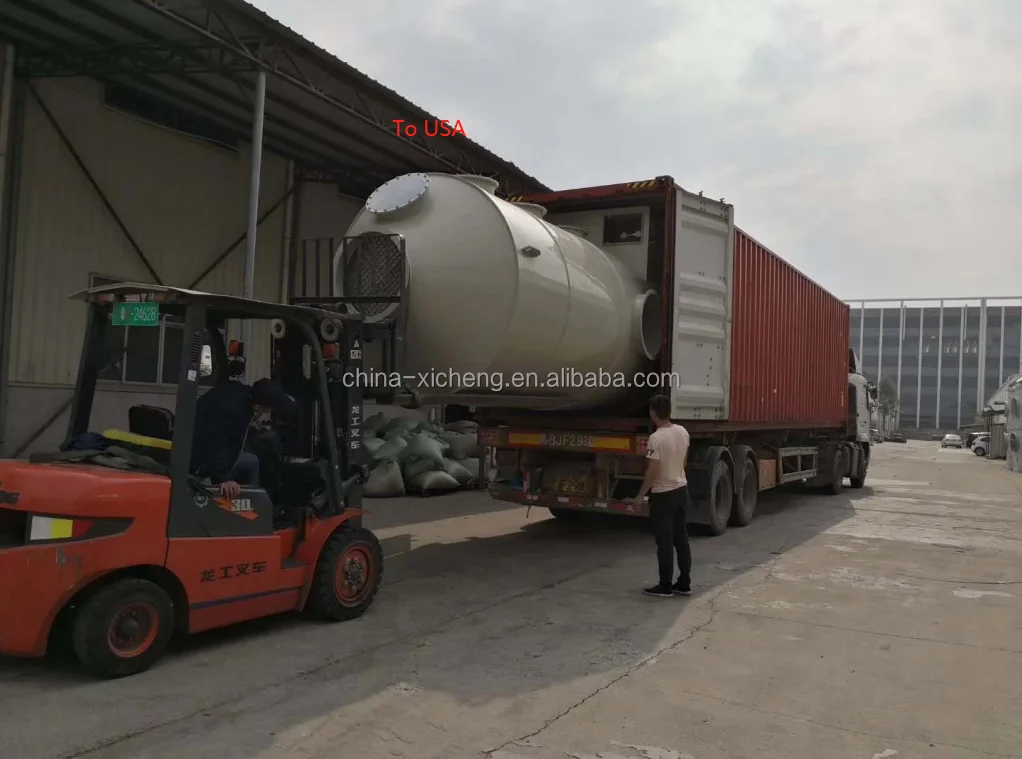

Packing
Company Profile
Shenzhen XiCheng Environmental Technology Co., LTD. is located in Guangming District, Shenzhen. It is an environmental protection equipment manufacturer which has been focusing on the environmental protection industry for many years and specializing in the production and sales of environmental protection equipment and various accessories.
With the aims of "Quality First, Mutual Benefit, Cooperation and Win-Win", our company is directed by market demand and has independently developed new varieties to satisfy different industries' needs for the differences and diversification of plastics.

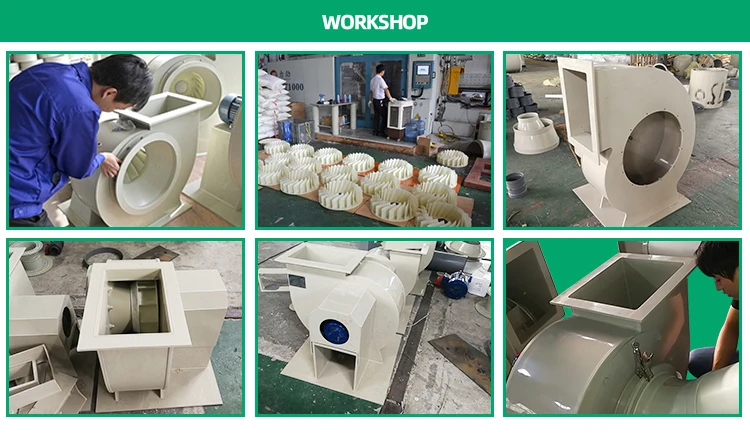

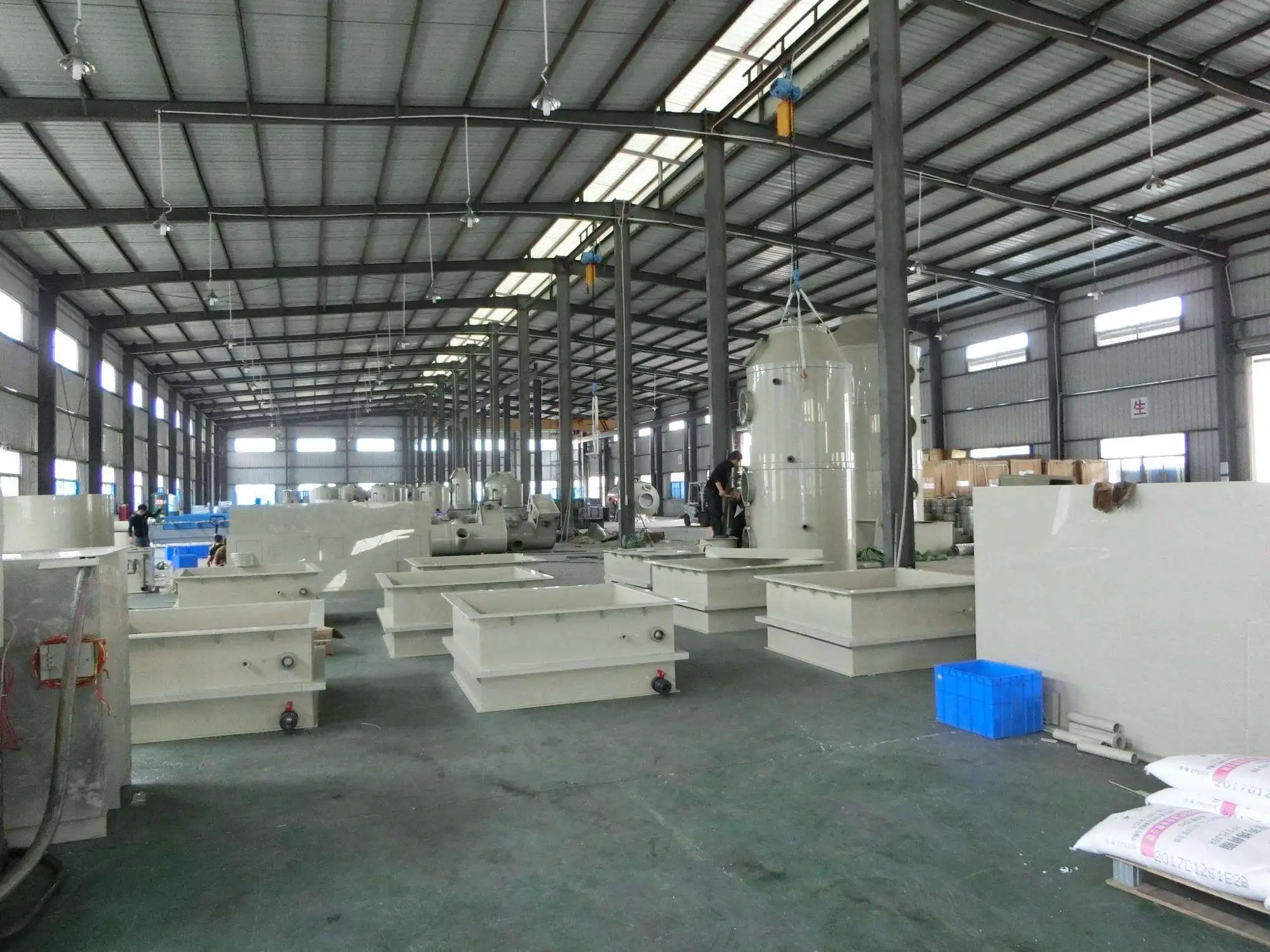

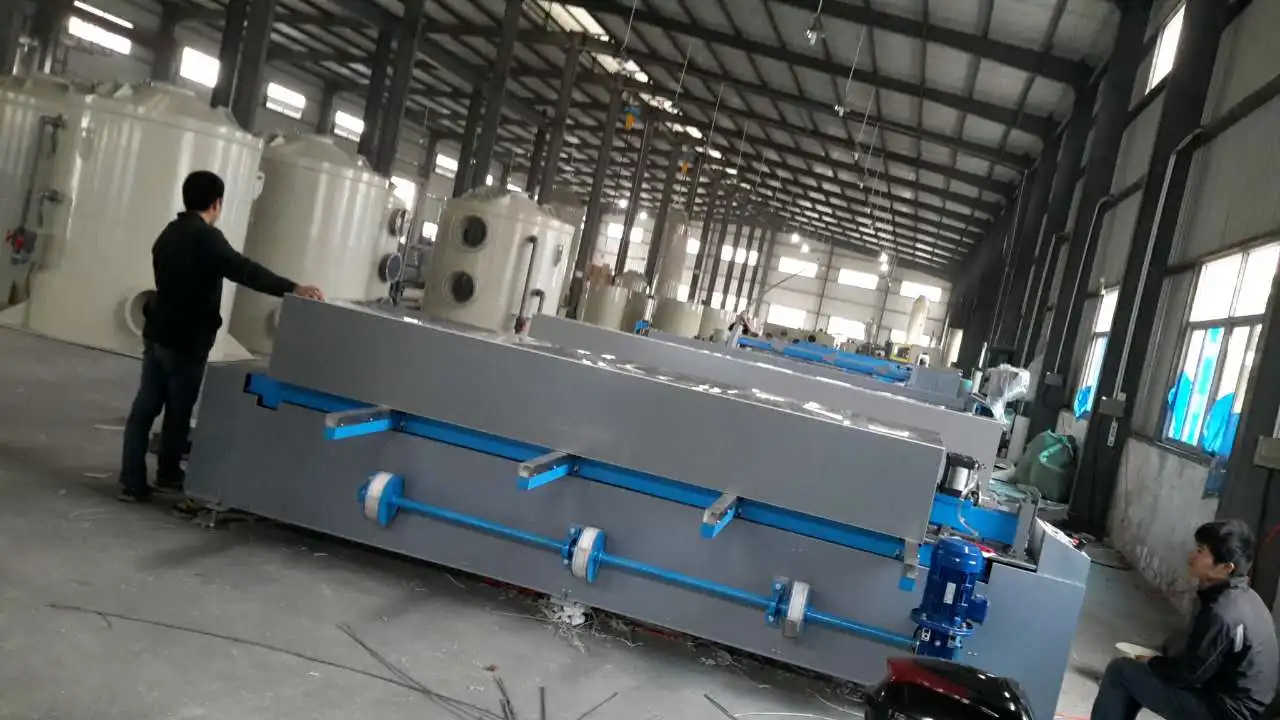

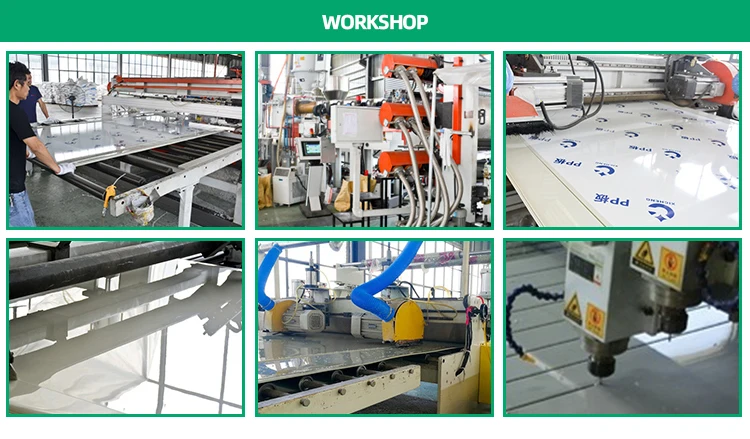

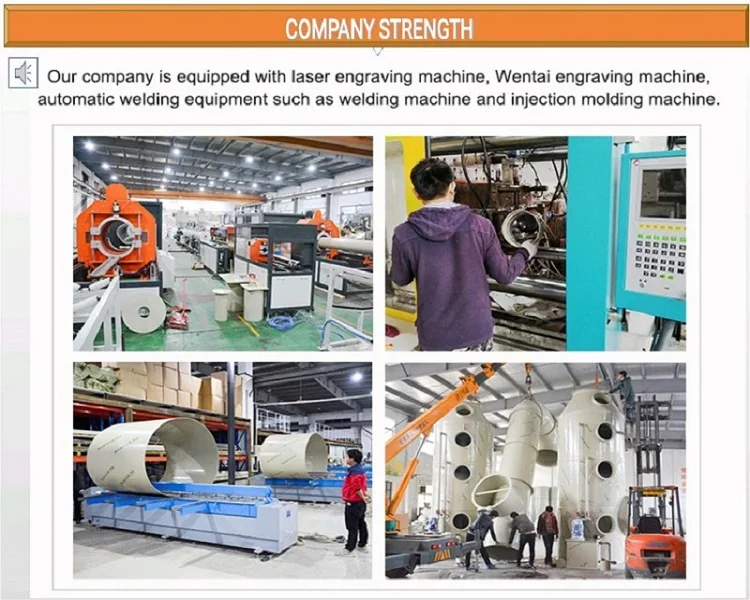

Company Strength
Company Service

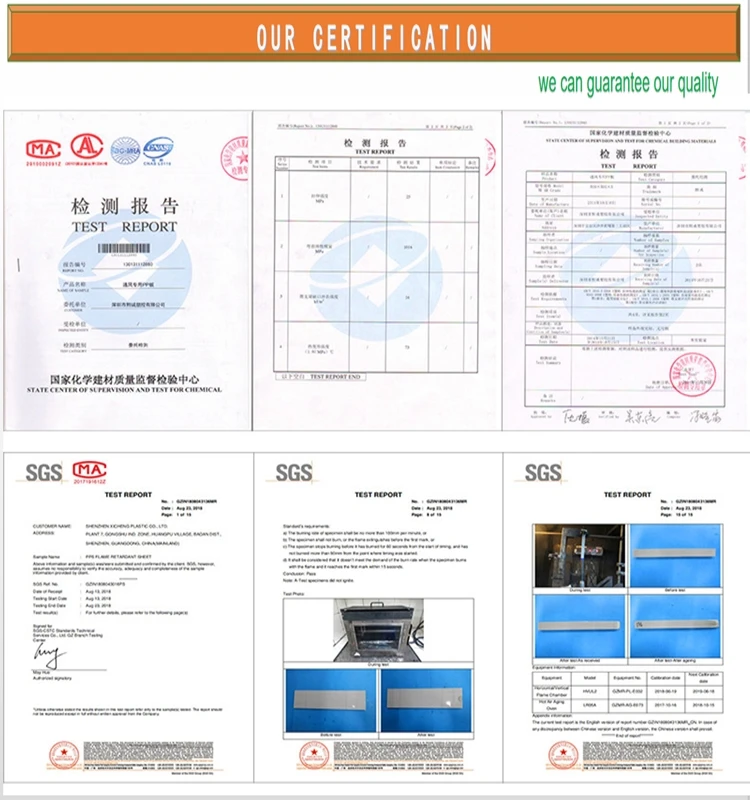

Certificate and test report
Why Choose Us

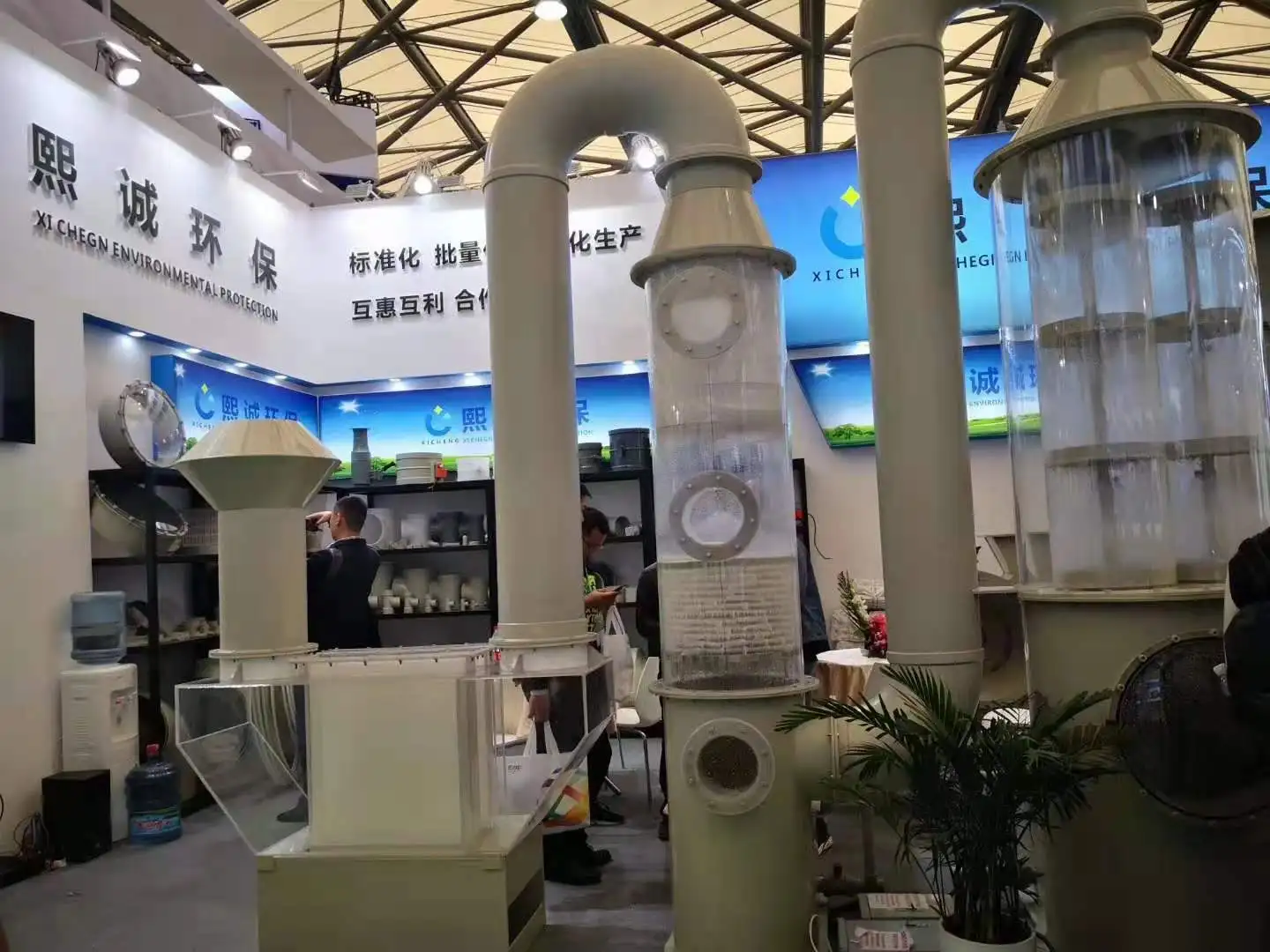

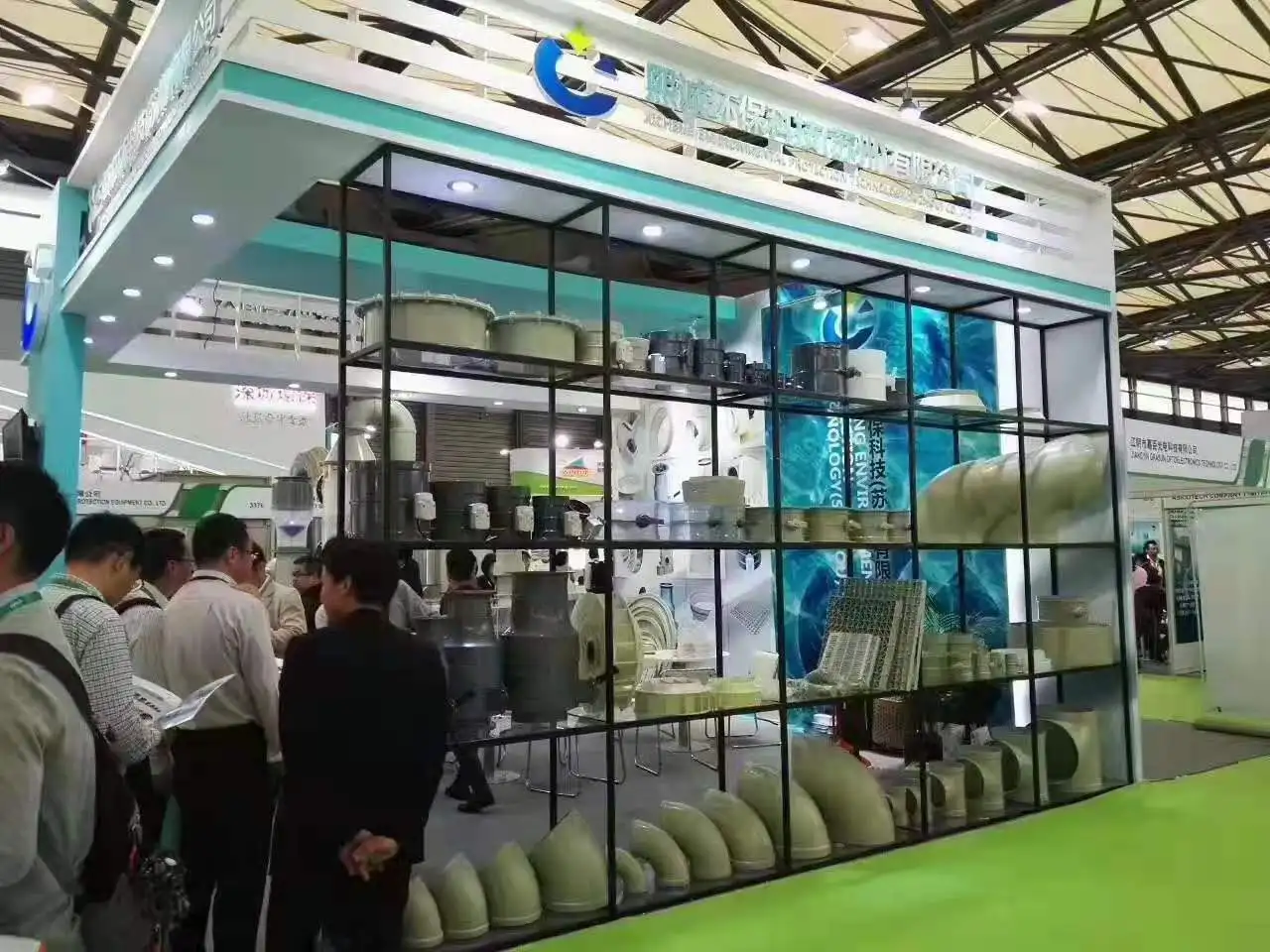

Exhibitions
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Domestic Market(56.00%),Southeast Asia(10.00%),Western Europe(8.00%),Mid East(4.00%),North America(3.00%),South America(3.00%),Oceania(3.00%),Southern Europe(3.00%),Eastern Europe(2.00%),Africa(2.00%),Eastern Asia(2.00%),Northern Europe(2.00%),Central America(00.00%),South Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wet Scrubber/ Activated Carbon Air Filter,Air Damper Valve,PP Pipe,PP Tank
4. why should you buy from us not from other suppliers?
Our company has been focusing on the environmental protection industry for many years and specializing in the production and sales of environmental protection equipment and accessories. Our company has an excellent team with advanced service concept.
5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW；
Accepted Payment Currency: USD, HKD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2016,sell to Domestic Market(56.00%),Southeast Asia(10.00%),Western Europe(8.00%),Mid East(4.00%),North America(3.00%),South America(3.00%),Oceania(3.00%),Southern Europe(3.00%),Eastern Europe(2.00%),Africa(2.00%),Eastern Asia(2.00%),Northern Europe(2.00%),Central America(00.00%),South Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wet Scrubber/ Activated Carbon Air Filter,Air Damper Valve,PP Pipe,PP Tank
4. why should you buy from us not from other suppliers?
Our company has been focusing on the environmental protection industry for many years and specializing in the production and sales of environmental protection equipment and accessories. Our company has an excellent team with advanced service concept.
5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW；
Accepted Payment Currency: USD, HKD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
