Product Overview
Description
Weighing Powder Filling Machine Is Divided Into: LTWGF-W25, LTWGF-W50, LTWGF-W75S, LTWGF-W100S, LTWGF-B50, LTWGF-B100 And Other Models.
This Series Packing Machines Can Handle Weighing, Filling Functions Etc. Featured With Real-Time Weighing And Filling Design These Machine Can Be Used To Pack High Accuracy Required, With Uneven Density, Free Flowing Or Non Free Flowing Powder Or Small Granule.I.e. Protein Powder ,Food Additive, Solid Beverage, Sugar, Toner, Veterinary And Carbon Powder Etc.
Machine Parameters

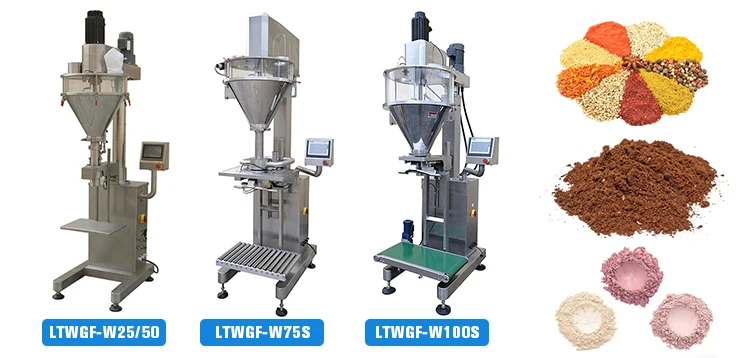

Model | LTWGF-W25 | LTWGF-W50 | LTWGF-W75S | LTWGF-W100S | |||
Packing Weight | 1g - 900g | 10g - 5000g | 10g - 10kg | 1kg - 50kg | |||
Packing Accuracy | <100g,≤±1-2%; 100-900g, ≤±1-2g; | 100-1000g, ≤±2g; ≥1000g, ≤±0.1-0.2% | 100-1000g,≤±2g; ≥1000g, ≤±0.1-0.2% | 1 – 20kg, ≤±0.1-0.2%, >20kg, ≤±0.05-0.1% | |||
Packing Speed | 8 - 15 times per min | 5 - 12 times per min | 5 - 12 times per min | 1- 8 times per min | |||
Power Supply | 3P AC208 - 415V 50/60Hz | ||||||
Compressed air | 6kg/cm3 0.1cbm/min | ||||||
Total Power | 0.93Kw | 1.4Kw | 2.25Kw | 2.37Kw | |||
Total Weight | 130kg | 260kg | 350kg | ||||
Overall Dimension | 800×790×1900mm | 1200×900×2200mm | 1205×1010×2174mm | 1125×975×2500mm | |||
Hopper Volume | 25L | 50L | 75L | 100L | |||
Features
1.Stainless Steel Structure; Quick Disconnecting Or Split Hopper Could Be Washed Easily Without Tools.
2. Servo Motor Drive Screw.

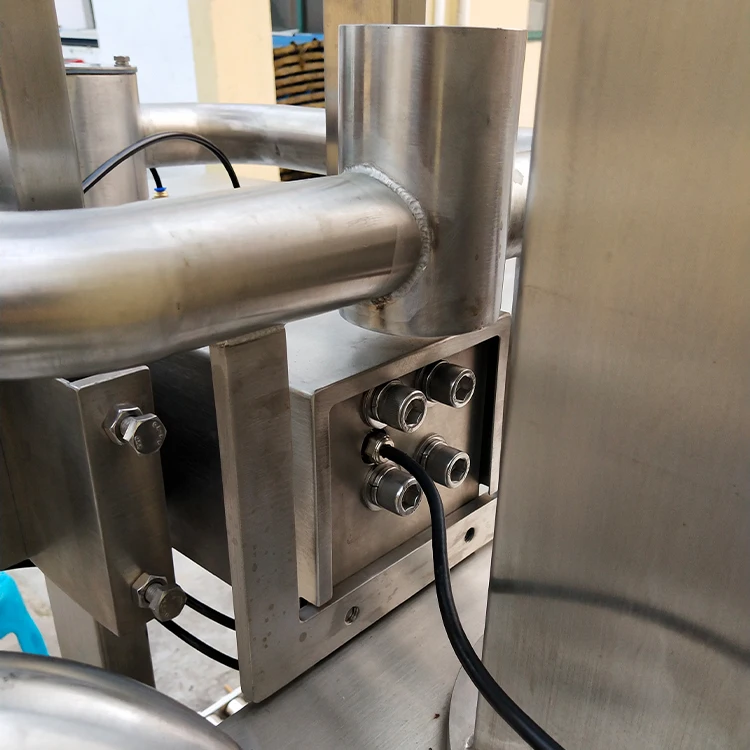

3.Pneumatic Bag Clamper And Platform Equip With Load Cell To Handle Two Speeds Filling As Per Preset Weight. Featured With High Speed And Accuracy Weighing System.
4.Plc Control, Touch Screen Display, Easy To Operate.
5.Two Filling Modes Can Be Inter-Changeable, Fill By Volume Or Fill By Weight. Fill By Volume Featured With High Speed But Low Accuracy. Fill By Weight Featured With High Accuracy But Low Speed.
6. Save The Parameter Of Different Filling Weight For Different Materials. To Save 10 Sets At Most.
7.Replacing The Auger Parts, It Is Suitable For Material From Super Thin Powder To Granule.
3.Pneumatic Bag Clamper And Platform Equip With Load Cell To Handle Two Speeds Filling As Per Preset Weight. Featured With High Speed And Accuracy Weighing System.
4.Plc Control, Touch Screen Display, Easy To Operate.
5.Two Filling Modes Can Be Inter-Changeable, Fill By Volume Or Fill By Weight. Fill By Volume Featured With High Speed But Low Accuracy. Fill By Weight Featured With High Accuracy But Low Speed.
6. Save The Parameter Of Different Filling Weight For Different Materials. To Save 10 Sets At Most.
7.Replacing The Auger Parts, It Is Suitable For Material From Super Thin Powder To Granule.
This Model Is Designed Mainly For The Fine Powder Which Easily To Spout Dust And High-Accuracy Packing Requirement. Based On The Feedback Sign Given By Below Weight Sensor, This Machine Do Measuring, Two-Filling , And Up-Down Work ,Etc. It Is Specially Suitable For Filling Additives, Carbon Powder, Dry Powder Of Fire Extinguisher, And Other Fine Powder Which Needs High Packing Accuracy.
Machine Parameters

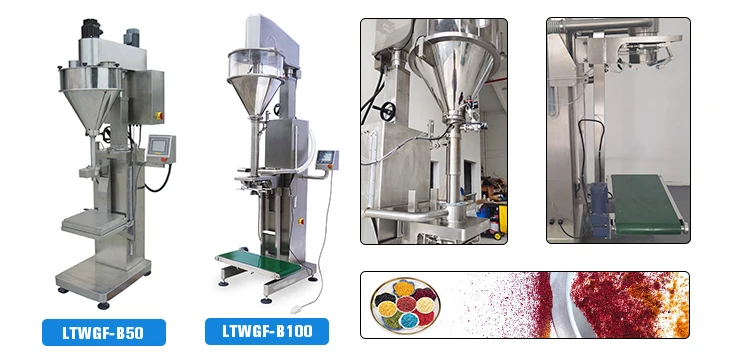

Model | LTWGF-B50 | LTWGF-B100 | |
Packing Weight | 100g - 10kg | 1kg - 25kg | |
Packing Accuracy | 100-1000g, ≤±2g; ≥1000g, ≤±0.1-0.2% | 1 – 20kg, ≤±0.1-0.2%, >20kg, ≤±0.05-0.1% | |
Packing Speed | 5 - 10 times per min | 2 - 6 time per min | |
Power Supply | 3P AC208 - 415V 50/60Hz | ||
Air Supply | 6kg/cm2 0.1m3/min | ||
Total Power | 2.65 Kw | 3.62Kw | |
Total Weight | 350kg | 500kg | |
Overall Dimension | 1135×890×2500mm | 1125×975×3230mm | |
Hopper Volume | 50 L | 100 L | |
Features
1.Pneumatic Bag Clamper And Platform Equip With Load Cell To Handle Two Speeds Filling As Per Preset Weight. Featured With High Speed And Accuracy Weighing System To Guarantee The High Packaging Accuracy.
2.Servo Motor Does Up-Down Work Driving With Tray Together, The Up-Down Rate Can Be Set Randomly, No Dust Spouts Out When Filling.
3.With Servo Motor And Servo Drive Controlled Auger, Perform Stably, And With High Accuracy.
4.PLC Control, Touch Screen Display, Easy To Operate.
5.Made Of Stainless Steel, Combined Hopper Or Split Hopper, Easily To Be Cleaned.
6.With Handwheel To Adjust The Height , Easy To Fill Many Kinds Of Weight.
7.With Fixed Screw Installation, The Material Quality Won’t Be Effected.
7.With Fixed Screw Installation, The Material Quality Won’t Be Effected.
Process:
Put Bag/Can(Container) On The Machine → Container Raise → Fast Filling, Container Declines → Weight Reaches The Pre-Set Number → Slow Filling → Weight Reaches The Goal Number → Take The Container Away Manually
Note: The Pneumatic Bag-Clamp Equipment And Can-Hold Set Is Optional ,They Are Suitable For Can Or Bag Filling Separately.
Two Filling Modes Can Be Inter-Changeable,Fill By Volume Or Fill By Weight.Fill By Volume Featured With High Speed But Low Accuracy.Fill By Weight Featured With High Accuracy But Low Speed.
Product Details

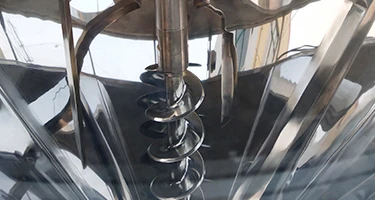

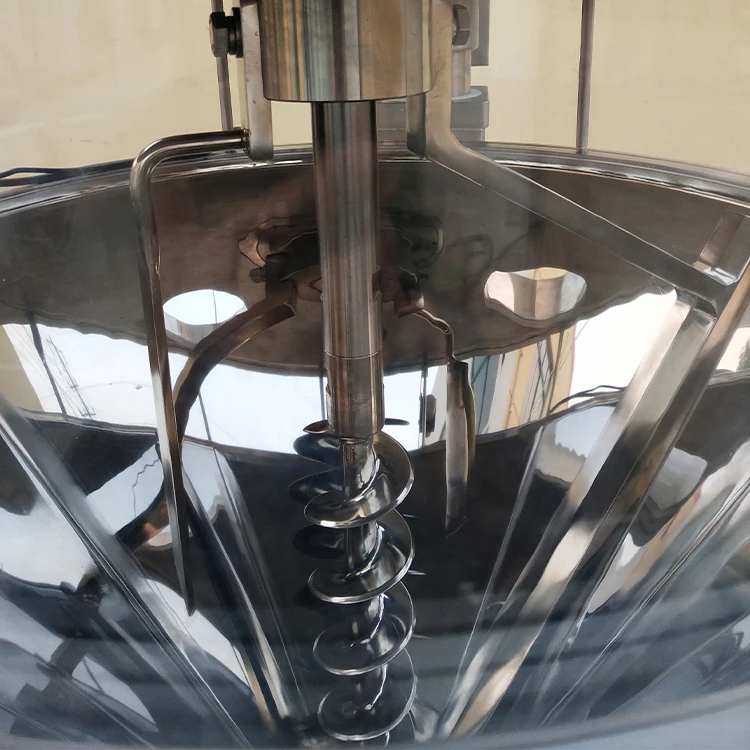

Feeding Screw:
The Rotating Screw Can Make The Powder Material Unloading More Smoothly

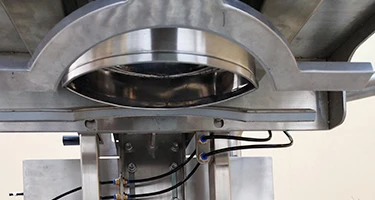

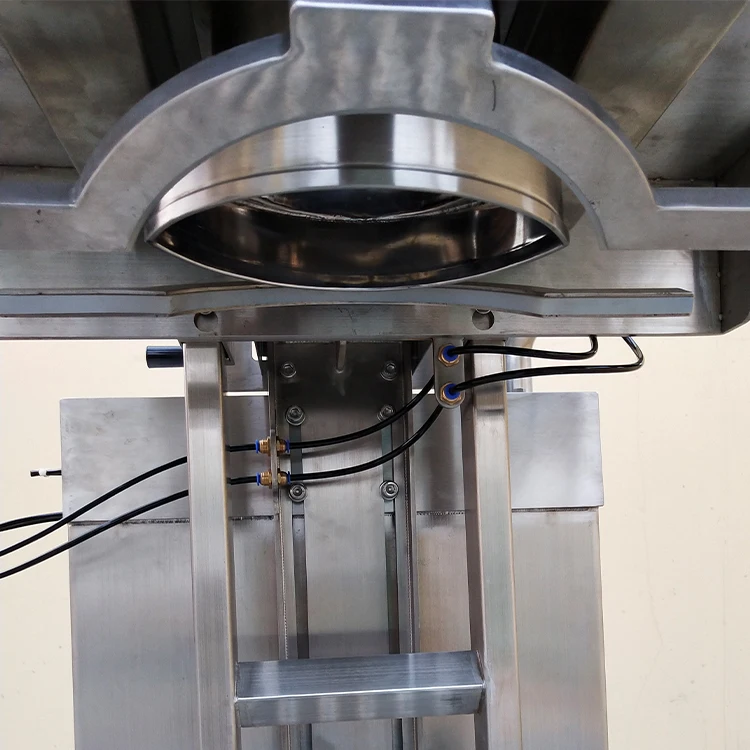

Outlet:
Made Of Stainless Steel, There Are Grooves At The Outlet, And Other Shapes Of Outlets Can Be Installed According To Different Bottle Types

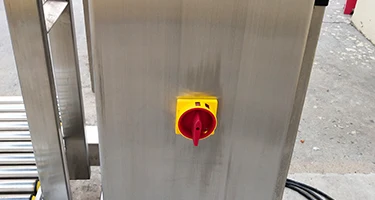

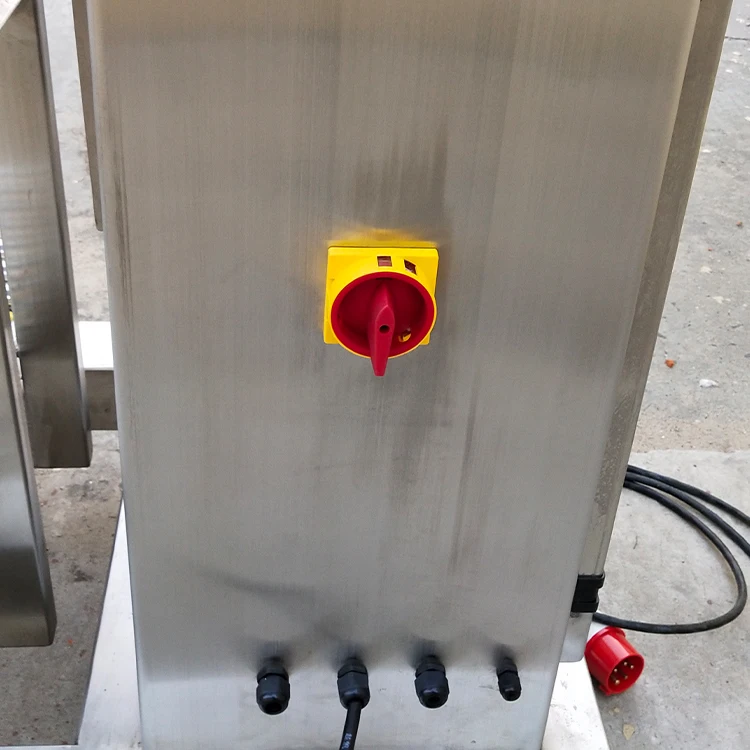

Emergency Stop Button:
If There Is Any Accident, You Can Turn This Button To Stop The Machine Directly

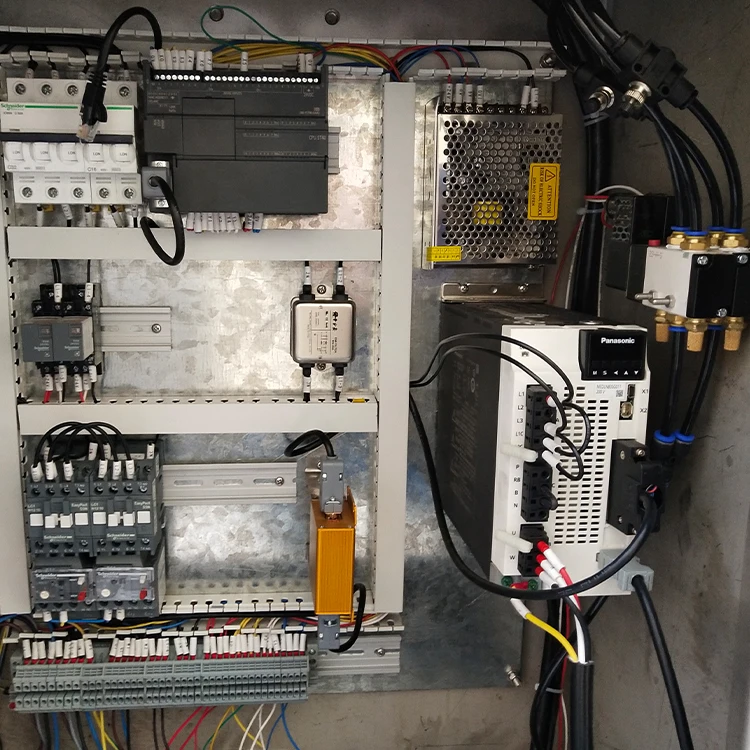

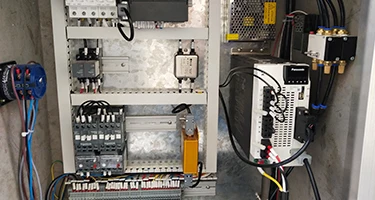

Electric Control Cabinet:
The Circuit Layout Is Simple, And Different Electrical Platforms Can Be Replaced According To Customer Requirements, Such As Siemens, Schneider, Etc.
