Food Packaging Evaporation Residue Test Instrument Evaporation Residue Tester
- Category: >>>
- Supplier: Labthink Instruments Co. Ltd.
Share on (1600725610208):
Product Overview
Description
Product Description

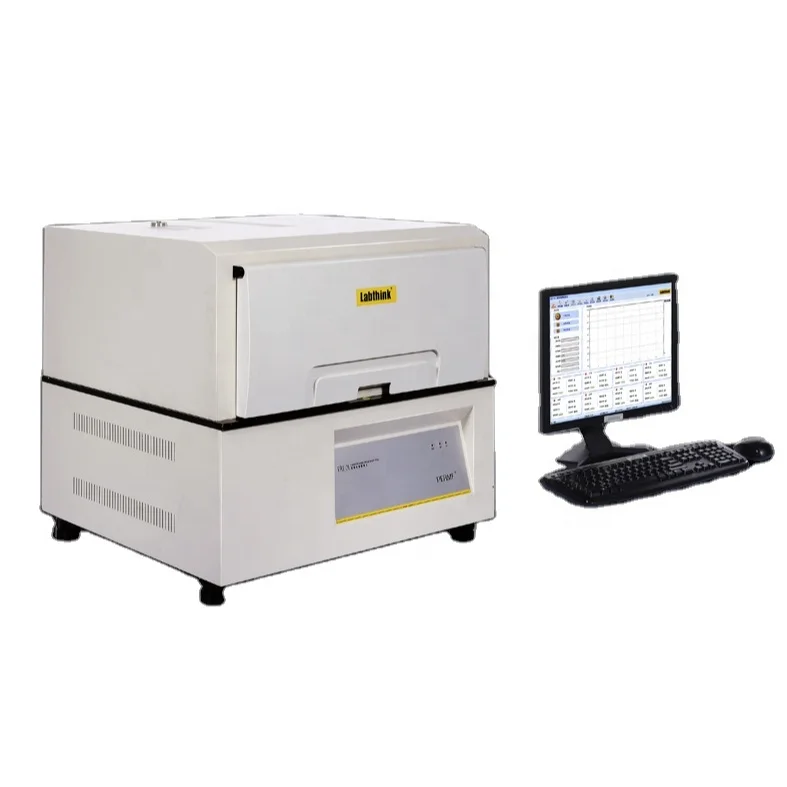

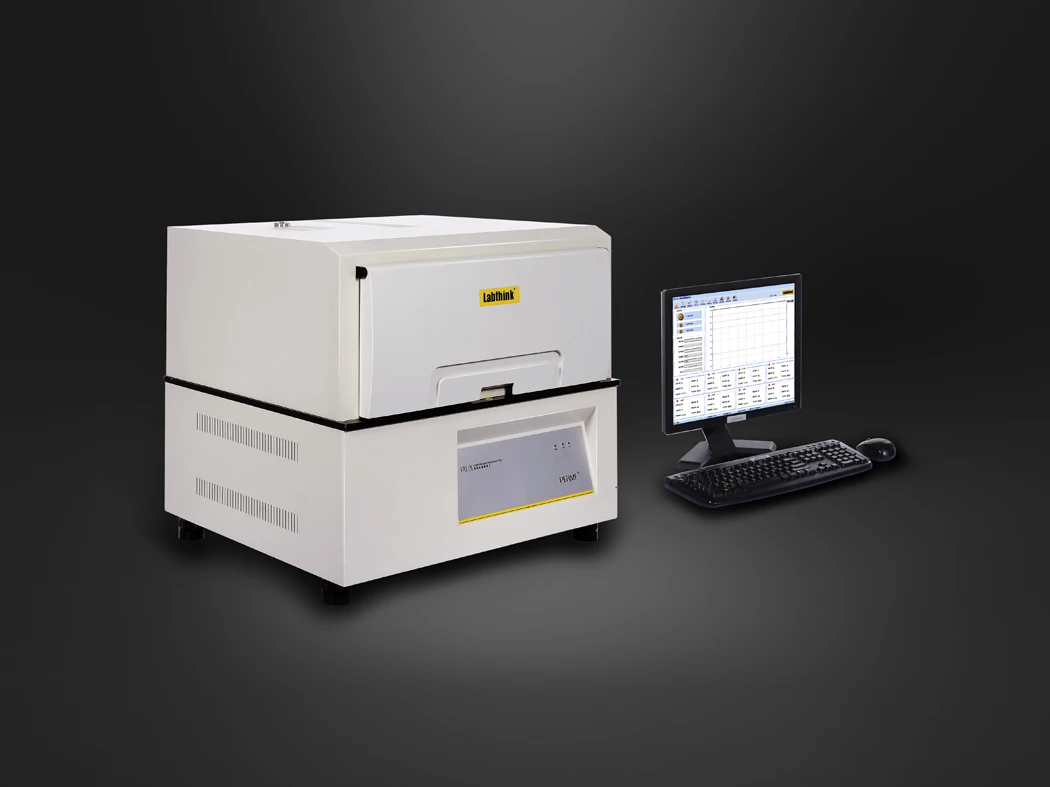

ERT-01 Evaporation Residue Constant Weight Tester is professionally designed for the precisely quantitative determination of dissolved substances of table wares, containers, packaging films, cans, tubes and other food-use equipments in different soaking solutions. Polyethylene (PE), polystyrene (PS), polypropylene (PP), and chlorinated PVC resin are used as raw materials of such objects. By the further detection of evaporation residues, more dissolution indexes could be obtained to meet different application requirements of products. The instrument also supports LystemTM Lab Data Sharing System, which ensures uniform management of test results and test reports.
Features
* Proportional, standard and differential value modes are available for different test requirements of users
* 8 specimen tests could be performed simultaneously with automatic testing process, which greatly improves determination
efficiency.
* Test process can be simplified by automatic conduction of control test
* Automatic lifting structure design and periodically weighing method to reduce system errors
* Auto re-zero before each weighing ensures the accuracy of test results
* Special designs of hot wind circulation in test cells, auto temperature control and automatic dehumidification support various
combinations of non-standard test conditions
* The instrument could perform weighing directly at high temperature to avoid human interference, and further ensure test
accuracy
* Standard weight for fast and accurate calibration
Standards
GBT 5009.60-2003, GB/T 5009.64-2003, GB/T 5009.68-2003, GB/T 5009.69-2008, GB/T 5009.203-2003, and GB/T 9740-2008
Applications
Food Package Test
Evaporation residue test of food packages, table wares, packaging films and others which are made from PE, PS and PPSealing
Gaskets of Food Cans
Evaporation residue test of sealing gaskets of bottles and cans for food, including packages for drinks, wine, and other flavoring
Coating and Food Packages
Evaporation residue test of food packages which are made from chlorinated PVC resin, including chlorinated PVC resin inner
coatings, food packagesCoating Iron Sheet
Evaporation residue test of epoxy-phenol resin paint coated inside of food cans, including coating iron sheetPackages for Plant
Fiber Food
Evaporation residue test of food packages made from plant fiber pulpChemical Reagents
Evaporation residue test of samples in different chemical reagents that could evaporate in boiling water bath and dissolve most of
samples
Specifications | |
Test Range | 0 ~ 80 g (residue weight) |
Accuracy | 0.3 mg |
Resolution | 0.1 mg |
Test Temperature | 100°C ~ 130 °C (standard) |
Accuracy | ±0.2 °C (standard) |
Air Velocity | 0.2 m/s |
Specimen Volume | 0 ~ 200 mL |
Number of Specimens | 1 ~ 8 pieces (with independent test results) |
Test Chamber Size | 64 L |
Gas Supply | Air |
Gas Supply Pressure | 0.6 MPa |
Port Size | Φ6 mm PU Tubing |
Instrument Dimension | 826 mm (L) x 727 mm (W) x 755 mm (H) |
Power Supply | 220VAC 50Hz / 120VAC 60Hz |
Net Weight | 150 kg |
