Dune buggy diesel trailer sports tracks 4x4 electric off road quadriciclo utv
- Category: >>>
- Supplier: Jiangsu Trail-Blazer Manufacturing Co. Ltd.
Share on (1600725619905):
Product Overview
Description
Product Description
UTV-01322
| 2 SEATS 4 SEATS | UTV150/300 specification | |||
| model | UTV300(two seats) | UTV300(four seats) | UTV150 (two seats) | UTV150(four seats) |
| Vehicle parameters | ||||
| length | 2600mm | 3350mm | 2600mm | 3350mm |
| width | 1260mm | 1260mm | 1260mm | 1260mm |
| hight | 1600mm | 1600mm | 1600mm | 1600mm |
| wheel base | 1830mm | 2580mm | 1830mm | 2580mm |
| front wheel center distance | 1080mm | 1080mm | 1080mm | 1080mm |
| rear wheel center distance | 985mm | 985mm | 985mm | 985mm |
| Minimum ground clearance | 160mm | 160mm | 160mm | 160mm |
| max speed | 65KM/H | 65KM/H | 60KM/H | 43KM/H |
| net weight | 300KG | 350KG | 280KG | 330KG |
| packing size | 2300*1330*880 | 3000*1330*880 | 2300*1330*880 | 3000*1330*880 |
| engine parameters | ||||
| engine model | 173MN | 173MN | JL1P57F | JL1P57F |
| engine type | four stroke | four stroke | four stroke | four stroke |
| cylinder qty | single cyclinder | single cyclinder | single cyclinder | single cyclinder |
| cooling method | water cool | water cool | force air cool | force air cool |
| displacement | 275.6cc | 275.6cc | 149.6cc | 149.6cc |
| bore | 72.5 | 72.5 | 57.4 | 57.4 |
| stroke | 66.8 | 66.8 | 57.8 | 57.8 |
| compression ratio | 10:1 | 10:1 | 9.2:1 | 9.2:1 |
| fuel supply mode | External electronic oil pump | External electronic oil pump | Negative pressure oil pump | Negative pressure oil pump |
| carburetor type | Y28V1L | Y28V1L | PD24J | PD24J |
| power | 13KW/6500RPM | 13KW/6500RPM | 7.4KW/7500RPM | 7.4KW/7500RPM |
| torque | 22Nm/5000RPM | 22Nm/5000RPM | 13Nm/5000RPM | 13Nm/5000RPM |
| ignition mode | battery ignition | battery ignition | battery ignition | battery ignition |
| lubrication mode | splash | splash | splash | splash |
| spark plug model | DR8EA | DR8EA | C7HSA | C7HSA |
| spark plug clearance | 0.6-08mm | 0.6-08mm | 0.6-07mm | 0.6-07mm |
| crankcase lubrication oil model | SAE 10W/40 | SAE 10W/40 | SAE 10W/40 | SAE 10W/40 |
| fuel number | gasoline ≥92# | gasoline ≥92# | gasoline ≥92# | gasoline ≥92# |
| transmission mode | continuously variable speed CVT | continuously variable speed CVT | continuously variable speed CVT | continuously variable speed CVT |
| transmission | built in reverse | built in reverse | built in reverse | built in reverse |
| other parameters | ||||
| battery model | YTX12-BS 12V10Ah | YTX12-BS 12V10Ah | YTX12-BS 12V10Ah | YTX12-BS 12V10Ah |
| fuse | 30A | 30A | 30A | 15A |
| front wheel model | 22*7-10 | 22*7-10 | 22*7-10 | 22*7-10 |
| rear wheel model | 22*10-10 | 22*10-10 | 22*10-10 | 22*10-10 |
| brake type | hydraulic disk brake | hydraulic disk brake | hydraulic disk brake | hydraulic disk brake |
| front suspension type | double A arm independent suspension | double A arm independent suspension | double A arm independent suspension | double A arm independent suspension |
| rear suspension type | independent suspension | independent suspension | rear axle with double shockabsorber | rear axle with double shockabsorber |
| driven type | rear wheel driven | rear wheel driven | rear wheel drive | rear wheel drive |
| tyre pressure | 80-100kpa | 80-100kpa | 80-100kpa | 80-100kpa |

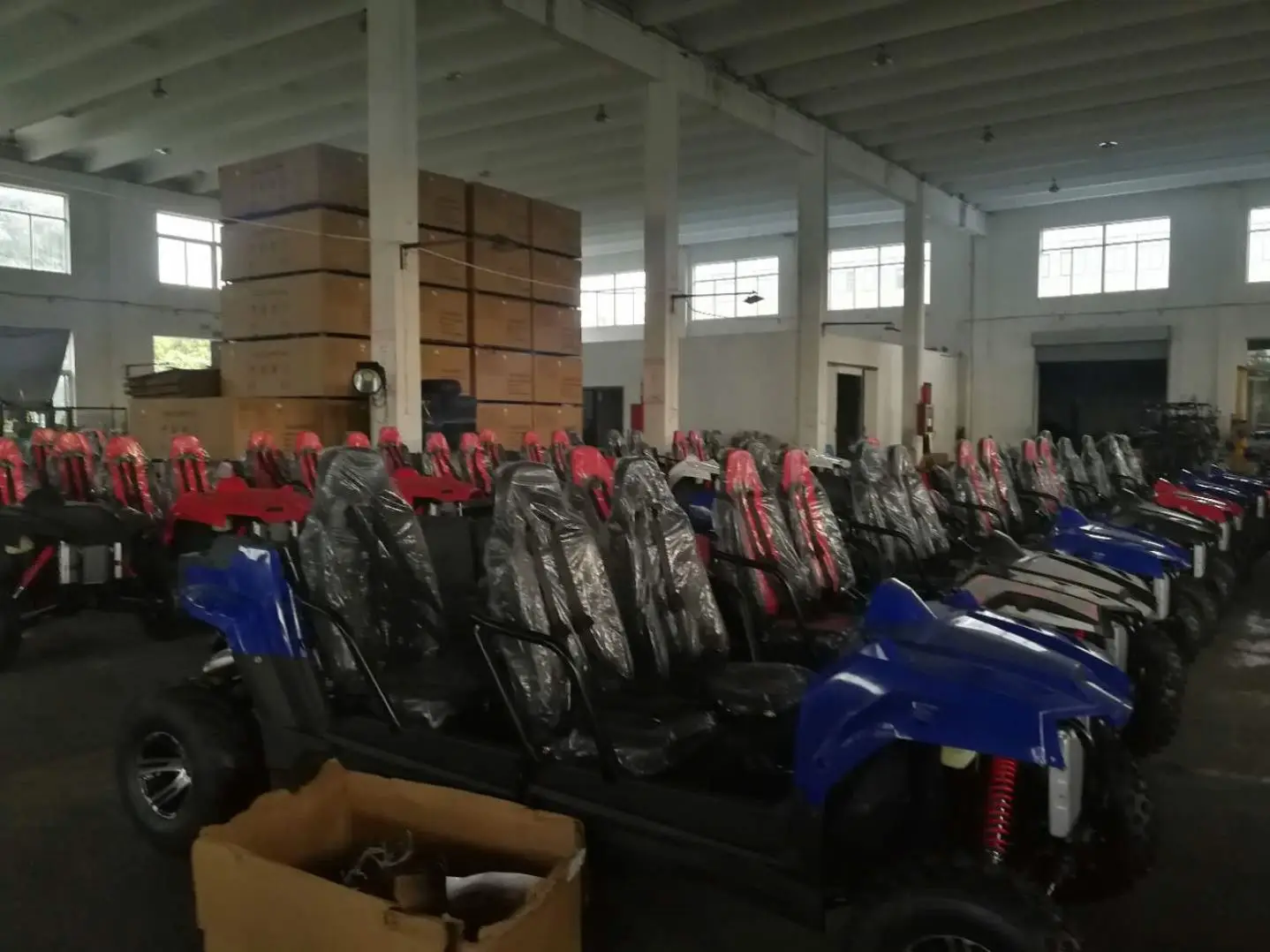

Production Process

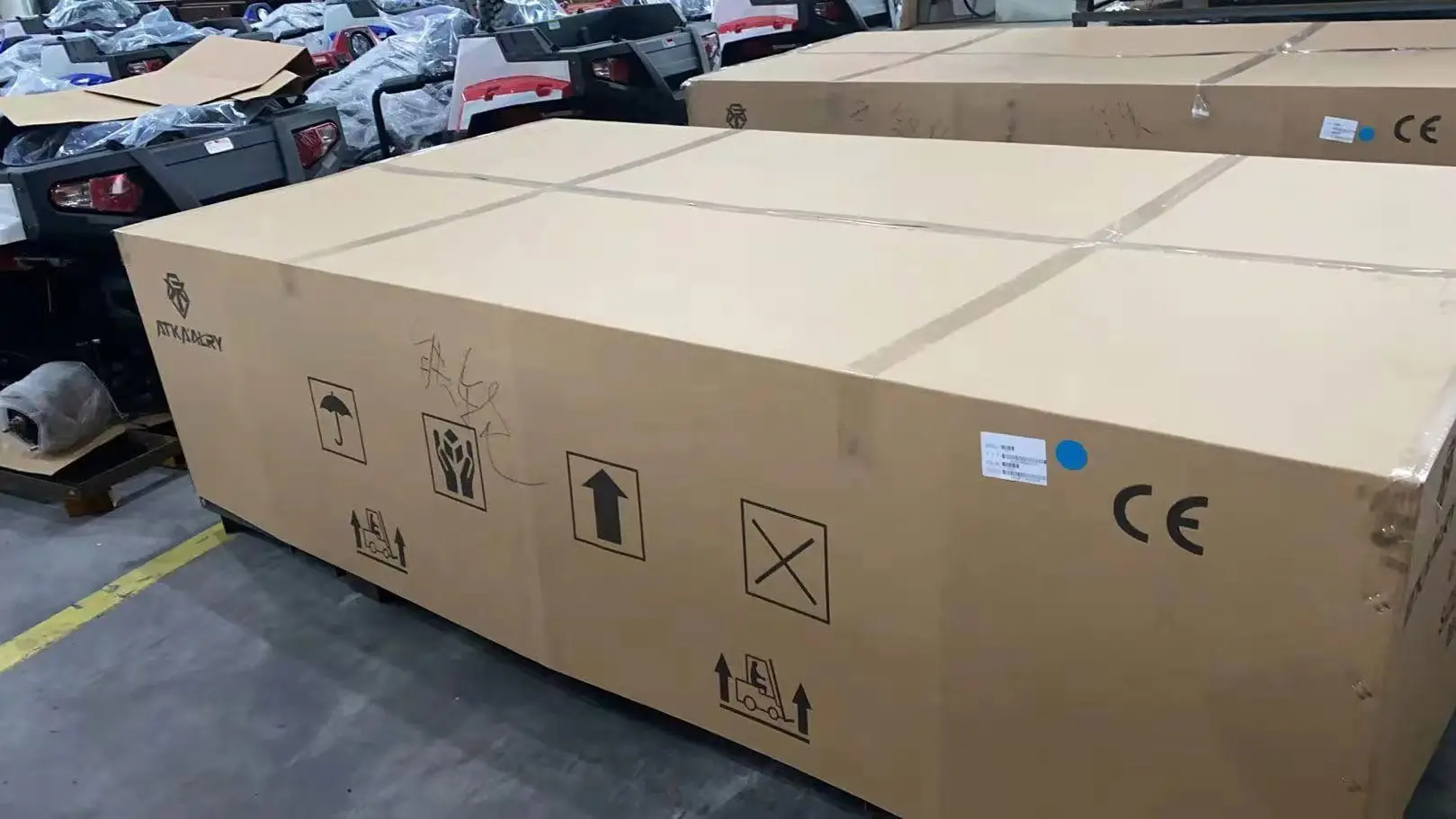

Packaging & Shipping
Company Information
LH Industry Trail-blazer manufacturing co. Ltd.has become the premier Chinese motorsports vehicle manufacturer and distributor in the world .we specialize in designing & producing go kart buggy ,utv side by side, atv quad , dirt bike motorcycle ,gas and electric scooters, E-bikes for more than 15 years .covers an area of 12000 m2 factory and warehouse and more than 120 employees.
We specializes in traditional whole exporting and E-commerce for after market parts and accessories for all kinds international famous brand like polaris, Honda, Kawasaki, Suzuki, Yamaha,ATV, UTV, dirt bikes scooters and also for china made powersports.More importantly, we STOCK what we sell, 90% of our items we have it in stock.
excellent quality and reasonable price,welcome your inquiry.
FAQ
1. Q May I get some samples?
A: We are honored to offer you samples for quality and performance confirming.
2. Q: Do you have the products ready for shipment ?
A: No. All vehicles are to be produced according to your order..
3. Q: how long is the delivery time?
A:normally 25 working days to produce an order from MOQ to 40HQ container..
4. Q: is it possible to mix different models in one container?
A: Yes, different models can be mixed in one container.
5. Q: How does your factory do regarding quality control?
A: we start quality control from beginning to end of production .first parts inspection ,then assemble checking , and final adjusting and testing., each products will be carefully checked . we are manufacture and we have final responsible for our products quality .
