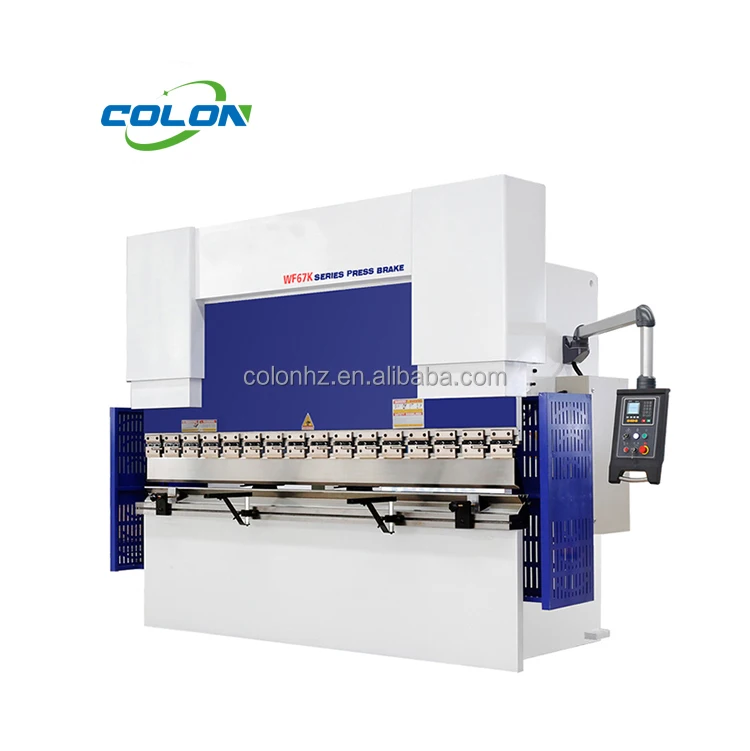

WF67k 100t/3200 CNC Press Brake Machine Hydraulic plate bending Press Brake Price 63t 2500mm with delem system
- Category: >>>
- Supplier: Hangzhou Colon Digital Technology Co. Ltd.
Share on (1600725620064):
Product Overview
Description
Hydraulic type bending machinery torsion bar stainless steel metal WF67k series cnc press brake machine
Product Description
This machine is designed limiting limit elements analyzing and optimization made of entirely steel structure. Using liberation effort to eliminate inner stress, the rigidity of machine is guaranteed.
1 Slider adopt torsion shaft synchronization mechanism, high-precision twisting axis centering taper bearing at both ends of torsion shaft, and to install eccentricity adjusting mechanism.
2 The upper die that is equipped with accurate compensating mechanism, to compensate deflection generated by table and slider when mechanical loads, can make the work piece acquire better precision of bending.
3 The bending angle adjustment by reducer driven by a mechanical block inside the fuel tank, trip counter display value.
4 Installed long-distance pressure-regulator valve on column right side.
5 Wallboard inside with manual pumps.
6 Back gauge adopt grinding plate design, high regulation accuracy.
1 Slider adopt torsion shaft synchronization mechanism, high-precision twisting axis centering taper bearing at both ends of torsion shaft, and to install eccentricity adjusting mechanism.
2 The upper die that is equipped with accurate compensating mechanism, to compensate deflection generated by table and slider when mechanical loads, can make the work piece acquire better precision of bending.
3 The bending angle adjustment by reducer driven by a mechanical block inside the fuel tank, trip counter display value.
4 Installed long-distance pressure-regulator valve on column right side.
5 Wallboard inside with manual pumps.
6 Back gauge adopt grinding plate design, high regulation accuracy.
Specification
Model | Workbench Width (mm) | Poles Distance (mm) | Throat Depth (mm) | Slider Stroke (mm) | Max Opening Height (mm) | Slider Stroke Adjust Length (mm) | Oil Cylinderdia (mm) | Main Motor (kW) | Dimension(L*W*H) (mm) |
40T/2200 | 130 | 1600 | 200 | 100 | 320 | 70 | 110 | 5.5 | 2300*1100*1900 |
40T/2500 | 130 | 1900 | 200 | 100 | 320 | 70 | 110 | 5.5 | 2600*1100*1900 |
50T/2200 | 160 | 1600 | 200 | 100 | 320 | 70 | 125 | 5.5 | 2300*1150*1940 |
50T/2500 | 160 | 1900 | 200 | 100 | 320 | 70 | 125 | 5.5 | 2600*1150*1940 |
63T/2500 | 160 | 1900 | 250 | 120 | 345 | 100 | 140 | 5.5 | 2600*1500*2200 |
63T/3200 | 160 | 2600 | 250 | 120 | 345 | 100 | 140 | 5.5 | 3300*1500*2200 |
80T/2500 | 180 | 1900 | 250 | 120 | 350 | 100 | 160 | 5.5 | 2600*1700*2320 |
80T/3200 | 180 | 2600 | 250 | 120 | 350 | 100 | 160 | 5.5 | 3300*1700*2320 |
80T/4000 | 180 | 3100 | 250 | 120 | 350 | 100 | 160 | 5.5 | 4100*1700*2320 |
100T/2500 | 180 | 1900 | 320 | 120 | 380 | 100 | 170 | 7.5 | 2600*1750*2420 |
100T/3200 | 180 | 2600 | 320 | 120 | 380 | 100 | 170 | 7.5 | 3300*1750*2420 |
100T/4000 | 180 | 3100 | 320 | 120 | 380 | 100 | 170 | 7.5 | 4000*1750*2420 |
100T/6000 | 200 | 14800 | 320 | 120 | 380 | 100 | 170 | 7.5 | 6000*1750*2620 |
125T/2500 | 180 | 1900 | 320 | 120 | 380 | 100 | 190 | 7.5 | 2600*1750*2520 |
125T/3200 | 180 | 2600 | 320 | 120 | 380 | 100 | 190 | 7.5 | 3200*1750*2520 |
125T/4000 | 180 | 3100 | 320 | 120 | 380 | 100 | 190 | 7.5 | 4000*1750*2520 |
125T/5000 | 200 | 3950 | 320 | 120 | 380 | 100 | 190 | 7.5 | 5000*1750*2520 |
125T/6000 | 200 | 4800 | 320 | 120 | 380 | 100 | 190 | 7.5 | 6100*1750*2720 |
160T/3200 | 200 | 2550 | 320 | 200 | 450 | 150 | 220 | 11 | 3300*1850*2700 |
160T/4000 | 200 | 3040 | 320 | 200 | 450 | 150 | 210 | 11 | 4000*1850*2550 |
160T/5000 | 200 | 3800 | 400 | 200 | 450 | 150 | 210 | 11 | 5100*2000*3000 |
160T/6000 | 200 | 4800 | 400 | 200 | 450 | 150 | 210 | 11 | 6100*2000*3200 |
200T/2500 | 220 | 1840 | 350 | 250 | 500 | 180 | 240 | 11 | 2600*2150*2950 |
200T/3200 | 220 | 2540 | 350 | 250 | 500 | 180 | 240 | 11 | 3200*2150*2950 |
200T/4000 | 220 | 3100 | 350 | 250 | 500 | 180 | 240 | 11 | 4000*2150*2950 |
200T/5000 | 220 | 3800 | 350 | 250 | 500 | 180 | 240 | 11 | 5100*2150*3200 |
200T/6000 | 220 | 4800 | 350 | 250 | 500 | 180 | 240 | 11 | 6100*2150*3300 |
250T/2500 | 240 | 1800 | 350 | 250 | 520 | 200 | 260 | 18.5 | 2600*2200*3300 |
250T/3200 | 240 | 2500 | 350 | 250 | 520 | 200 | 260 | 18.5 | 3200*2200*3300 |
250T/4000 | 240 | 3030 | 350 | 250 | 520 | 200 | 260 | 18.5 | 4000*2200*3300 |
250T/5000 | 240 | 4000 | 350 | 250 | 520 | 200 | 260 | 18.5 | 5100*2200*3300 |
250T/6000 | 260 | 4800 | 400 | 250 | 520 | 200 | 260 | 18.5 | 6100*2300*3500 |
300T/3200 | 240 | 2500 | 400 | 250 | 520 | 200 | 295 | 18.5 | 3200*2300*3350 |
300T/4000 | 240 | 3100 | 400 | 250 | 520 | 200 | 295 | 18.5 | 4000*2300*3550 |
300T/6000 | 280 | 4800 | 400 | 250 | 520 | 200 | 295 | 18.5 | 6100*2300*3800 |
350T/3200 | 320 | 2500 | 400 | 250 | 540 | 200 | 320 | 18.5 | 3200*2300*3550 |
350T/4000 | 320 | 3100 | 400 | 250 | 540 | 200 | 320 | 18.5 | 4100*2500*3650 |
350T/5000 | 380 | 4000 | 400 | 250 | 540 | 200 | 320 | 18.5 | 5100*2300*3900 |
350T/6000 | 320 | 4600 | 400 | 250 | 540 | 200 | 320 | 18.5 | 6100*2500*3900 |
400T/3200 | 320 | 2500 | 400 | 250 | 540 | 200 | 350 | 30 | 3300*2700*3600 |
400T/4000 | 320 | 3100 | 400 | 250 | 540 | 200 | 350 | 30 | 4100*2700*3800 |
400T/5000 | 320 | 4000 | 400 | 250 | 540 | 200 | 350 | 30 | 5100*2700*3800 |
400T/6000 | 320 | 4600 | 400 | 250 | 540 | 200 | 350 | 30 | 6400*2700*4100 |
400T/7000 | 320 | 6500 | 400 | 250 | 540 | 200 | 350 | 30 | 7200*2800*4500 |
500T/3200 | 360 | 2500 | 400 | 300 | 620 | 200 | 380 | 37 | 3200*2900*4000 |
500T/4000 | 360 | 3100 | 400 | 300 | 620 | 200 | 380 | 37 | 4200*2900*4000 |
500T/5000 | 360 | 4000 | 400 | 300 | 620 | 200 | 380 | 37 | 5400*2900*4300 |
500T/6000 | 360 | 4800 | 400 | 300 | 620 | 200 | 380 | 37 | 6200*2900*4300 |
500T/7000 | 360 | 6500 | 400 | 300 | 620 | 200 | 380 | 37 | 7200*2900*4700 |
500T/8000 | 400 | 6200 | 400 | 300 | 620 | 200 | 380 | 37 | 8200*2900*5100 |
600T/4000 | 400 | 3000 | 500 | 300 | 620 | 200 | 400 | 45 | 4100*2900*4300 |
600T/6000 | 400 | 4800 | 500 | 300 | 620 | 200 | 400 | 45 | 6100*3100*4900 |
600T/8000 | 400 | 6800 | 500 | 300 | 630 | 250 | 400 | 45 | 8400*3300*5600 |
Machines Details
Features
1. Mechanical torque synchronization2.Domestic famous hydraulic integrated system
3.Schneider or Siemens low-voltage electrical
4.Standard upper and lower molds
5.Ball screw back gauge operation control
6.Front material supporting frame
7.ball screw,linear guide,fast clamp, servo motor

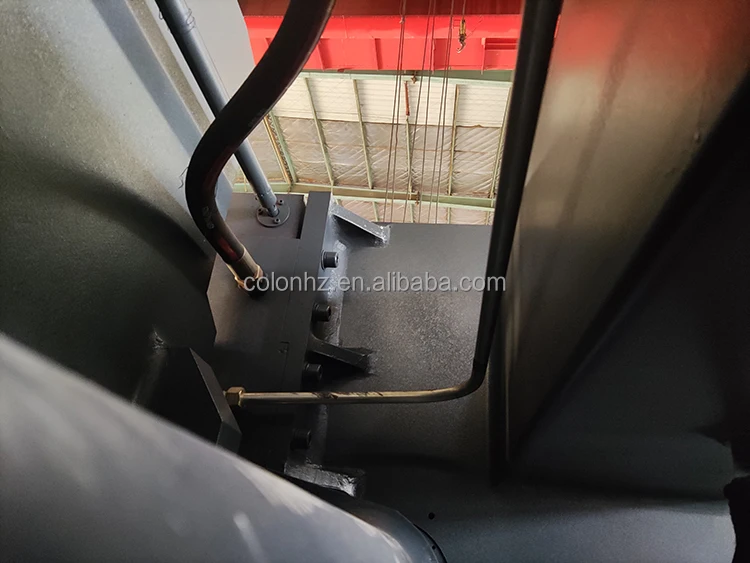

Torsion-Bar structure
High quality torsion-bar structure,shaft body adopts the traditional forging and tempering process, which has high strength,good elasticity and adjustable design

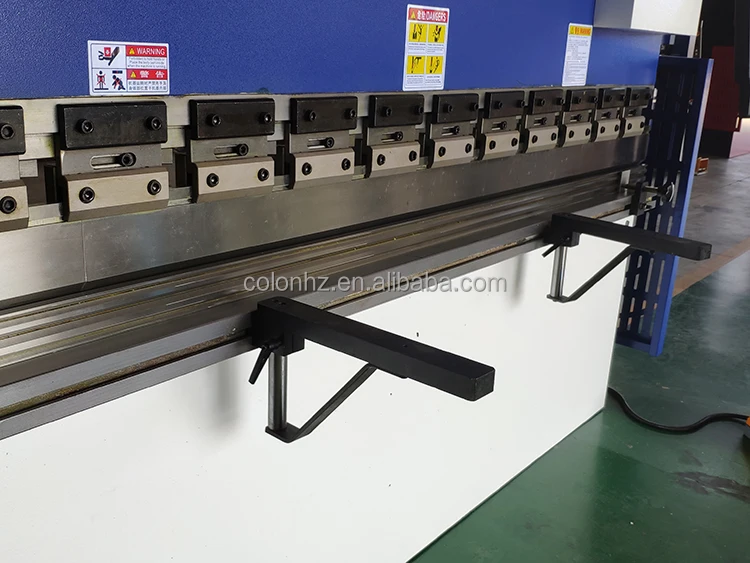

Front material supporting frame
Usually Fixed front support, we also support movable front support, which moving along the linear guide rail,can be parked at any position, with rotation and height adjustment functions to help you yo bend.

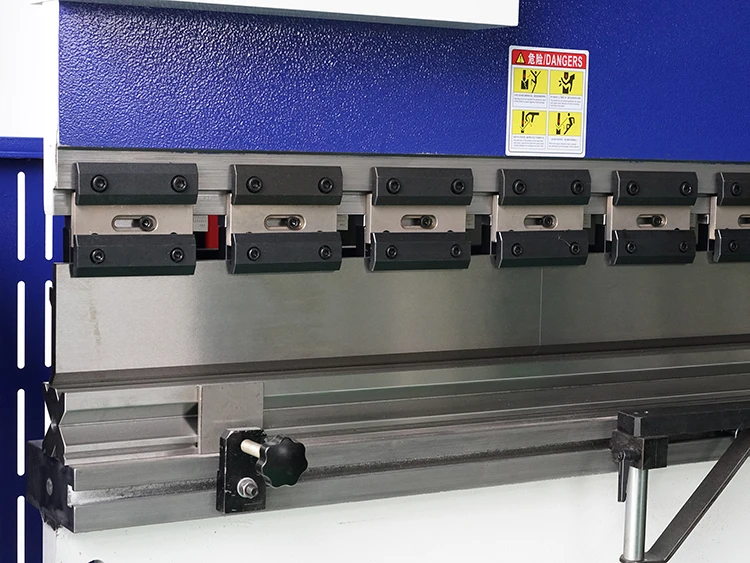

Quickly clamping
it is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantage of high precision, easy clamping, no loosening, no tool dropping
CNC control system(accept customized)
Auto crowing
Auto backgauge
stopper finger

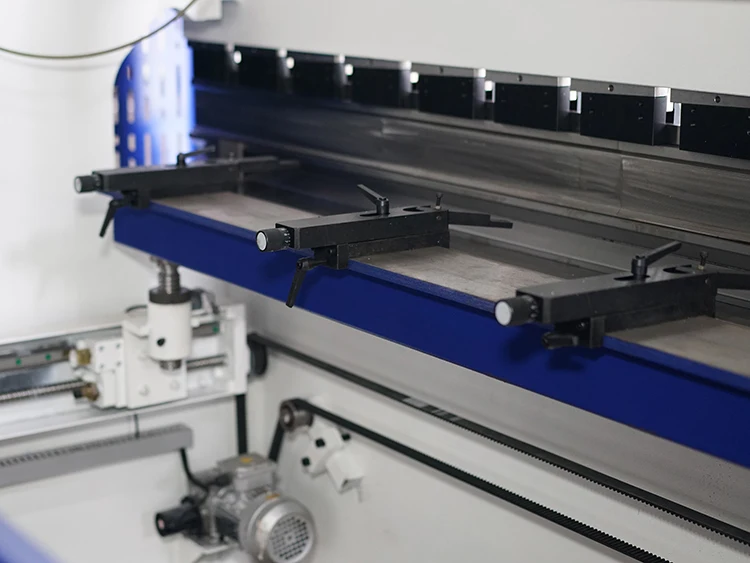

Stable and reliable back gauge
Imported ball screw drive, linear guide rail guide, double linear guide construction, to ensure the positioning accuracy. Multistage stops to increase the positioning range, make the bending more convenient.Siemens motor

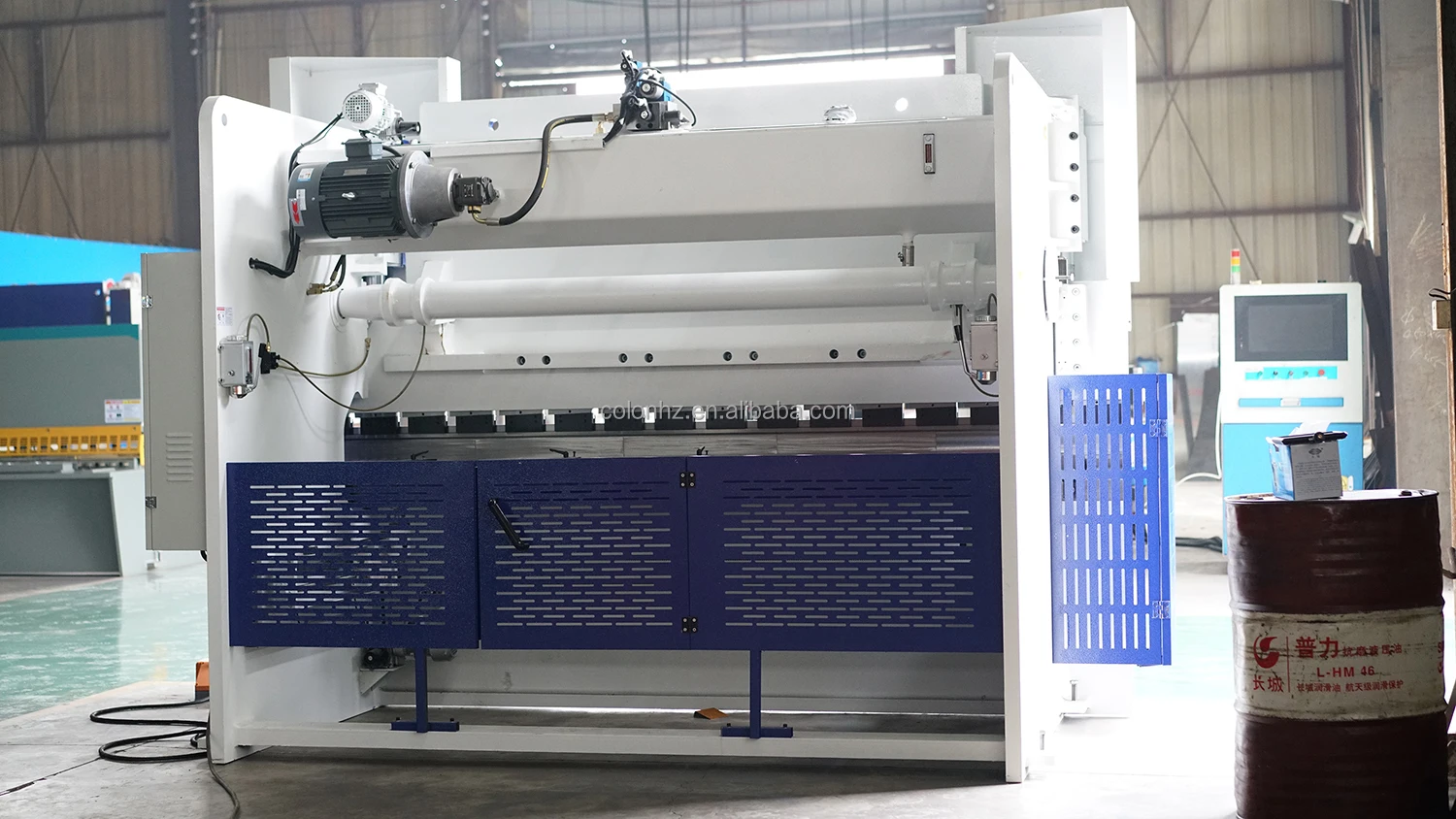

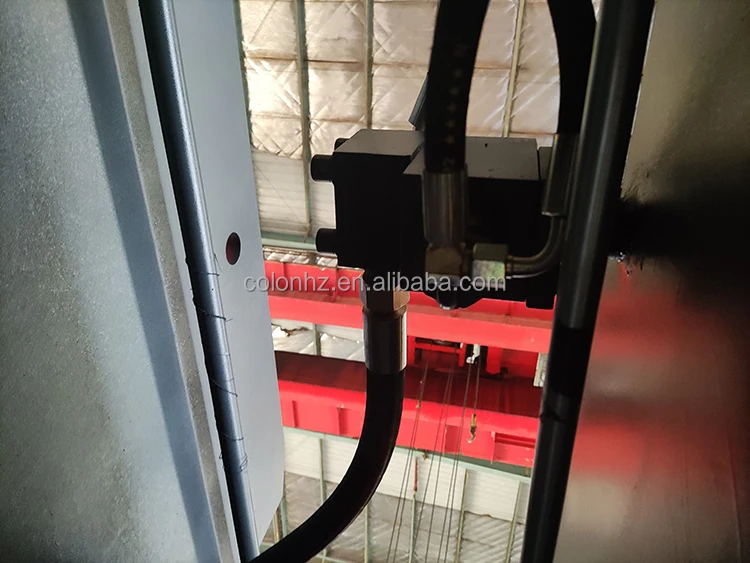

Hydraulic system

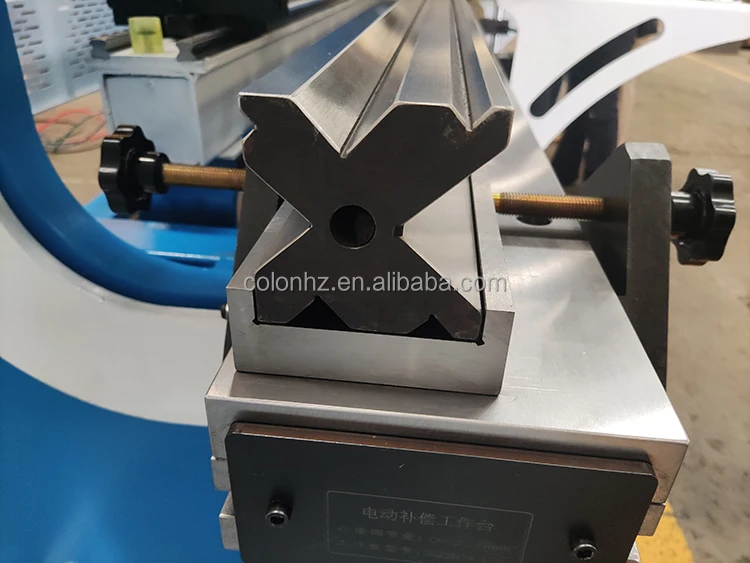

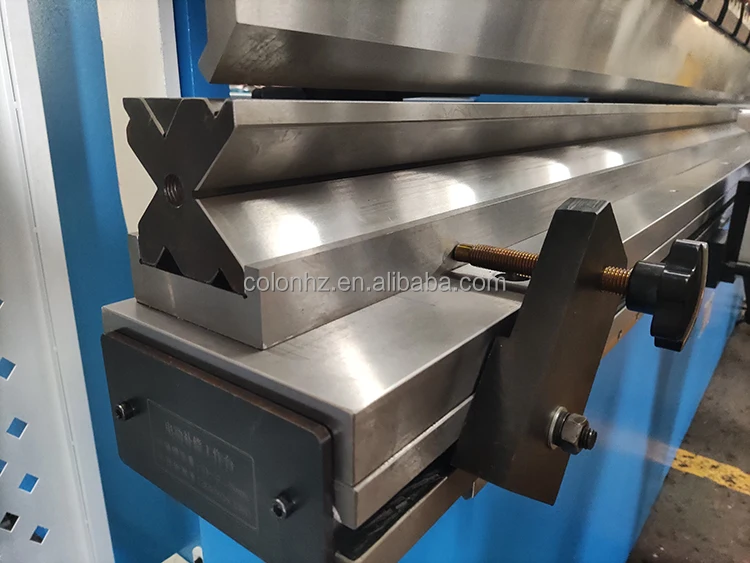

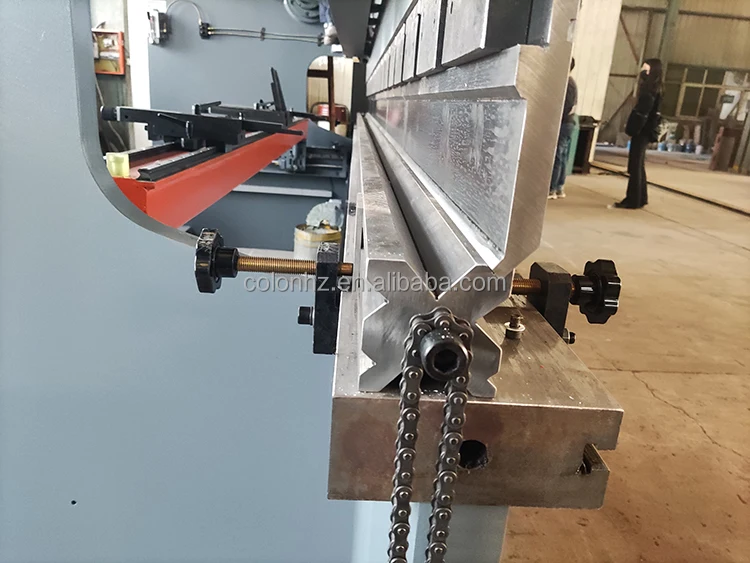

Press brake tooling
After forging and quenching, it is durable. High precision , high straightness and high repeatability, and finally obtain theideal bending effect.
the pictures shows 2 kinds of installing of mold.

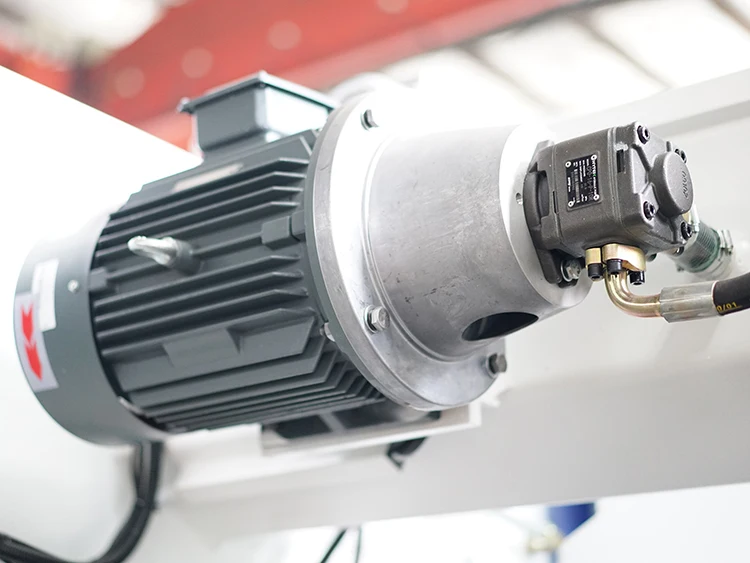

servo motor
Electric box
Foot pedal

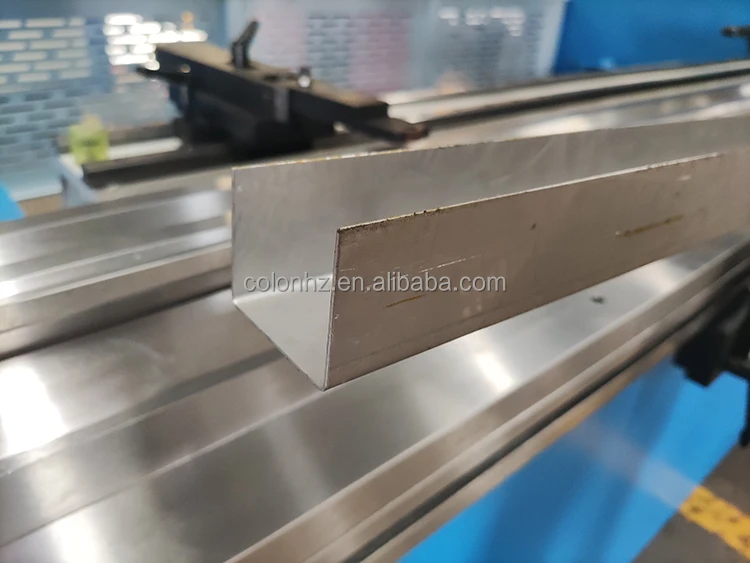

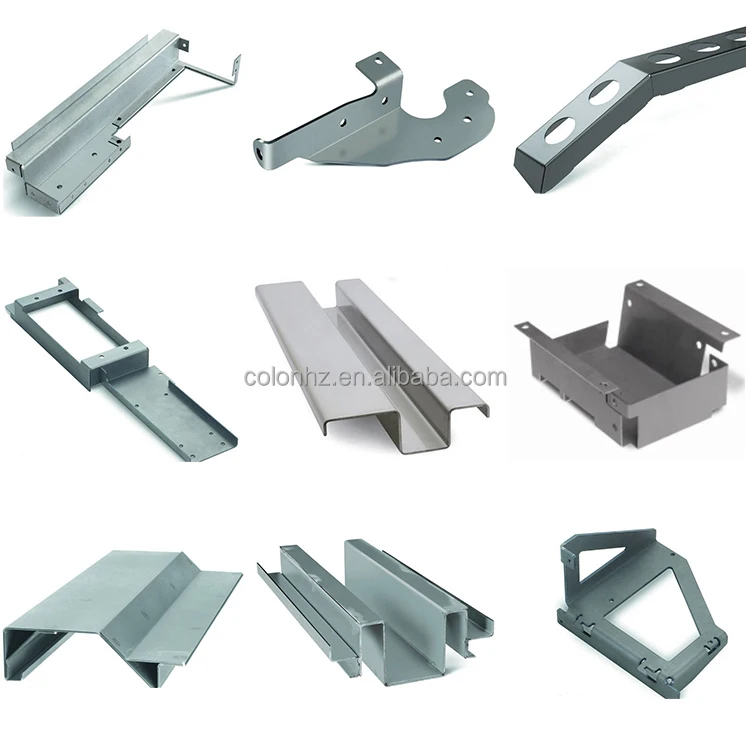

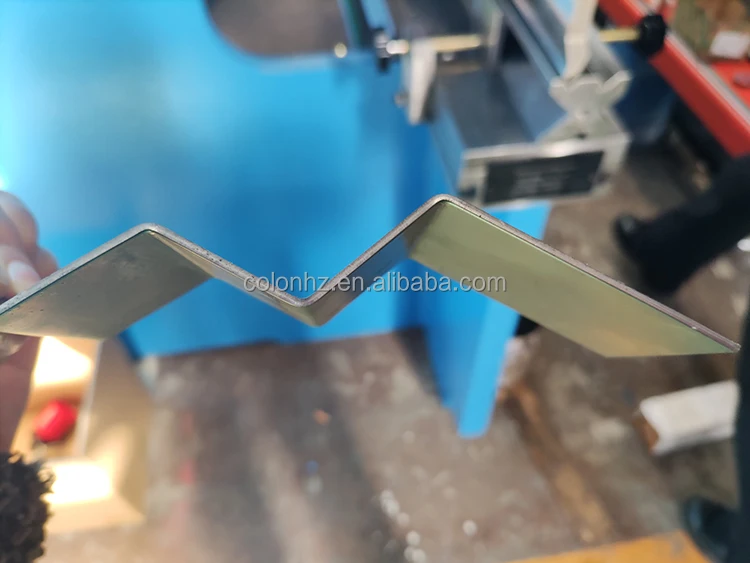

Sample

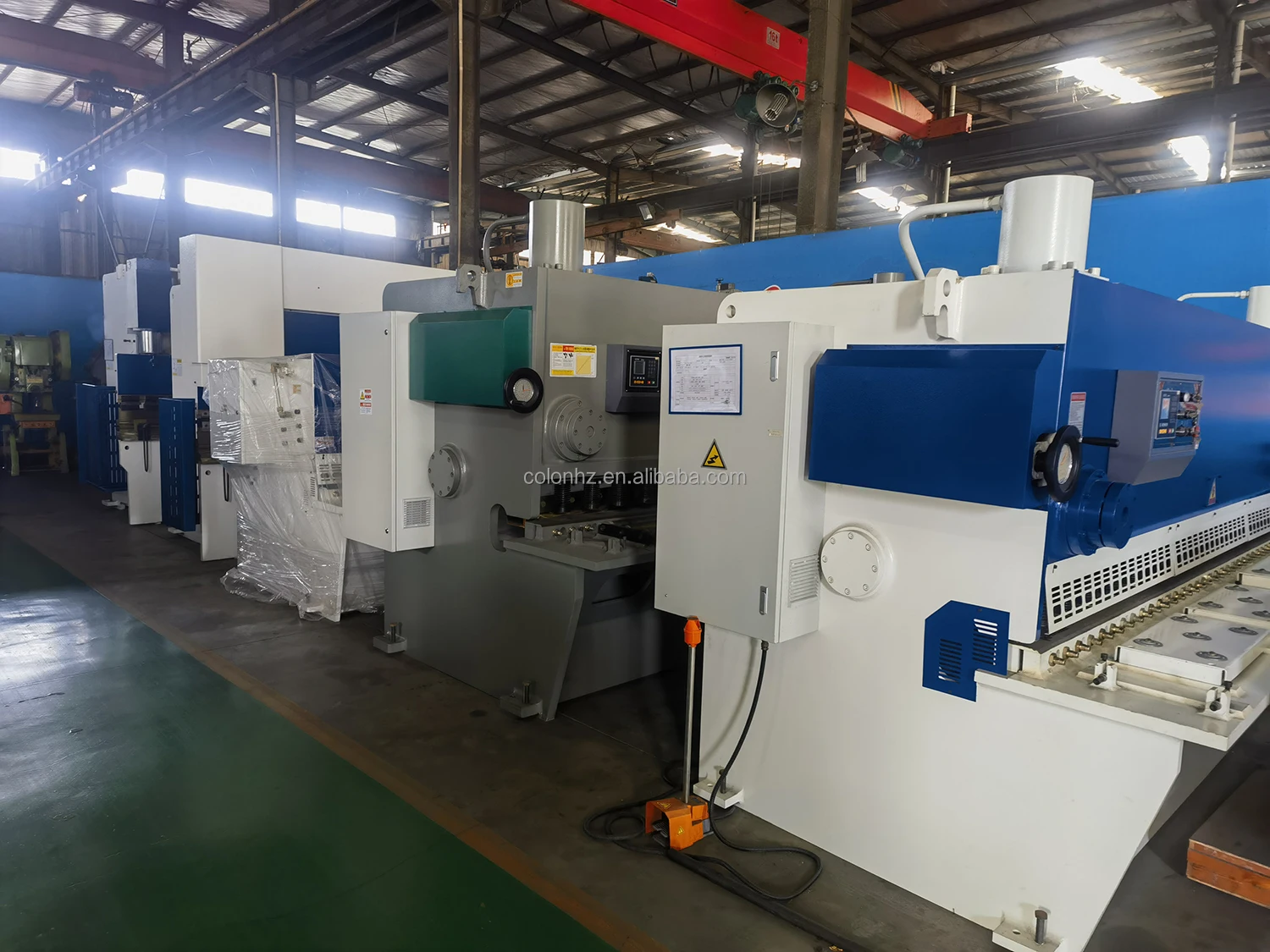

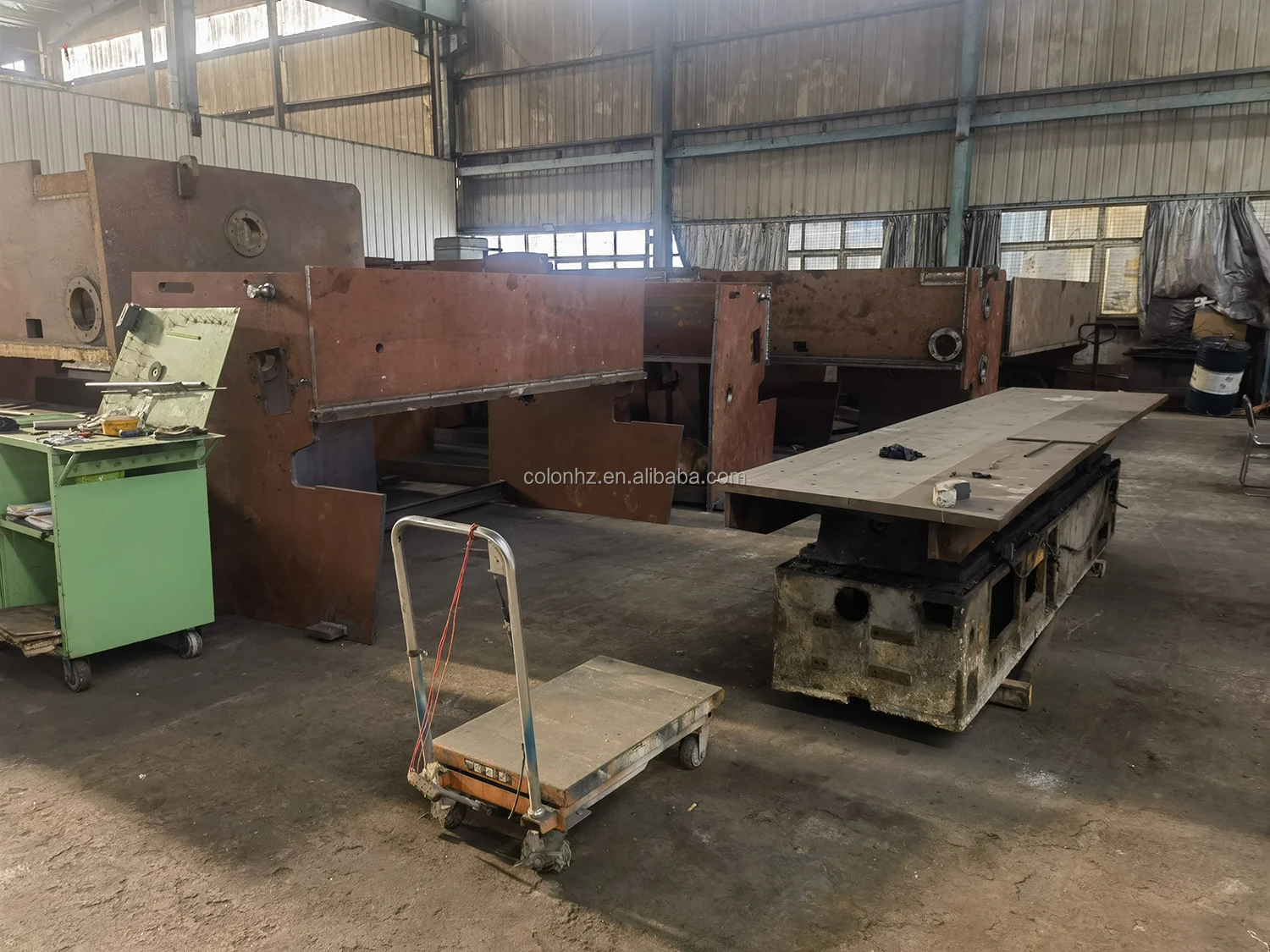

Company Profile
Hangzhou Colon Digital Technology Co., Ltd has several production lines in different workshops from printing machines,bag making machine,label sticker die cutting & slitting machines, paper /PP/PLA straw machines,disposable products making machines ,to different plastic&paper and packaging machines.
We have a professional after-sales service team to provide you with high quality service. Engineers who can speak English can come to your factories or workshop to help you debug your machine and provide free training by video call .Our factory also cooperated with some famous French and German companies.Every year, our production director and technical director will go to the European cooperation technology companies or large factories for technical study.By communicating and learning from each other, it ensures the high quality of each machine and our technology is always far ahead in China.
We have a professional after-sales service team to provide you with high quality service. Engineers who can speak English can come to your factories or workshop to help you debug your machine and provide free training by video call .Our factory also cooperated with some famous French and German companies.Every year, our production director and technical director will go to the European cooperation technology companies or large factories for technical study.By communicating and learning from each other, it ensures the high quality of each machine and our technology is always far ahead in China.

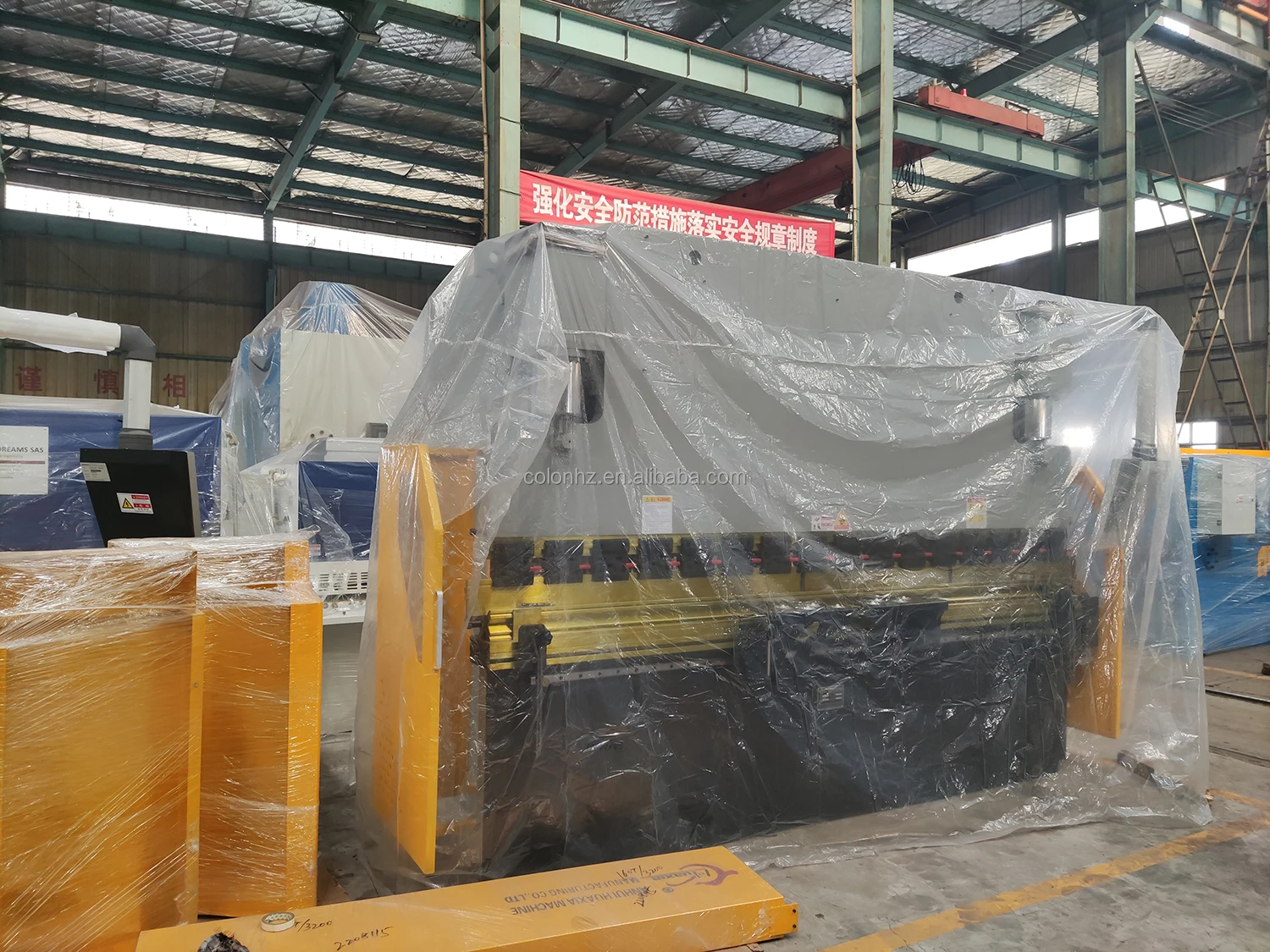

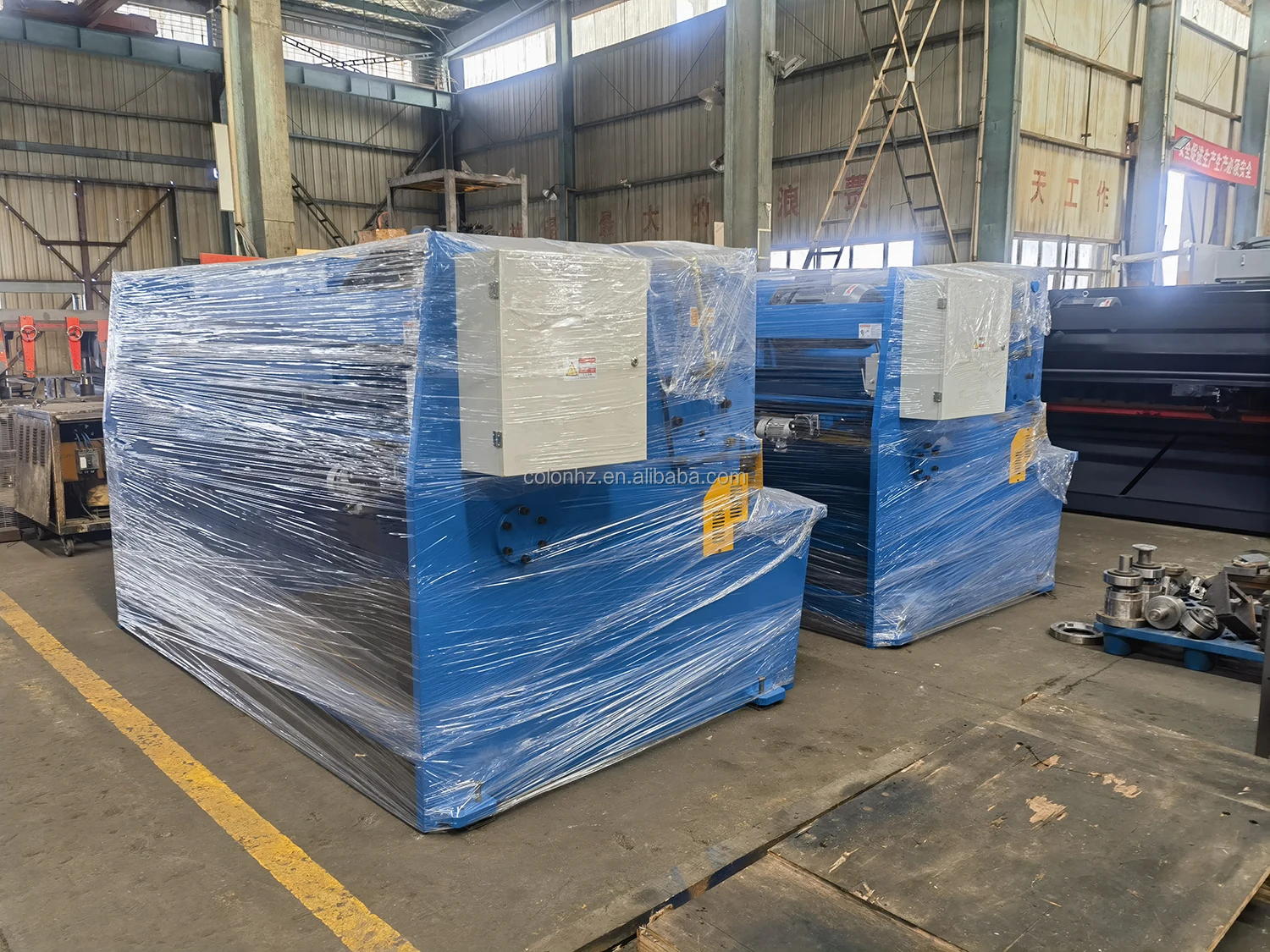

Packing & Delivery
