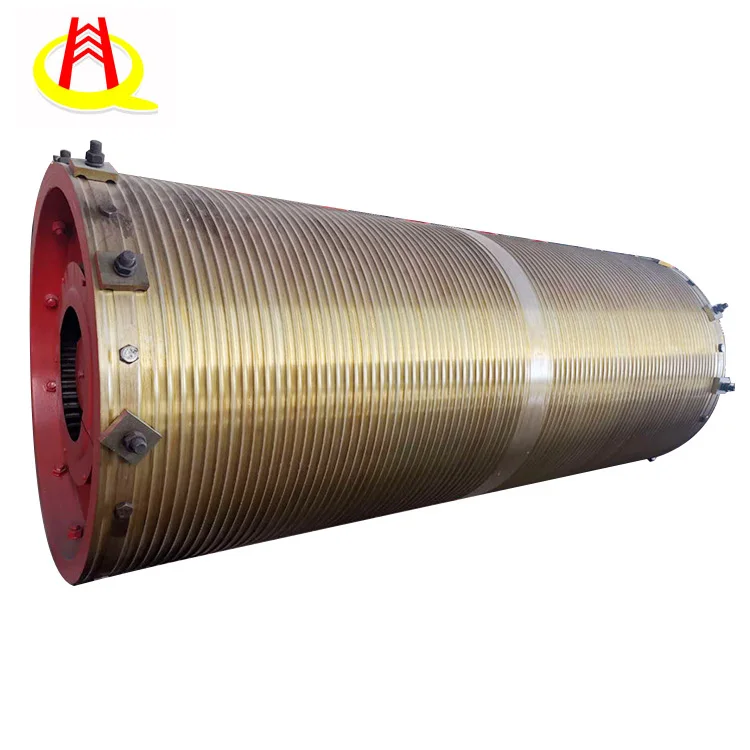

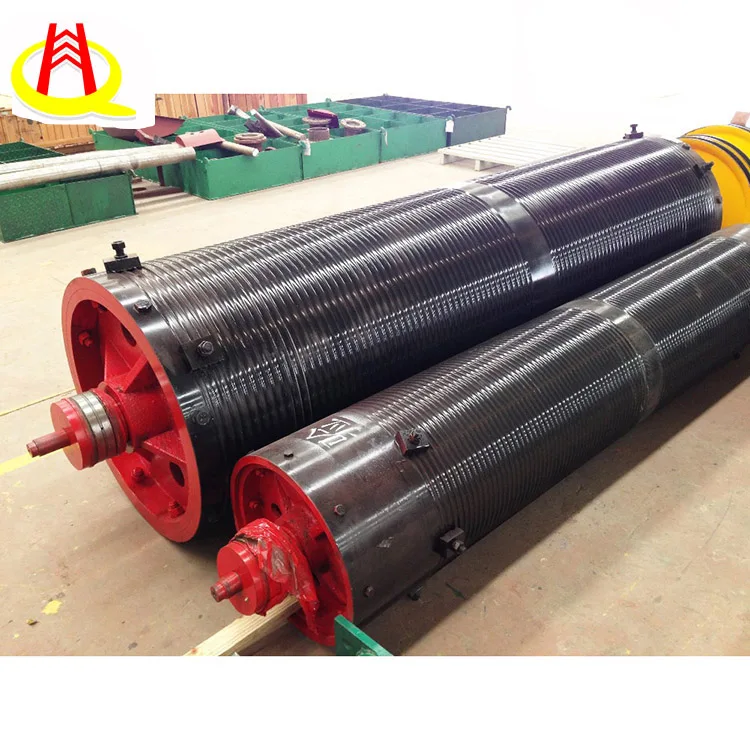

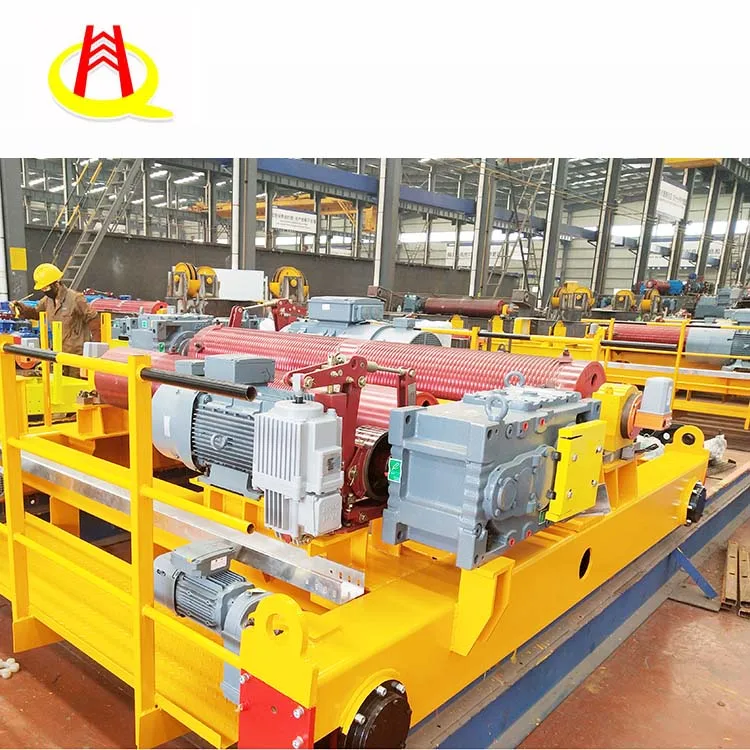

400x1000 Cable Reel Drum Winch Drum Gantry Crane Wire Rope Drum Reel
Crane Accessories, Choose Hongqi Lifting Machinery

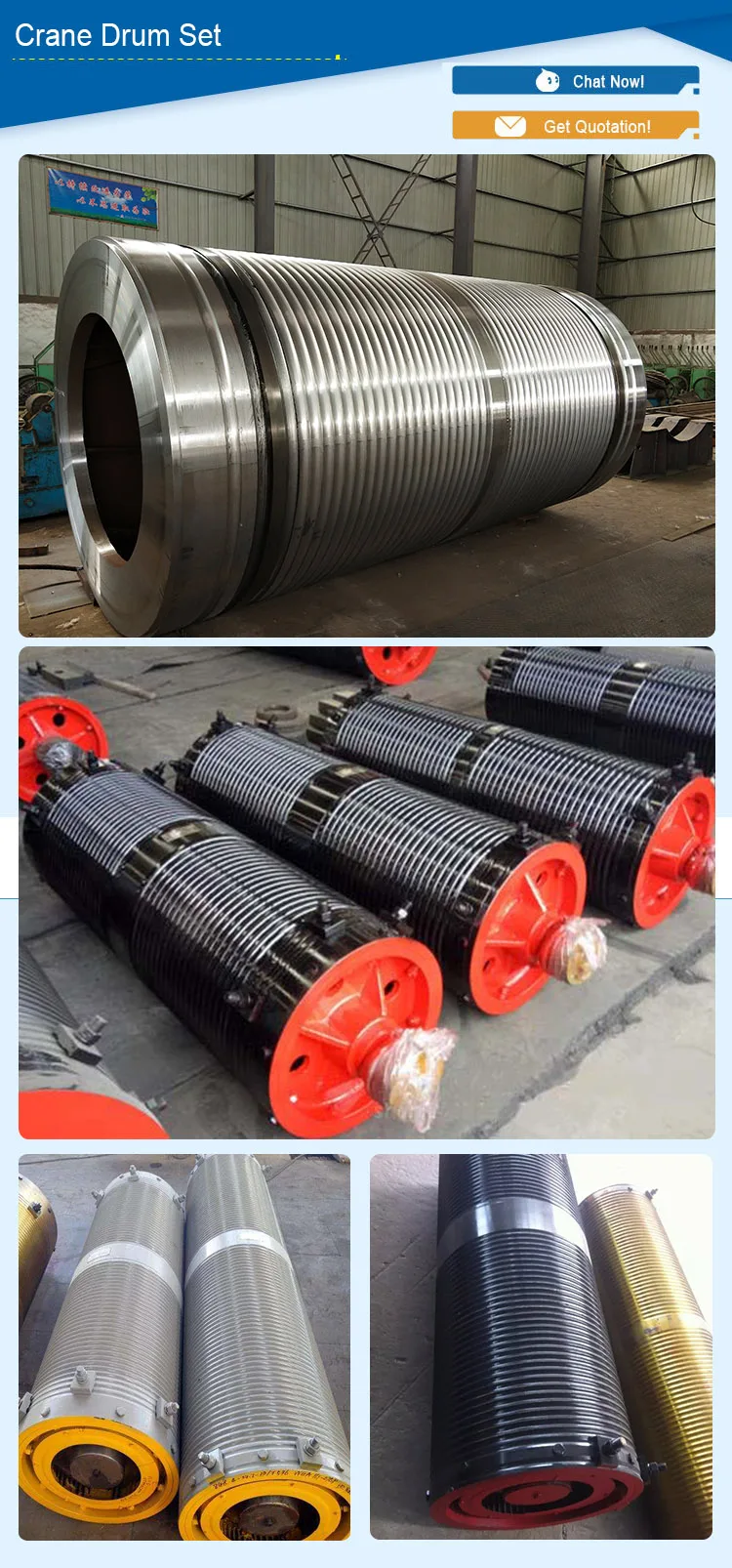

Drum set is an important part of hoisting equipment. The drum set is mainly composed of drum, drum shaft, gear plate adapter (or large gear), drum hub, bearing body and bearing.

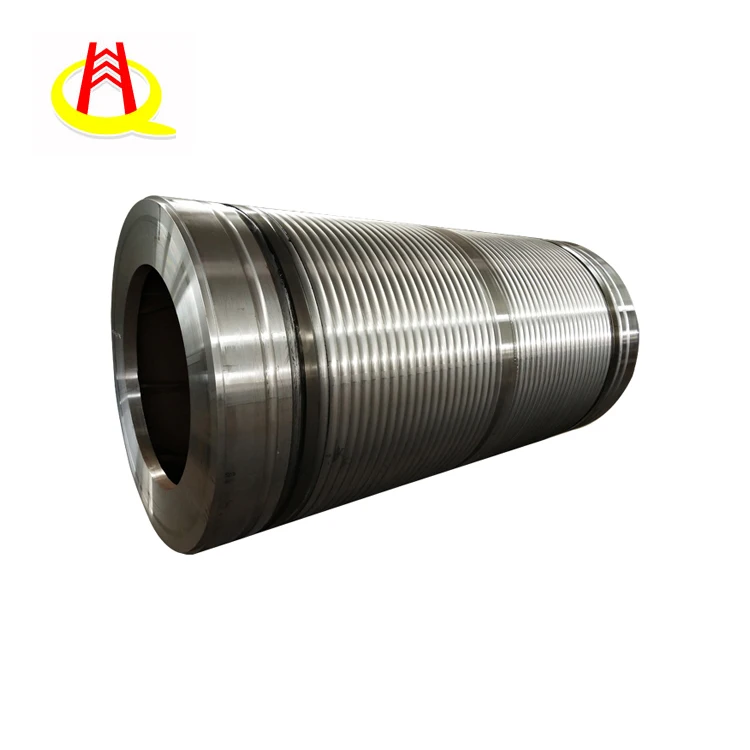

The processing material of drum is generally no less than HT20-40 cast iron, and ZG25, ZG35 cast steel or Q235B, Q345B steel plate can be used for welding for special needs.
Features:
- Lifting capacity(t): 5-50
- Pulley ratio: 2-6
- Screw pitch: 14-36
- Lifting height(m): 12-20
- Weight(kg): 320-2100

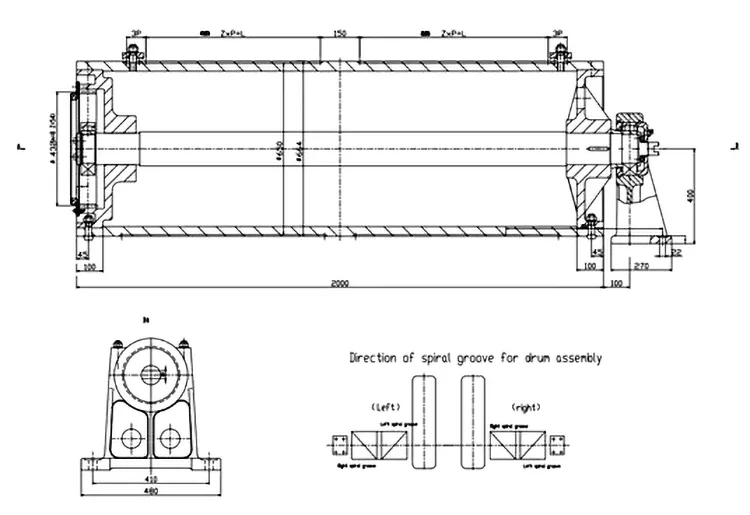

| Model | D×L | (t) | (m) | p | m | D1 | L1 | L2 | I1 | I2 | H | h | D | R | M1×Z1 |
| 1 | φ400×1800 | 5 | 30 | 16 | 150 | 409 | 10 | 100 | 50 | 30 | 210 | 30 | 22 | 240 | 4×56 |
| 10 | 20 | 50 | |||||||||||||
| 2 | φ400×1500 | 5 | 22 | 22 | 250 | 418 | 10 | 140 | 50 | 30 | 210 | 30 | 22 | 259 | 4×56 |
| 3 | φ400×1500 | 5 | 30 | 12.7 | 150 | 409 | 10 | 100 | 50 | 30 | 210 | 30 | 22 | 240 | 4×56 |
| 4 | φ400×1500 | 3.2 | 32 | 12.7 | 50 | 408 | 10 | 100 | 50 | 30 | 210 | 30 | 22 | 239 | 4×56 |
Please contact us for more details and parameters

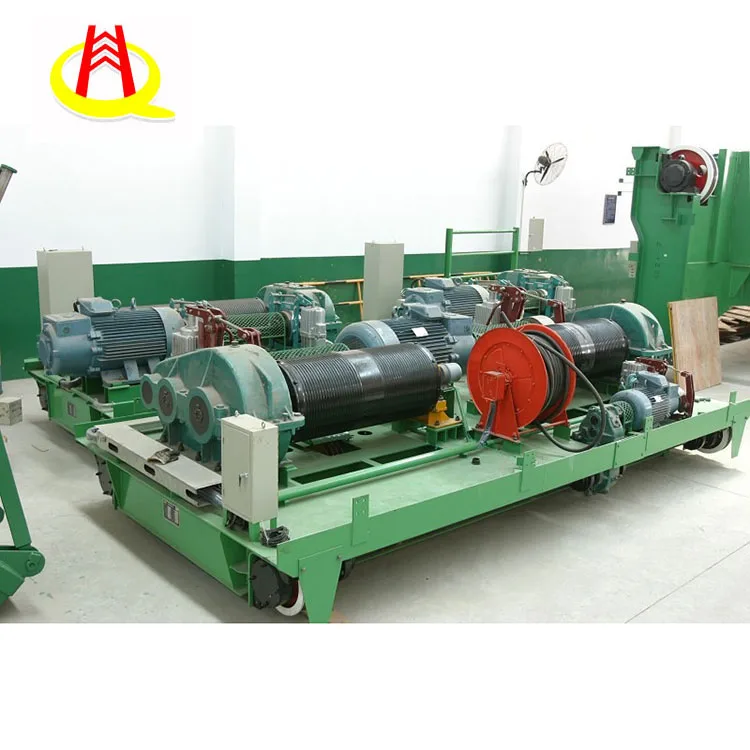

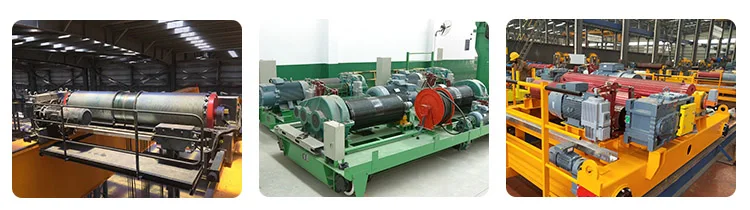

Application
Packaging & Shipping
Hot Products
Company Information
Henan Hongqi crane Machinery Co., Ltd. is a bright pearl inlaid in the "hometown of China crane". Rooted in Changyuan market for more than ten years, I am familiar with every industry and company here. Back against the placanticline from the major market, all crane related products and accessories, can be produced in a short time. There are also various kinds of mechanical equipment around the placanticline, such as vibrating screen, feeder, conveyor, crusher, vibrating rod, plate cutter, plate rolling machine, tower crane and other machinery and accessories.
Make a deal and be a friend for life! Hongqi people are willing to be your best partner to help you purchase high-quality products at the right price and cooperate with you for a long time to win-win situation!
Customer Feedback
FAQ
A. To providing you a precise crane offer efficiently, please kindly provide details as flowing:
a).Lifting capacity,. material weight(unit as tonnage)
b).Lifting height; (unit as meter)
c).Crane span, the width of inquired crane(unit as meter)
d).Crane traveling length; when rail track/runway beam needed, traveling length shall be provided
e) Working power; power source at site(unit as voltage, phase and Hz)with red is mean necessary for offering solution.
B. Henan Hongqi Lifting customized personalized products are available for our clients all the time. Just freely let us know your special demands about the products, our engineering team will work on that.
C. Freely contact us. Our engineering team available for oversea service with crane installation, inspection and commissioning.
D. After we get down payment, we will arrange production. About 7-45 days for delivery.
