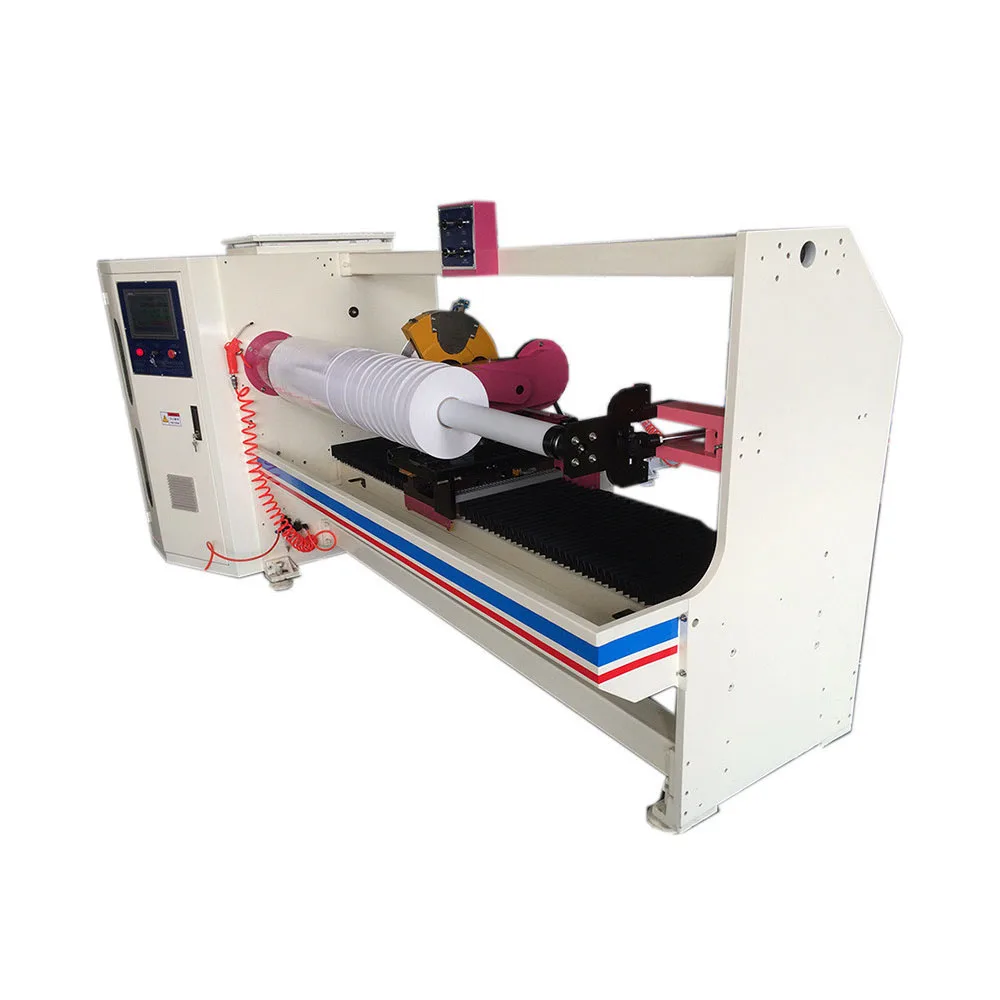

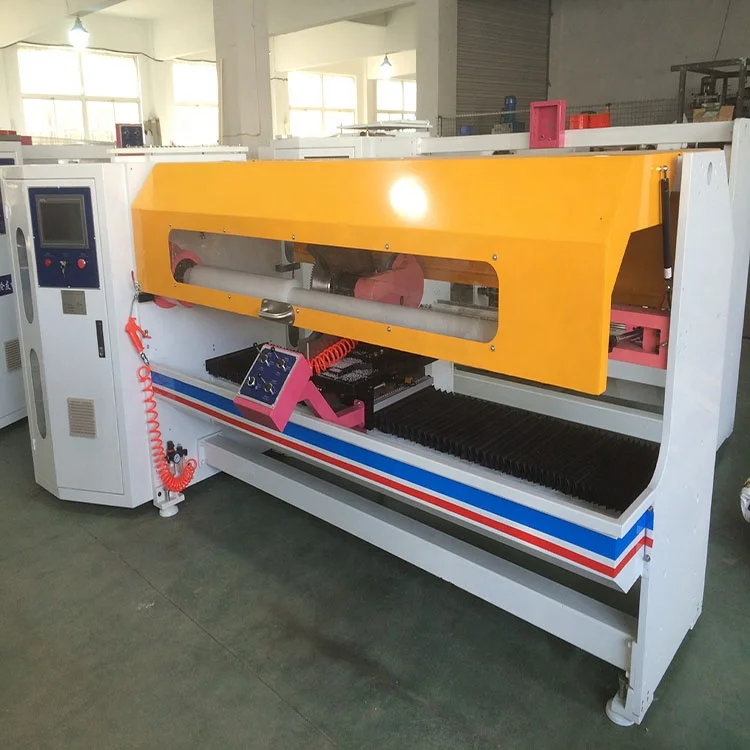

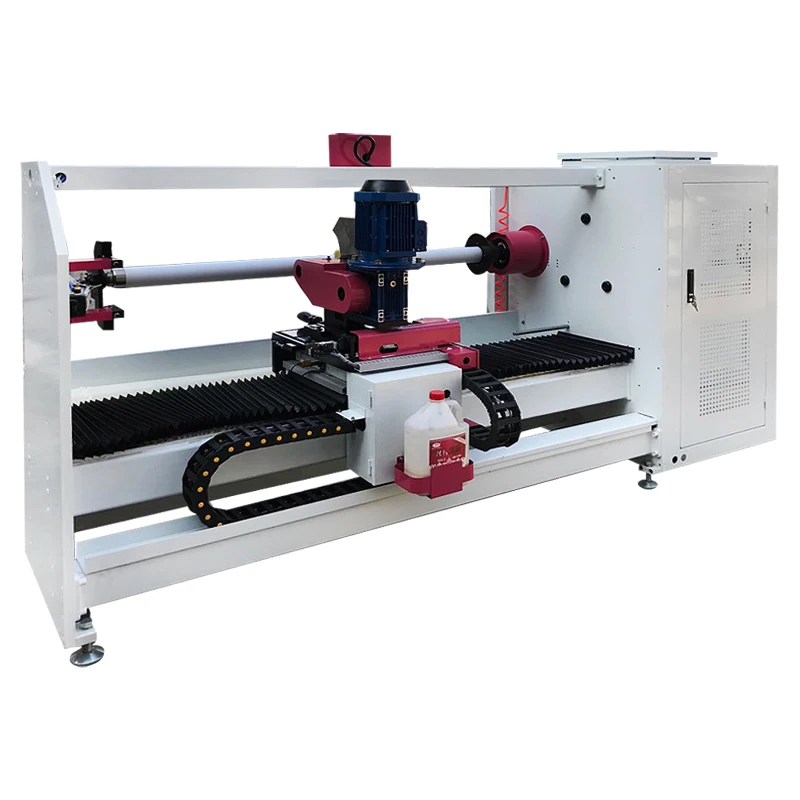

Automatic window film roll adhesive protective tape log roll cutting machine
- Category: >>>
- Supplier: Shijiazhuang Goodi Trade Co. Ltd.
Share on (1600725637387):
Product Overview
Description
Automatic double sided foam tape cutting machine manufacturer
Product Description
Product Application

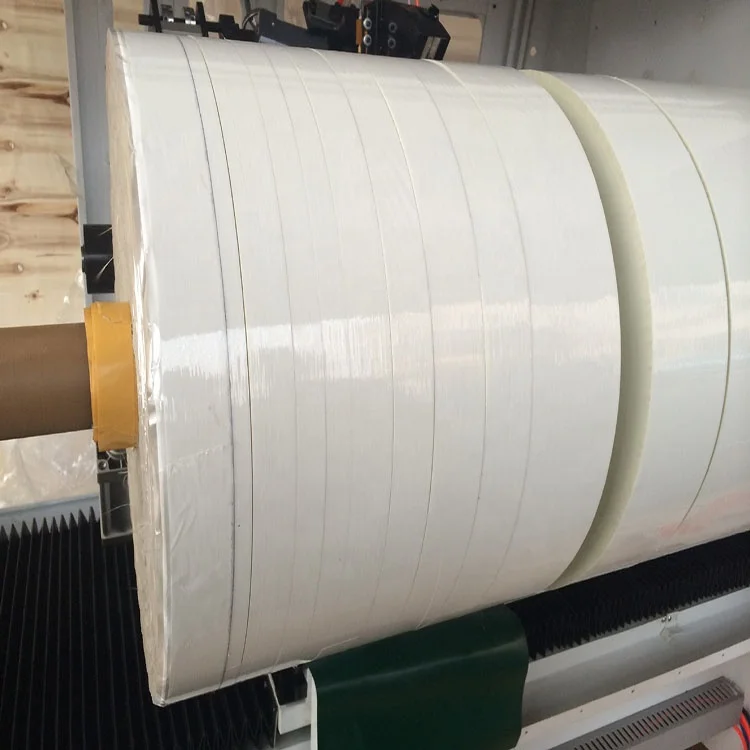

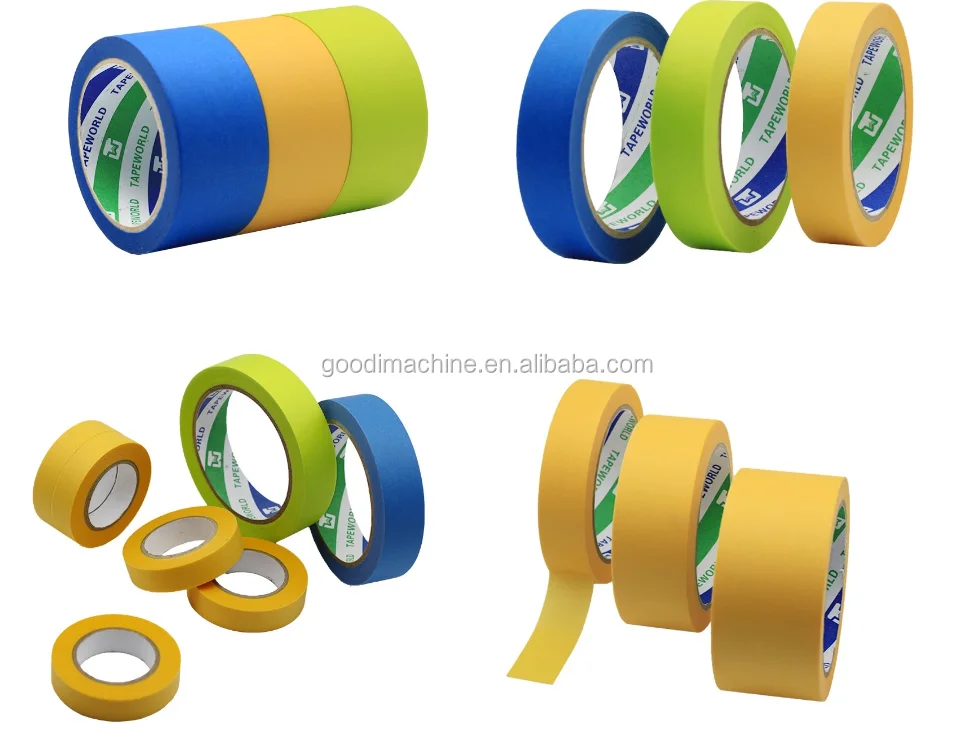

Suitable for cutting all kinds of tape,such as BOPP tape , masking tape,PE foam tape,kraft tape,double side tape,medical tape,PVC tape,insulation tape,electrical tape etc.
SPECIFICATIONS FOR adhesive tape cutting machine | ||||||
Main motor | AC-5HP+Shinlin Inverter | |||||
Size control | 1KW Servo motor+ PLC | |||||
PLC control system | Mitsubish | |||||
Failure detection | Automatic detection system | |||||
Moving system | High precision linear slide rail, high precision ball screw | |||||
Cutting control | Hydraulic system + PLC | |||||
Round knife cool and clean | Automatic water spray cooling with carpet cleaning | |||||
Main cutting shaft | 1.5" steel shaft with PE shaft sleeve | |||||

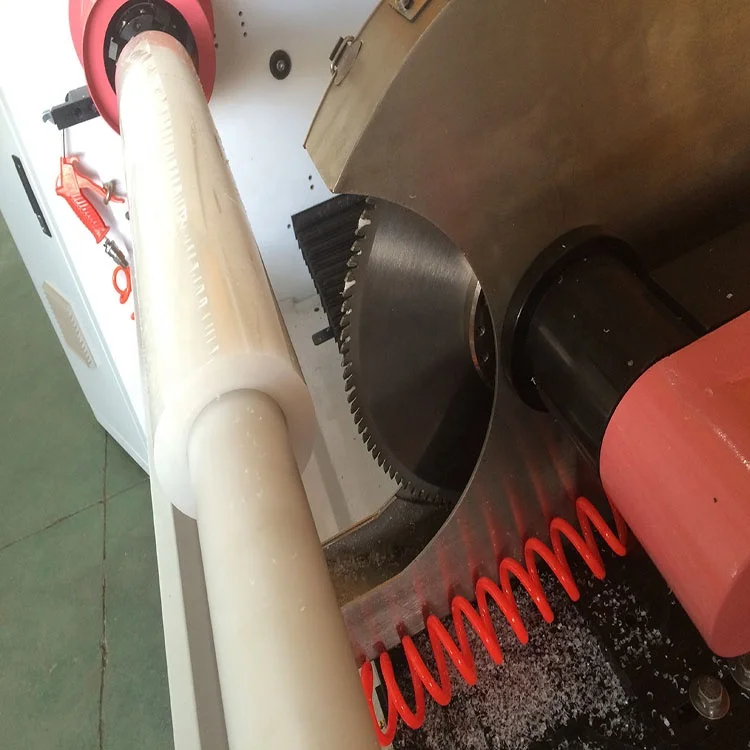

Cutting round knife | Φ180mm, imported from Taiwan | |||||
Main shaft bracket | Moving with the knife holder | |||||
Main Features
1. Automatic control of PLC system with LCD touch screen control panel , 20 modes for size setting each time & auto changing when cutting. Easy function setting, user-friendly interface.
2. Auto liquid silicon water spray cooling system: to avoid the adhesive sticking on the blade and ensure the smooth cutting.
3. AC motors for cutting blade and cutting shaft with inverters speed changing .
4.Positioning system for cutting: servo motor to control more accurate position.
5.Sliding system,high precision liner sliding track and ball screw.
6. Auto cutting angel adjustment ±8° can well protect the cutting blade as well as guarantee the cutting edge flatness.
Detailed Images

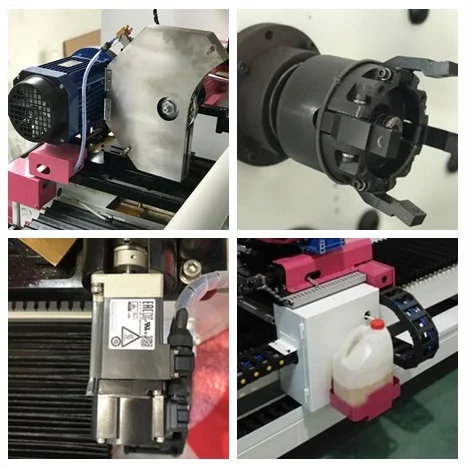

Machine Parts

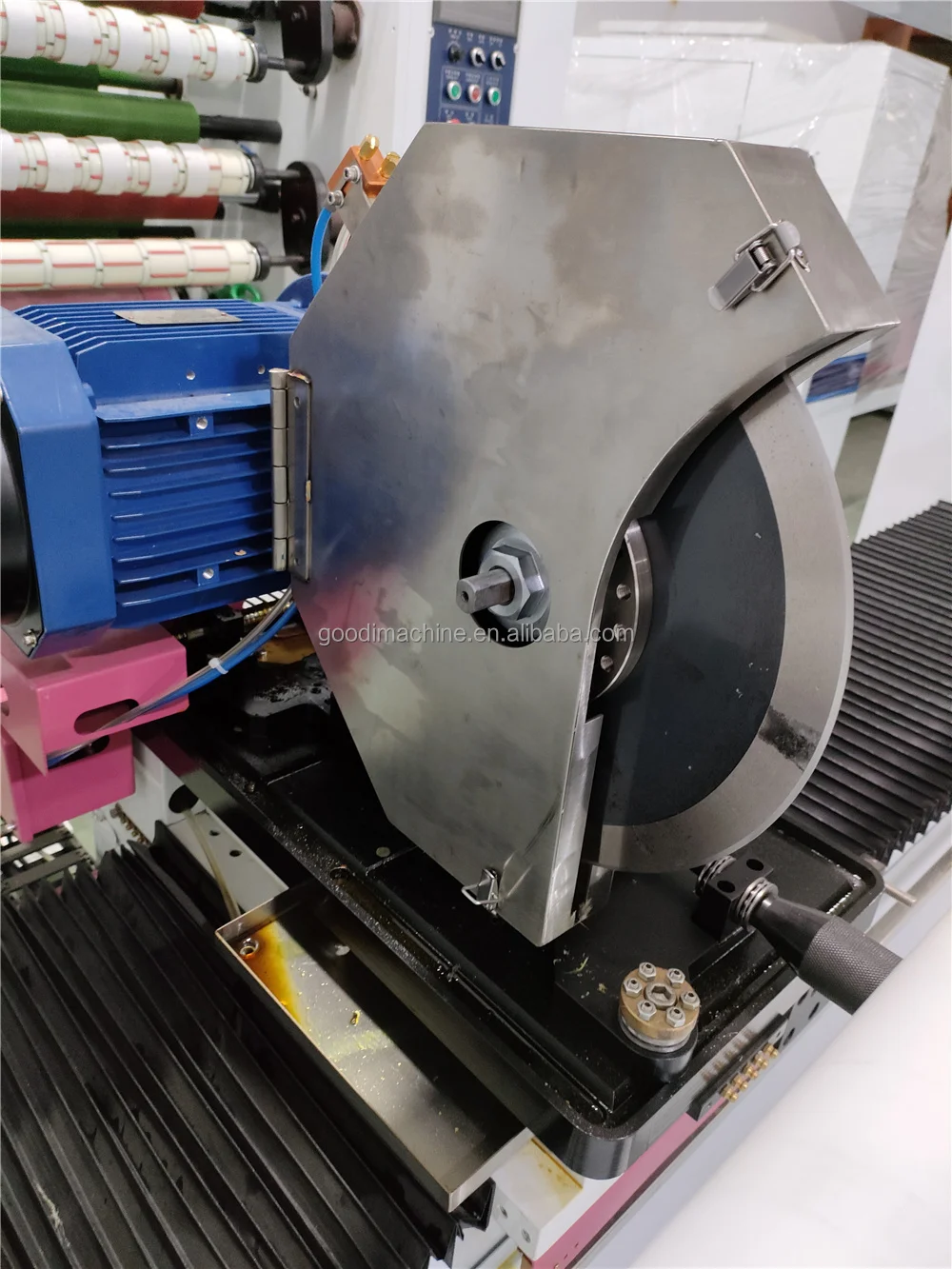

Name: main motor with frequency Taiwan Shilin inverter
AC motors for cutting blade and cutting shaft with inverters speed changing
Main Features

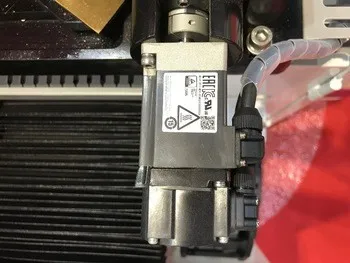

Name: Servo motor
The first servo motor control cutting width, with precision ball screw and slide, high precision cutting.
The second servo motor control cutting feed power directly, do four speed settings in order to achieve high-speed, high-quality cutting.
Machine Parts

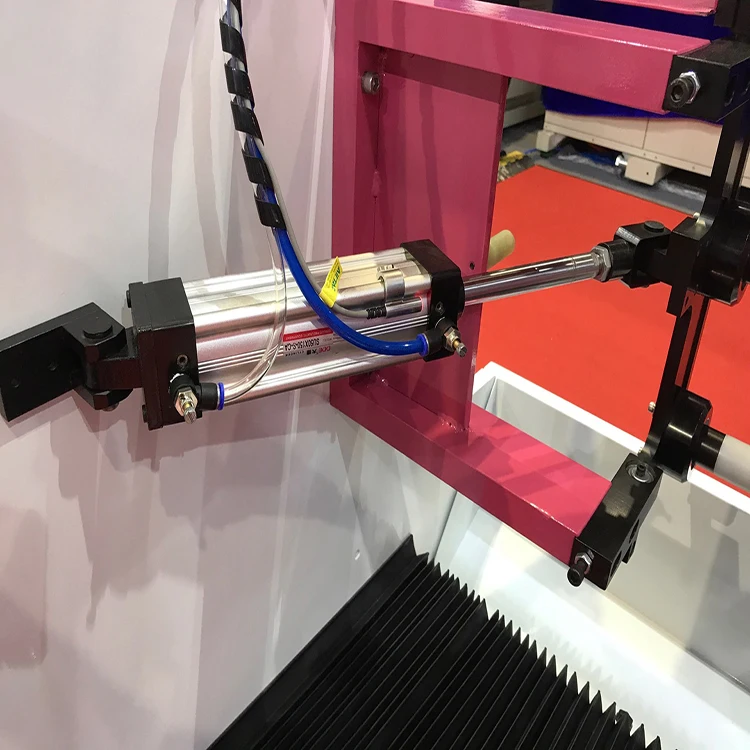

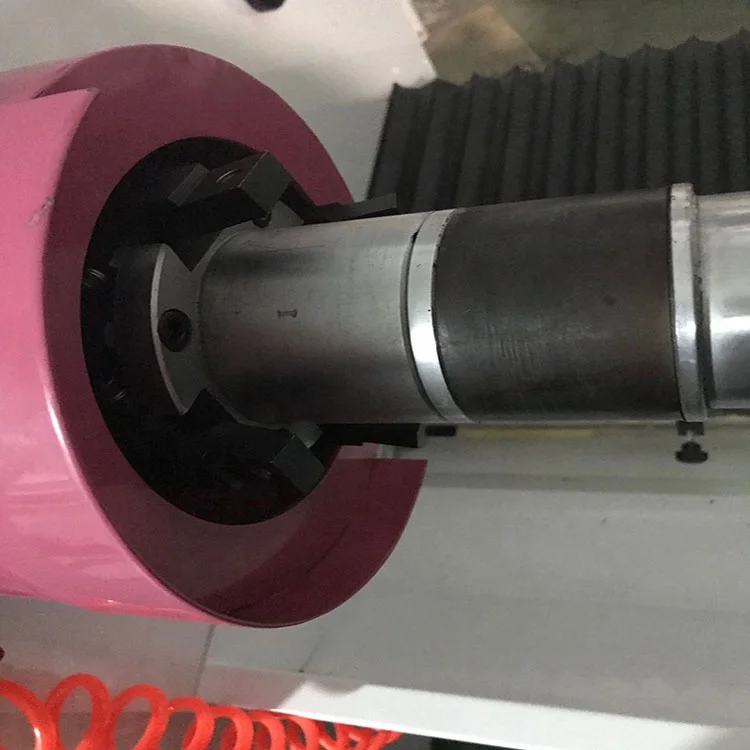

Name: Automatic cutting shaft exchange.
The cylinder drive positioning gear to drive the active spline.
Make sure the fast and accurate change of log roll but without stopping during cutting,Save the loading and unloading time and increase the productivity.
Main Features

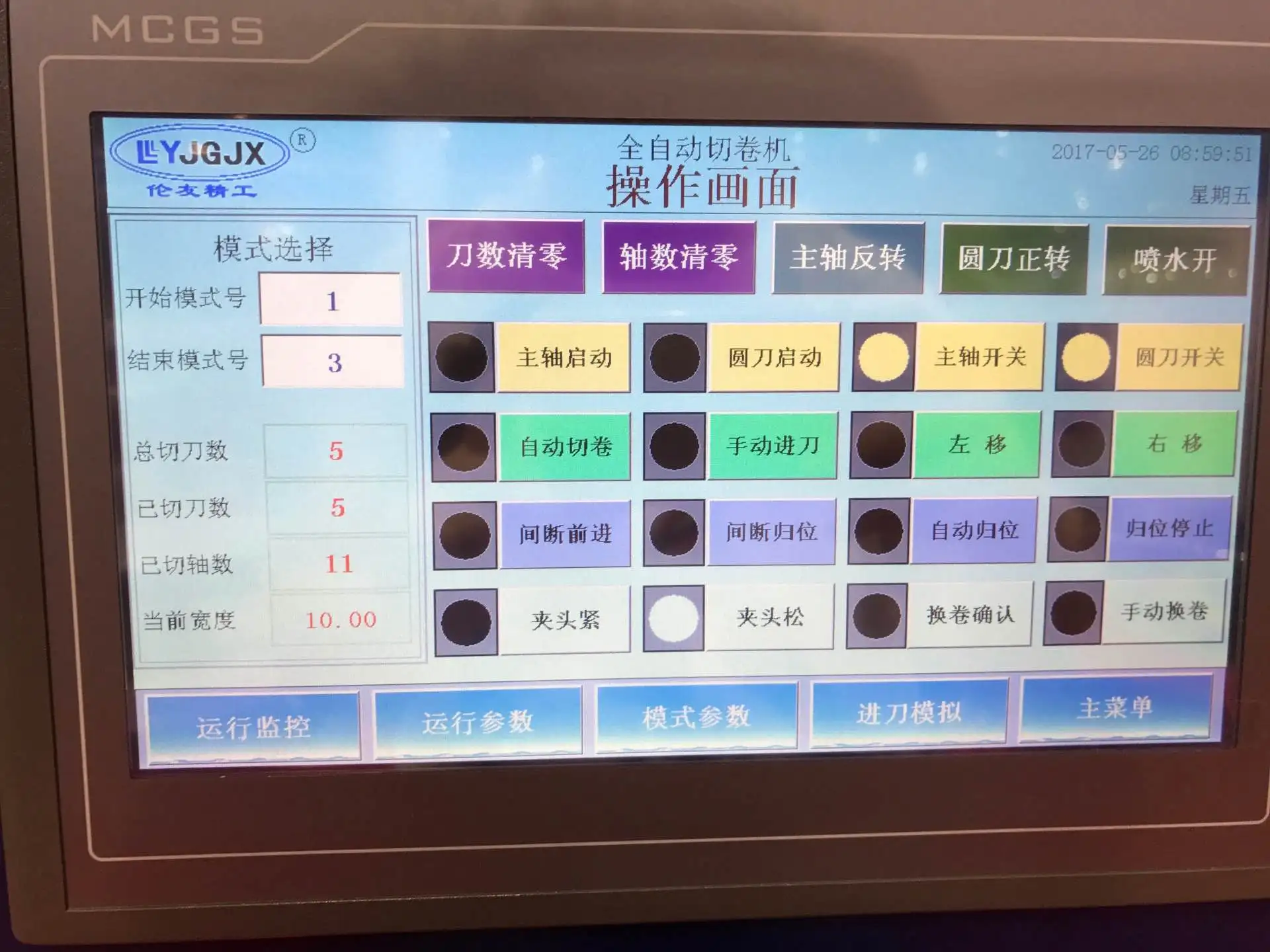

Name: Touch screen
All functions are operated on LCD touch screen(10.4")from Taiwan, which is easy for operation and data setting.
