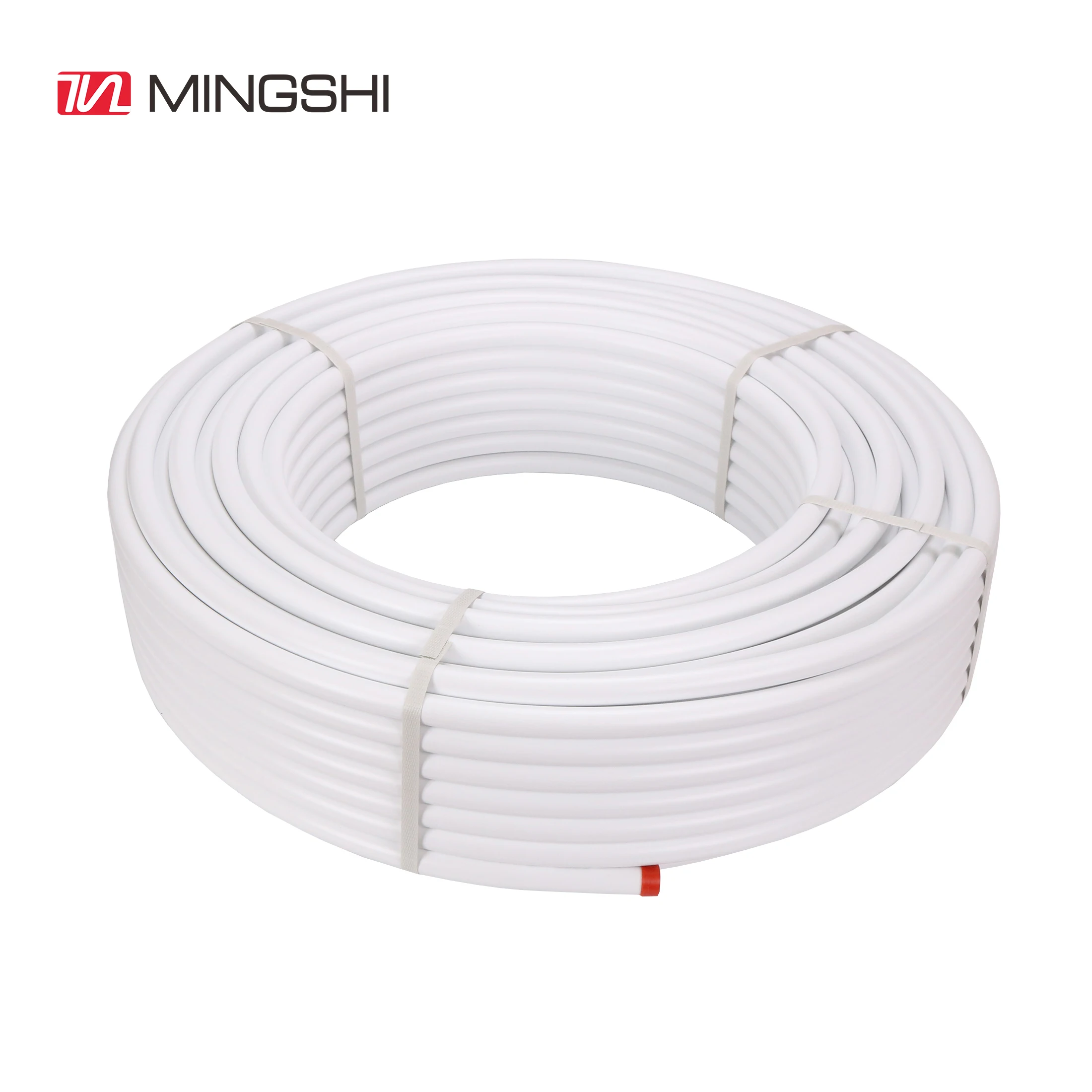

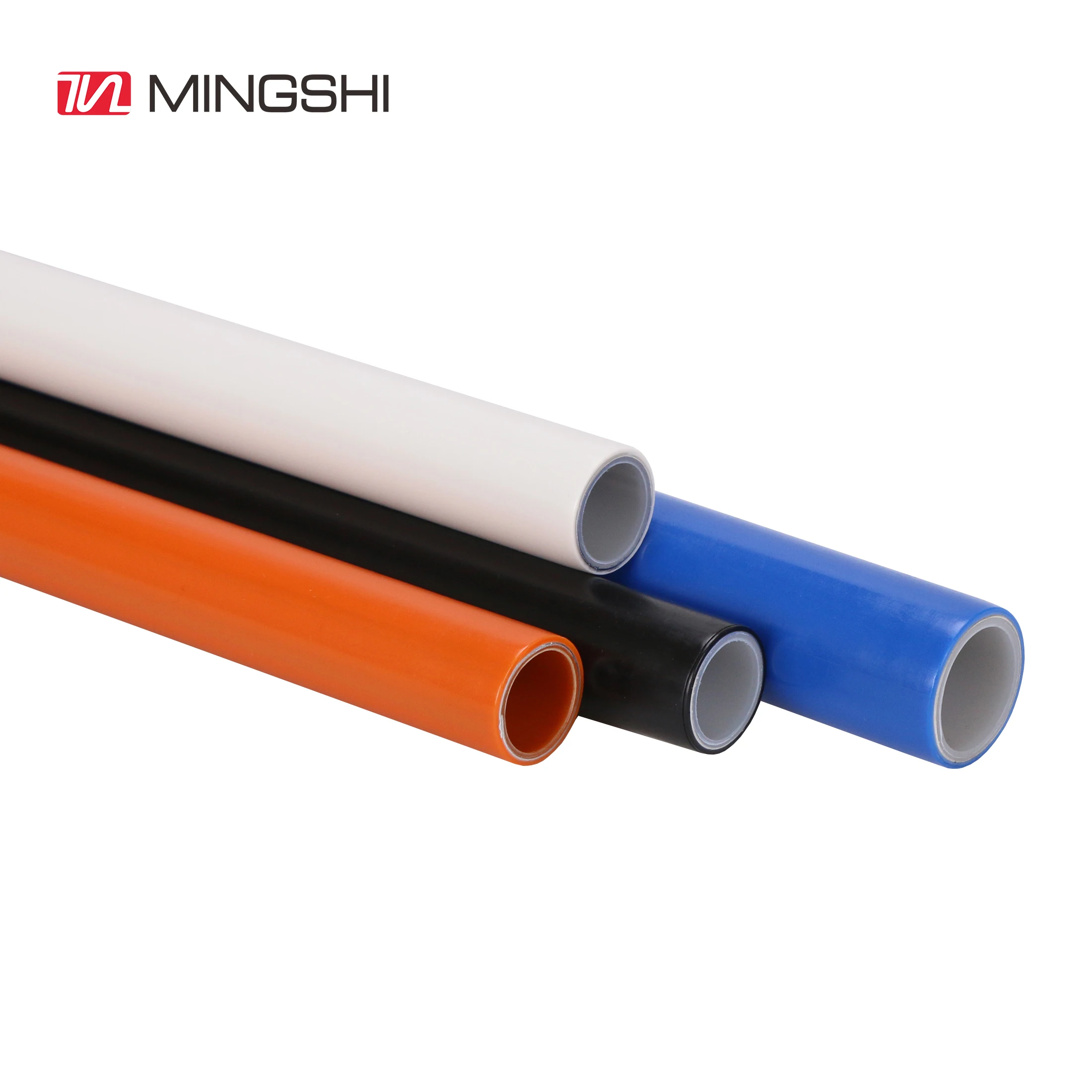

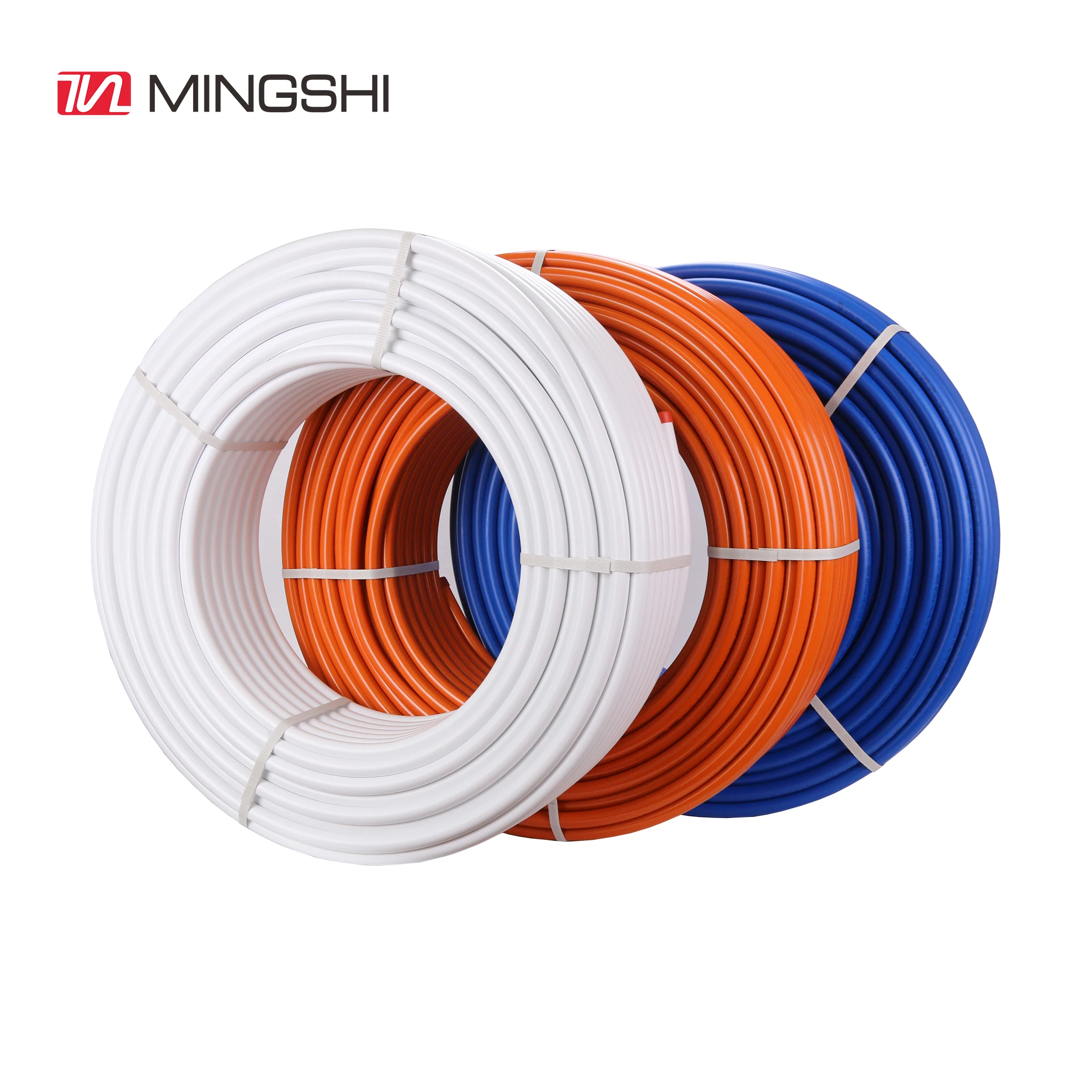

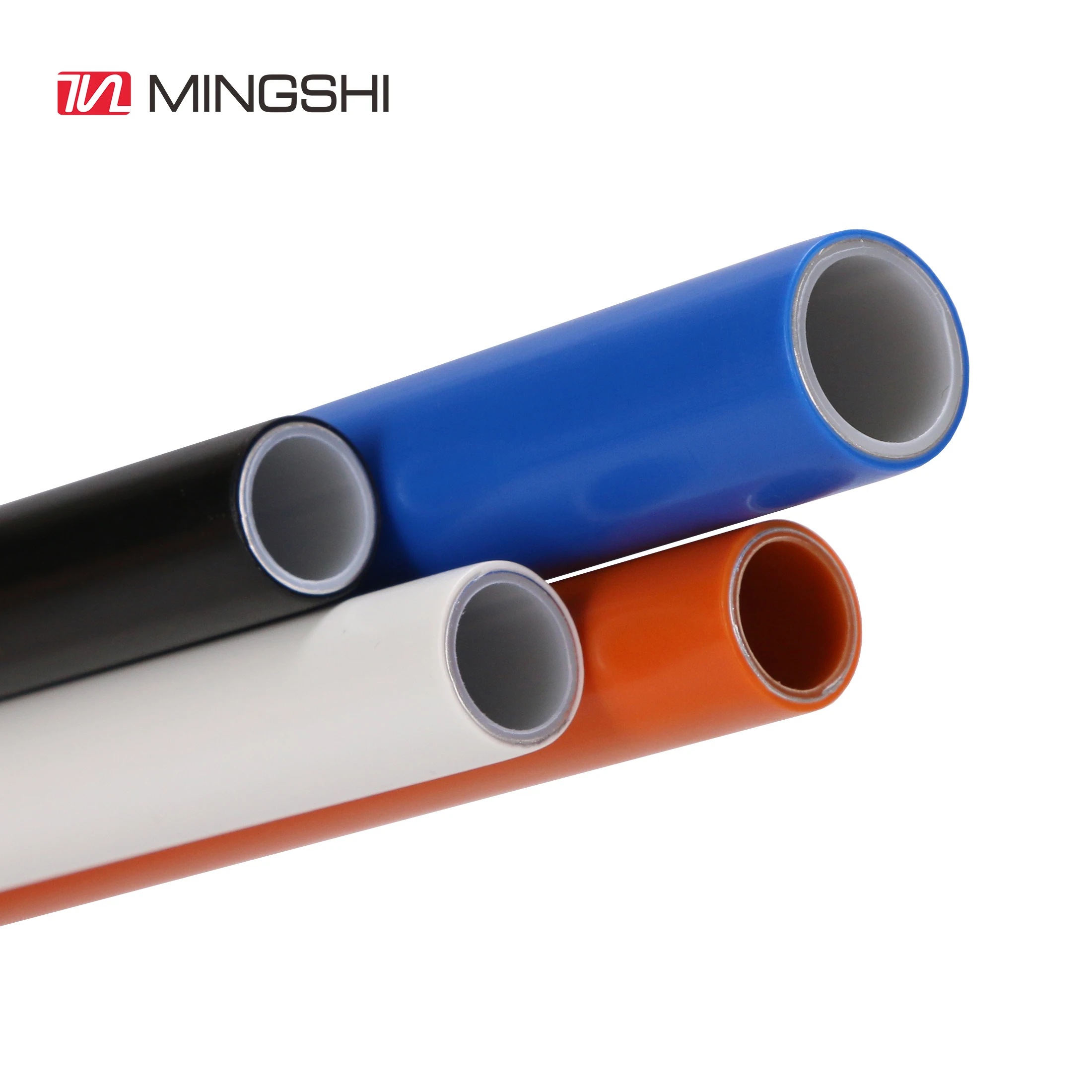

PEX Al PEX Water Pipe Aenor WRAS CSTB WATERMARK Pipe PEX Multilayer Aluminum Plumbing Pipe
- Category: Plastic Products >>>
- Supplier: Zhejiang,Mingshi,Xingxin,Hvac,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product details
Essential details | ||||||||
Place of Origin: | Zhejiang,China | Material: | Pex | |||||
Specification: | 16-63MM | Length: | 25/50/ 100/200/300/500 or OEM | |||||
Thickness: | 2.0, 2.5, 3.0, 4.0, 4.5, 6.0 | Standard: | AENOR,SKZ,WRAS,WATERMARK | |||||
Processing Service: | Cutting | Product name: | Pex-Al-Pex pipe | |||||
Application: | Gas system,Water system, Under floor heating. | Type: | Plastic Building Material | |||||
Raw Material: | Pex, Aluminum | Colors: | White,Red,Blue,Orange,Red or OEM | |||||
Logo: | Support custom logo | Features: | Corrosion Resistant,fire resistant,high pressure | |||||
MOQ: | 10000m | Shape: | Round | |||||
Advantage: | Flexible,easy to install | |||||||
Supply Ability | ||||||||
Supply Ability: | 3000000 Meters per month | 3000000 Meters per month | ||||||
Packing&Delivery | ||||||||
Packing Details: | With craft paper, then plastic film outside/Plastic bag | With craft paper, then plastic film outside/Plastic bag | ||||||
Port: | Ningbo or Shanghai | Ningbo or Shanghai | ||||||
International Standards | ||||||||
1 | EN ISO 21003 | Multilayer piping systems for hot and cold water installations inside buildings | ||||||
2 | AS 4176.2 & 3 | Multilayer piping systems for hot and cold water plumbing applications- PIPES & FITTINGS | ||||||
3 | ISO17484-2:2009 | Multilayer Plastics piping systems for indoor gas installations | ||||||
International Certificates | ||||||||
1 | AENOR | refers to EN ISO 21003 ，UNE-EN ISO 53007 | ||||||
2 | QB | refers to EN ISO 21003 | ||||||
3 | ACS | refers to XP P41-250 | ||||||
4 | Watermark | refers to AS 4176.2 & 3 | ||||||
5 | WRAS | refers to Regulators’ Specification | ||||||
6 | ISO 9001:2015 | Quality management system | ||||||
Size&Tolerance | ||||||||||||||||||
Nominal size(D x e) | 14×2.0 | 16×2.0 | 18×2.0 | 20×2.0 | 25×2.5 | 32×3.0 | 40x4.0 | 50x4.5 | 63x6.0 | |||||||||
Outside diameter (mm) | 14 | 16 | 18 | 20 | 25 | 32 | 40 | 50 | 63 | |||||||||
Tolerance of Outer diameter (mm) | 14-14.3 | 16-16.3 | 18-18.3 | 20-20.3 | 25-25.3 | 32-32.3 | 40-40.4 | 50-50.5 | 60.6-63 | |||||||||
Inside diameter(mm) | 10 | 12 | 14 | 16 | 20 | 26 | 32 | 41 | 51 | |||||||||
Tolerance of Inner diameter (mm) | 9.9-10.2 | 11.9-12.2 | 13.9-14.2 | 15.9-16.2 | 19.9-20.2 | 25.9-26.2 | 30.9-31.9 | 39.4-40.8 | 49.3-50.8 | |||||||||
Pipe thickness (mm) | 2 | 2 | 2 | 2 | 2.5 | 3 | 4 | 4.5 | 6 | |||||||||
Tolerance of pipe thickness (mm) | 2-2.25 | 2-2.25 | 2-2.25 | 2-2.25 | 2-2.25 | 2.4-2.7 | 2.9-3.2 | 4-4.6 | 4.5-5.2 | |||||||||
