XJY ro 1000l/h Solar Bore Well Water Reverse Osmosis Treatment Plant Brackish Water Desalination Machine
- Category: >>>
- Supplier: Guangdong,Xinjieyuan,Environmental,Protection,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
commercial reverse osmosis drinking water filters softener ro water treatment filtration plant cost system
reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% of all bacteria in the feed water.

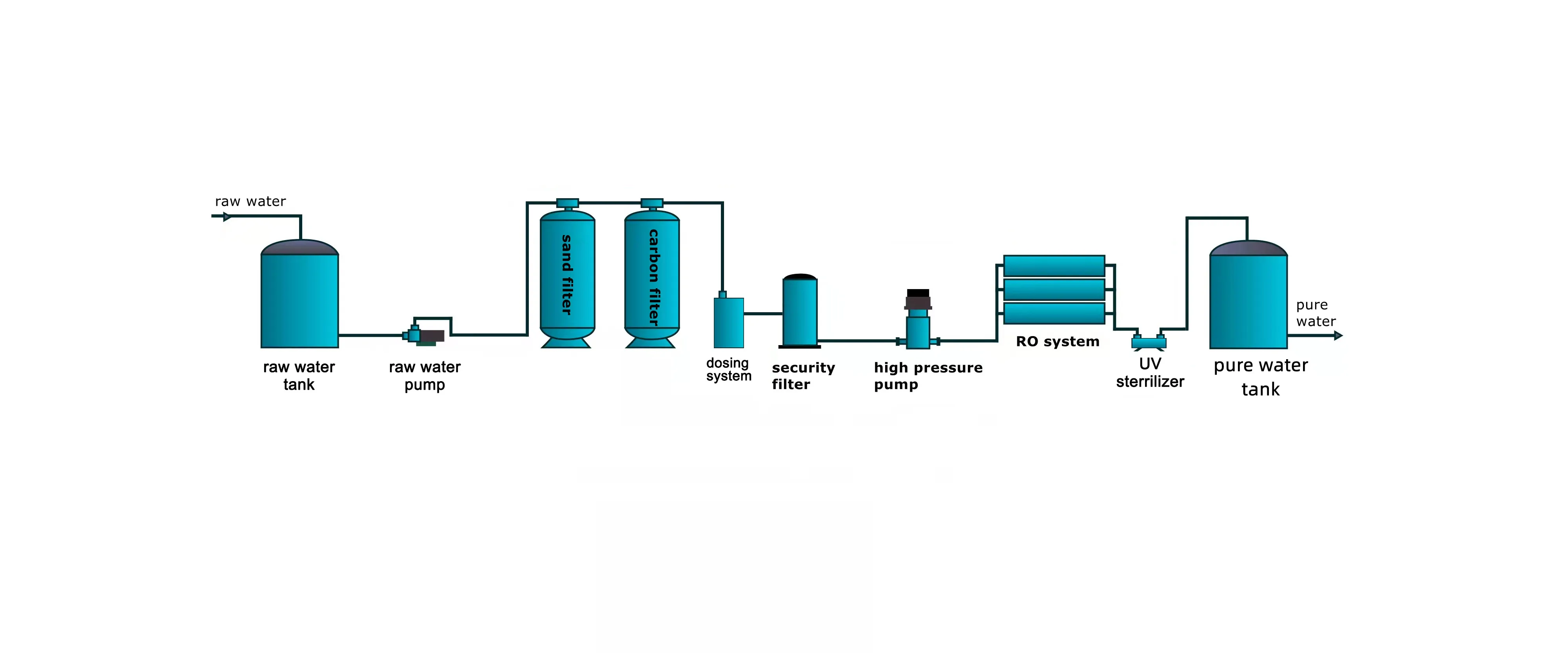

Process of reverse osmosis system
raw water + raw water tank + raw water pump + sand filter + carbon filter + softener (optional) + security filter + high pressure pump + reverse osmosis system + pure water tank + UV sterilizer (ozone generator) + precision filter + water point

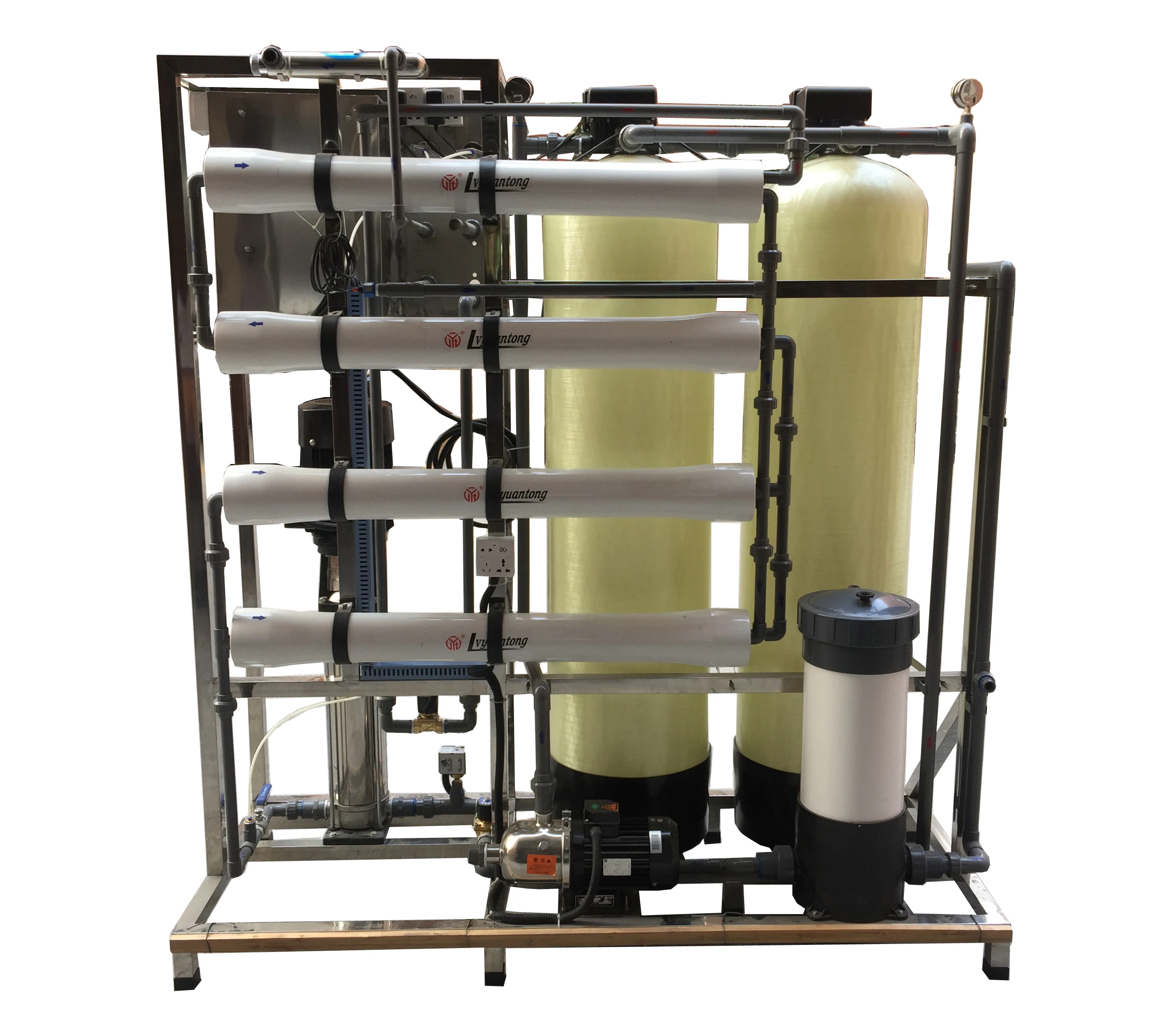

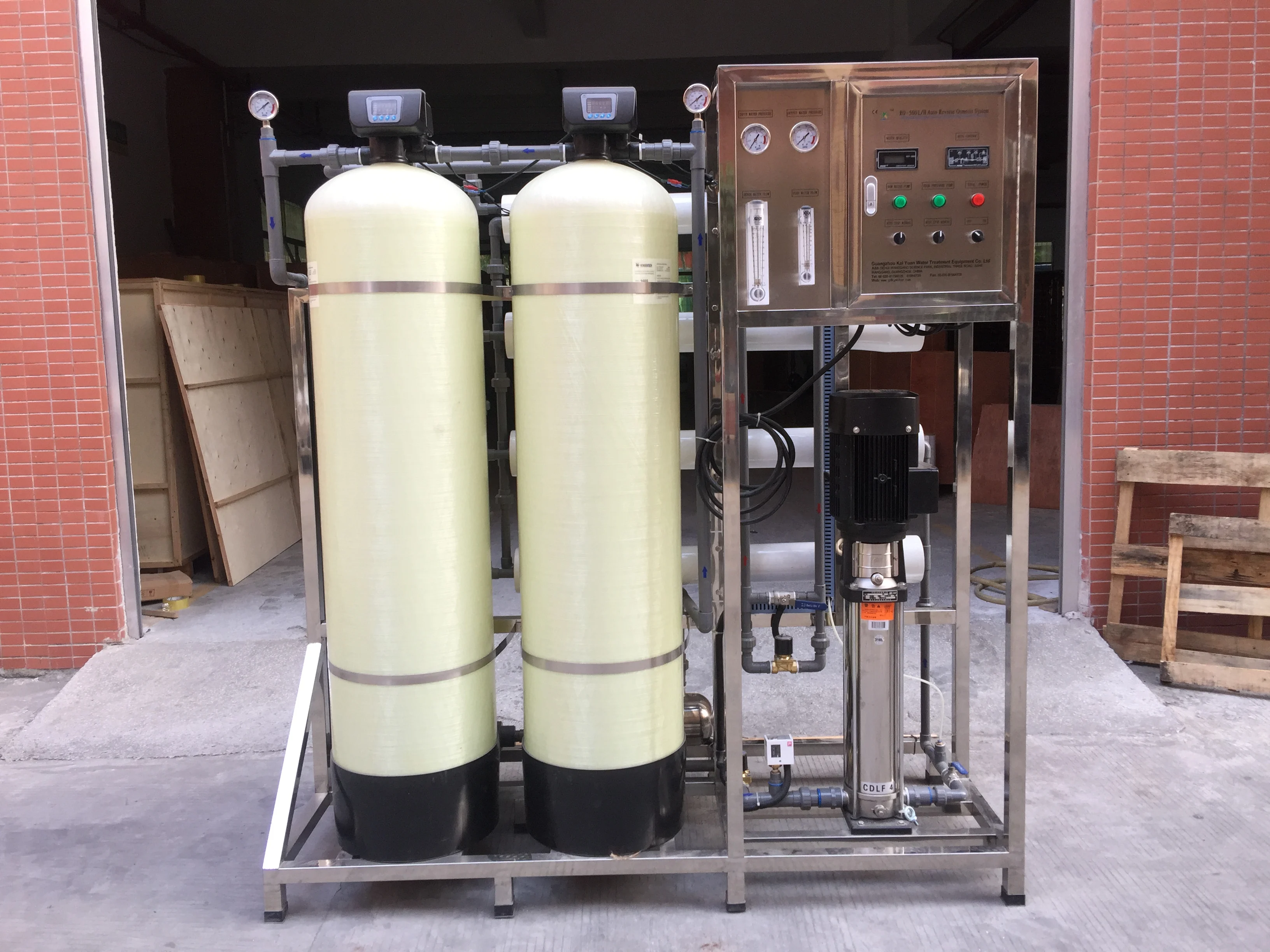

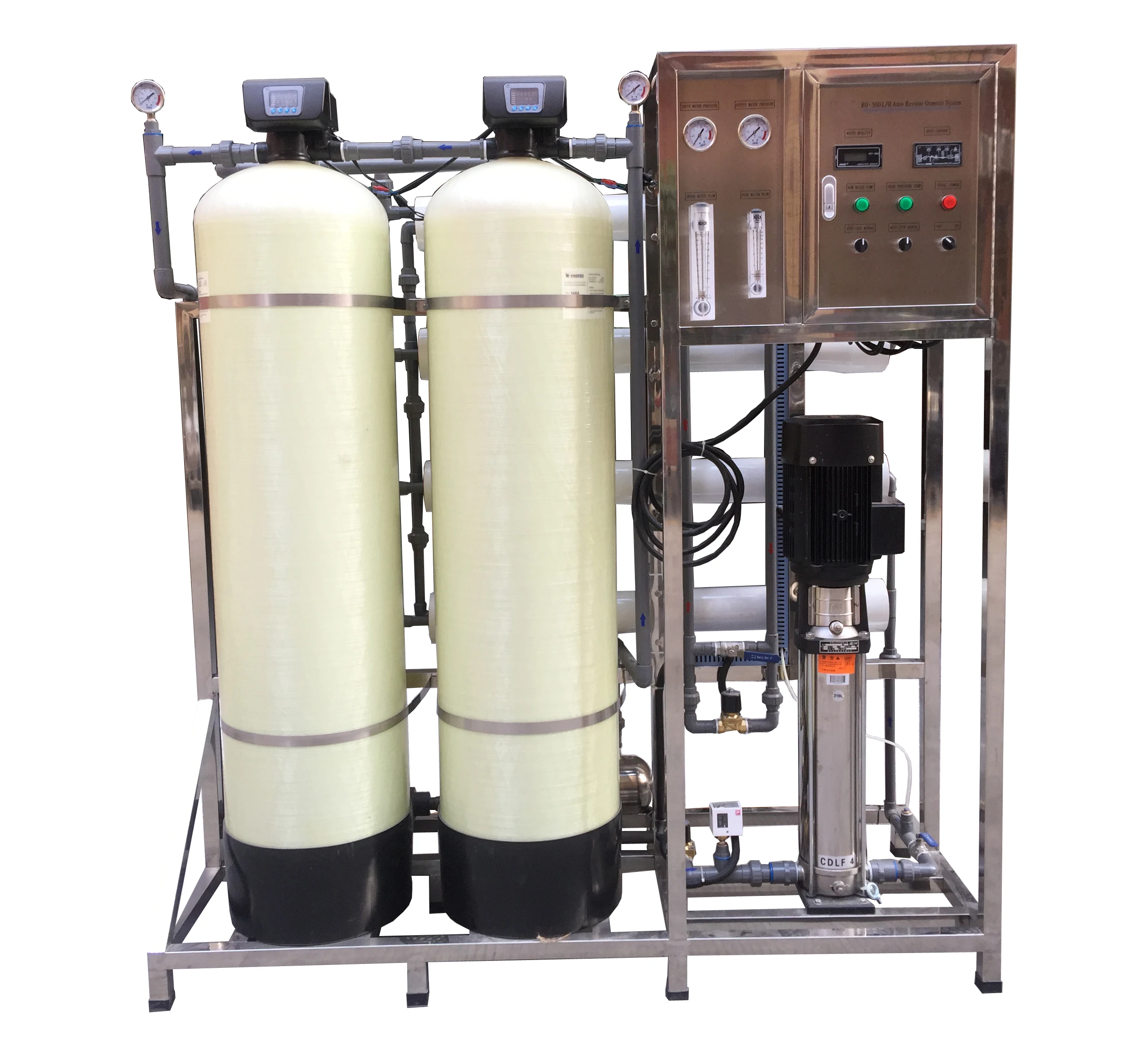

Product Image
Product Name | Brand | Function | |
Raw Water Pump | CNP/Grundfos/Danfoss | Provide needed pressure for every pre-treatment filter. | |
Sand Filter | Domestic | Remove the water contains sediment, manganese, rust, colloid material, and other particles. | |
Activated Carbon Filter | Domestic | Remove the pigment,smell,organisms, reducing the residual value of water | |
Water Softener (Optional) | Domestic | Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water. | |
Security Filter | Domestic | Remove 5 micro particles | |
High Pressure Pump | CNP/Grundfos/Danfoss | Provide needed pressure for RO system | |
RO Membrane | USA Dupont / Hydranautics /China Vontron | Remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts. | |
UV Sterilizer /Ozone generator | Domestic / Hanovia /BNP Ozone | Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water | |
Option Item | dosing system / CIP system / Chlorination system /Iron removal filter... | ||
Scope Of Application

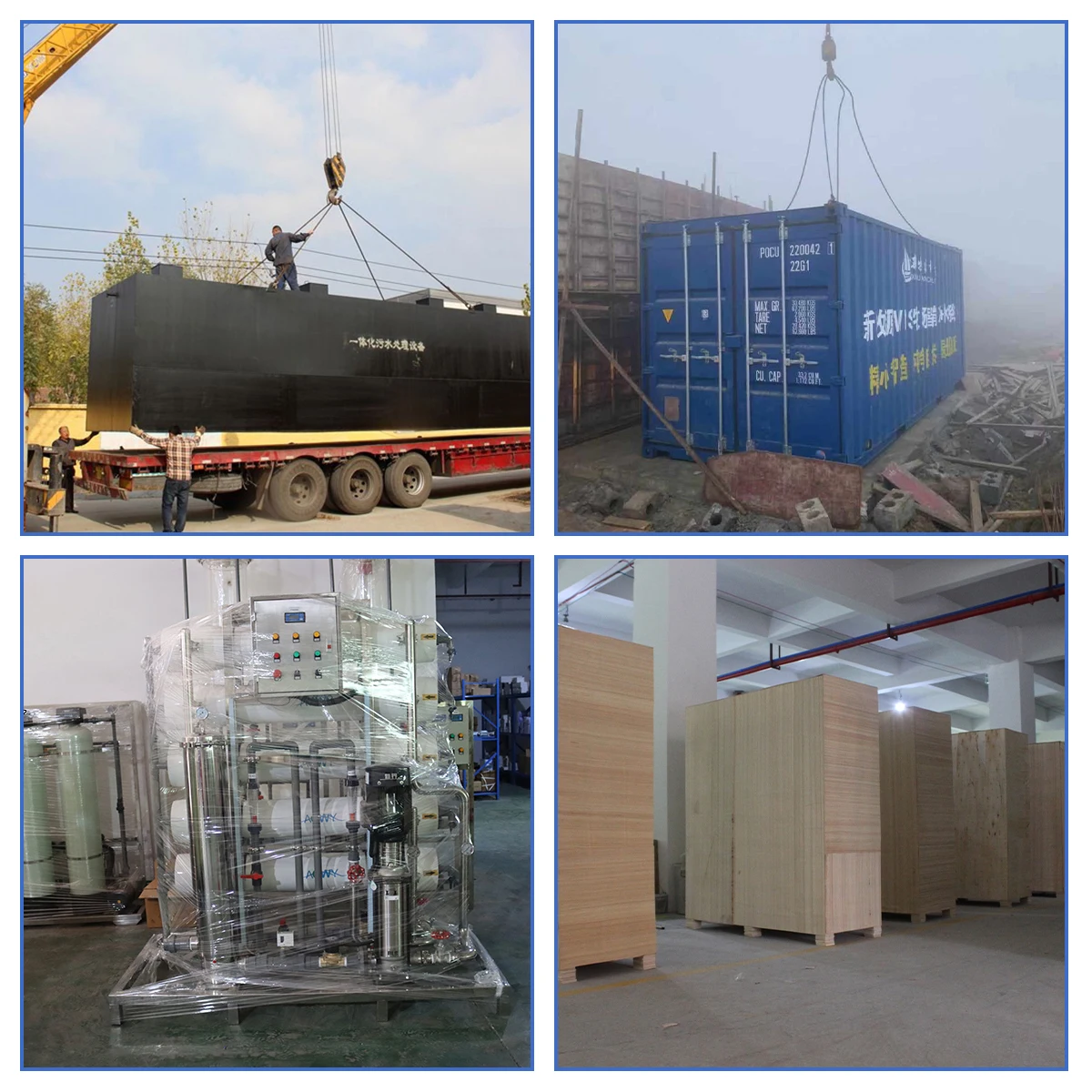

Packing & Delivering
Why Choose Us
Company Profile
Guangdong Xinjieyuan Environmental Protection Technology CO., Ltd is located in Guangzhou city, Guangdong Province with convenient transportation access. We are modern environmental company which focuses on technology research and development; equipment production; project design and management all-around service.
Our company has strong technical team. We cooperated with Laboratories in Chinese high institutions now and build “production-study-research” platform. With the support of strong teacher resources and the introduction of environmental protection technology talents, we continue to improve and develop environmental protection technology, especially in the water treatment field.
Our company insisted on providing high quality product and good service. We fully meet the requirement of our clients from equipment design, project construction, equipment installation and after-sale training etc. We provide advanced equipment to solve clients’ problem and make maximum value for clients. Our products as follow: pure water treatment equipment such as reverse osmosis system/ Nanofiltration system/ Ultrafiltration system/ Micron filtration system/ seawater desalination system/ lon exchange system/ ultrapure water system(EDI) etc.; waste water treatment equipment such as livestock breeding sewage treatment plant/ sanitary sewage treatment plant/ food processing industry waste water treatment plant/ industrial and mining enterprises waste water treatment plant etc.; water treatment equipment accessories and consumables.
We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together.
Our company has strong technical team. We cooperated with Laboratories in Chinese high institutions now and build “production-study-research” platform. With the support of strong teacher resources and the introduction of environmental protection technology talents, we continue to improve and develop environmental protection technology, especially in the water treatment field.
Our company insisted on providing high quality product and good service. We fully meet the requirement of our clients from equipment design, project construction, equipment installation and after-sale training etc. We provide advanced equipment to solve clients’ problem and make maximum value for clients. Our products as follow: pure water treatment equipment such as reverse osmosis system/ Nanofiltration system/ Ultrafiltration system/ Micron filtration system/ seawater desalination system/ lon exchange system/ ultrapure water system(EDI) etc.; waste water treatment equipment such as livestock breeding sewage treatment plant/ sanitary sewage treatment plant/ food processing industry waste water treatment plant/ industrial and mining enterprises waste water treatment plant etc.; water treatment equipment accessories and consumables.
We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together.
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry
(Except weekend and holidays).
-If you are very urgent to get the price, please call us
or contact us in other ways so that we can offer you a quote.
2.What is your lead time?
-It depends on the order quantity and voltage of machine you need.
-Usually we can ship within 7-15 days for small quantity,
and about 30 days for large quantity.
Special voltage we may need about 40 days for production.
3. Is this machine easy to install?
Will you arrange engineer to help me install?
-This machine is very easy for install. The machine you received
is assembled. You will only need to follow steps on our English
instruction and video. If big capacity of machines, we can arrange
engineer to help installation.
4.What is your payment term?
-T/T,Western Union,MoneyGram and L/C at sight. This is negotiable.
After we confirmed order, I will send you contract sales with our
company bank information. You can transfer money to our company
bank account by T/T. Or you can choose to place order online.
5. What’s the packing of machine? Is it suitable for shipment?
-Machine will be packed by standard export plywood case.
It is suitable for long time shipment by sea/air/train.
6.What is the shipping method?
-It could be shipped by sea,by air, by train.
Please confirm with us before placing orders.
7.How about warranty?
-We provide 1 year warranty. It means when there is any parts
broken in one year, we will send spare parts to you for free.
8.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit
-2. We respect every customer as our friend and we sincerely do business
and make friends with them,no matter where they come from.
