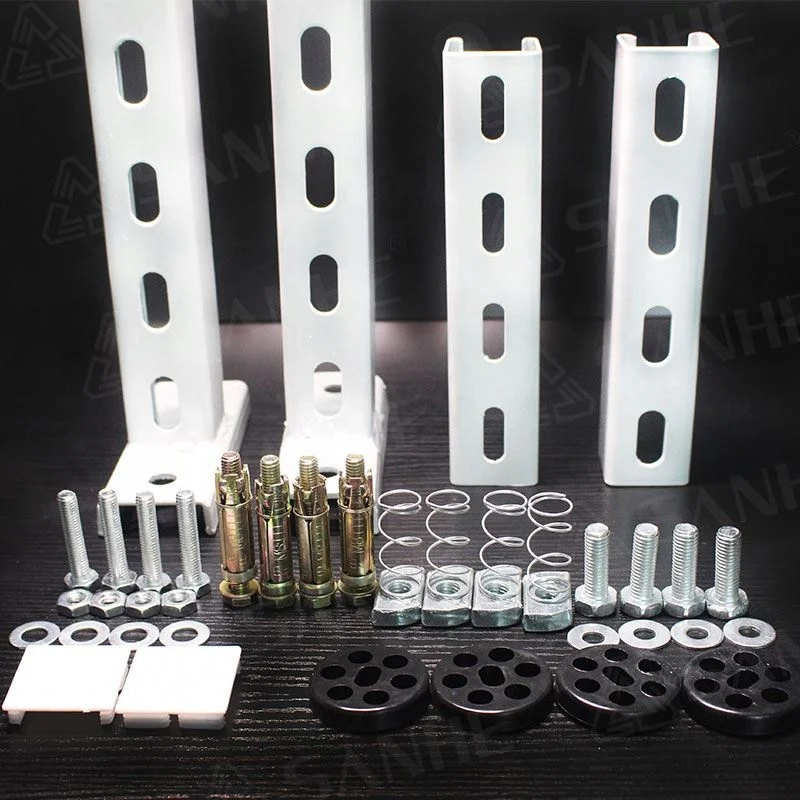

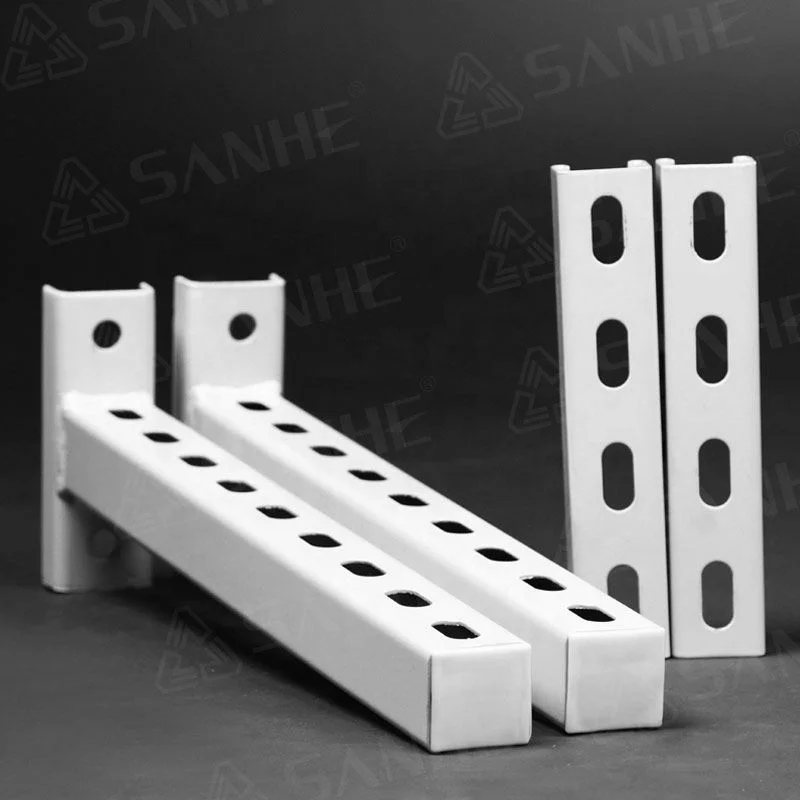

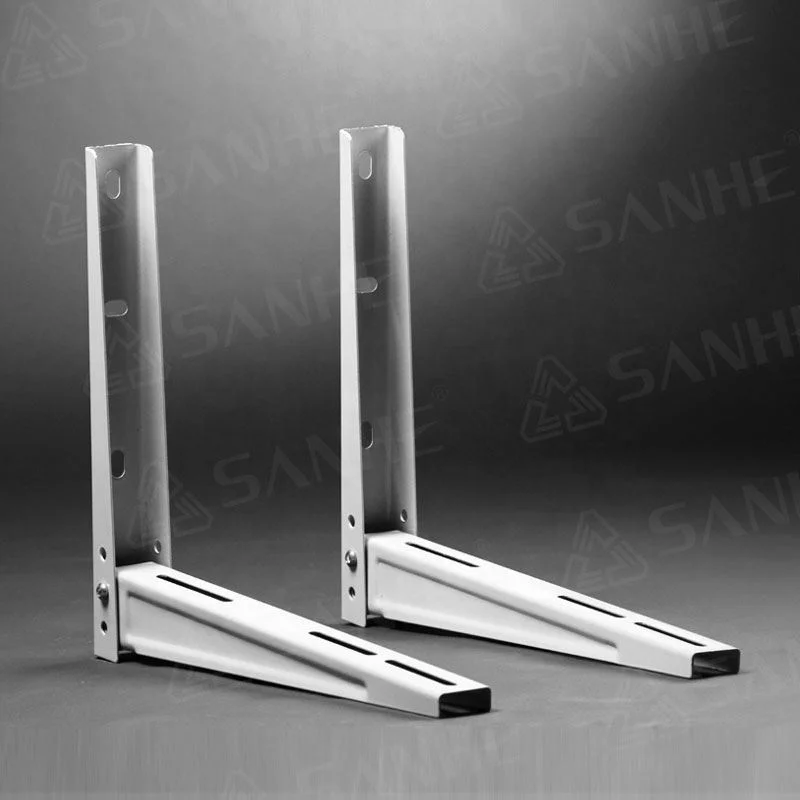

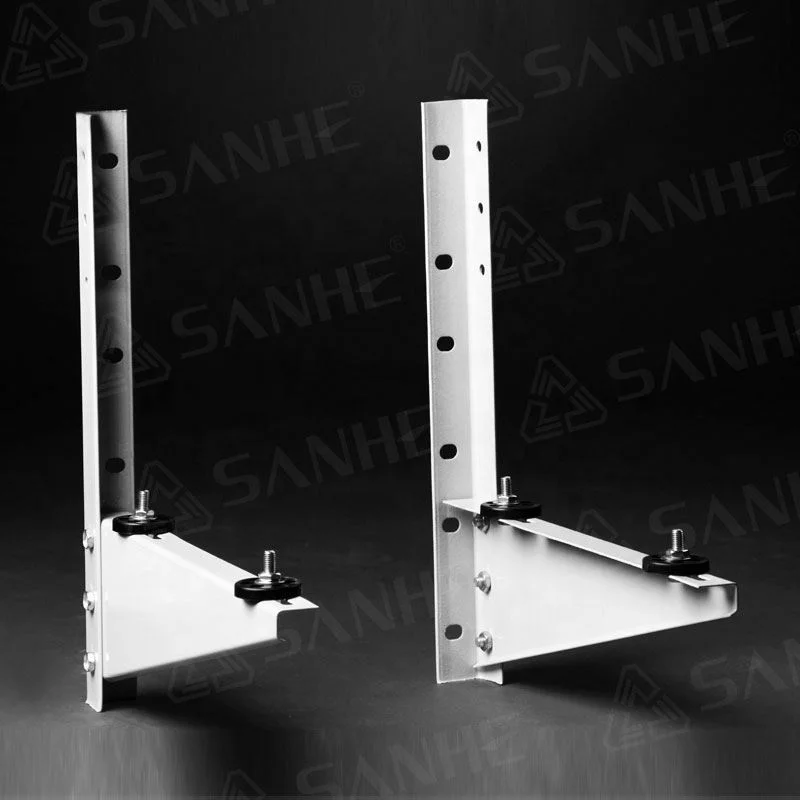

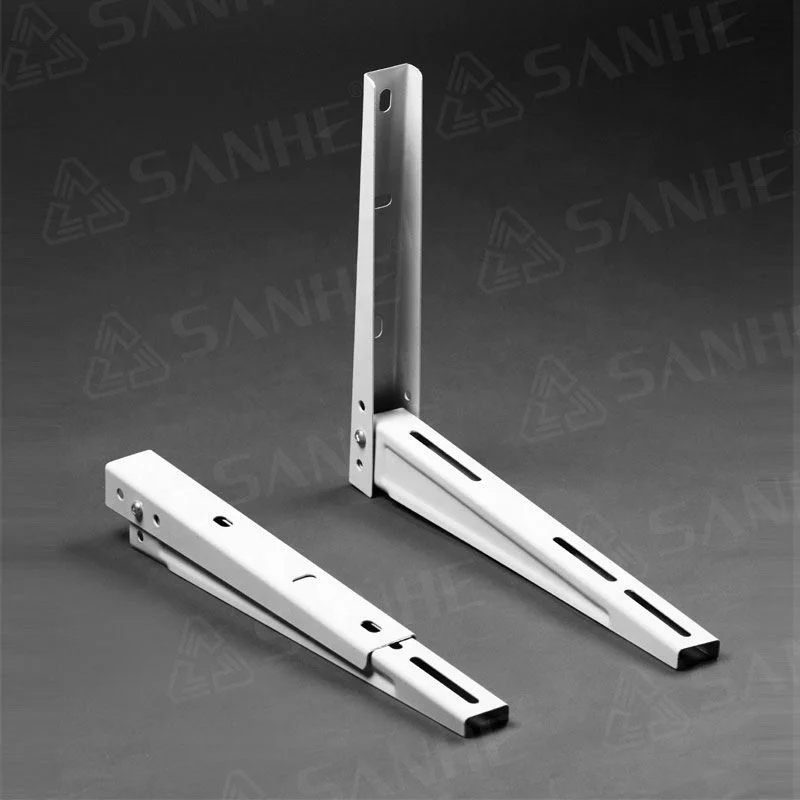

Air condition Slotted angle bracket foldable mounting bracket
- Category: >>>
- Supplier: Ningbo Sanhe Refrigeration Co. Ltd.
Share on (1600725734571):
Product Overview
Description

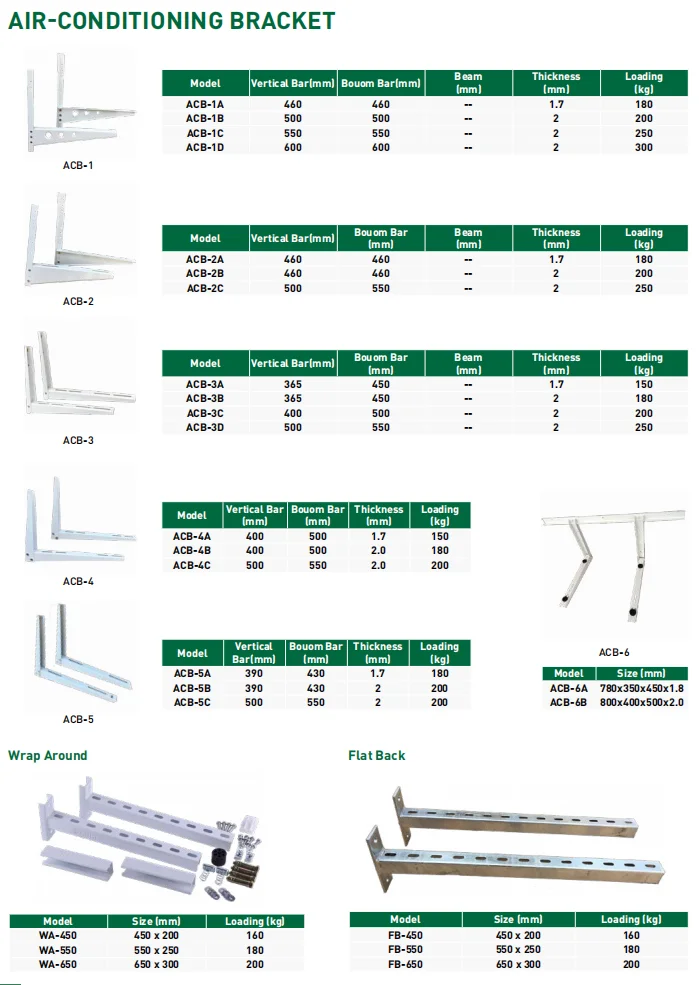

Model | Vertical Bar(mm) | Bouom Bar(mm) | Beam(mm) | Thickness(mm) | Loading(kg) |
ACB-1A | 460 | 460 | -- | 1.7 | 180 |
ACB-1B | 500 | 500 | -- | 2 | 200 |
ACB-1C | 550 | 550 | -- | 2 | 250 |
ACB-1D | 600 | 600 | -- | 2 | 300 |
ACB-2A | 460 | 460 | -- | 1.7 | 180 |
ACB-2B | 460 | 460 | -- | 2 | 200 |
ACB-2C | 500 | 550 | -- | 2 | 250 |
ACB-3A | 365 | 450 | -- | 1.7 | 150 |
ACB-3B | 365 | 450 | -- | 2 | 180 |
ACB-3C | 400 | 500 | -- | 2 | 200 |
ACB-3D | 500 | 550 | -- | 2 | 250 |
ACB-4A | 400 | 500 | 1.7 | 150 | |
ACB-4B | 400 | 500 | 2 | 180 | |
ACB-4C | 500 | 550 | 2 | 200 | |
ACB-5A | 390 | 430 | 1.7 | 180 | |
ACB-5B | 390 | 430 | 2 | 200 | |
ACB-5C | 500 | 550 | 2 | 200 | |
Model | Size (mm) | Loading(kg) | |||
ACB-6A | 780x350x450x1.8 | ||||
ACB-6B | 800x400x500x2.0 | ||||
WA-450 | 450x200 | 160 | |||
WA-550 | 550x250 | 180 | |||
WA-650 | 650x300 | 200 | |||
FB-450 | 450x200 | 160 | |||
FB-550 | 550x250 | 180 | |||
FB-650 | 650x300 | 200 |
