SINOSUN, новая Асфальтовая установка, цена от 80 т до 120 т в час
- Category: Asphalt Mixers >>>
- Supplier: Zhengzhou,SINOSUN,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
SINOSUN New Asphalt Plant Price 80t to 120t per hour
Product Description

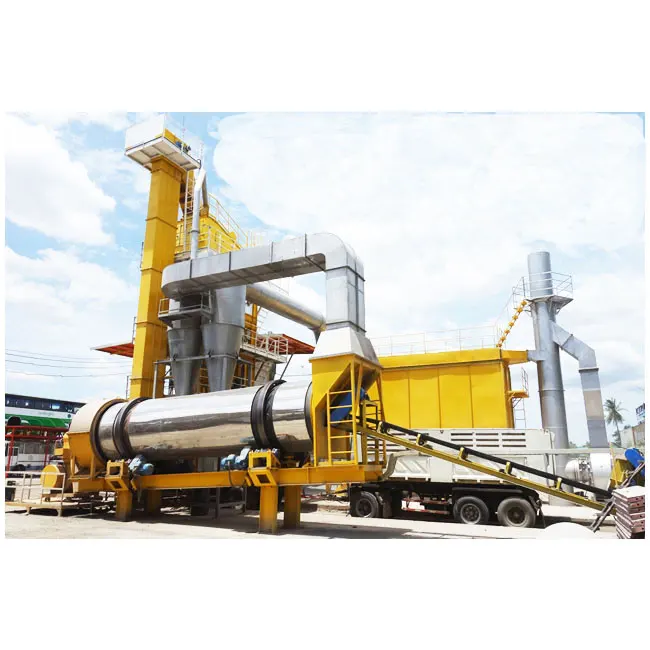

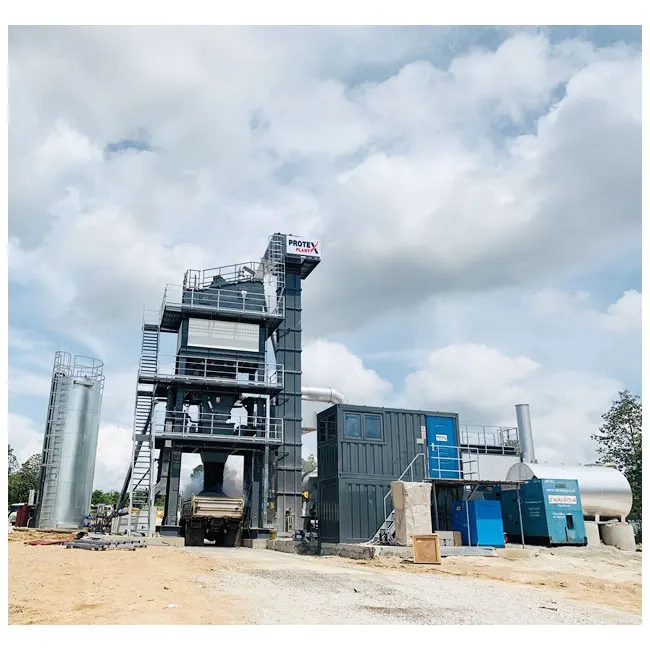

SINOSUN asphalt plants are designed for international market and could be customized according to different requirements, covering a diverse range of products from 40 TPH to 400 TPH.
SAP series Hot Asphalt Mixed Batch Plant is the final solutions for customer requirements on quality , environment and economical investment.
Components of SAP Asphalt Plant
Cold aggregate feeding system
Drying System (Drying Drum & Burner)
Hot Aggregate Elevator
Mixing Tower (Vibrating Screen,Main Tower, Mixer,Weighing System)
Bitumen Supplying System
Dust Collecting System (Primary Dust Collecting,Secondary Dust Collecting)
Electrical Control System
Filler Supplying System
Features Of SAP series Hot Asphalt Mixed Batch Plant
1.SAP Asphalt Plant adopts modular structure, reasonable layout, simple and compact structure, suitable for container transportation, installation demolition convenient.
2.The Asphalt Plant is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.
3.All the components can put into the container, can greatly reduce transport cost.
4.No foundation and modular design, can induce the install and disassembly time to the shortest.
Technical Parameter
Technical parameter of SINOSUN Asphalt Plant Price 80t to 120t per hour
Capacity | SAP80 | SAP120 |
80t/h | 120t/h | |
Max capacity of oblique belt machine | Width 500mm | Width 600mm |
80t/h | 120t/h | |
Max capacity of dry roller( mm) | 1600×6800 | 1800×8000 |
80t/h | 120t/h | |
Max burning amount of burner | Coal burner | |
1300kg/h | 1700kg/h | |
Filtrating area of bag dust collector( m2) | Pulse Jet | |
400 | 480 | |
Recycling screw conveyor | 12t/h | 13.5t/h |
Blower | 900m3/(m) | 900m3/(m) |
Flue pipe( mm) | 1200×9600 | 1200×10000 |
Max. capacity of hot aggregate elevator | Chain elevating | |
110t/h | 130t/h | |
Max. capacity of vibrating screen | 80t/h | 120t/h |
Interval capacity of hot aggregate hopper | 4 interval type | |
Weighting device | Remote display of electronic gauge) | |
Aggregate:±0.3% | ||
Bitumen :±0.15% | ||
Fine aggregate:±0.3% | ||
Mixer | Double-axis forcing stirring batch | |
Single-unit drive 1000kg/lot | Single-unit drive 1500kg/lot | |
Discharging amount of bitumen injector | Self-flow | |
300L/min | 500L/min | |
Max. capacity of filler elevator | Hopper elevating | |
15t/h | 15t/h | |
Spiral conveyor | 15t/h | 20t/h |
Operating panel | Computer display | |
Drive panel | Indoor type | |
248kw | 311kw | |
Related Products
 |  |  |
| 40-400TPH Stationary Asphalt Plant | 40-160TPH Mobile Asphalt Plant | 20-120TPH Drum Mix Asphalt Plant |
 |  |  |
| 6-10TPH Emulsion Bitumen Plant | 4-10 TPH Bitumen Melting Machine | Bitumen Tank for Asphalt Plant |
Project
For over years, we supplied the asphalt industry with high quality asphalt batching plant parts, mobile asphalt mixing plant,continous asphalt mixing plant and other reletaed products.
Our asphalt plant products are cost effective, user friendly, easy to maintain and strong after - sales services.

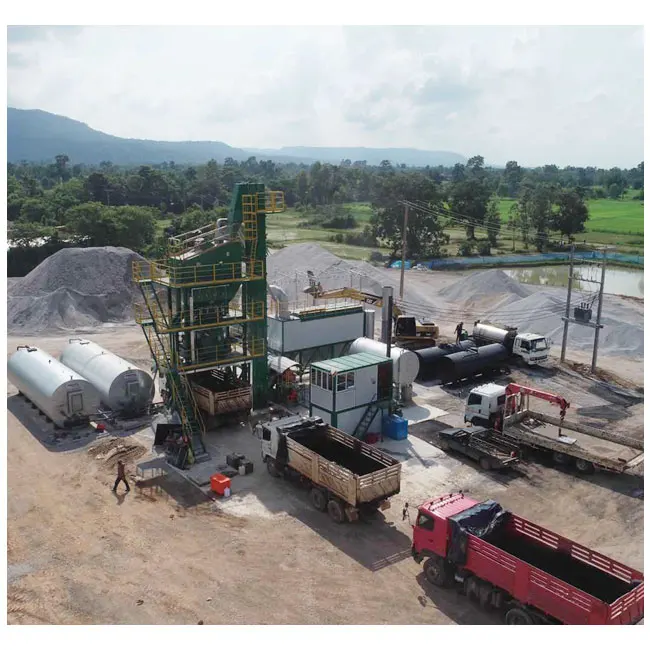

Now these asphalt plant products have been widely used in home and abroad road construction project, such as Russia, USA,Thailand, Romania , Poland , Brazil , Philippines , Indonesia, Peru, Canada, Bangladesh etc. In Africa , we have exported to Ethiopia , Angola , Algeria and Libya etc.

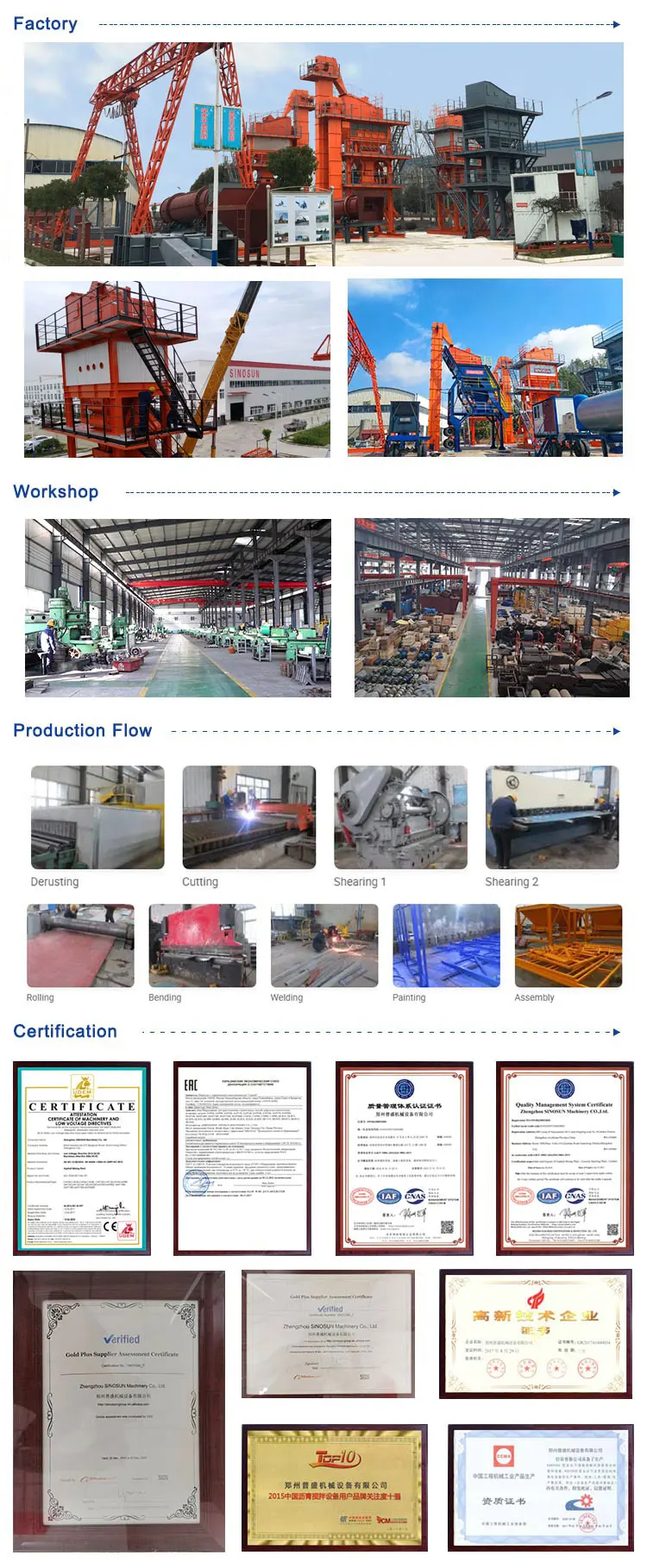

Company Information
SINOSUN is one of China’s dominant and professional manufacturers and exporters of Precisioned Asphalt Mixing Plants and related asphalt plant equipment.
We mainly supply:
1.Stationary asphalt mixing plant (SAP series)
2.Recycle asphalt mixing plant (SR series)
3.Mobile asphalt mixing plant ( MAP series)
4.Continuous asphalt mixing plant (CAP series)
5.Twin-shaft asphalt mixing plant (QLB series)
6.Twin-drum asphalt mixing plant (SLB series)
7.Emulsion Bitumen Plant (RH series)
8.Bitumen Melting Machine (DT series)
Our Services
FAQ
Q:Which countries your equipment have been exported?
A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi, Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q:How many workers are needed to operate one set of asphalt plant?
A:1 loader operator, 1 mechanical, 1 electrician, 1 supervisor ,1 the operator of the whole plant.
Q:How many days are used for installation of one set asphalt plant?
A:Around 20-30 days, according to local situation.
Q:Do you provide overseas erection and training service?
A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.
Q:How long is the delivery time?
A:30-40 days, according to different configuration. We promise to delivery on time.
Q:Can you sent me some spare parts freely?
A:Some spare parts will be sent to you together with asphalt plants freely.
Q:How to go to your asphalt plant factory easily?
A:Our city has airport. If by air, you can fly from Guangzhou/Beijing/Shanghai no more than 2 hours. Also you can fly to Zhengzhou, we send car to pick you up there.
Q:Can I visit your factory?
A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking, etc.
Q:How long is the warranty of your asphalt plant?
A:12 months
Q:What payment terms you accept?
A:We accept T/T, L/C,D/A,D/P, Western Union, MoneyGram and other ways according to the practical situation.
