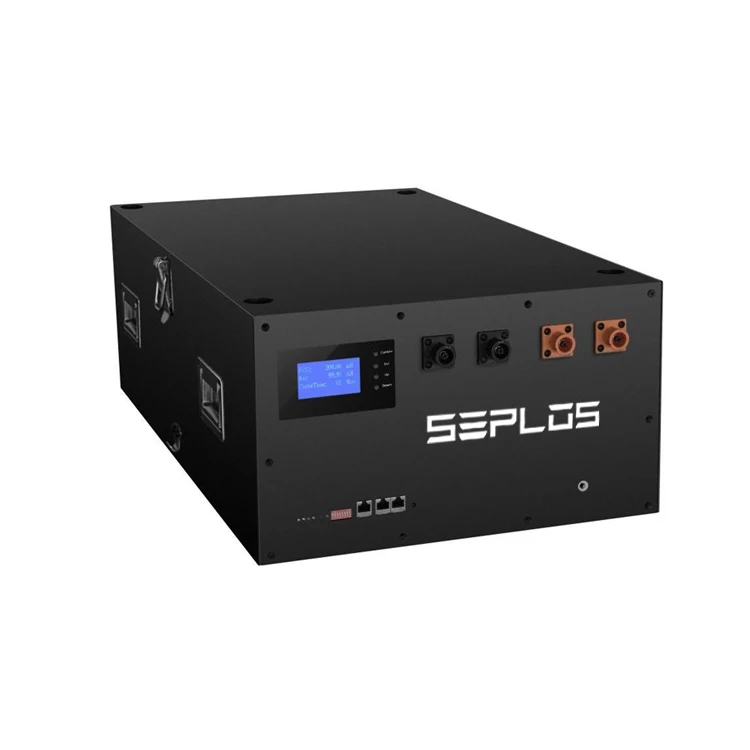

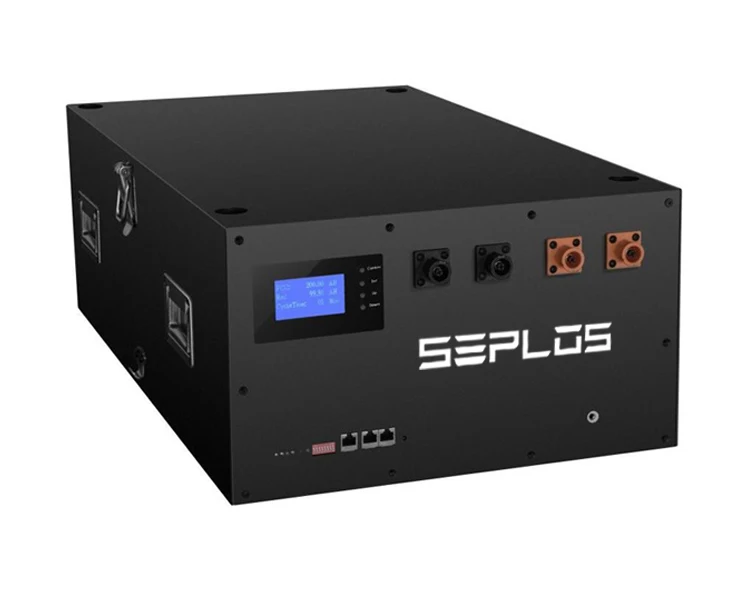

SEPLOS 48V 51.2V 206V 280AH 302AH 310AH LiFePO4 Lithium Phosphate Battery Pack DIY Kits Set Case Assemble Box Without Cells
- Category: >>>
- Supplier: Shenzhen Xingzhijie Electronic Co. Ltd.
Share on (1600725799258):
Product Overview
Description
Product Description
Product name | SEPLOS 48V 51.2V 206V 280AH 302AH 310AH LiFePO4 Lithium Phosphate Battery Pack DIY Kits Set Case Assemble Box Without Cells | |
Basic Paramenters | MASON-280 | |
Nominal Voltage(V) | 51.2V | |
Nominal Capacity(Ah) | 280Ah @0.5C discharge current 25±2℃ | |
Nominal Power(wh) | 14.3kwh | |
Dimension(mm) | 750*440*251mm | |
Weight (kg) | DIY BOX=28.5KG,DIY BOX with cells=112±5kg | |
Discharg Cut-off Voltage(V) | 41.6v | |
Charge Voltage(V) | 57.6v | |
Continuously Charge/Discharge Current(A) | 140A@25±2℃(Recommended) | |
Max Standard charge/discharge Current | 200A@25±2℃ | |
Working Temperature | 0-50℃(Charge) | |
(-10——50℃)Discharge | ||
(-20——55℃)Storage | ||
SOC Range | 5%-100% | |
Recommended SOC Range | 15%-95% | |
Humidity | 10%-85% | |
IP level | IP 20 | |
Certificates | CE, ROHS, MSDS, UN38.3 | |

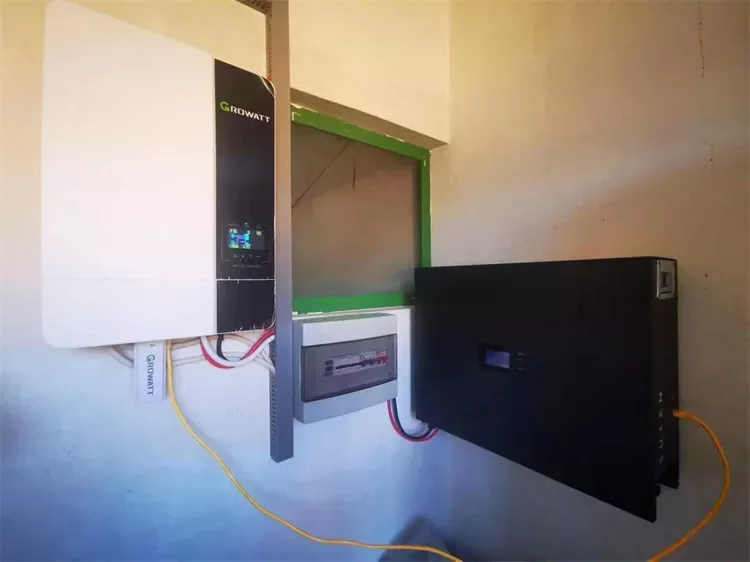

Our BMS is compatible with Growatt, Goodwe, Sofar, SMA, Victron, DEYE, Luxpower, Sermatec, Renac, TBB Power, Solis, Foxess, and IMEON inverters. Support max. 16 connected in parallel | ||

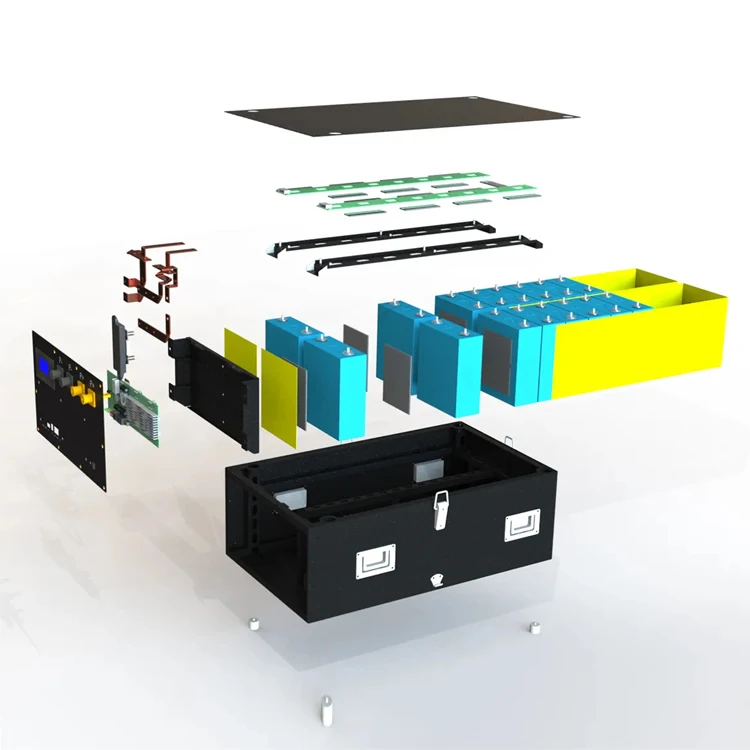

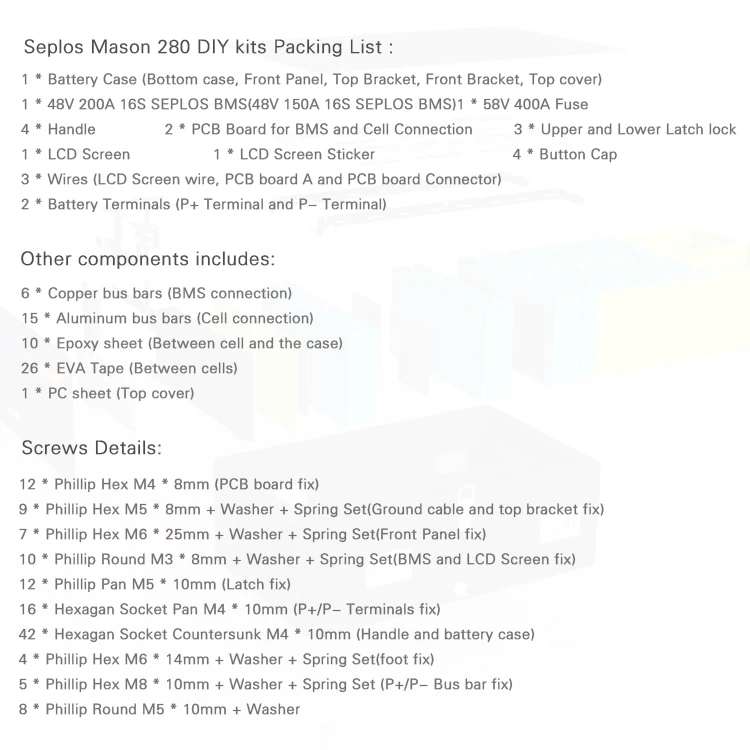

Packing List
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle

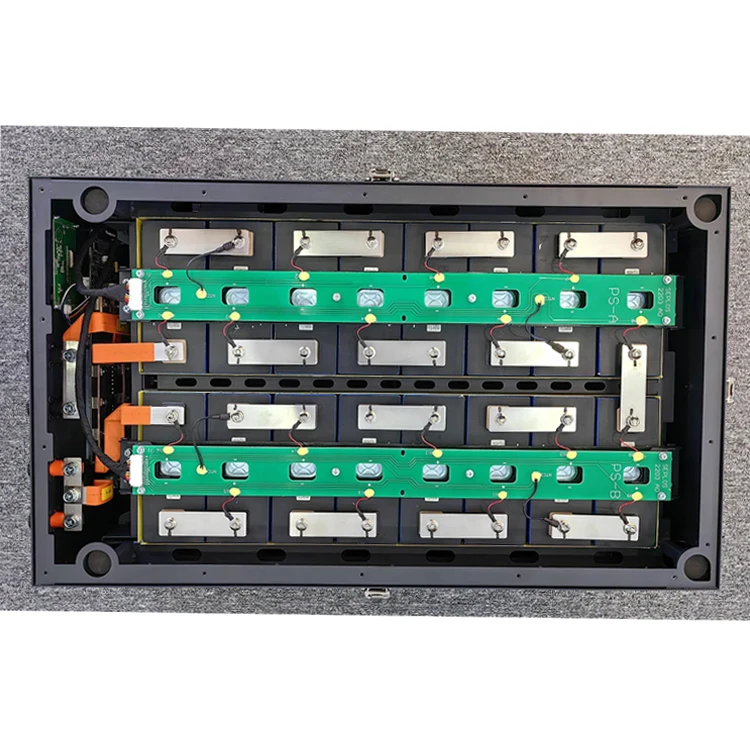

2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
Advantage of lifepo4 battery:
1.High depth cycle time Grade A battery,≥80% capacity state after 4800 cycles at 0.5C, 25℃, 100% DOD
3.A product continuously ploughed, continuously upgraded, visible details improve.

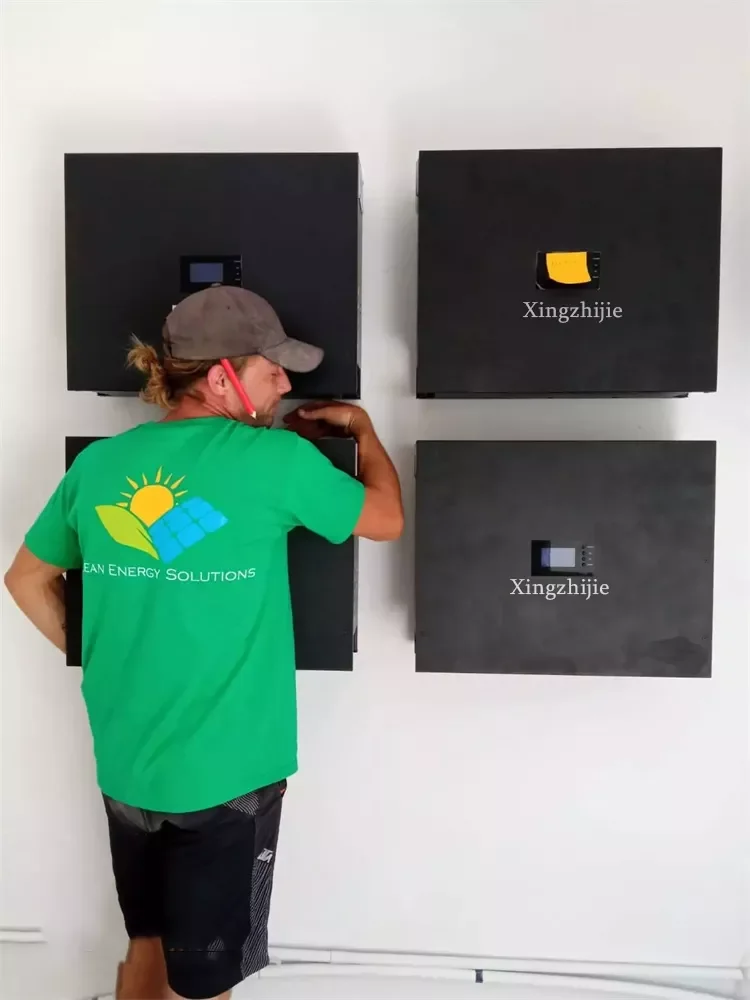

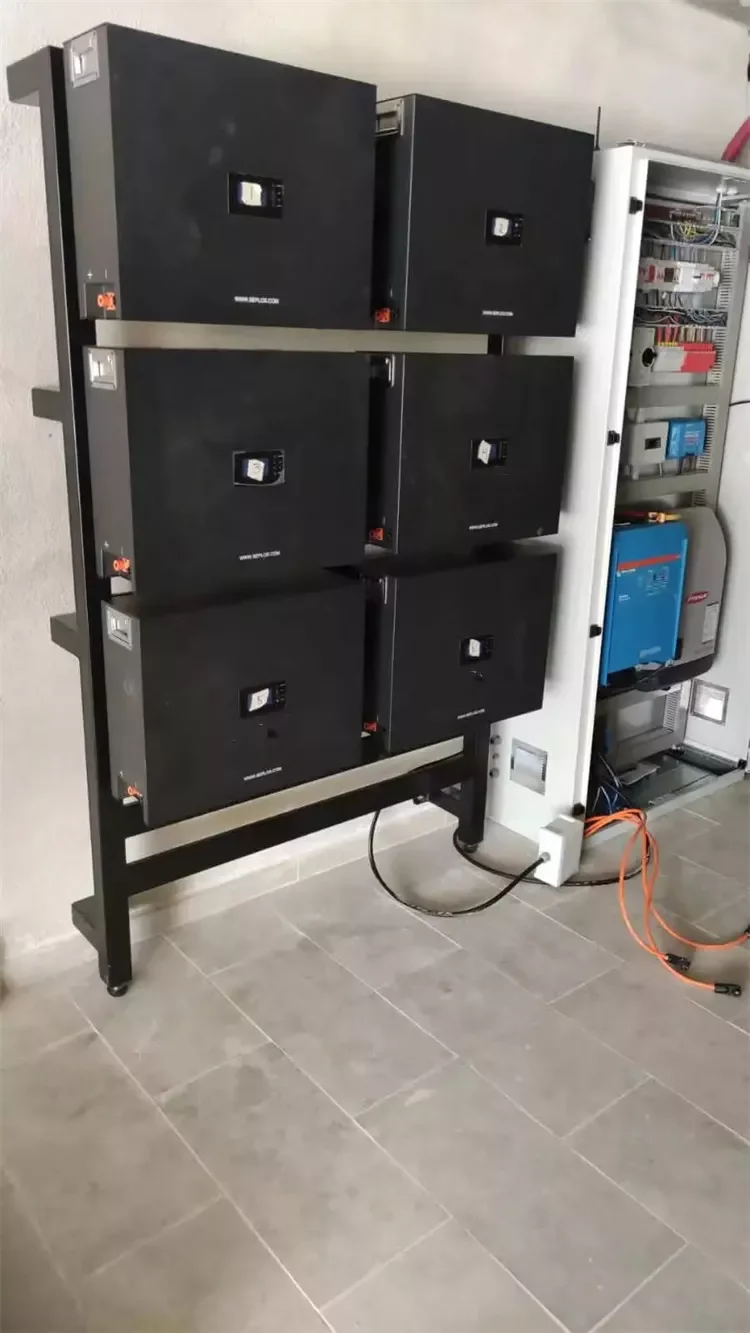

4.Up to 16 battery packs can be connected in parallel to form 82KWh energy storage power station, suitable for home or commercial use
6.Rest assured after sales: Europe in Germany, Austria, California, Australia have after-sales points. One payment, 10 years rest assured
7.Do you have concerns about the safety of lithium-ion batteries? Would you like to have a look at the inner structure of our product? Here we will production process transparent, from screws to finished all the installation details of the battery pack, you can see, we constantly update safety design, for more security, we want customers to buy back is not a cold iron box, do not need to open it, then to him like the palm of his hand, see the security of customers for our products more understanding, the more trust.
8.If you want to know more product details of our product,please click this Youtube channel Link:
2.Automotive safety structure design,more safe
3.A product continuously ploughed, continuously upgraded, visible details improve.
4.Up to 16 battery packs can be connected in parallel to form 82KWh energy storage power station, suitable for home or commercial use
5.CANBUS communication, active upload battery data to the inverter, more secure
6.Rest assured after sales: Europe in Germany, Austria, California, Australia have after-sales points. One payment, 10 years rest assured
7.Do you have concerns about the safety of lithium-ion batteries? Would you like to have a look at the inner structure of our product? Here we will production process transparent, from screws to finished all the installation details of the battery pack, you can see, we constantly update safety design, for more security, we want customers to buy back is not a cold iron box, do not need to open it, then to him like the palm of his hand, see the security of customers for our products more understanding, the more trust.
8.If you want to know more product details of our product,please click this Youtube channel Link:
1.Q:What are the advantages of your company?
A:Strong R & D team, independent R & D and production of main parts, to control product quality very strictly.
2.Q:Can you supply OEM &ODM service ?
A:Yes,we have R&D team and need MOQ.
3.Q:What kind of certificates your products have acquired ?
A:Most of our solar products have acquired CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing requirements.
4.Q. What about the lead time?
A:Sample needs 5-10 days, mass production time needs 25-45days.
5.Q:How do you ship the goods since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
6.Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
7.Q:Can your machines carry refrigerators, coffee makers, and electric kettles?
A:Please read the product manual carefully for details. As long as the Noninductive load not over our rated load.
8.Q:Does your portable power station have UPS function?
A:The portable power station has no UPS function, while the home systems has UPS function.
9. Q:Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
10.How long is the warranty of your products? How to guarantee the after-sale services?
A:We guarantee most of our products for one year,the solar panel for 5 years. We will prepare 3‰ to 5‰ accessories for easy damage parts. We will help you solve all the technology problems through email,phone,video...
