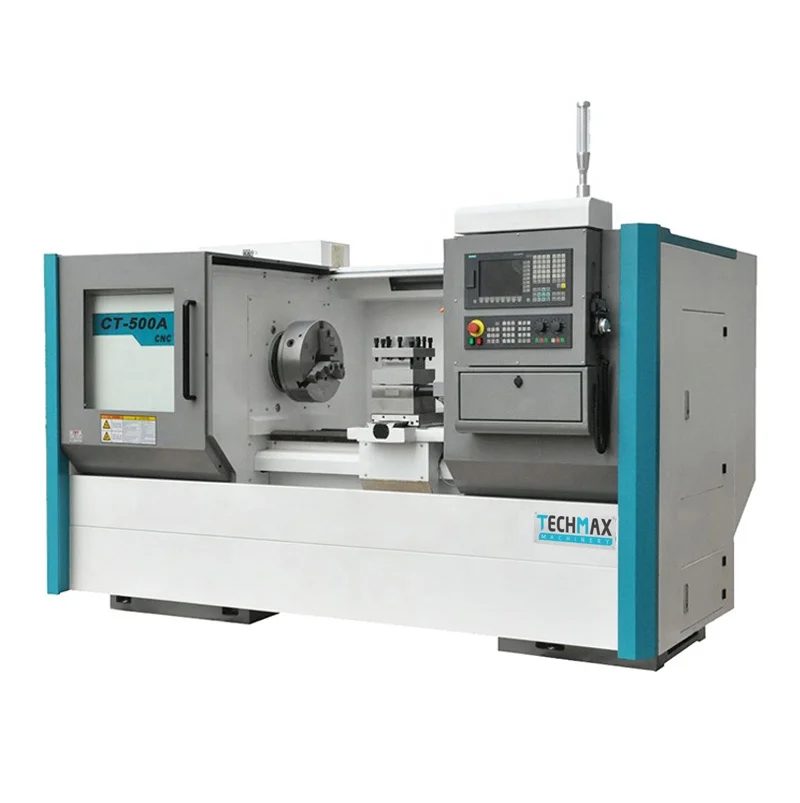

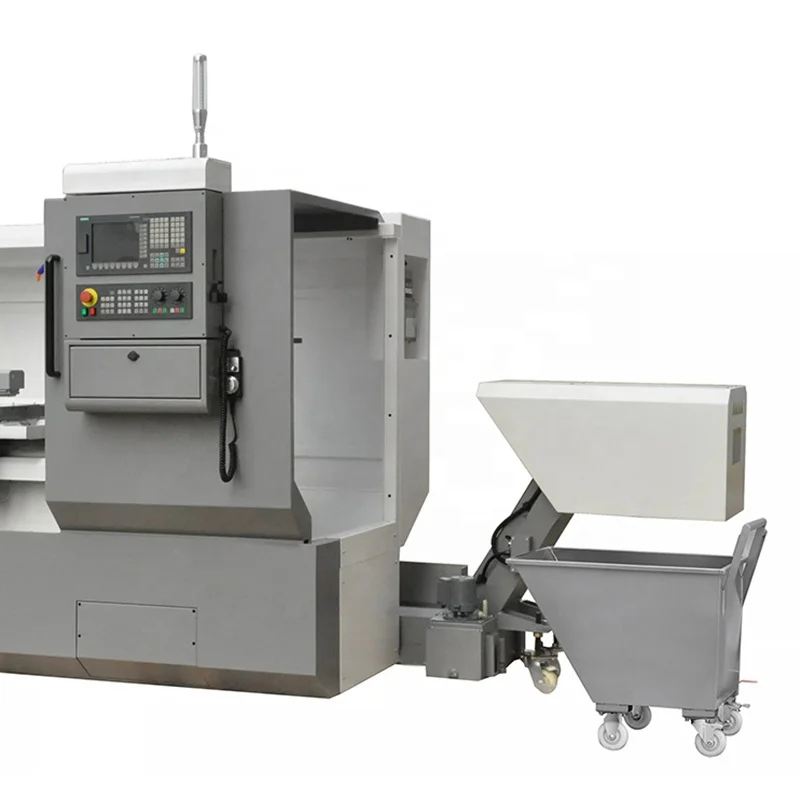

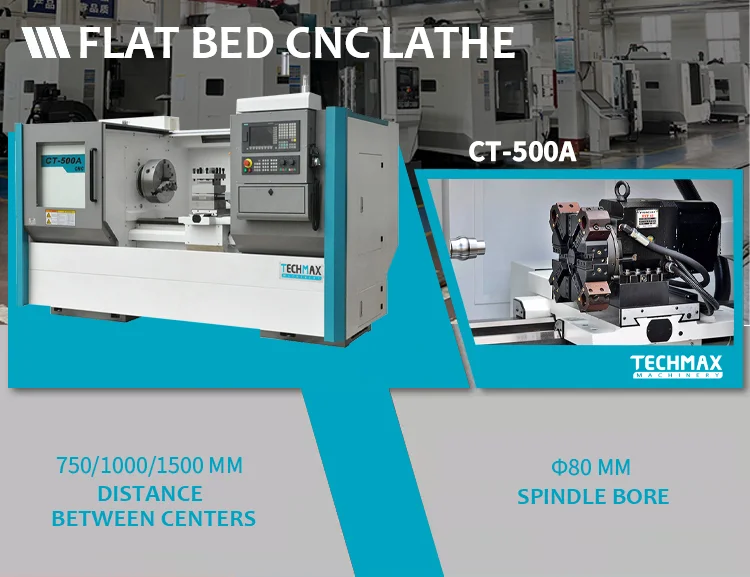

Good Precision Medium Duty Metal Center Cnc Lathe Machines CT400A CT460A CT500A Horizontal Lathe
- Category: >>>
- Supplier: Hangzhou Techmax Precision Machinery Co. Ltd.
Share on (1600725804692):
Product Overview
Description
▪ Electronic handwheel for manual travel of X- and Y-axis come standard
▪ Wide cross slide allows mounting of various tool post holders
▪ Stable tailstock with hydraulically adjustable tailstock spindle
▪ High rapid feed allows significant reduction of downtime.
▪ Main spindle features pre-tightened high-quality angular bearings, guarantees best
possible accuracy
▪ User-friendly, easy-to-understand Fanuc control 0i TF (5)
▪ Solid headstock features precisely bedded main spindle (spindle bore Φ80 mm)
▪ Wide cross slide allows mounting of various tool post holders

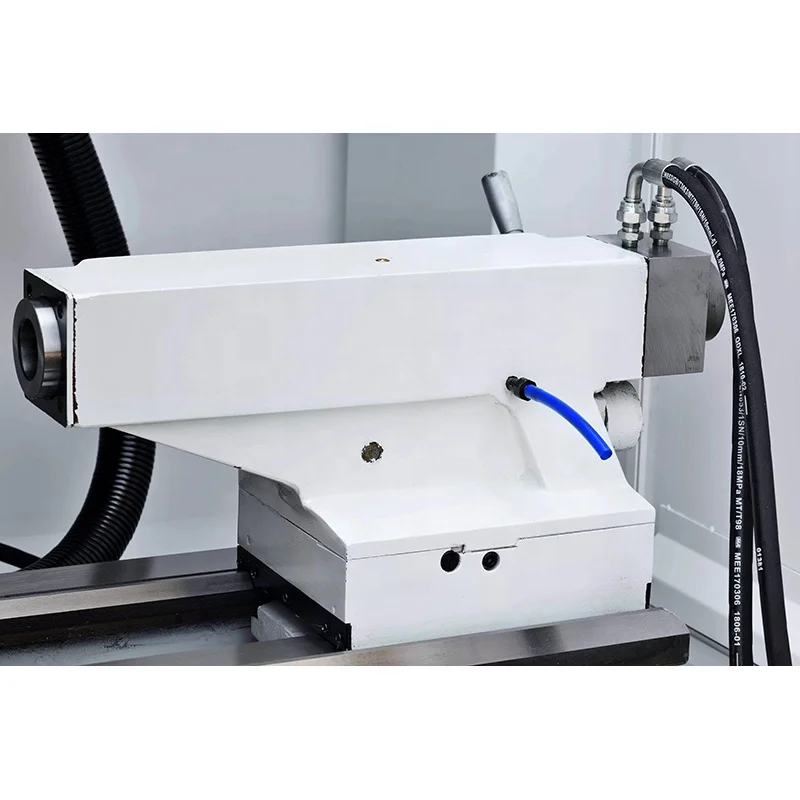

▪ Stable tailstock with hydraulically adjustable tailstock spindle
▪ High rapid feed allows significant reduction of downtime.
▪ Main spindle features pre-tightened high-quality angular bearings, guarantees best
possible accuracy
▪ User-friendly, easy-to-understand Fanuc control 0i TF (5)
▪ Solid headstock features precisely bedded main spindle (spindle bore Φ80 mm)
Siemens or Fanuc CNC System

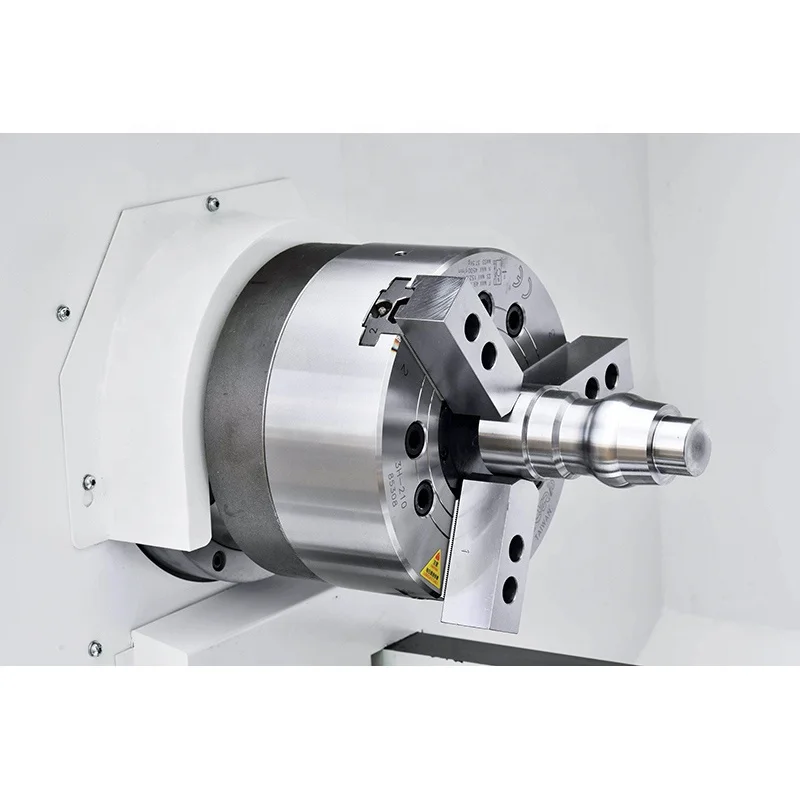

3-Jaw Hydraulic Chuck

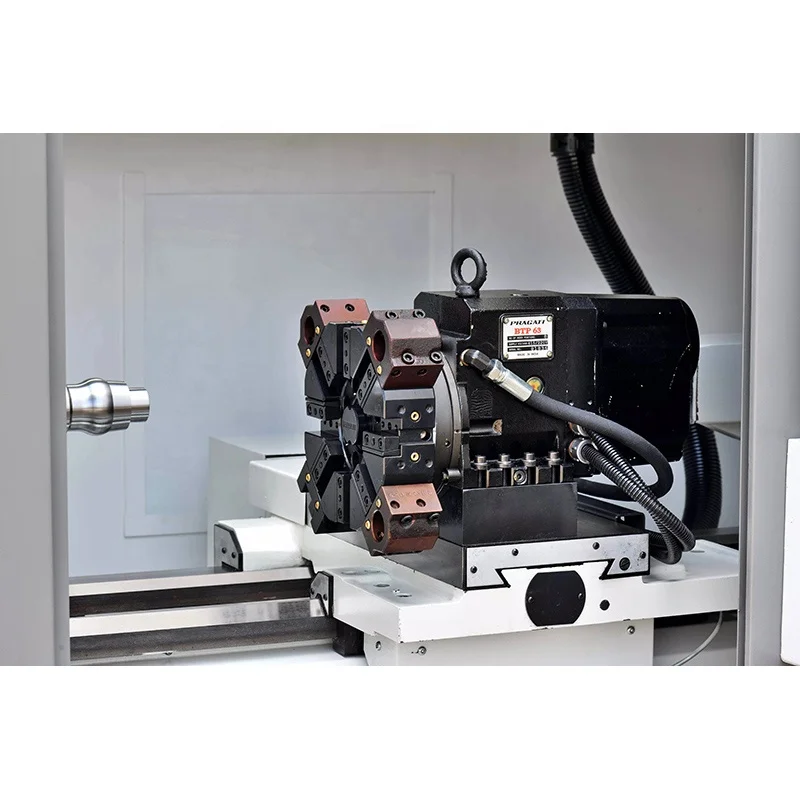

6-station electrical tool changer
Technical Parameters
Model | CT-400A | CT-460A | CT-500A |
CAPACITY: | |||
Swing over bed | Φ400 mm | Φ460 mm | Φ500 mm |
Swing over cross slide | Φ210 mm | Φ240 mm | Φ280 mm |
Distance between centers | 750/1000/1500 mm | 750/1000/1500 mm | 750/1000/1500 mm |
Max. turning length | 600/850/1350 mm | 600/850/1350 mm | 600/850/1350 mm |
6-station turret max. turning length | 430/680/1180 mm | 430/680/1180 mm | 430/680/1180 mm |
6-station turret max. turning diameter | Φ295 mm | Φ340 mm | Φ340 mm |
Manual chuck dia. | 8" (200); 10" (250); 12" (305) /(mm) | 8" (200); 10" (250); 12" (305) /(mm) | 8" (200); 10" (250); 12" (305) /(mm) |
Hydraulic chuck dia. | 8" (200); 10" (250); 12" (305) /(mm) | 8" (200); 10" (250); 12" (305) /(mm) | 8" (200); 10" (250); 12" (305) /(mm) |
TRAVEL: | |||
Cross slide travel (X-axis) | 250 mm | 280 mm | 280 mm |
when using stationary cutting blocks | 320 mm | 320 mm | 320 mm |
Longitudinal travel (Z-axis) | 710/960/1460 mm | 710/960/1460 mm | 710/960/1460 mm |
X/Z-axis guide rails | sliding type | sliding type | sliding type |
X/Z-axis ball screw dia. × thread pitch. accuracy class | Φ25×4 / Φ40×6 mm | Φ25×4/Φ40×6 mm | Φ25×4/Φ40×6 mm |
SPINDLE: | |||
Spindle speed | 100-2000 rpm | 100-2000 rpm | 100-2000 rpm |
Spindle taper | D8 / МK-7 | D8/МK-7 | D8/МK-7 |
Spindle bore | Φ80 mm | Φ80 mm | Φ80 mm |
Hole diameter (Hydraulic chuck) | Φ52; 75; 91 mm | Φ52; 75; 91 mm | Φ52; 75; 91 mm |
Draw pipe inner diameter (Hydraulic chuck) | Φ52; 75 (option) mm | Φ52; 75 (option) mm | Φ52; 75 (option) mm |
Max. bar diameter (hydraulic chuck) | Φ48; 63 (option) mm | Φ48; 63 (option) mm | Φ48; 63 (option) mm |
TOOL: | |||
Tool station number | 4; 6; 8 pcs | 4; 6; 8 pcs | 4; 6; 8 pcs |
Tool section size | 25×25; 20×20 (6 station BWD) mm | 25×25; 20×20 (6 station BWD) mm | 25×25; 20×20 (6 station BWD) mm |
Max. tool diameter | Φ20 (6 station BWD) mm | Φ20 (6 station BWD) mm | Φ20 (6 station BWD) mm |
TAIL STOCK: | |||
Tailstock quill taper | MK-4 | MK-5 | MK-5 |
Tailstock quill diameter | Φ75 mm | Φ75 mm | Φ75 mm |
Tailstock quill travel | 130 mm | 130 mm | 130 mm |
ACCURACY: | |||
Positioning accuracy | ±0.016 mm | ±0.016 mm | ±0.016 mm |
Repeatability | ±0.009 mm | ±0.009 mm | ±0.009 mm |
SPEED: | |||
X/Z-axis rapid traverse | 8 / 10 m/min | 8/10 m/min | 8/10 m/min |
COOLANT: | |||
Coolant pump power | 0.09 kw | 0.09 kw | 0.09 kw |
Hydraulic station power | 0.75 kw | 0.75 kw | 0.75 kw |
POWER: | |||
Main motor power | 5.5; 7.5 kw | 5.5; 7.5 kw | 5.5; 7.5 kw |
Main motor torque | 57; 76 N.m | 57; 76 N.m | 57; 76 N.m |
Spindle torque | 142; 190 N.m | 142; 190 N.m | 142; 190 N.m |
Max. torque on the spindle | 450 N.m | 450 N.m | 450 N.m |
DIMENSIONS: | |||
Overall dimensions (L×W×H) | 2060/2310/2790×1345×1600 mm | 2060/2310/2790×1345×1600 mm | 2060/2310/2790×1345×1600 mm |
Weight approx. | 2170/2250/2800 kg | 2200/2350/2900 kg | 2200/2350/2900 kg |

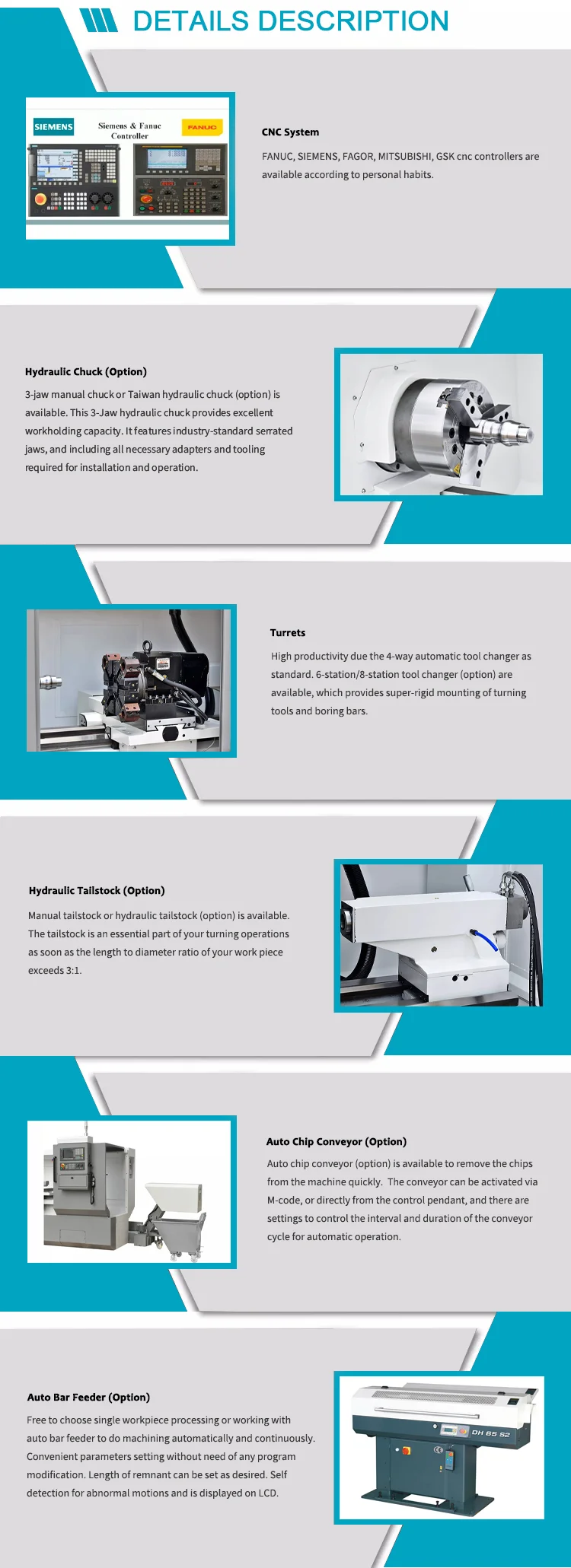

Detailed Description
FAQ
1. How can I choose the most suitable machines ?
Re: Please tell us your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
You can also send us the products drawing ,we will choose the most suitable machines for you.
2. What's your main products of your company?
Re: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3. What kinds of inspection you will do for each machine?
Re: For each assembly procedure, there is geometric accuracy test. After assembly, spindle accuracy will be tested by dynamical balance testing instrument; 3 axes accuracy will be tested by Ball bar. And laser interferometer to inspect positioning and repositioning accuracy. Then the inspection team will make full test before delivery and test piece will be done on each machine. Each workpiece will be inspected by CMM, so each machine performance can be checked and kept in record.
4. Can you supply turn-key solution?
Re: Of course, we have professional team of technical service & after sale service department, who can give you the perfect solution and meet your processing requirement. Besides, we also cooperated with professional fixture company and support with us.
5. What is the warranty time of machine?
Re: We have 14 months warranty after delivery. Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts from free. Even beyond the period, we will still supply the replacing parts with cost price.
6. What’s the delivery time, and what’s the package?
Re: Normally the delivery time is about 45-60 days. All our CNC machines are packed with the seaworthy wooden case/pallet, also applied with anti rust measures in advance. View drawing together if any parts disassembled.
