Metallized polypropylene film capacitor CBB21 CBB22 high insulation resistance long life due to self healing effect capacitors

Item Name

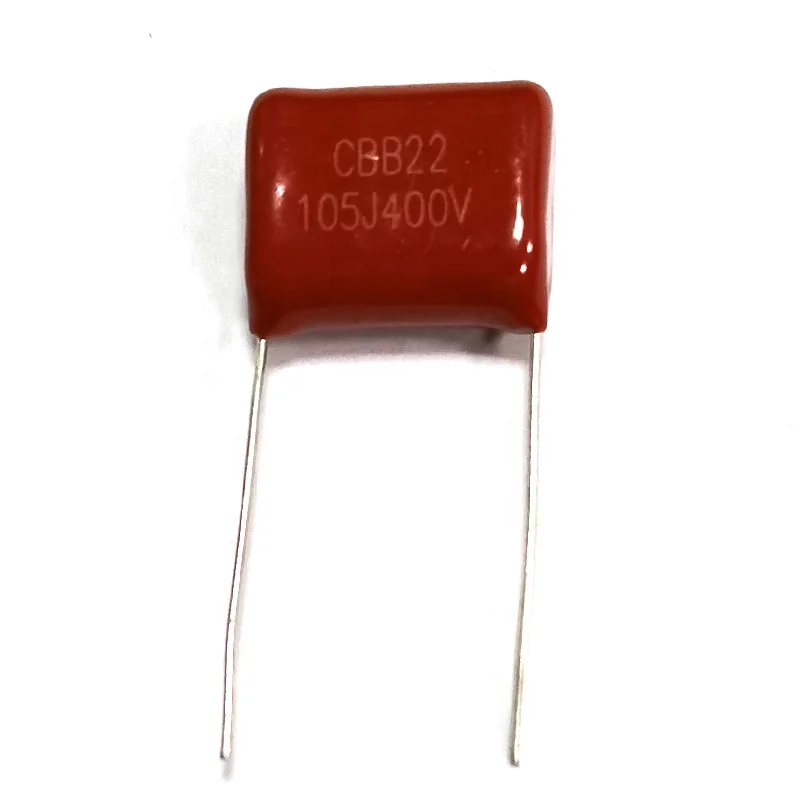

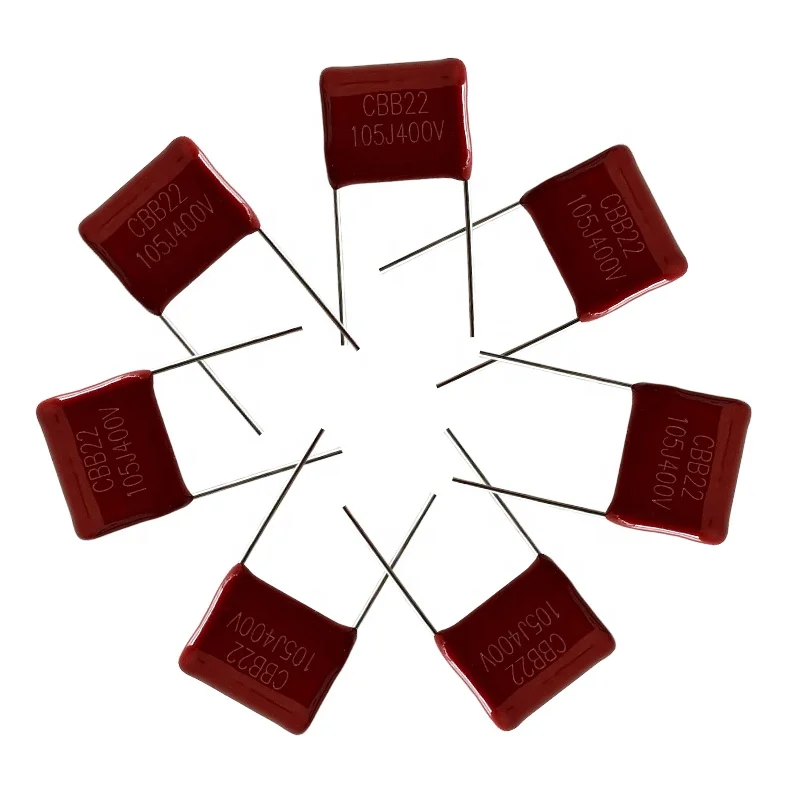

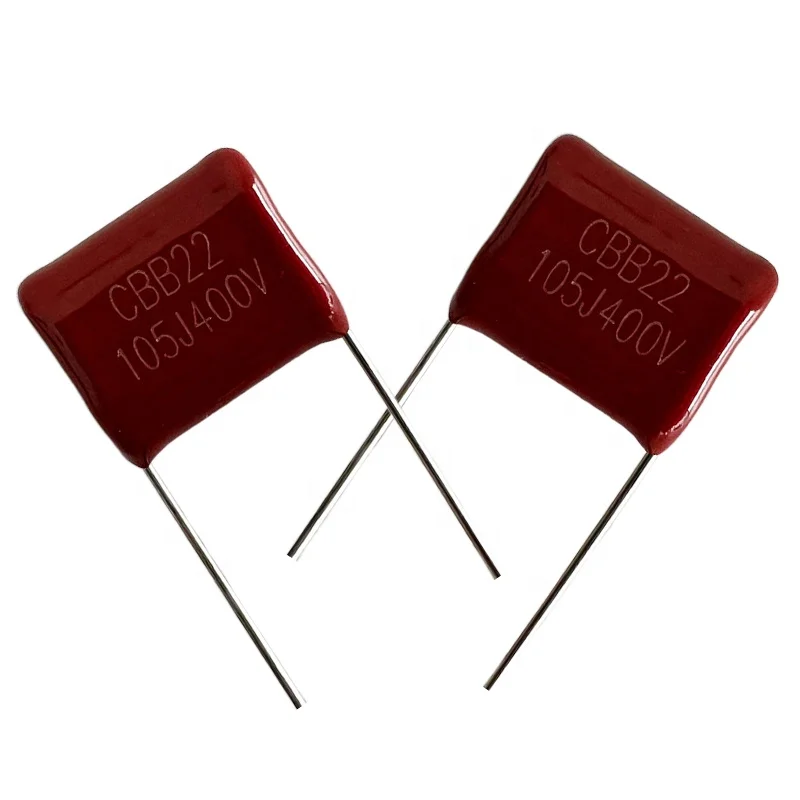

Metallized Polypropylene Film Capacitor,CBB22

Model Number

CBB22 105J400V P15

CBB22 105J400V P20

Structural materials

CBB22 are non-inductively wound with metallized polypropylene film as the dielectric/electrode with copper-clad steel leads and epoxy resin coating

Parameter

105J 1.0uf 400V

Pin distance

P15  P20

Specification:

Rated voltage:100V,160V,250V,400V,630V

Capacitance range:0.0047-3.3UF

Capacitance tolerance: ±5%(J) ±10%(k) ±20%(M)

Operating temperature:40/85/21

Voltage proof:1.5UR(5s)

Dissipation Factor:≤0.1%(20℃,1kHz)

Features:

1.Very low loss at high frequency ,suitable for high current

2.High insulation resistance,long life due to self- healing effect

3.Widely used in high frequency ,DC,AC and pulse ciruits

Customization:

Rated voltage,Capacitance range,Capacitance tolerance,Impedance, Shape, Size, Material,Certification..
