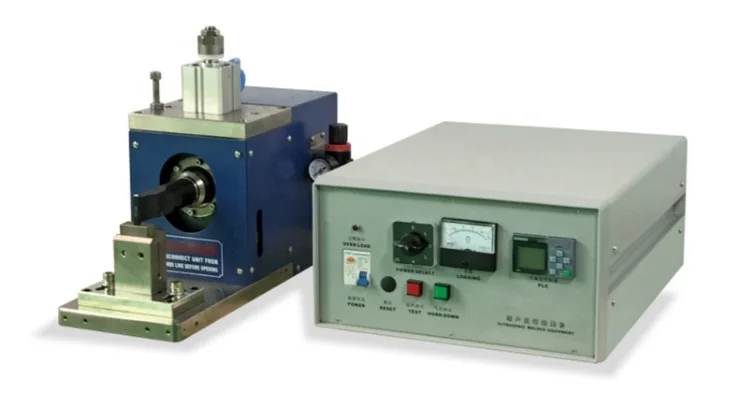

 Ultrasonic Metal Welding Machine for Li-ion Battery Electrode

Product Description



1) This ultrasonic spot welder is worked through solid phrase weld, and the weldments are effected by high-mode vibration and the stress of all the work pieces.

2) Max output power:2500w

3) ultrasonic frequency:20Hz

4) input voltage:220V/50Hz

5) air supply:0.5-0.6Mpa

6) control way:CPU

7)welding time:0.1-1S

9) welding ability:stacked aluminum foil 10-40layers

    Al-Ni tabs:0.2mm

   stacked copper foil 10-40layers

   Ni+Ni tabs:0.2mm


Related Products

We can also provide:

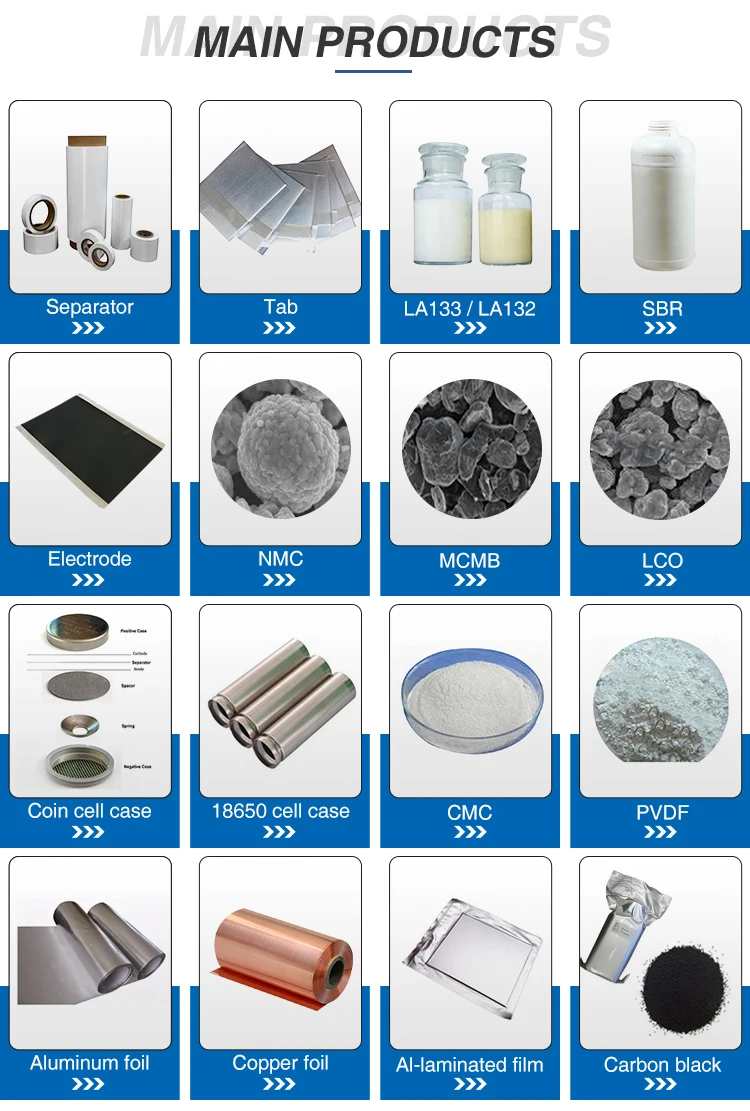

1.) A full set of lithium battery materials, including:
LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2, graphite (MCMB) and other positive and negative battery materials; aluminum foil, copper foil, battery separator, etc.

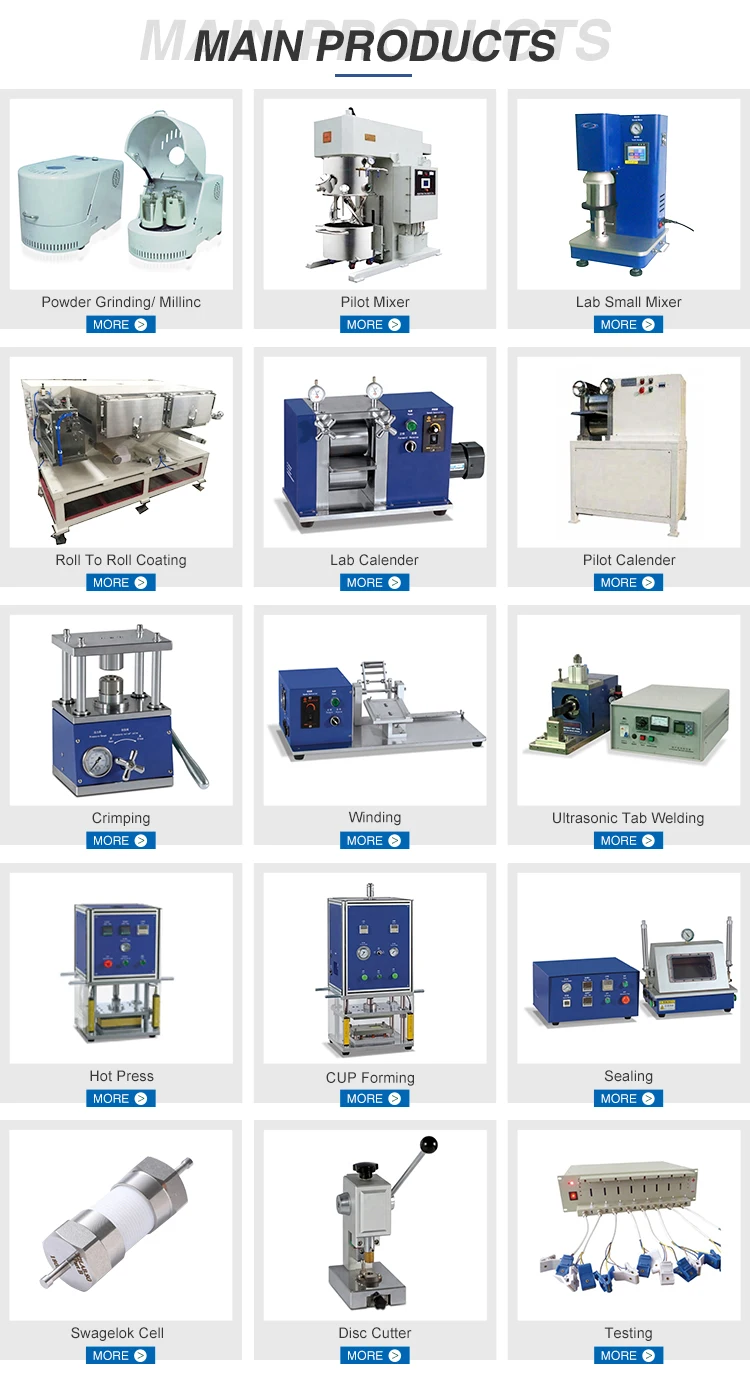

2.) A full set of lithium battery equipment, such as:
Mixer--coating machine--oven--rolling machine--welding machine--slitting/cutting machine--winding machine--sealing machine, etc.


Company Information


Our Services


Packaging & Shipping



Q1:When can I get the quote?

A1:We usually quote within 48 hours after we get your inquiry.

Q2:Can you do the design for us?

A2:We can specially customize according to your technical requests.

Q3:What is your terms of delivery?

A3:We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.

Q4:what about the after-sale service?

A4:A years warranty and lifetime free technical support.

Q5:Can we visit your factory?

A5:Yes,of course.Welcome to China to visit our factory.
