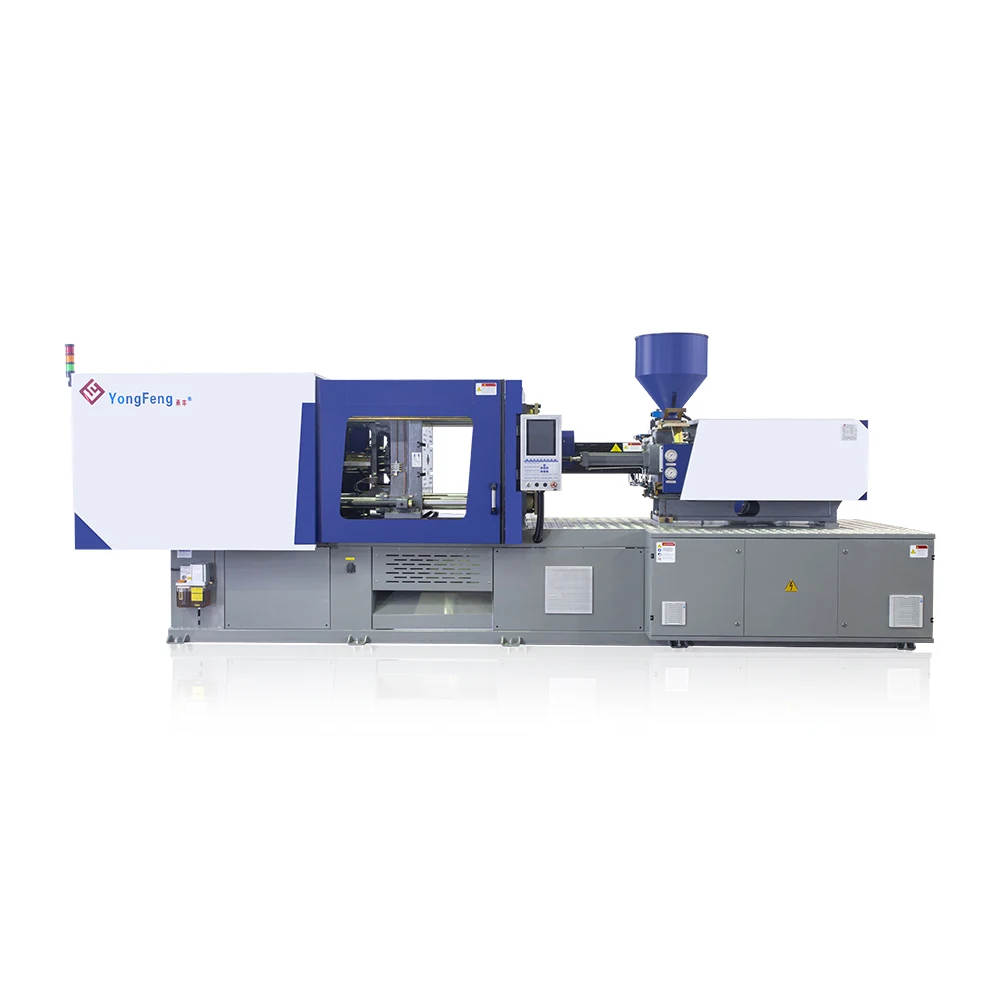

250Ton Injection Molding Machine With Servo Motor For Food Container
- Category: >>>
- Supplier: Ningbo,Yongfeng,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
SPECIFICATION | JM-250 | ||||||
INJECTION UNIT | A | B | C | ||||
Screw diameter | mm | 45 | 50 | 55 | |||
Screw L/D ratio | L/D | 22 | 20 | 18 | |||
Shot volume | cm³ | 374 | 461 | 558 | |||
Injection weight | g | 340 | 420 | 508 | |||
Injection pressure | Mpa | 174 | 141 | 117 | |||
Screw speed | rpm | 200 | |||||

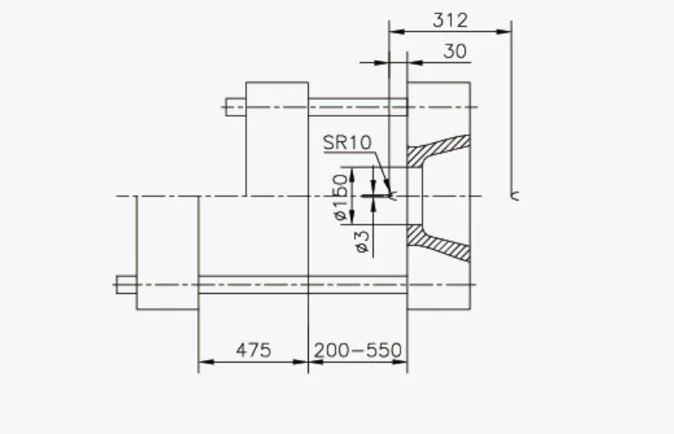

CLAMPING UNIT | |||||||
Clamping force | KN | 2500 | |||||
Opening stroke | mm | 470 | |||||

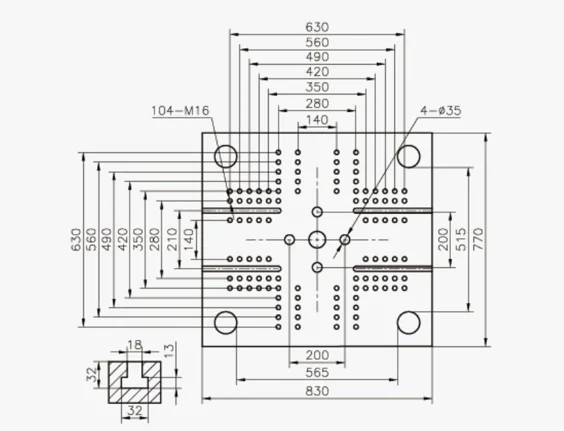

Distance between tie bar | mm | 570X520 | |||||
Max.Mold height | mm | 560 | |||||
Min.Mold height | mm | 190 | |||||
Ejection stroke | mm | 140 | |||||
Ejection force | KN | 62 | |||||
OTHERS | |||||||
Motor power | KW | 28.7 | |||||
Heating power | KW | 15.9 | |||||
Machine dimension(LxWxH) | m | 5.50X1.65X2.15 | |||||
Machine weight | t | 7.2 | |||||
Details Images
Product Advantage
According to different products, Yongfeng company has designed screws of different specifications with high precision and low energy consumption, which are suitable for any Mold. the clamping force of Yongfeng injection molding machine Is 130 To 150 Tons, and the pressing plate Is made of steel plate, which makes the injection molding machine more stable, safe and with longer service life.

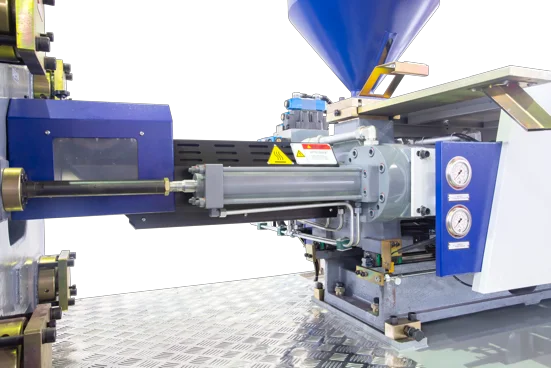

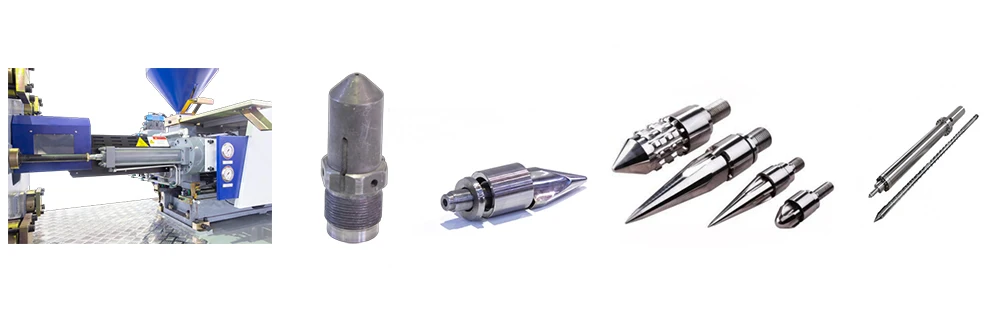

Injection Unit
· Injection unit use double cylinder, double guided system, it can help to reduce the return oil pressure to improve the injection speed and service life.
· Double linear can balance barrel and improve the injection accuracy.
· Original imported nozzle, valve and seals to prevent the nozzle from leaking.
· Thickness the barrel and high-power heating device to improve plasticizing capacity.
· Injection unit use double cylinder, double guided system, it can help to reduce the return oil pressure to improve the injection speed and service life.
· Double linear can balance barrel and improve the injection accuracy.
· Original imported nozzle, valve and seals to prevent the nozzle from leaking.
· Thickness the barrel and high-power heating device to improve plasticizing capacity.

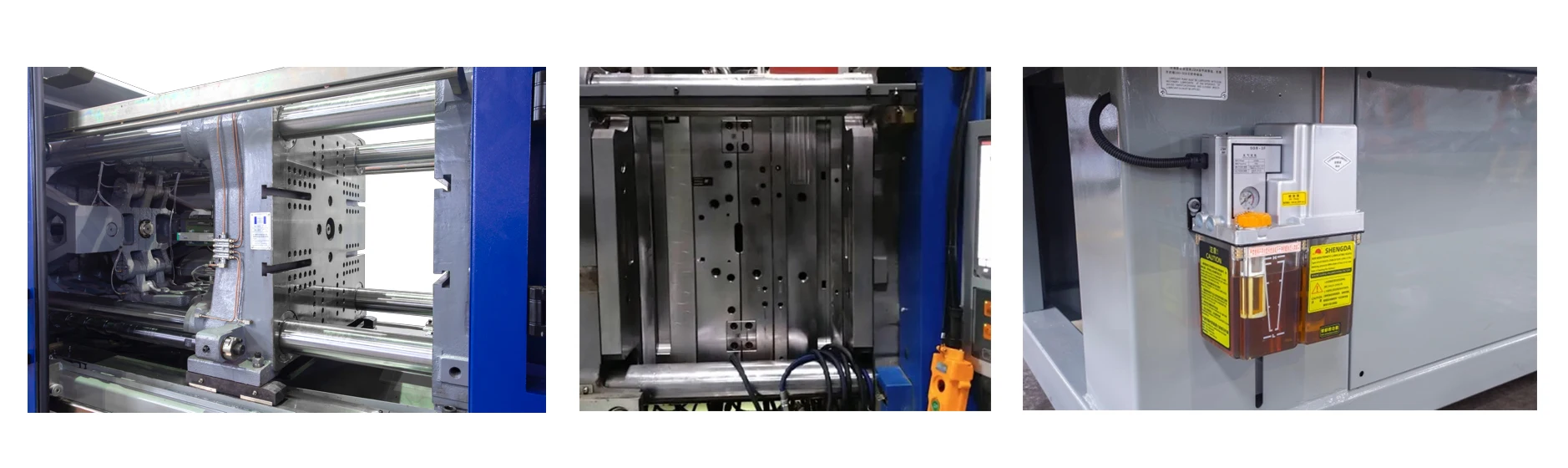

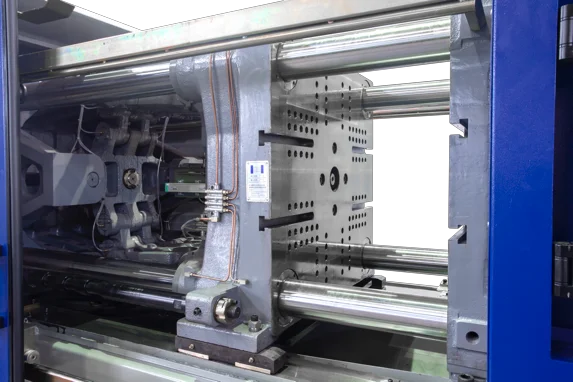

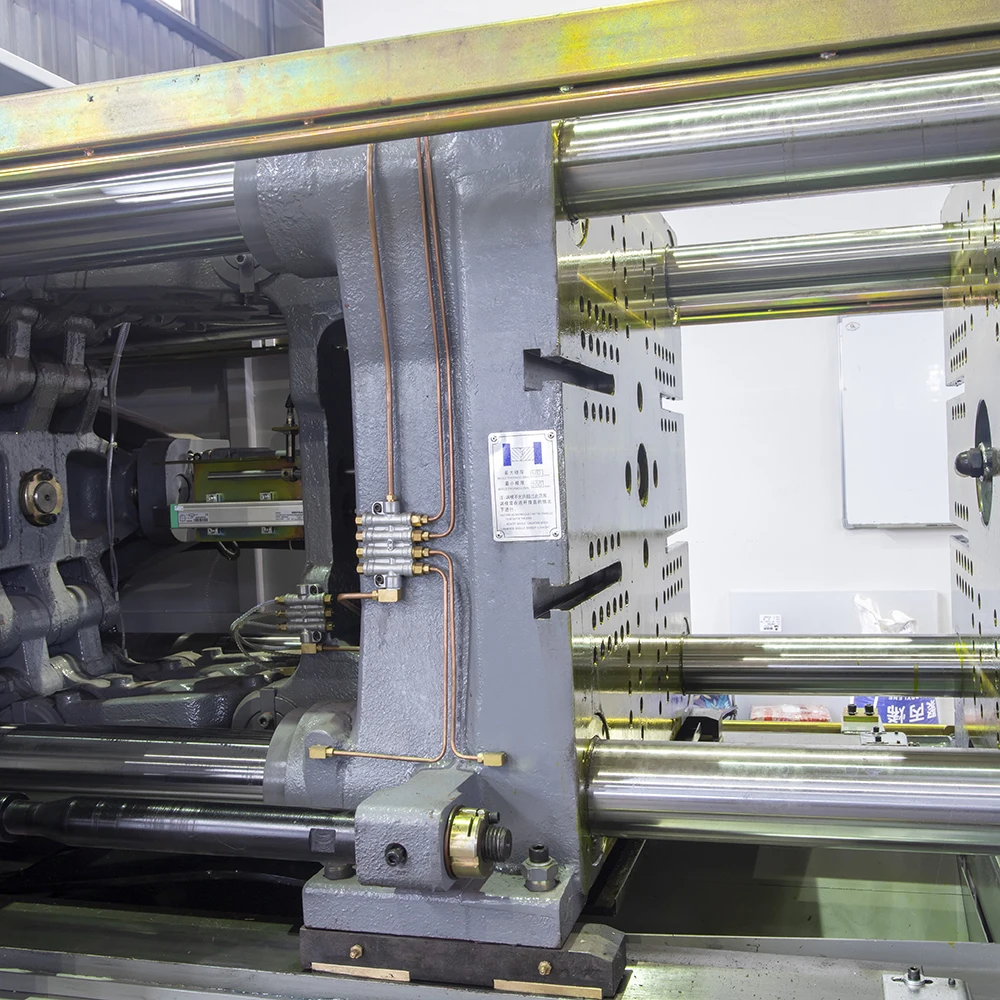

Clamping Unit
· A joint structure is used for the front connection rod to improve the connecting rods rigidity and reduce the clearance between the cylinder liner and pin. It can ensure the accuracy and service life of linkage.
· Line filter is used to reduce the machine shutdown- Time.
· Box structure design with thickened template and internal ribs to reduce the bending deformation of tie rod, and improve the head plate rigidity.
· The gear adjustment mode has high accurate and synchronization.
· Rotating products hopper, taking products from multiple-directions.
· A joint structure is used for the front connection rod to improve the connecting rods rigidity and reduce the clearance between the cylinder liner and pin. It can ensure the accuracy and service life of linkage.
· Line filter is used to reduce the machine shutdown- Time.
· Box structure design with thickened template and internal ribs to reduce the bending deformation of tie rod, and improve the head plate rigidity.
· The gear adjustment mode has high accurate and synchronization.
· Rotating products hopper, taking products from multiple-directions.

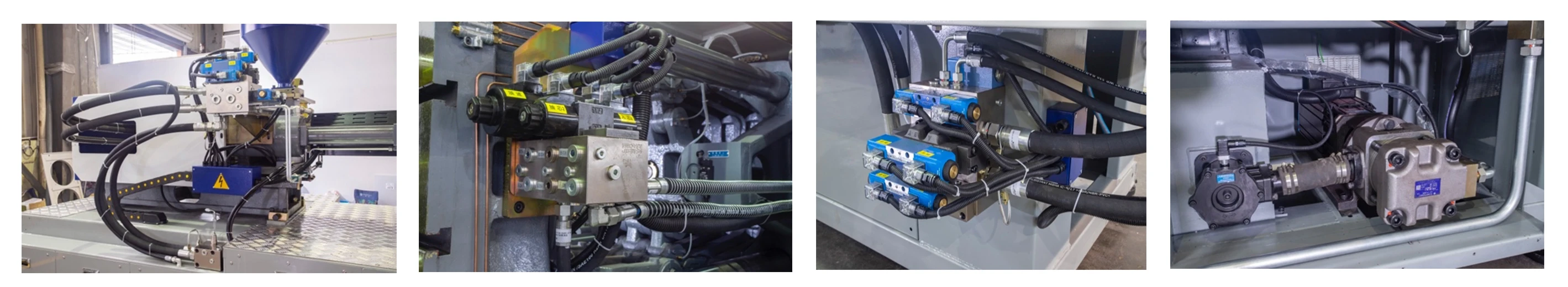

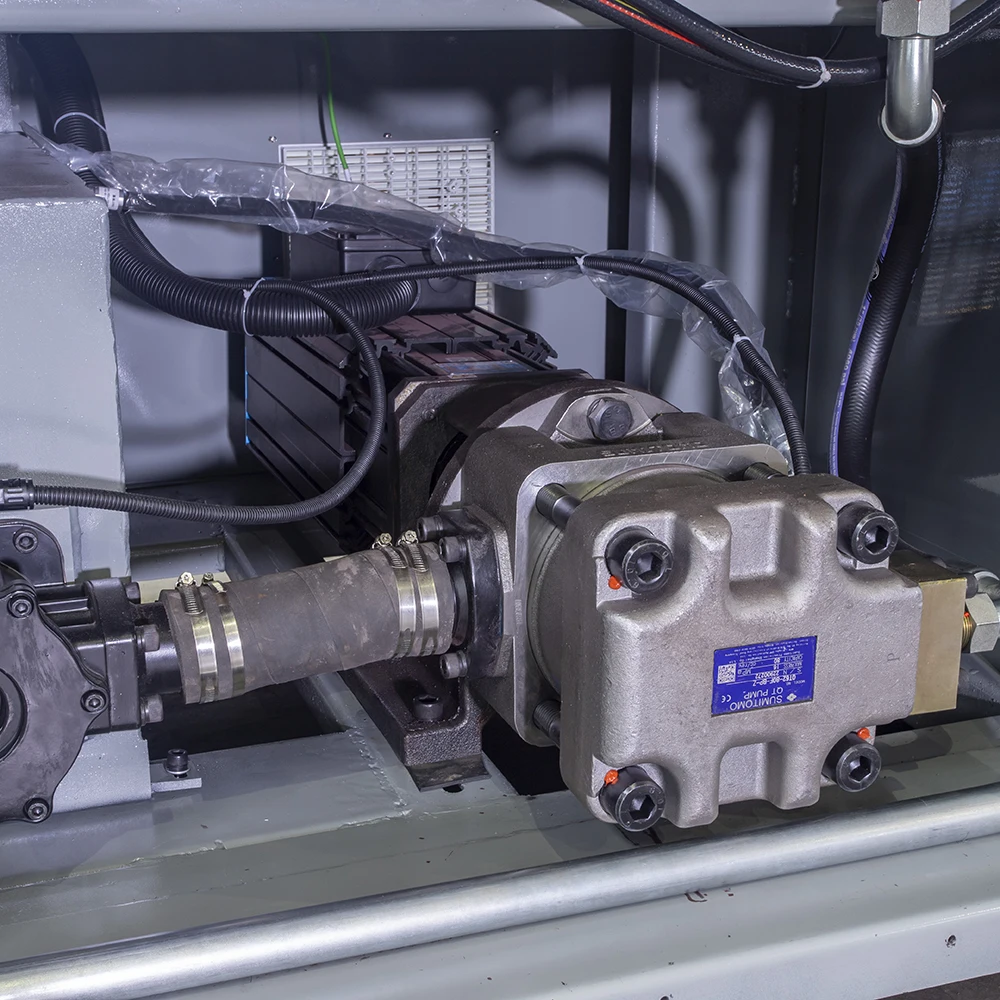

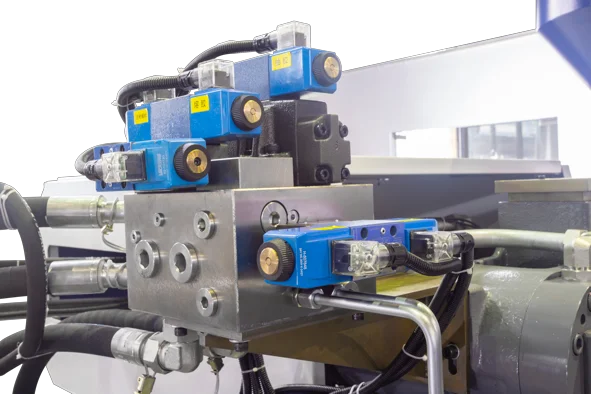

Hydraulic Unit
· The hydraulic unit is redesigned to be reasonable and with high integration.
· High response oil circuit and hydraulic valve plate modular design to reduce pressure loss and improve response.
· Standard with the high efficiency servo motor system configuration, the output drive system is adjusted varies with the load, avoid energy waste. Compared with traditional injection machine, it can save 20-80% energy.
· The hydraulic unit is redesigned to be reasonable and with high integration.
· High response oil circuit and hydraulic valve plate modular design to reduce pressure loss and improve response.
· Standard with the high efficiency servo motor system configuration, the output drive system is adjusted varies with the load, avoid energy waste. Compared with traditional injection machine, it can save 20-80% energy.

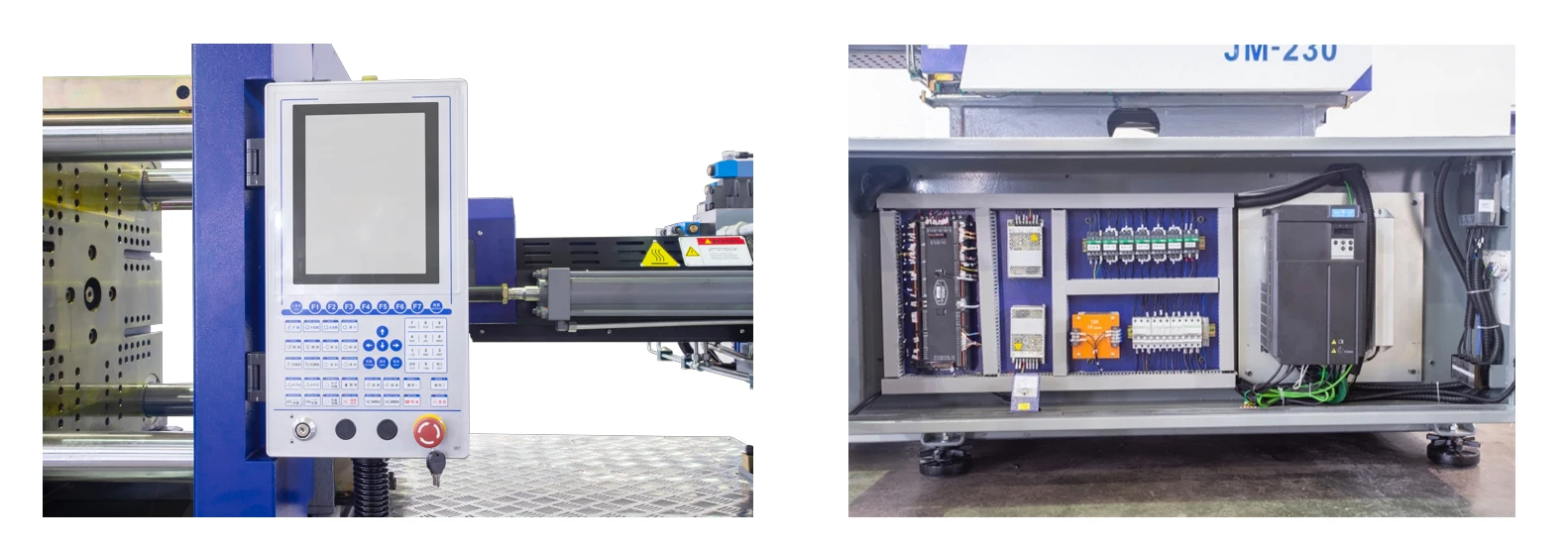

Electric Control Unit
High-performance controler, Large LCD Display and friendly operational system.
· Multi-language operation panel.
· Displays data in curves and text, it helps visualize and optimize parameter settings.
· MMC/SD connector, easy to save or copy data
· Equipped with mechanical arm electrical interface, applicable to various mechanical arms.
High-performance controler, Large LCD Display and friendly operational system.
· Multi-language operation panel.
· Displays data in curves and text, it helps visualize and optimize parameter settings.
· MMC/SD connector, easy to save or copy data
· Equipped with mechanical arm electrical interface, applicable to various mechanical arms.

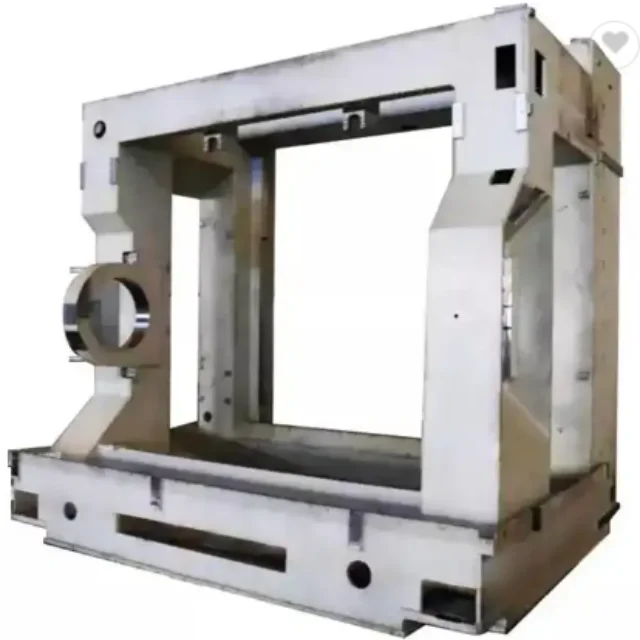

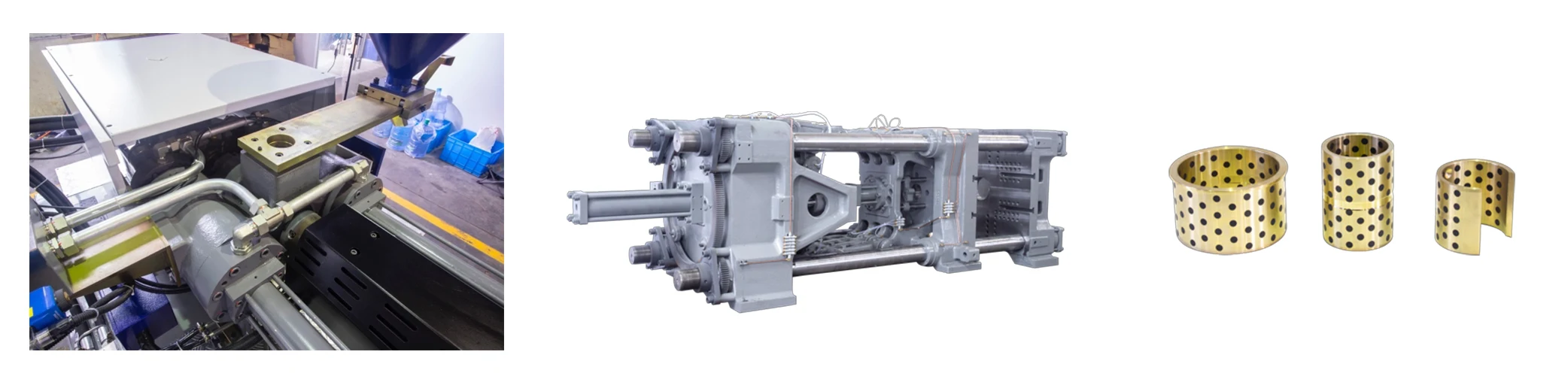

Mechanical Unit
· Steel-plate platens to ensure Yongfeng machine more steady, safe.
· High wear and rigidity resistance bushing to reduce machine downtime.
· Steel-plate platens to ensure Yongfeng machine more steady, safe.
· High wear and rigidity resistance bushing to reduce machine downtime.
Applications
Why Choose Us
Yongfeng as the professional and reliable plastic equipment manufacturing
high-tech enterprise.
· since 2017
· Annual production: 1000 sets precision injection machine.
· CE&ISO9001:2008 certified manufacture.
· 7*24 after service.
· Multiple screw options
· Energy-saving 30%-50%
· Pressure synchronization system
· Max shot weight
· since 2017
· Annual production: 1000 sets precision injection machine.
· CE&ISO9001:2008 certified manufacture.
· 7*24 after service.
· Multiple screw options
· Energy-saving 30%-50%
· Pressure synchronization system
· Max shot weight
Our service
Established distributors in different countries: Indonesia, Russia, Brazil, Pakistan, Colombia, Ethiopia, Etc. With a global sales network, we can provide more convenient and services.
· Lifetime support
24 hours online service and overseas installation and maintenance.
· Spare parts
We supplying screw, motor, control panel and plastic mold for machines.
· Operation training
Support training to engineer for setup, processing& troubleshooting.

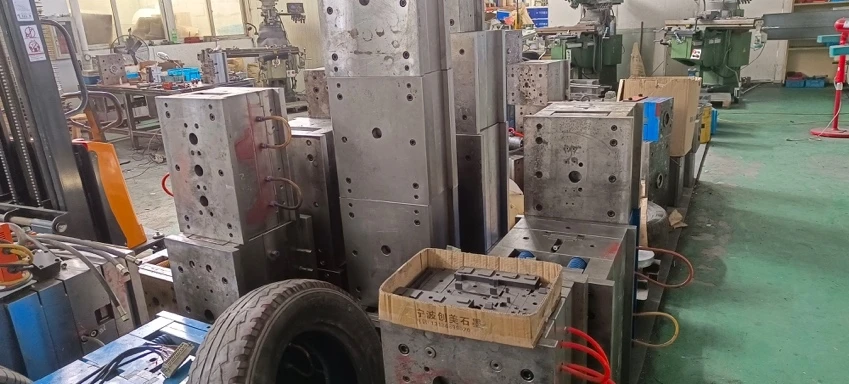

· Plastic mold testing
Provide testing mold service before customer receiving the machine.
· Lifetime support
24 hours online service and overseas installation and maintenance.
· Spare parts
We supplying screw, motor, control panel and plastic mold for machines.
· Operation training
Support training to engineer for setup, processing& troubleshooting.
· Plastic mold testing
Provide testing mold service before customer receiving the machine.

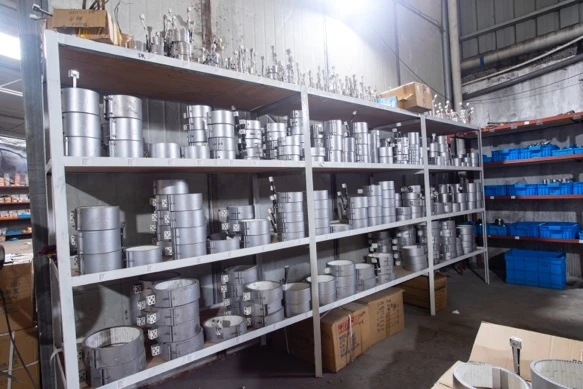

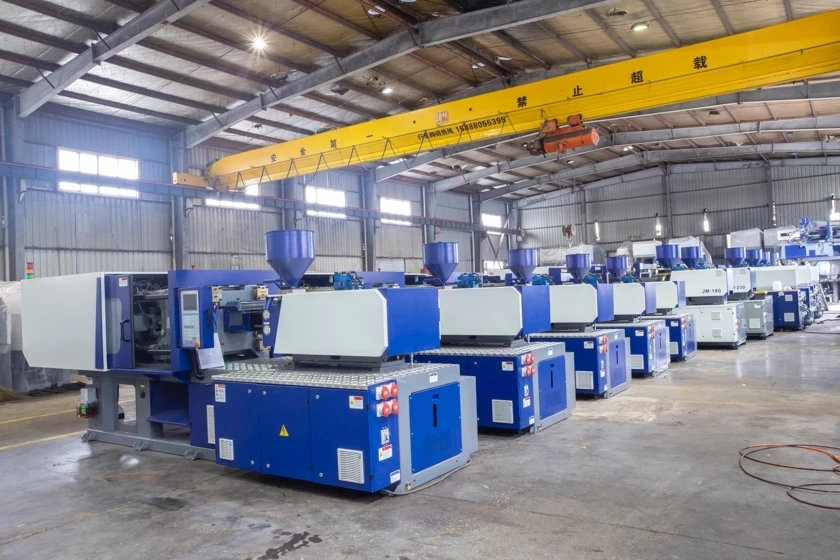

Factory Display
Factory Overview

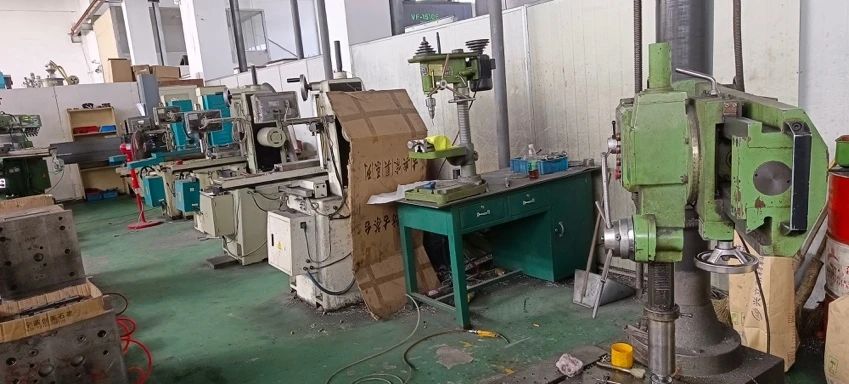

Producing Workshop

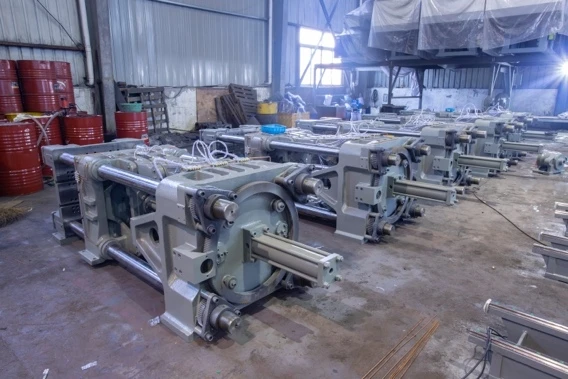

Assembly Area

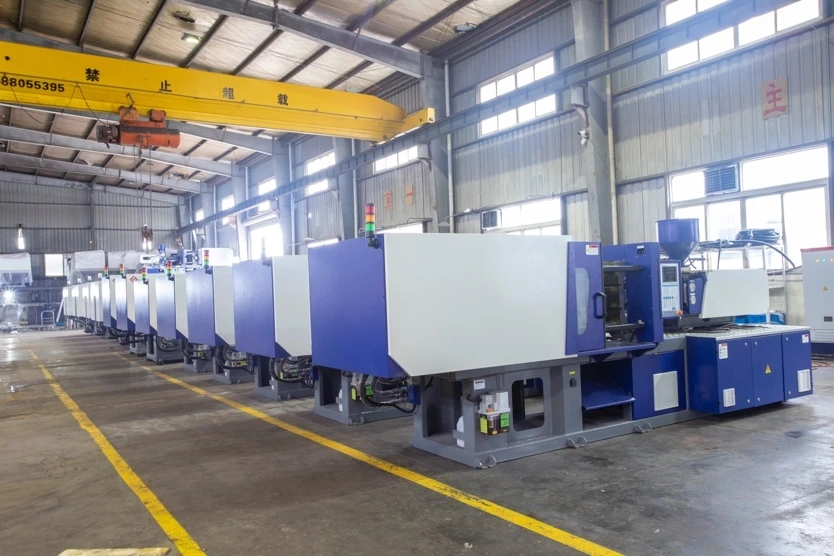

Finished Product Area

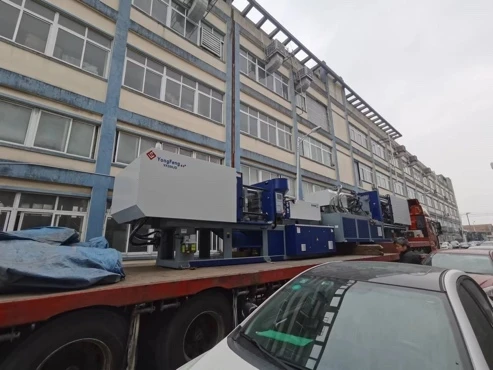

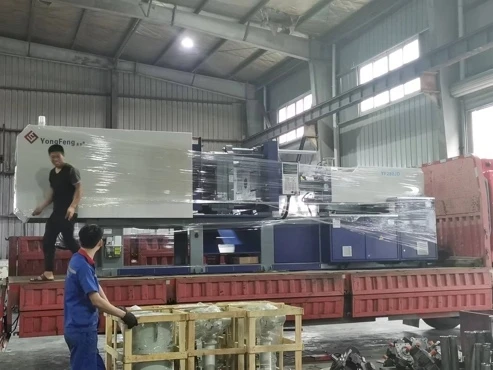

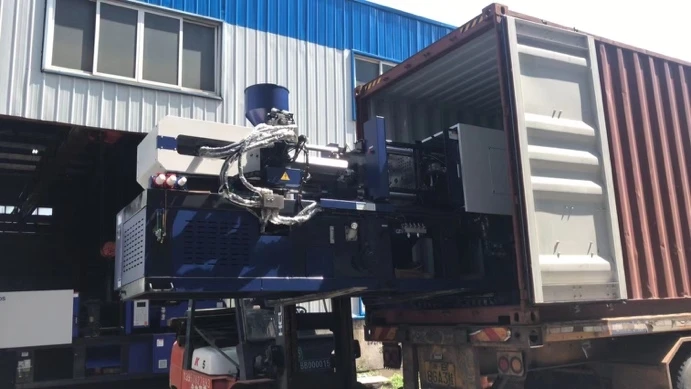

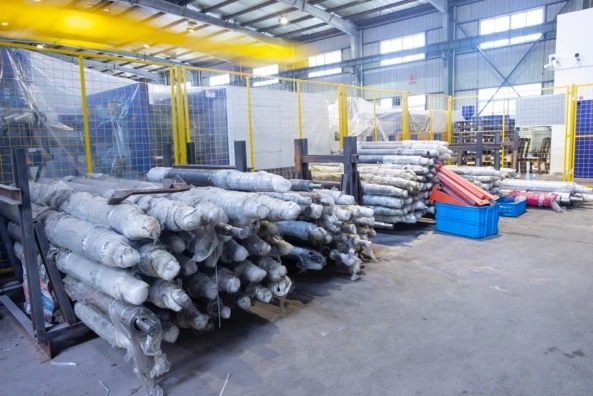

Packaging & Delivery
Packaging Details：nude package with protection film,
fixed by steel wires and wood
Port：NINGBO PORT,CHINA
fixed by steel wires and wood
Port：NINGBO PORT,CHINA
FAQ
Q1: Where is your factory located?
A1: Yongfeng Precision Injection Molding is located at Dongjiaqiao Village, Jishigang Town, Ningbo, Zhejiang, China.
Q2: Are you an integrated supplier for injection molding machine, mold, robot and auxiliary?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Yongfeng has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold and auxiliary selection but also water, electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also. Currently we provide visit online by video call for the COVID-19.
Q6: What is the delivery time of the machine?
A6: The delivery time of standard machine could be within 1-2 month
Q7: What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts
Q8: Mold trial will be available in Yongfeng factory ?
A8: Yes, Customer can send the mold to Yongfeng factory and test.
Q9: Do you provide any spare parts with machine?
A9: Yes, Yongfeng will provide one set standard spare parts to customer including heater, filter, screw head, screw washer, checking ring ,sealing, etc.
A1: Yongfeng Precision Injection Molding is located at Dongjiaqiao Village, Jishigang Town, Ningbo, Zhejiang, China.
Q2: Are you an integrated supplier for injection molding machine, mold, robot and auxiliary?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Yongfeng has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold and auxiliary selection but also water, electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also. Currently we provide visit online by video call for the COVID-19.
Q6: What is the delivery time of the machine?
A6: The delivery time of standard machine could be within 1-2 month
Q7: What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts
Q8: Mold trial will be available in Yongfeng factory ?
A8: Yes, Customer can send the mold to Yongfeng factory and test.
Q9: Do you provide any spare parts with machine?
A9: Yes, Yongfeng will provide one set standard spare parts to customer including heater, filter, screw head, screw washer, checking ring ,sealing, etc.
